CNC Lathes with Milling

Doosan Puma 2100SY 2013

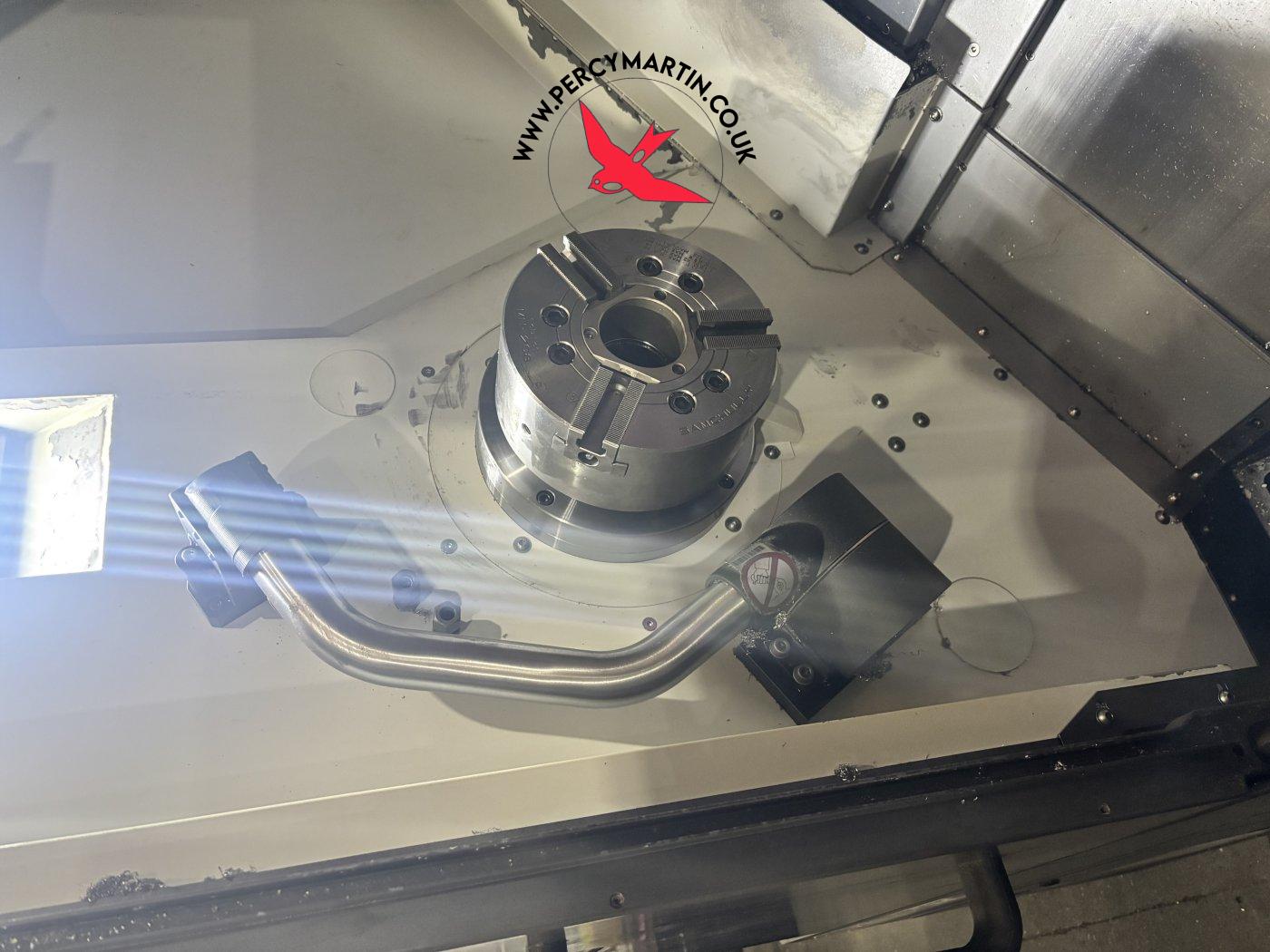

3 Jaw Chuck , C Axis (0.001degree) on Sub Spindle , C axis & Milling , Coolant , Interlocked guards , Low Volt Light , Manuals , Parts Catcher , Parts Conveyor , Sub Spindle , Swarf Conveyor , Tool setter , Tooling , Y-axis
Key Features Gallery Specifications More in Stock Register Interest

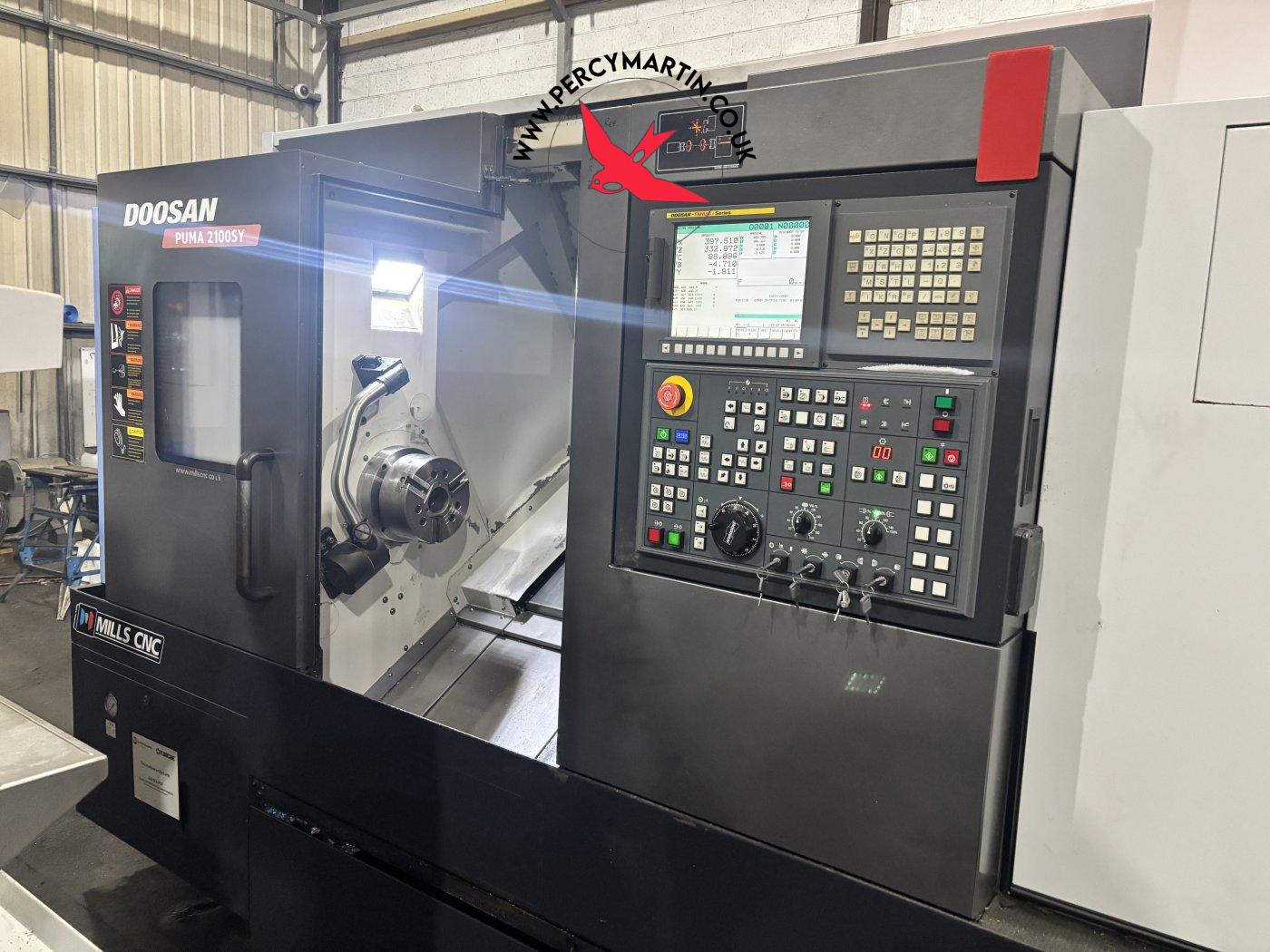

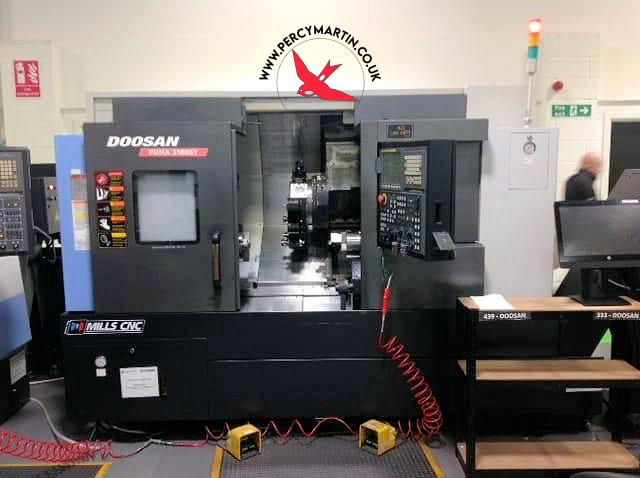

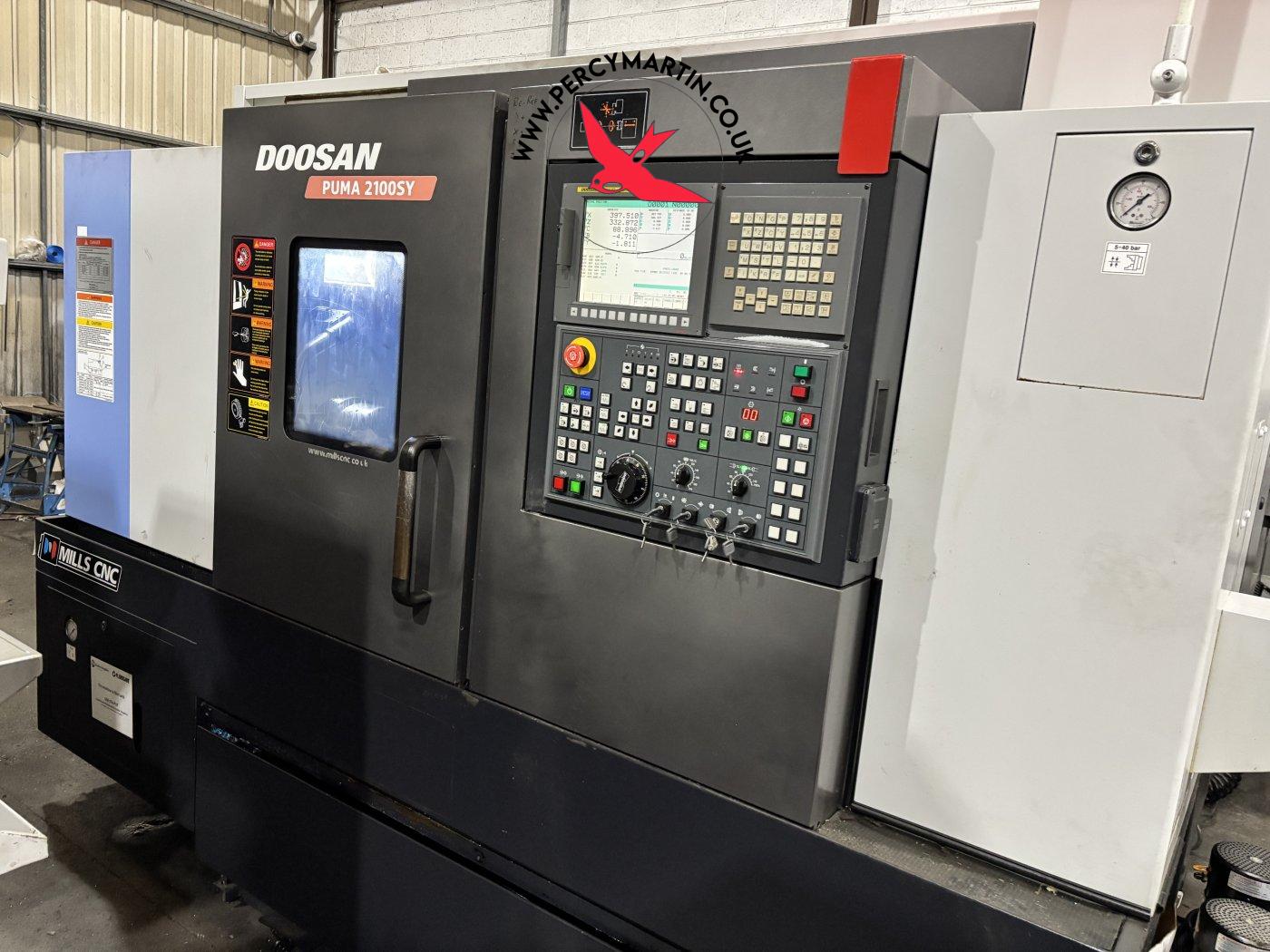

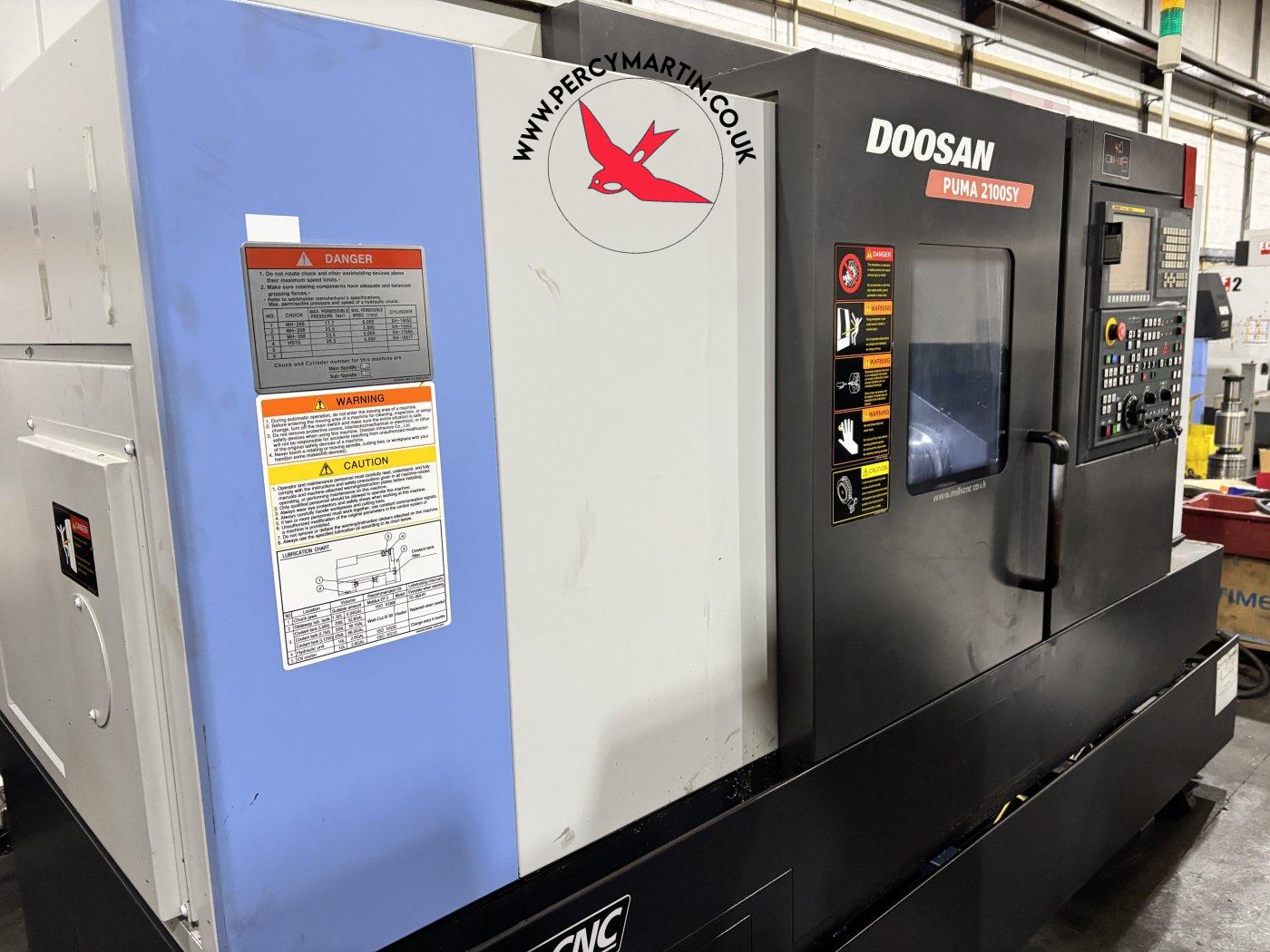

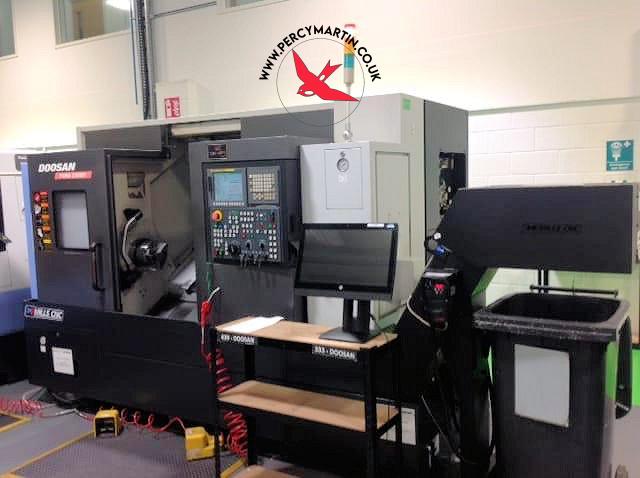

Doosan Puma 2100SY 2013

Key Features

Type:

CNC Lathes with Milling

Model:

Puma 2100SY

Make:

Doosan

Year:

2013

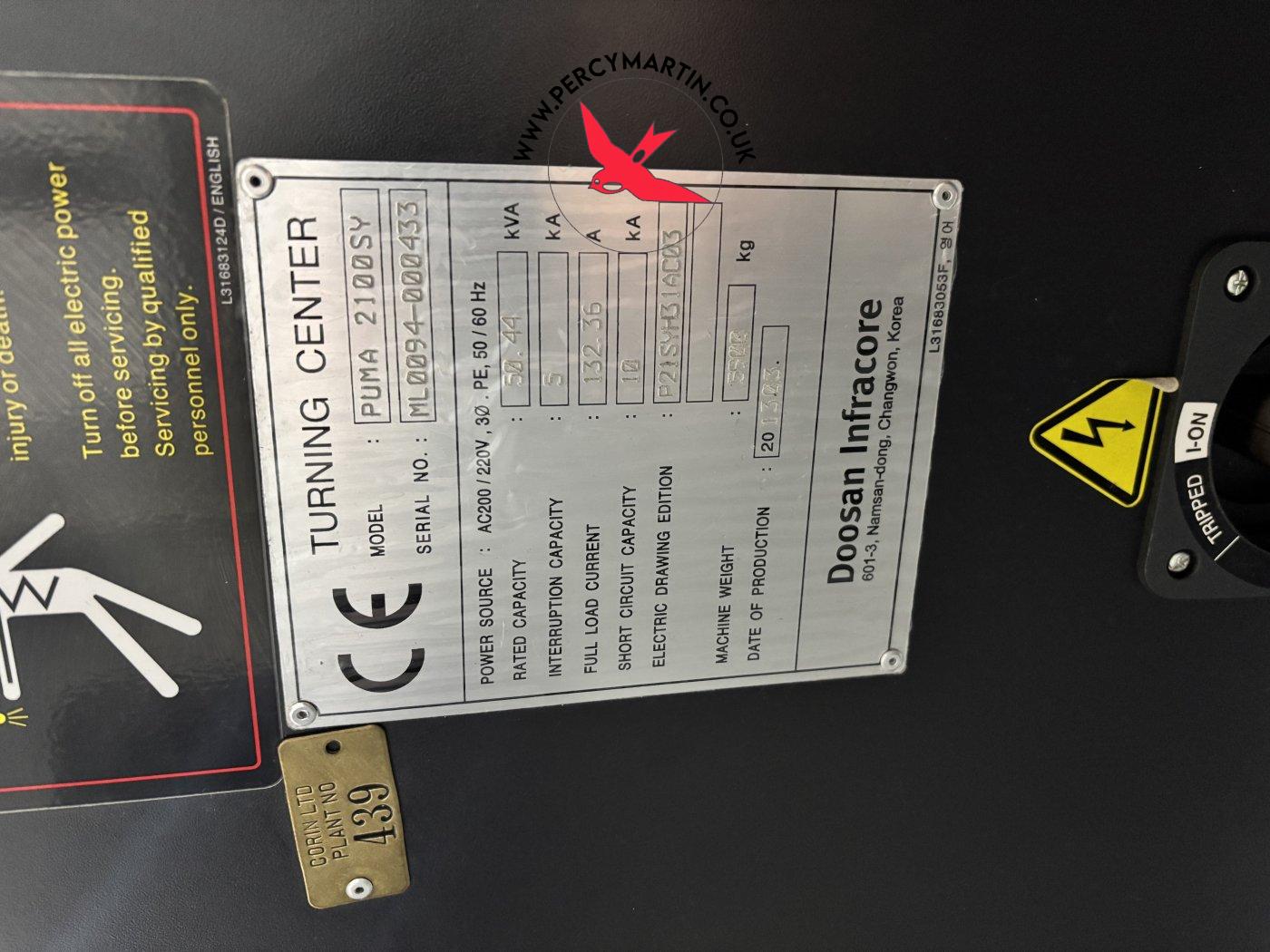

Serial No

ML0094-000433

Price

£POA

Our Reference

PM9262D

Location

Leicester

Doosan Puma 2100SY 2013

Specifications

Bar Capacity

65 mm

C axis

0.001 degrees

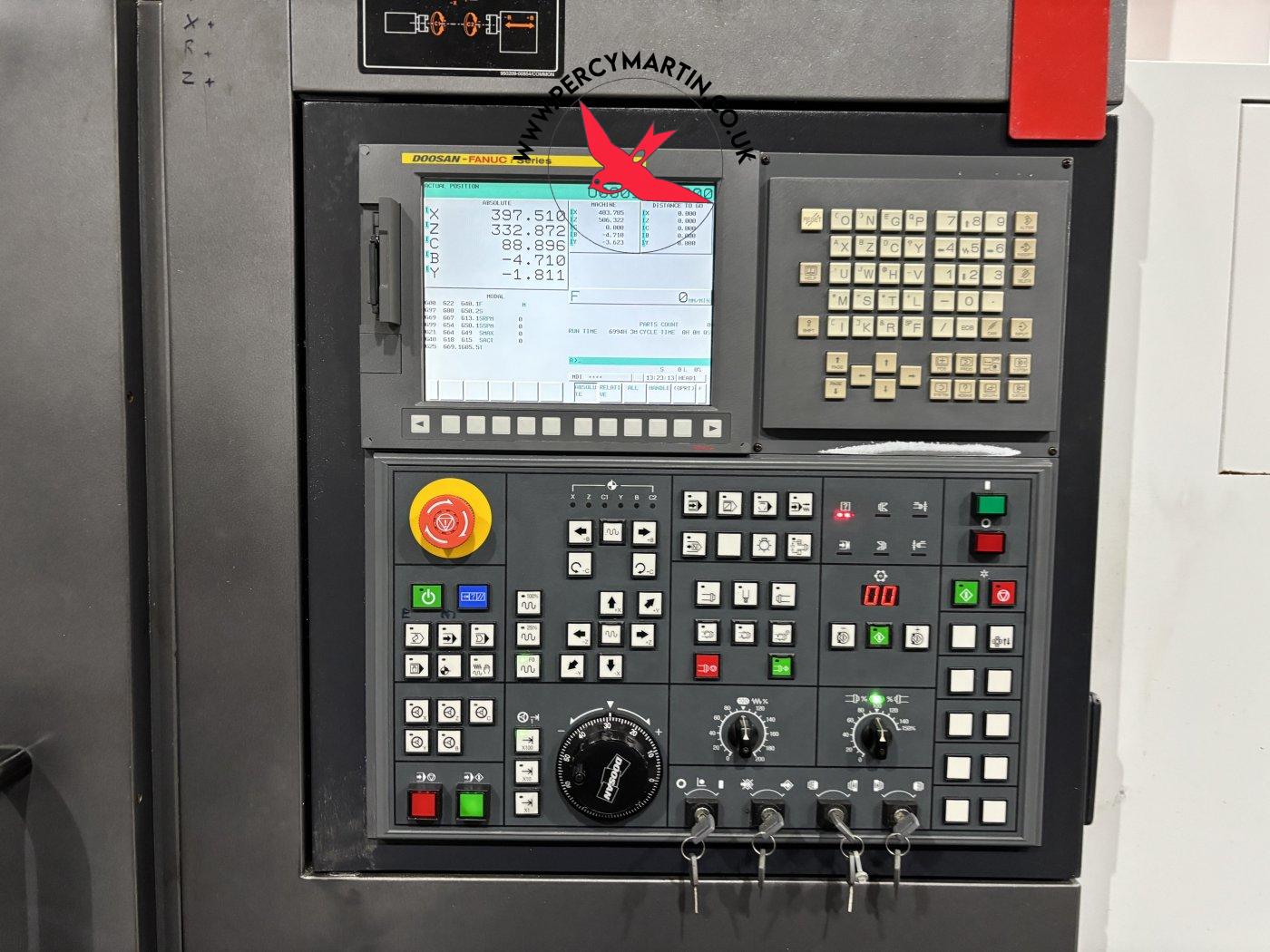

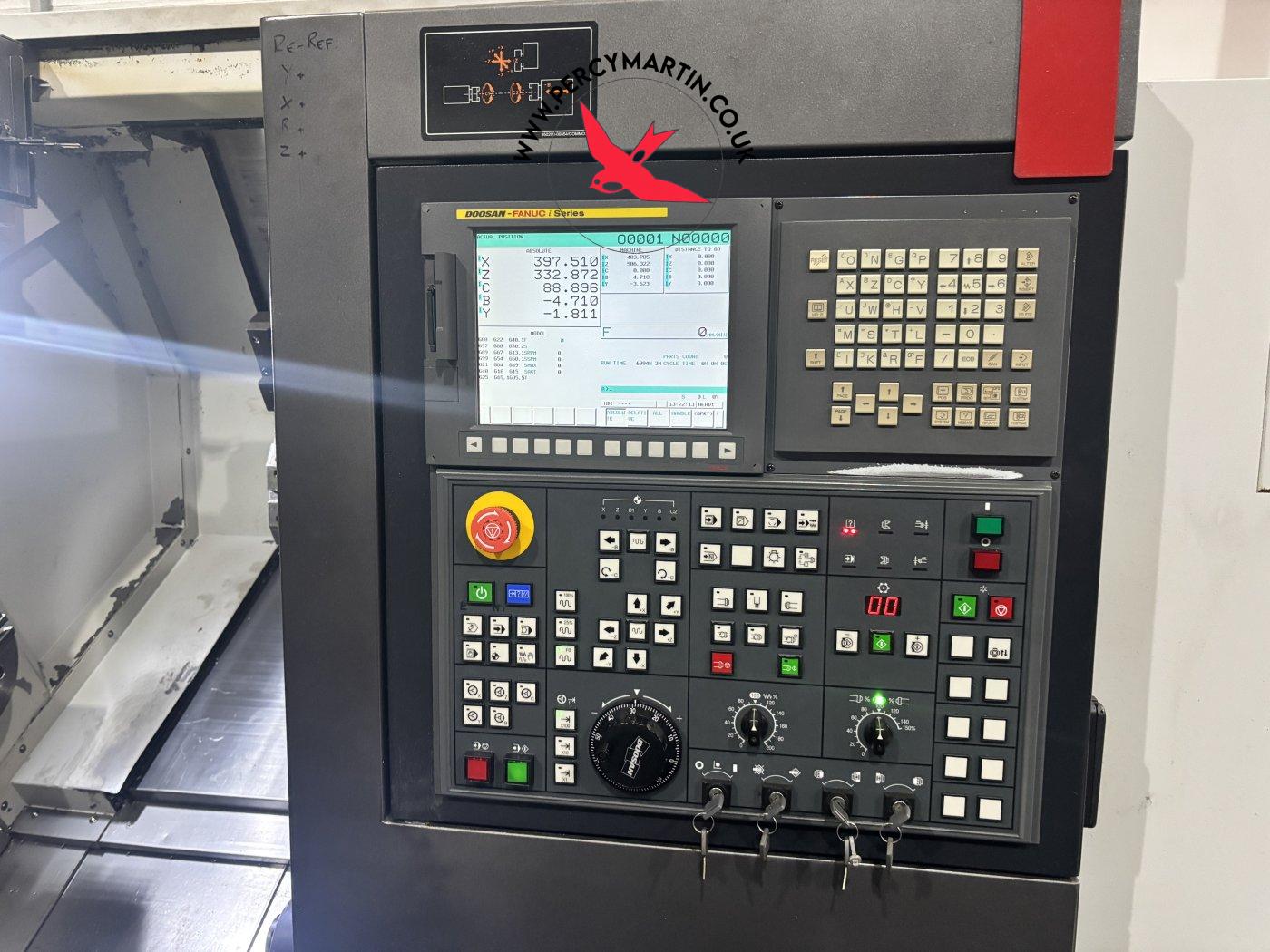

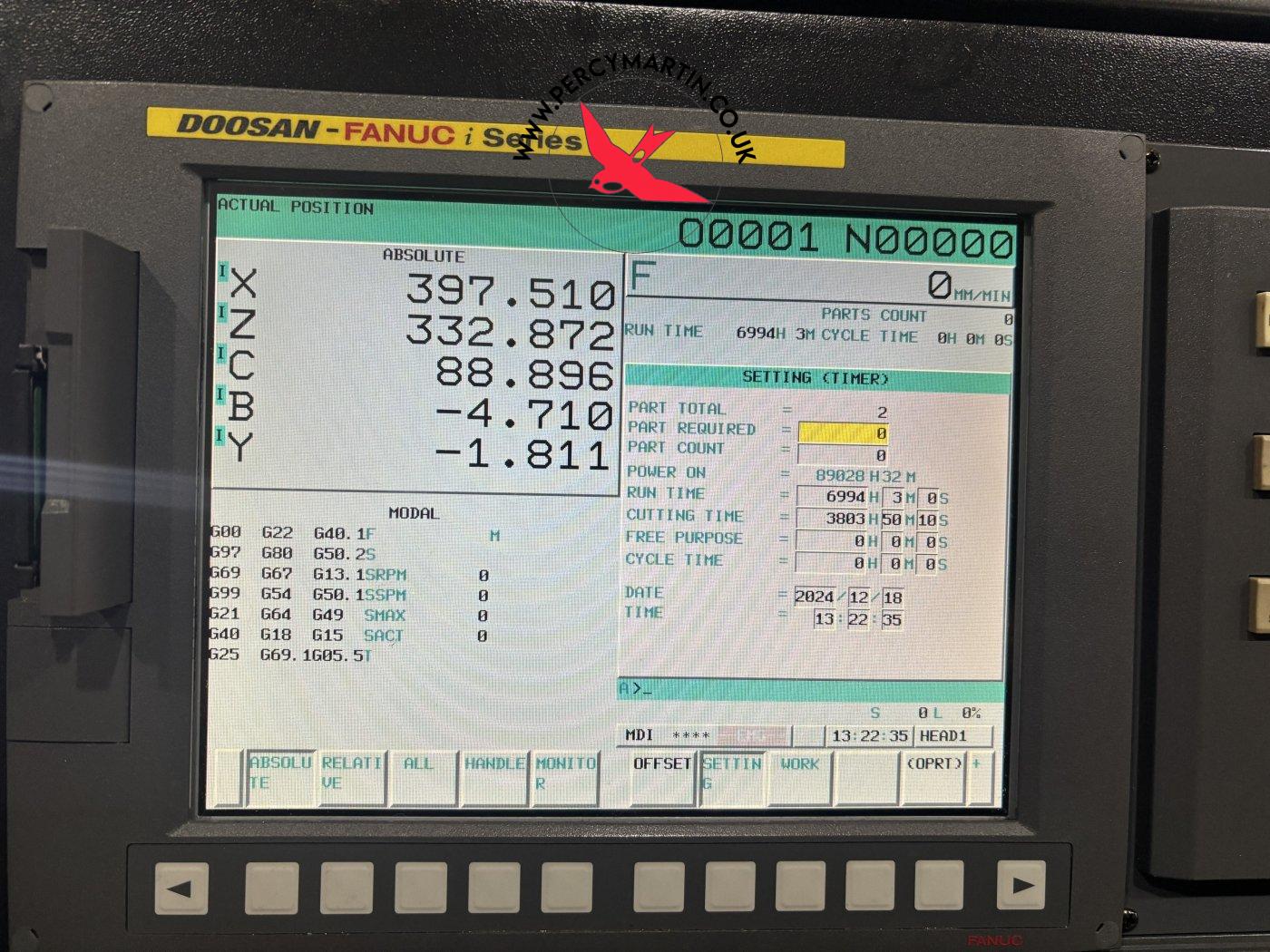

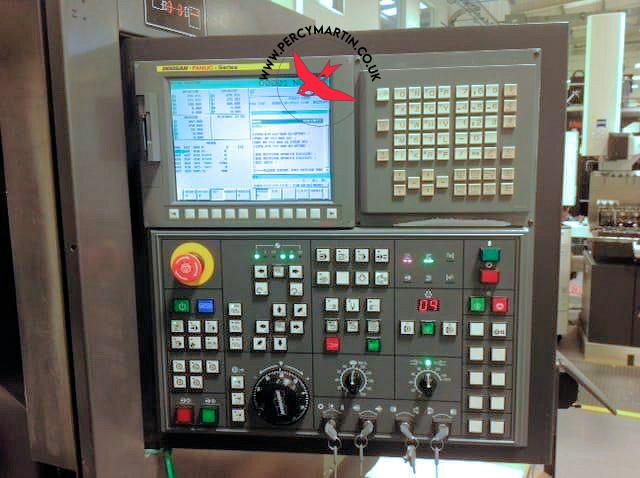

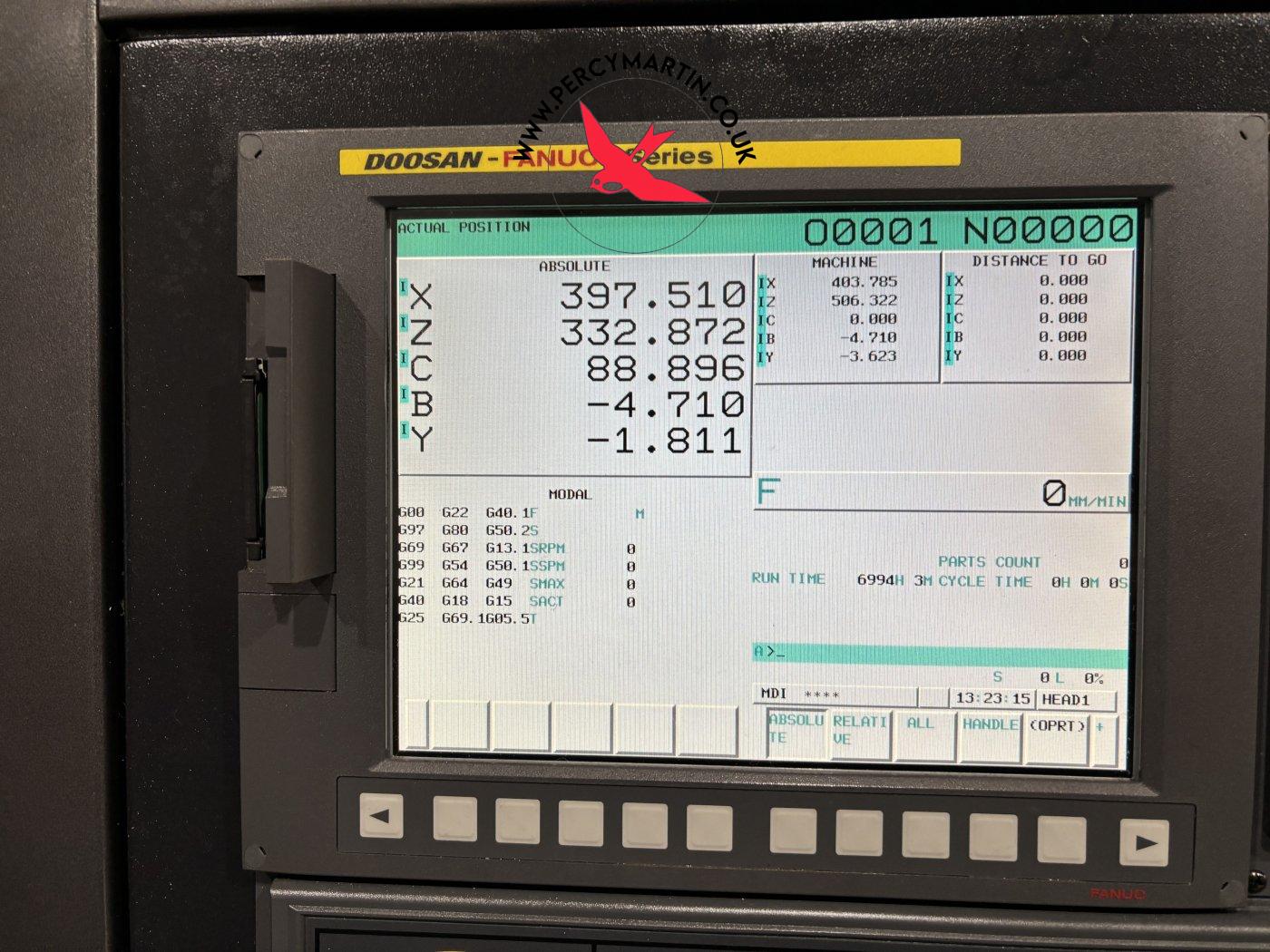

Control

Fanuc I series

Machine Dimensions

4310 x 1863 x 2163mm

Machine Weight

5900 kgs

Main Motor

18.5 Kw

Maximum Cutting Diameter

406mm

Maximum Cutting Length

520mm

Milling RPM

5,000 rpm

Rapid Feedrates

X,Z,Y,B: 30 x 30 x 30 x 10m/min

Spindle Bore

76mm

Spindle Nose

A2-6

Spindle Speed

4500 rpm

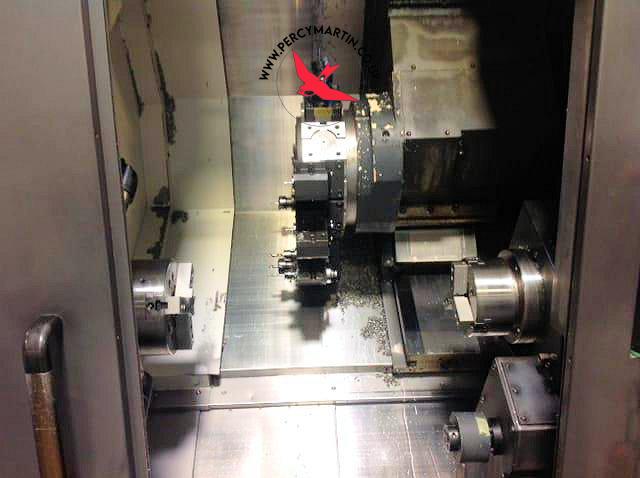

Sub Spindle C axis

0.001 degrees

Sub Spindle Motor

7.5 Kw

Sub Spindle Nose

A2-5

Sub Spindle Speed

4500 rpm

Sub Spindle Stroke

590mm

Swing

780 mm

Swing over the Cross-slide

630 mm

Turret Positions

12 Station

X axis Travel

260 mm

Y axis Travel

-/+ 51mm

Z axis Travel

590 mm

Doosan Puma 2100SY 2013
