CNC Lathes with Milling

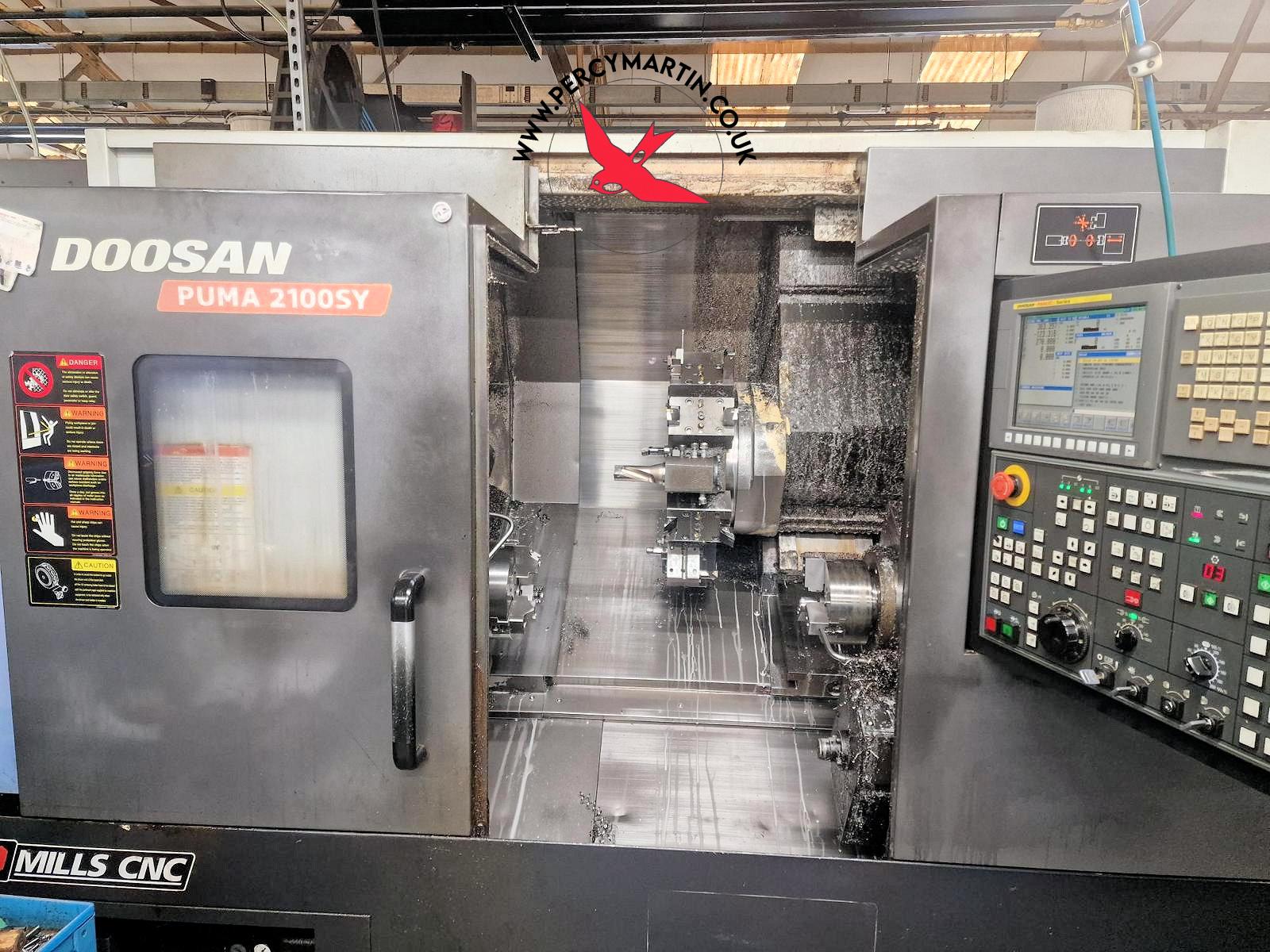

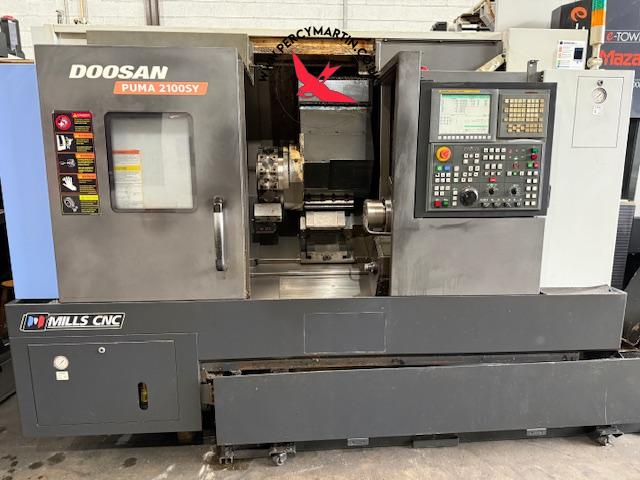

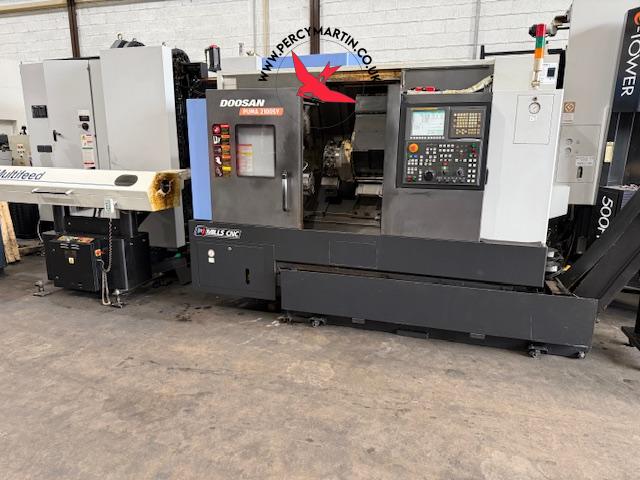

Doosan Puma 2100SY 2010

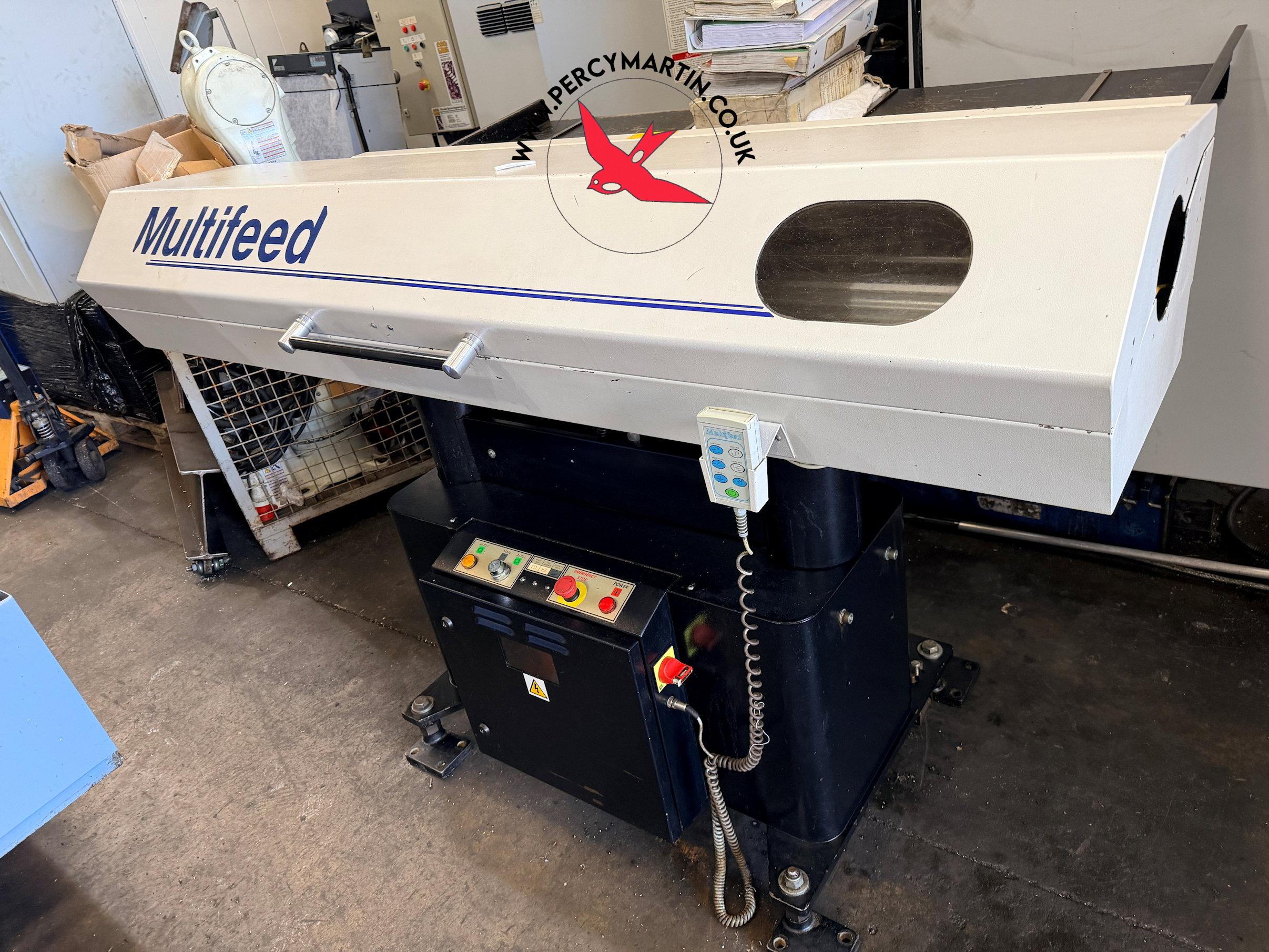

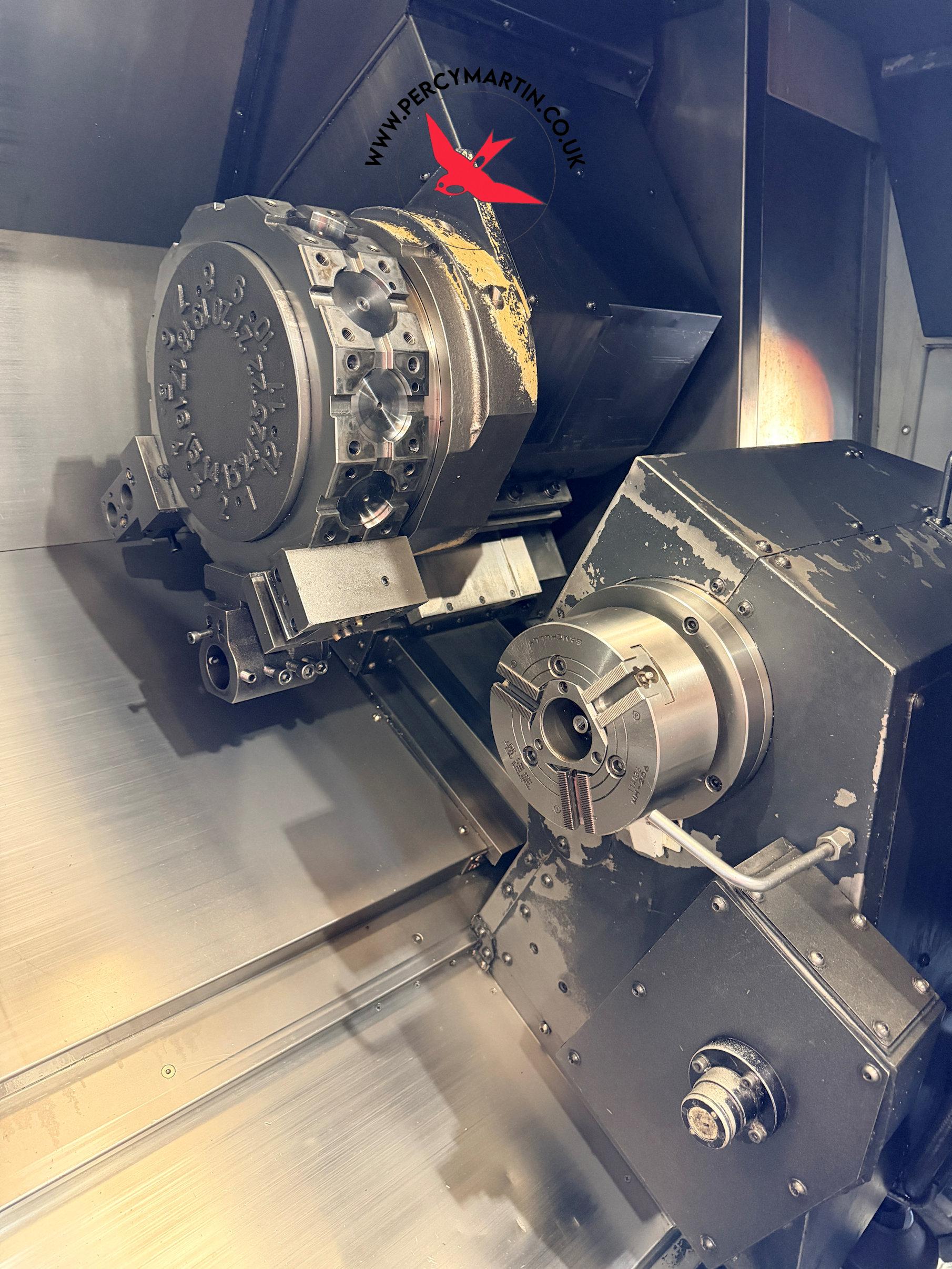

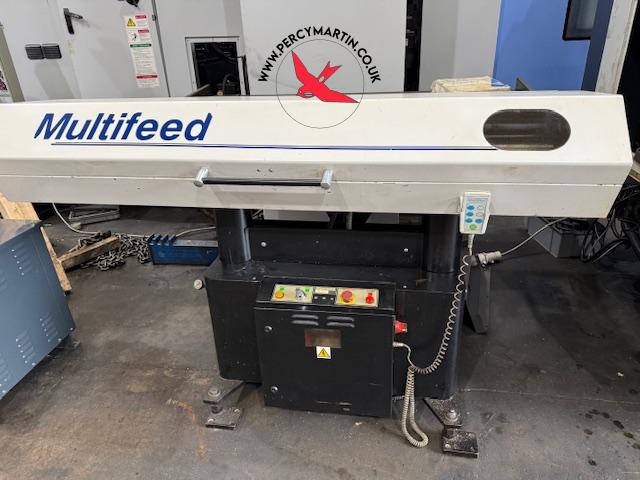

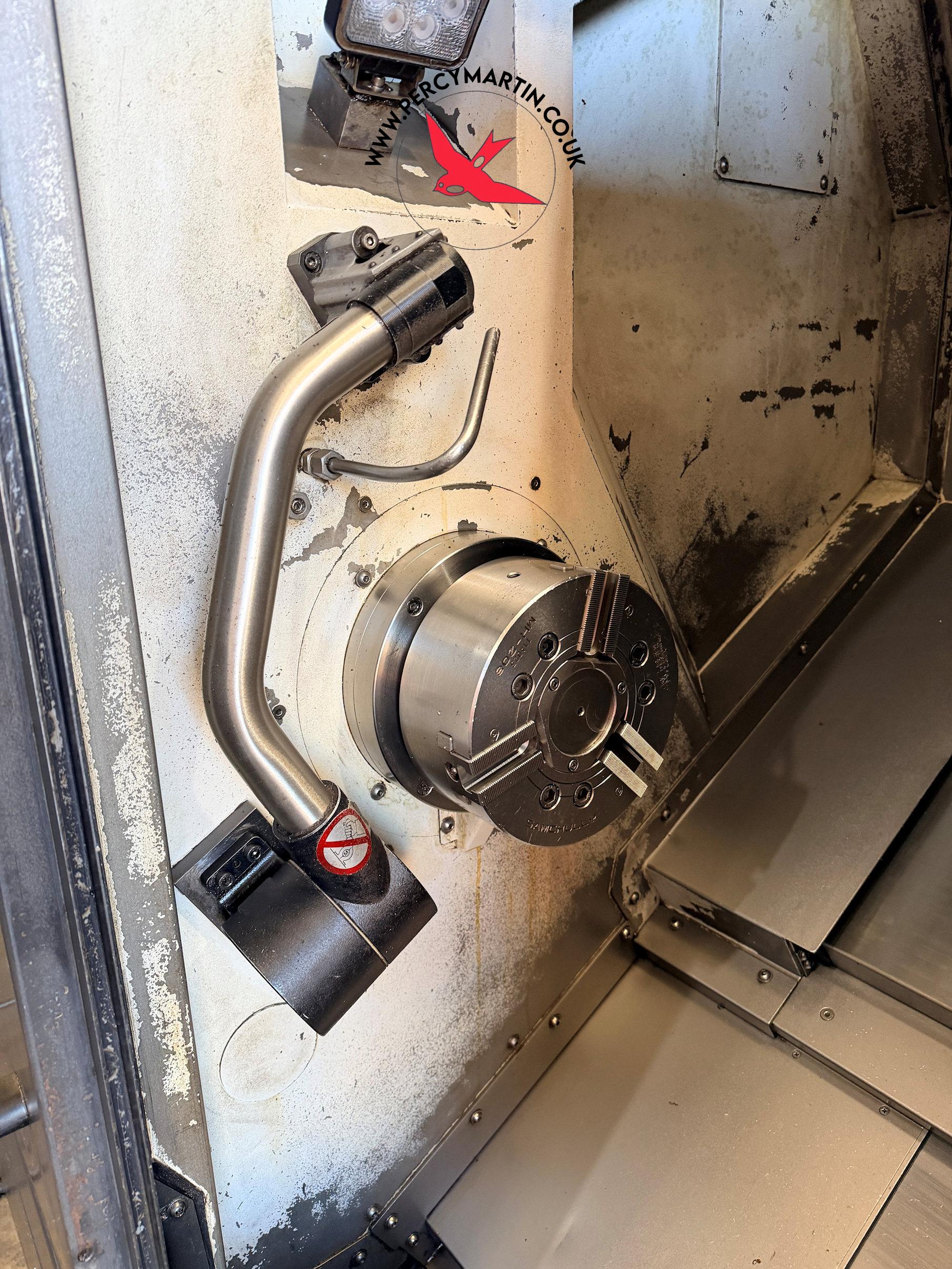

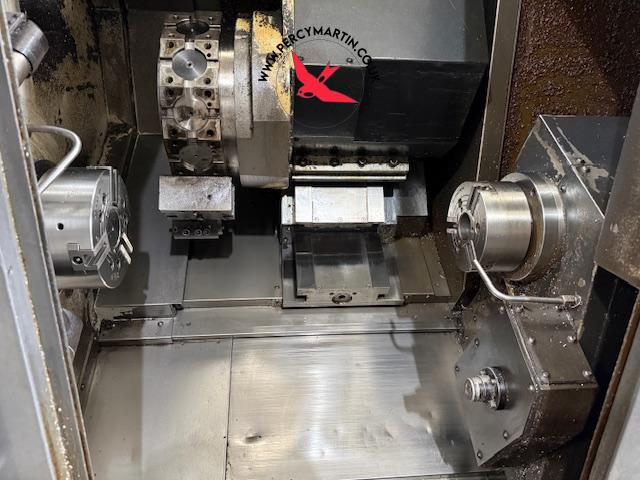

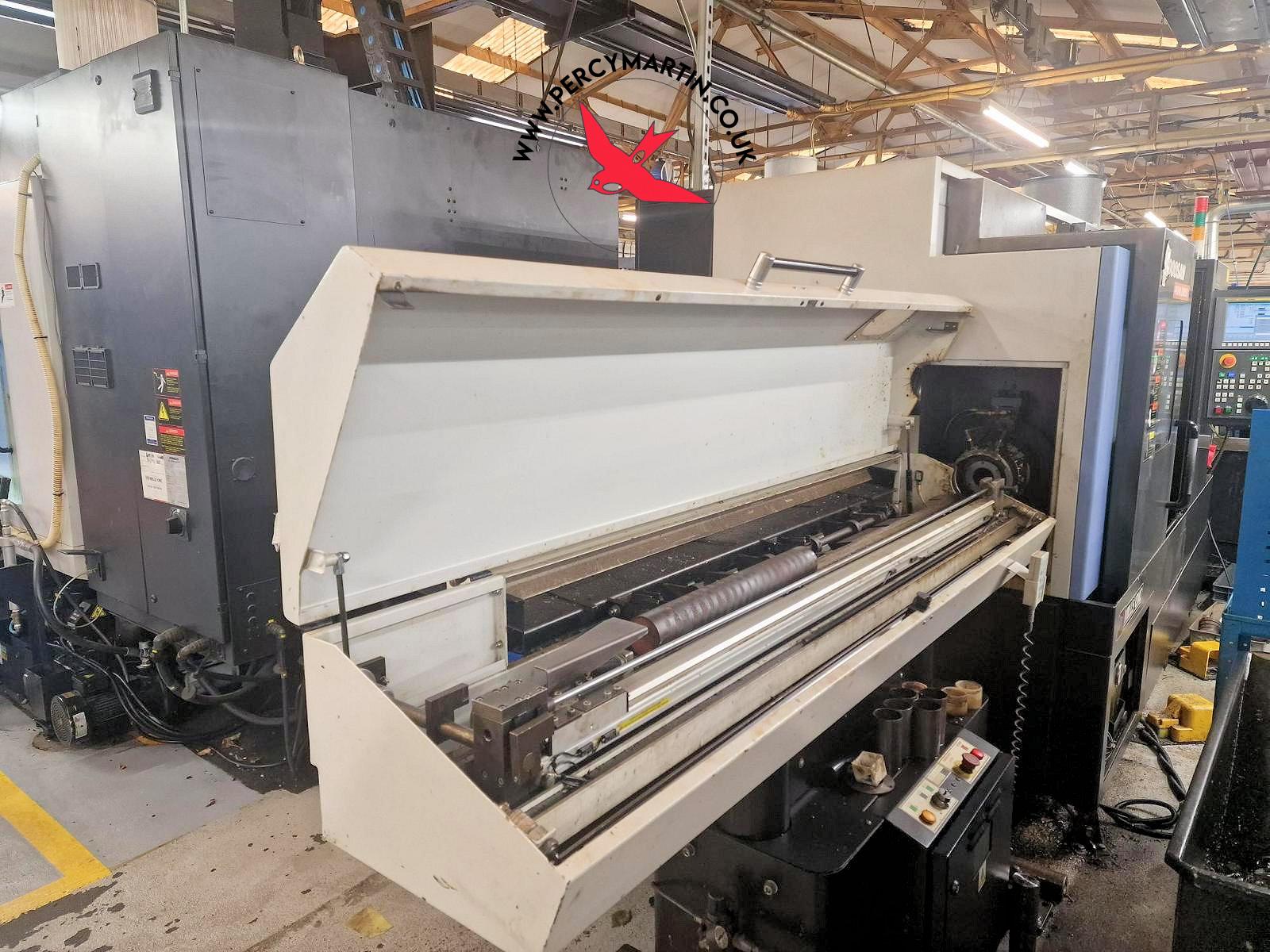

3 Jaw Chuck , C Axis (0.001degree) on Sub Spindle , C axis & Milling , Coolant , Interlocked guards , Low Volt Light , Magazine Barfeed , Manuals , Parts Catcher , Parts Conveyor , Sub Spindle , Swarf Conveyor , Tool setter , Tooling , Y-axis
Doosan Puma 2100SY 2010
Key Features
Type:
CNC Lathes with Milling
Model:
Puma 2100SY
Make:
Doosan
Year:
2010

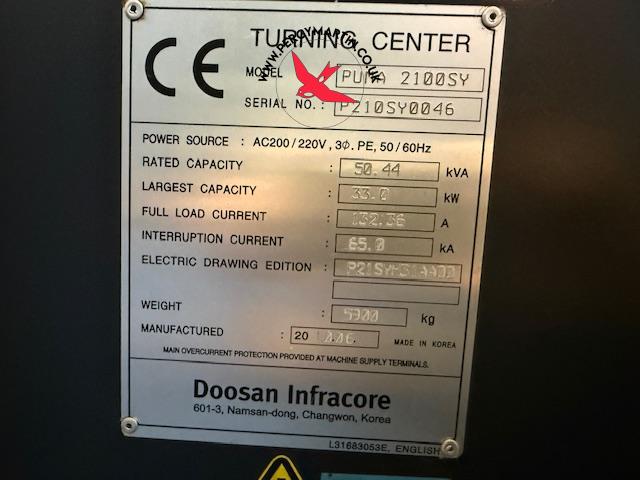

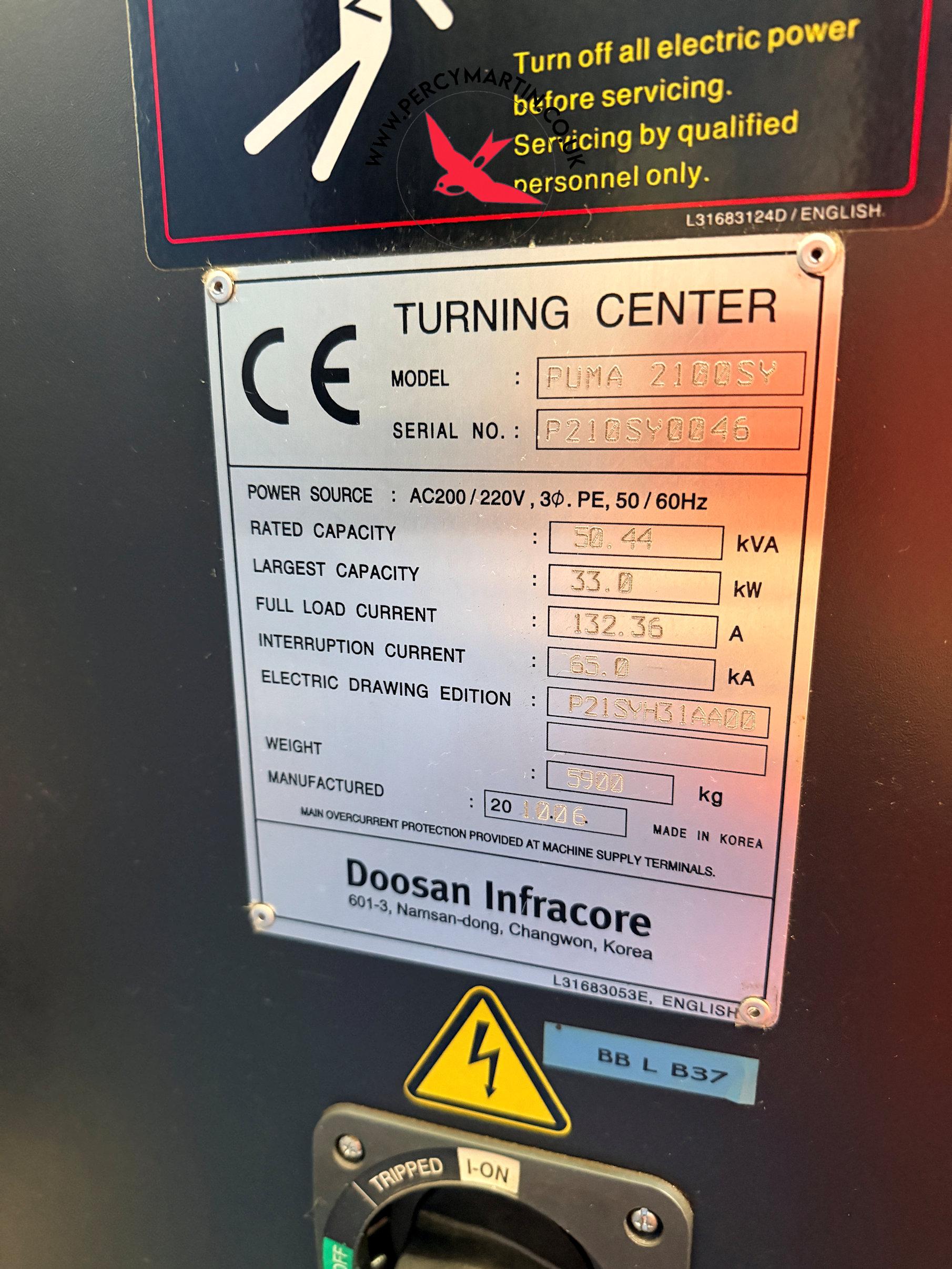

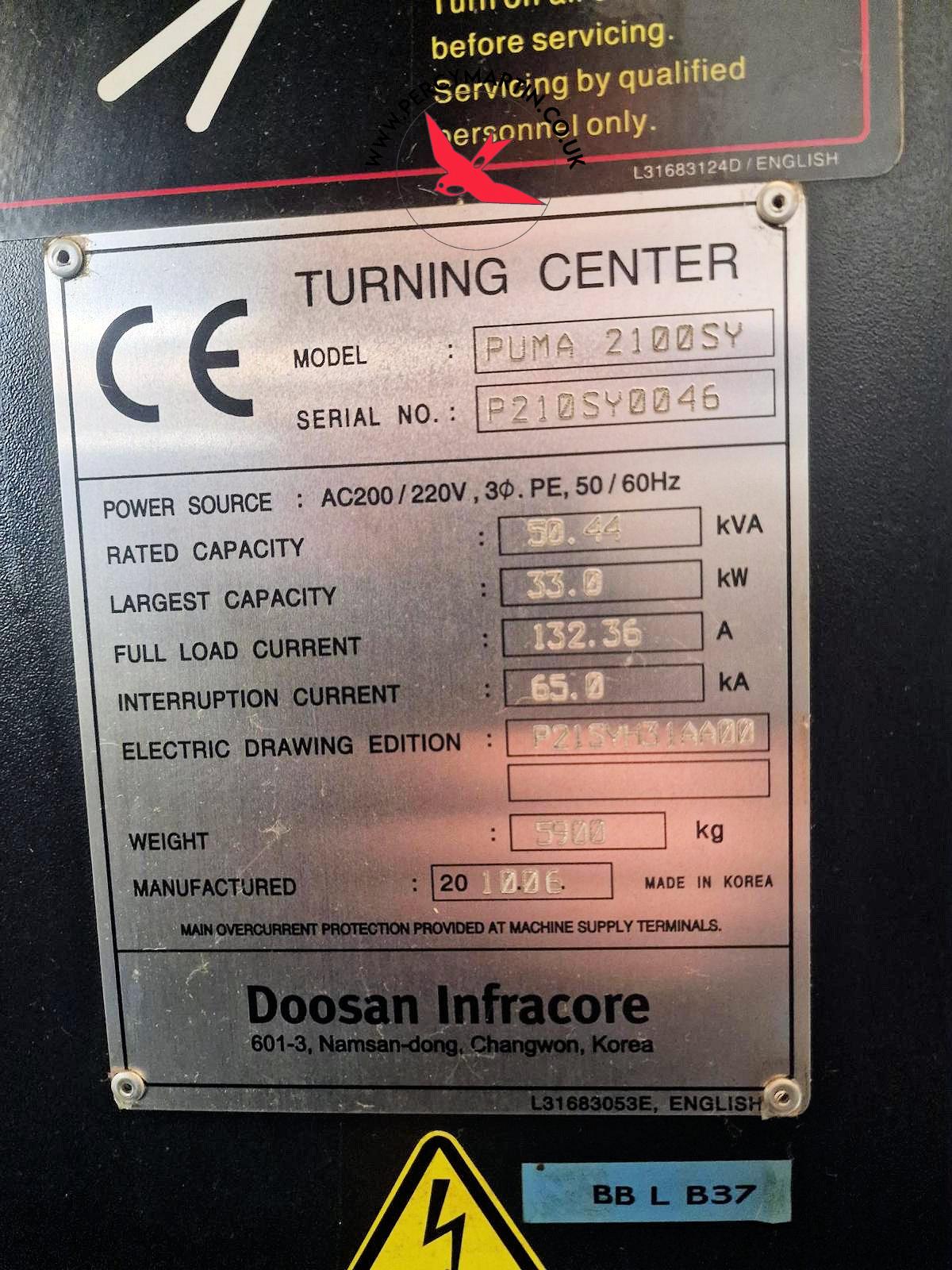

Serial No
P210SY0046
Price
£POA
Our Reference
PM9742
Location
Leicester
Doosan Puma 2100SY 2010
Specifications
Bar Capacity
65 mm
C axis
0.001 degrees

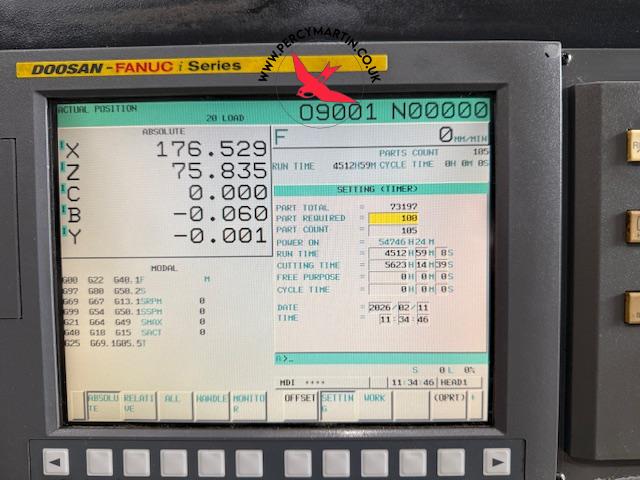

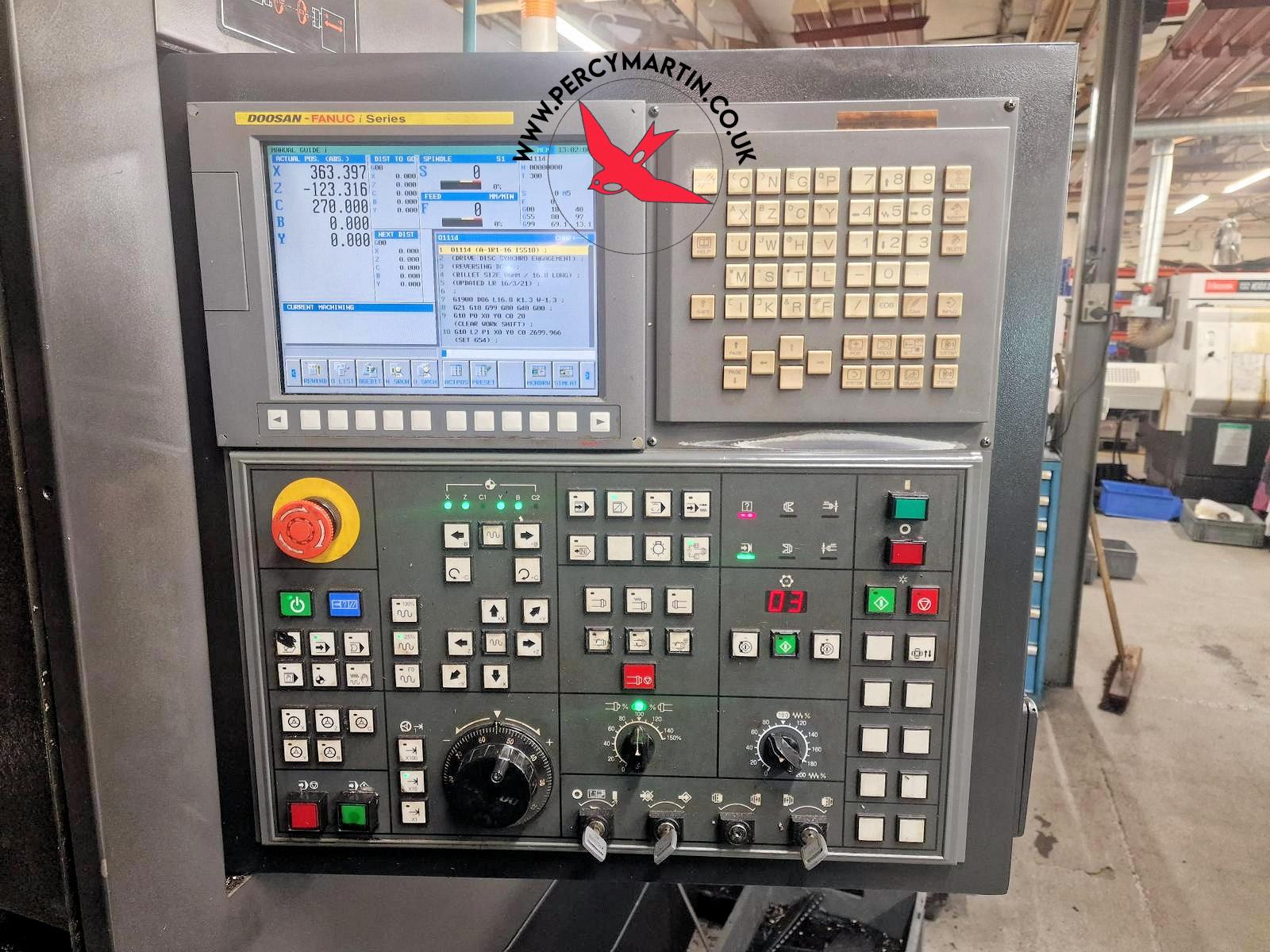

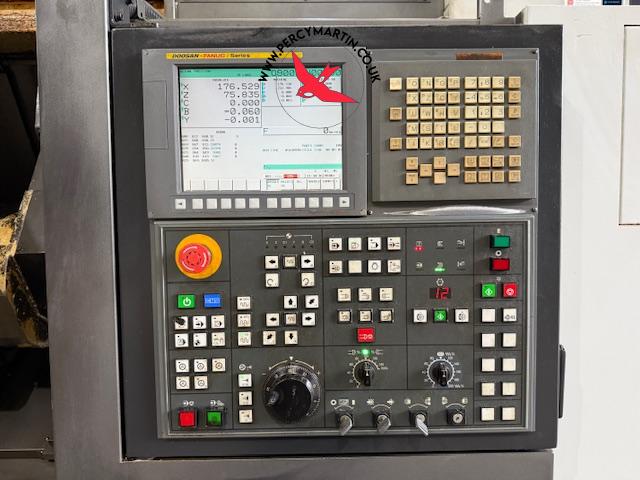

Control
Fanuc I series
Machine Dimensions
4310 x 1863 x 2163mm
Machine Weight
5900 kgs
Main Motor
18.5 Kw
Maximum Cutting Diameter
406mm
Maximum Cutting Length
520mm
Milling RPM
5,000 rpm
Rapid Feedrates
X,Z,Y,B: 30 x 30 x 30 x 10m/min
Spindle Bore
76mm
Spindle Nose
A2-6
Spindle Speed
4500 rpm
Sub Spindle C axis
0.001 degrees
Sub Spindle Motor
7.5 Kw
Sub Spindle Nose
A2-5
Sub Spindle Speed
4500 rpm
Sub Spindle Stroke
590mm
Swing
780 mm
Swing over the Cross-slide
630 mm
Turret Positions
12 Station
X axis Travel
260 mm
Y axis Travel
-/+ 51mm
Z axis Travel
590 mm
Doosan Puma 2100SY 2010
