Vertical Machining Centres

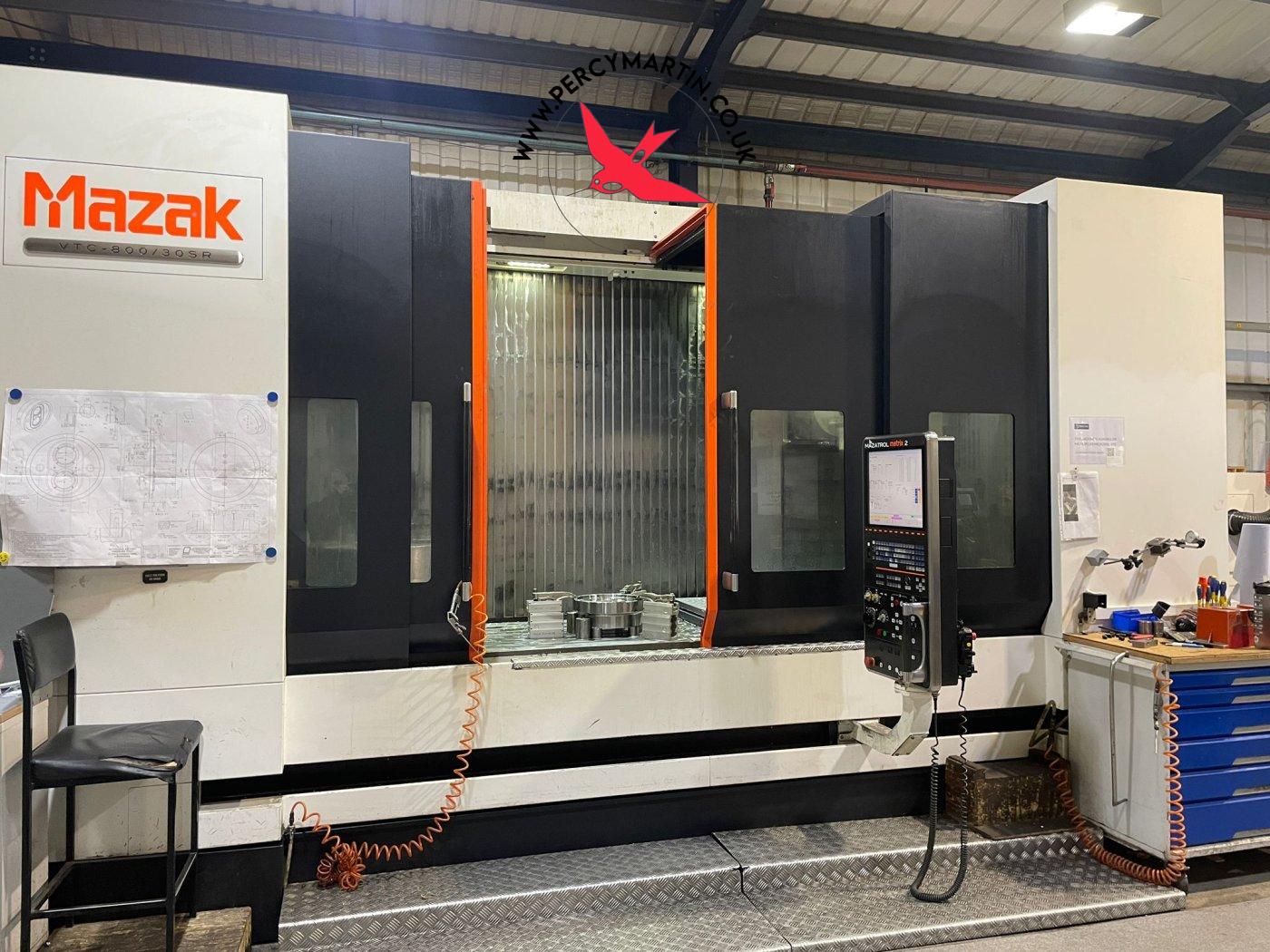

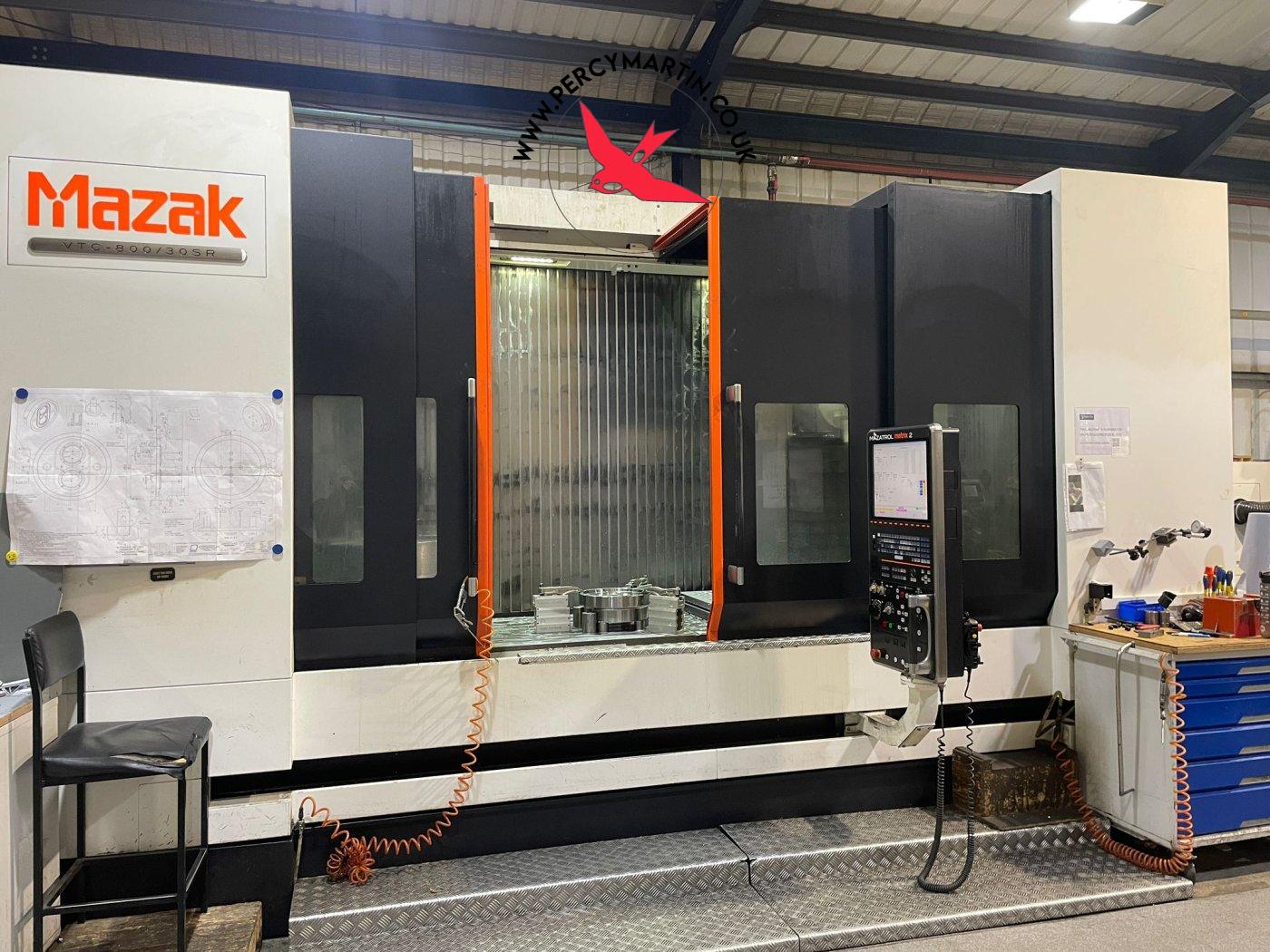

Mazak VTC-800 30SR 2013

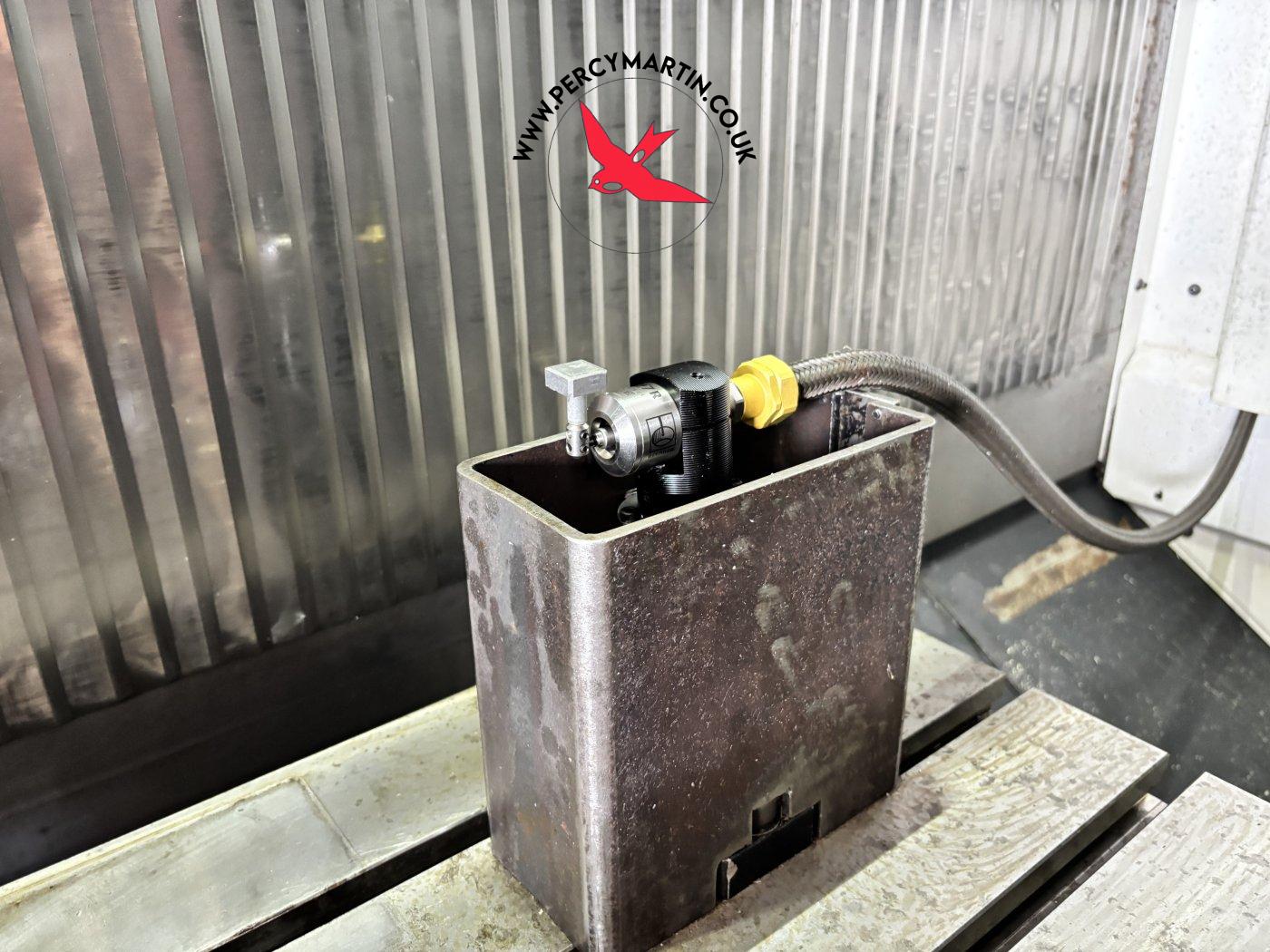

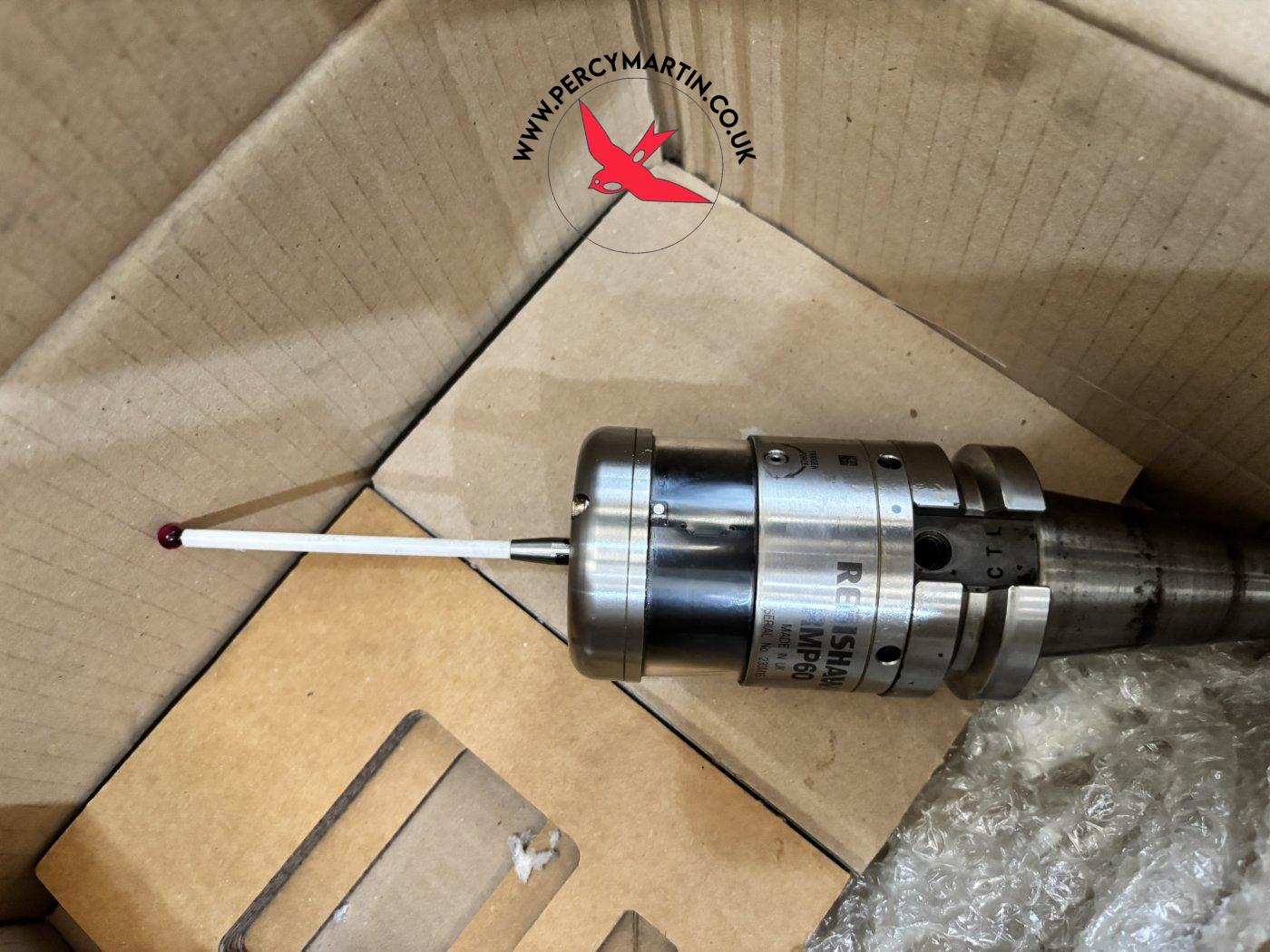

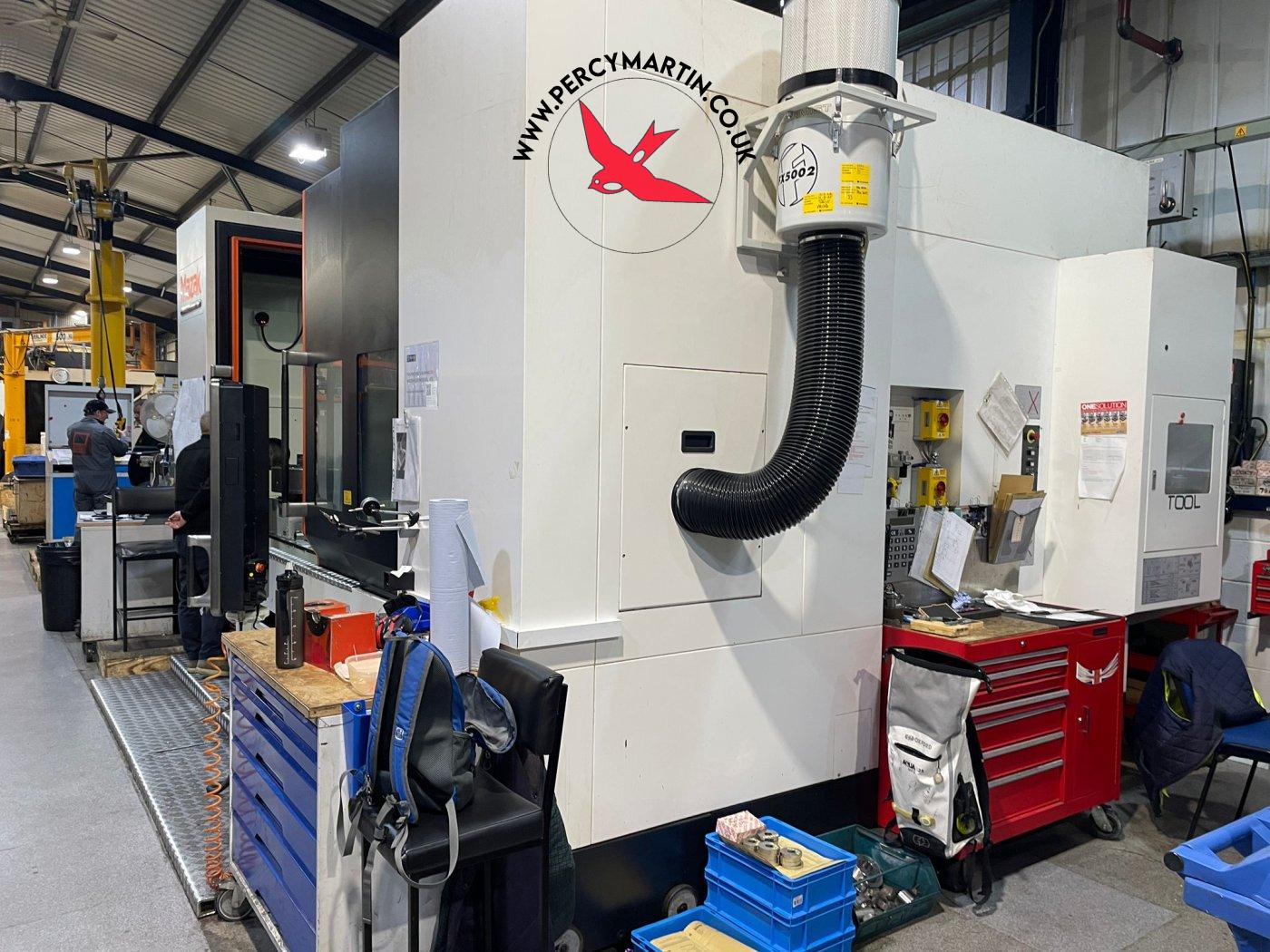

4th axis Rotary Table , 5 axis , B axis , C axis , Coolant , Interlocked guards , Low Volt Light , Partition Unit , Spindle Probe , Swarf Conveyor , Through Spindle Coolant , Tool setter
Mazak VTC-800 30SR 2013
Key Features
Type:
Vertical Machining Centres
Model:
VTC-800 30SR
Make:
Mazak
Year:
2013

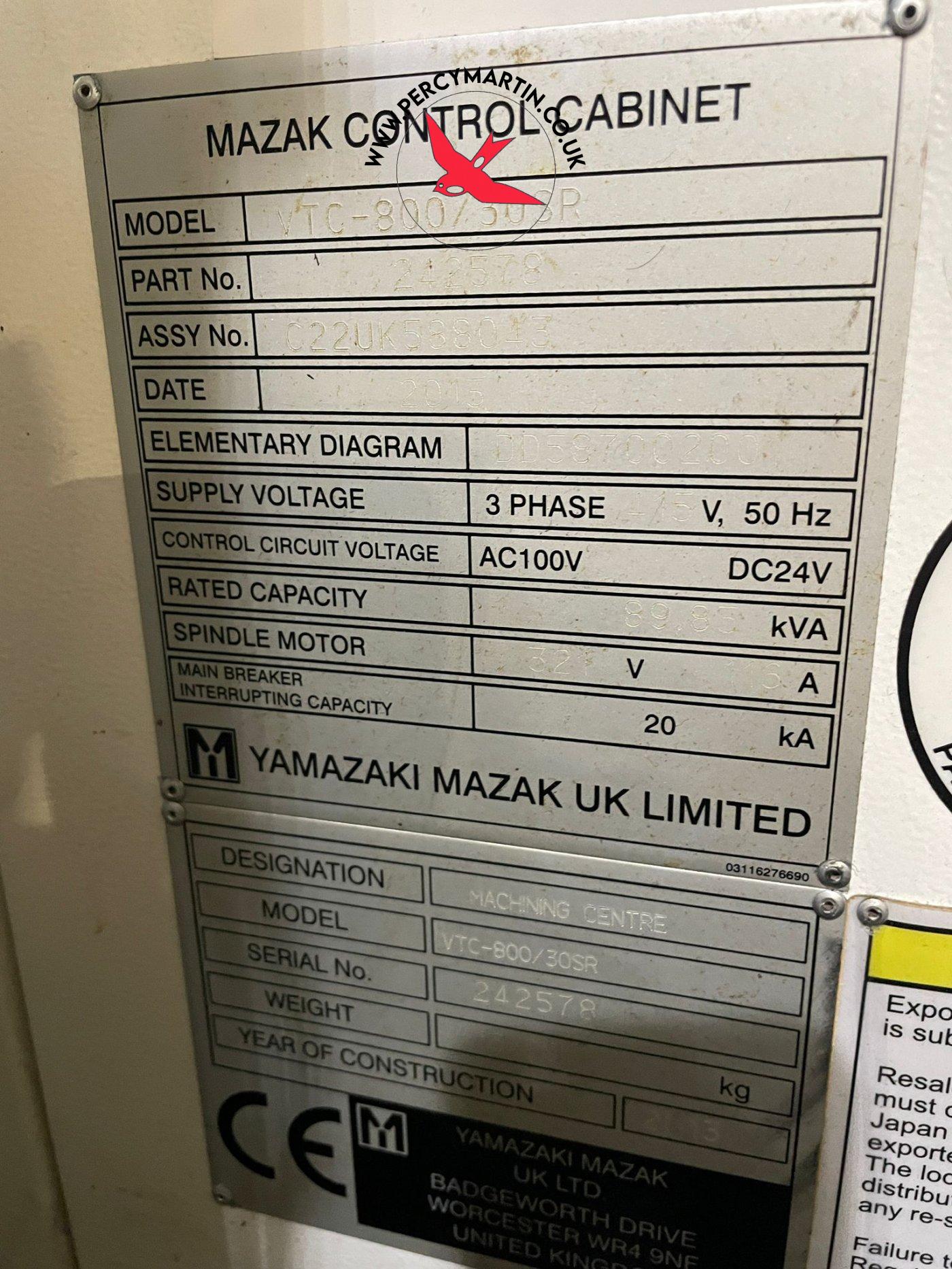

Serial No
242578
Price
£POA
Our Reference
PM9442
Location
Leicester
Mazak VTC-800 30SR 2013
Specifications

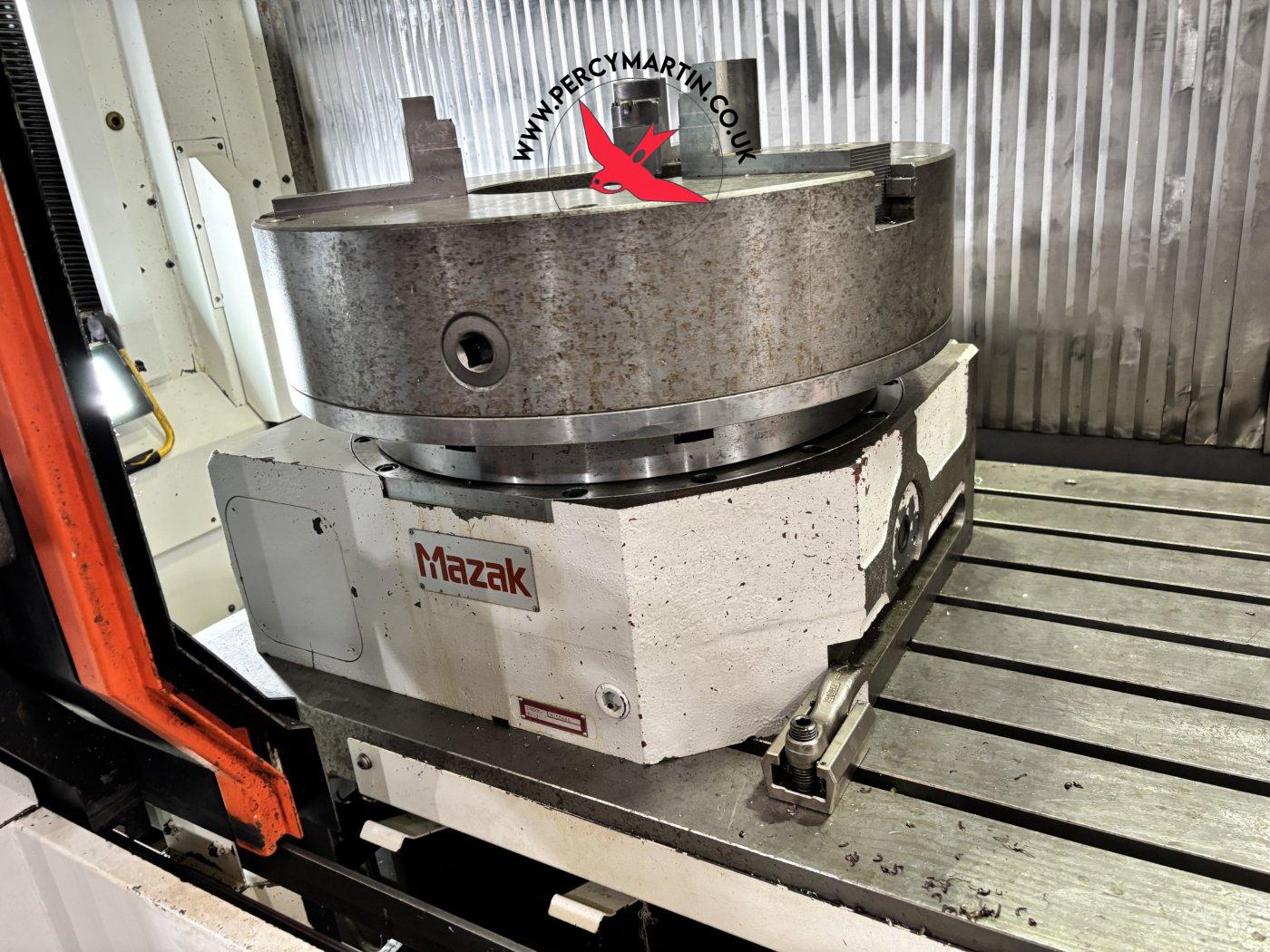

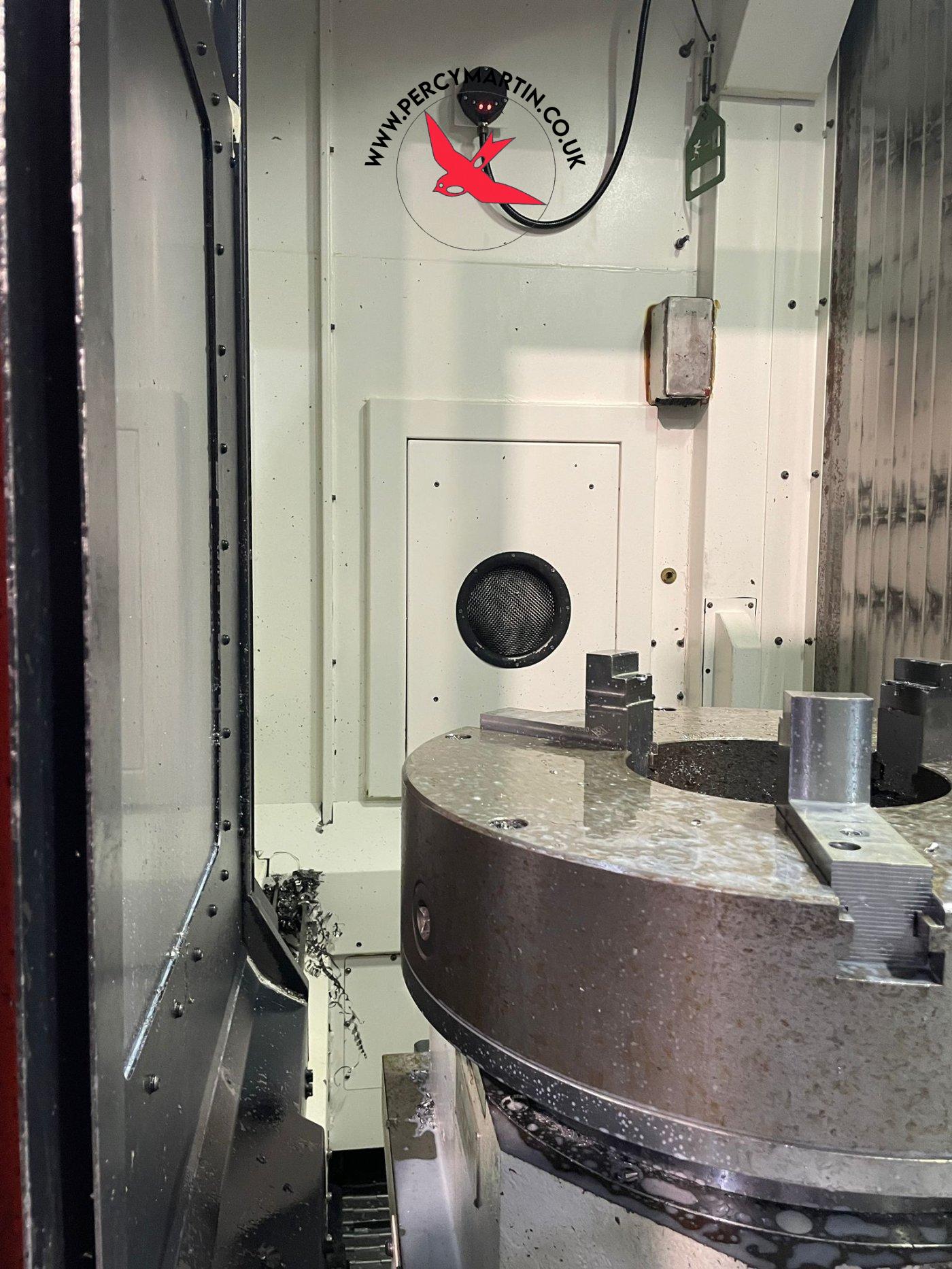

4th Axis Unit
630mm Diameter
B Axis
+/-110 degrees (0.0001 degree)
Control

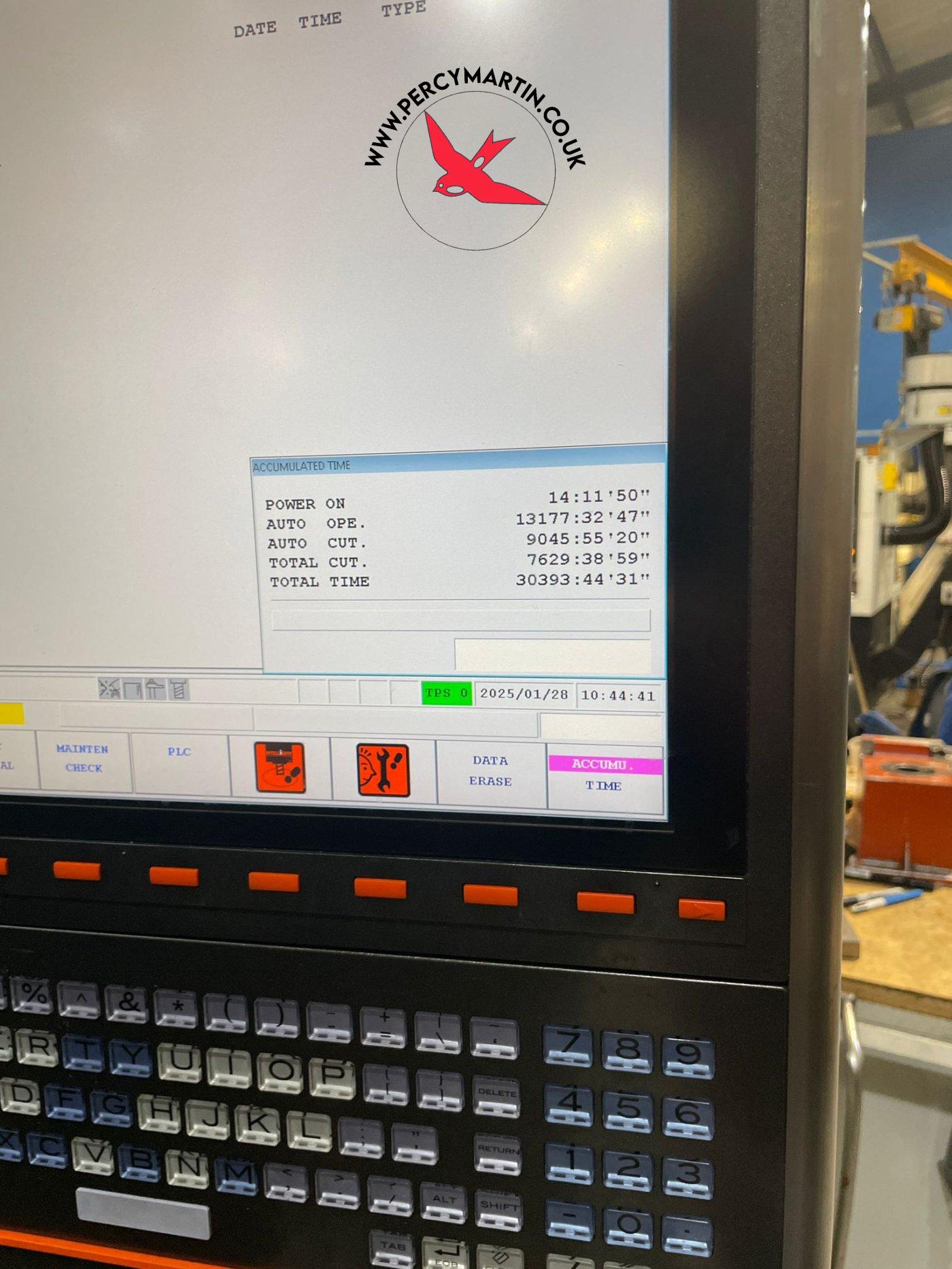

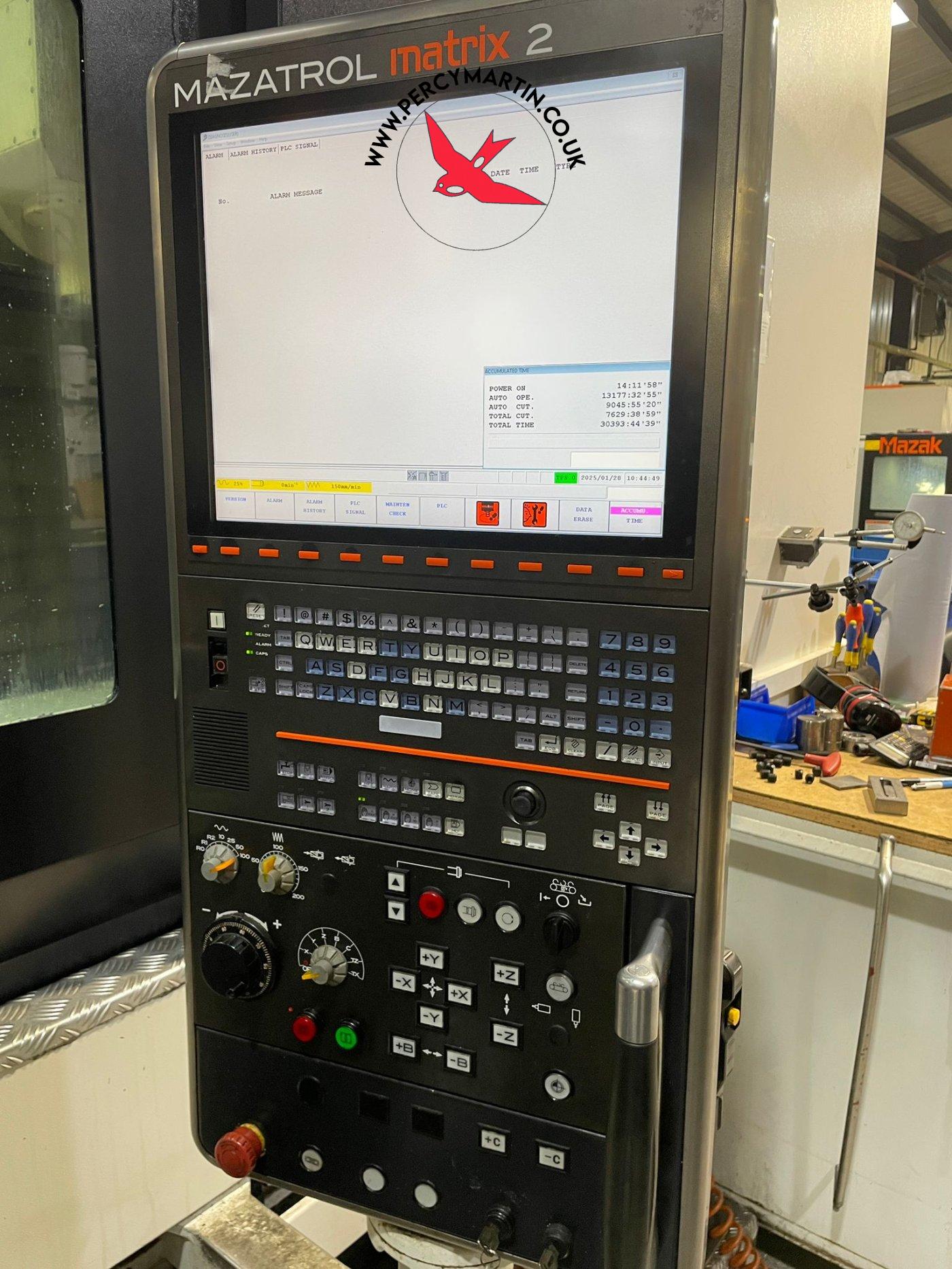

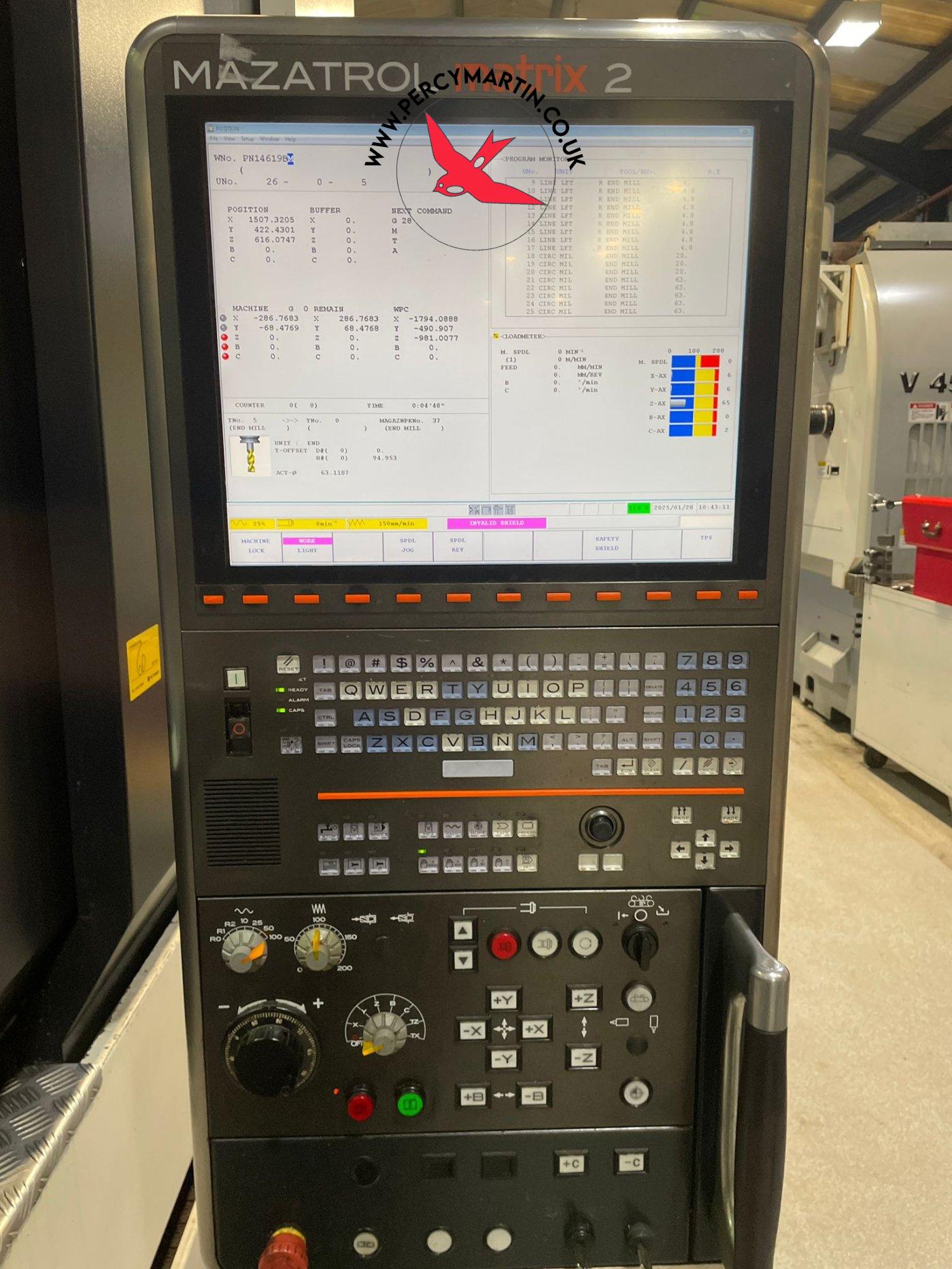

MAZATROL MATRIX 2
Machine Dimensions
5250 x 3550 x 3017mm
Machine Weight
16100kg
Maximum Tool Diameter
80mm
Maximum Tool Diameter with Empty Adjacent Pockets
130mm
Maximum Tool Weight
8kg
Maximum workpiece weight
2500kg
Min - Max Height under Spindle
140 - 860mm
Rapid Feedrates
50m/minute
Spindle Motor Power
26kW
Spindle Speed
18000rpm
T- Slots
7 x 18mm

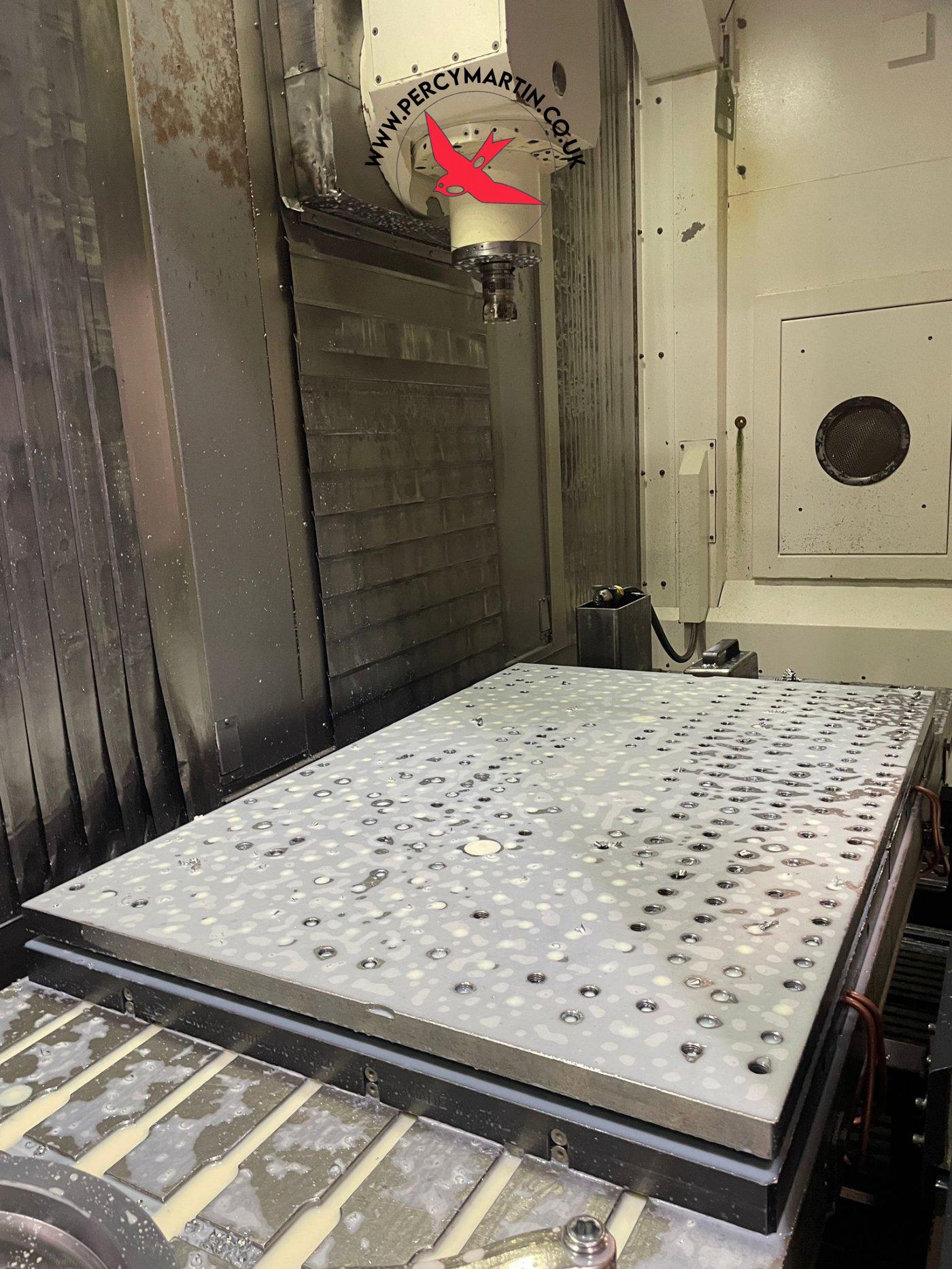

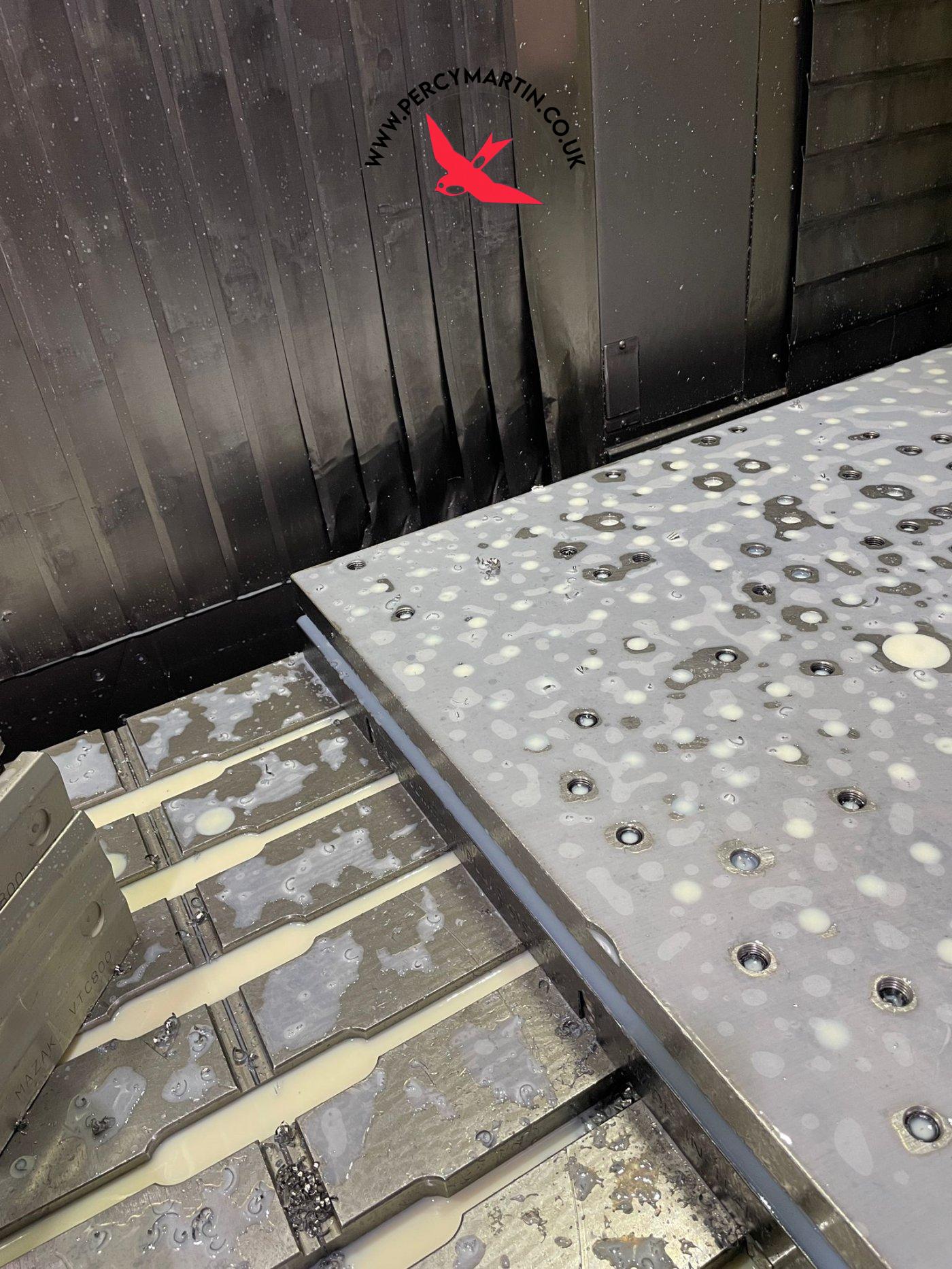

Table Size
3500 x 820mm

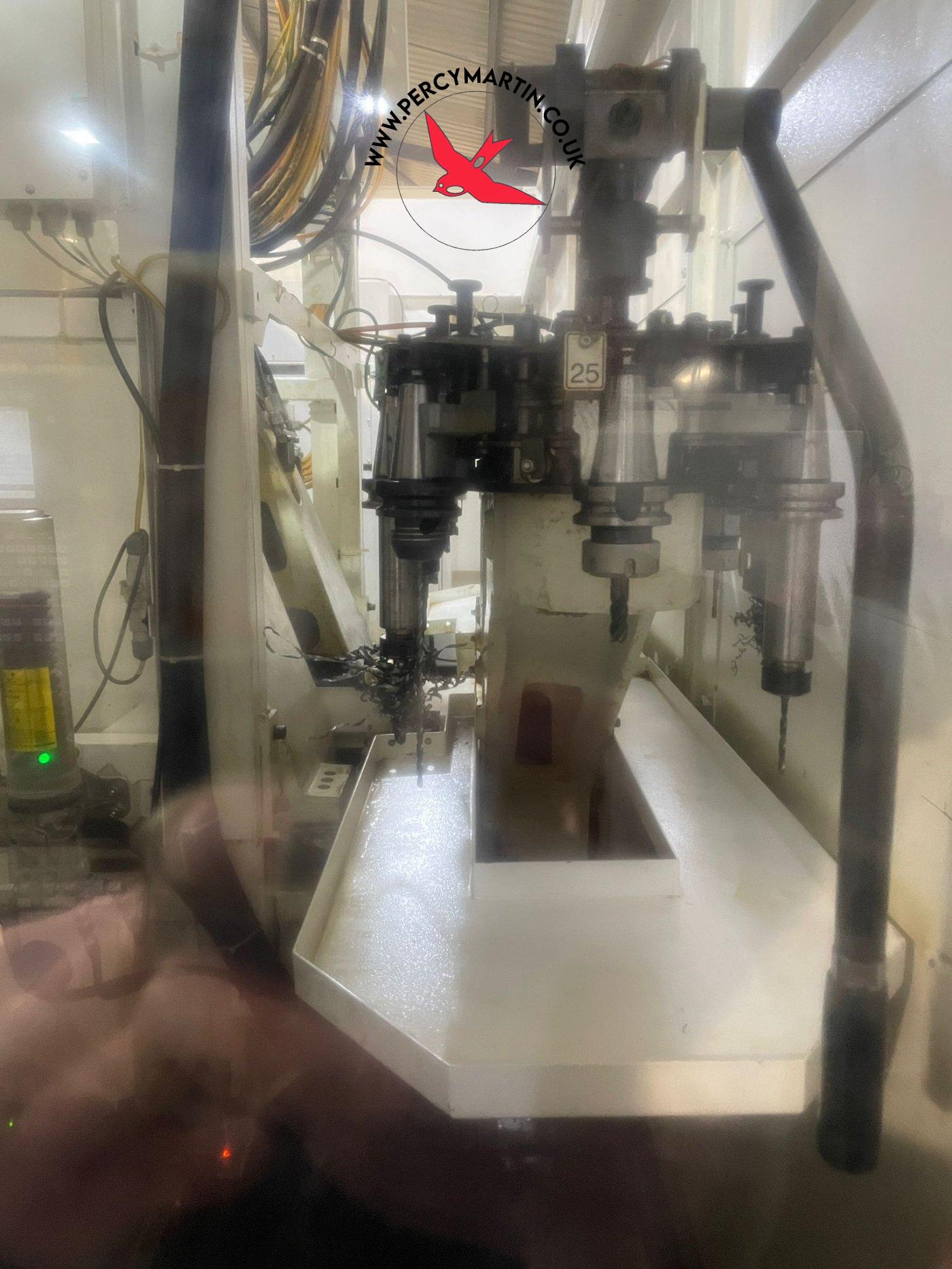

Tool Change Capacity
48 Station
Tool Change Time (Chip to Chip)
4.7 seconds
Tooling Configuration
BT40
Traverses XYZ
3000 x 800 x 720mm
Mazak VTC-800 30SR 2013
