Vertical Machining Centres

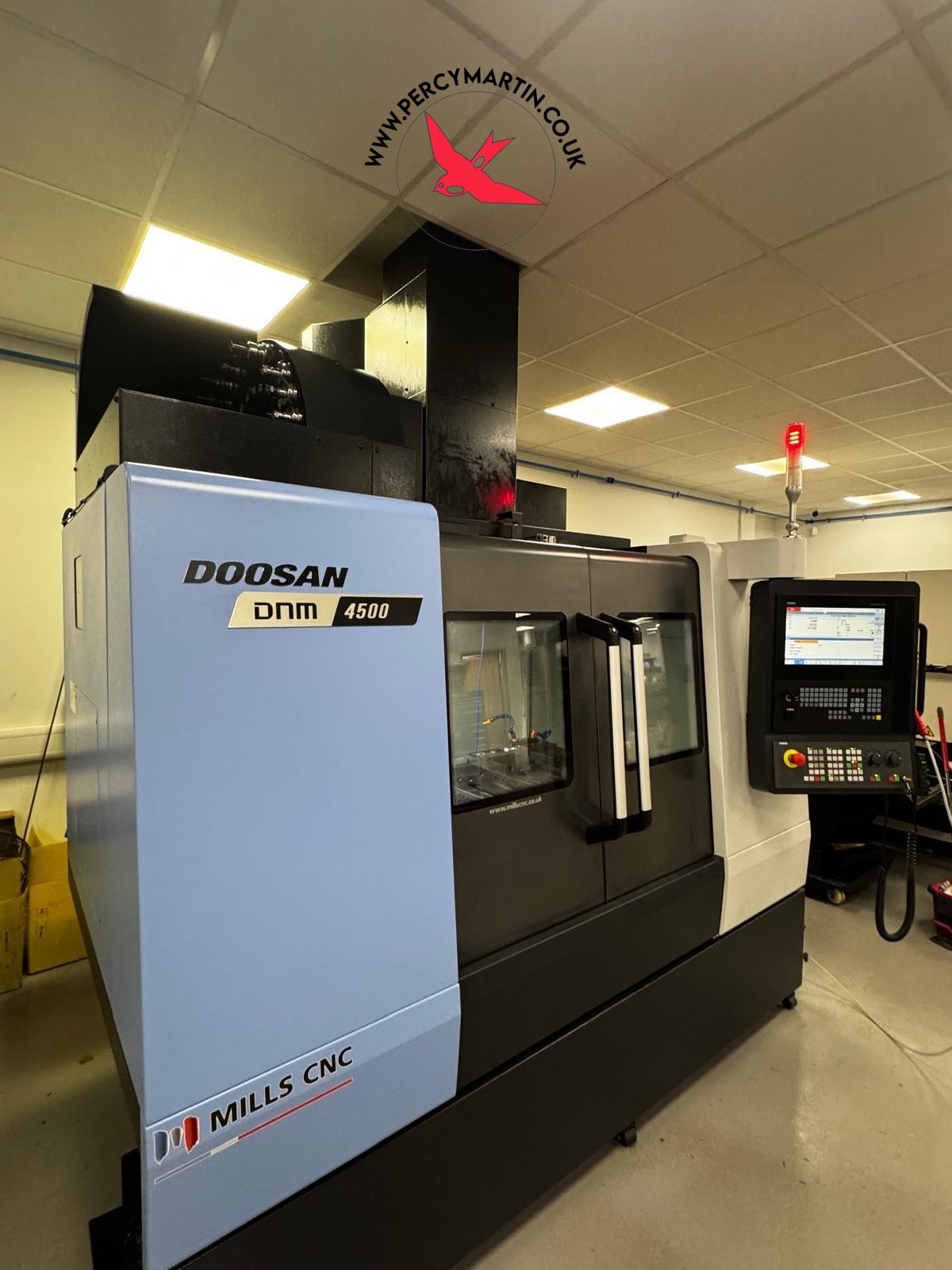

Doosan DNM4500 2018
Coolant , Interlocked guards , Low Volt Light , Remote Hand Wheel , Through Spindle Coolant
Doosan DNM4500 2018
Key Features
Type:
Vertical Machining Centres
Model:
DNM4500
Make:
Doosan
Year:
2018
Serial No
MV0090-001686
Price
£POA
Our Reference
PM9864
Location
Leicester
Doosan DNM4500 2018
Specifications
Control
Siemens 828
Machine Dimensions
3644 x 2615 x 2985mm
Machine Weight
5000kg
Maximum Tool Diameter
80mm
Maximum Tool Diameter with Empty Adjacent Pockets
125mm
Maximum Tool Length
300mm
Maximum Tool Weight
8kg
Maximum workpiece weight
600kg
Min - Max Height under Spindle
150 - 660mm
Rapid Feedrates
XYZ: 36 x 36 x 30m/minute
Spindle Motor Power
18.5/11kW
Spindle Speed
12000rpm
T- Slots
3 x 18mm
Table Size
1000 x 450mm
Tool Change Capacity
30 Station
Tool Change Time (Chip to Chip)
3.2 seconds
Tool Size
BT40
Traverses XYZ
800 x 450 x 510mm
Doosan DNM4500 2018
