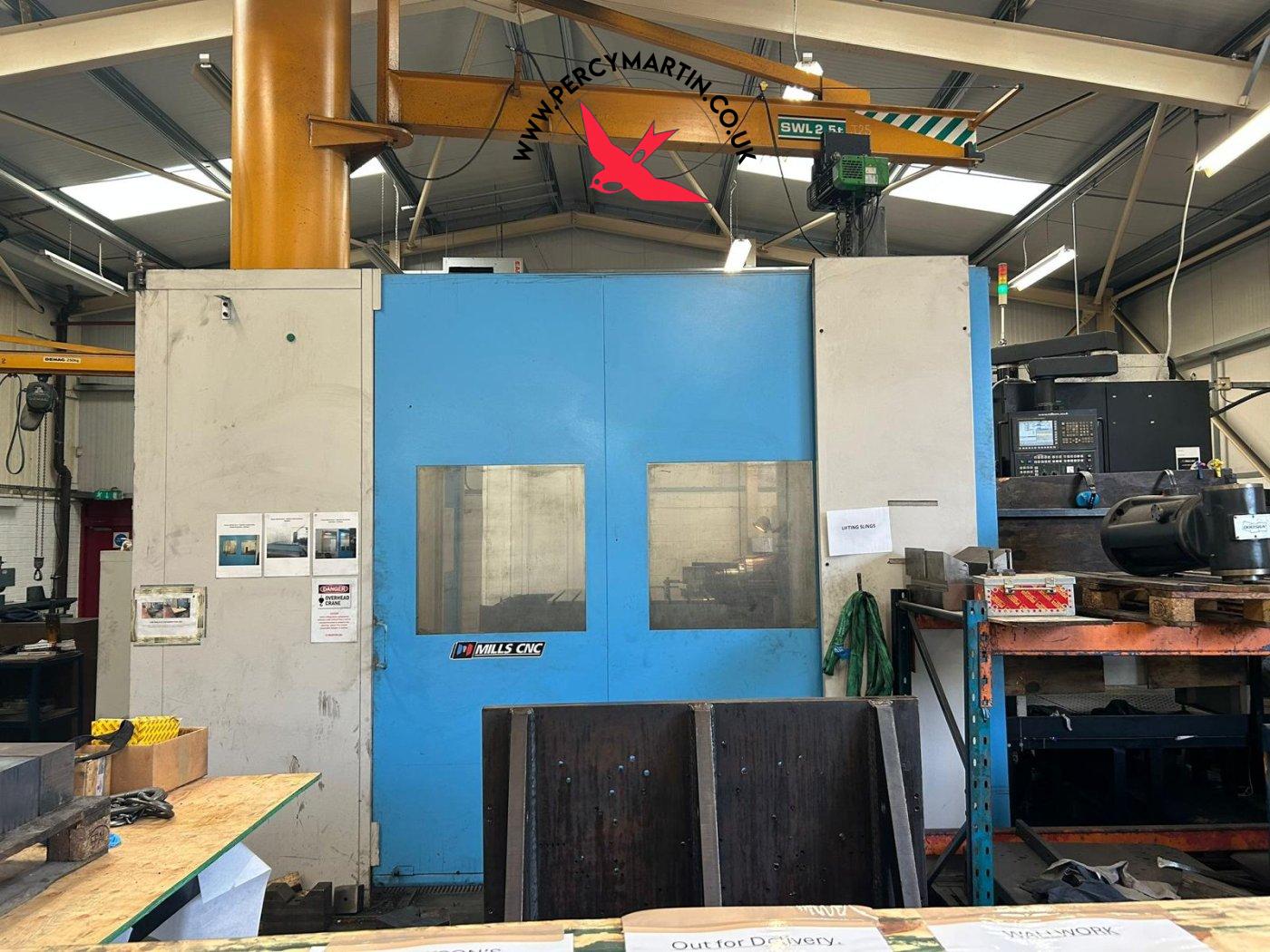

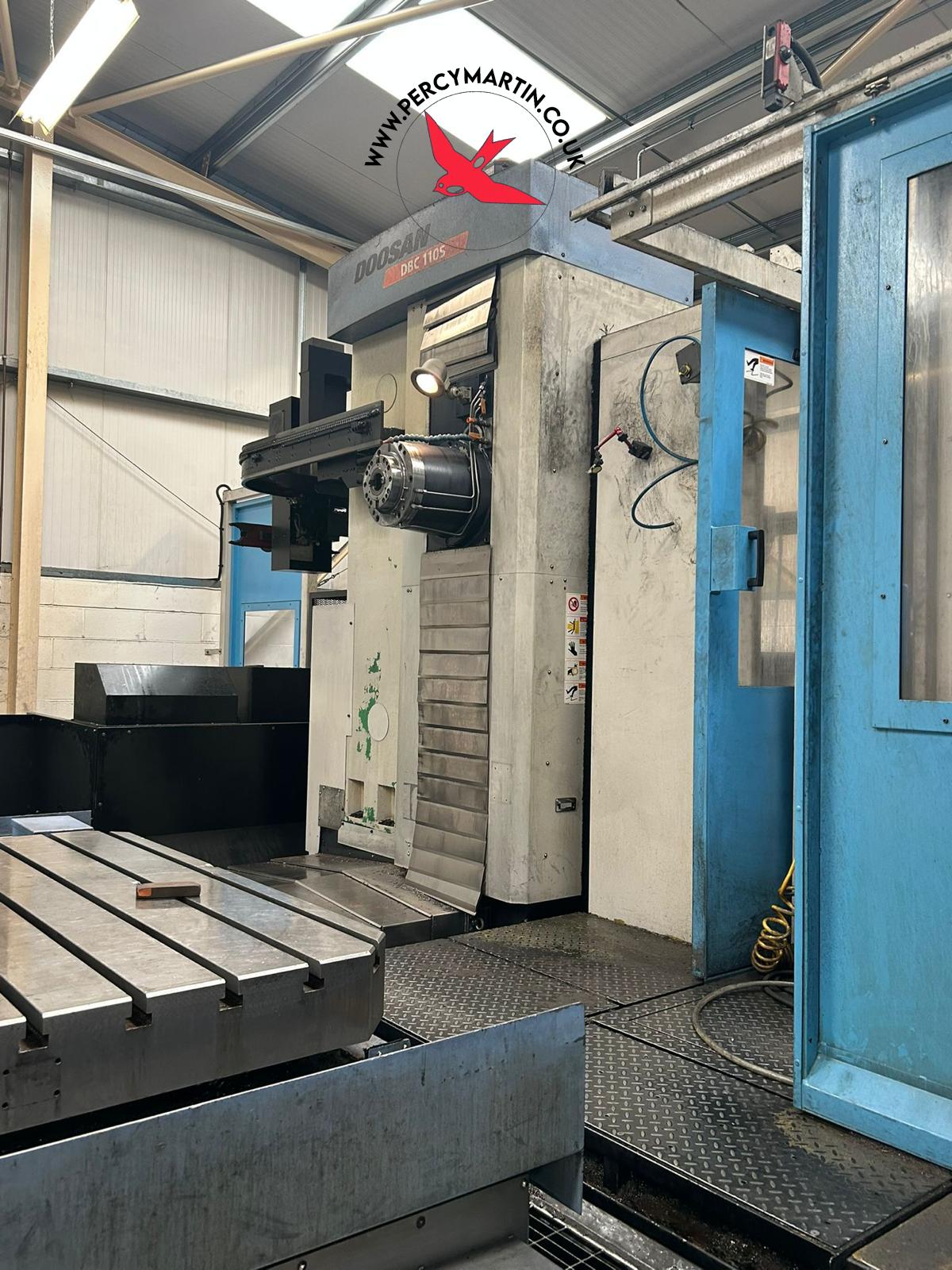

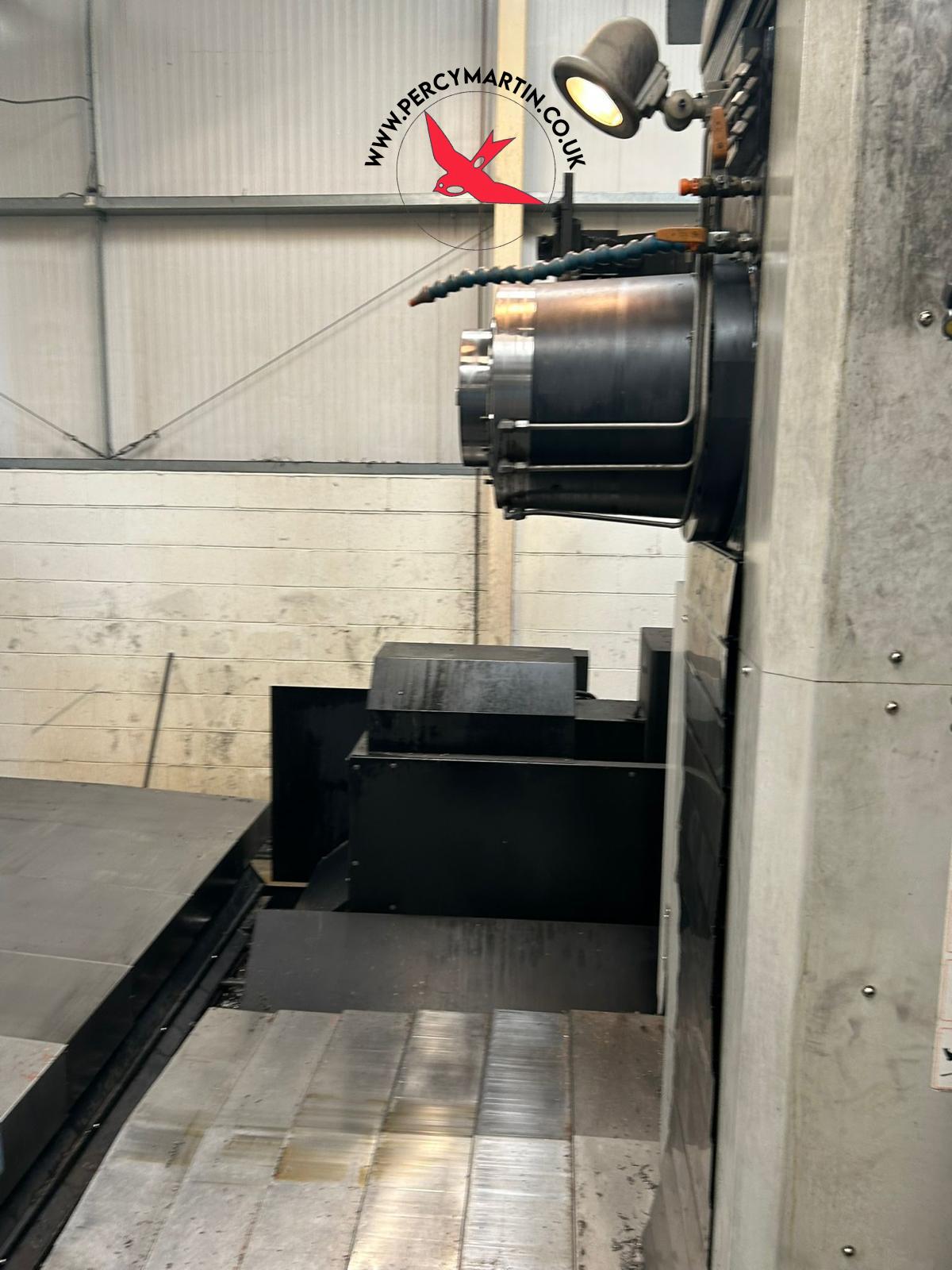

Doosan DBC 110S 2012

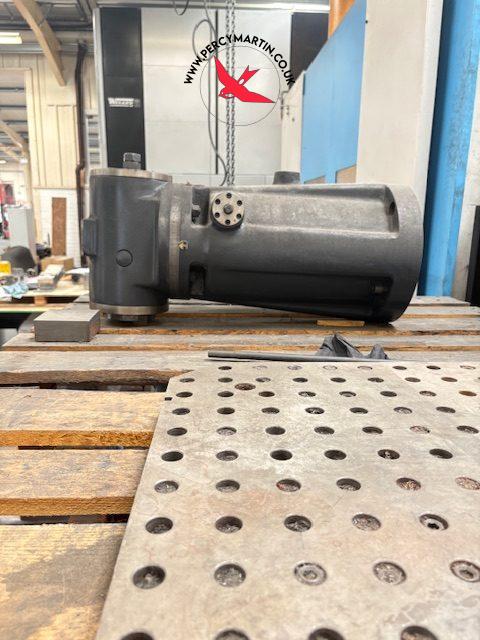

Angle Head , B axis , Coolant , Interlocked guards , Low Volt Light , Spindle Probe , Swarf Conveyor , Through Spindle Coolant , Tool setter
Doosan DBC 110S 2012
Key Features
Type:
Horizontal Borers
Model:
DBC 110S
Make:
Doosan
Year:
2012
Serial No
MB0001-000031
Price
£POA
Our Reference
PM9649
Location
Leicester
Doosan DBC 110S 2012
Specifications
B Axis
1 degree

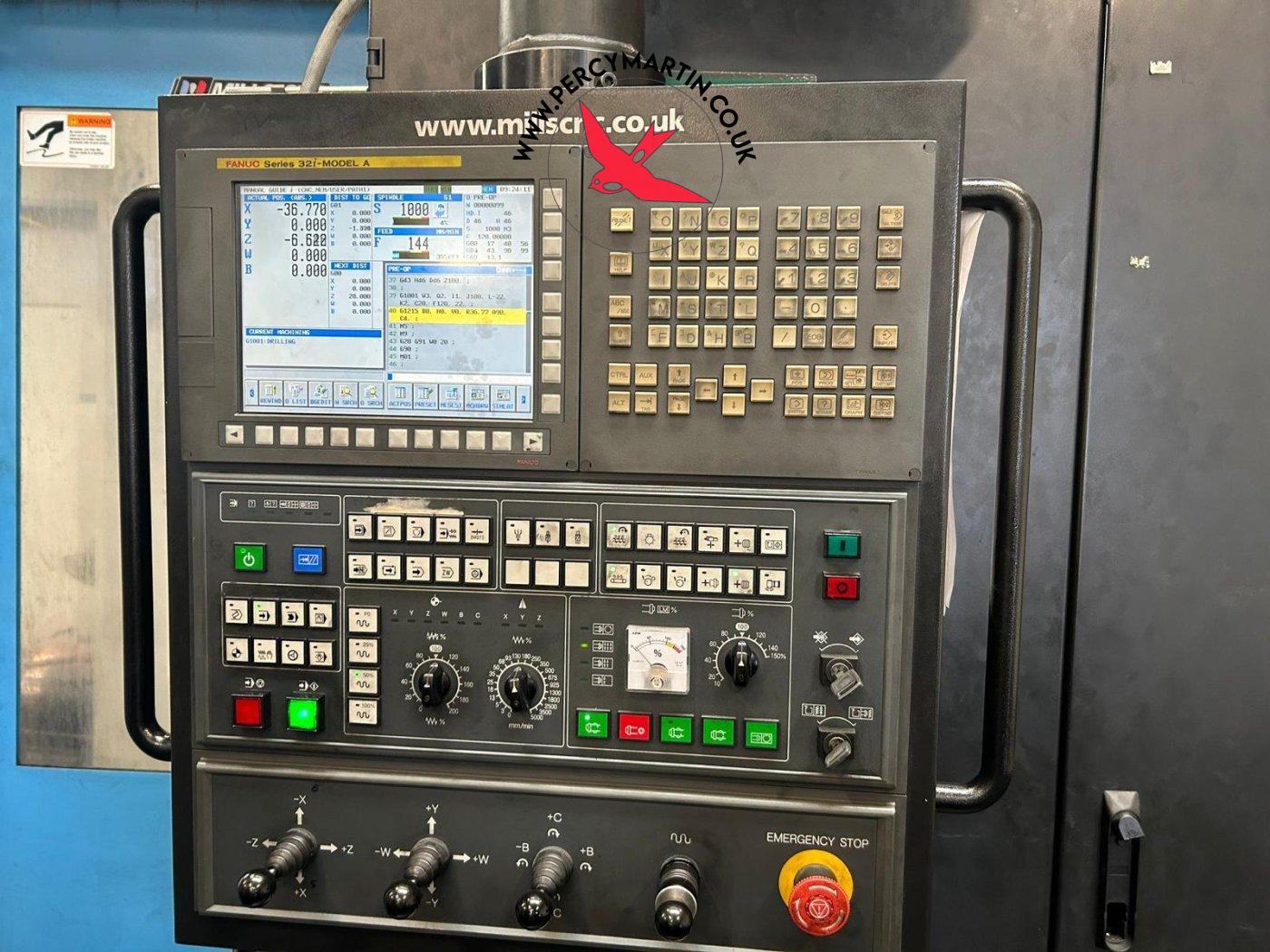

Control
FANUC 32i-Model A
Distance from Spindle Nose to Table Centre
550 - 1750mm
Distance from Spindle Nose to Table Top
0 - 1500mm
Machine Dimensions
5540 x 5930 x 4200mm
Machine Weight
29000kg
Maximum Cutting Feedrate
6m/minute
Maximum Tool Diameter
250mm
Maximum Tool Length
600mm
Maximum Tool Weight
30kg
Maximum workpiece weight
7000kg
Rapid Feedrates
WXYZ: 6 x 12 x 12 x 12m/minute

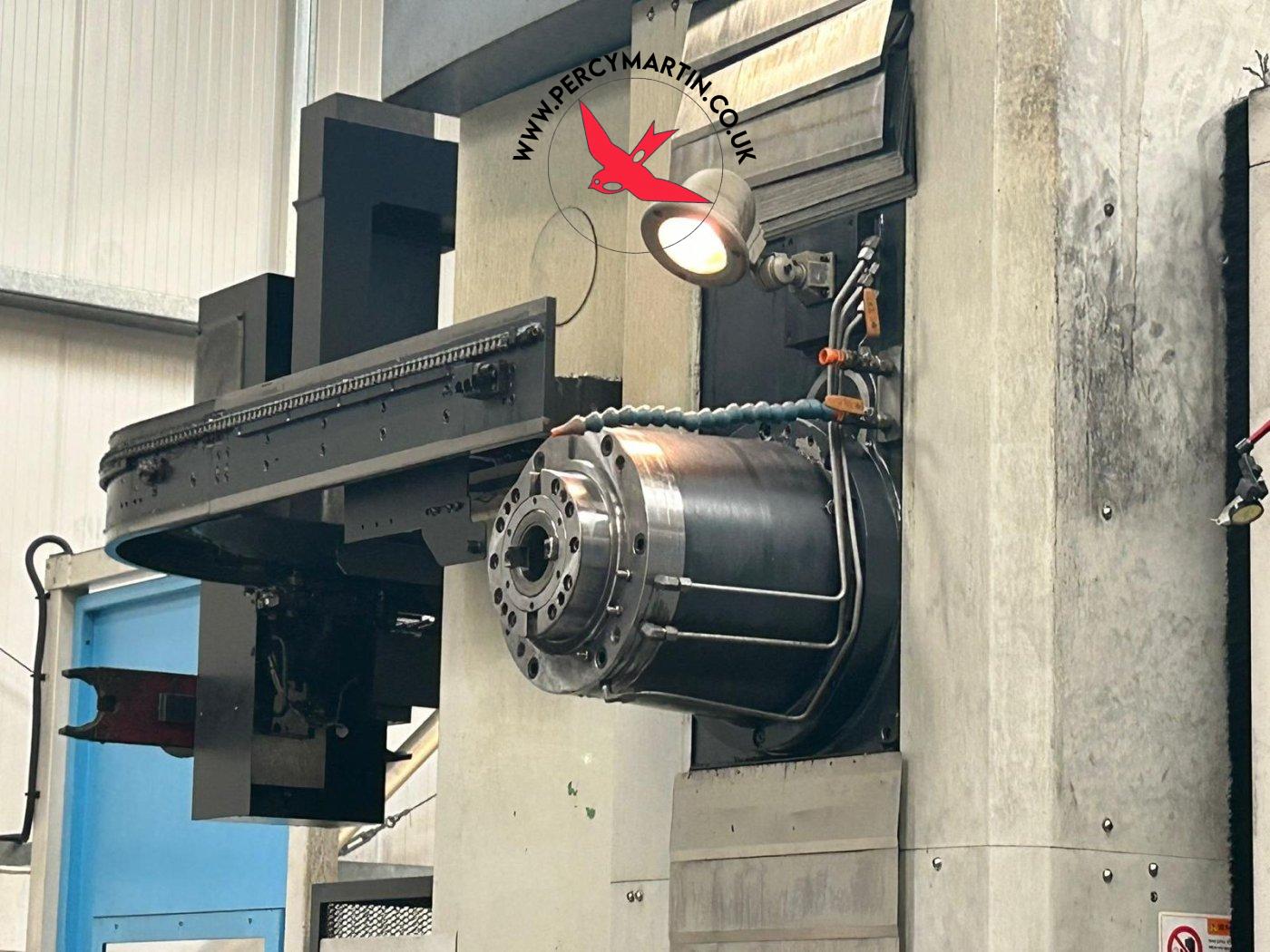

Spindle Diameter
110mm
Spindle Motor Power
26/22kW
Spindle Motor Power
26/22kW
Spindle Speed
3000rpm
Swing
2550mm

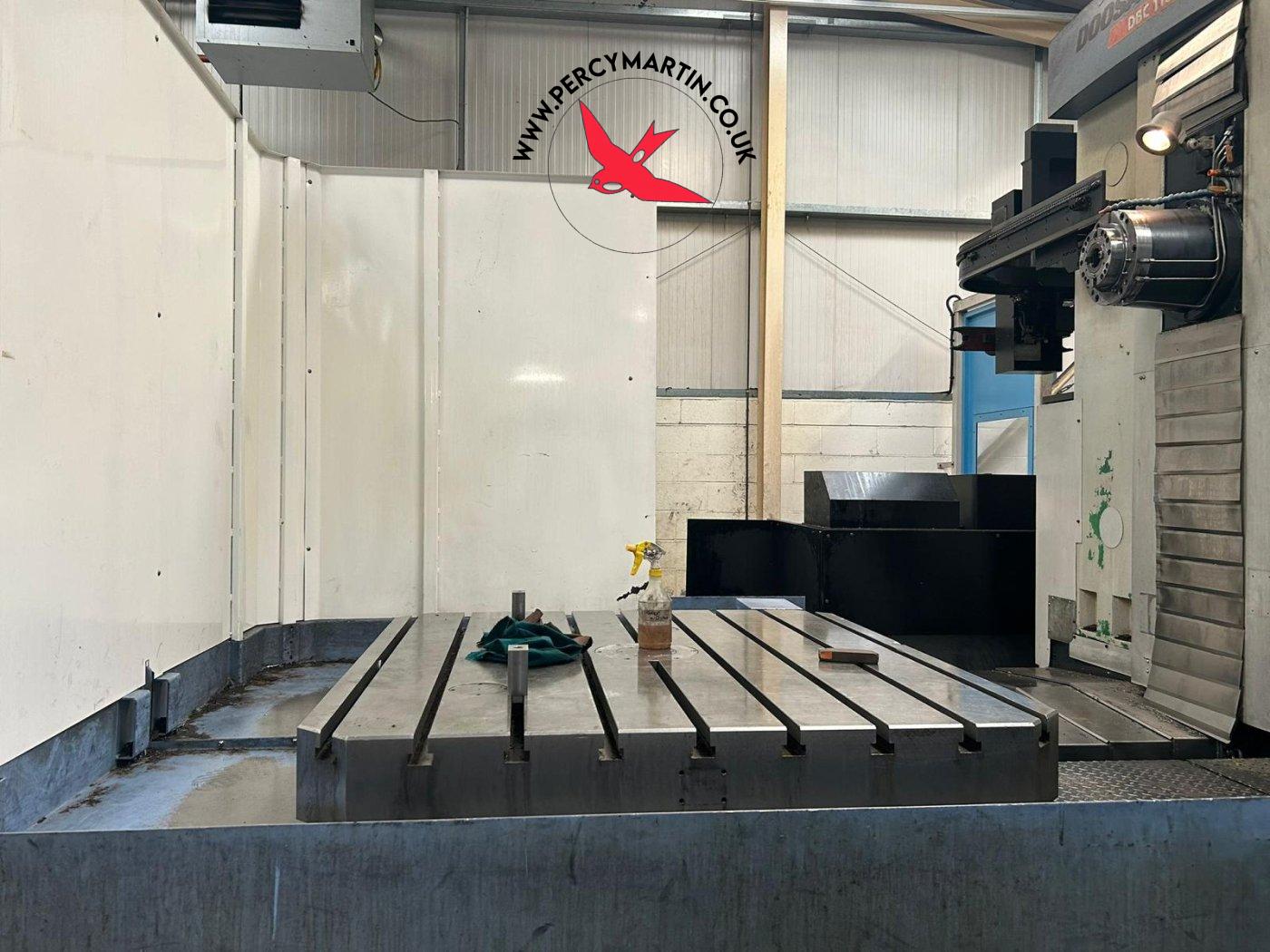

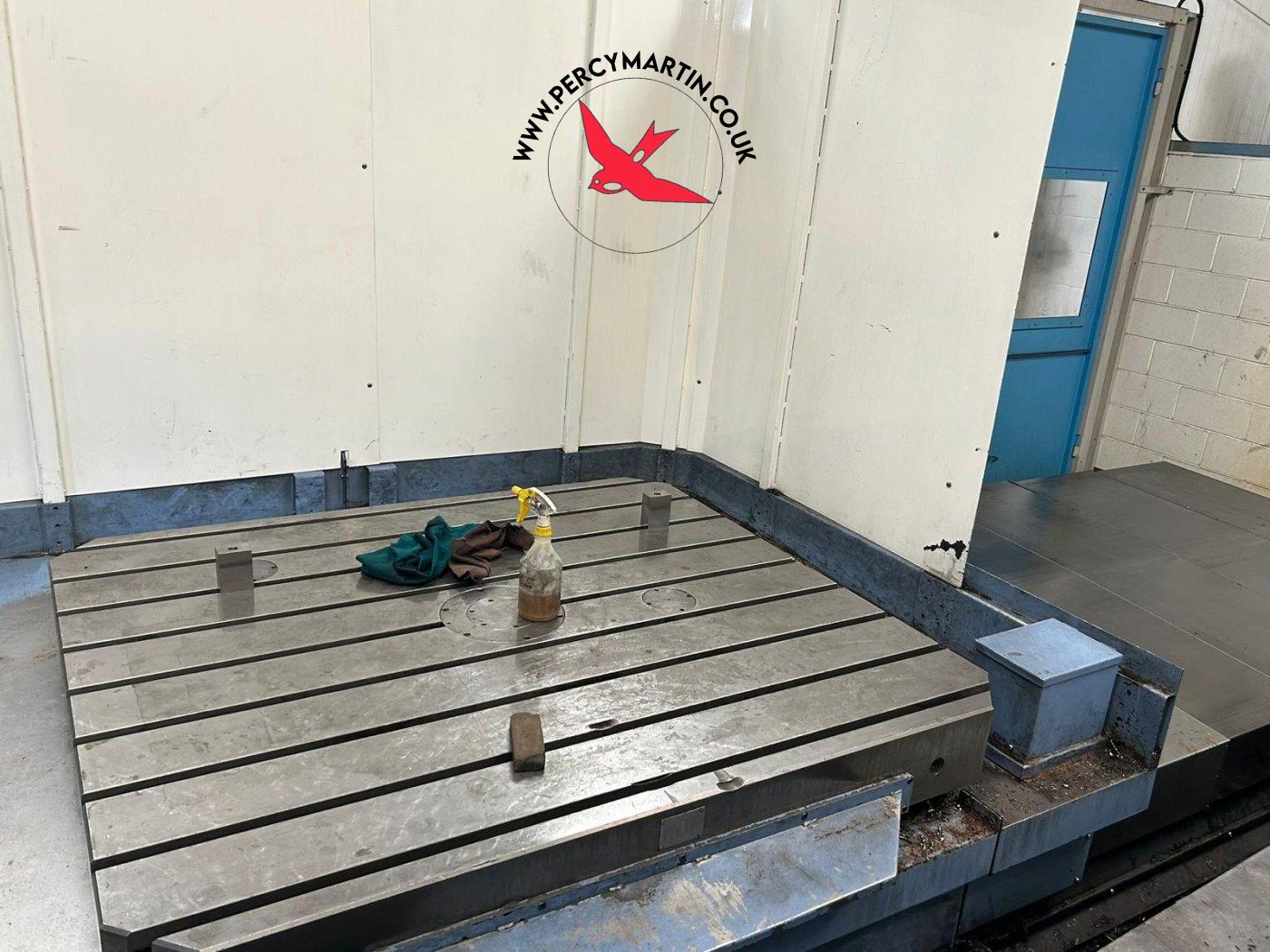

Table Size
1400 x 1600mm

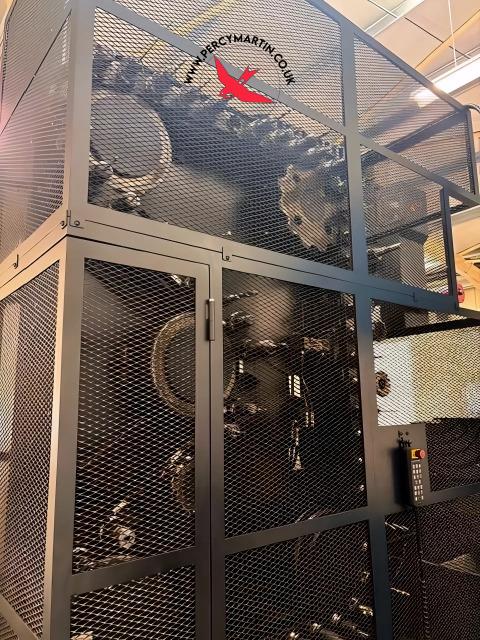

Tool Change Capacity
60 Station
Tool Size
BT50
Traverses XYZ
2000 x 1500 x 1200mm
W Axis
500mm
