CNC Multi Tasking Lathes

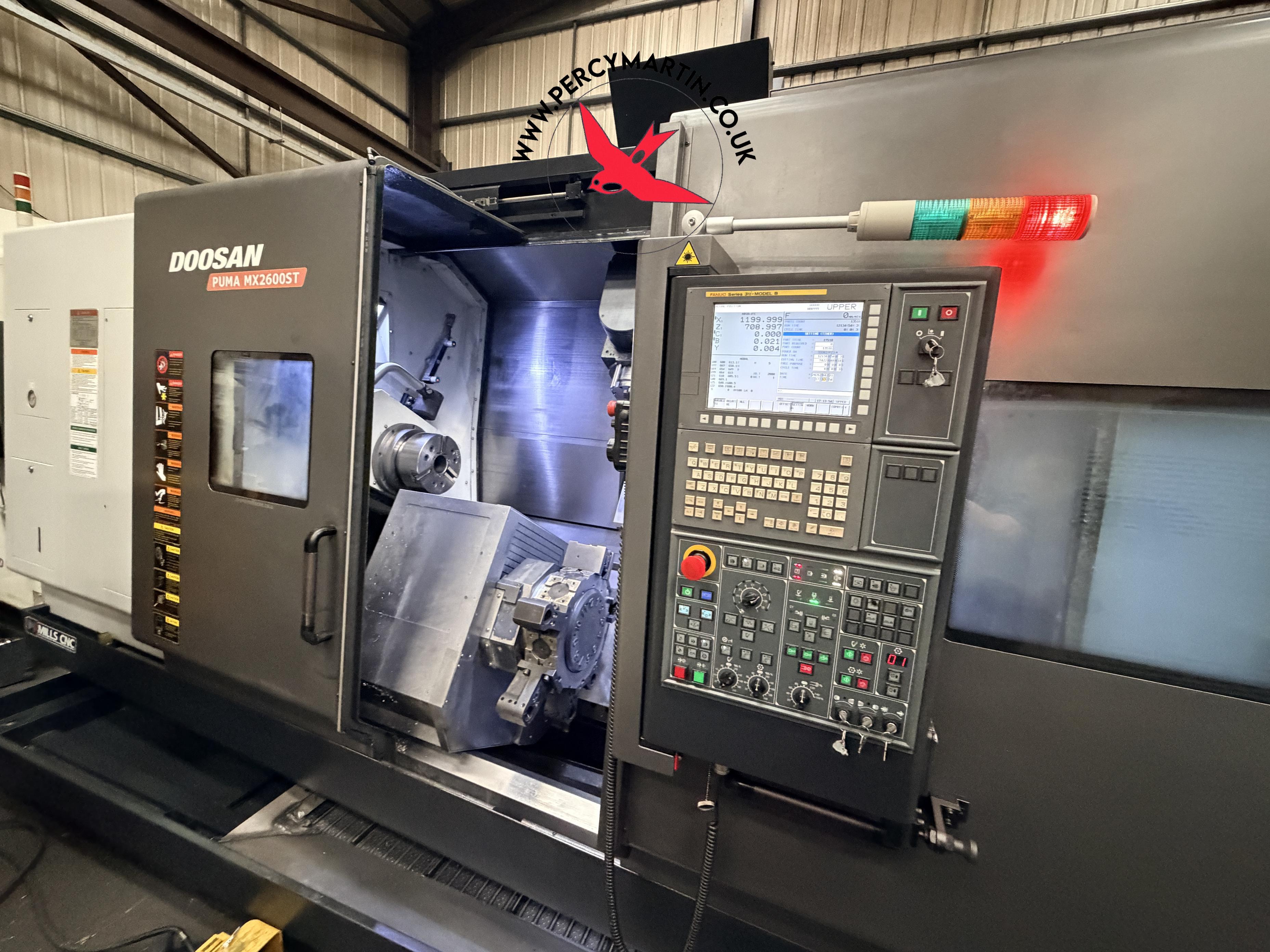

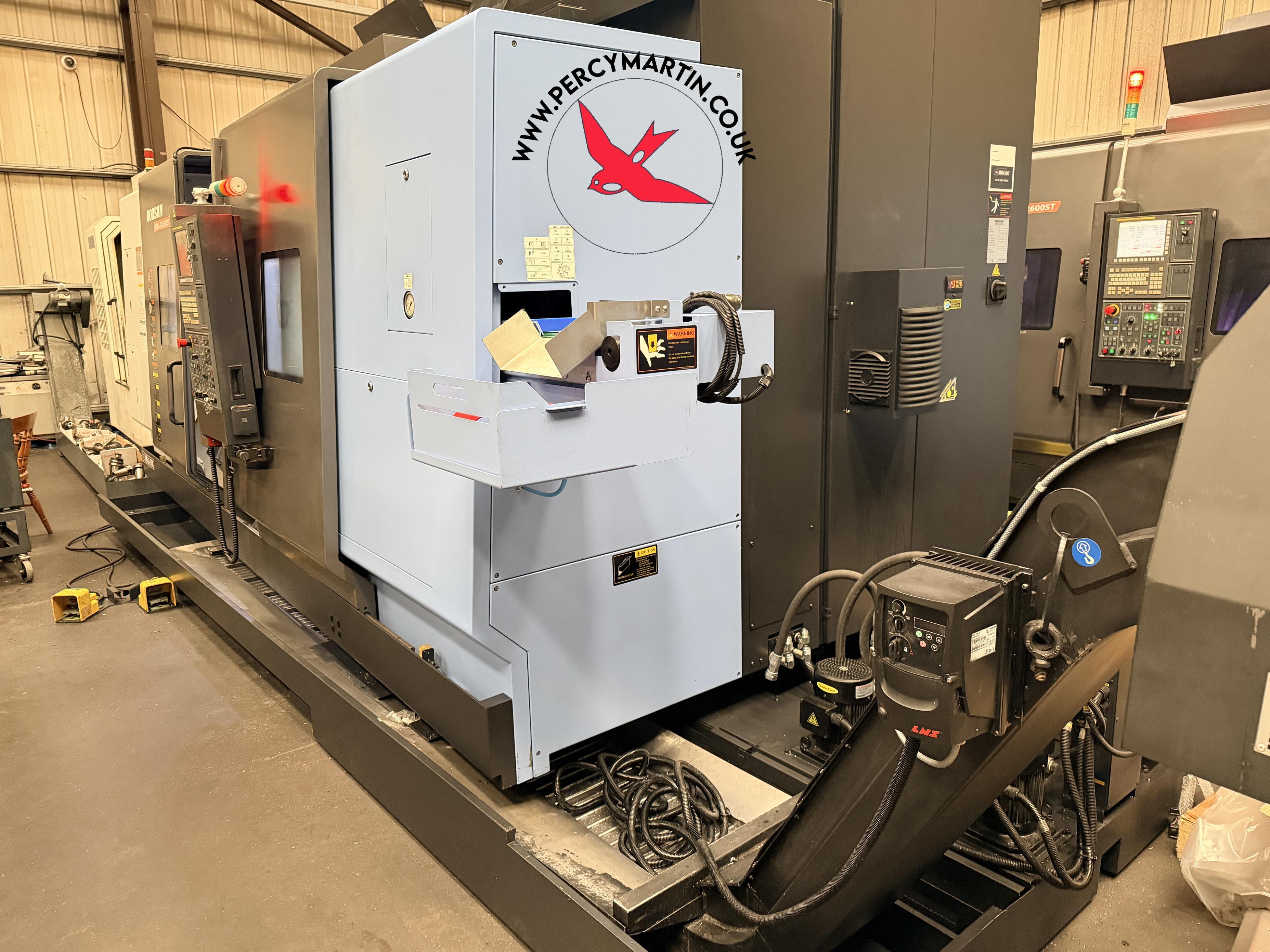

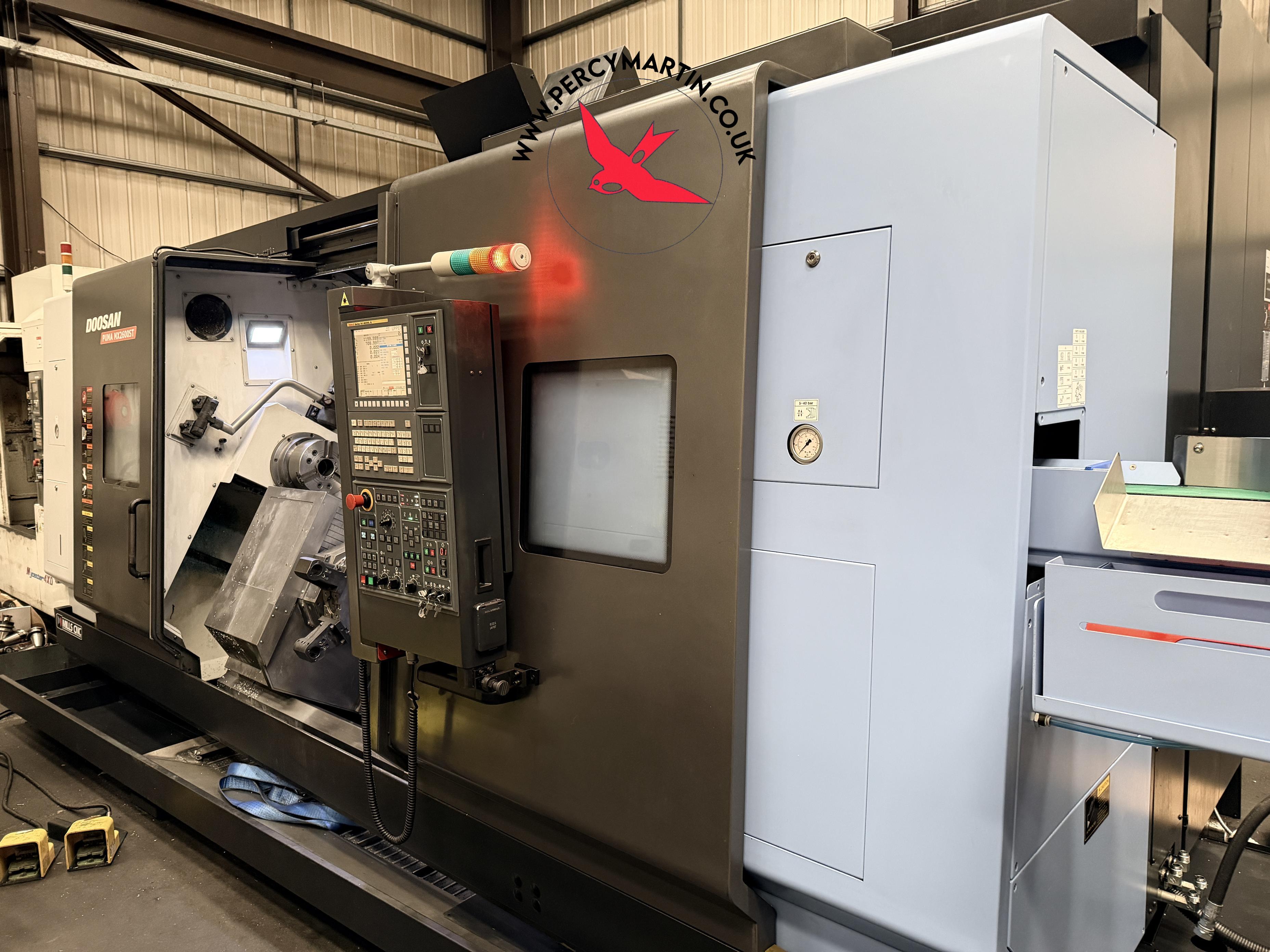

Doosan Puma MX2600ST 2015

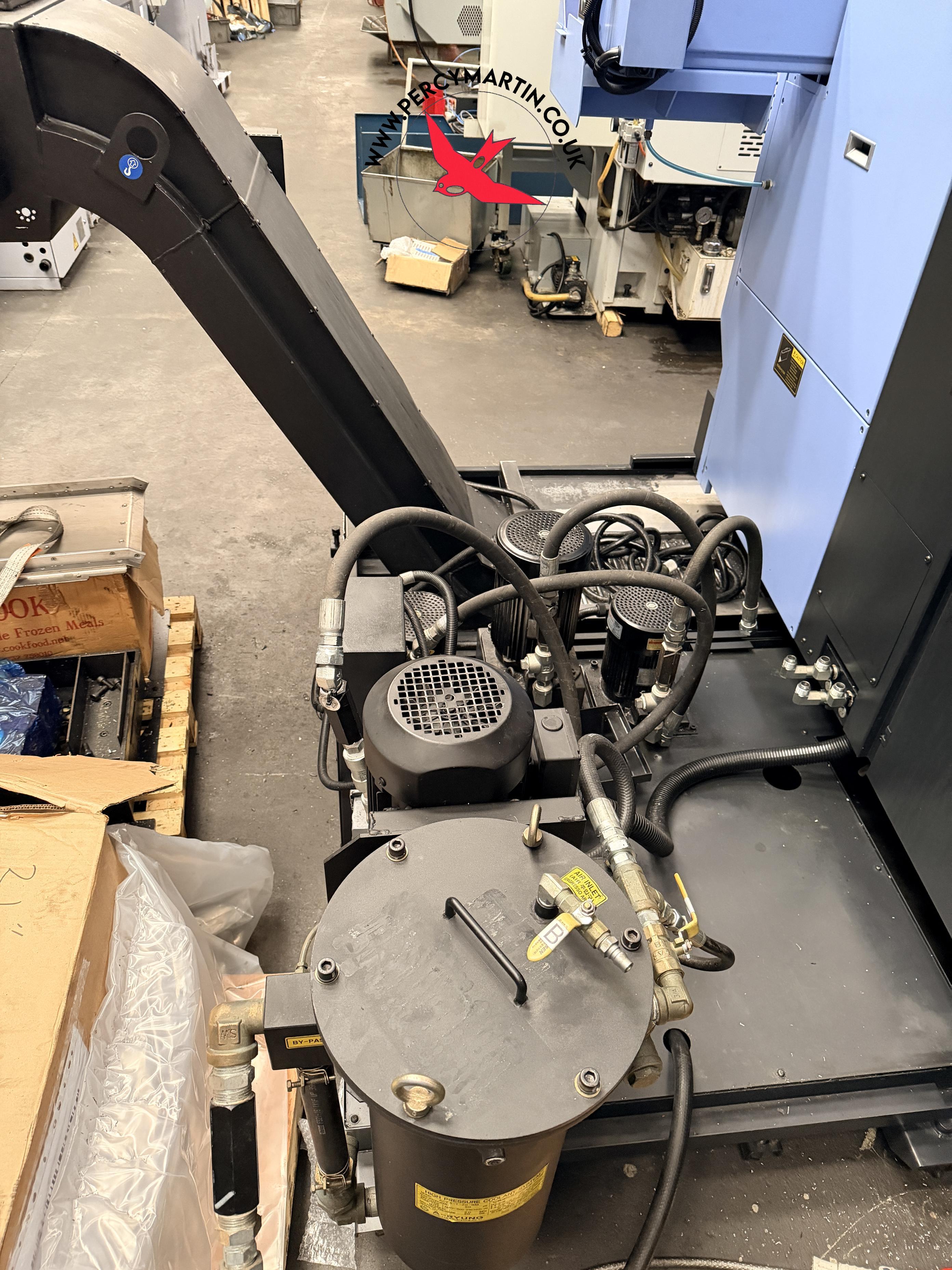

3 Jaw Chuck , B axis , C axis & Milling , C axis on Sub Spindle , Coolant , Interlocked guards , Low Volt Light , Lower Turret , Remote Hand Wheel , Sub Spindle , Swarf Conveyor , Through Spindle Coolant , Tool setter , Y-axis
Doosan Puma MX2600ST 2015
Key Features
Type:
CNC Multi Tasking Lathes
Model:
Puma MX2600ST
Make:
Doosan
Year:
2015

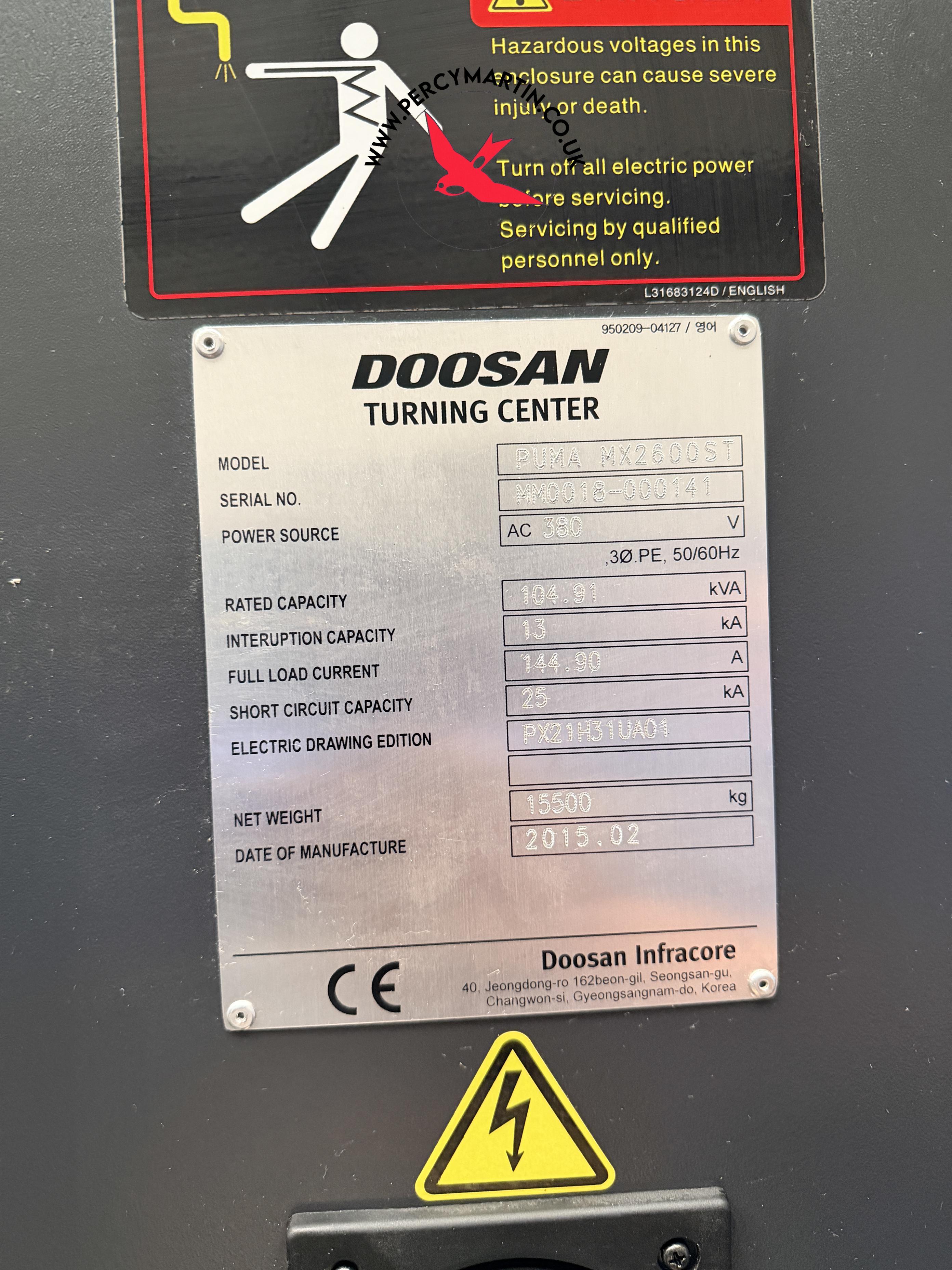

Serial No
MM0018-000141
Price
£POA
Our Reference
Location
Leicester
Doosan Puma MX2600ST 2015
Specifications

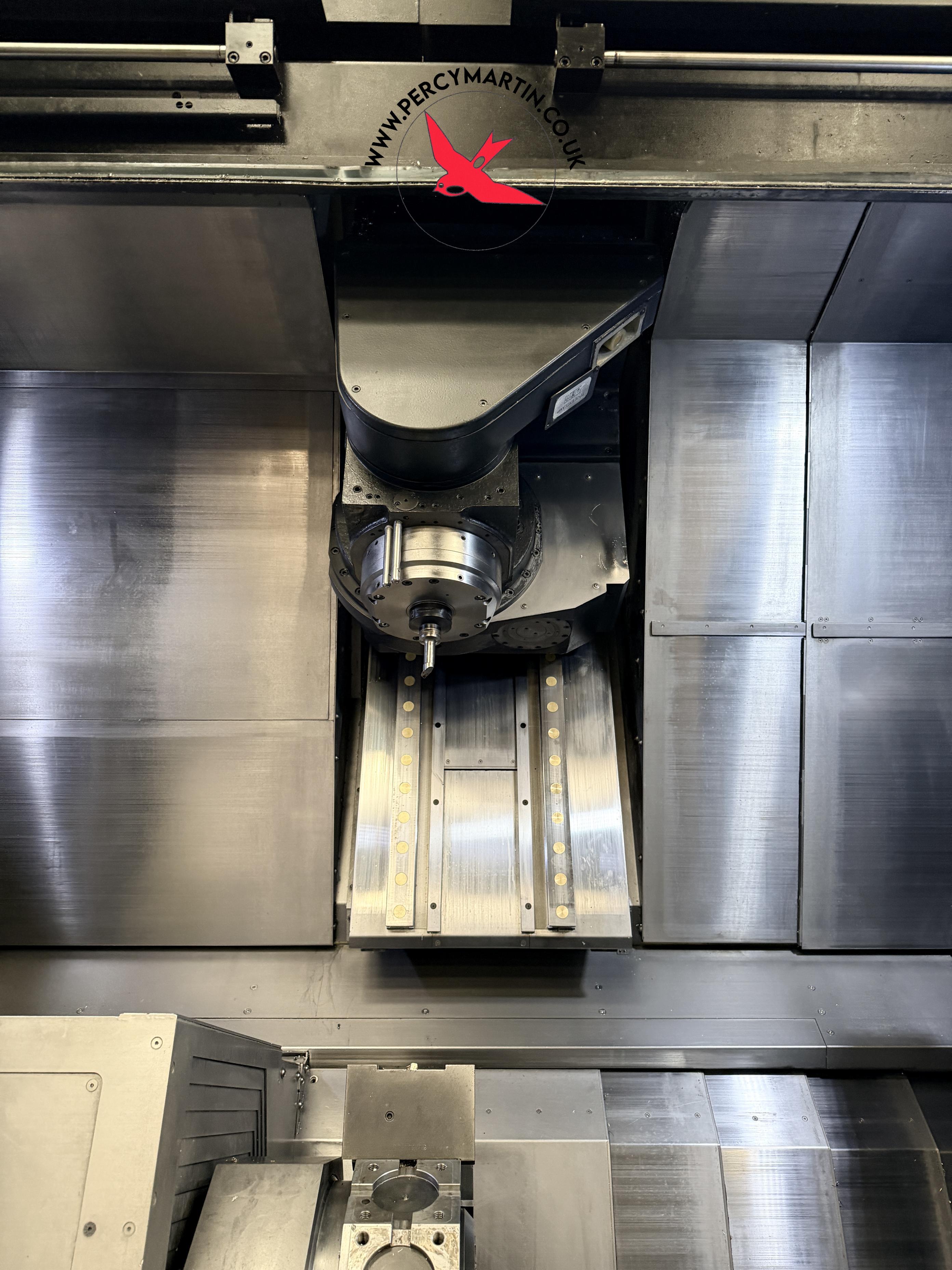

B Axis
+/-120 degrees
Bar Capacity
76mm
C axis
0.001 degree

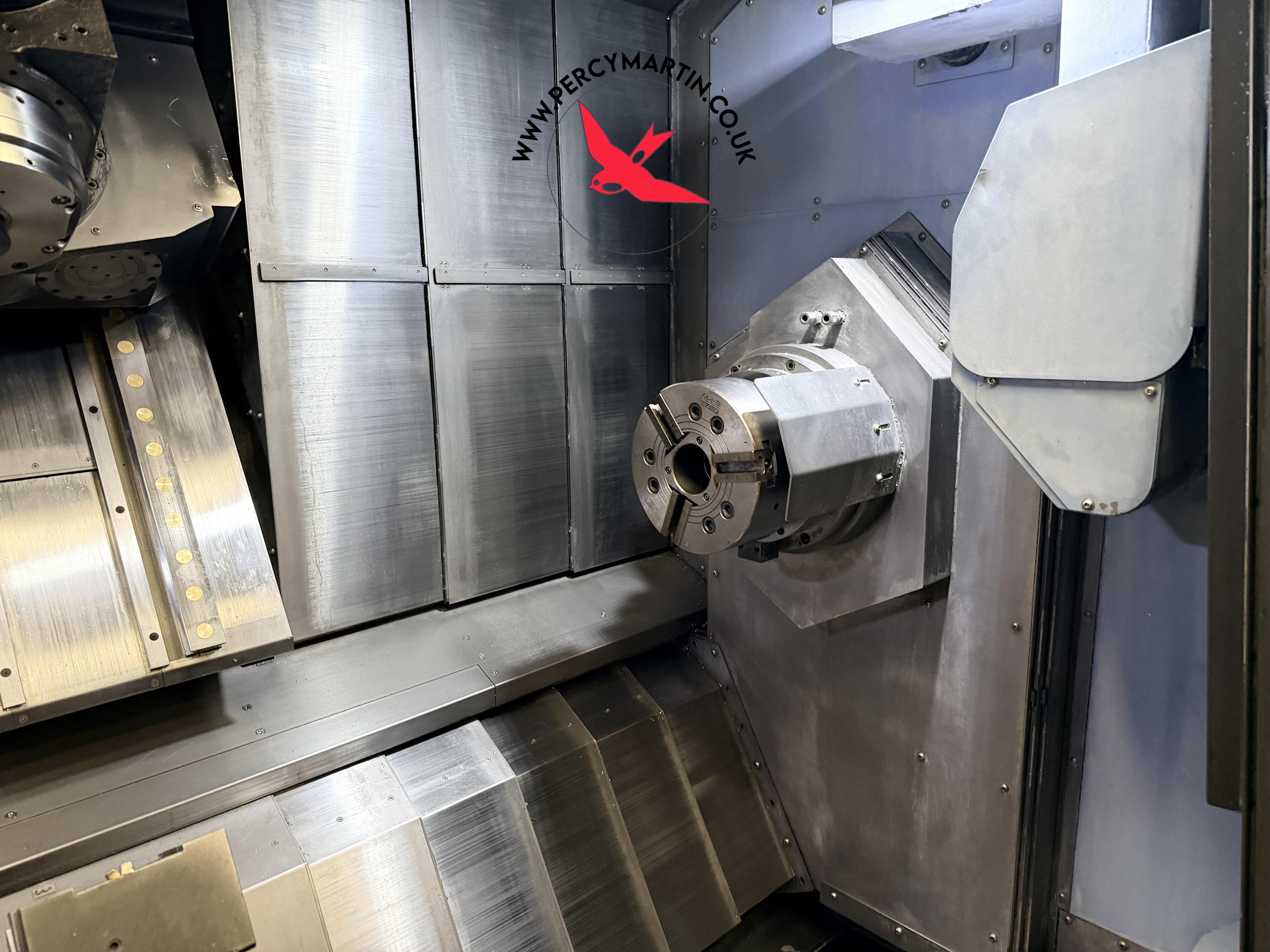

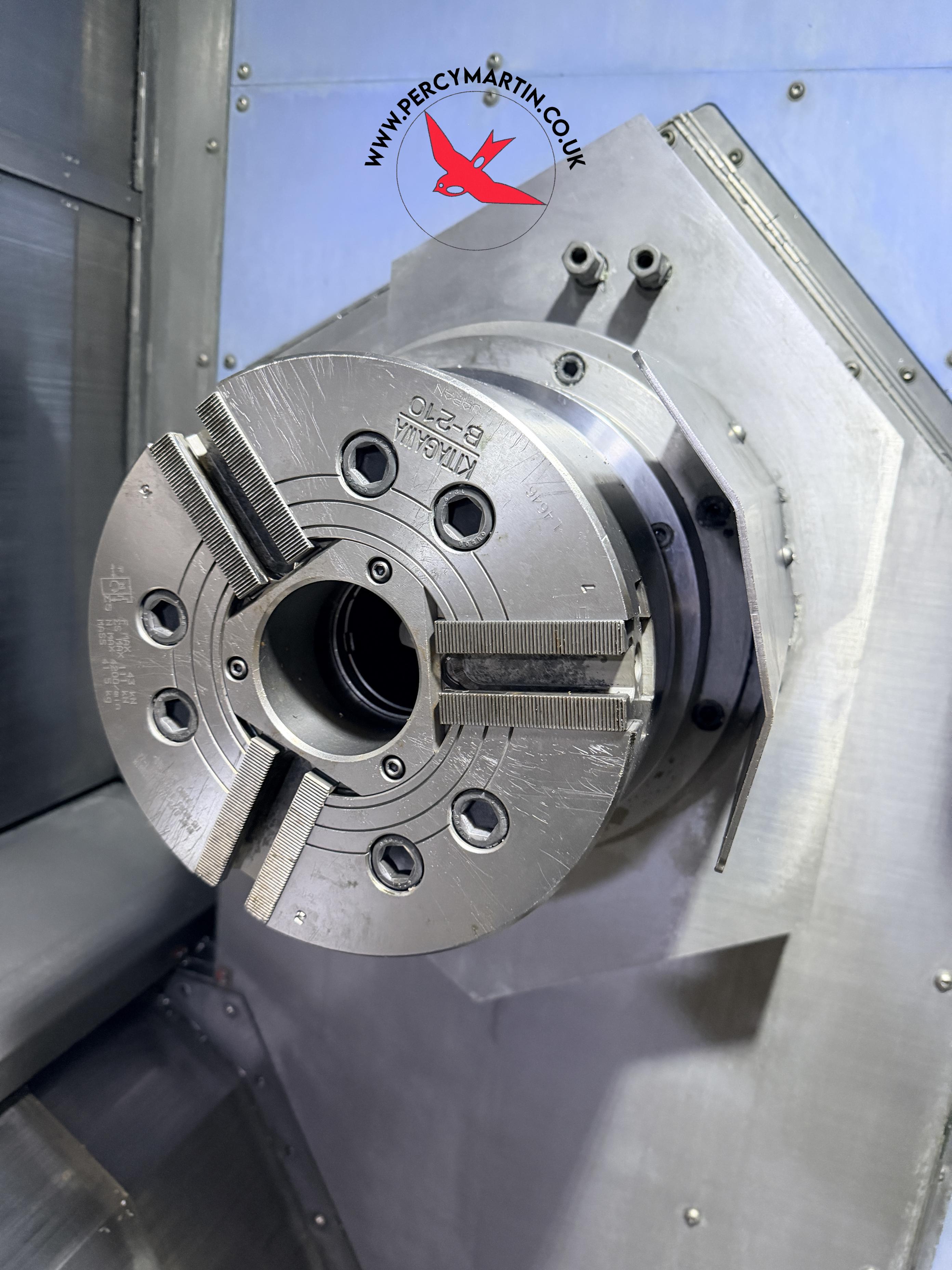

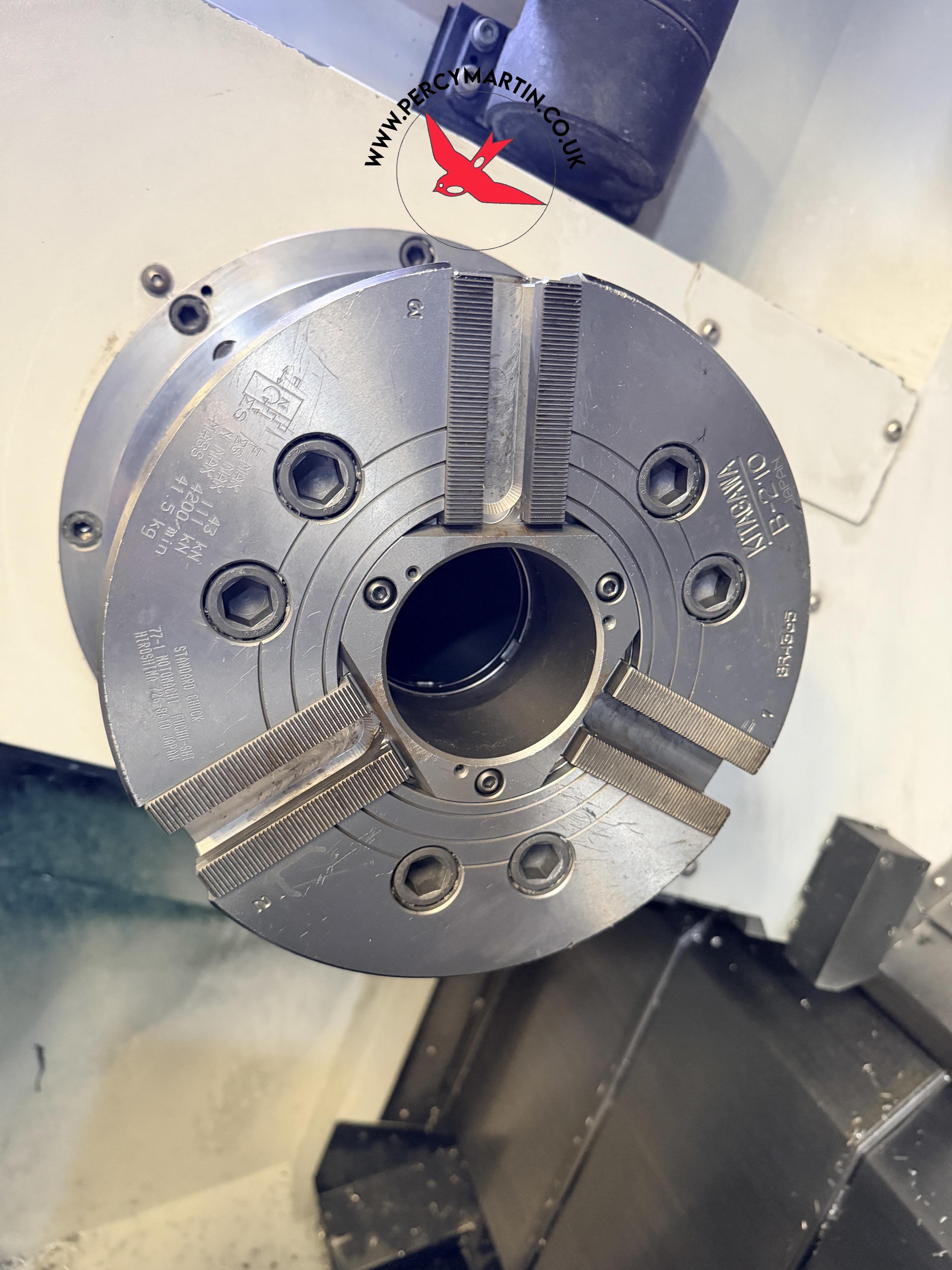

Chuck Size
250mm (10")

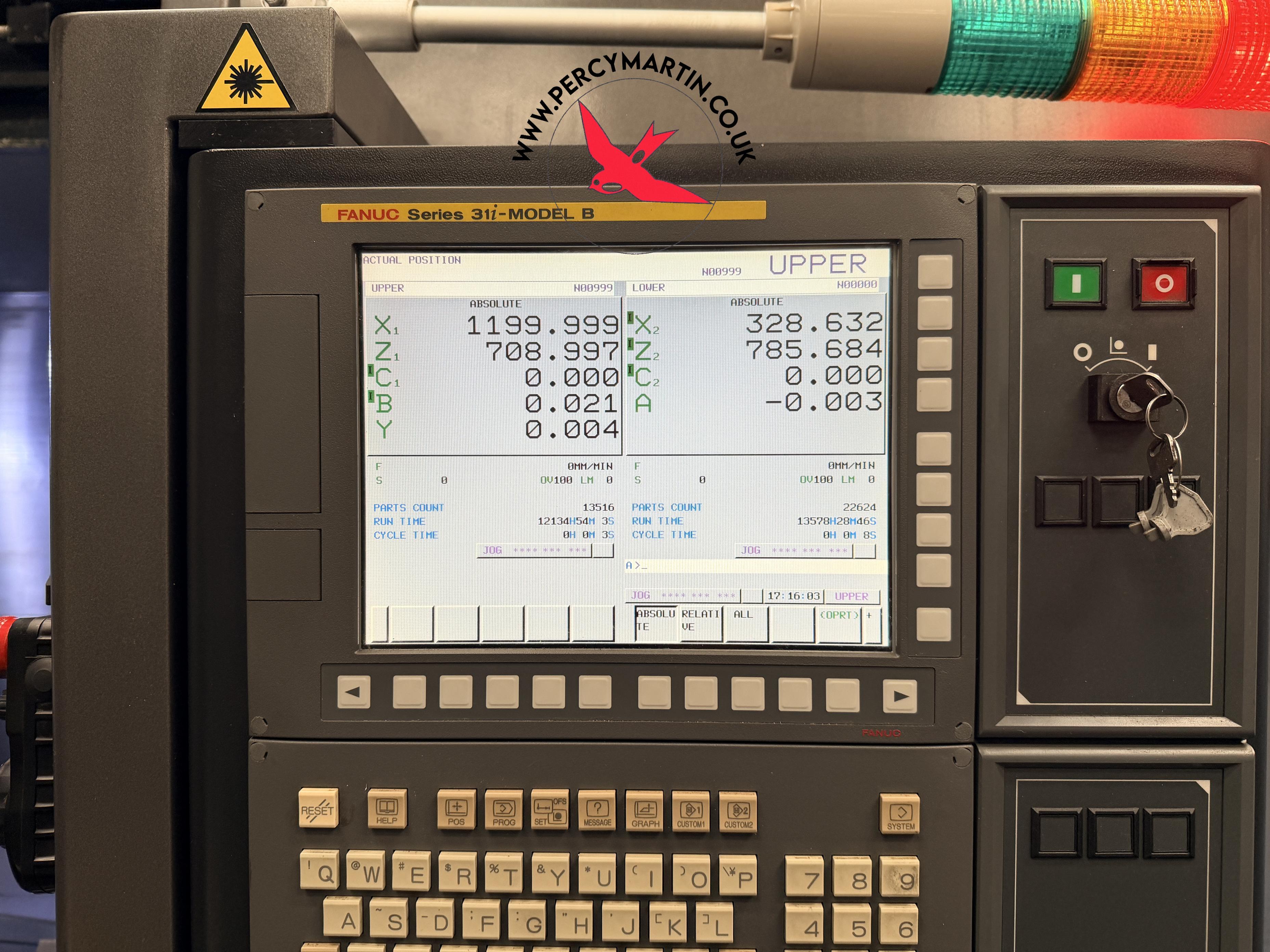

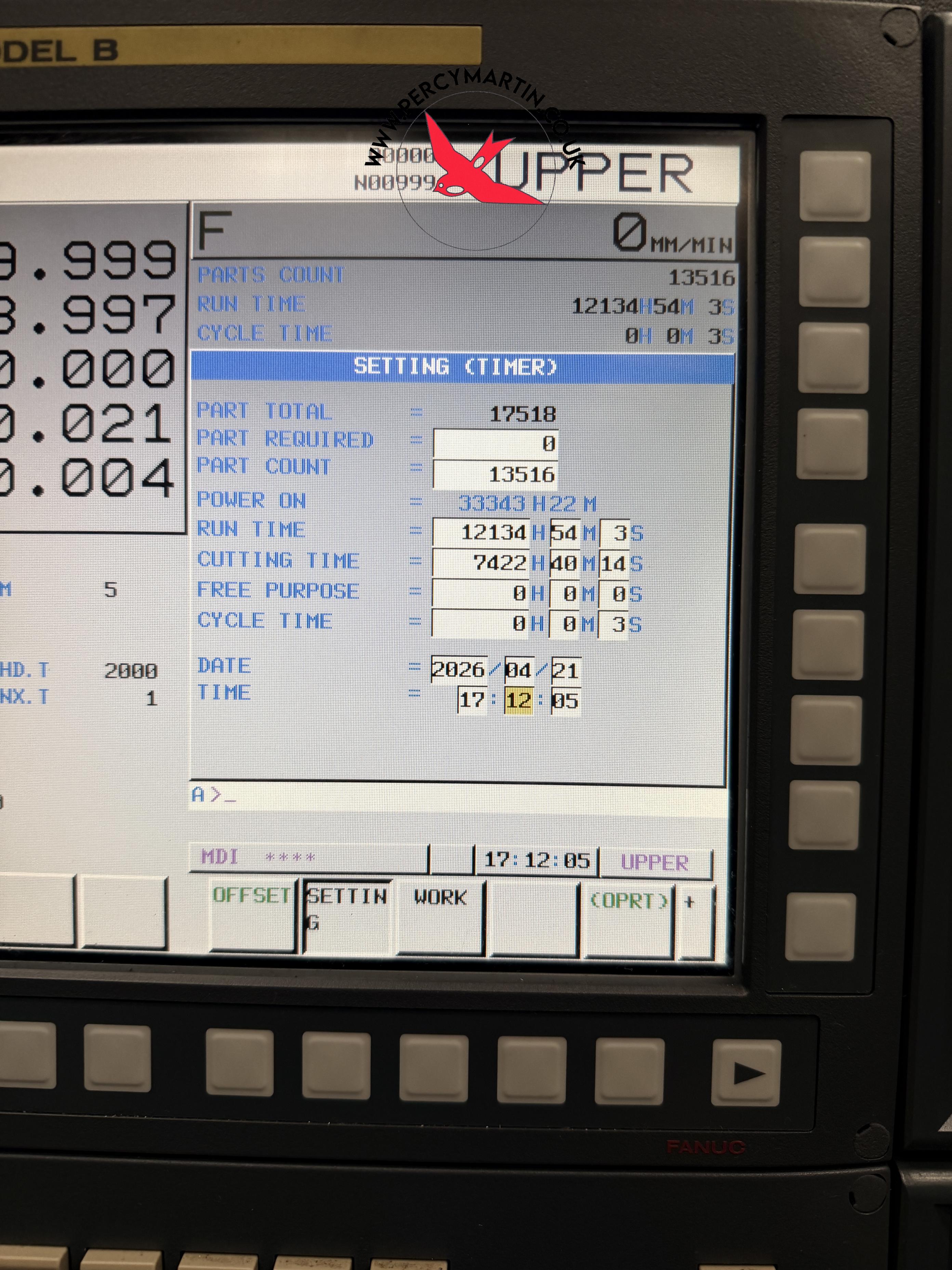

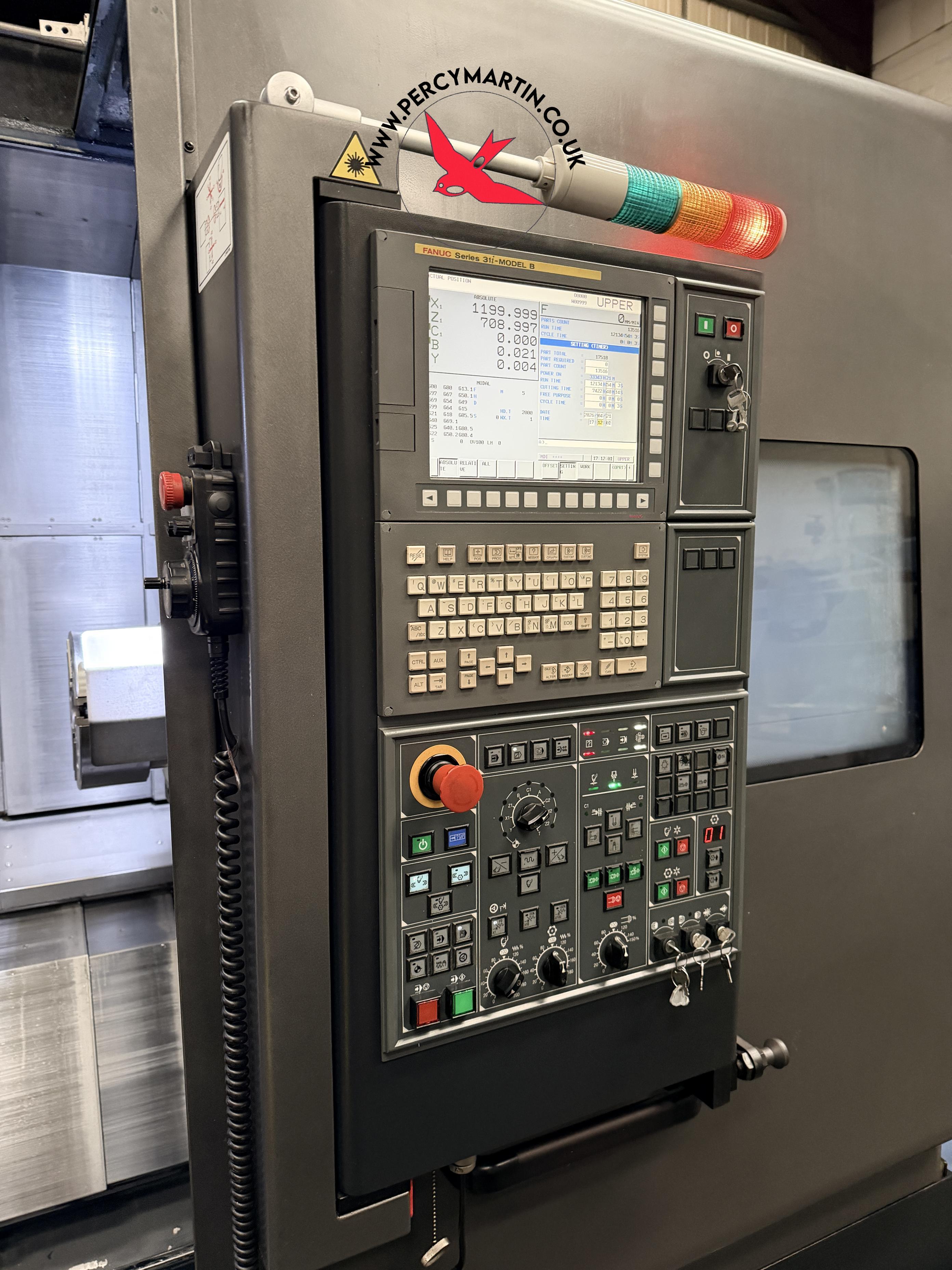

Control
FANUC 31i-Model B5

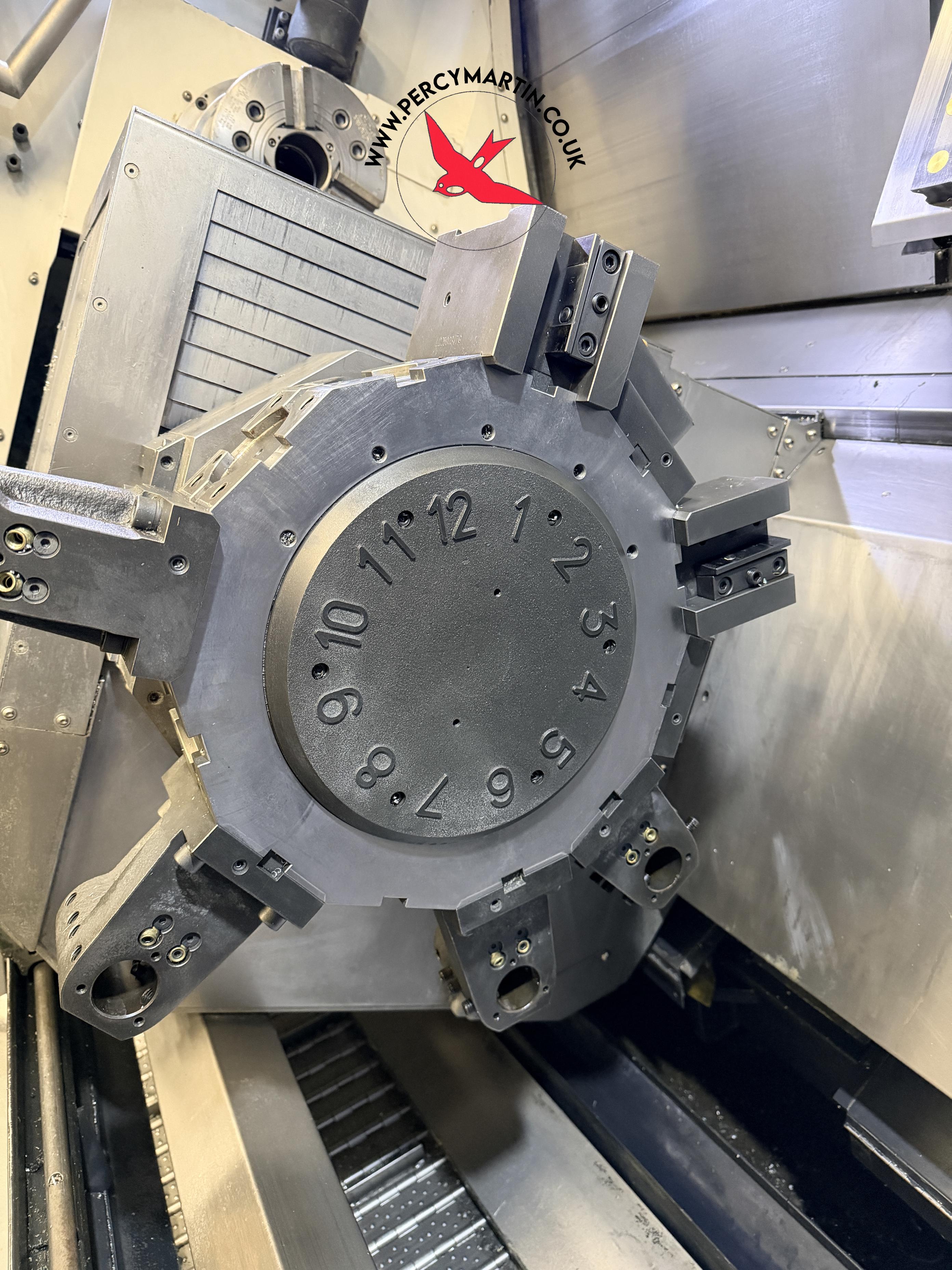

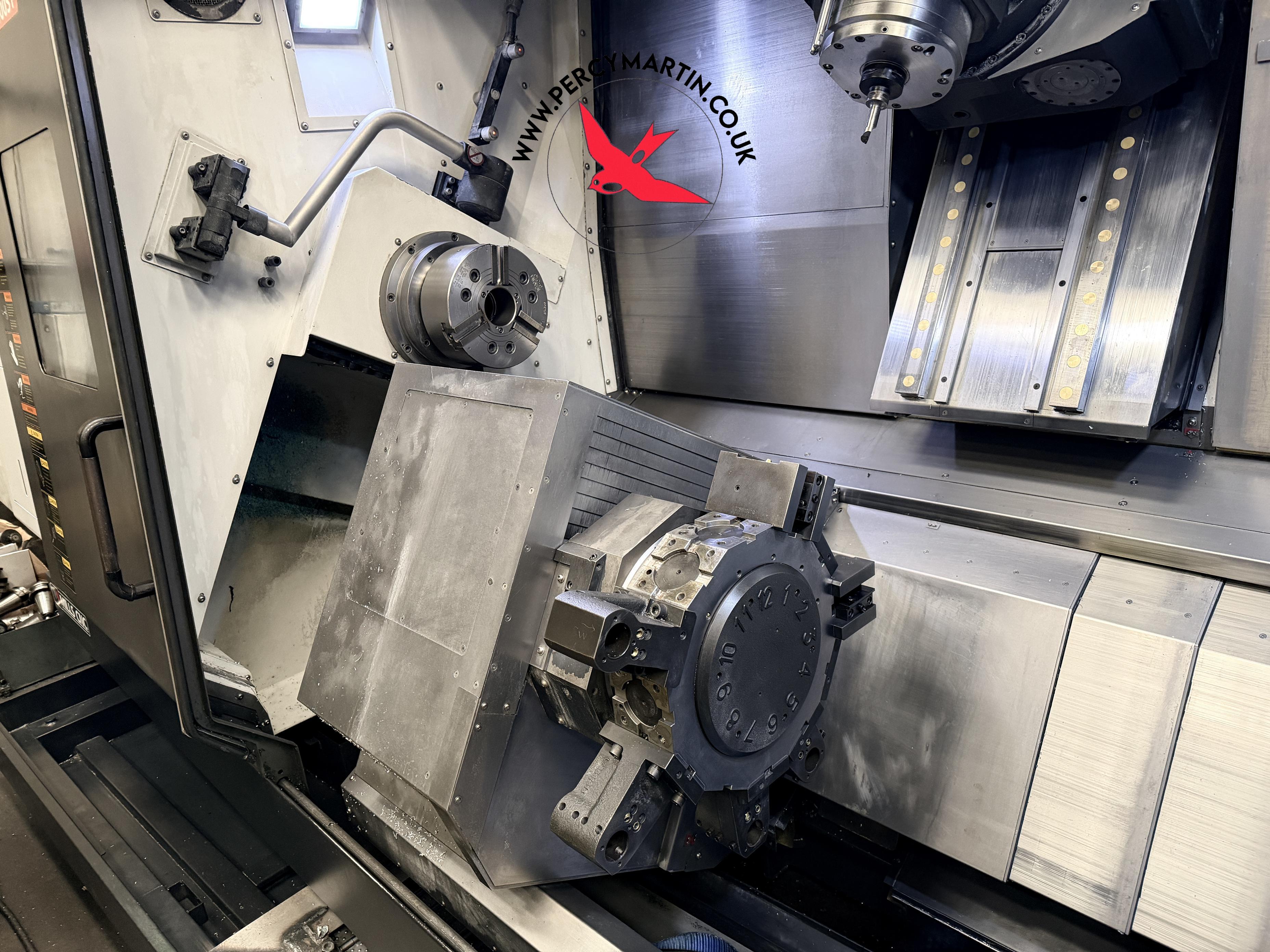

Lower Turret
12 Station (BMT65)
Maximum Cutting Diameter
760mm
Maximum Cutting Length
1540mm

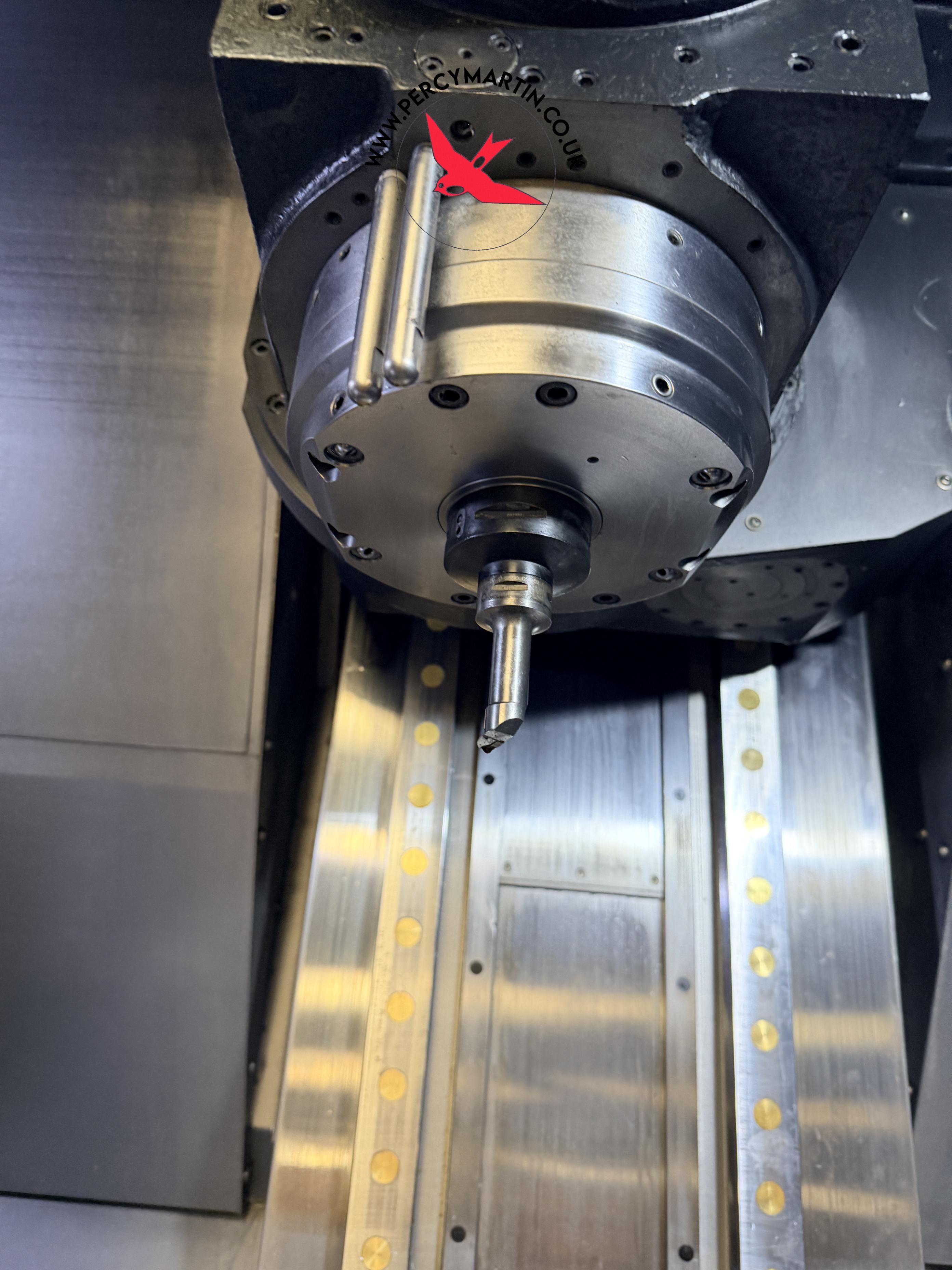

Milling RPM
12000rpm
Spindle Nose
A2-8
Spindle Speed
4000rpm
Standard Cutting Diameter
255mm
Sub Spindle C axis
0.001 degree
Sub Spindle Nose
A2-8
Sub Spindle Speed
4000rpm
Sub Spindle Stroke
1550mm (A axis)
Swing
1000mm

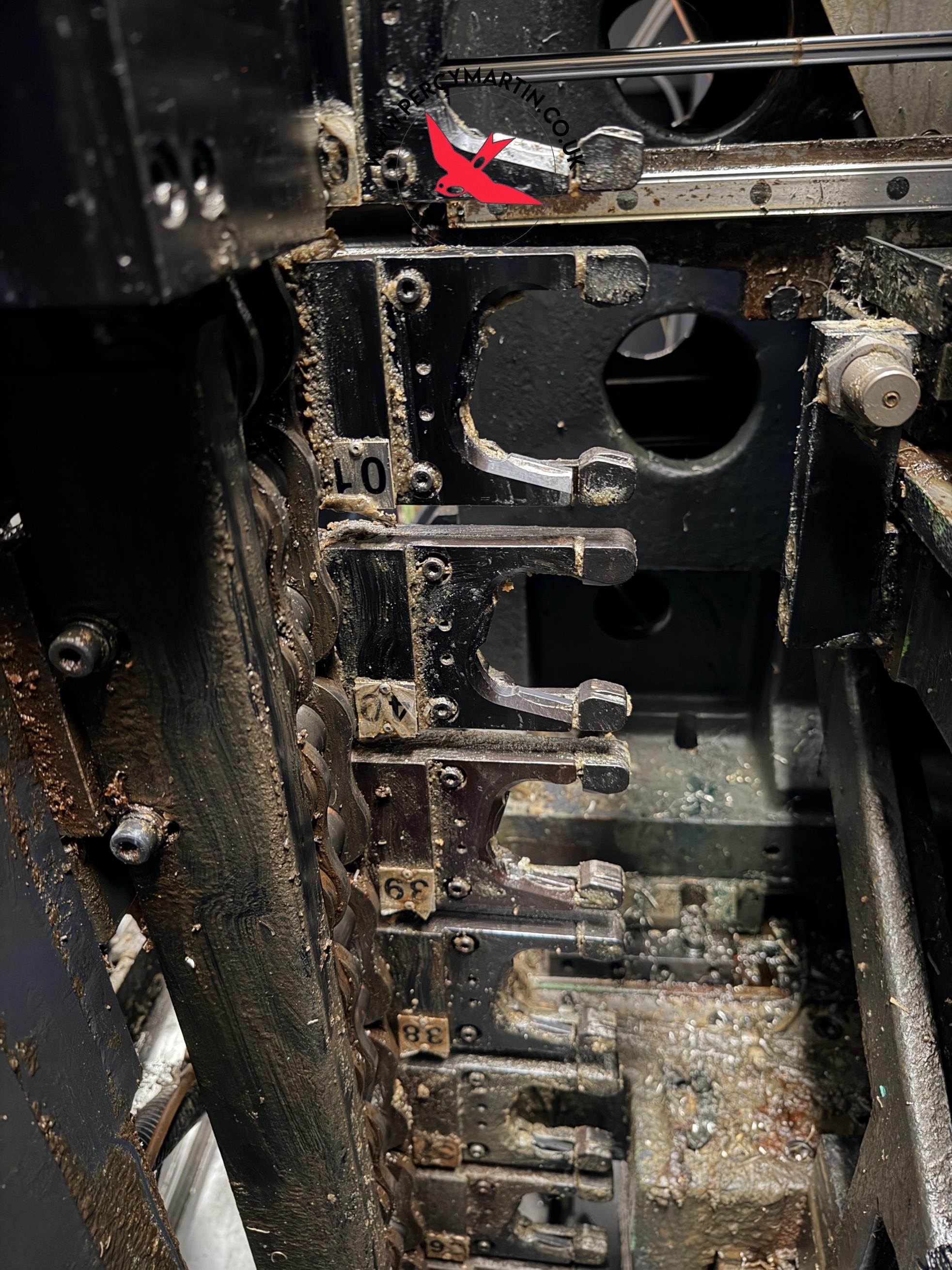

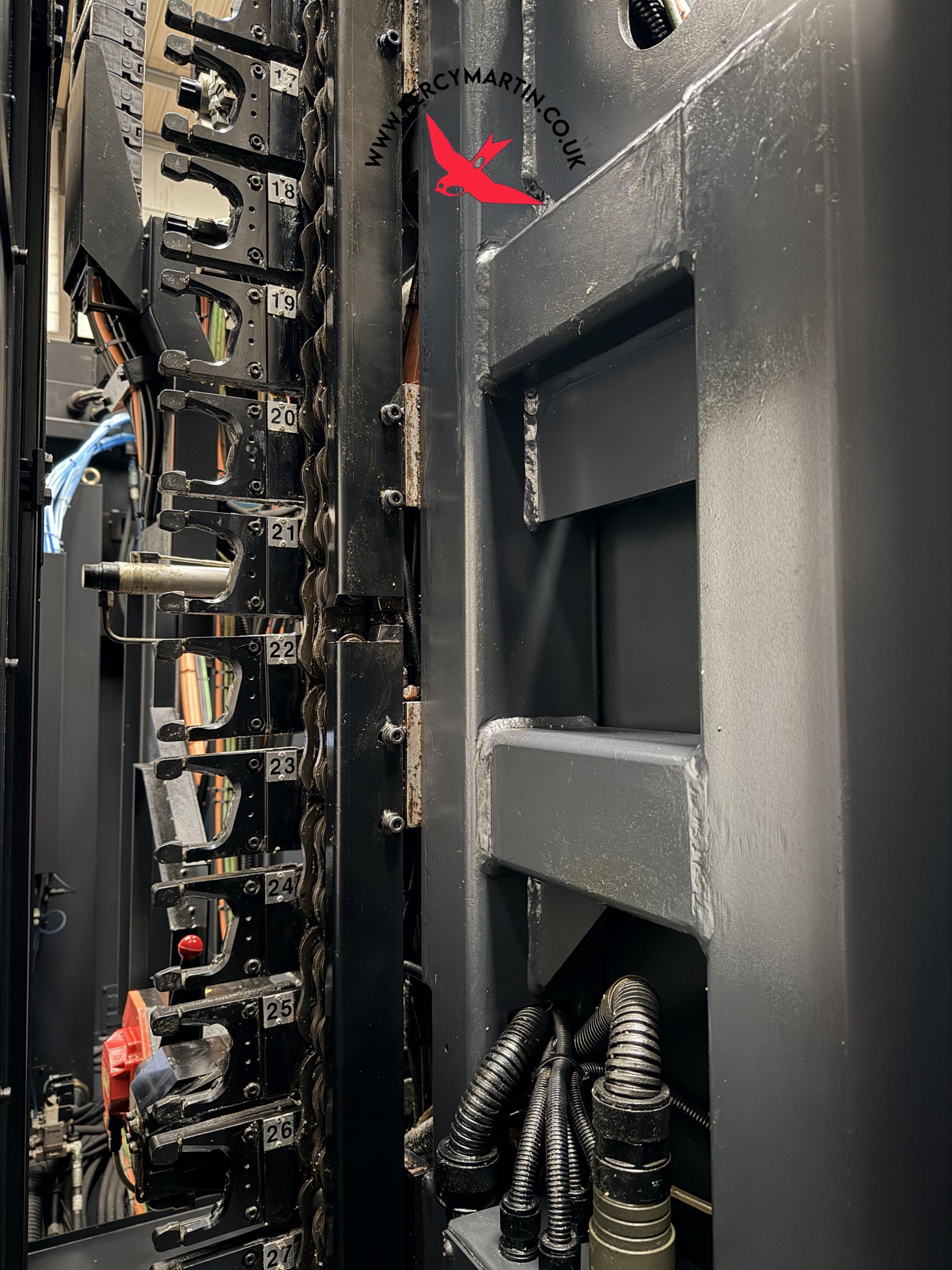

Tool Change Capacity
40 Station
Tool Size
CAPTO C6
X axis Travel
630mm
X2 axis Travel
220mm
Y axis Travel
+/-115mm
Z axis Travel
1585mm
Z2 axis Travel
1515mm
