CNC Multi Tasking Lathes

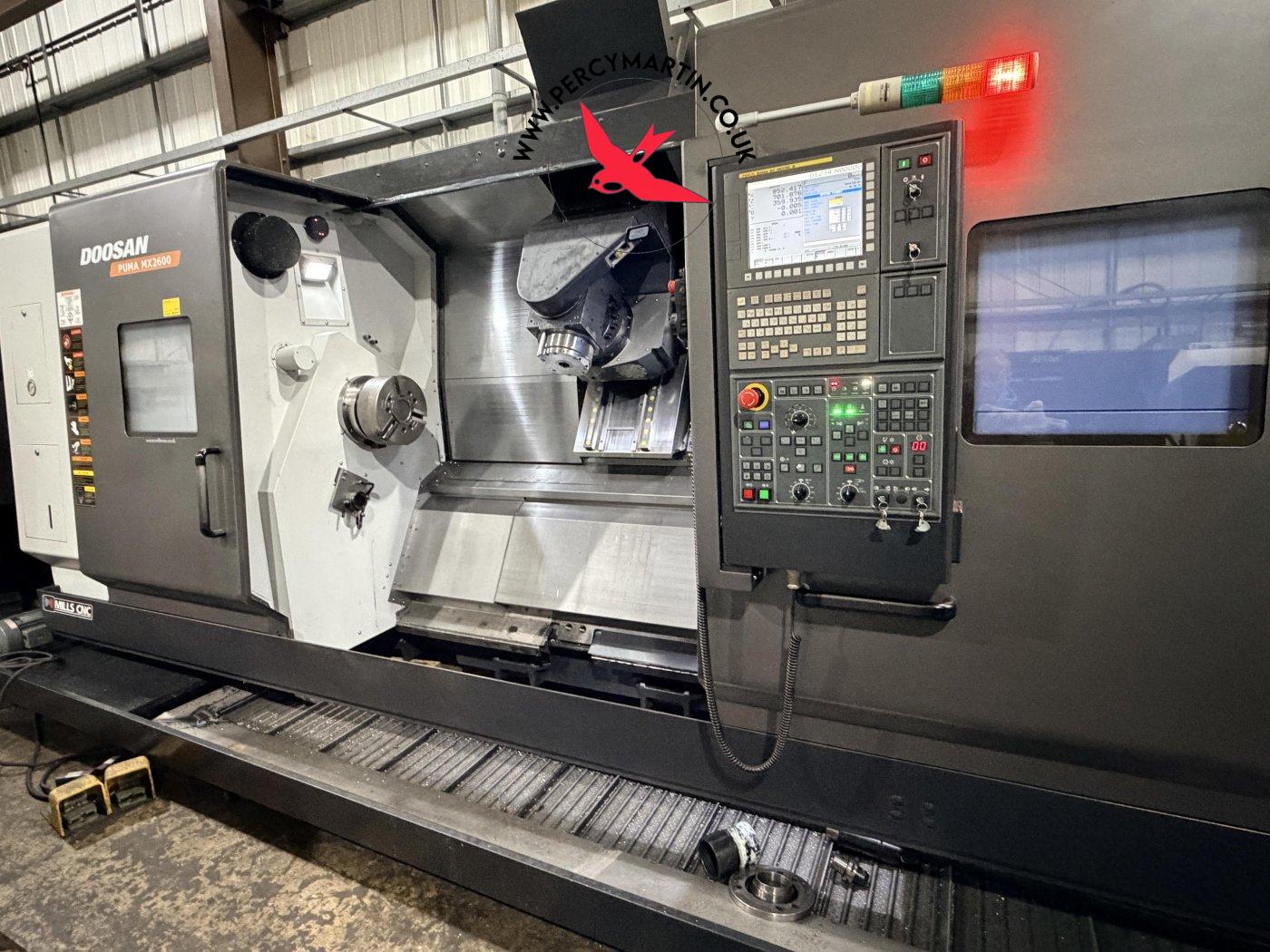

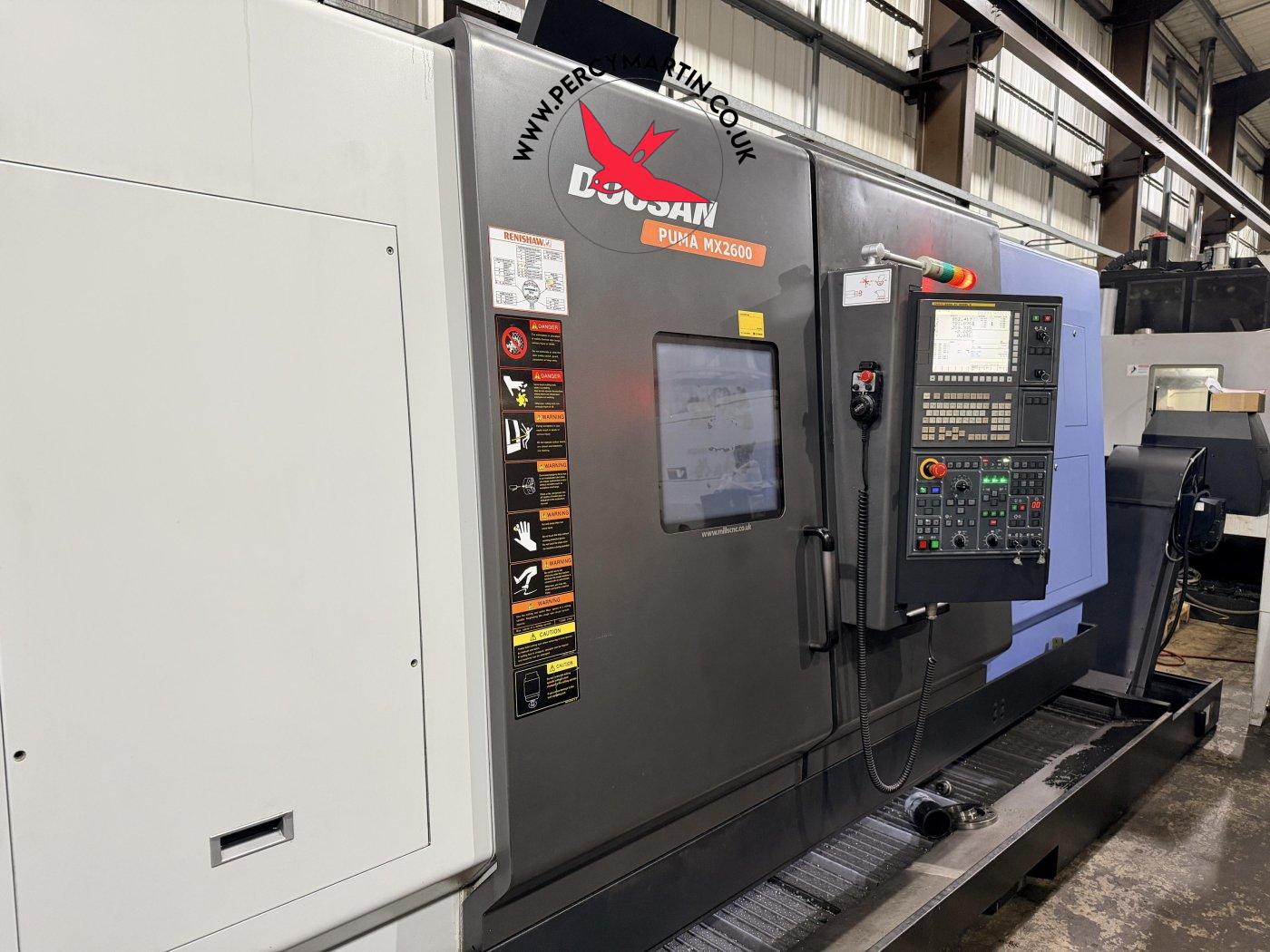

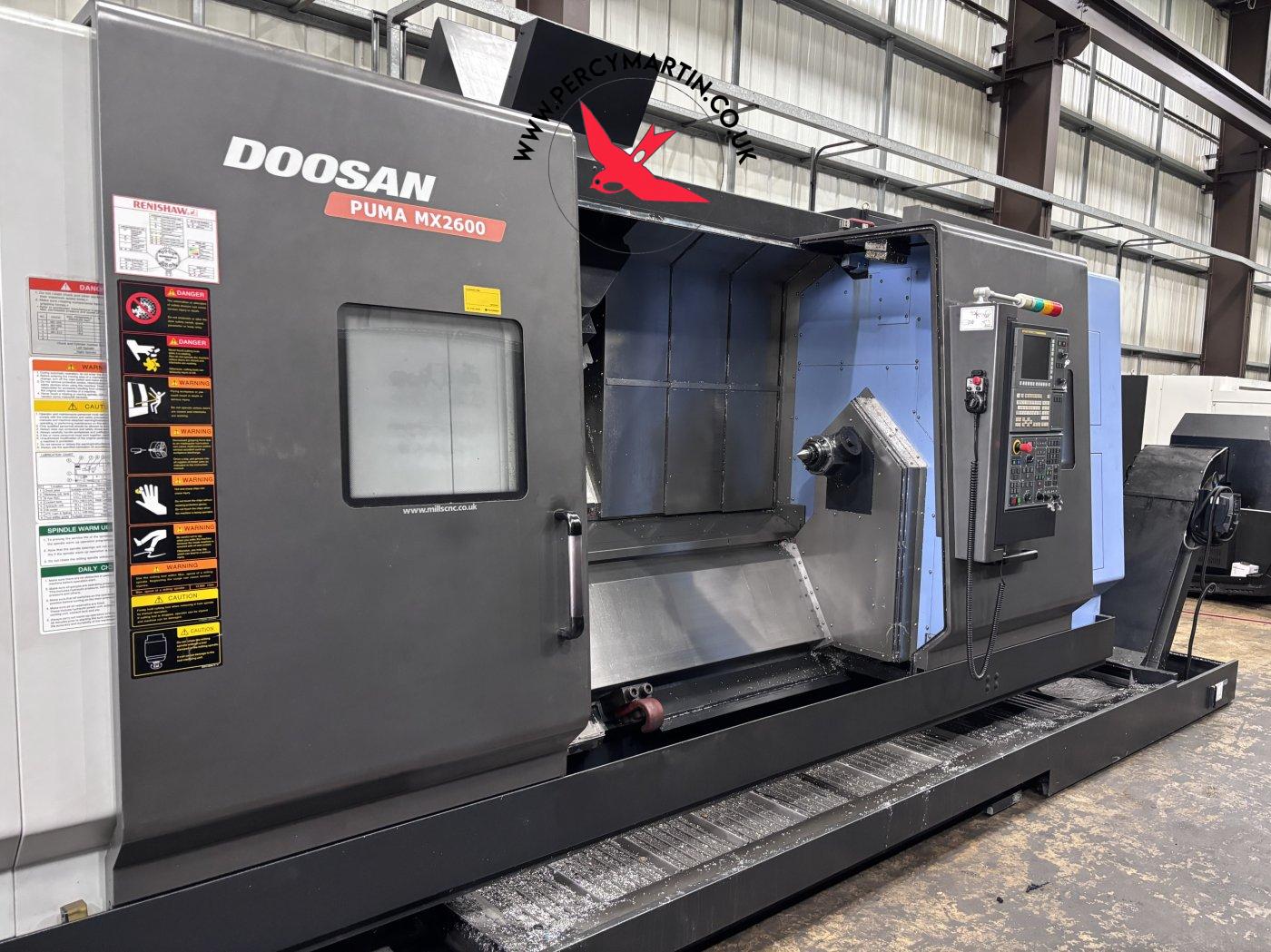

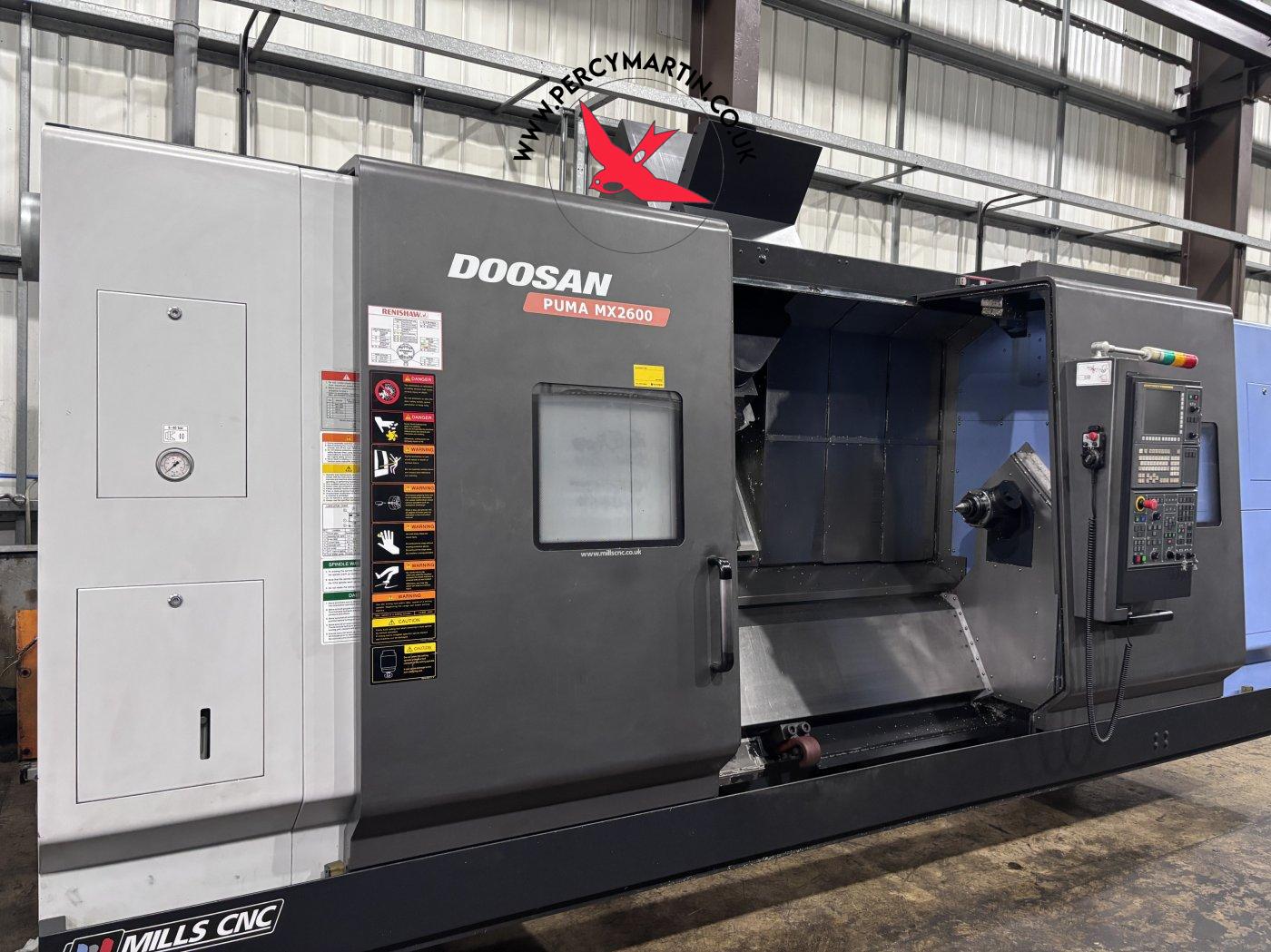

Doosan Puma MX2600 2014

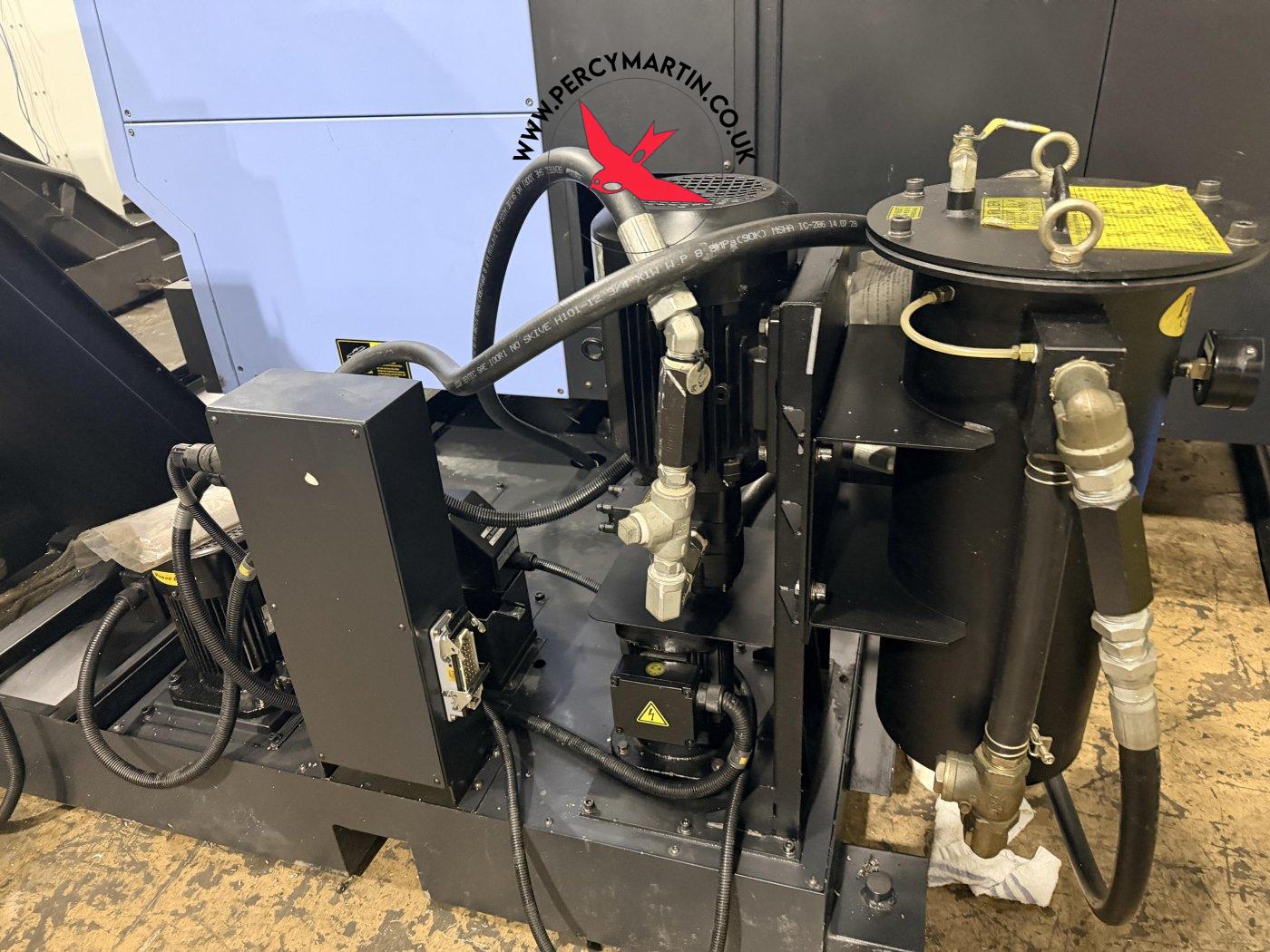

3 Jaw Chuck , C axis & Milling , Coolant , Interlocked guards , Low Volt Light , Swarf Auger , Tailstock , Through Spindle Coolant , Tool setter , Y-axis
Doosan Puma MX2600 2014
Key Features
Type:
CNC Multi Tasking Lathes
Model:
Puma MX2600
Make:
Doosan
Year:
2014

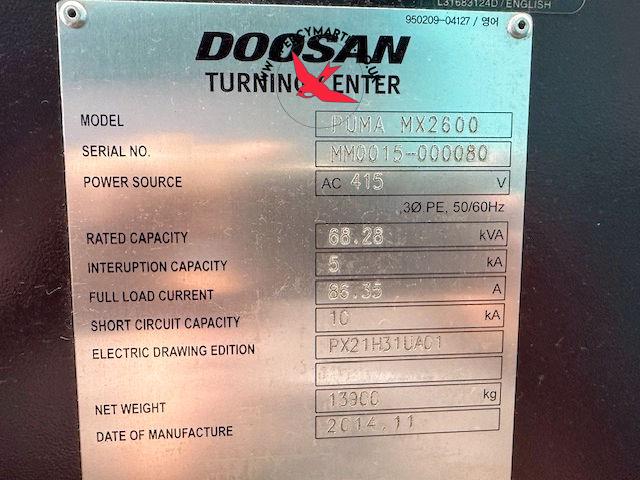

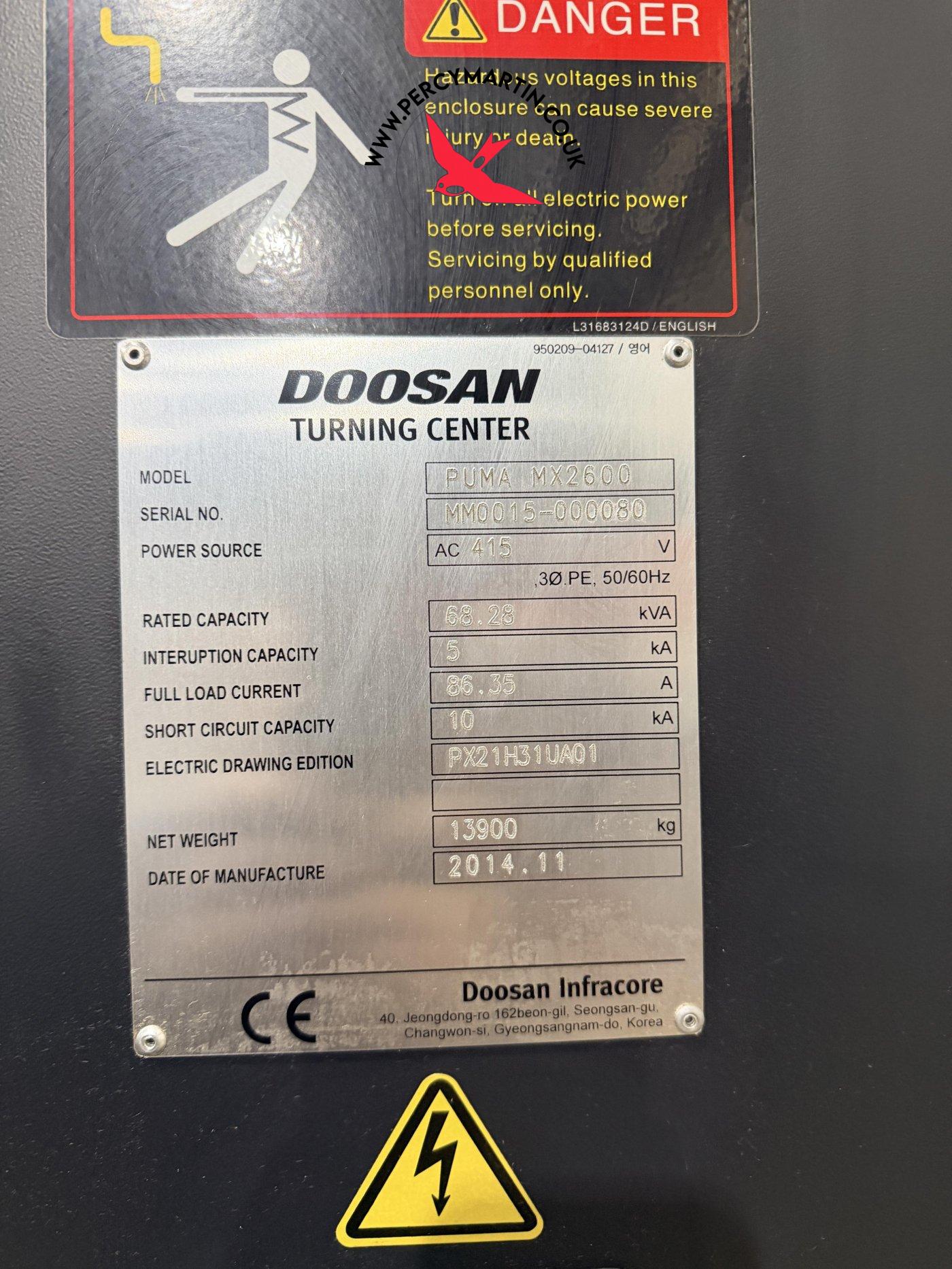

Serial No
MM0015-000080
Price
£POA
Our Reference
PM9577
Location
Leicester
Doosan Puma MX2600 2014
Specifications

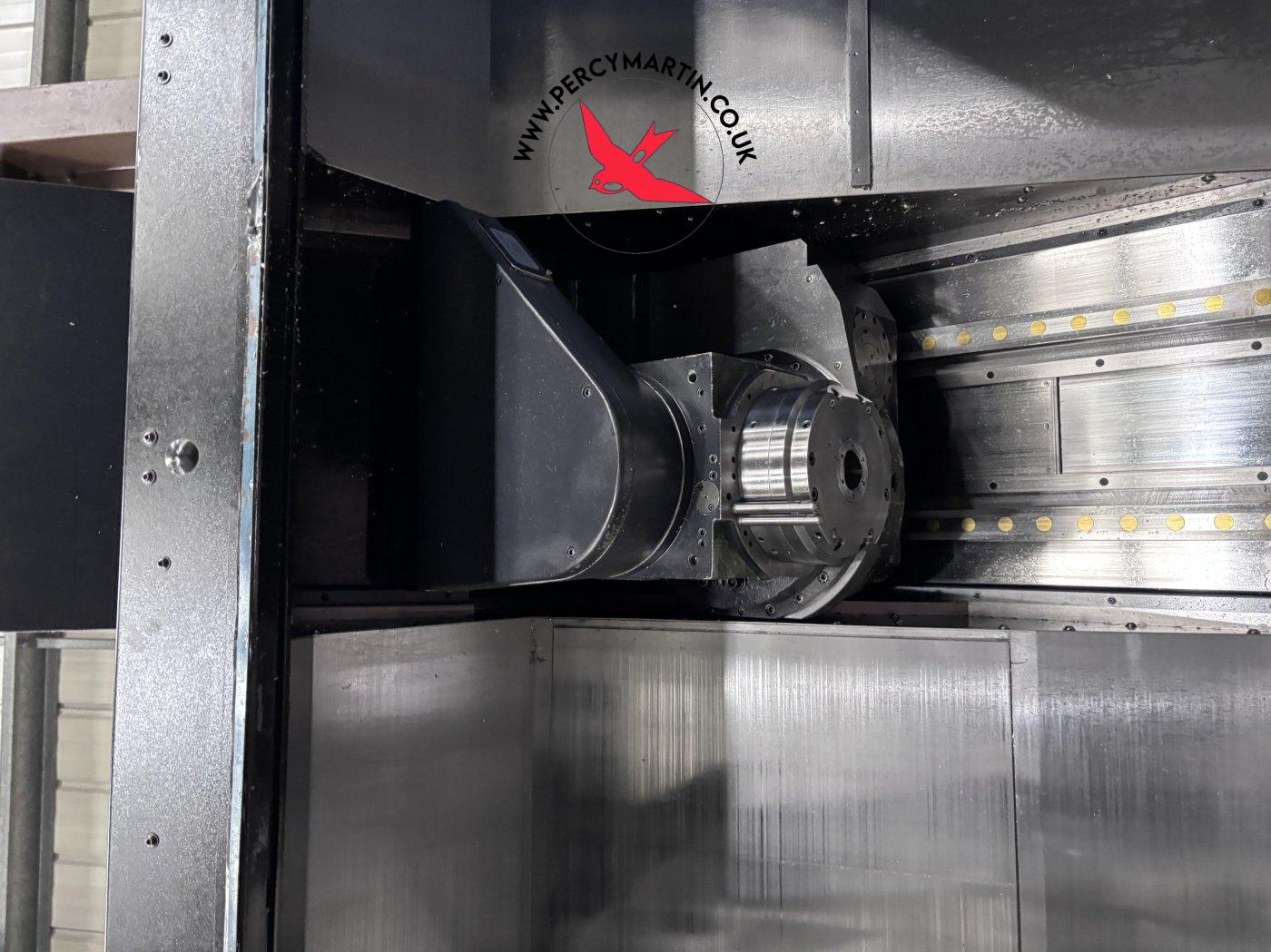

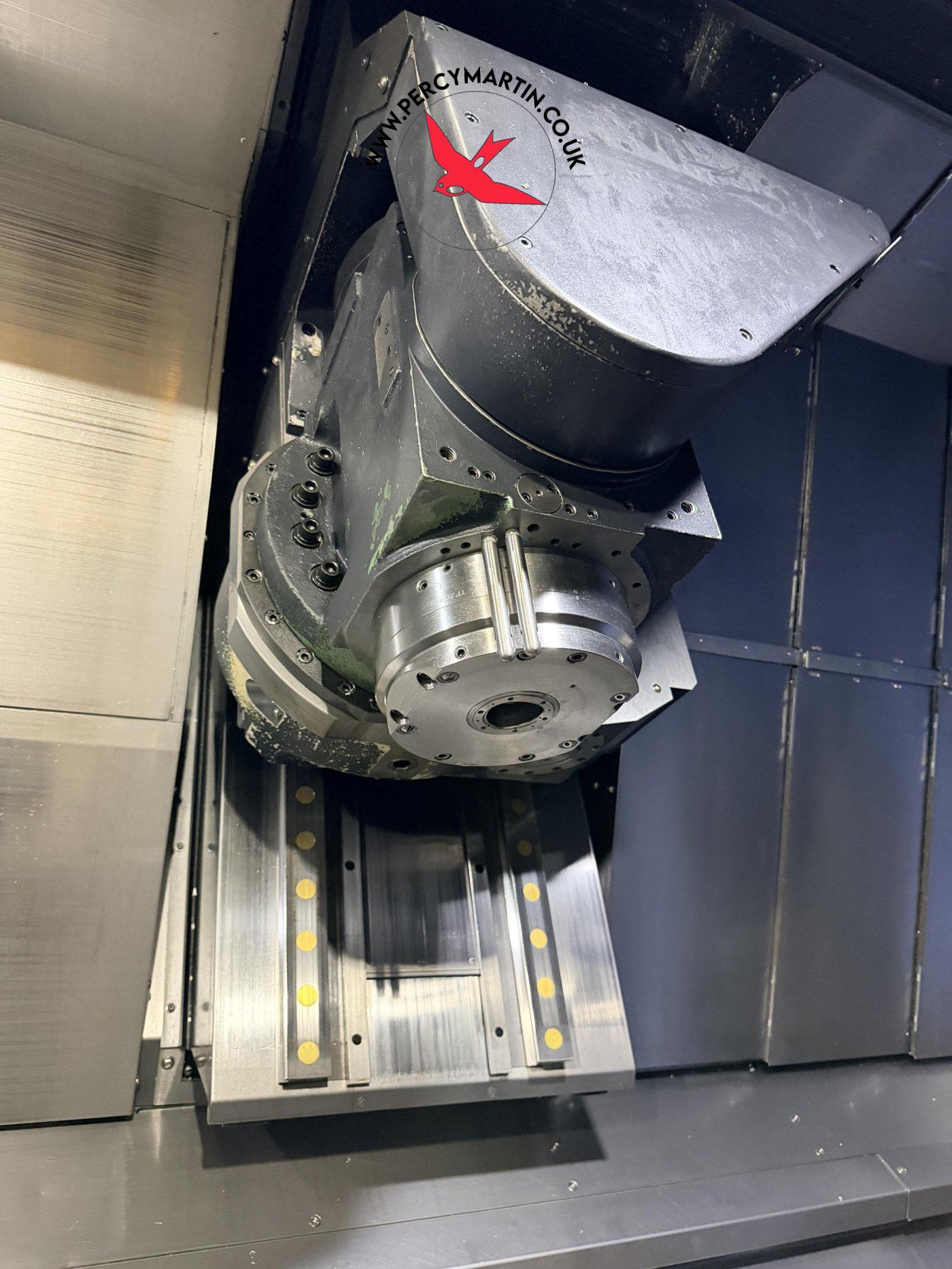

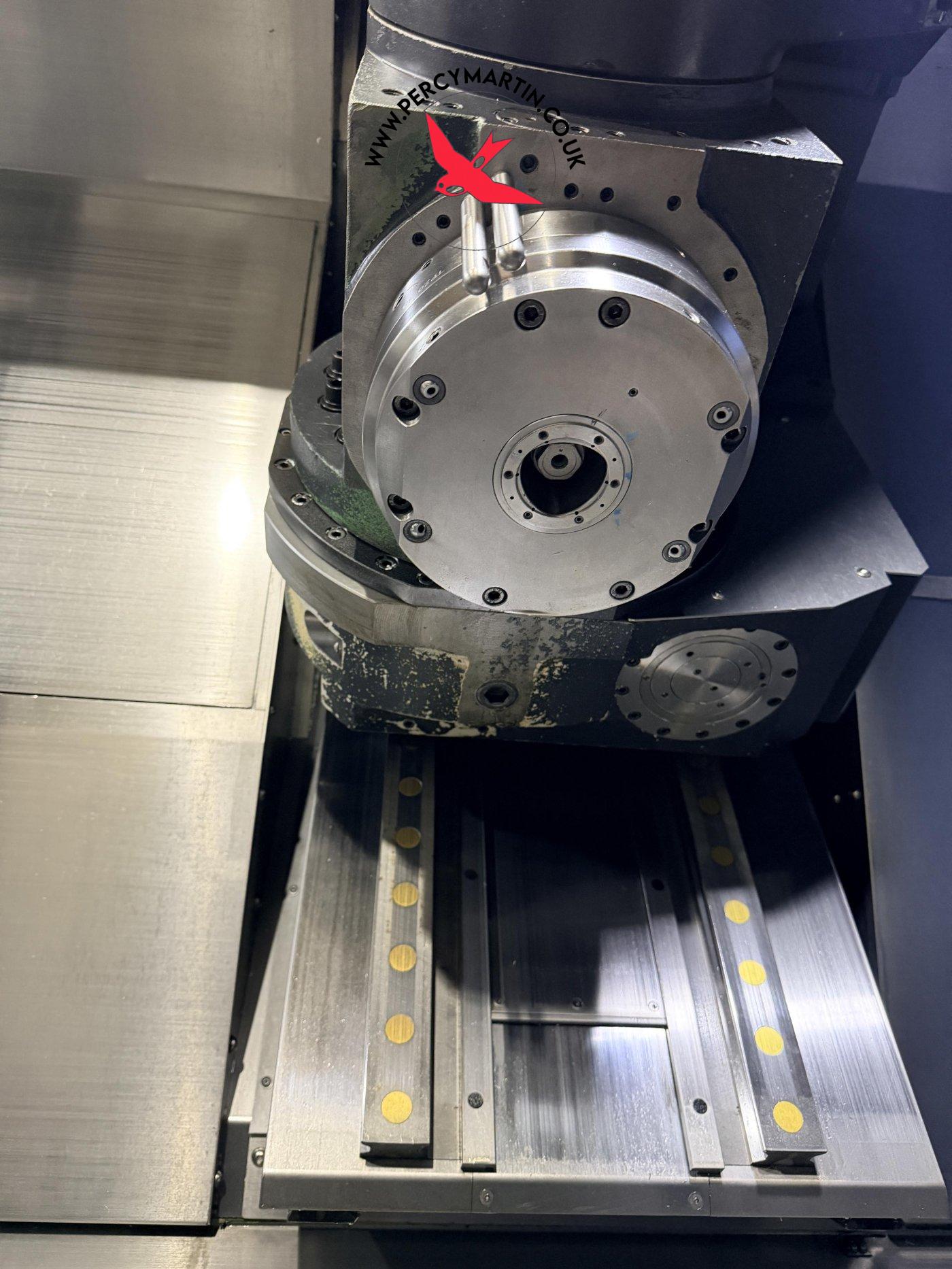

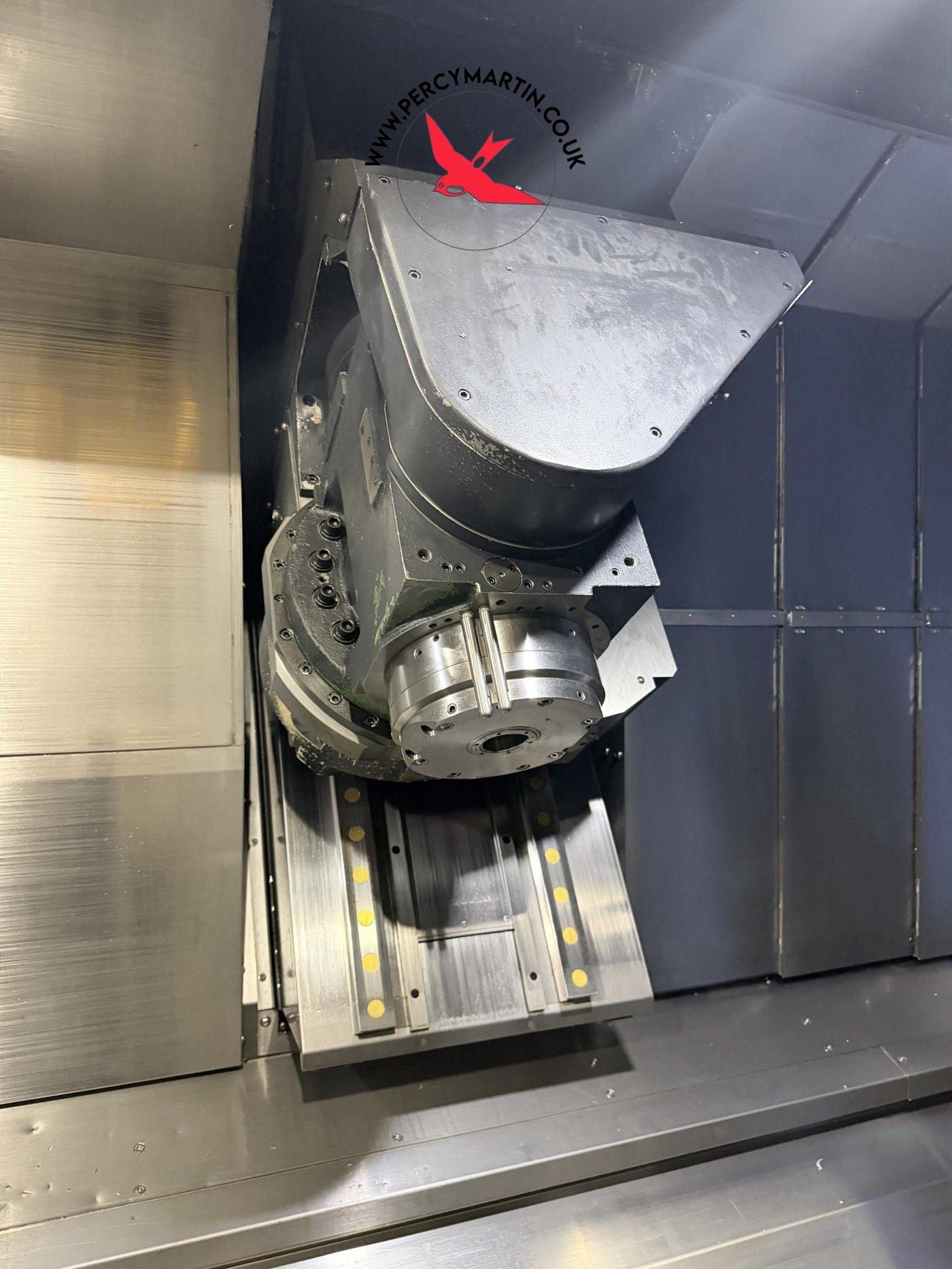

B Axis
0.001 degree
Bar Capacity
76mm
C axis
0.001 degree

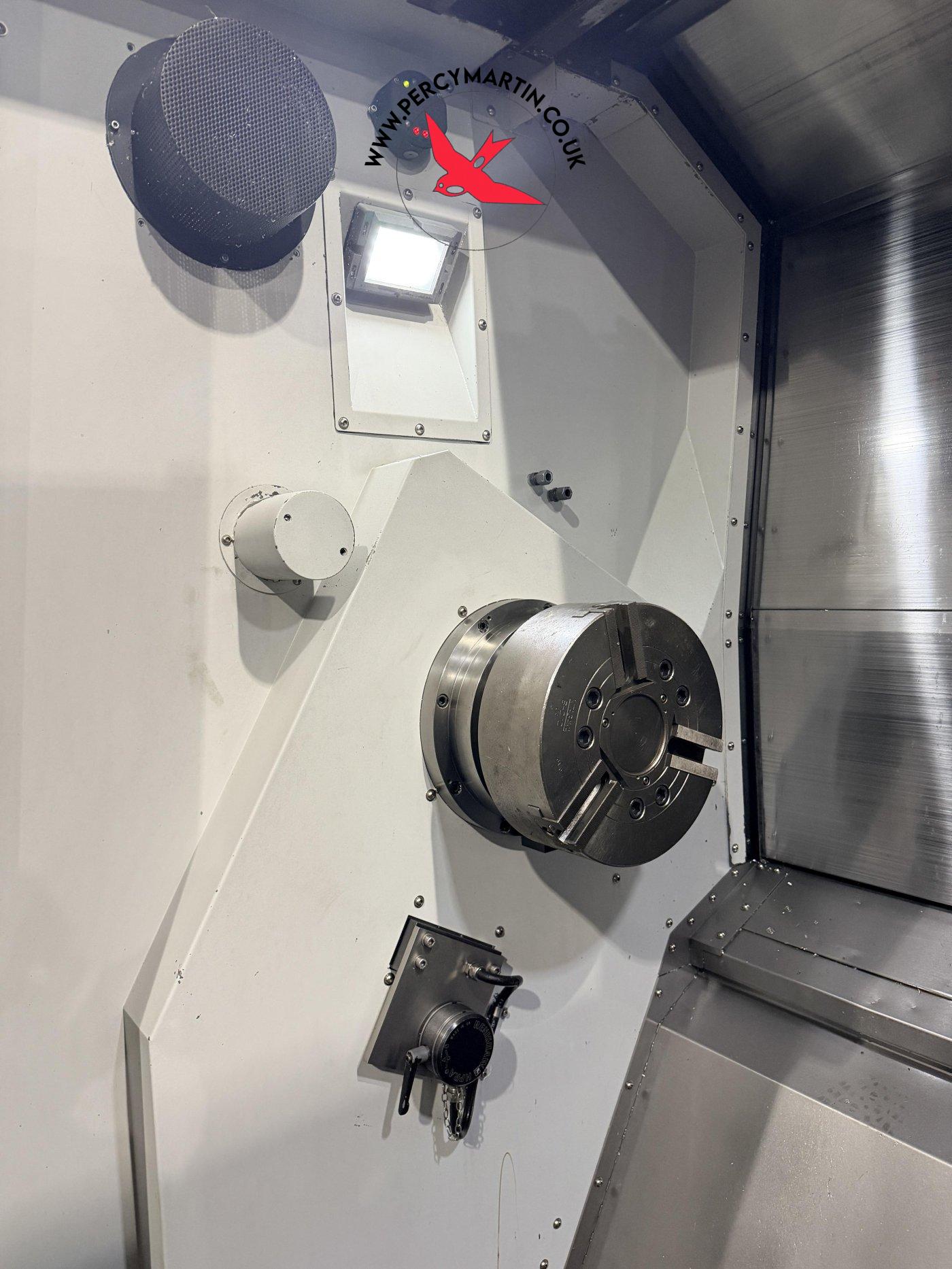

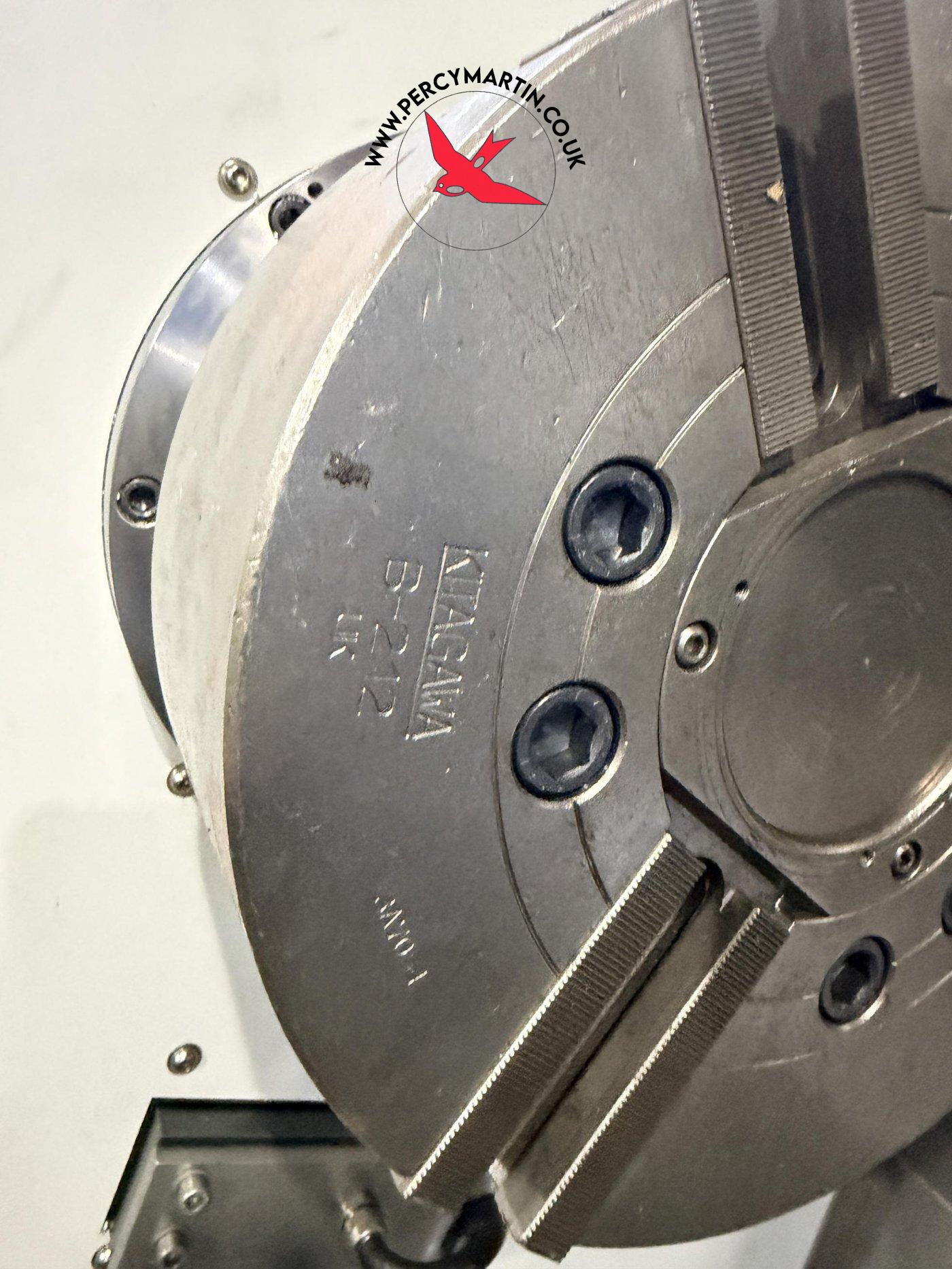

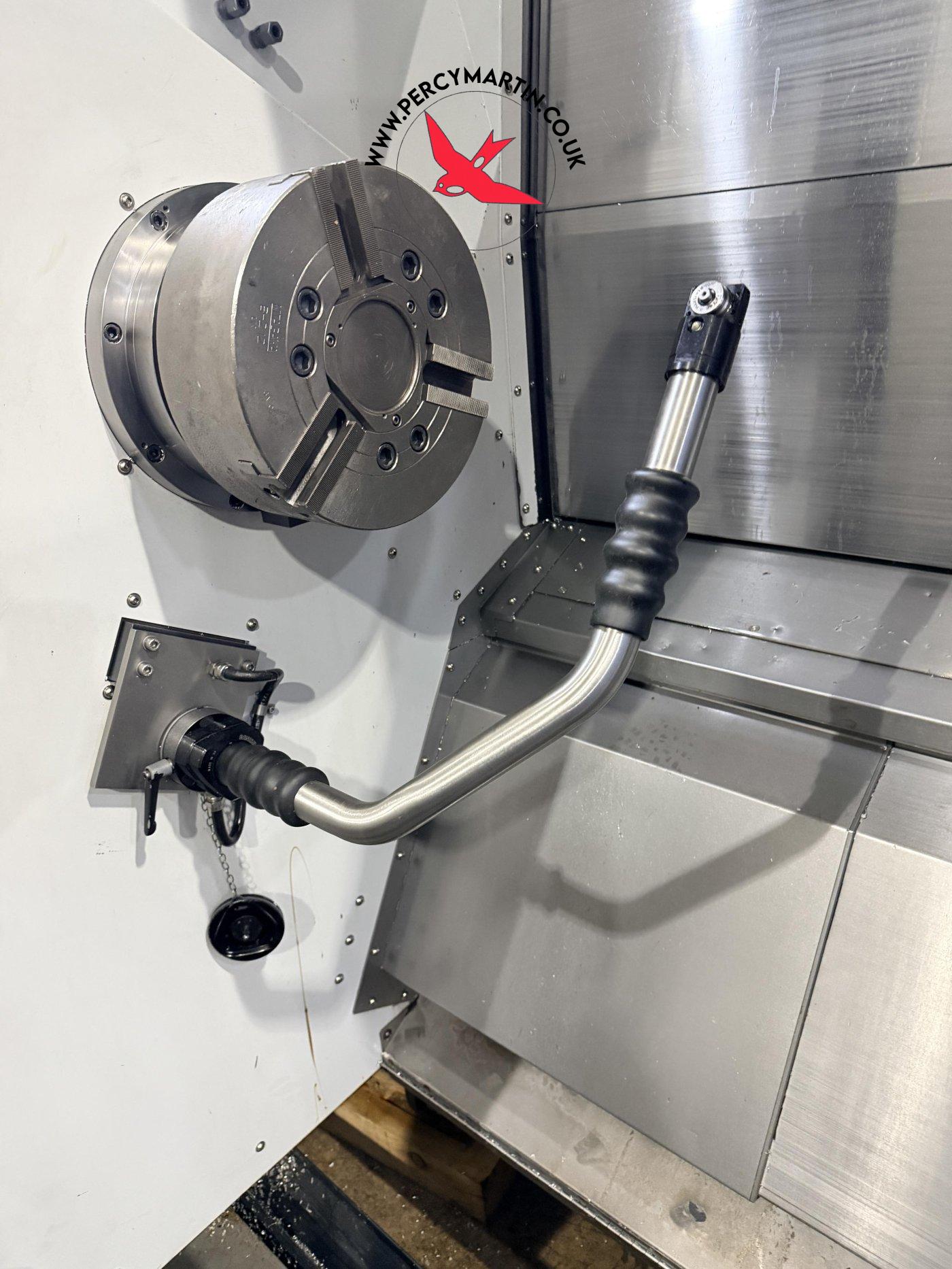

Chuck Size
12" (315mm)

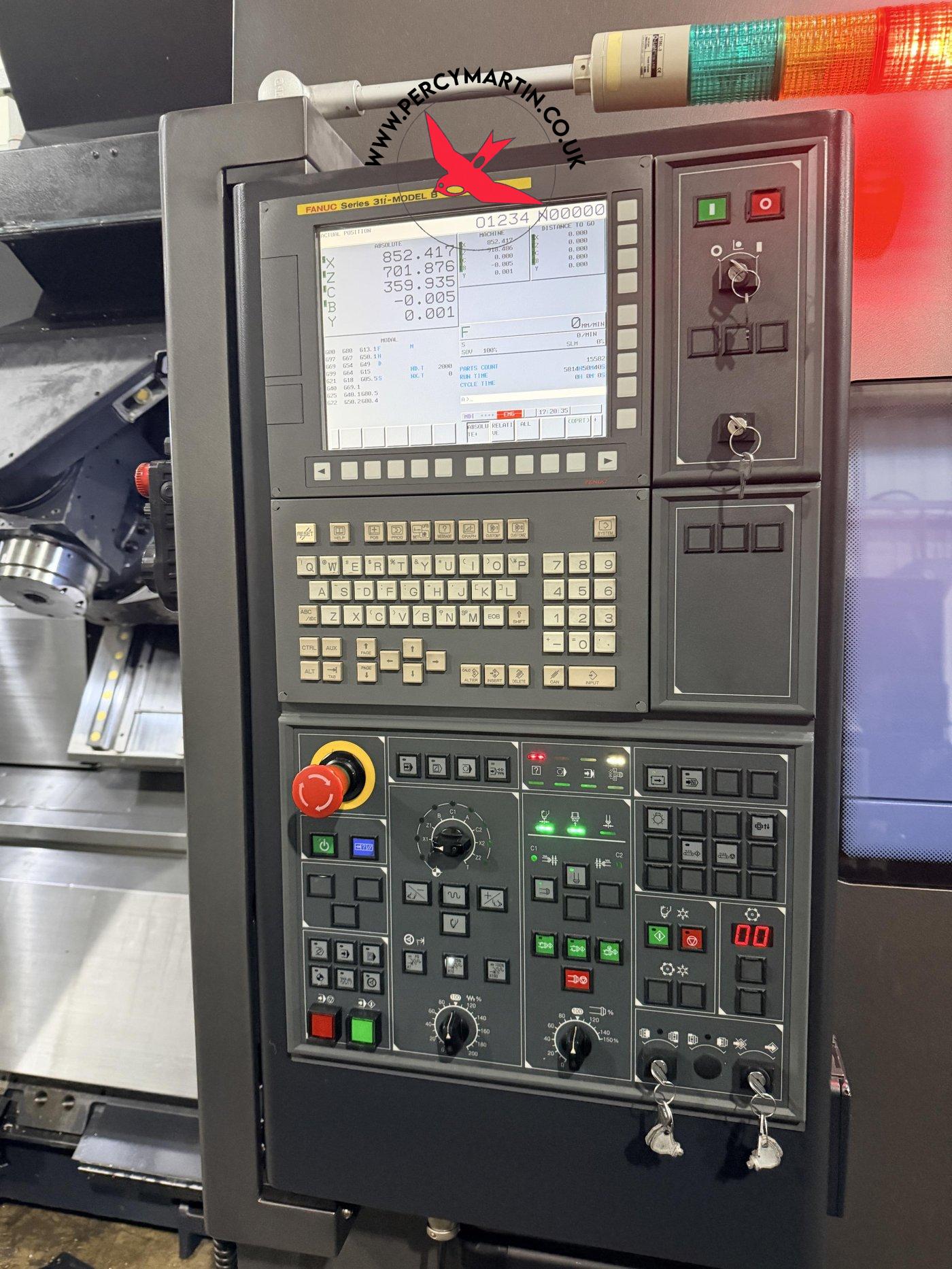

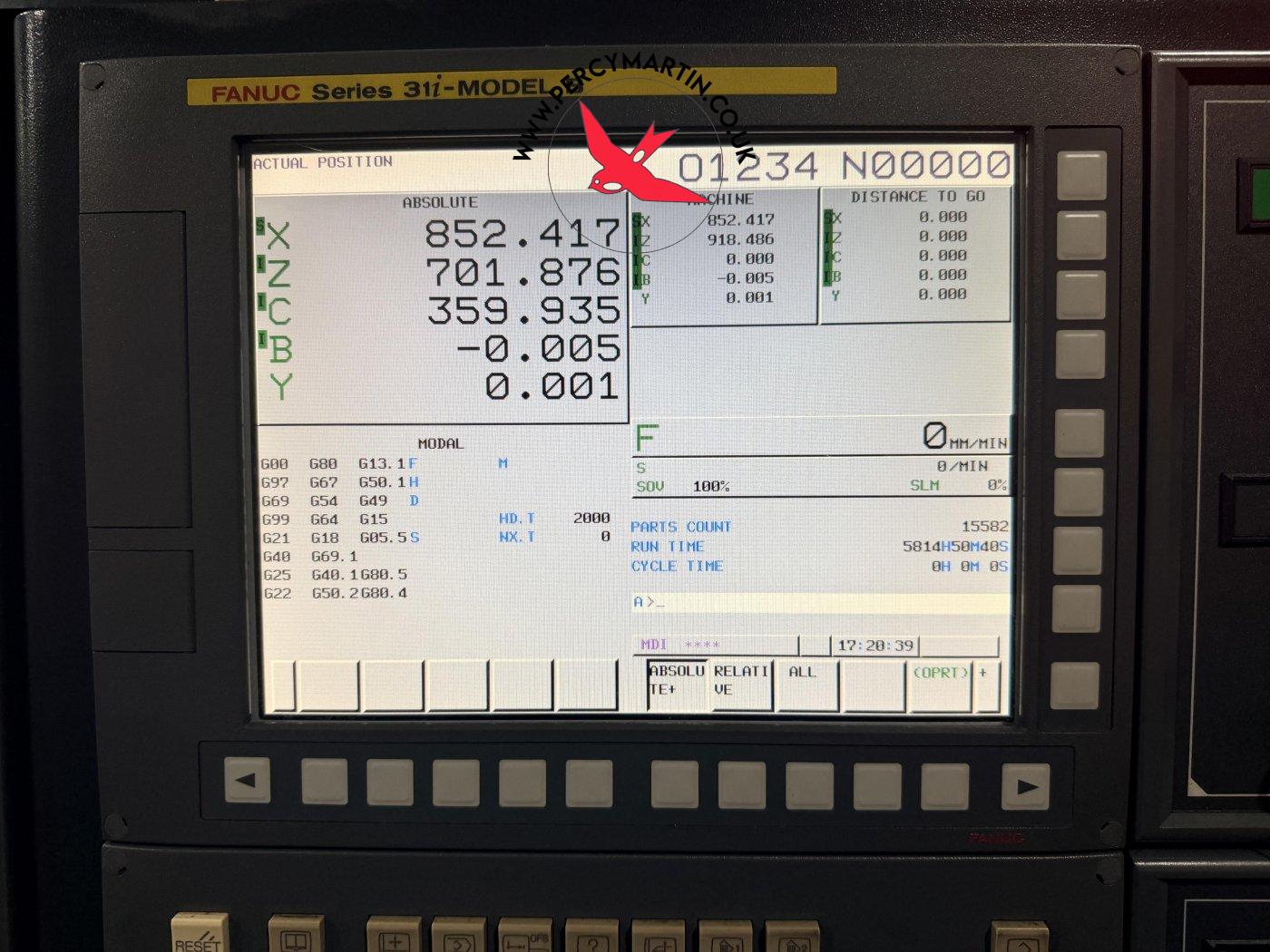

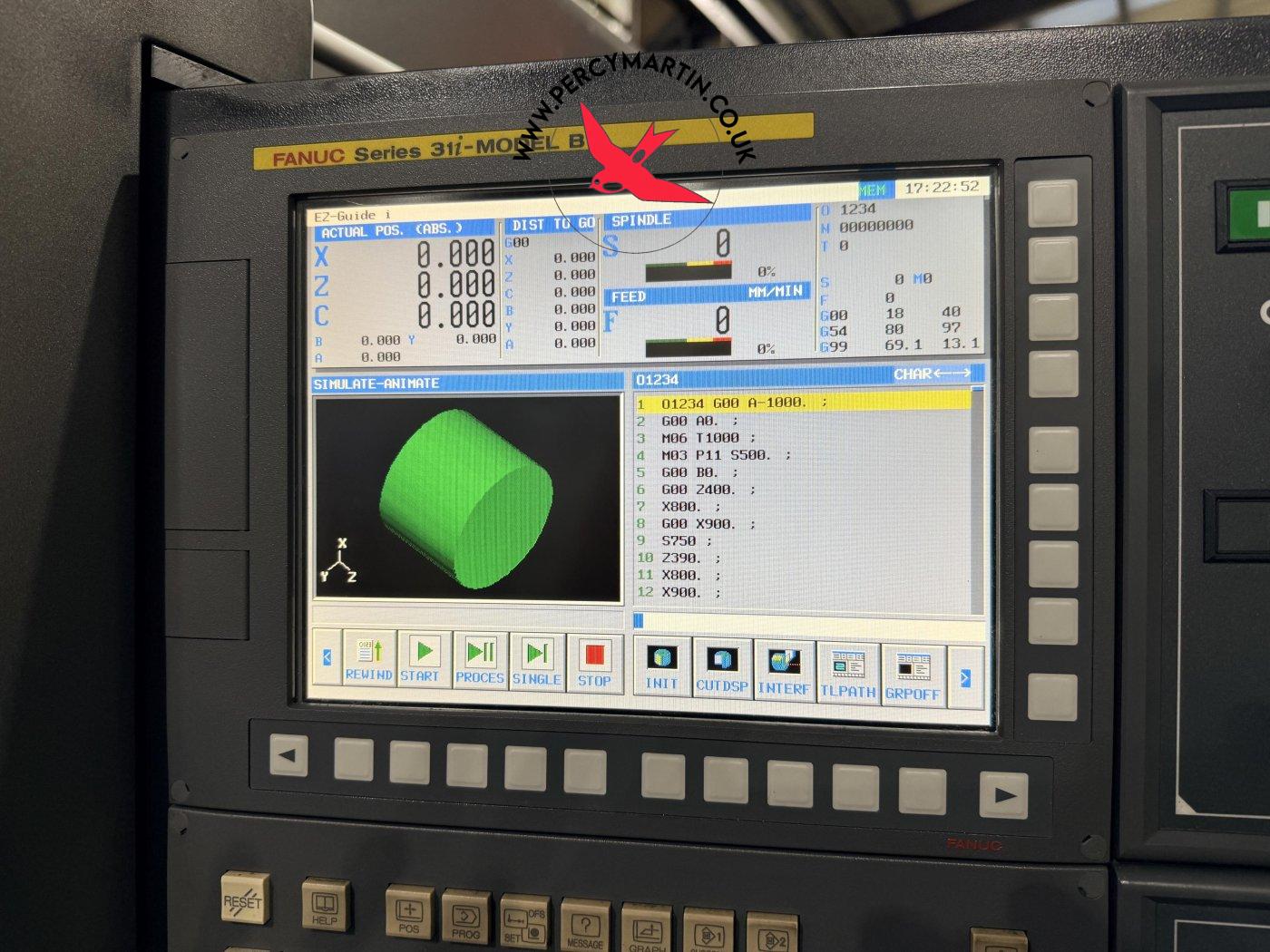

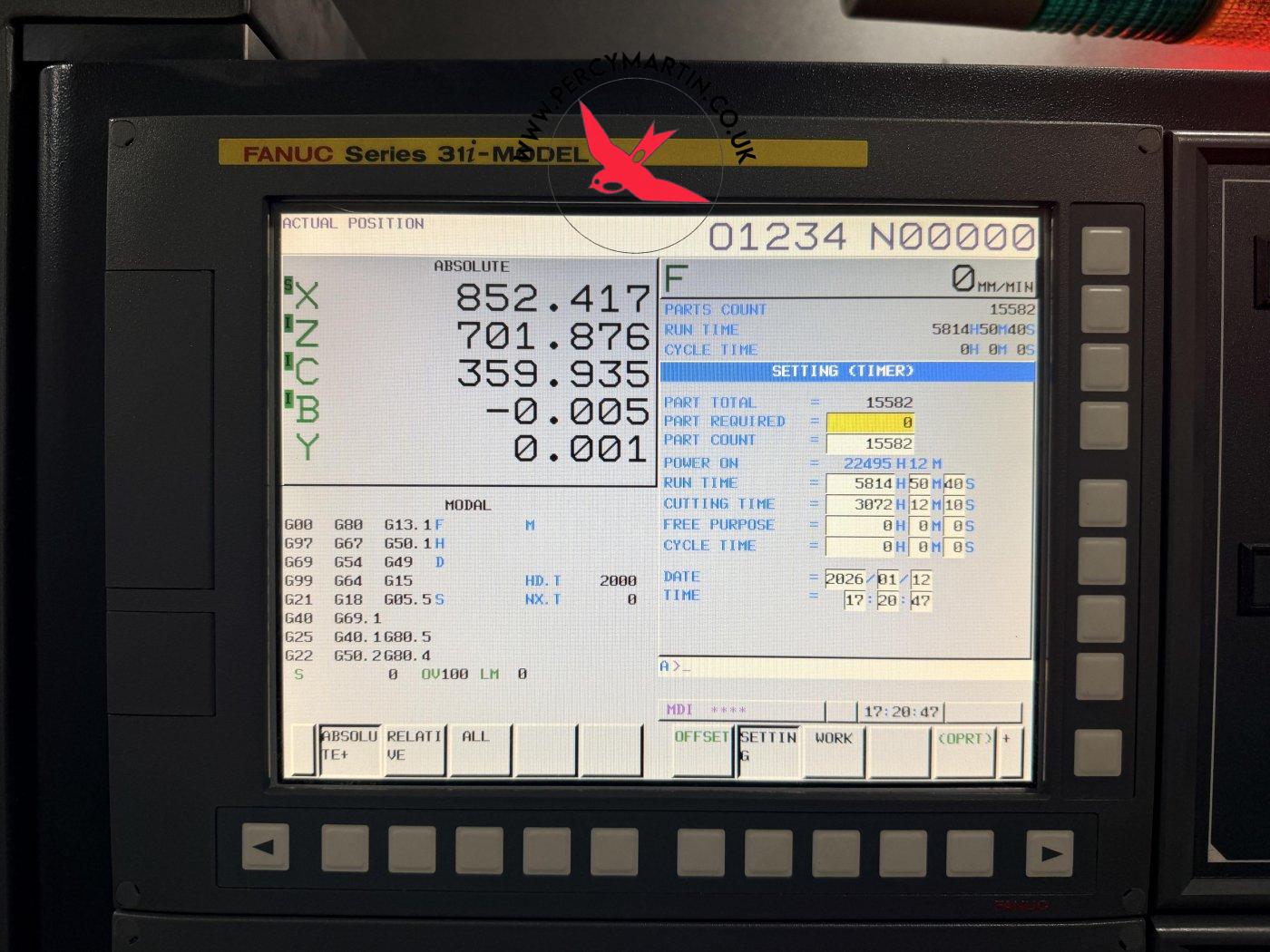

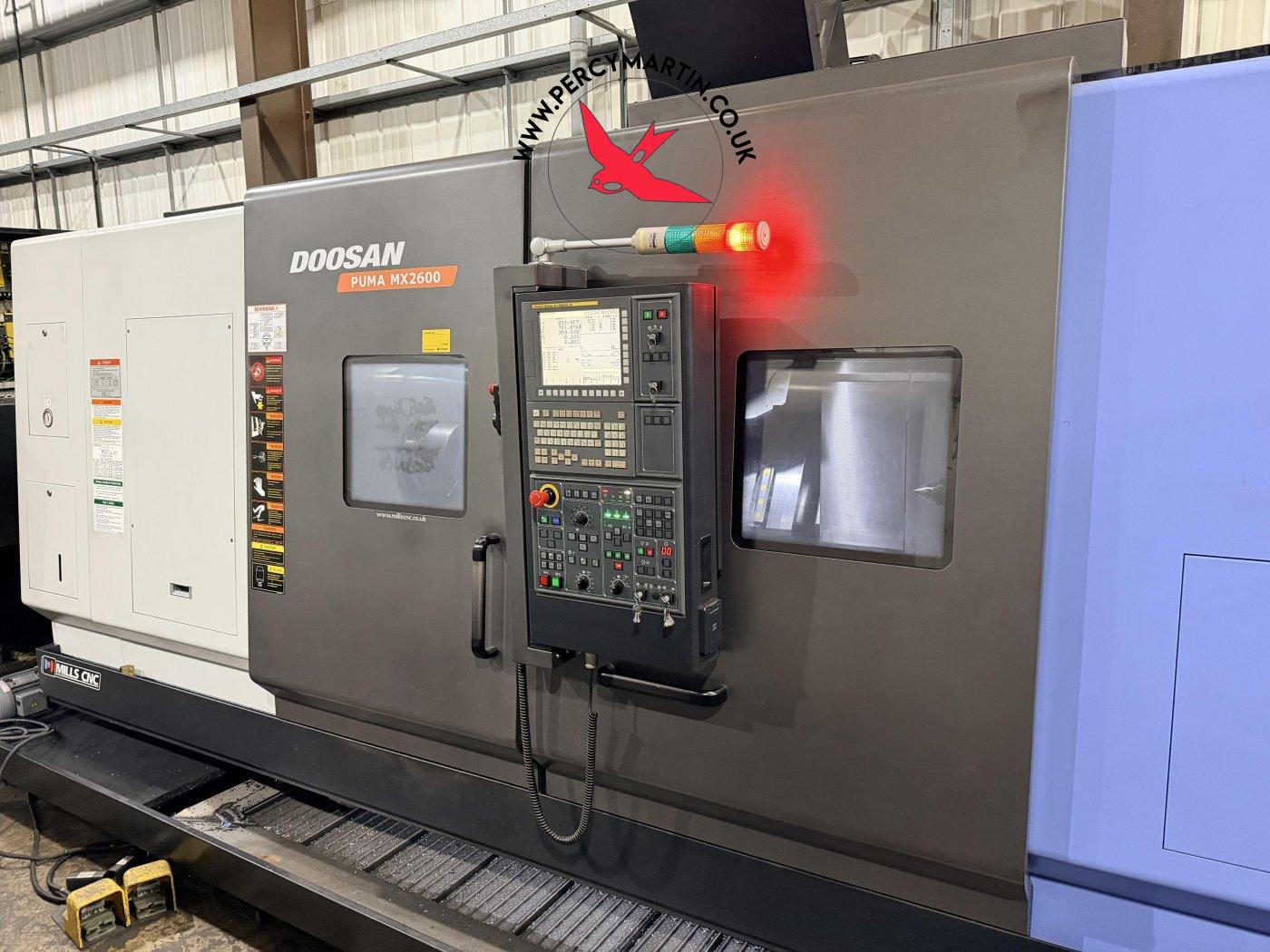

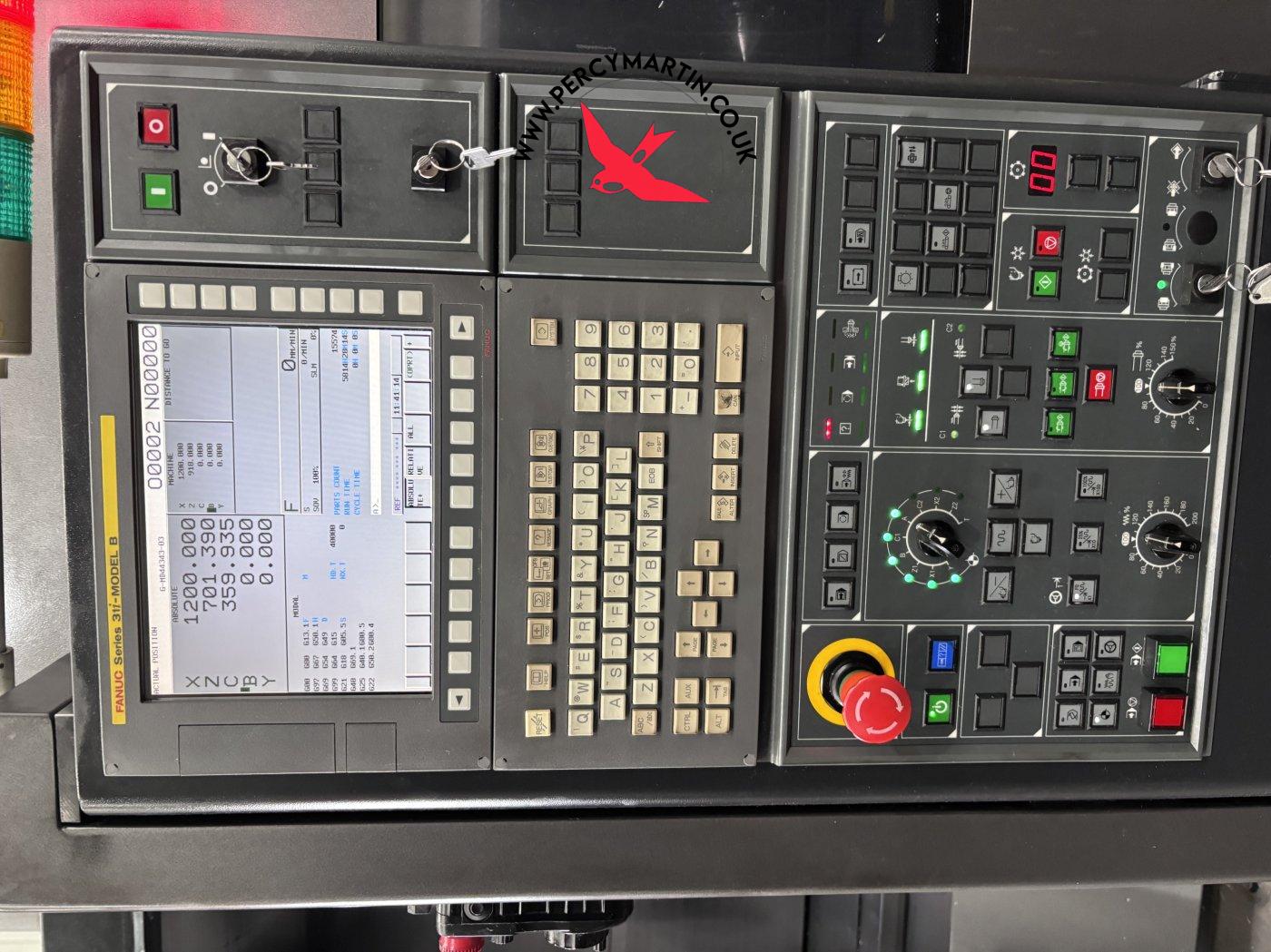

Control
FANUC 31i
Machine Dimensions
5125 x 2625 x 3025mm
Machine Weight
13900kg
Maximum Cutting Diameter
760mm
Maximum Cutting Length
1540mm
Maximum Tool Diameter
90mm
Maximum Tool Diameter with Empty Adjacent Pockets
130mm
Maximum Tool Length
400mm
Maximum Tool Weight
10kg
Milling Motor Power
22 / 18.5 kW
Milling RPM
12000rpm
Rapid Feedrates
XYZ: 36 x 36 x 26m/minute
Spindle Motor Power
26/22kW
Spindle Nose
A2-8
Spindle Speed
4000rpm
Standard Cutting Diameter
255mm
Swing
1000mm
Swing over the Cross-slide
700mm

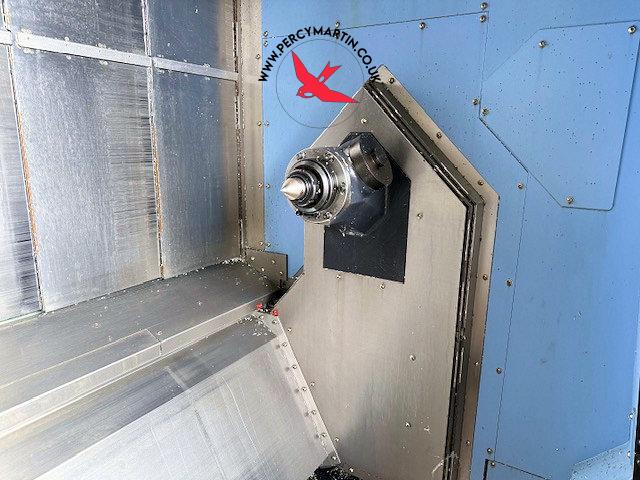

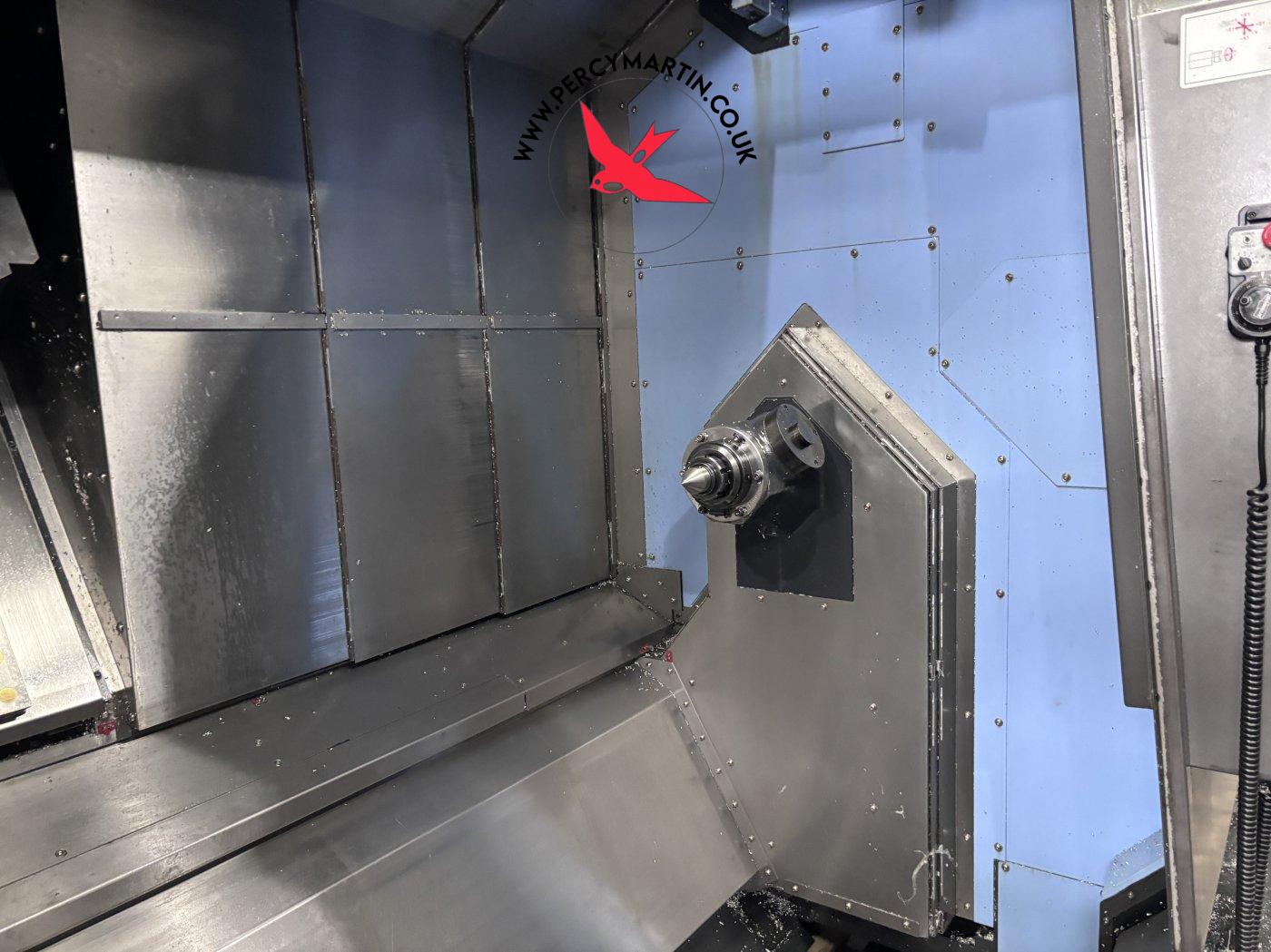

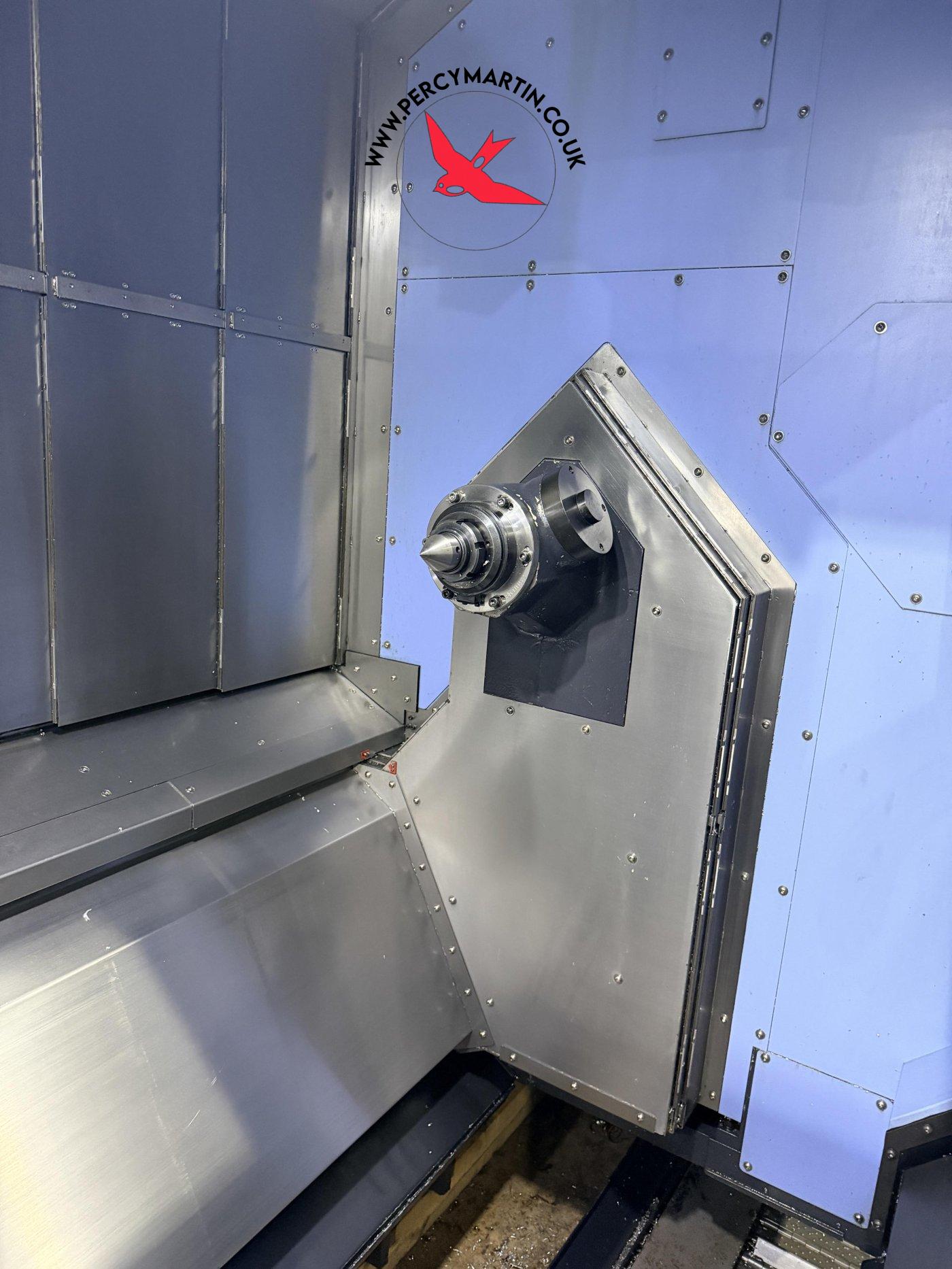

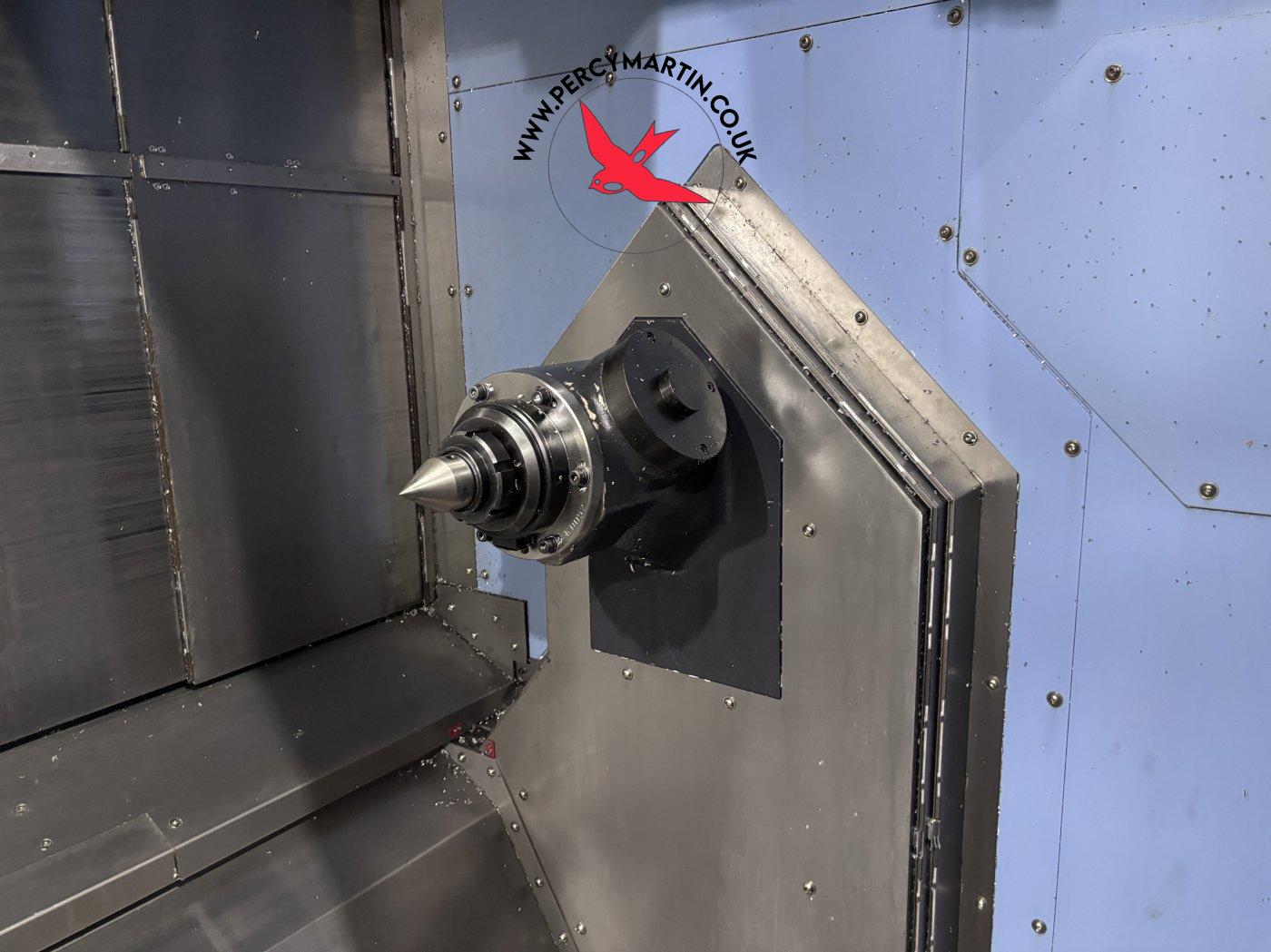

Tailstock Body Travel
1550mm
Tailstock Taper
MT #5

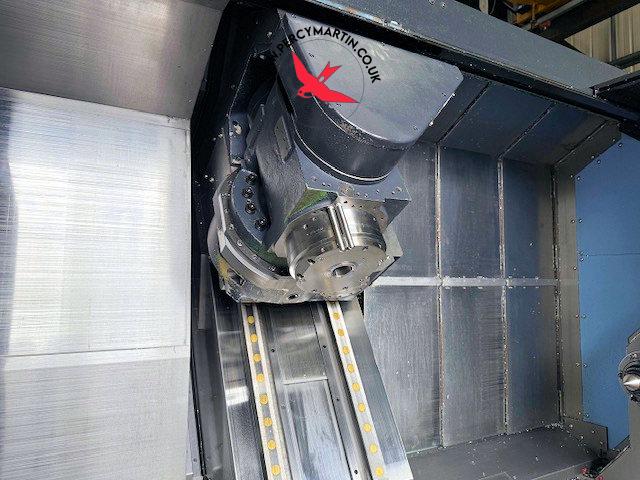

Tool Change Capacity
40 Station
Tooling Configuration
CAPTO C6
X axis Travel
630mm
Y axis Travel
+/-115mm
Z axis Travel
1585mm
Doosan Puma MX2600 2014
