CNC Multi Tasking Lathes

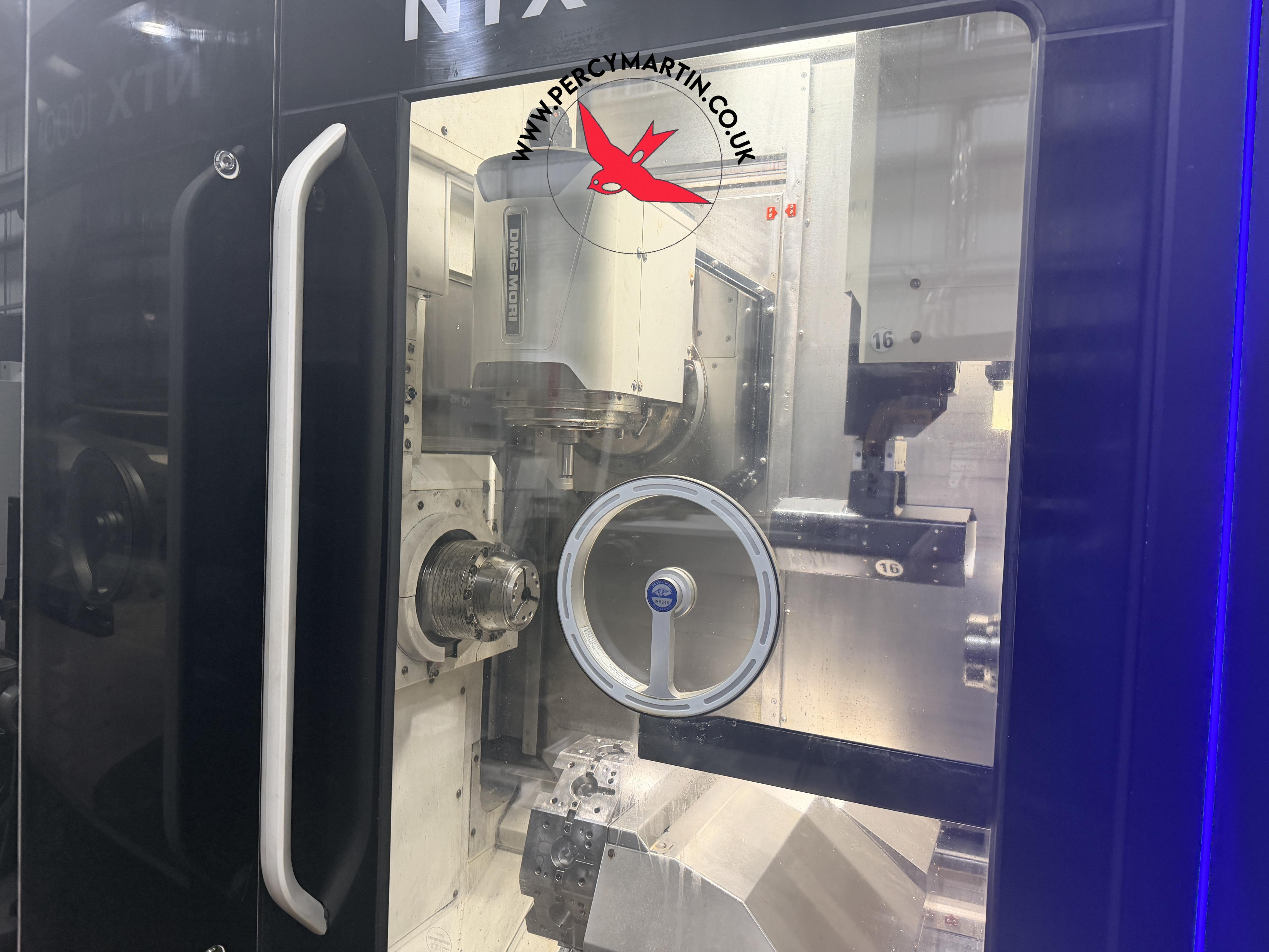

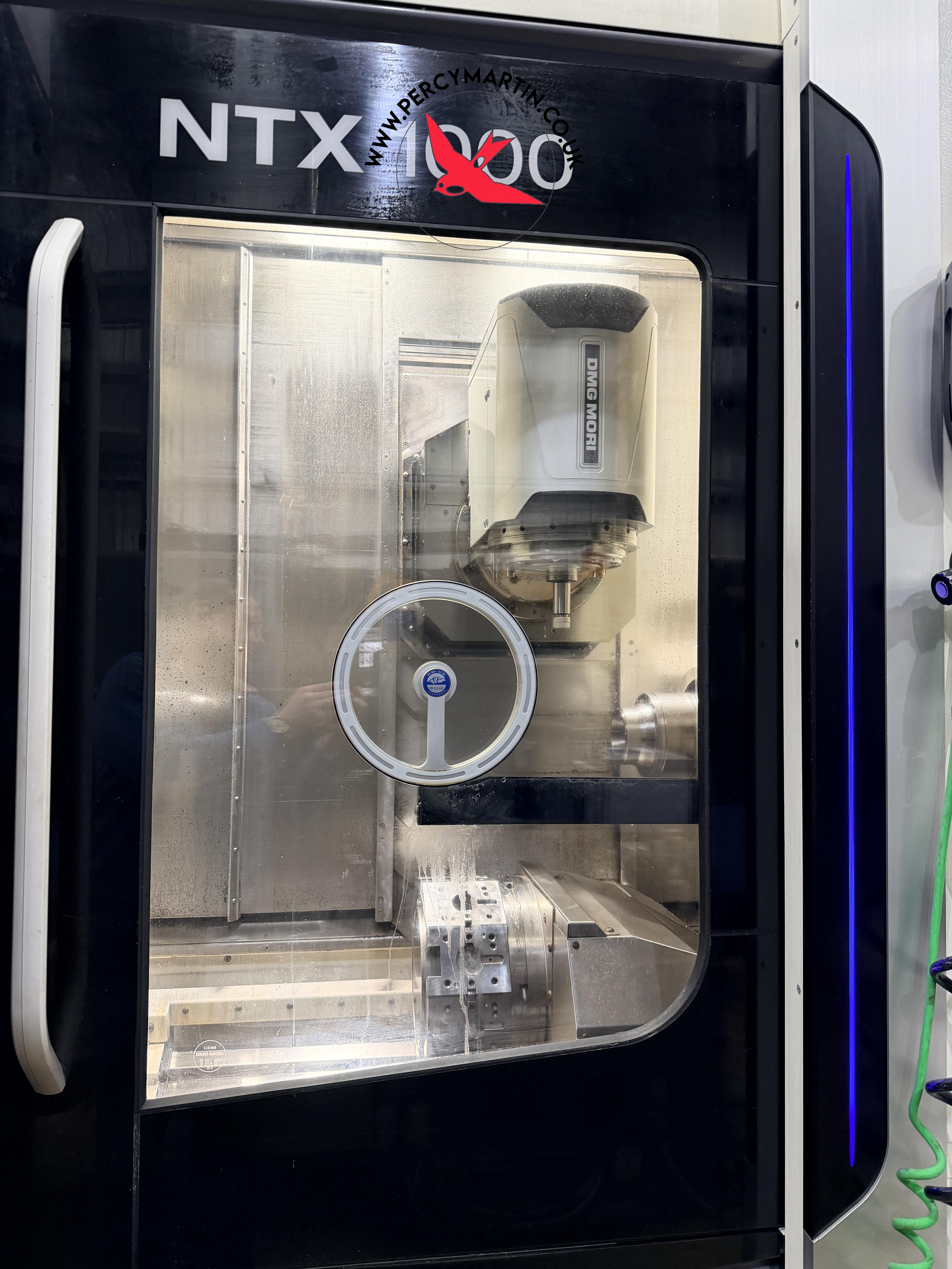

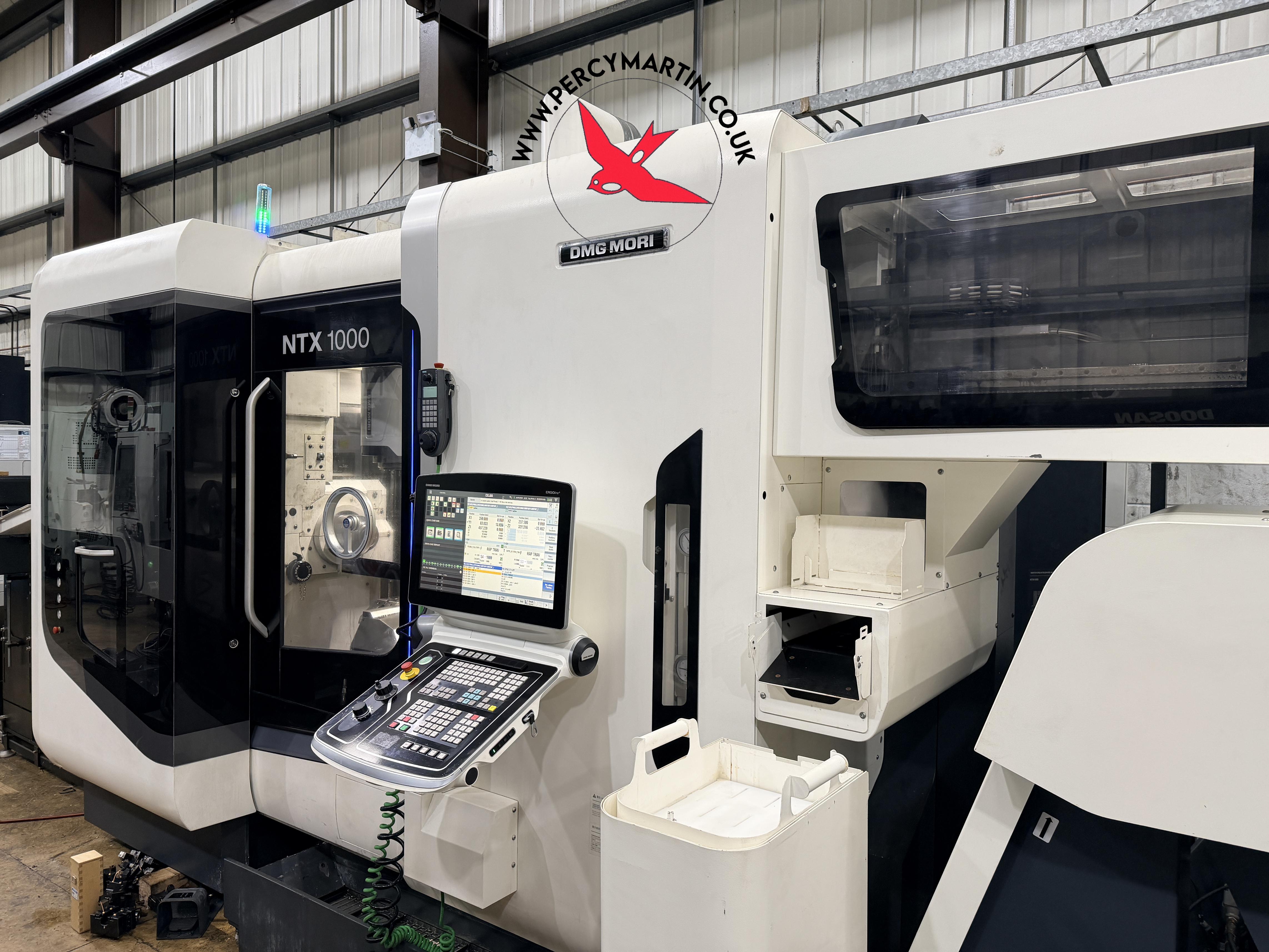

Mori Seiki NTX1000 2020

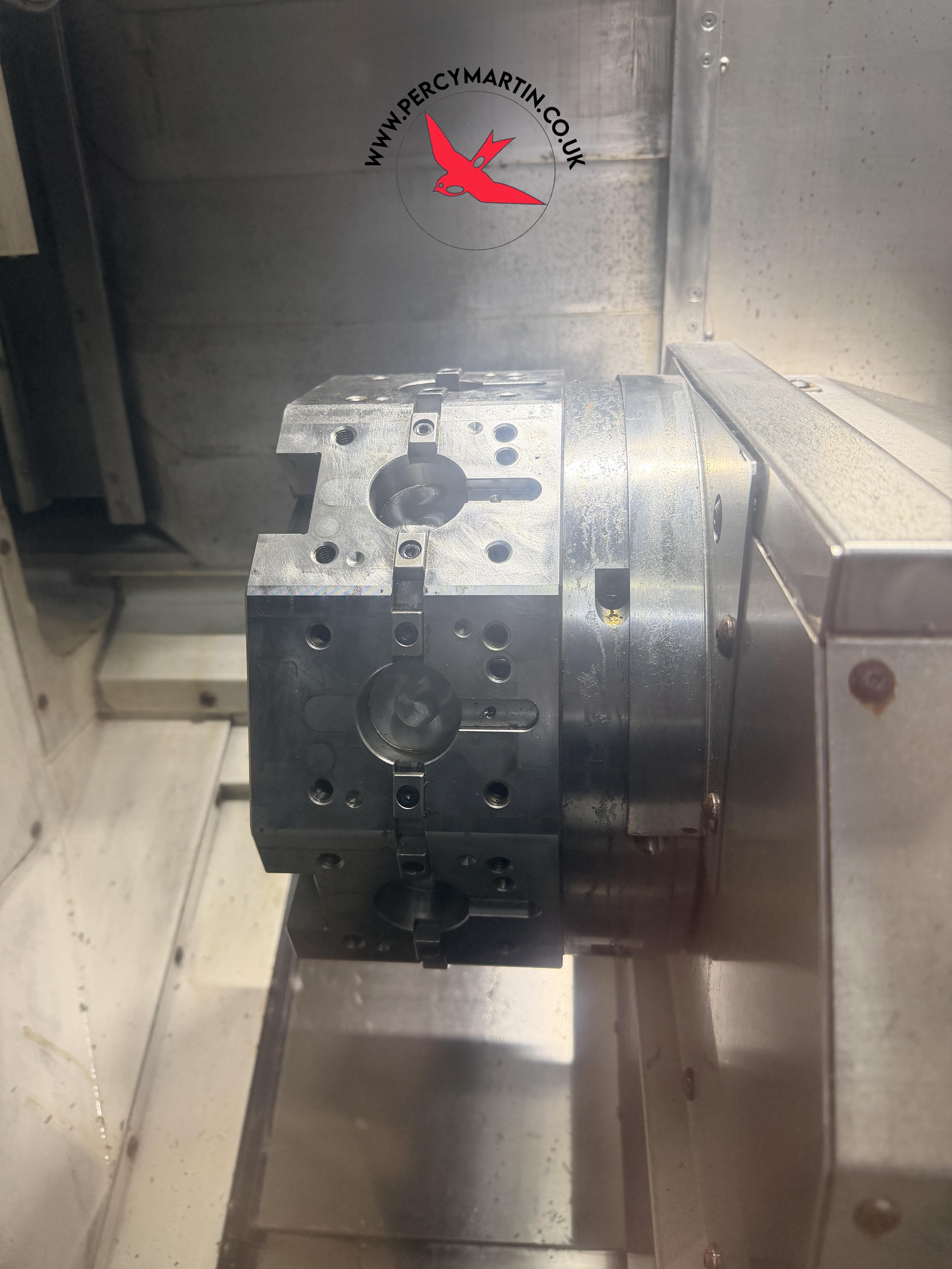

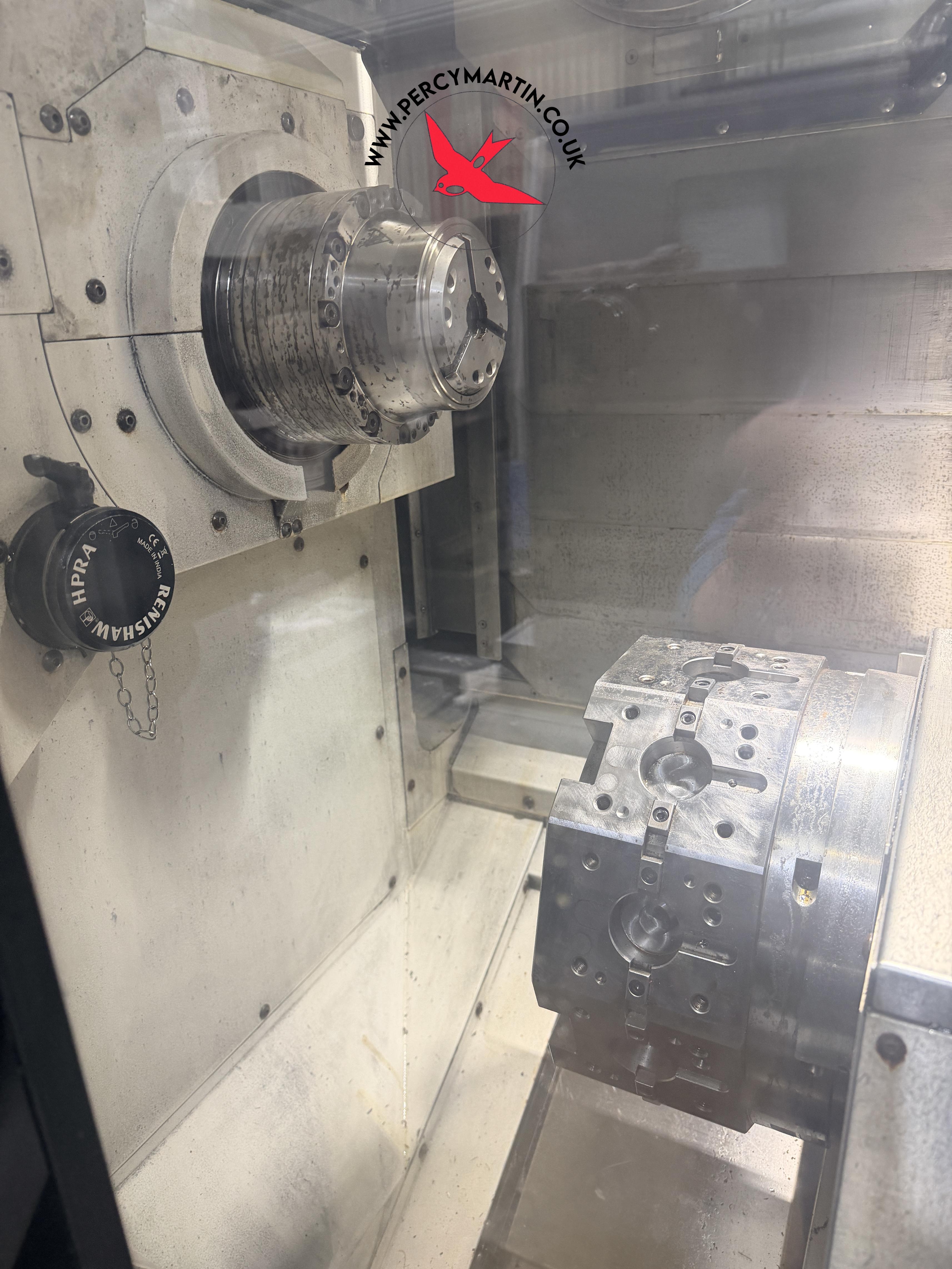

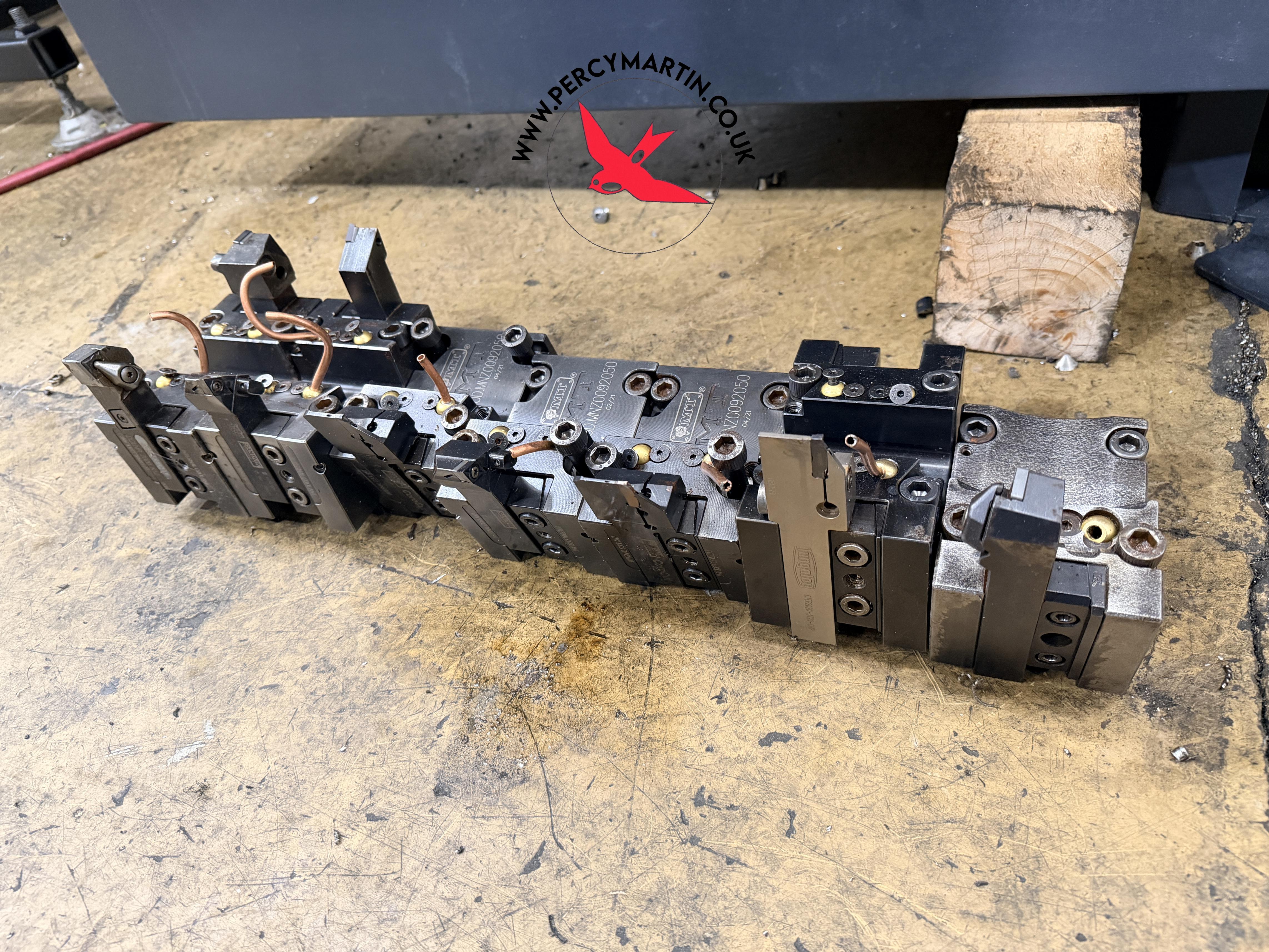

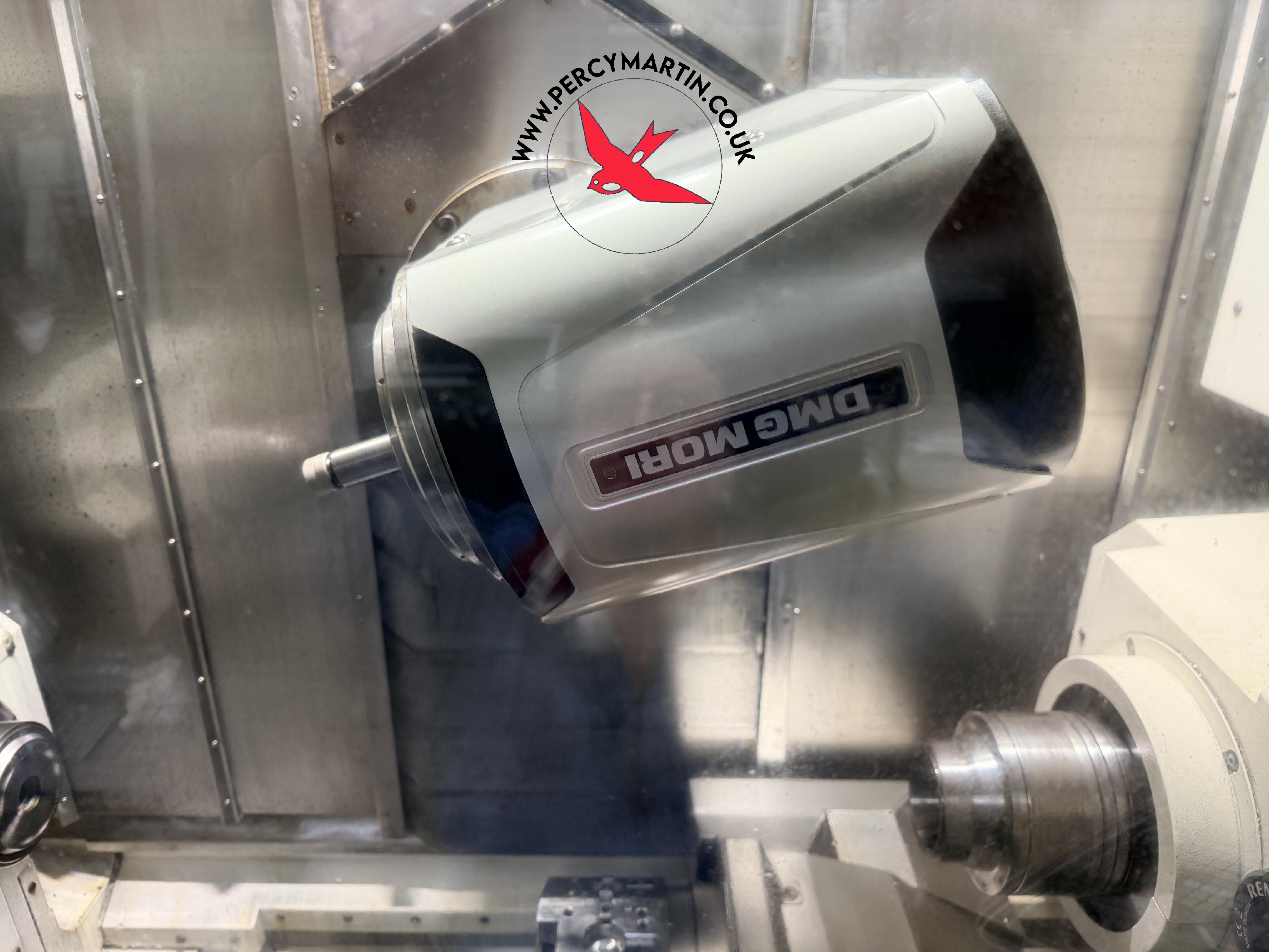

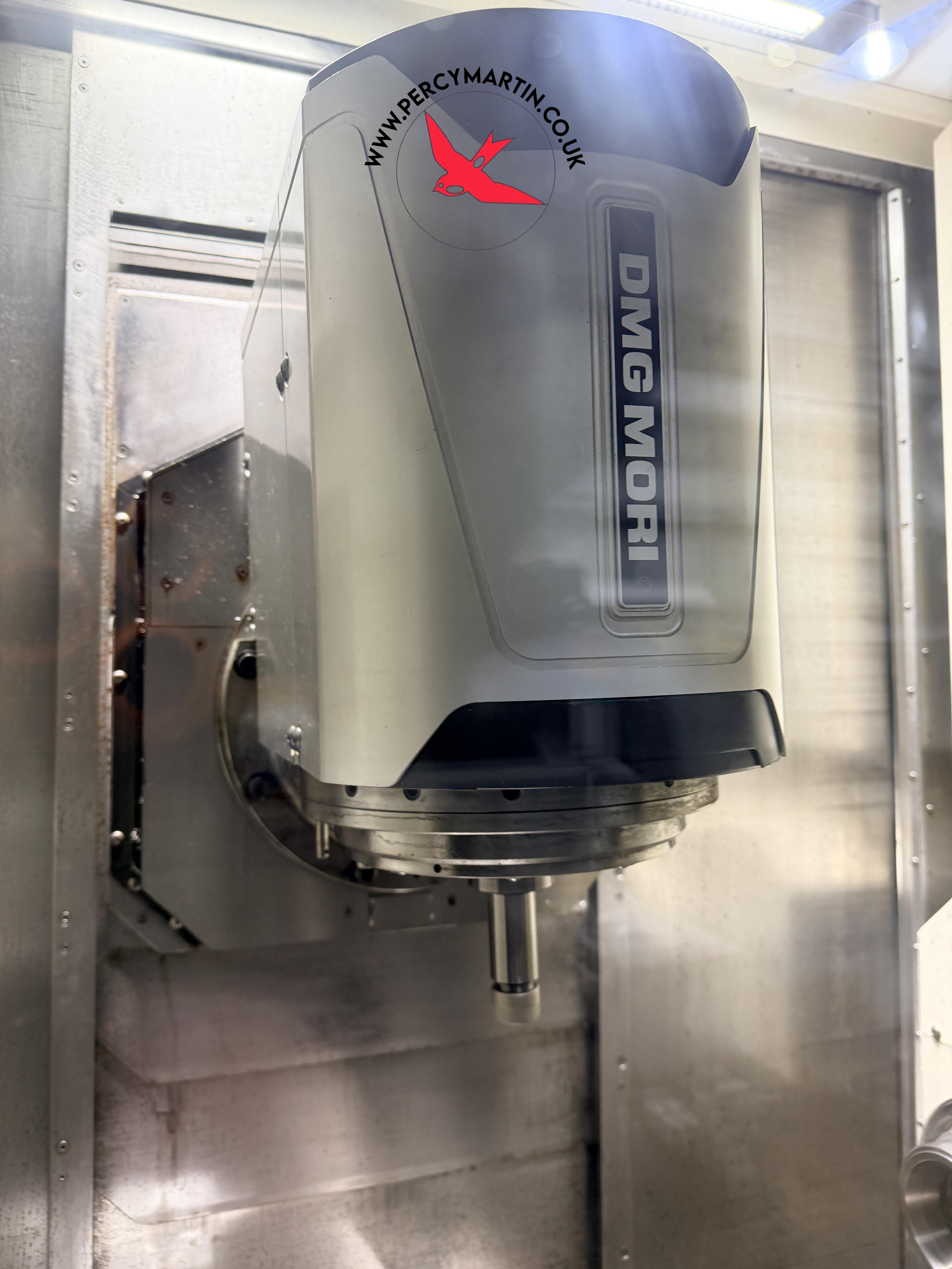

B axis , C axis & Milling , C axis on Sub Spindle , Coolant , Interlocked guards , Low Volt Light , Lower Turret , Sub Spindle , Swarf Conveyor , Tooling , Y-axis

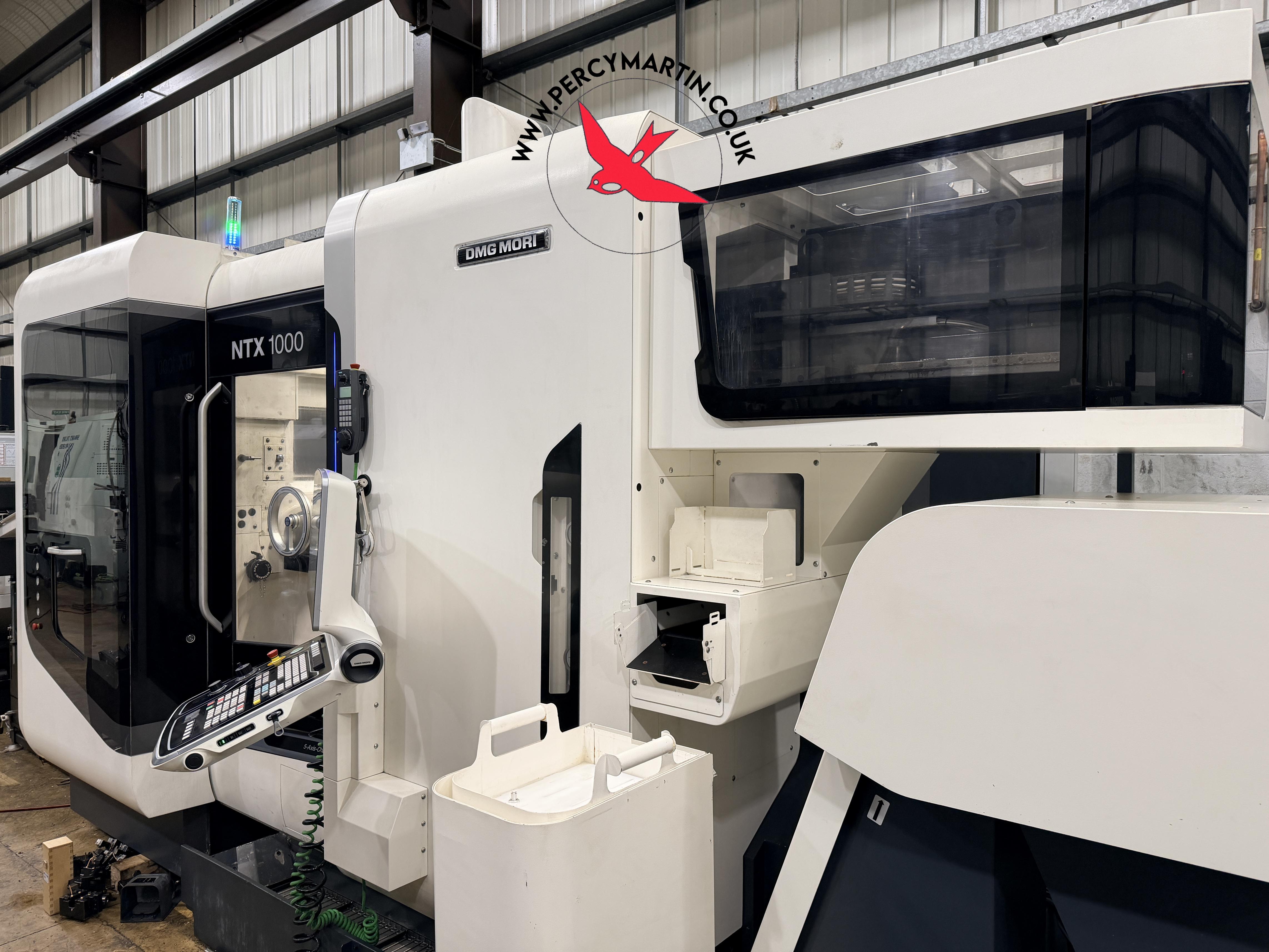

Mori Seiki NTX1000 2020
Key Features
Type:
CNC Multi Tasking Lathes
Model:
NTX1000
Make:
Mori Seiki
Year:
2020

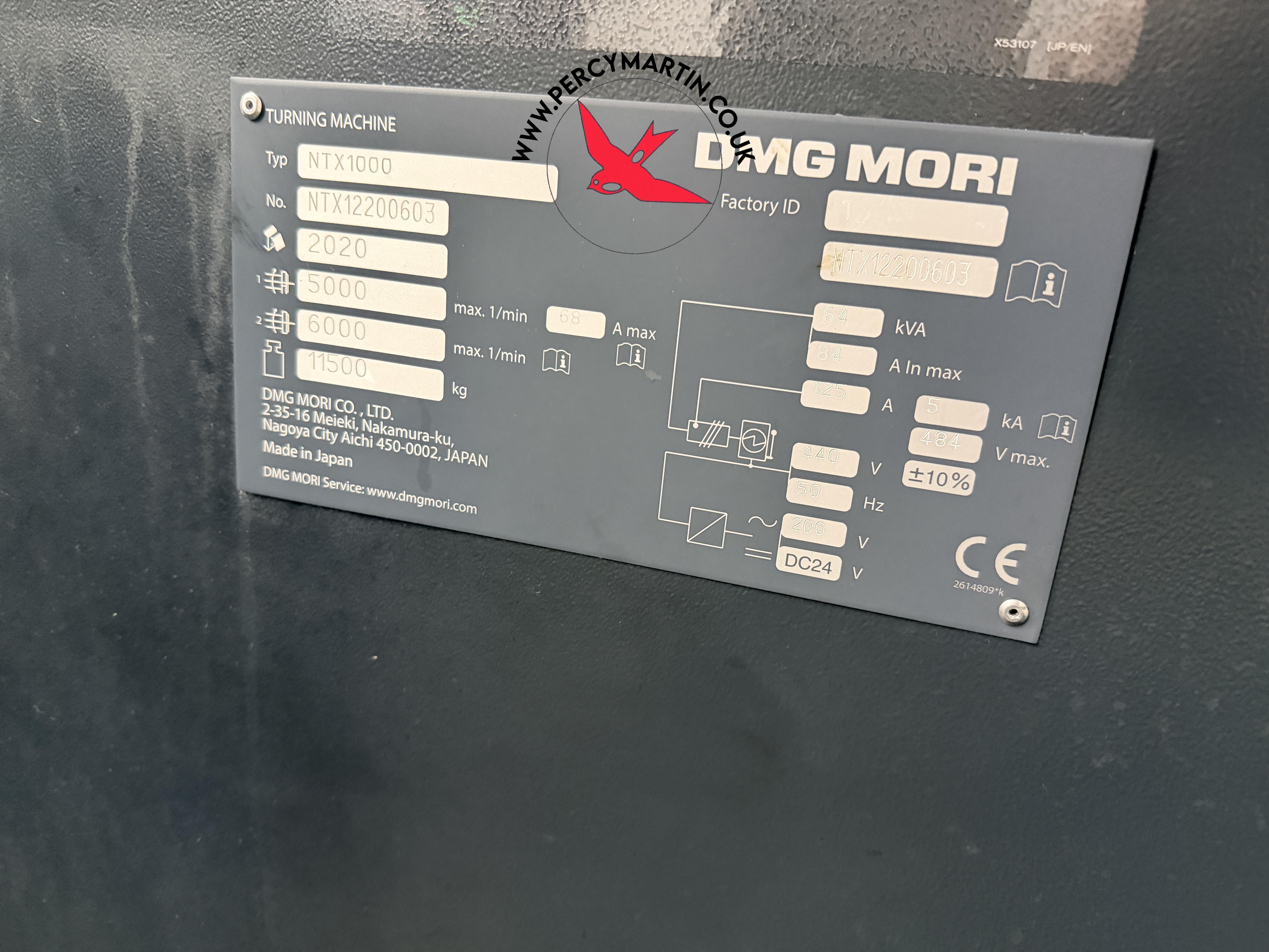

Serial No
NTX12200603
Price
£POA
Our Reference
PM9609
Location
Leicester
Mori Seiki NTX1000 2020
Specifications

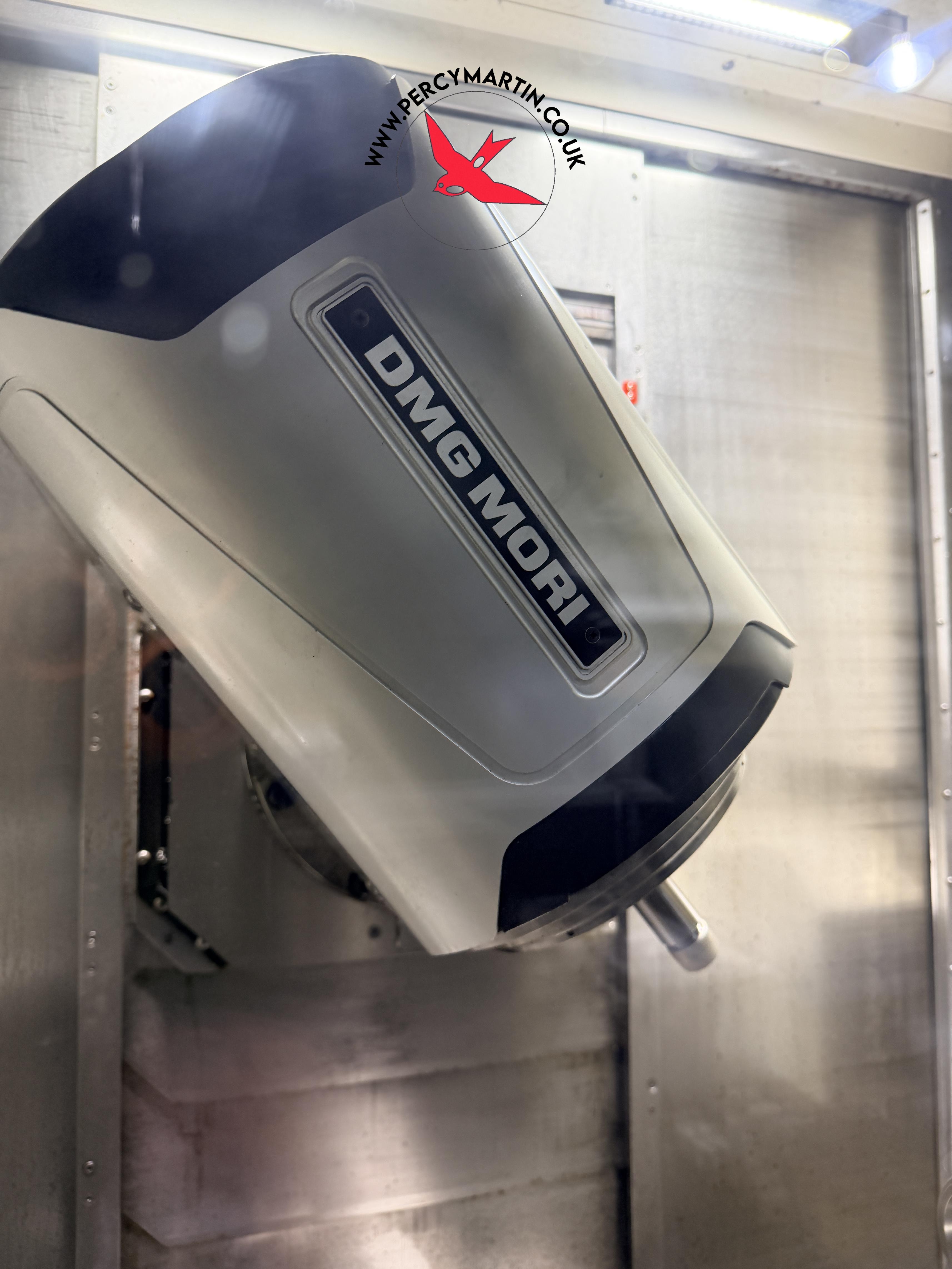

B axis Travel
-30 - +210° (0.001 degree)
Bar Capacity
52mm
C axis
0.001 degrees

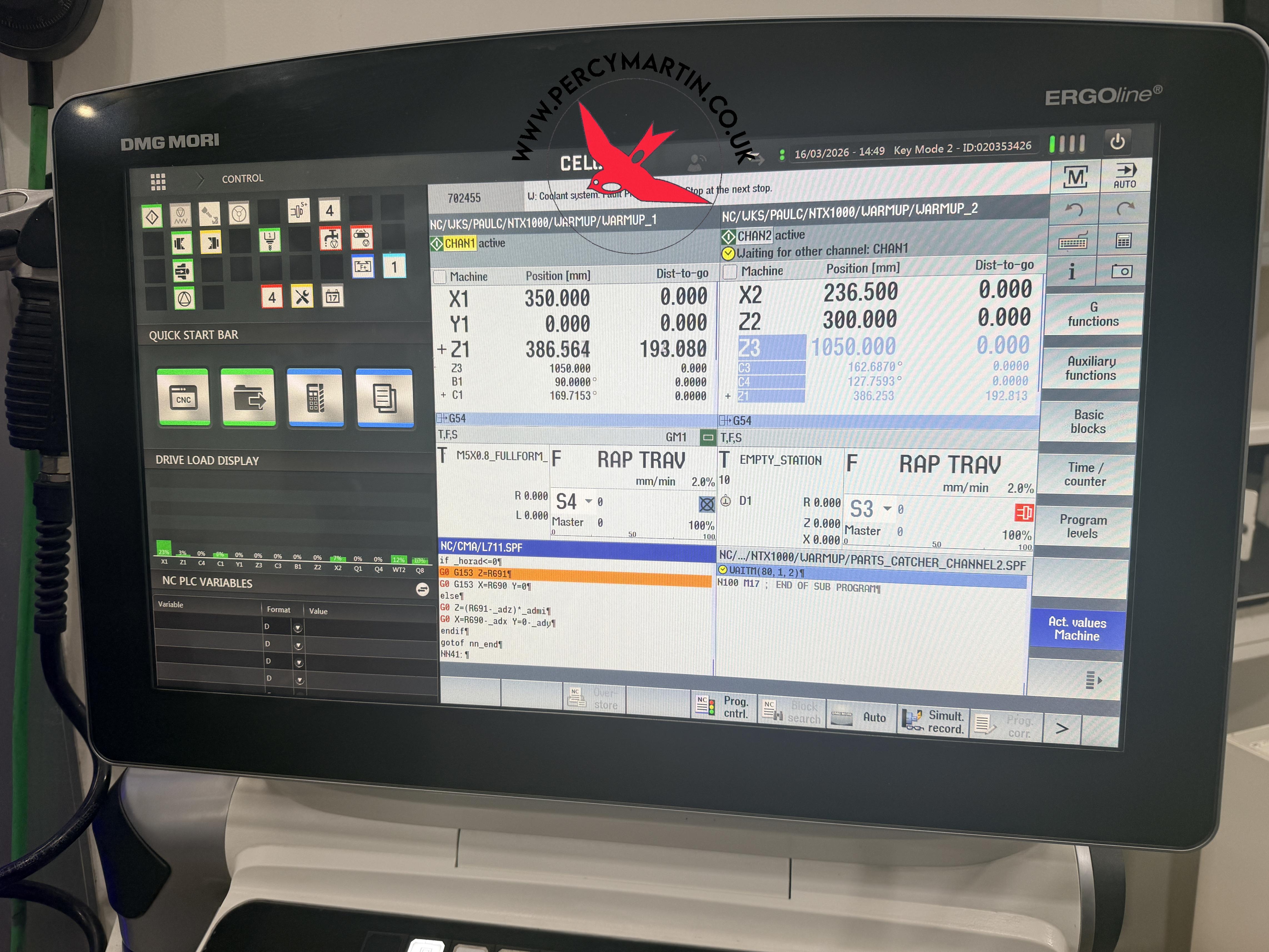

Control

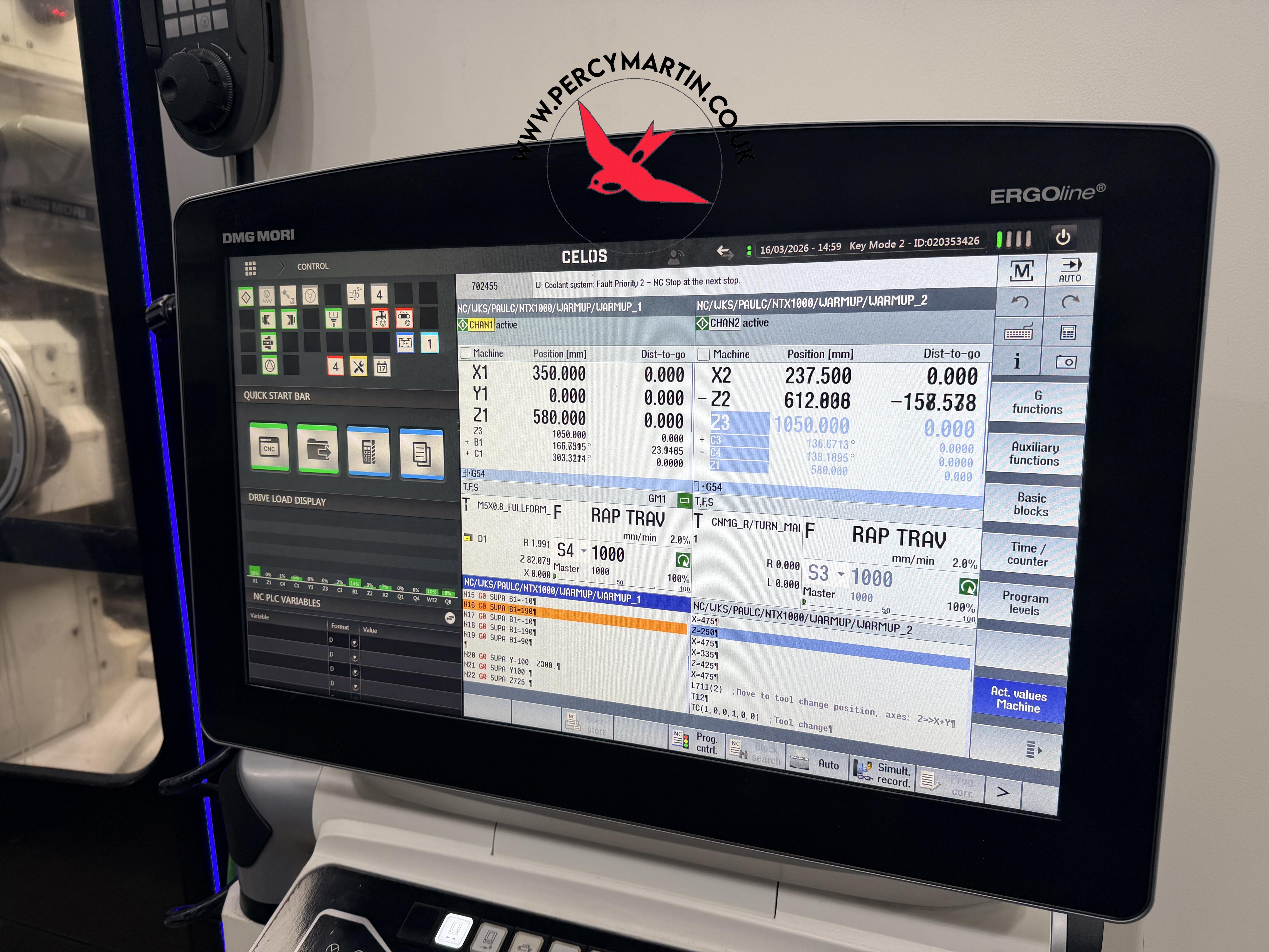

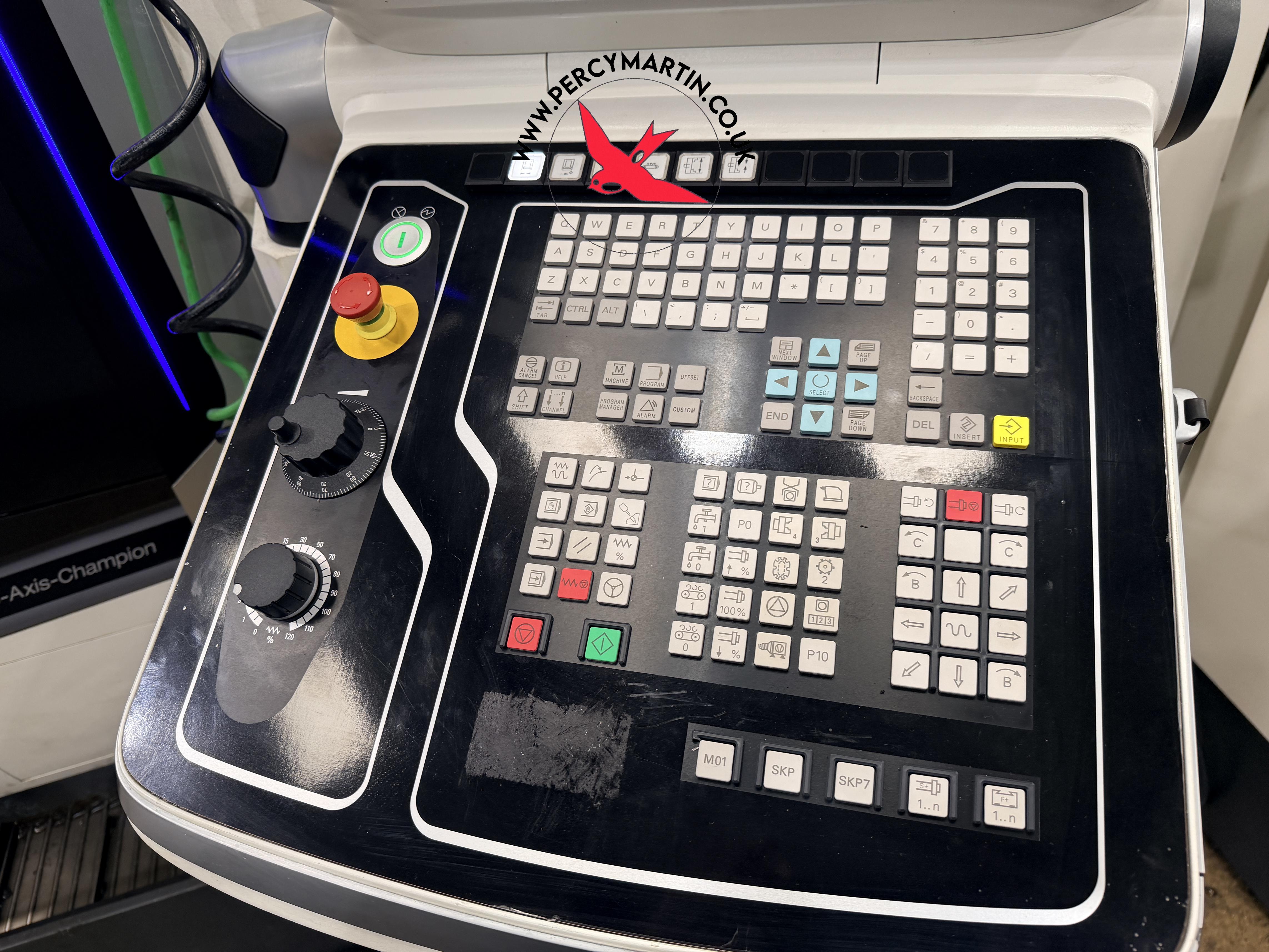

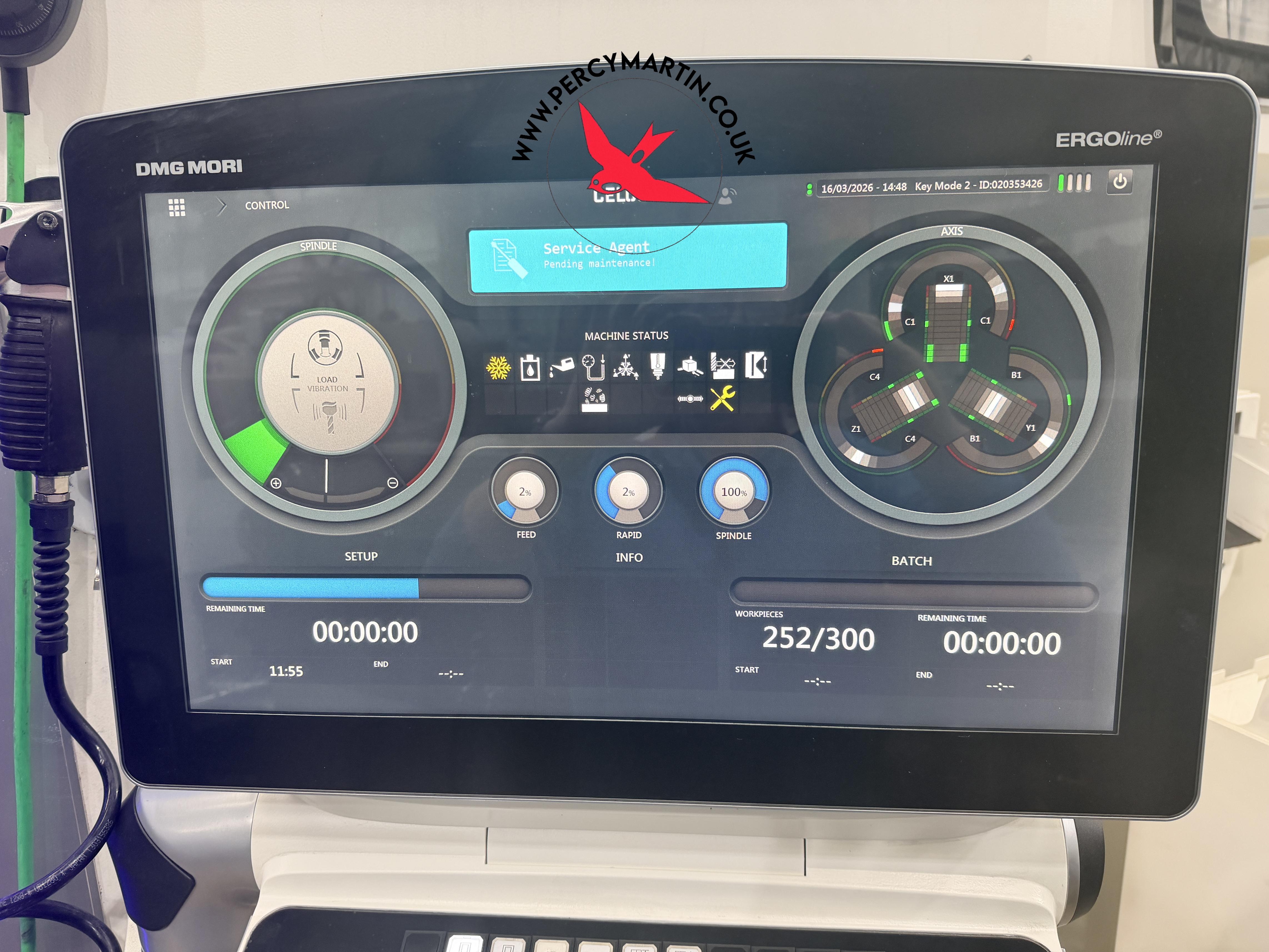

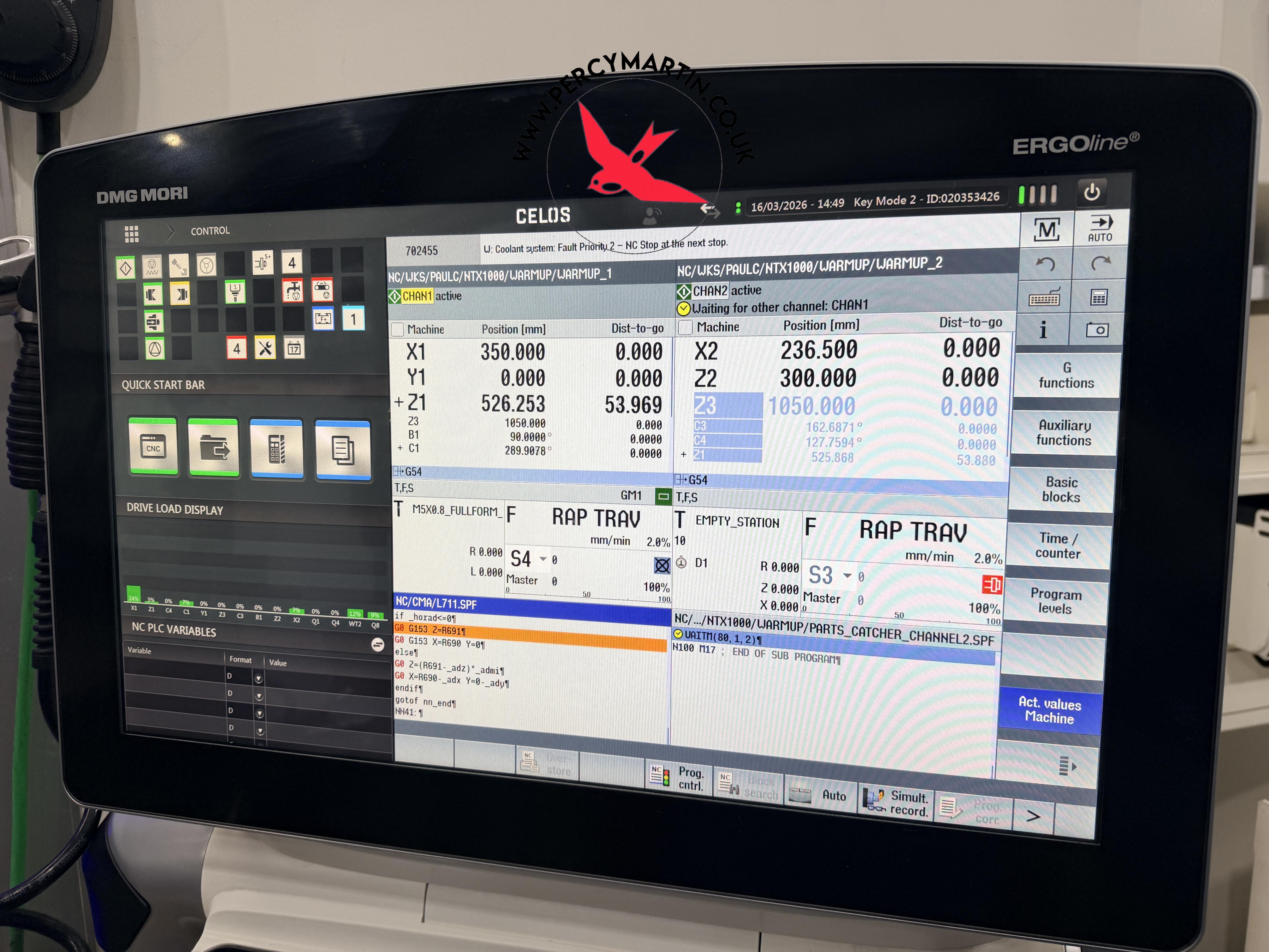

Siemens 840Dsl with CELOS
Machine Dimensions
3500 x 4000 x 2900mm
Machine Weight
8500kg
Maximum Cutting Diameter
430mm
Maximum Cutting Length
800mm
Maximum Tool Diameter
70mm (130mm with empty adjacent pockets)
Maximum Tool Length
250mm
Maximum Tool Weight
5kg

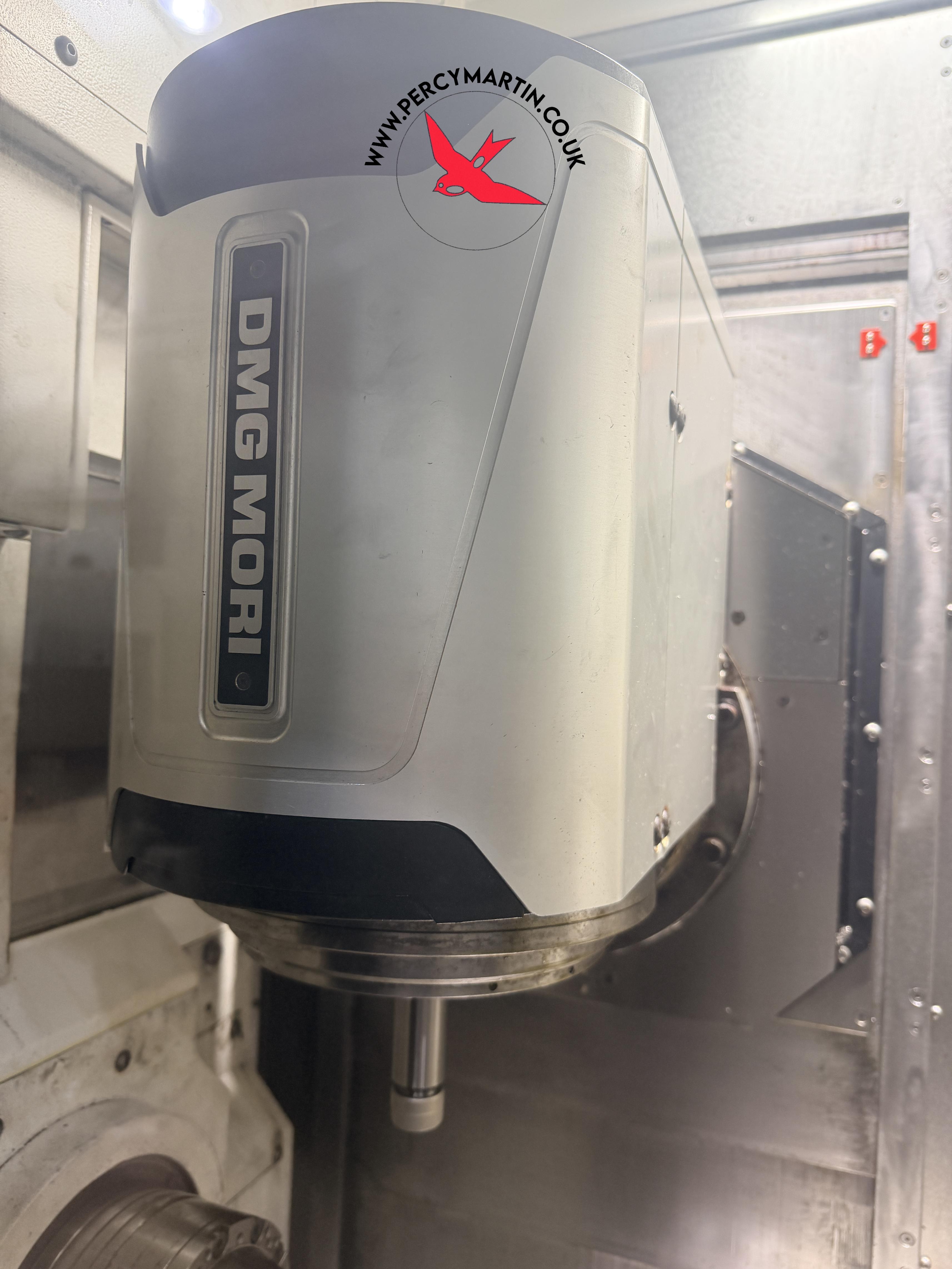

Milling Motor Power
5.5/7.5kW
Milling RPM
20000rpm
Rapid Feedrates
XYZ: 40x 40 x 50m/minute (Milling Head)
Spindle Motor Power
22/18.5kW
Spindle Nose
A2-6
Spindle Speed
6000rpm

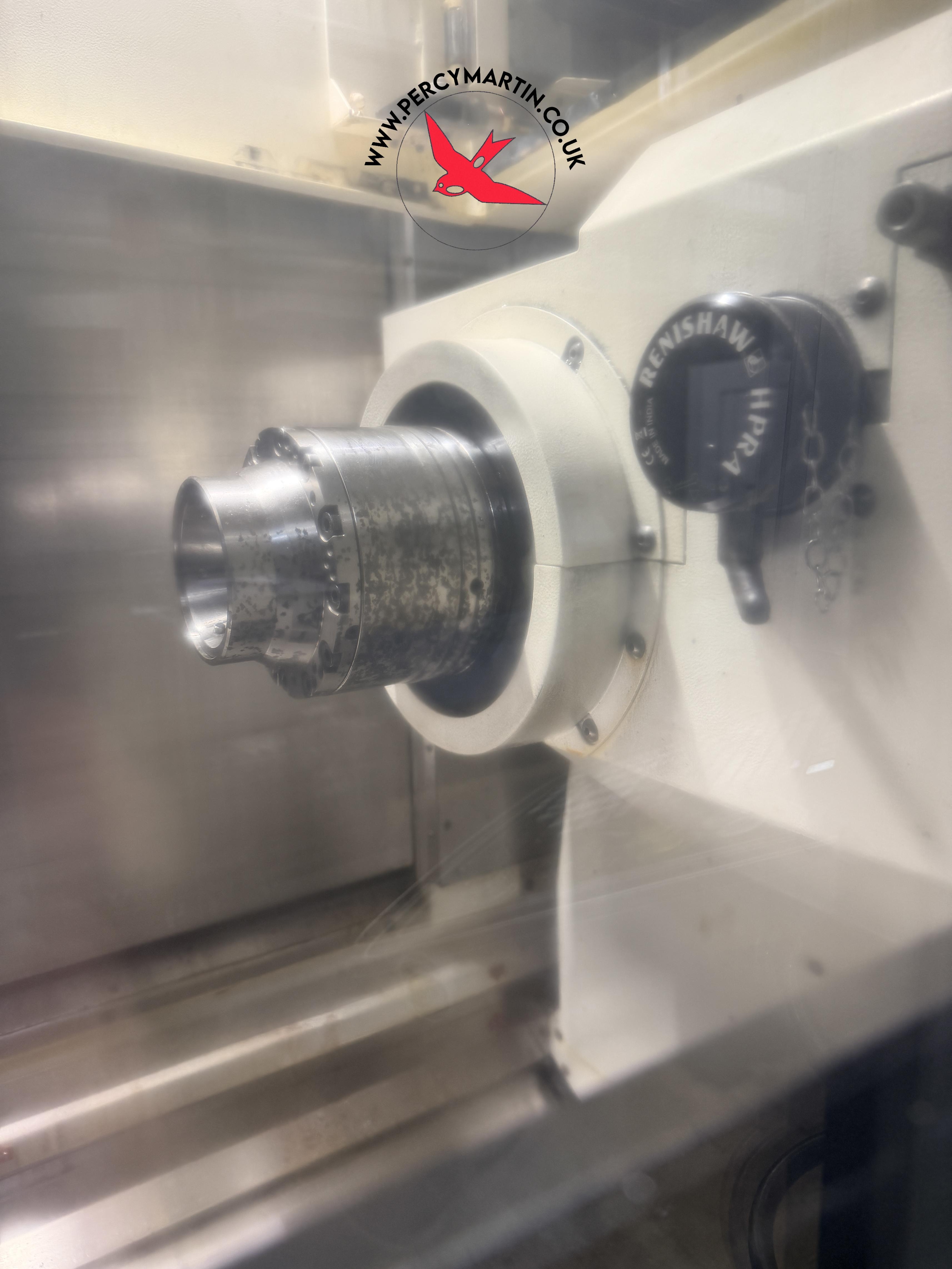

Sub Spindle C axis
0.001 degree
Sub Spindle Motor Power
22/18.5kW
Sub Spindle Speed
6000rpm
Sub Spindle Speed
6000rpm
Swing over the Cross-slide
450mm

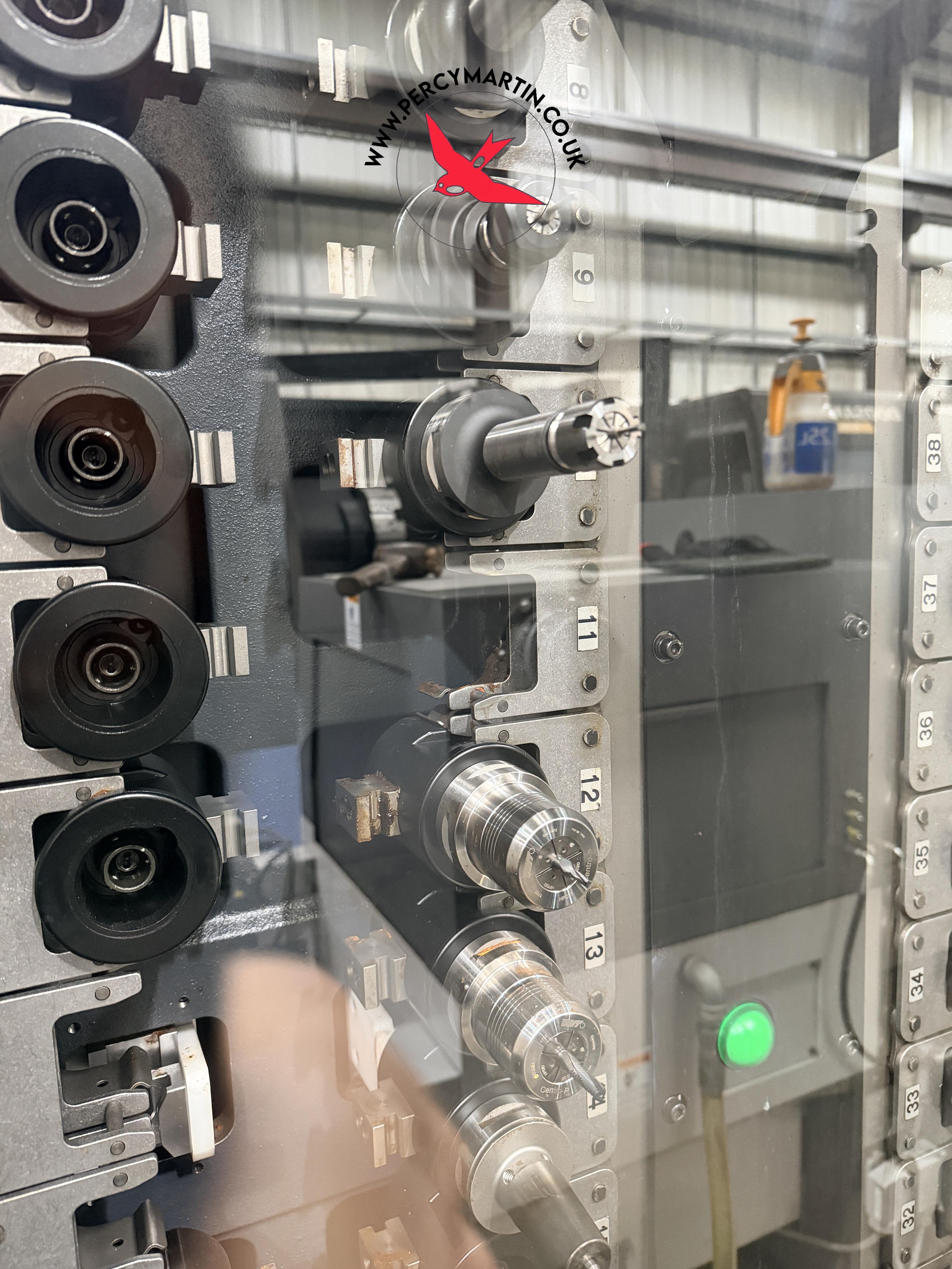

Tool Change Capacity
2 x 40 Station
Tool Size
CAPTO C5
X axis Travel
455mm
Y axis Travel
+/-105mm
Z axis Travel
460mm
