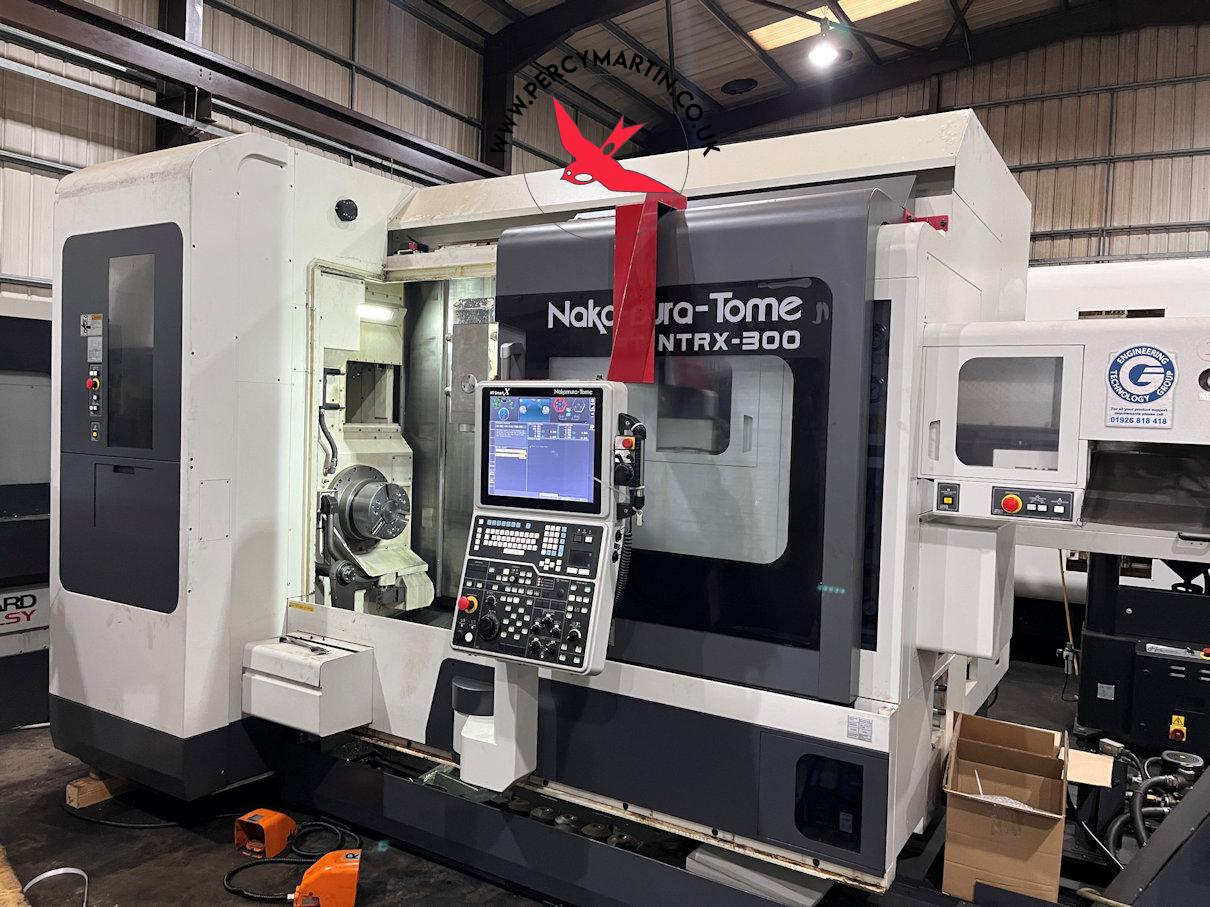

Nakamura NTRX-300 Multi-Tasking CNC Lathe 2015

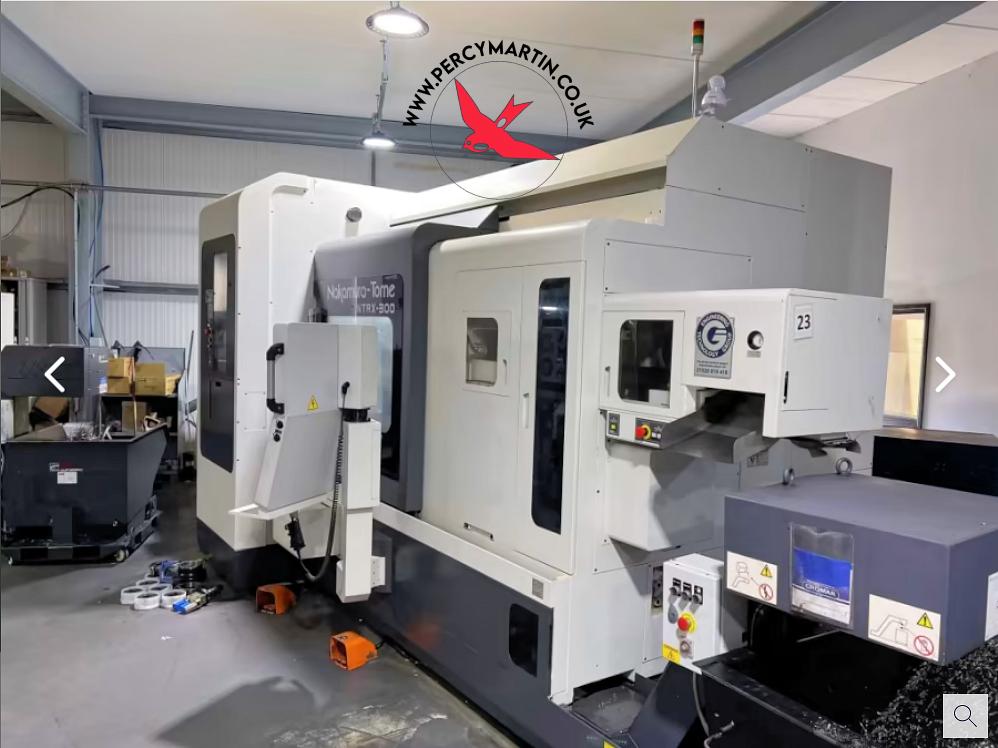

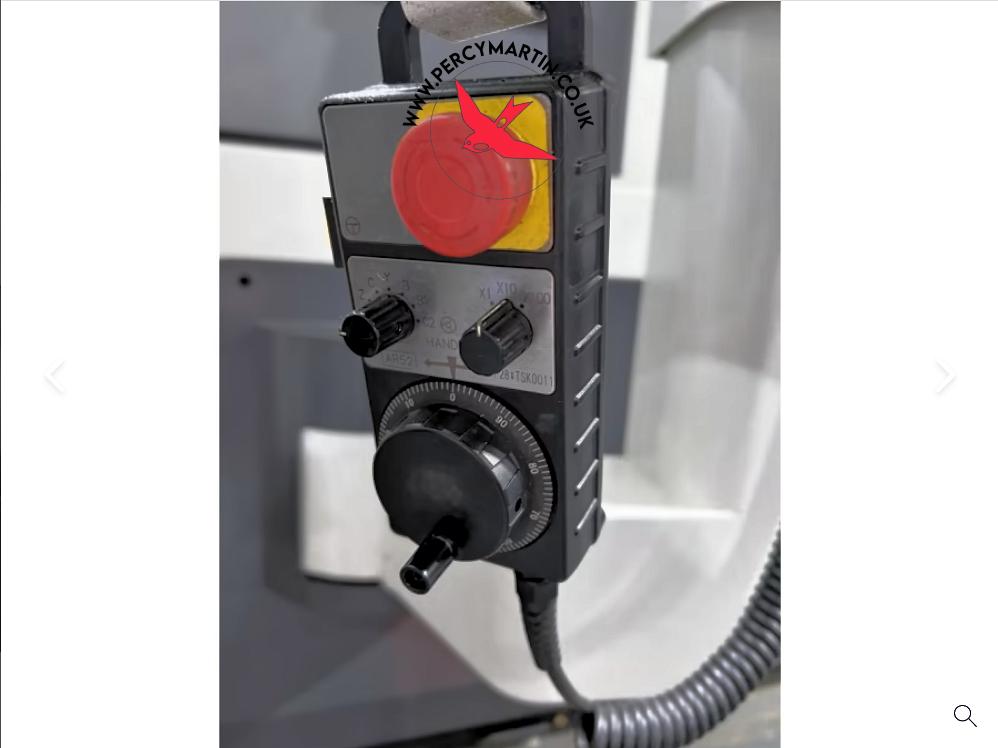

3 Jaw Chuck , C axis & Milling , C axis on Sub Spindle , Coolant , Interlocked guards , Low Volt Light , Magazine Barfeed , Parts Catcher , Remote Hand Wheel , Sub Spindle , Swarf Conveyor , Tool setter , Tooling , USB Port , Y-axis
Nakamura NTRX-300 Multi-Tasking CNC Lathe 2015
Key Features
Type:
CNC Multi Tasking Lathes
Model:
NTRX-300 Multi-Tasking CNC Lathe
Make:
Nakamura
Year:
2015

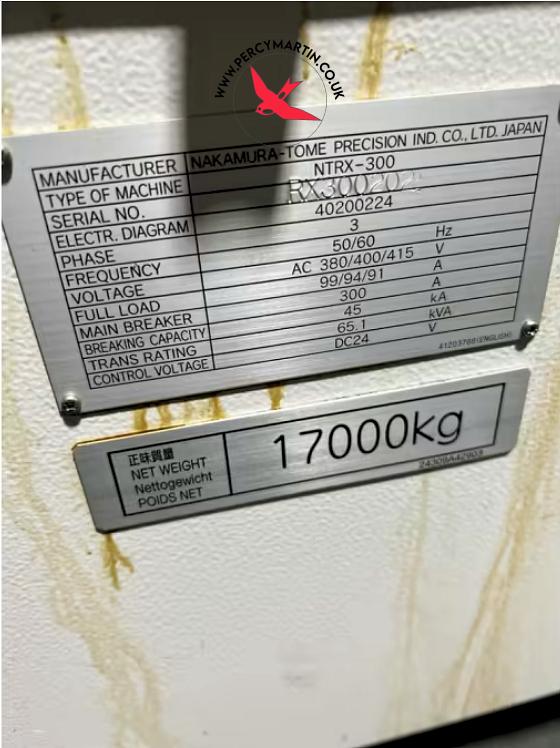

Serial No
RX3000202
Price
£POA
Our Reference
PM8761
Location
Leicester
Nakamura NTRX-300 Multi-Tasking CNC Lathe 2015
Specifications
B Axis
225° (-120°/+105°)
Bar Capacity
80mm
C axis
0.001 degree

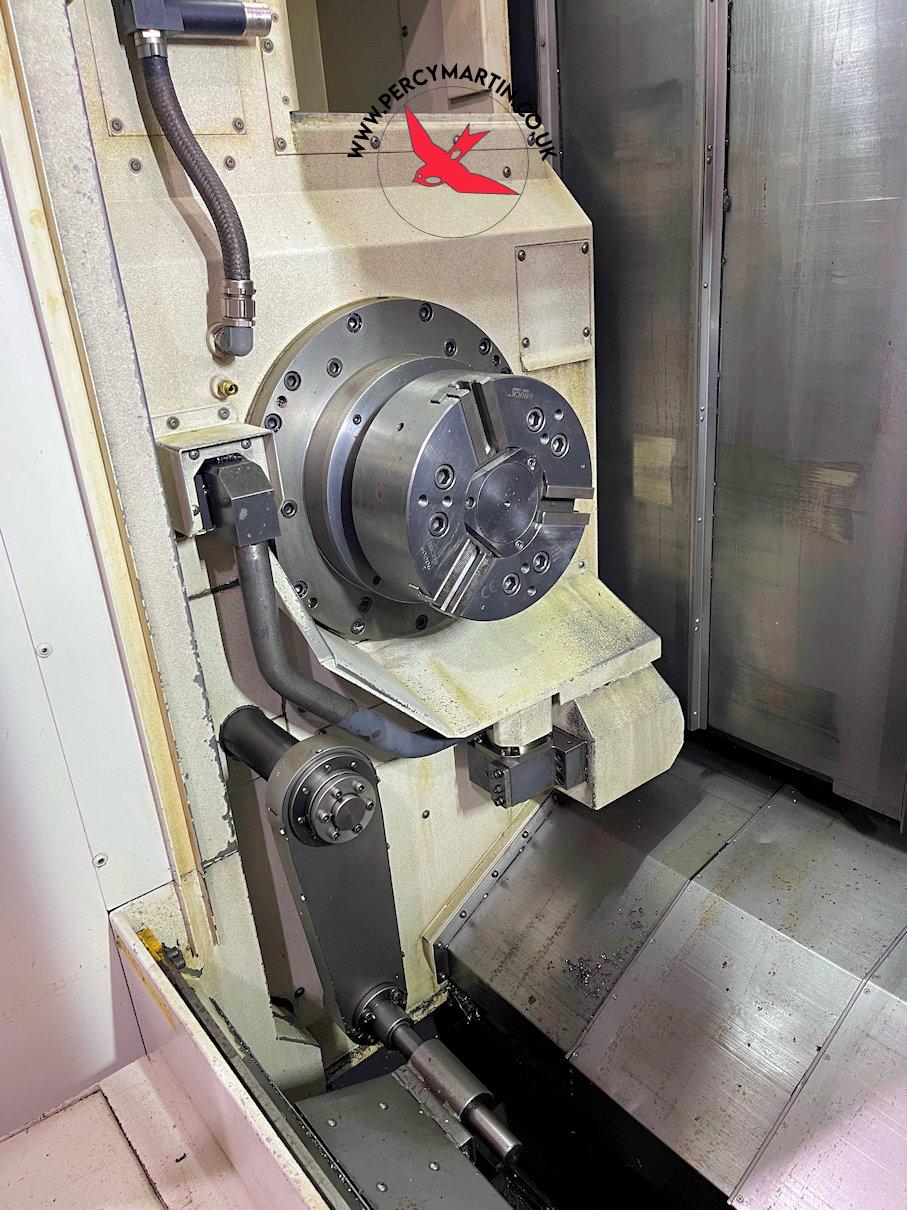

Chuck Size
210mm (8")

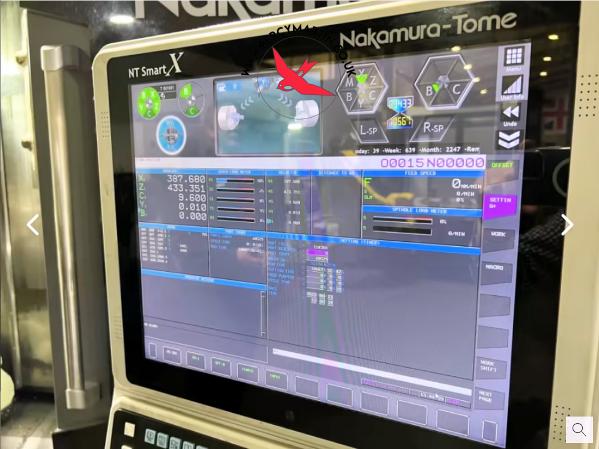

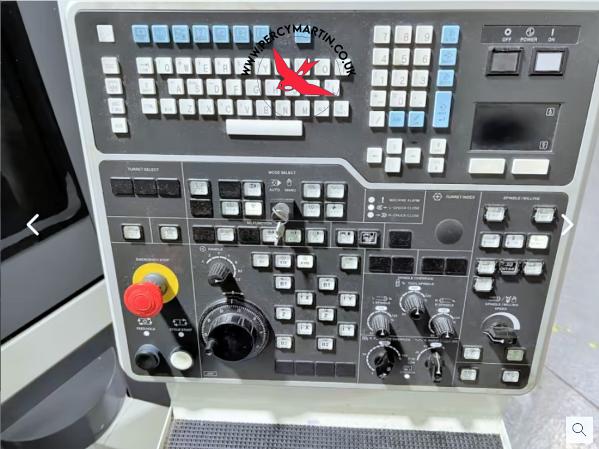

Control
Fanuc 31i-Guide i
Distance Between Spindles
250 ~ 1350mm
Machine Weight
17000kg
Maximum Cutting Diameter
640mm
Maximum Cutting Length
1100mm
Maximum Tool Diameter
90mm
Maximum Tool Diameter with Empty Adjacent Pockets
120mm
Maximum Tool Length
300mm
Maximum Tool Weight
12kg
Milling Motor Power
22/15kW
Milling RPM
12000rpm
Spindle Motor Power
22/18.5kW
Spindle Nose
A2-8
Spindle Speed
3500rpm
Sub Spindle B Axis Movement
1100mm
Sub Spindle Bore
80mm
Sub Spindle C axis
0.001 degree

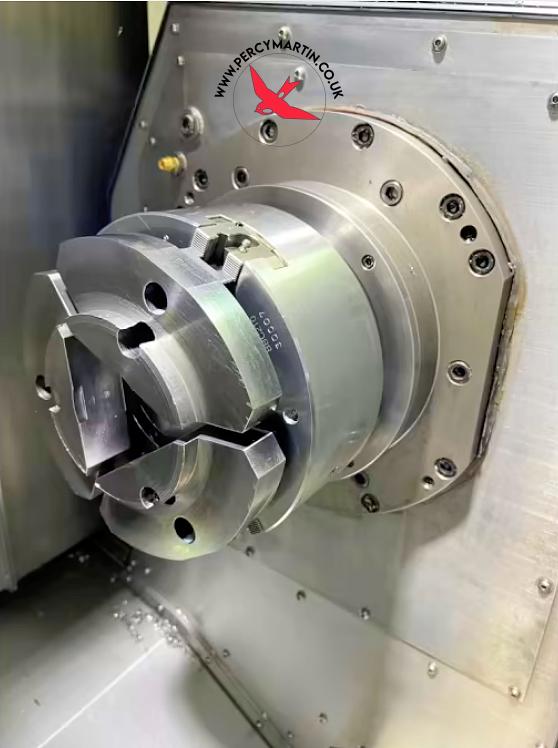

Sub Spindle Chuck Size
210mm (8")
Sub Spindle Max Speed
3500rpm
Sub Spindle Motor
22/18.5kW
Sub Spindle Nose
A2-8
Tool Change Capacity
40 Station
Tooling Configuration
CAPTO C6
X axis Travel
700mm
Y axis Travel
+/-125mm
Z axis Travel
1125mm
Z2 axis Travel
1100mm
Nakamura NTRX-300 Multi-Tasking CNC Lathe 2015
