CNC Multi Tasking Lathes

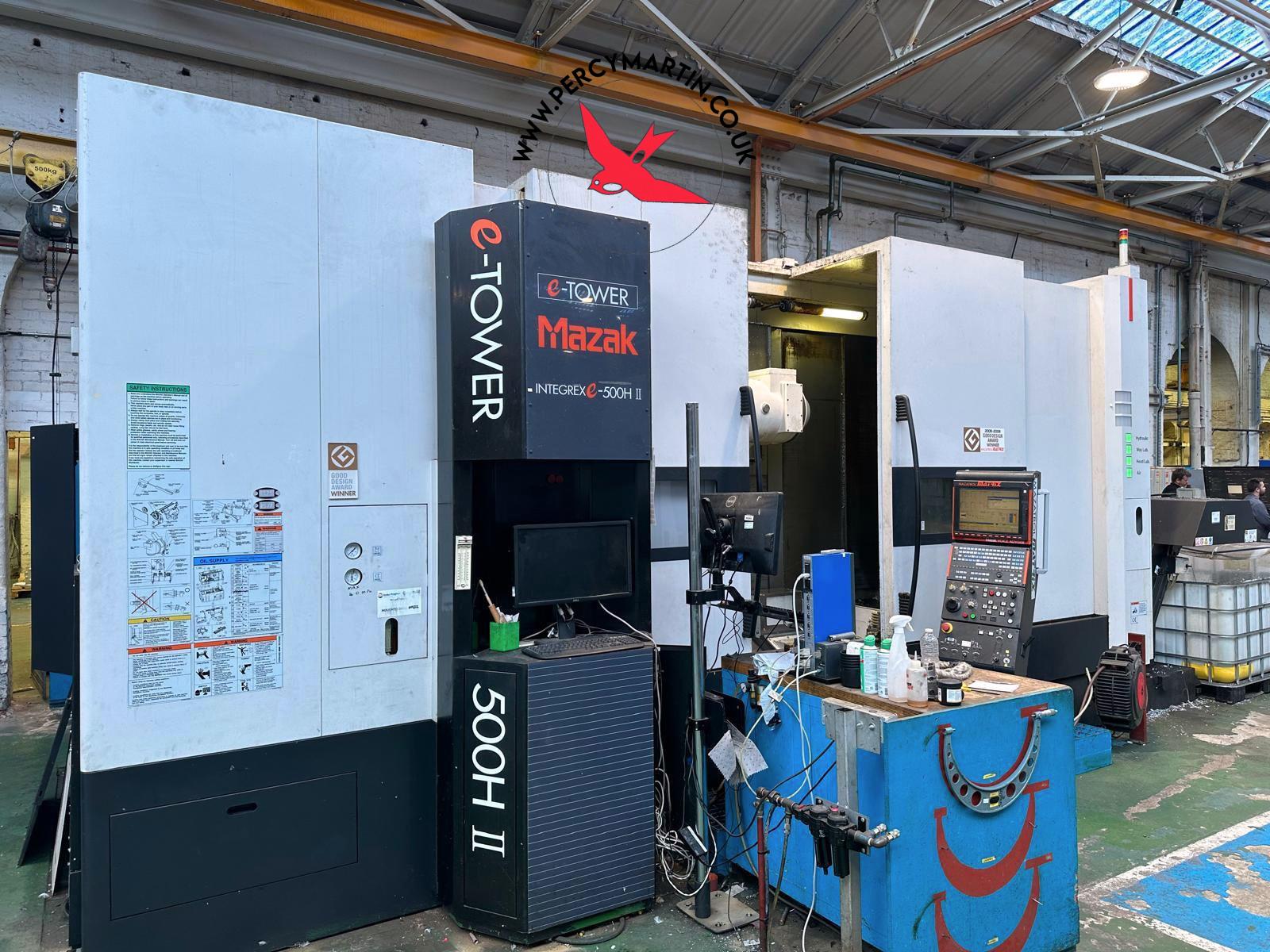

Mazak Integrex E-500H-II 2007

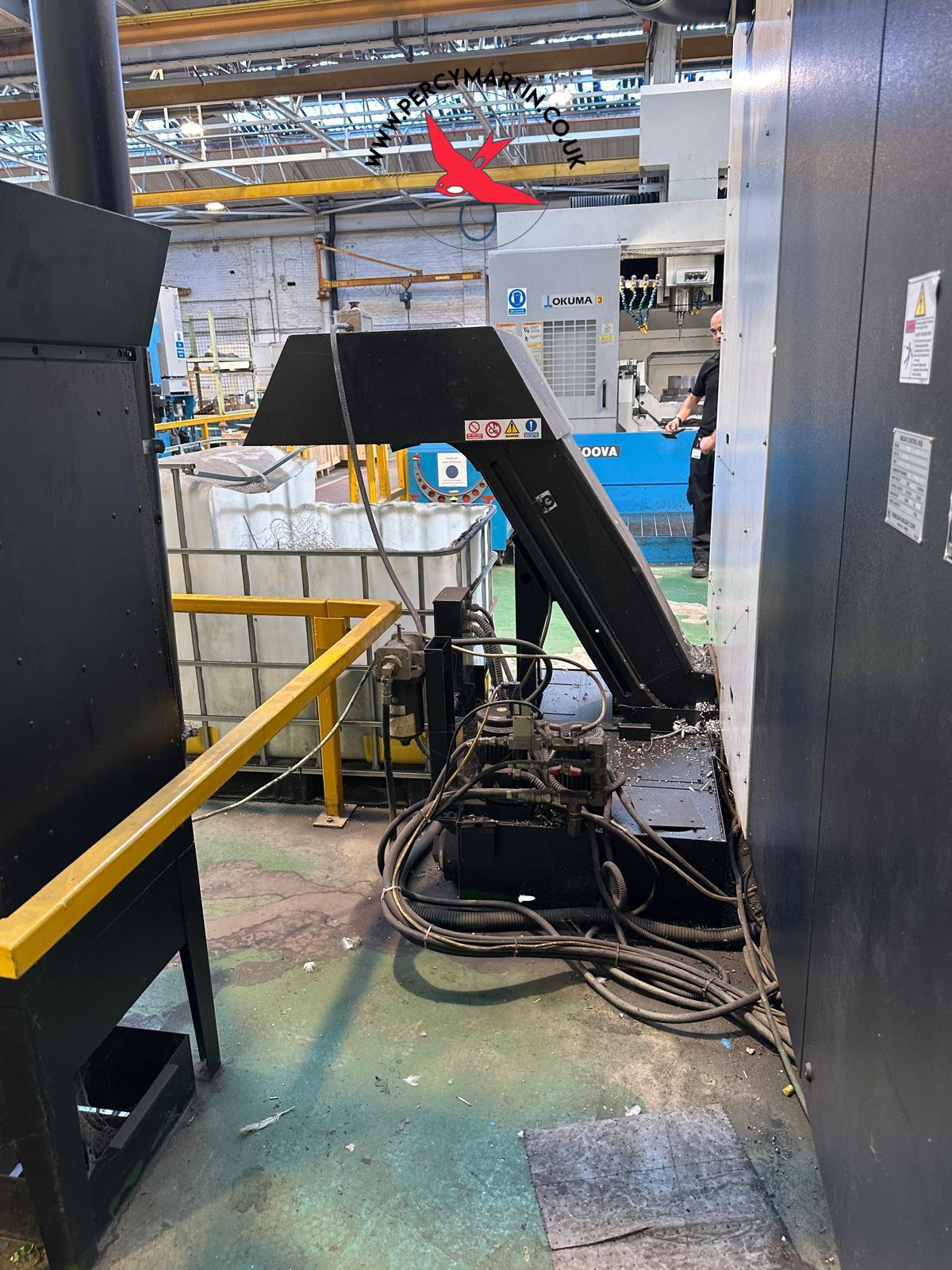

3 Jaw Chuck , B axis , C axis & Milling , Coolant , Interlocked guards , Low Volt Light , Remote Hand Wheel , Swarf Conveyor , Tailstock , Tooling , Y-axis
Key Features Gallery Specifications More in Stock Register Interest
Mazak Integrex E-500H-II 2007

Key Features

Type:

CNC Multi Tasking Lathes

Model:

Integrex E-500H-II

Make:

Mazak

Year:

2007

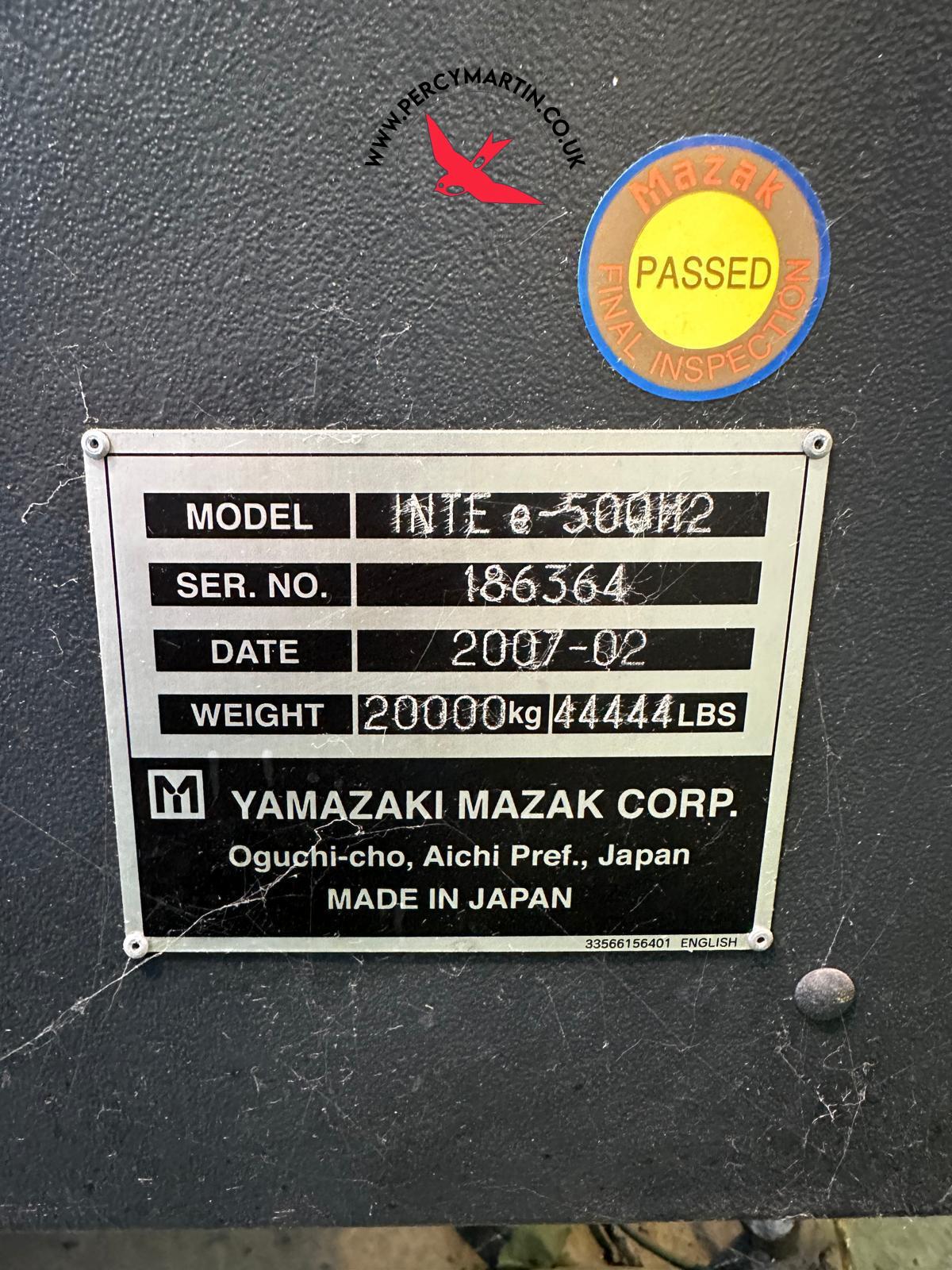

Serial No

186364

Price

£POA

Our Reference

PM9322

Location

Leicester

Mazak Integrex E-500H-II 2007

Specifications

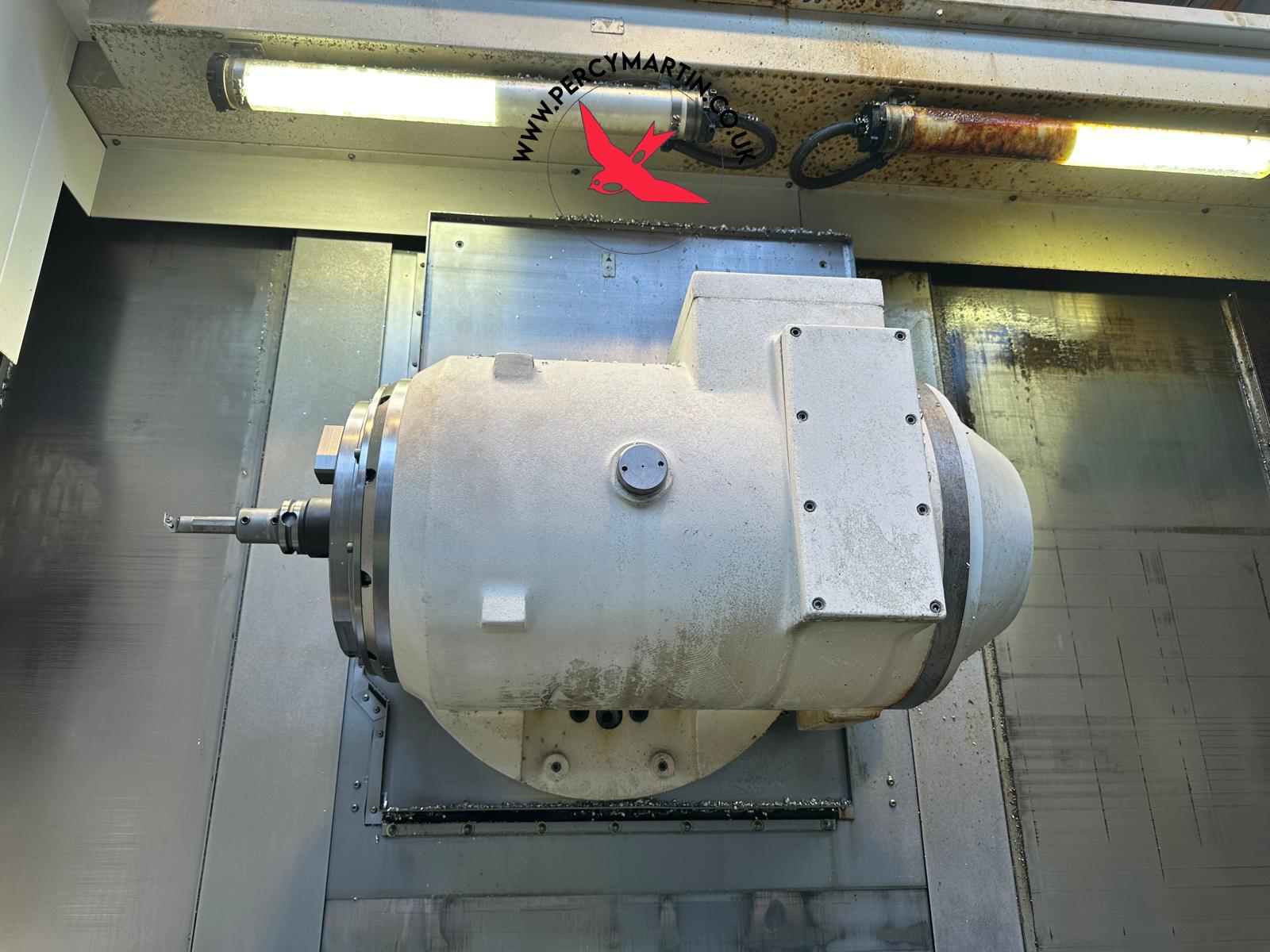

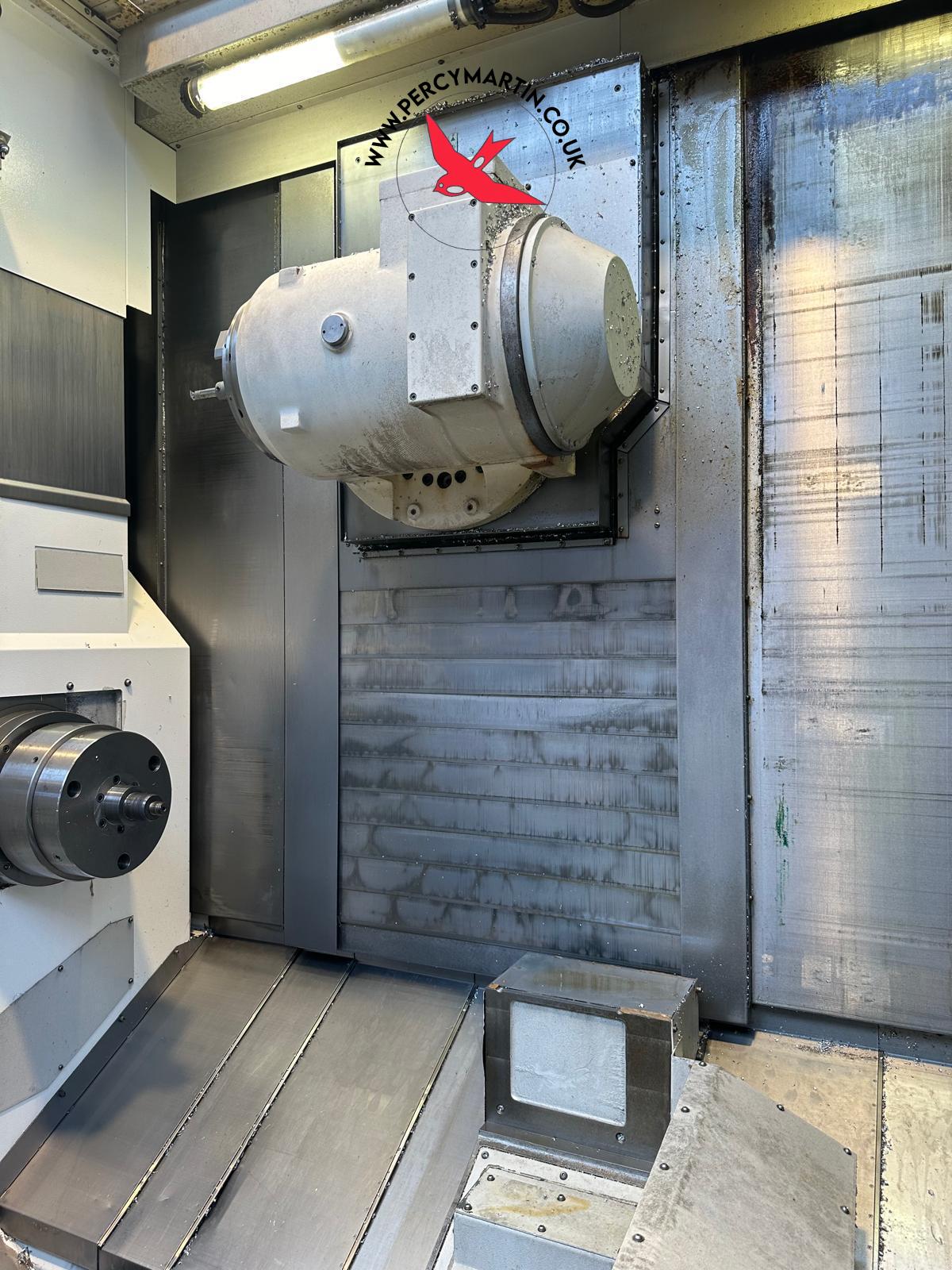

B Axis

-30 / +210 °

Bar Capacity

not available

C axis

0.001 degree

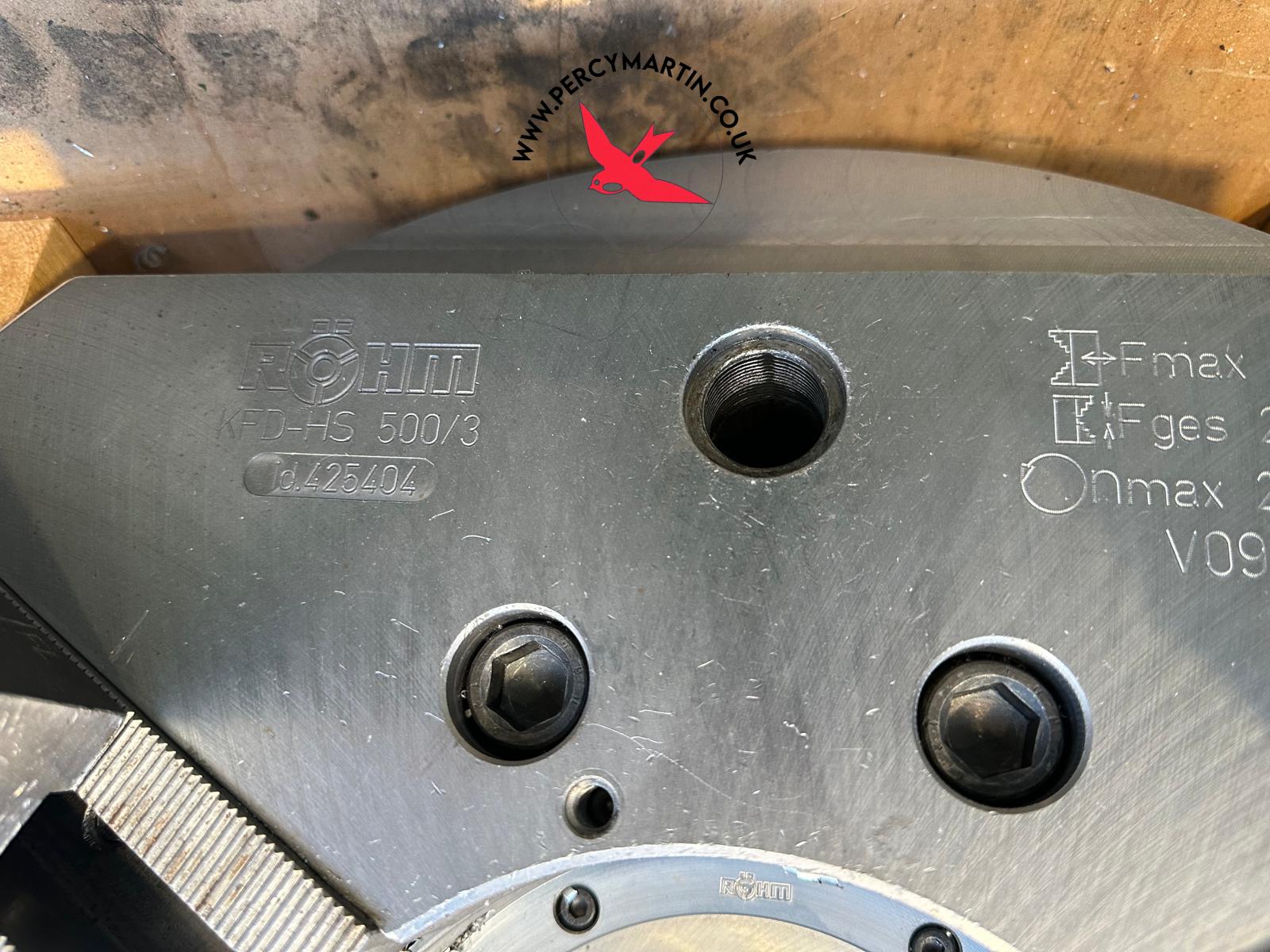

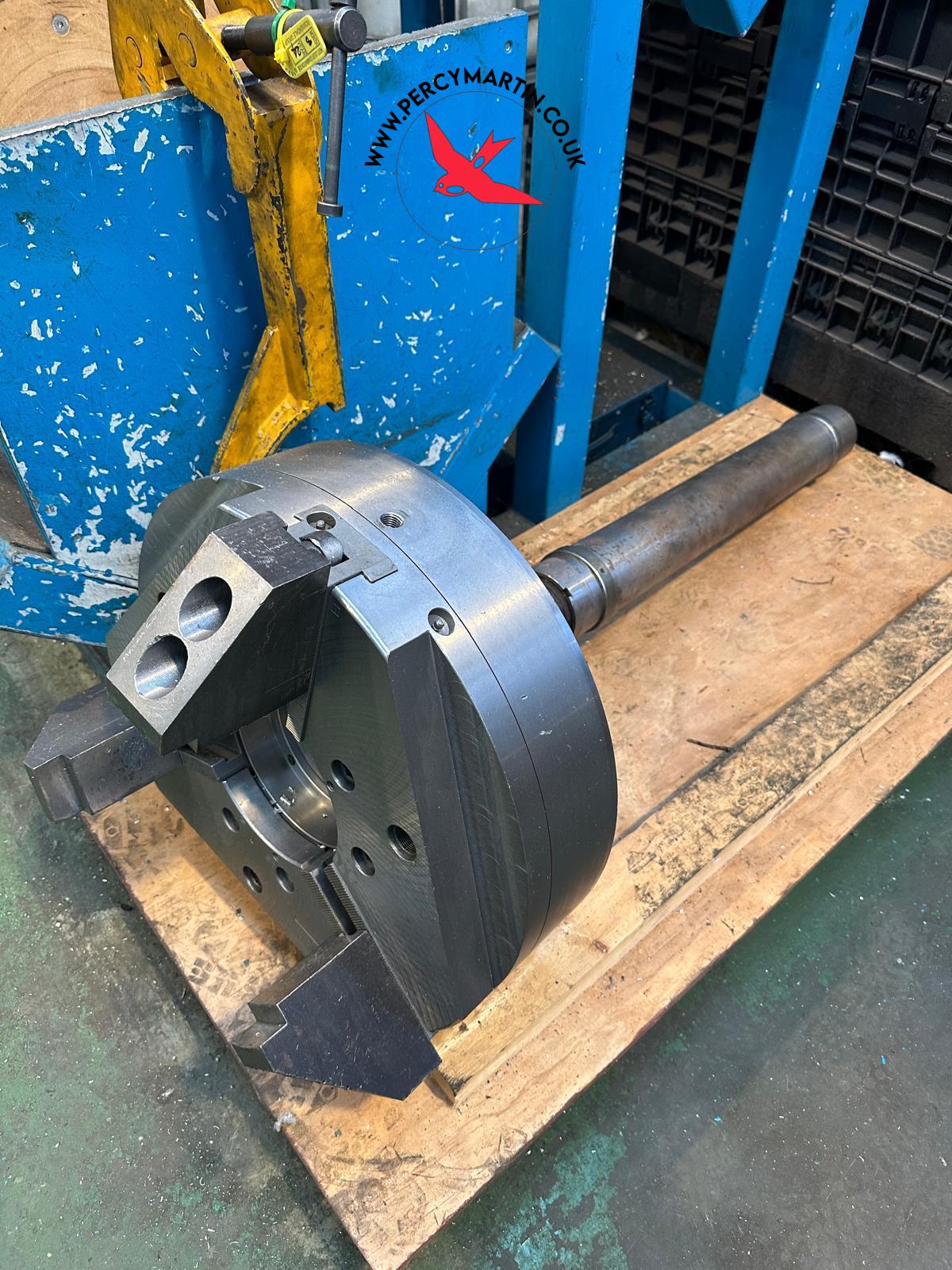

Chuck Size

500mm

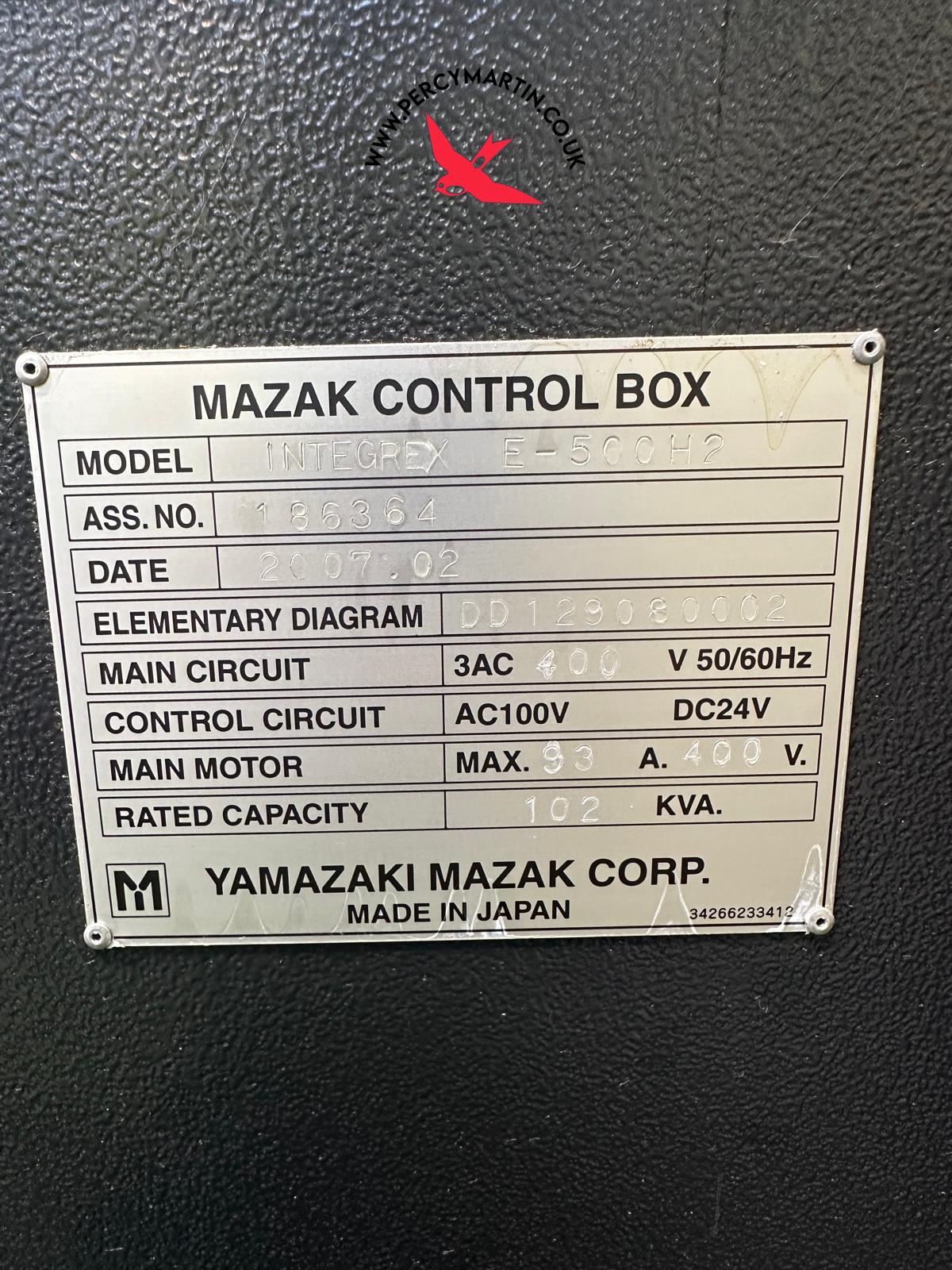

Control

MAZATROL MATRIX

Machine Dimensions

6540 x 4600 x 3220mm

Machine Weight

22600kg

Maximum Cutting Diameter

820mm

Maximum Cutting Length

1500mm

Milling Motor Power

37Kw

Milling RPM

10000rpm

Number of Axis Controlled

5 Simultaneous

Spindle Nose

A2-11

Spindle Speed

1600rpm

Swing

817mm

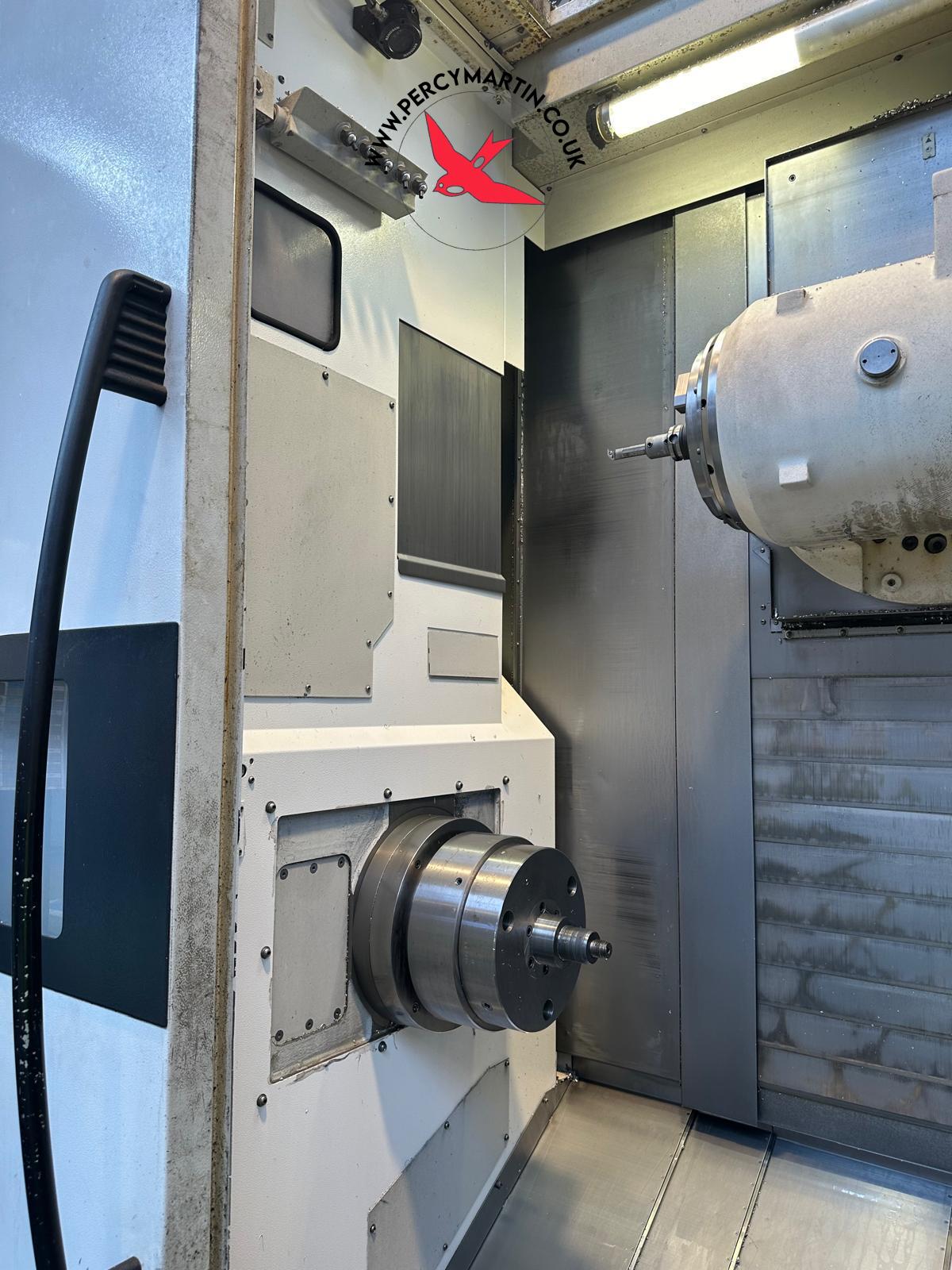

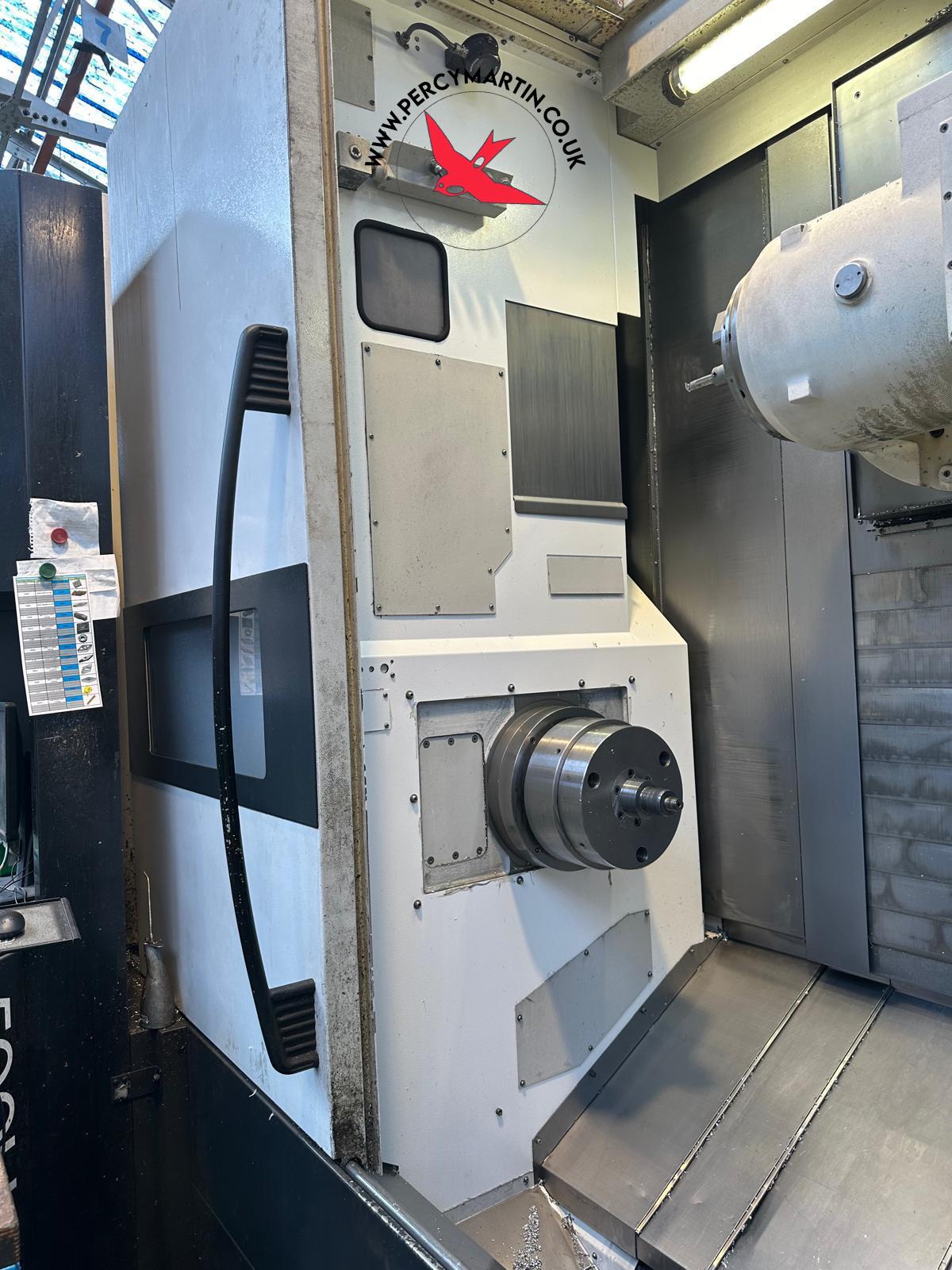

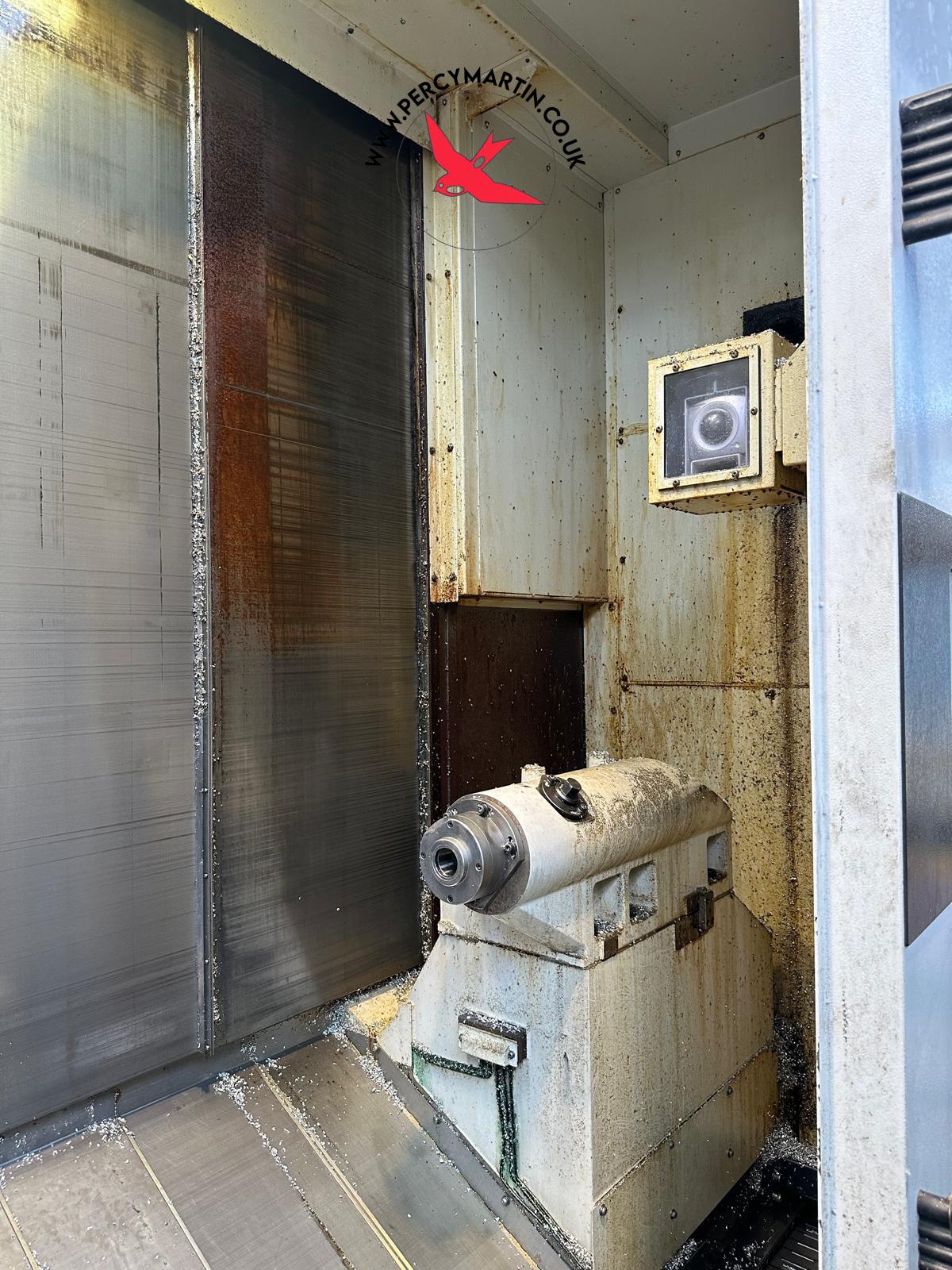

Tailstock Body Travel

1466mm

Tailstock Taper

MT #5

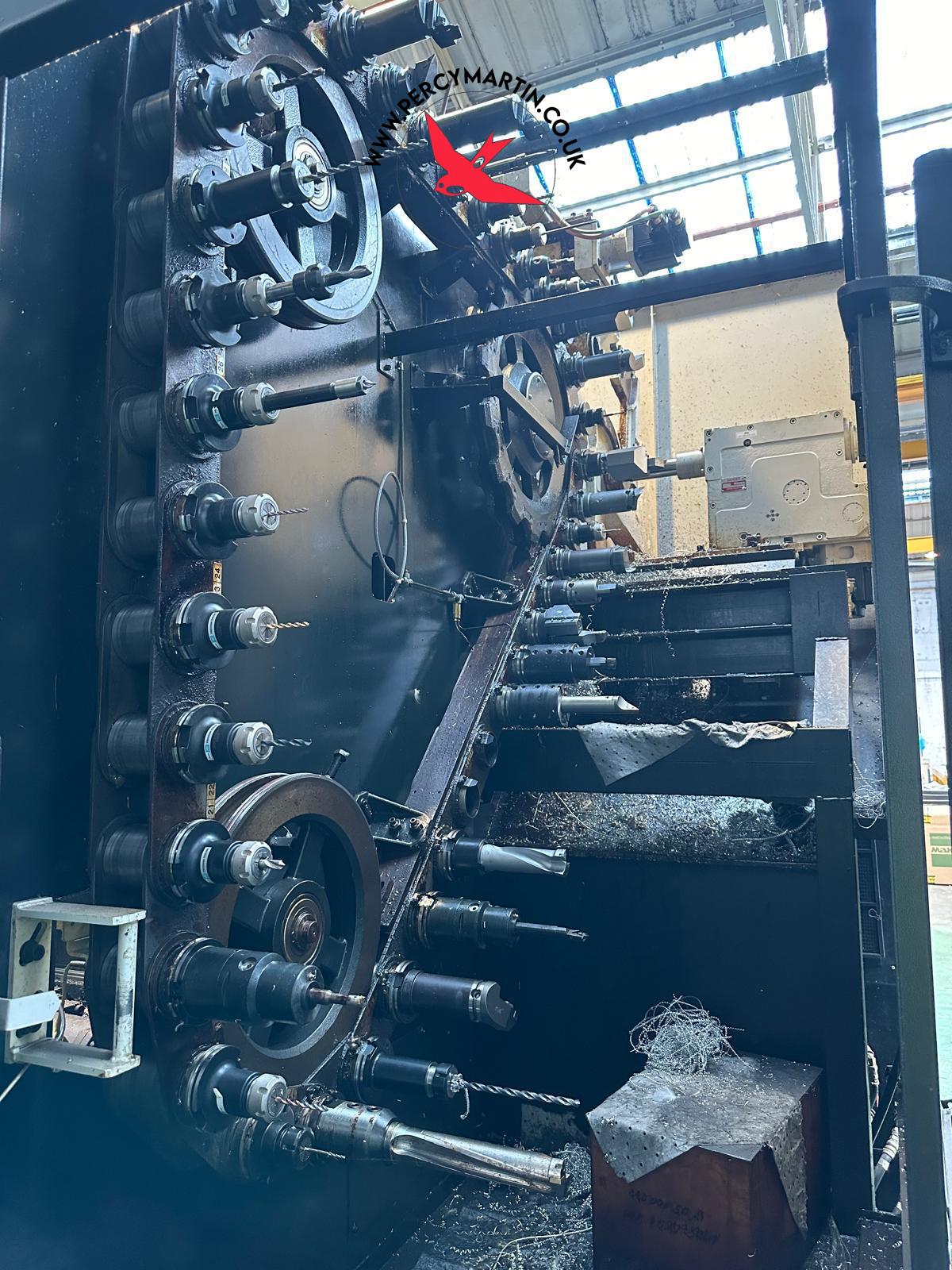

Tool Change Capacity

40 Station

Tooling Configuration

DIN50

X axis Travel

870mm

Y axis Travel

+/-250mm

Z axis Travel

1598mm
