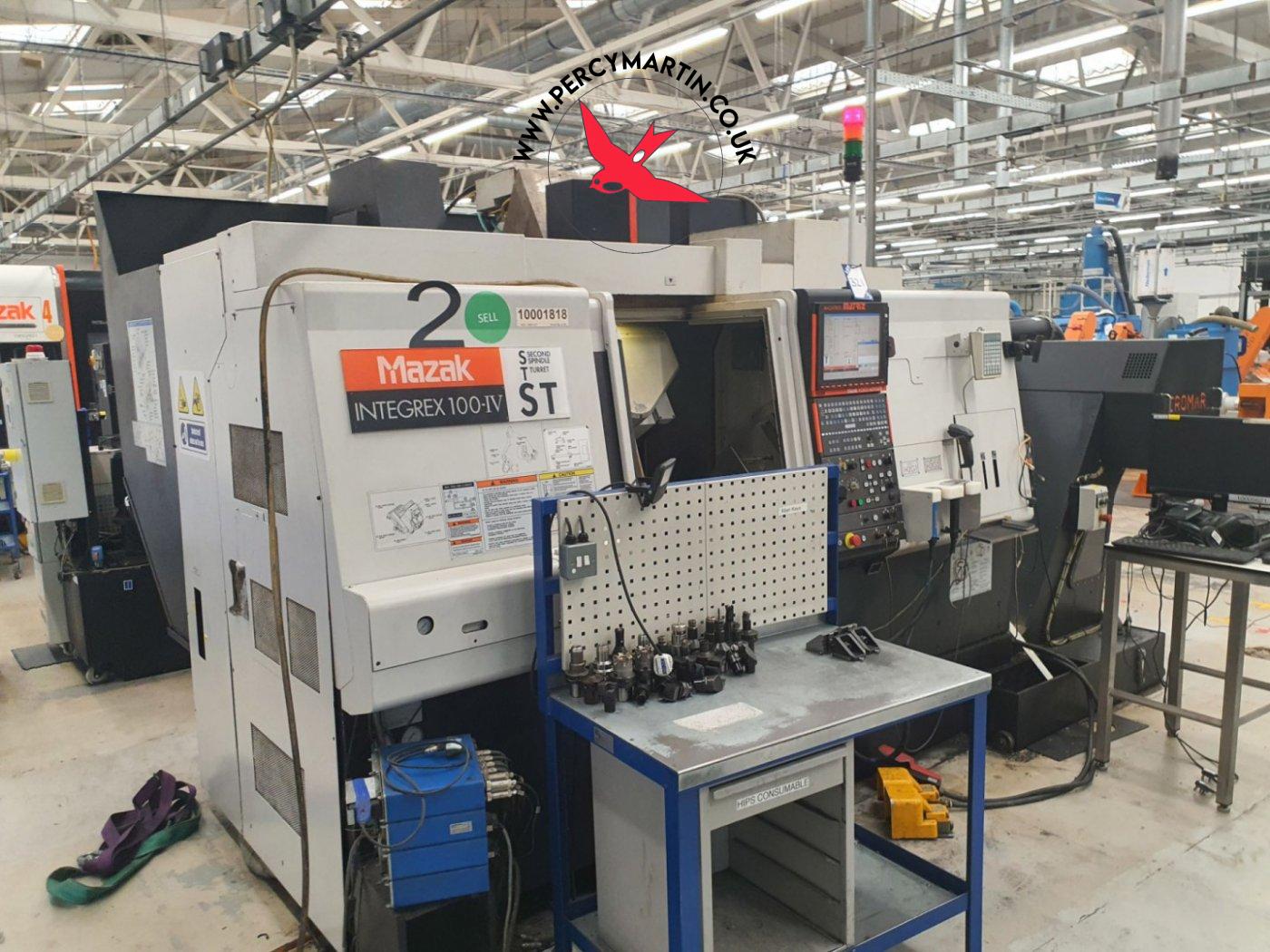

CNC Multi Tasking Lathes
Mazak Integrex 100-IV ST 2010
B axis , C axis & Milling , C axis on Sub Spindle , Coolant , Interlocked guards , Low Volt Light , Lower Turret , Sub Spindle , Swarf Conveyor , Tool setter , Y-axis
Mazak Integrex 100-IV ST 2010
Key Features
Type:
CNC Multi Tasking Lathes
Model:
Integrex 100-IV ST
Make:
Mazak
Year:
2010

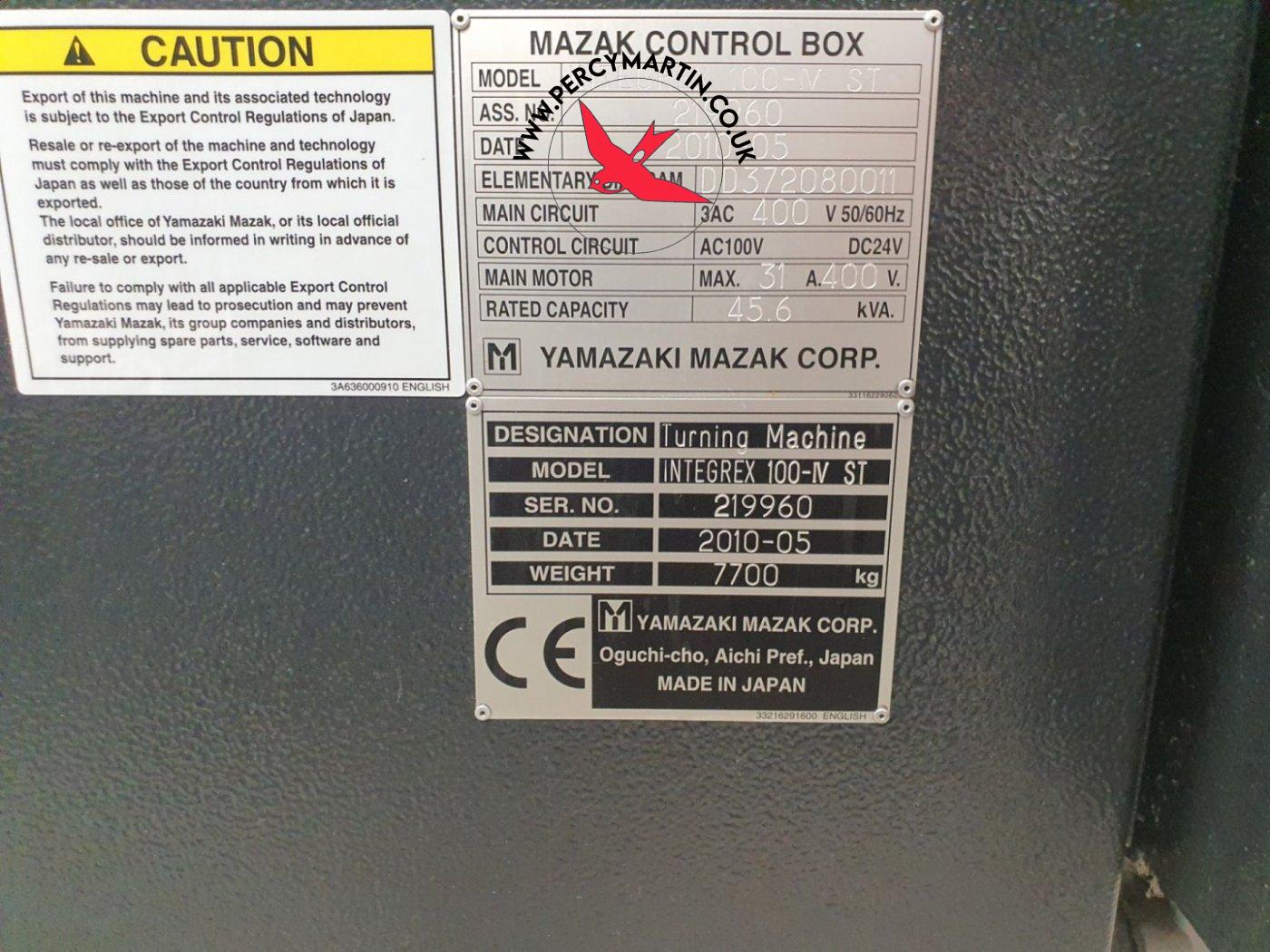

Serial No
219960
Price
£POA
Our Reference
PM9580
Location
Leicester
Mazak Integrex 100-IV ST 2010
Specifications

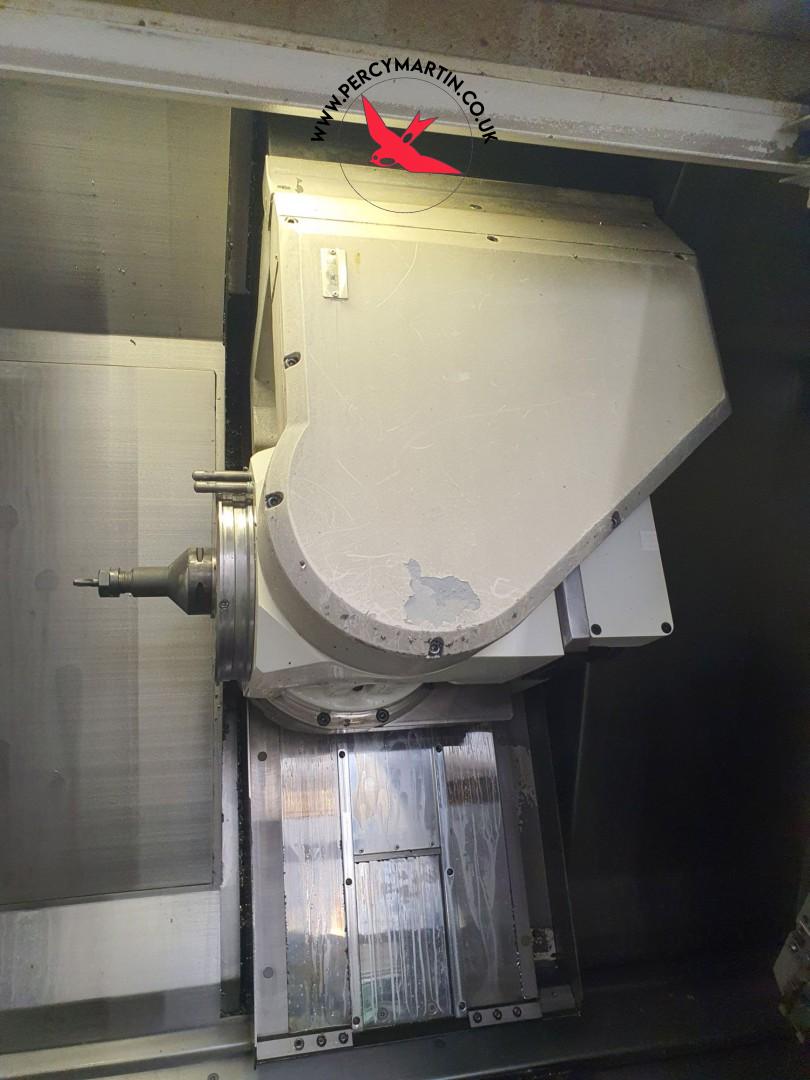

B Axis
-30 ~ 210 degrees
Bar Capacity
51mm
C axis
0.0001 degree

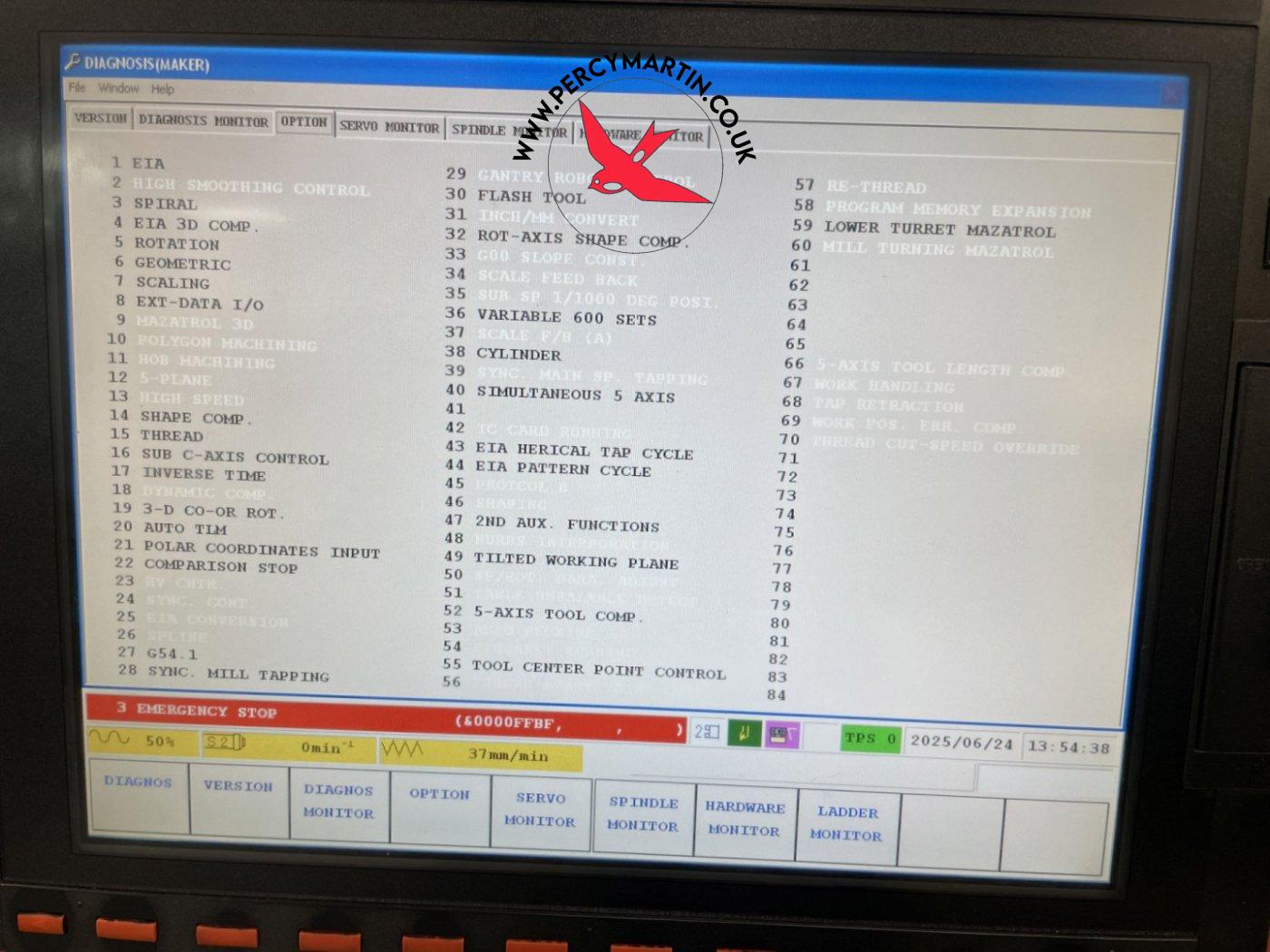

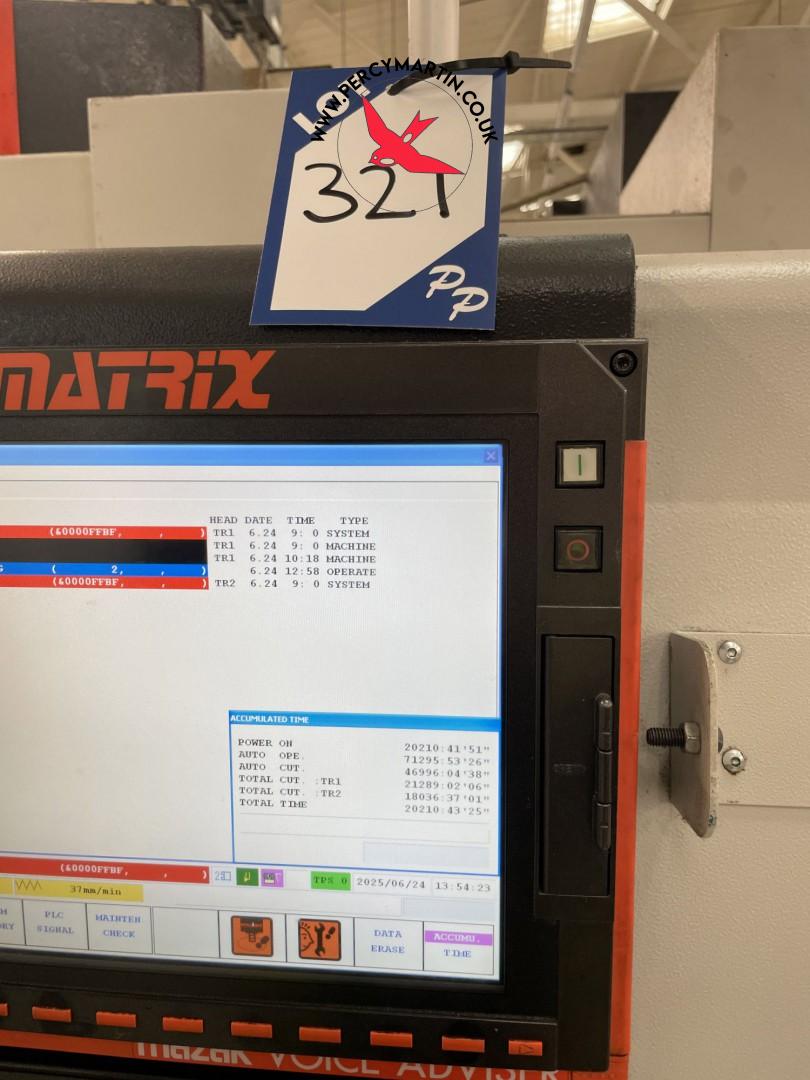

Control
MAZATROL MATRIX

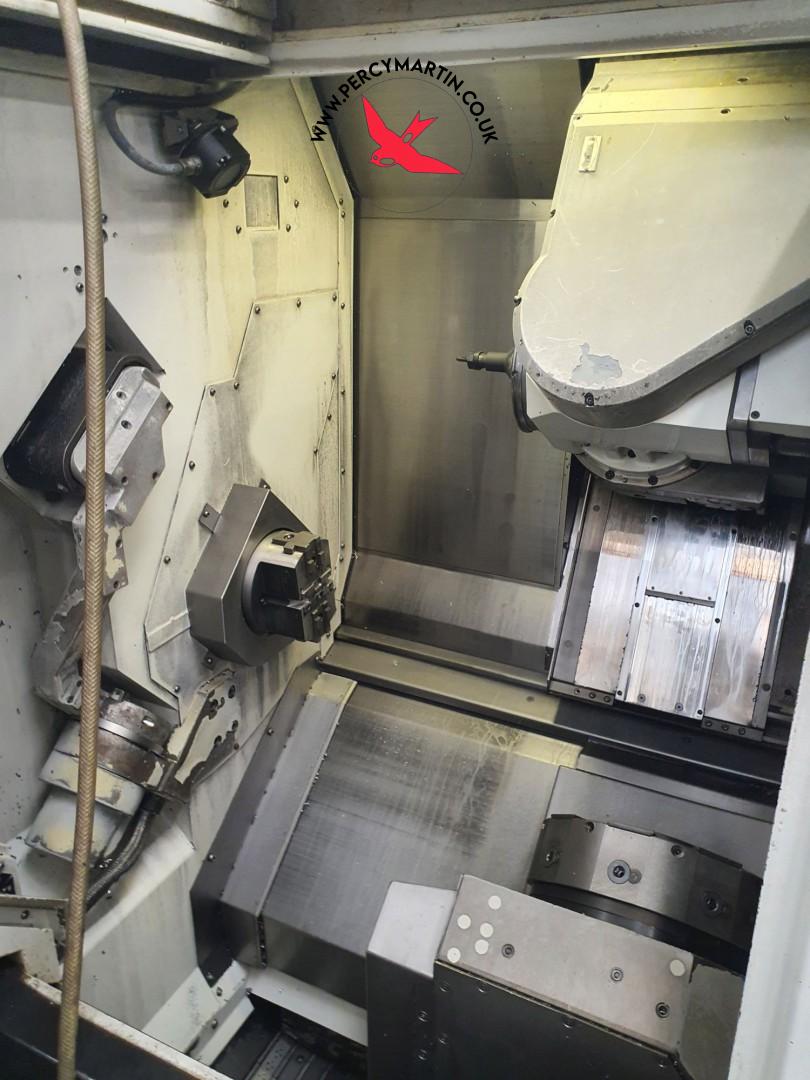

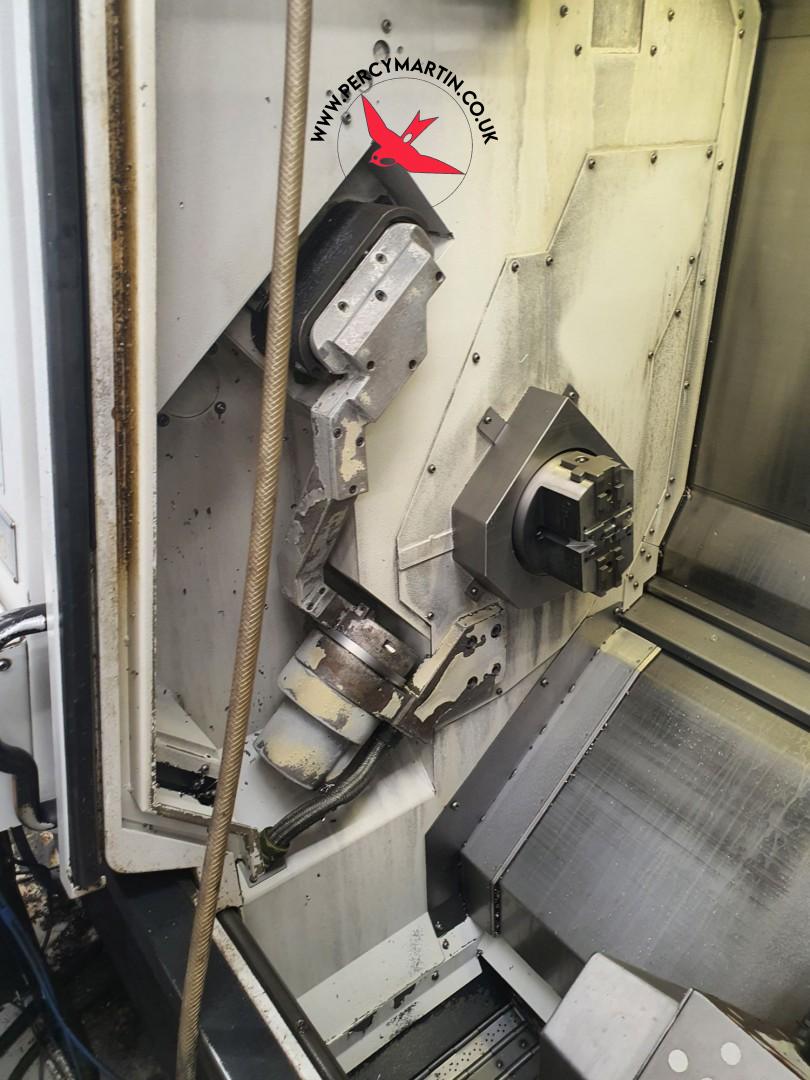

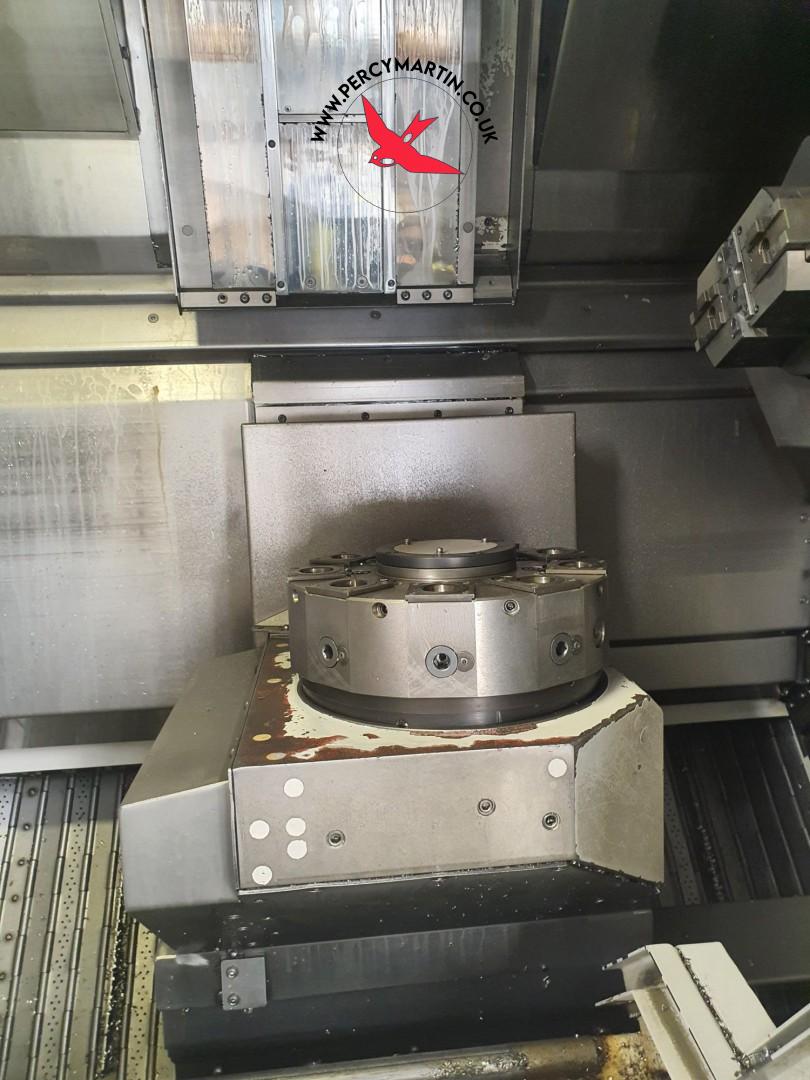

Lower Turret
9 Station
Machine Dimensions
3030 × 2635 x 2500mm
Machine Weight
7700kg
Maximum Cutting Diameter
500mm
Maximum Cutting Length
854mm
Maximum Tool Diameter
90mm
Maximum Tool Diameter with Empty Adjacent Pockets
130mm
Maximum Tool Weight
5kg
Milling Motor Power
7.5/5.5kW
Milling RPM
12000rpm
Rapid Feedrates
40m/minute
Spindle Motor Power
11/7.5kW
Spindle Nose
A2-5
Spindle Speed
6000rpm

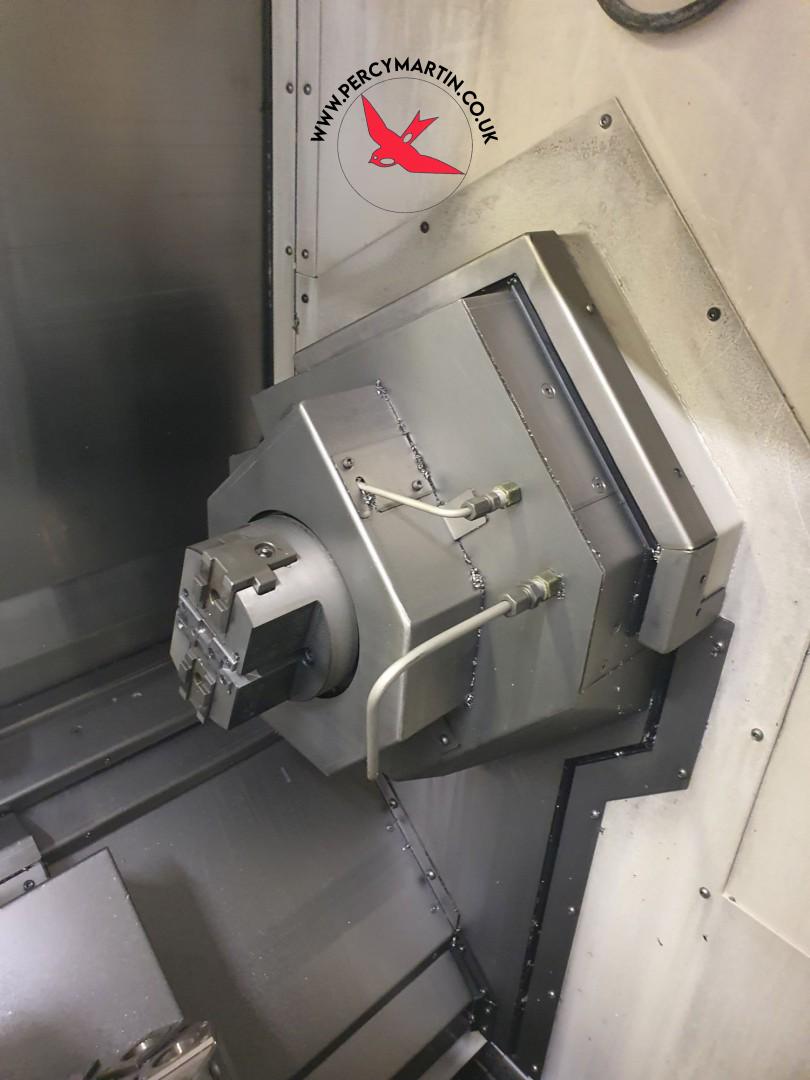

Sub Spindle C axis
0.0001 degree
Sub Spindle Motor Power
11/7.5kW
Sub Spindle Nose
A2-5
Sub Spindle Speed
6000rpm
Sub Spindle Stroke
903mm (W axis)
Swing
530mm
Tool Change Capacity
36 Station
Tool Size
CAPTO C6
X axis Travel
450mm
X2 axis Travel
220mm
Y axis Travel
210mm
Z axis Travel
904mm
Z2 axis Travel
903mm
Mazak Integrex 100-IV ST 2010
