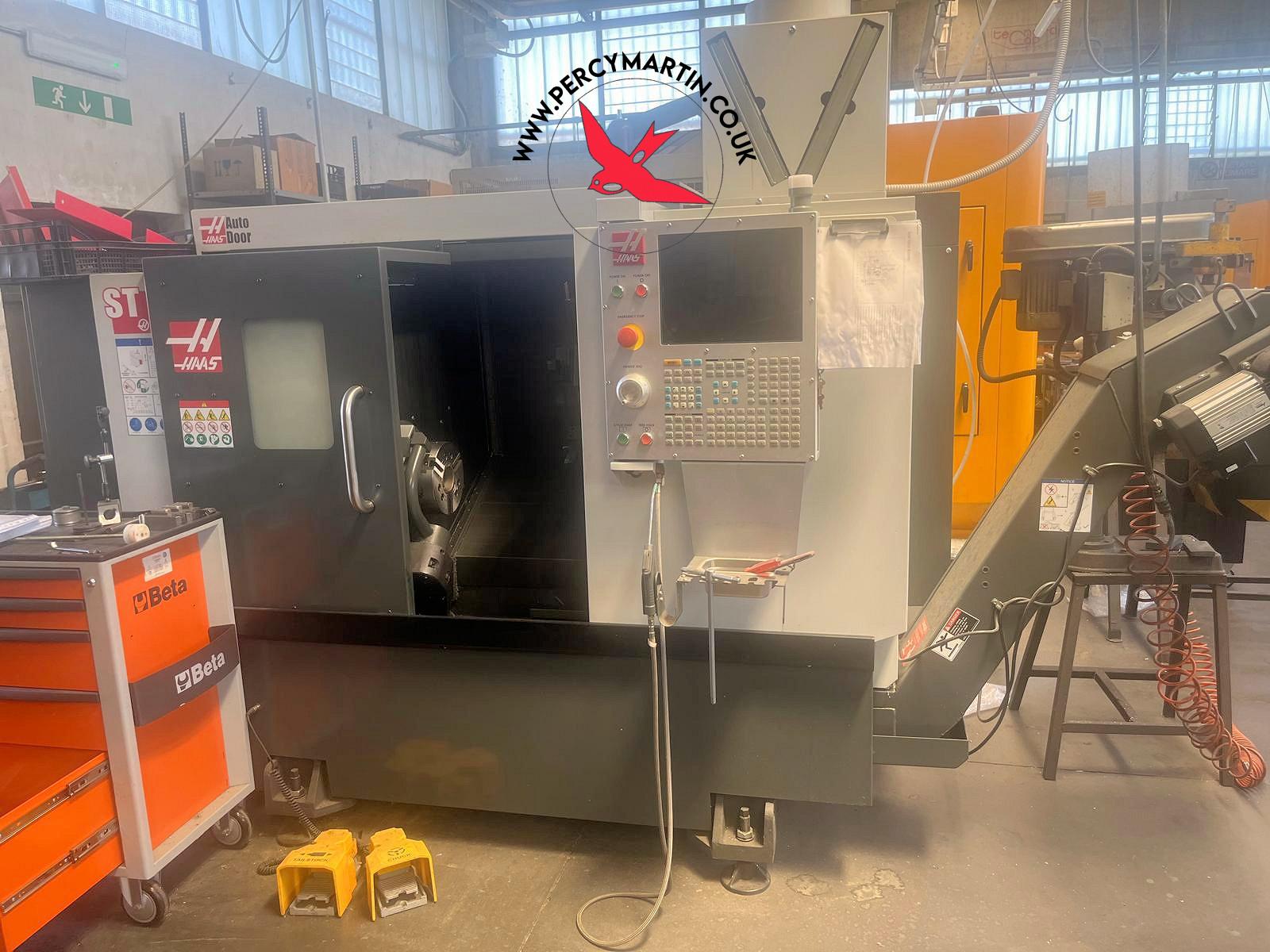

CNC Lathes
HAAS ST-15 2020

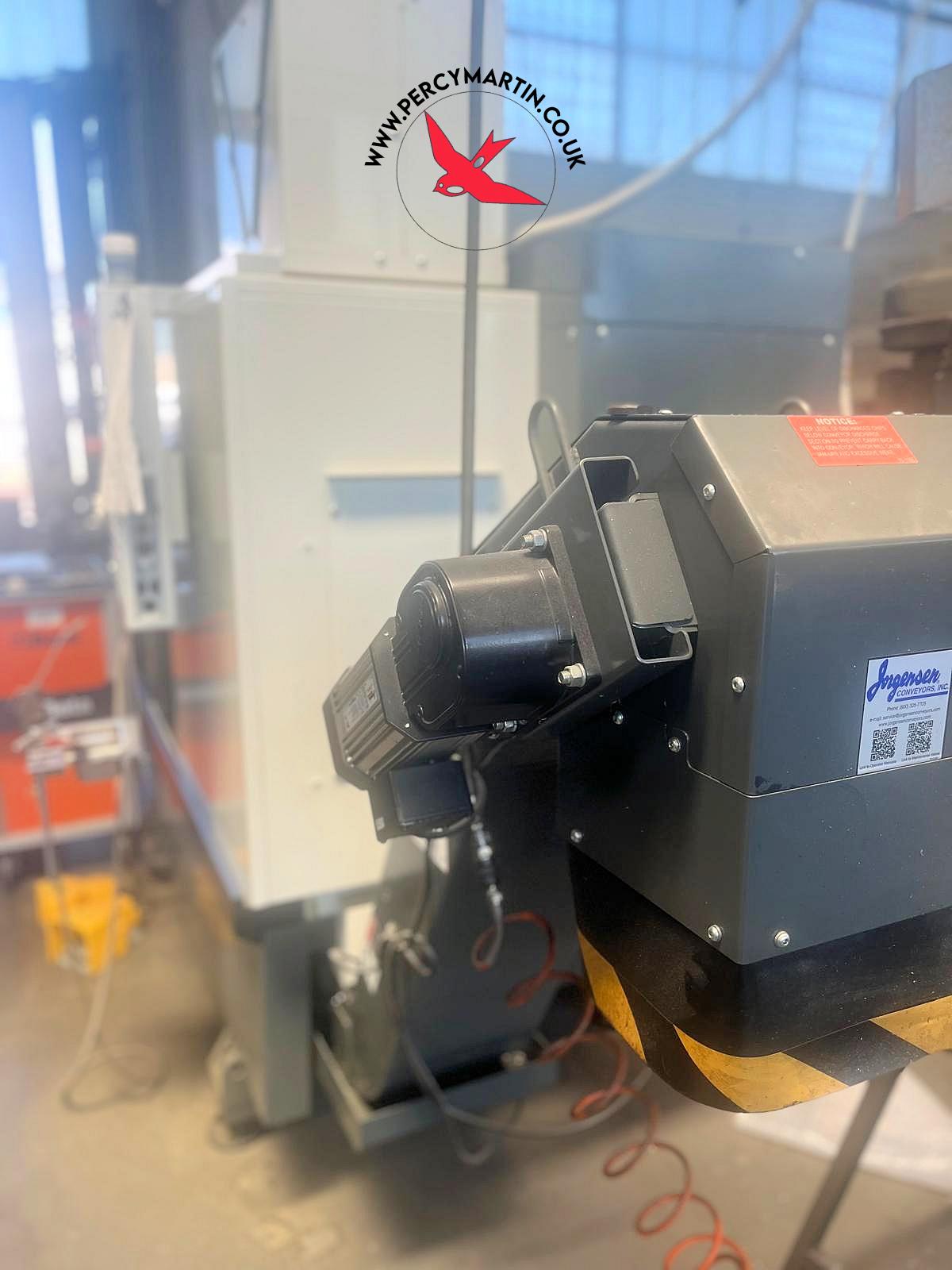

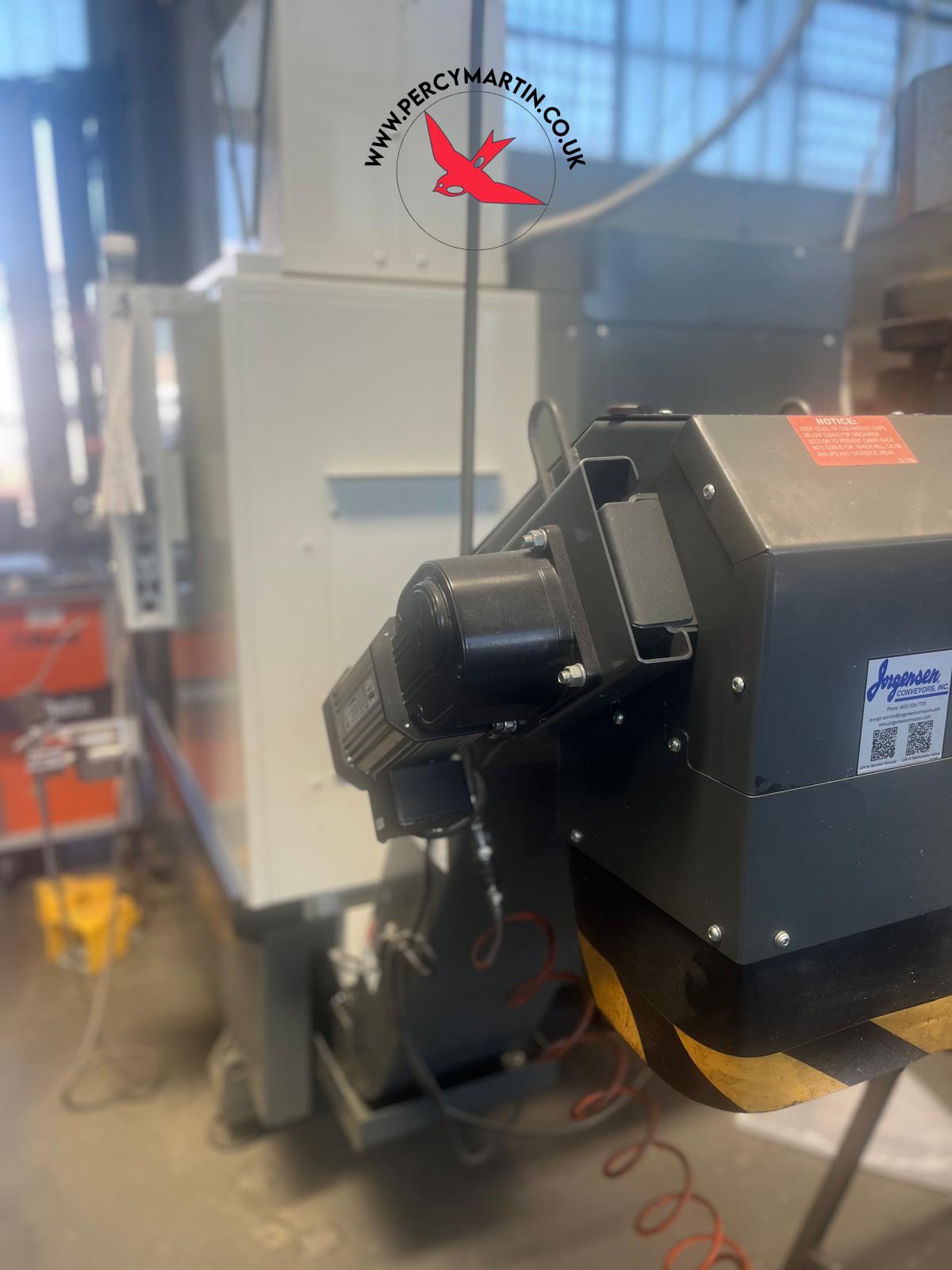

3 Jaw Chuck , Coolant , Interlocked guards , Low Volt Light , Swarf Conveyor , Tailstock , Tool setter , Tooling
HAAS ST-15 2020
Key Features
Type:
CNC Lathes
Model:
ST-15
Make:
HAAS
Year:
2020

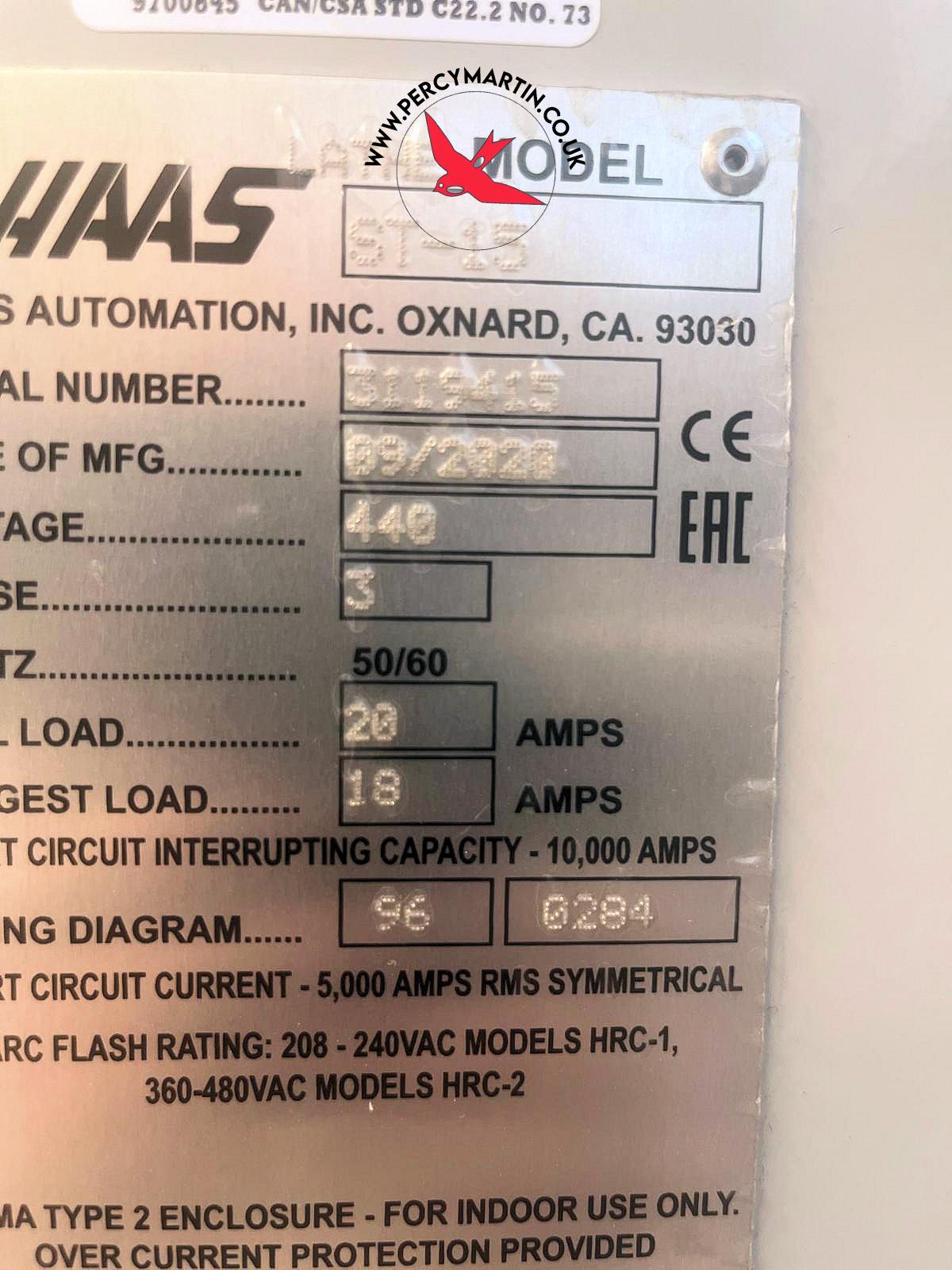

Serial No
3119415
Price
£POA
Our Reference
PM9886
Location
Leicester
HAAS ST-15 2020
Specifications
Bar Capacity
63.5mm

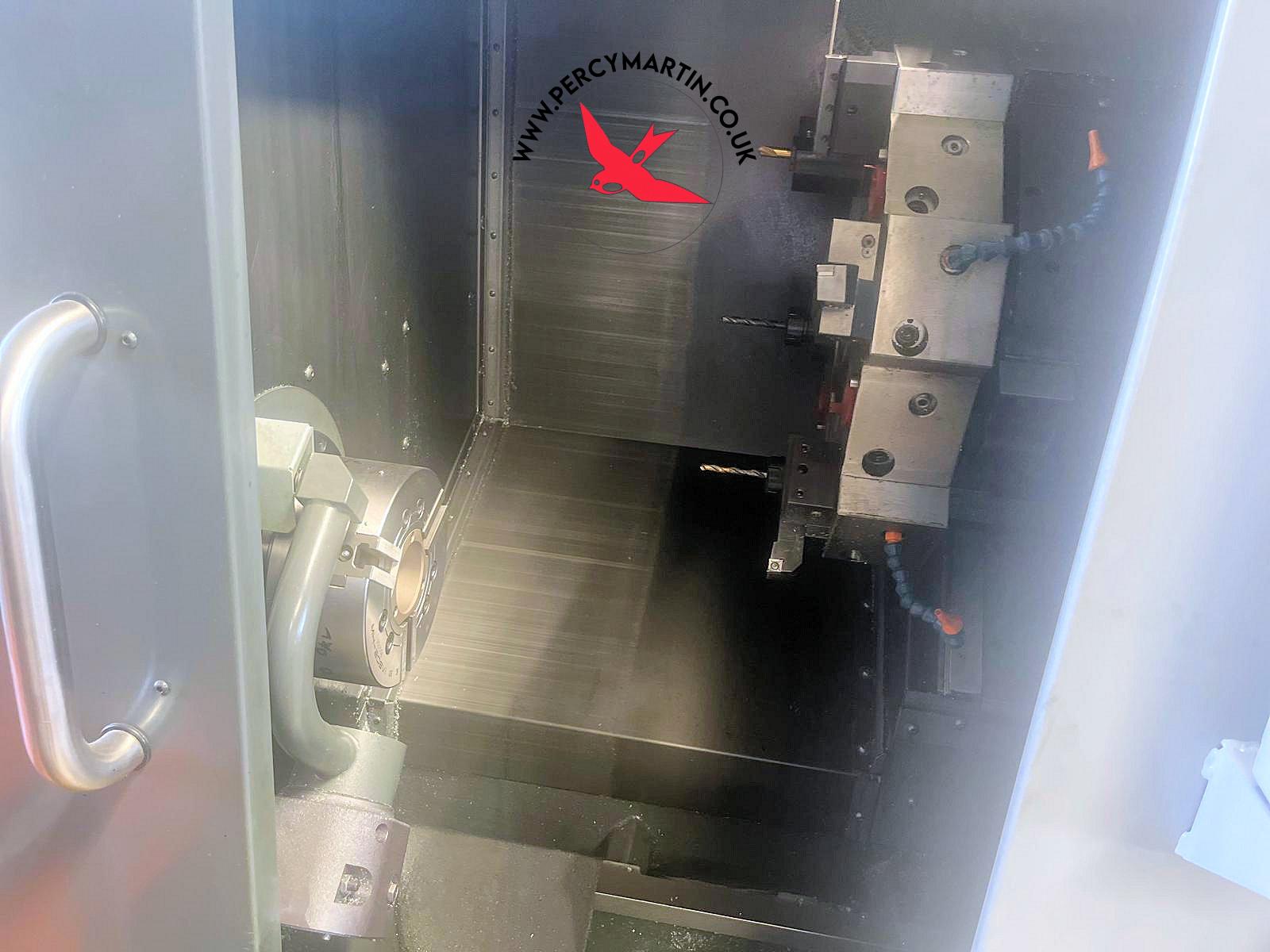

Chuck Size
8"
Control
HAAS
Machine Dimensions
3518 x 2532 x 1864mm
Machine Weight
3584kg
Maximum Cutting Diameter
305mm
Maximum Cutting Length
406mm
Rapid Feedrates
30.5m/minute
Spindle Motor Power
20Hp
Spindle Nose
A2-6
Spindle Speed
4000rpm
Swing
419mm
Tailstock Quill Stroke
100mm
Tailstock Taper
MT #3
Tooling Configuration
VDI 40

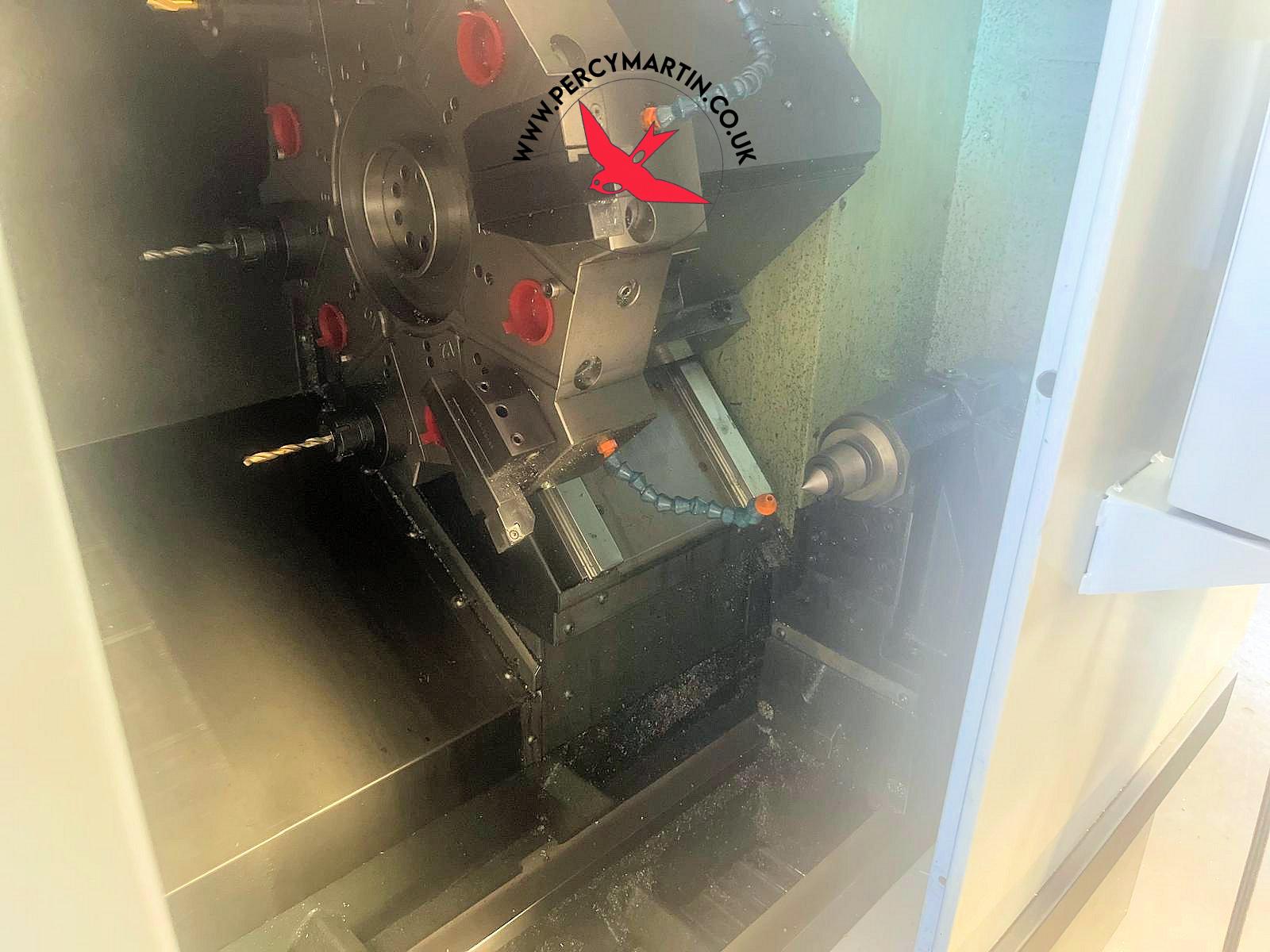

Turret Positions
12 Station
X axis Travel
200mm
Z axis Travel
406mm
HAAS ST-15 2020
