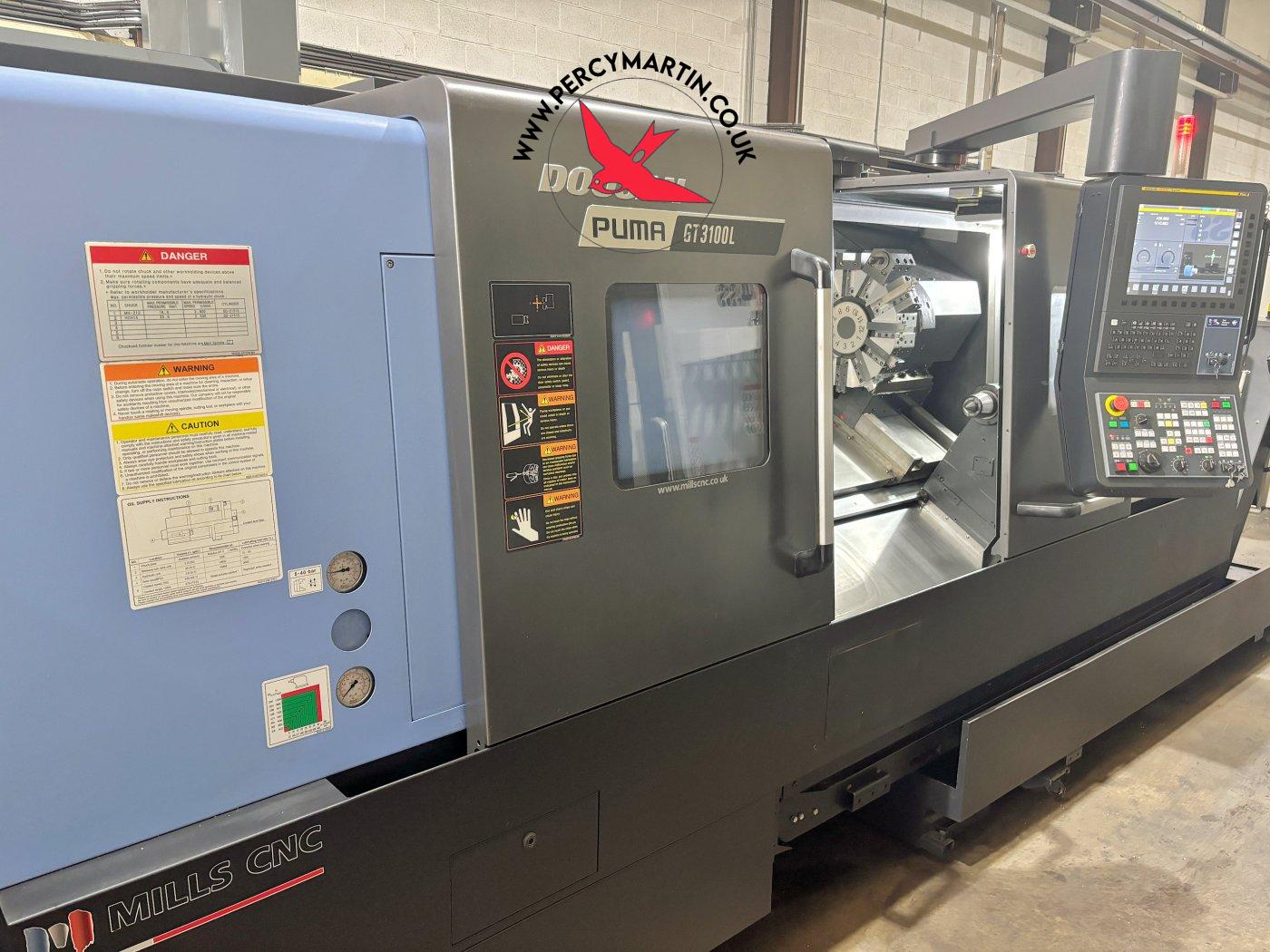

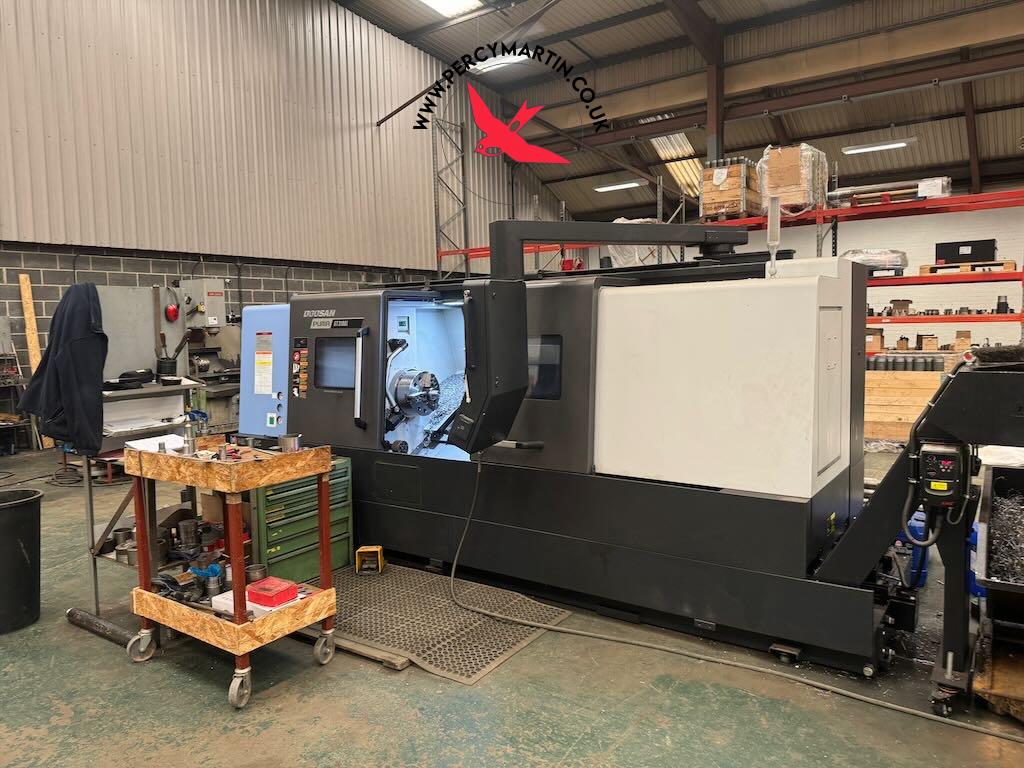

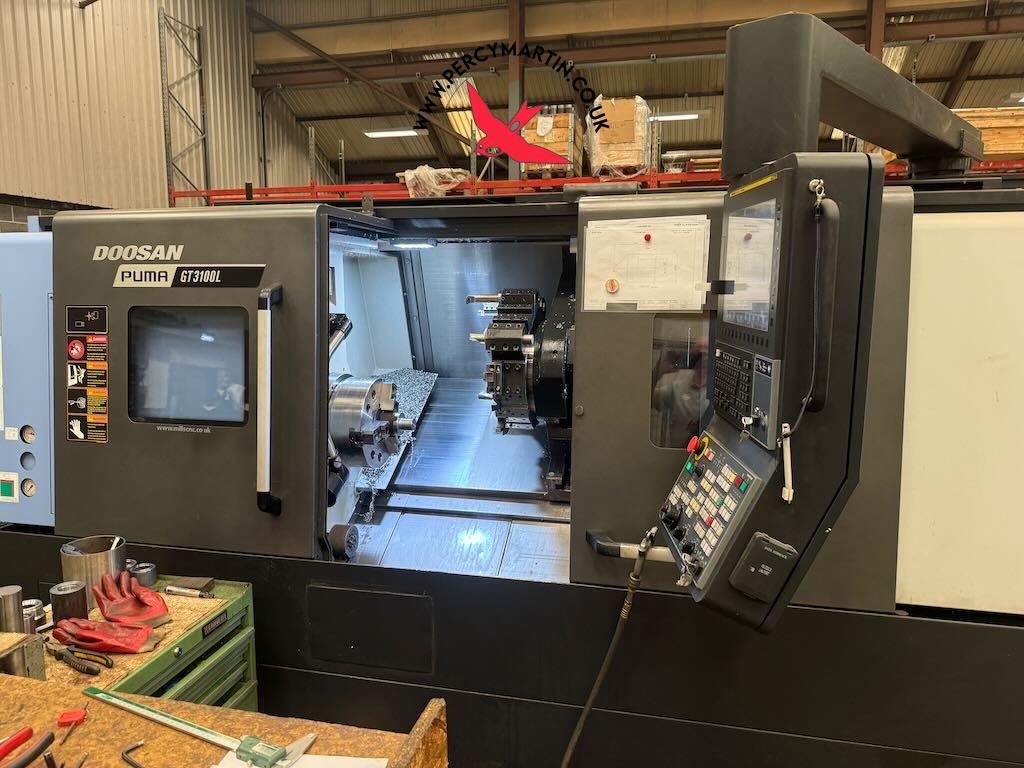

Doosan Puma GT3100L 2020

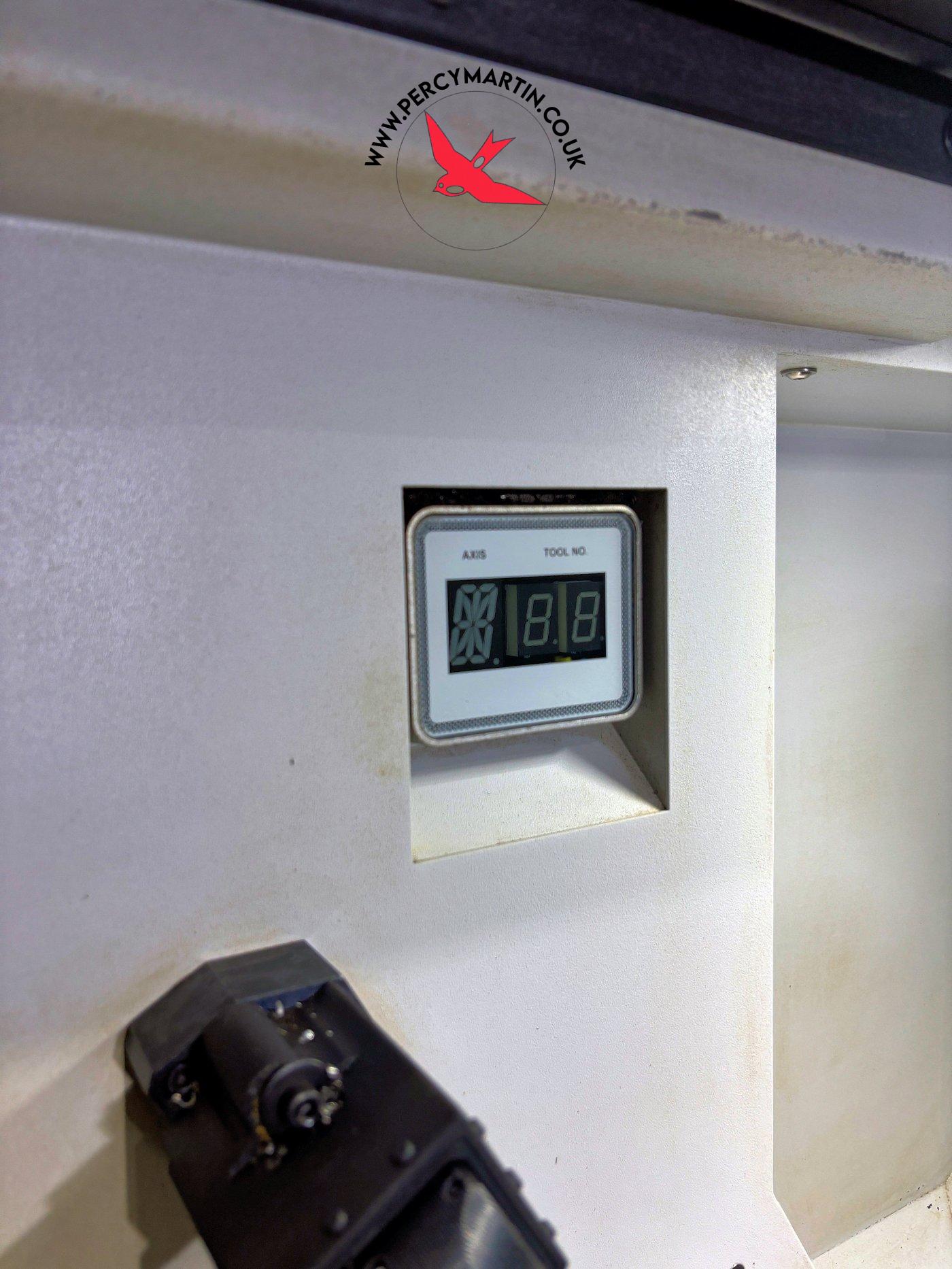

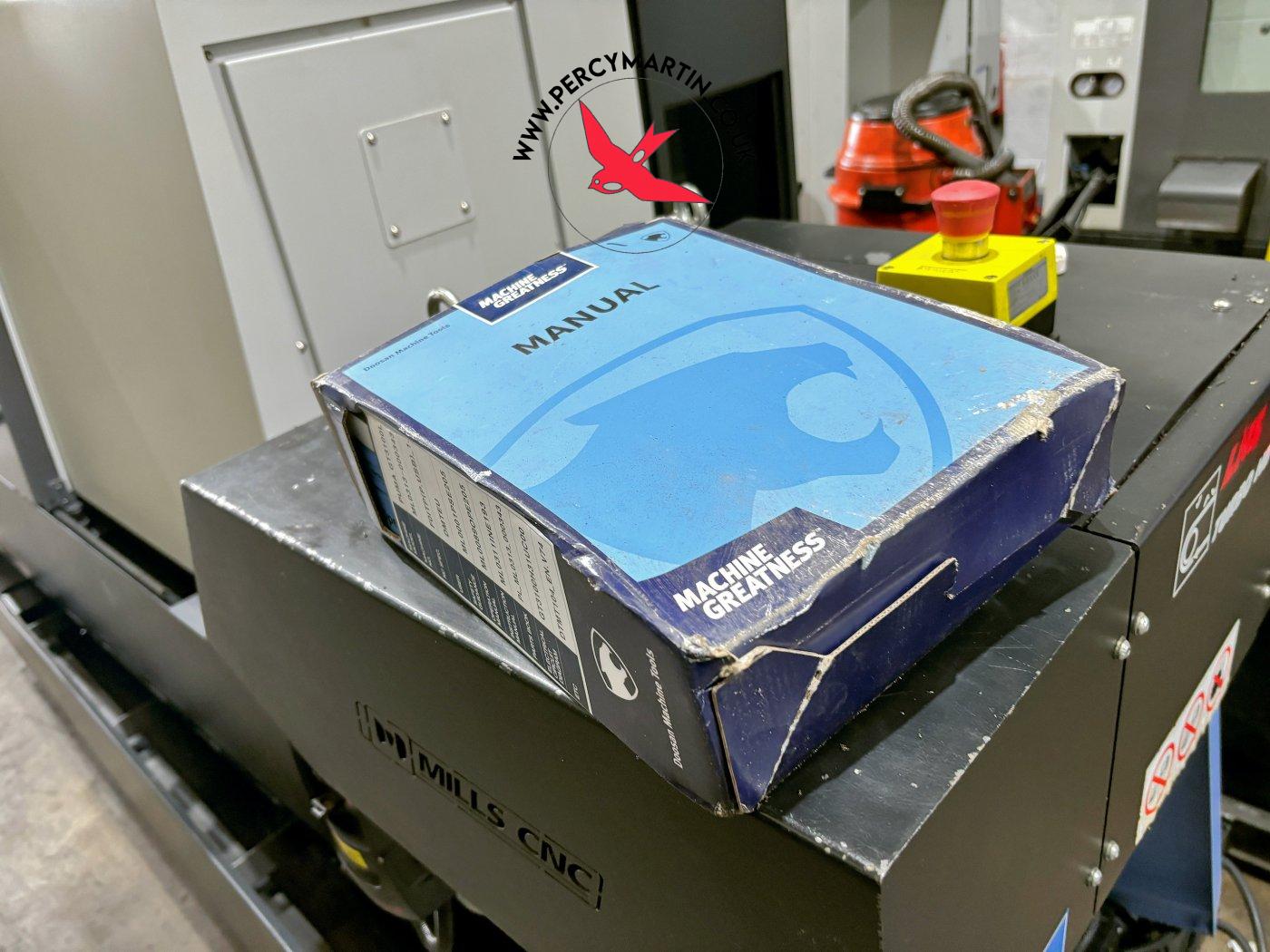

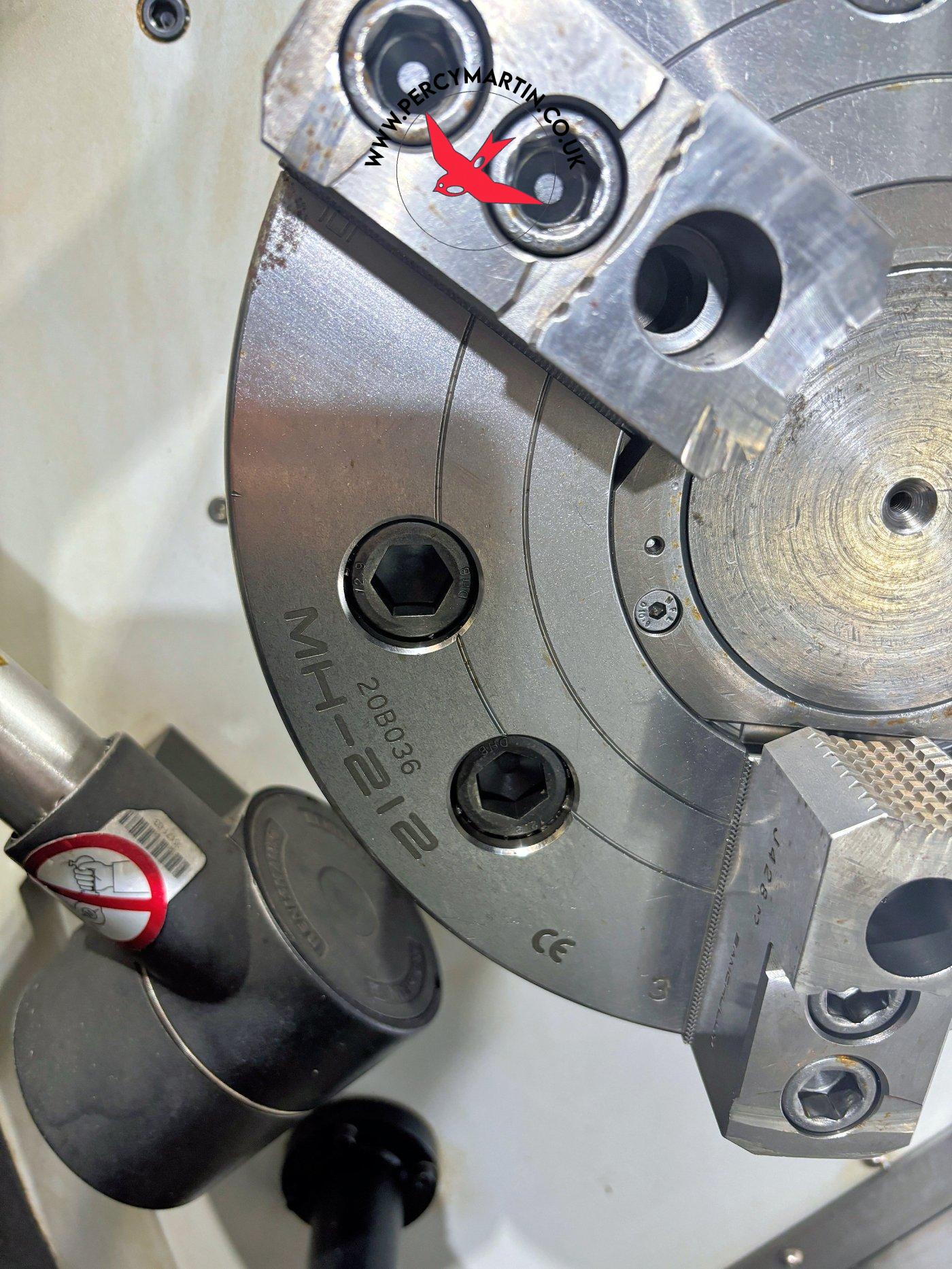

3 Jaw Chuck , Coolant , Interlocked guards , Low Volt Light , Manuals , Swarf Conveyor , Tailstock , Tool setter , Tooling
Doosan Puma GT3100L 2020
Key Features
Type:
CNC Lathes
Model:
Puma GT3100L
Make:
Doosan
Year:
2020

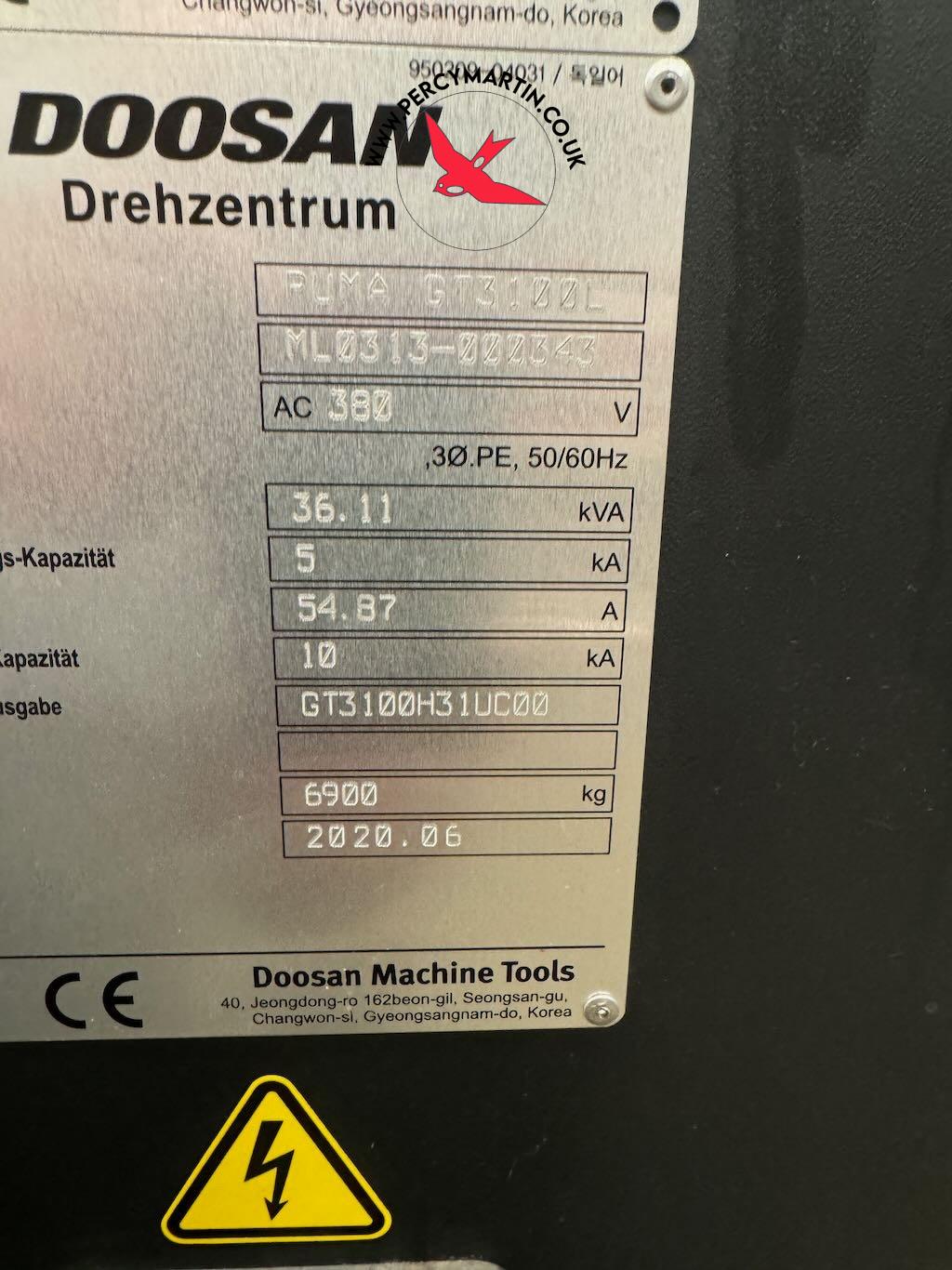

Serial No
ML0313-000343
Price
£POA
Our Reference
PM9266
Location
Leicester
Doosan Puma GT3100L 2020
Specifications
Bar Capacity
102mm
Boring Bar Holder Diameter
50mm

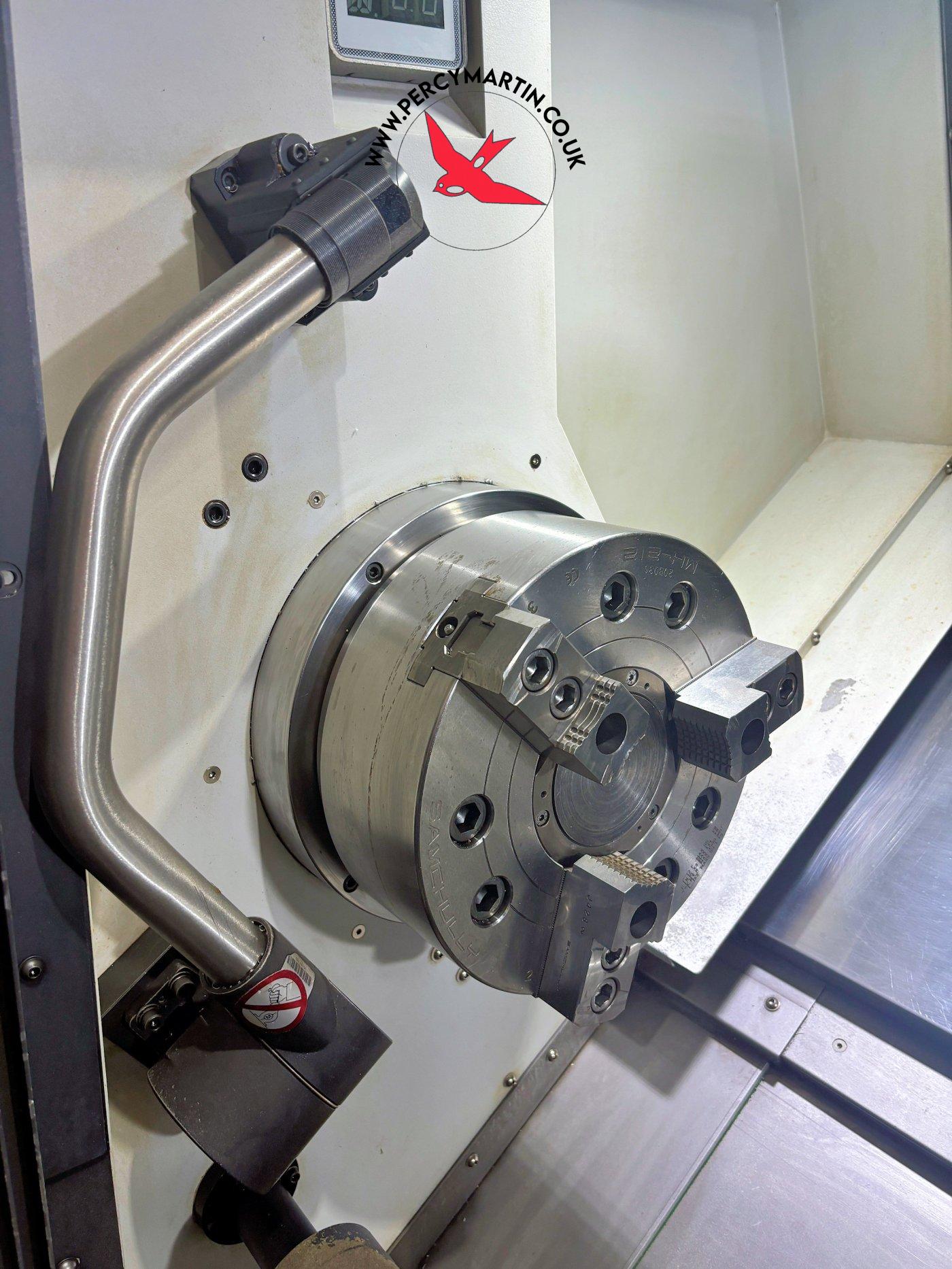

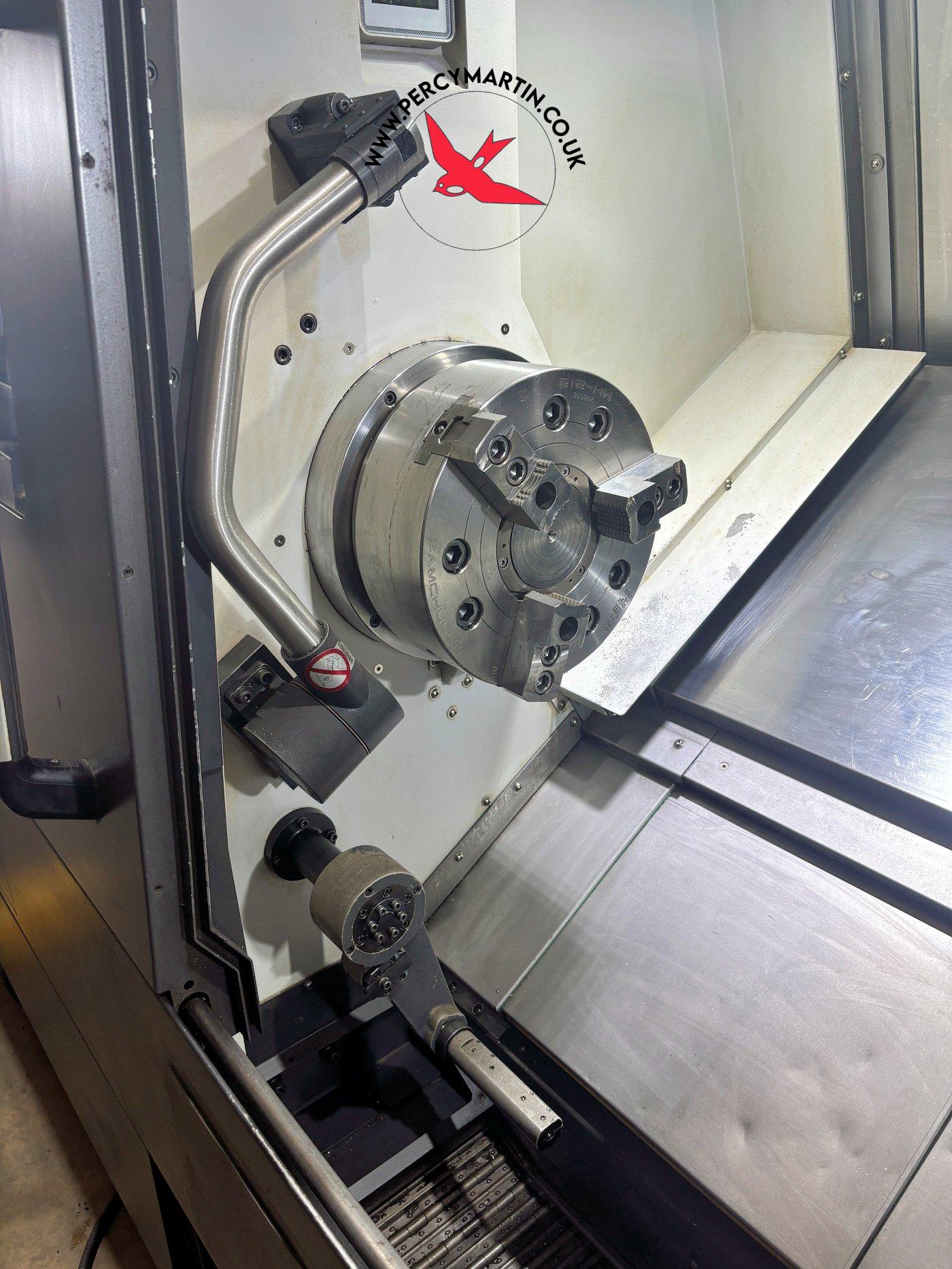

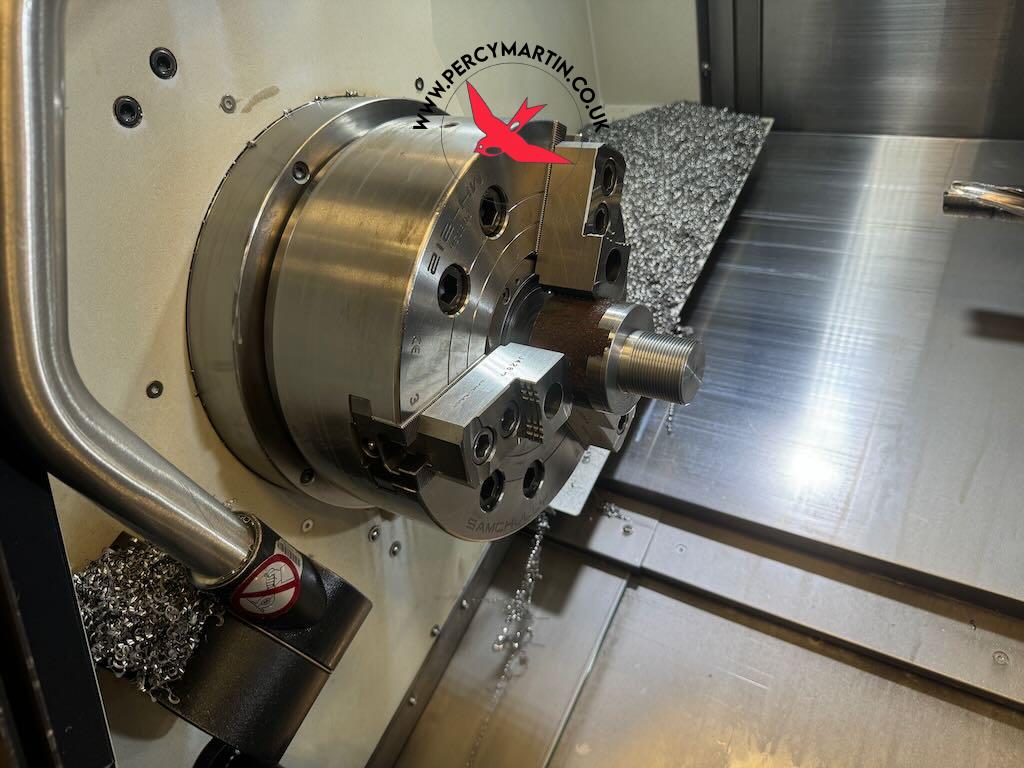

Chuck Size
12" (315mm)

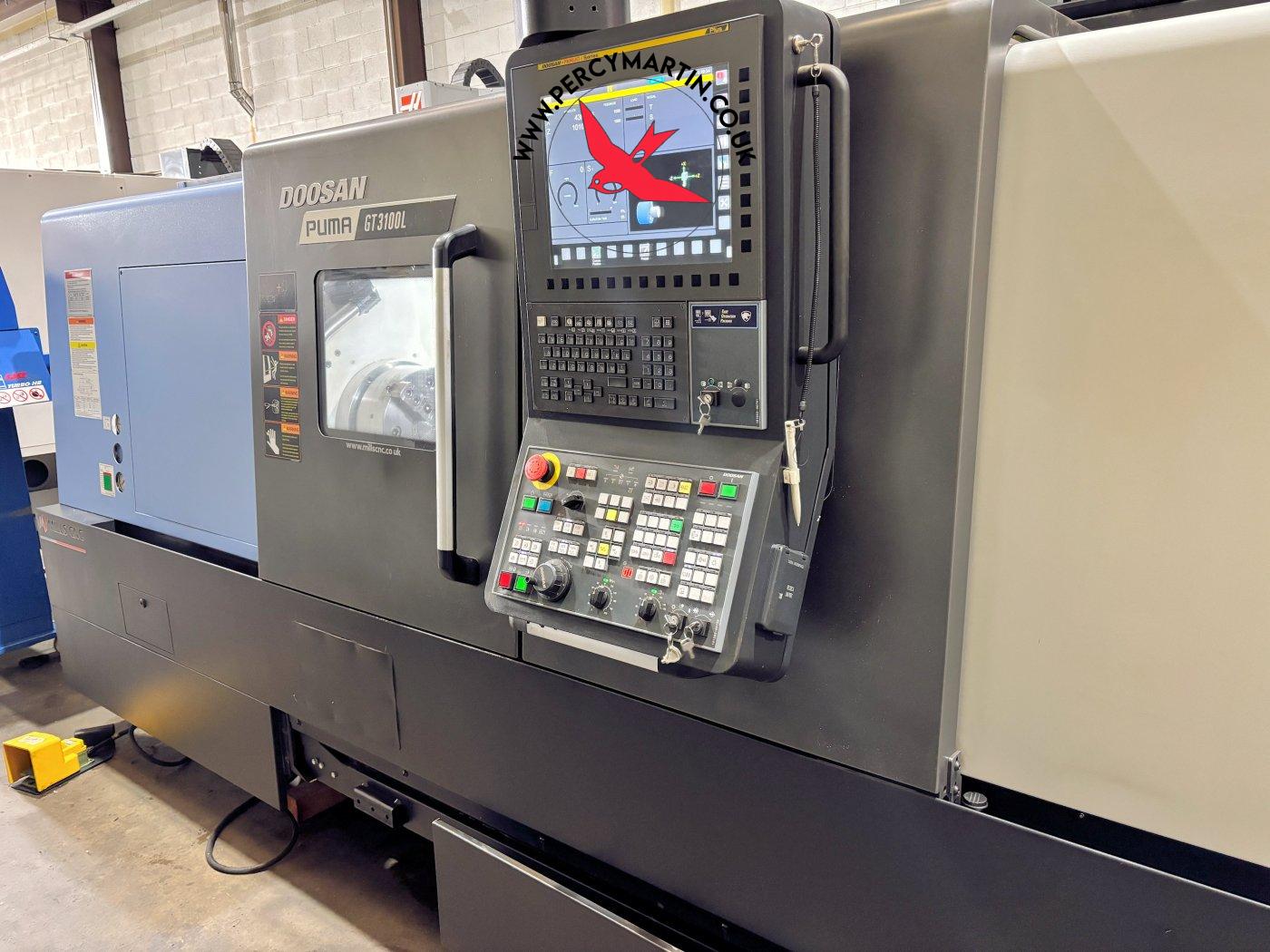

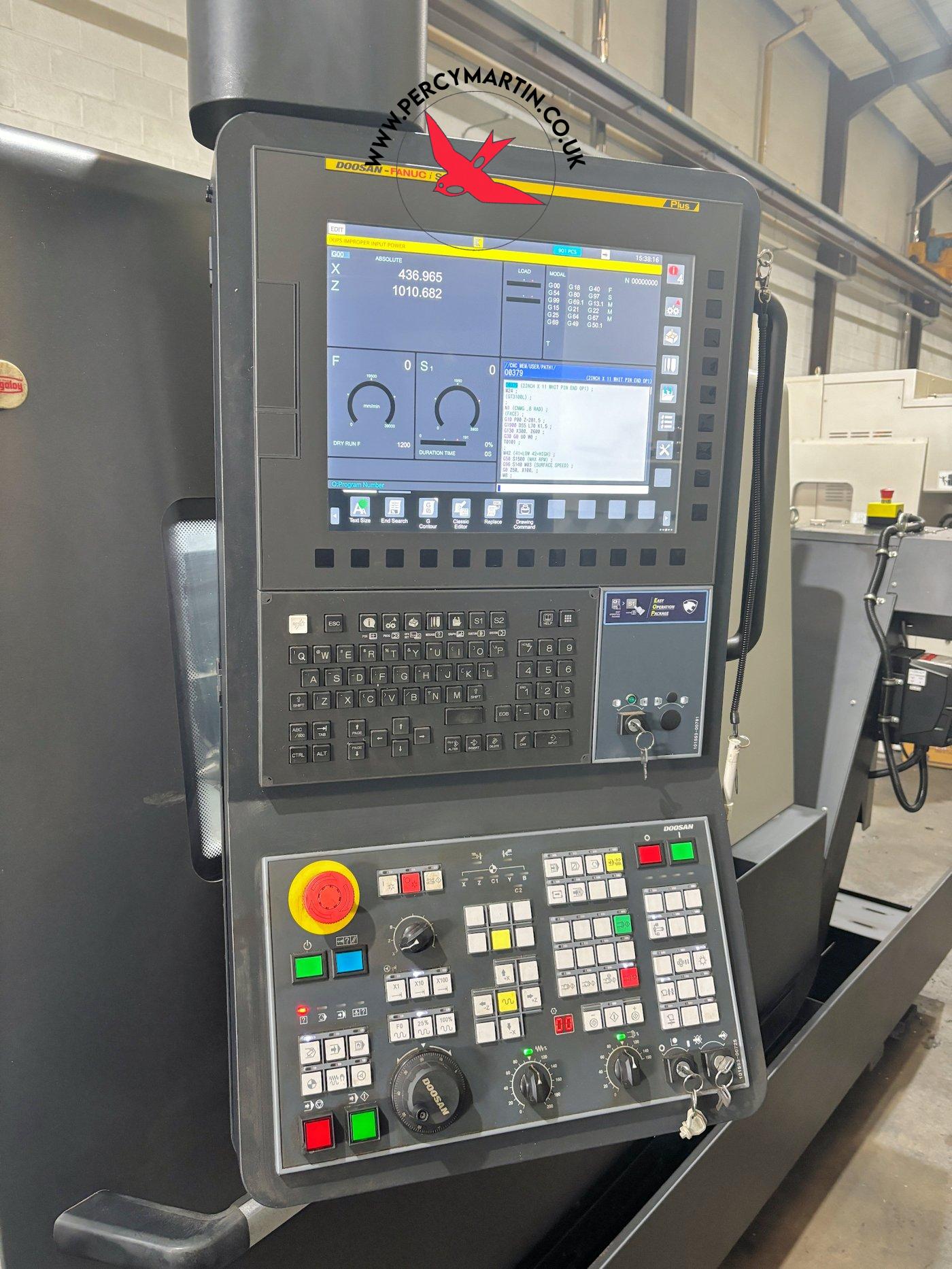

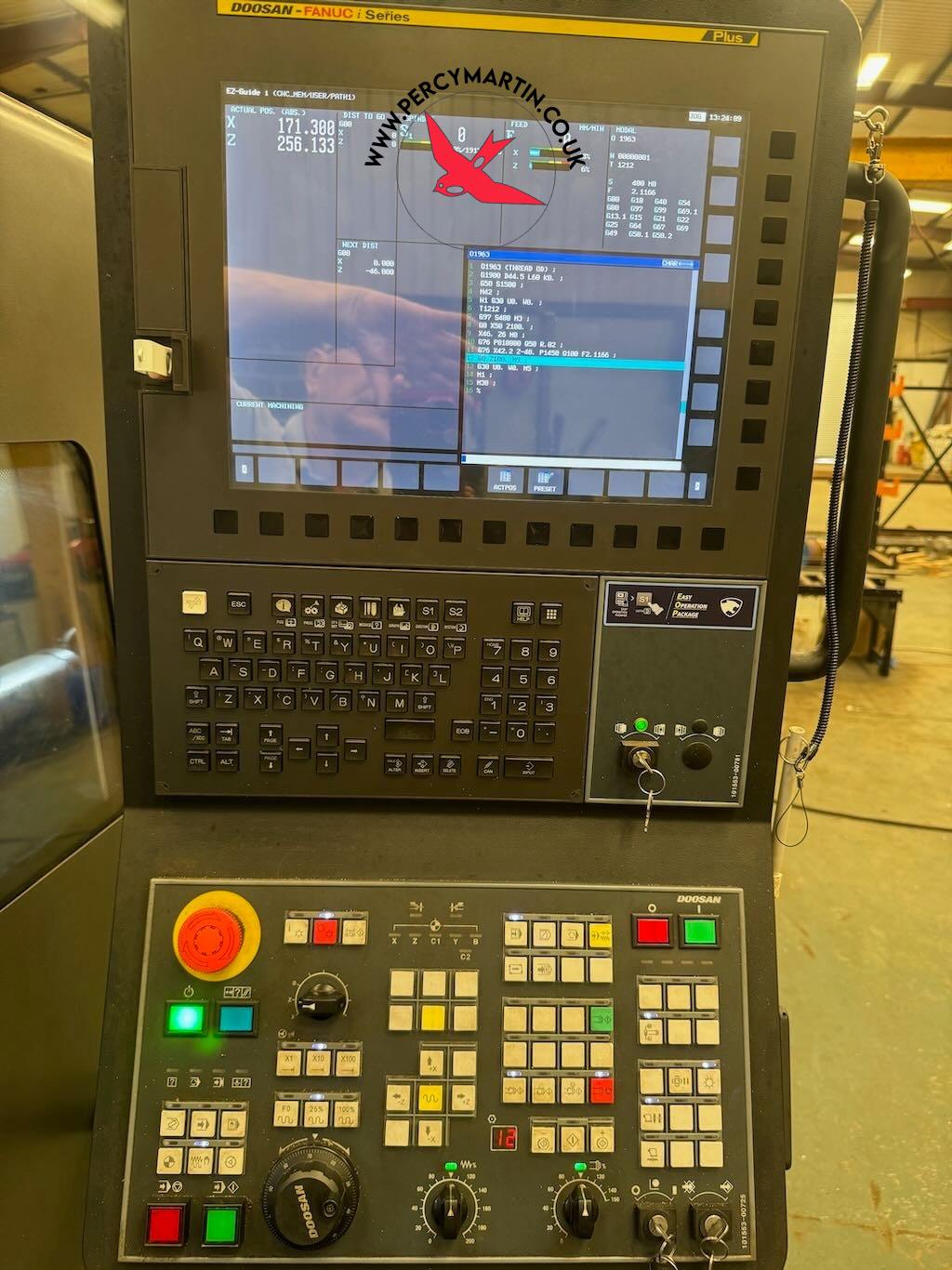

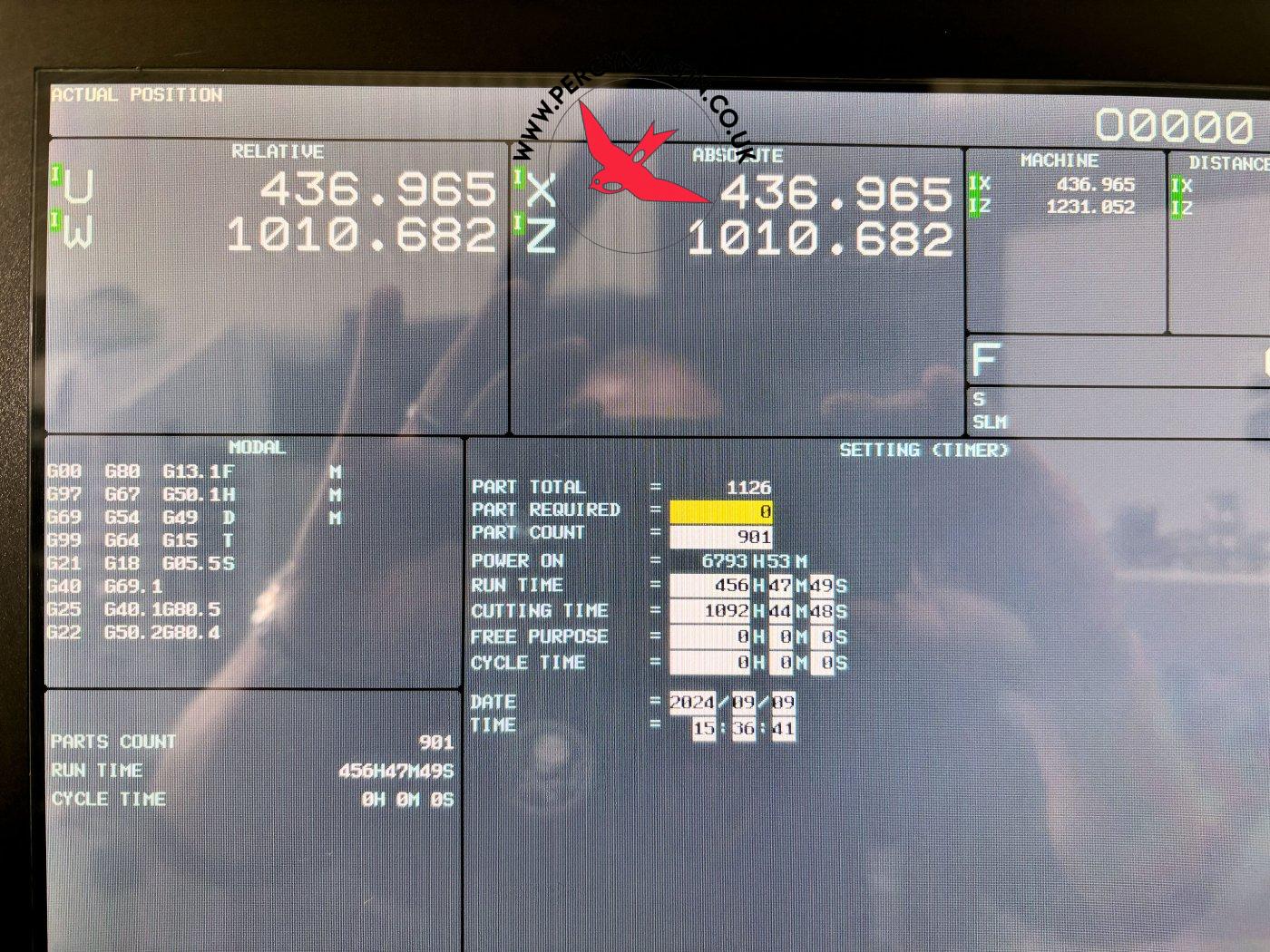

Control
FANUC i Series
Machine Dimensions
4633 x 2394 x 2110mm
Machine Weight
6900kg
Maximum Cutting Diameter
481mm
Maximum Cutting Length
1275mm
Rapid Feedrates
XZ: 24 x 30m/minute
Spindle Motor Power
35/26kW
Spindle Nose
A2-11
Spindle Speed
2800rpm
Swing
720mm
Swing Over Carriage
590mm

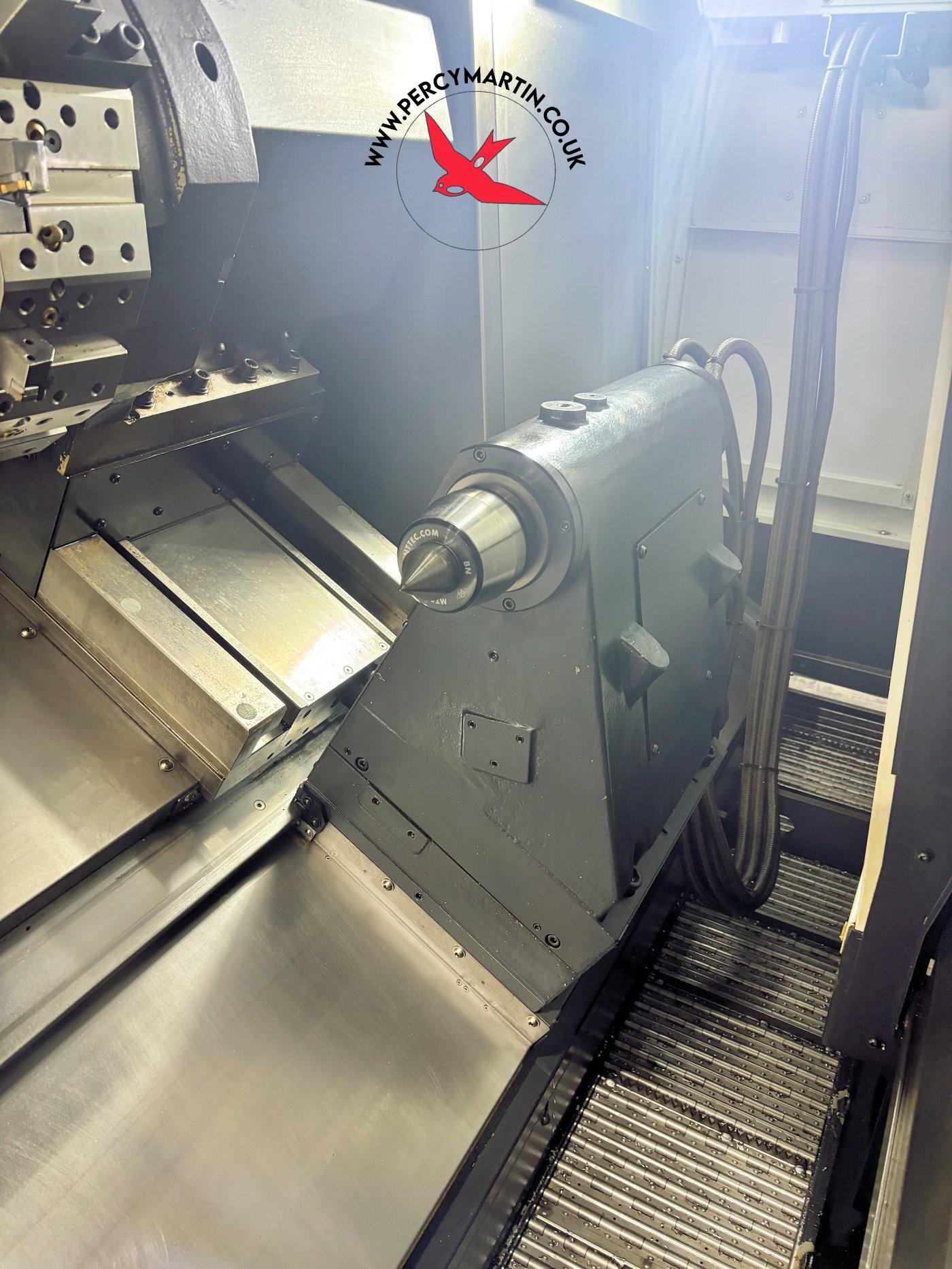

Tailstock Body Travel
1350mm
Tailstock Quill Diameter
100mm
Tailstock Quill Stroke
100mm
Tailstock Taper
MT #5
Tool Size
25 x 25mm

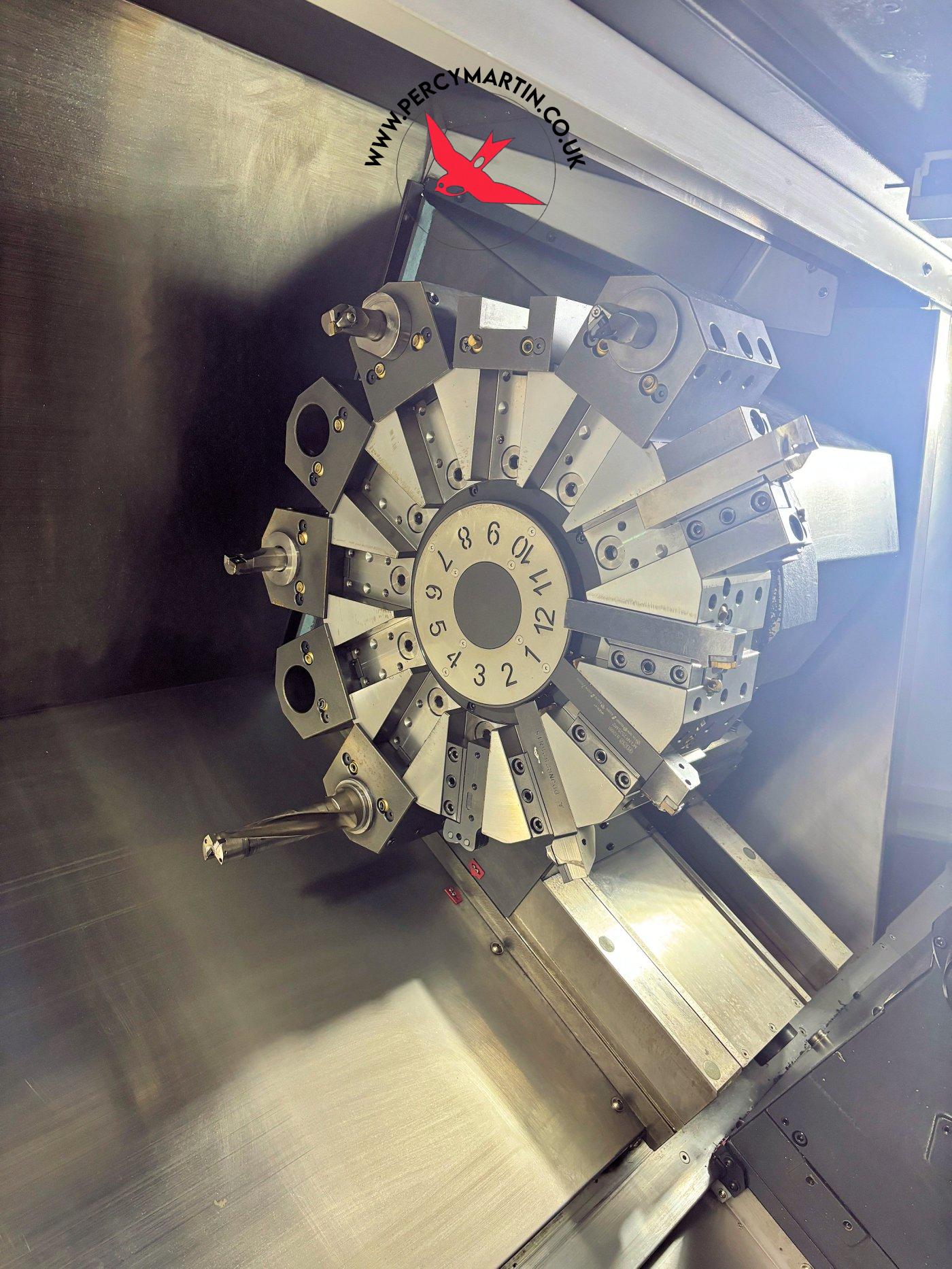

Turret Positions
12 Station
