CNC Lathes

Doosan Lynx 220LC 2006

Collet Chuck , Coolant , Interlocked guards , Low Volt Light , Magazine Barfeed , Parts Catcher , Parts Conveyor , Swarf Conveyor , Tailstock , Tool setter

Key Features Gallery Specifications More in Stock Register Interest

Doosan Lynx 220LC 2006

Key Features

Type:

CNC Lathes

Model:

Lynx 220LC

Make:

Doosan

Year:

2006

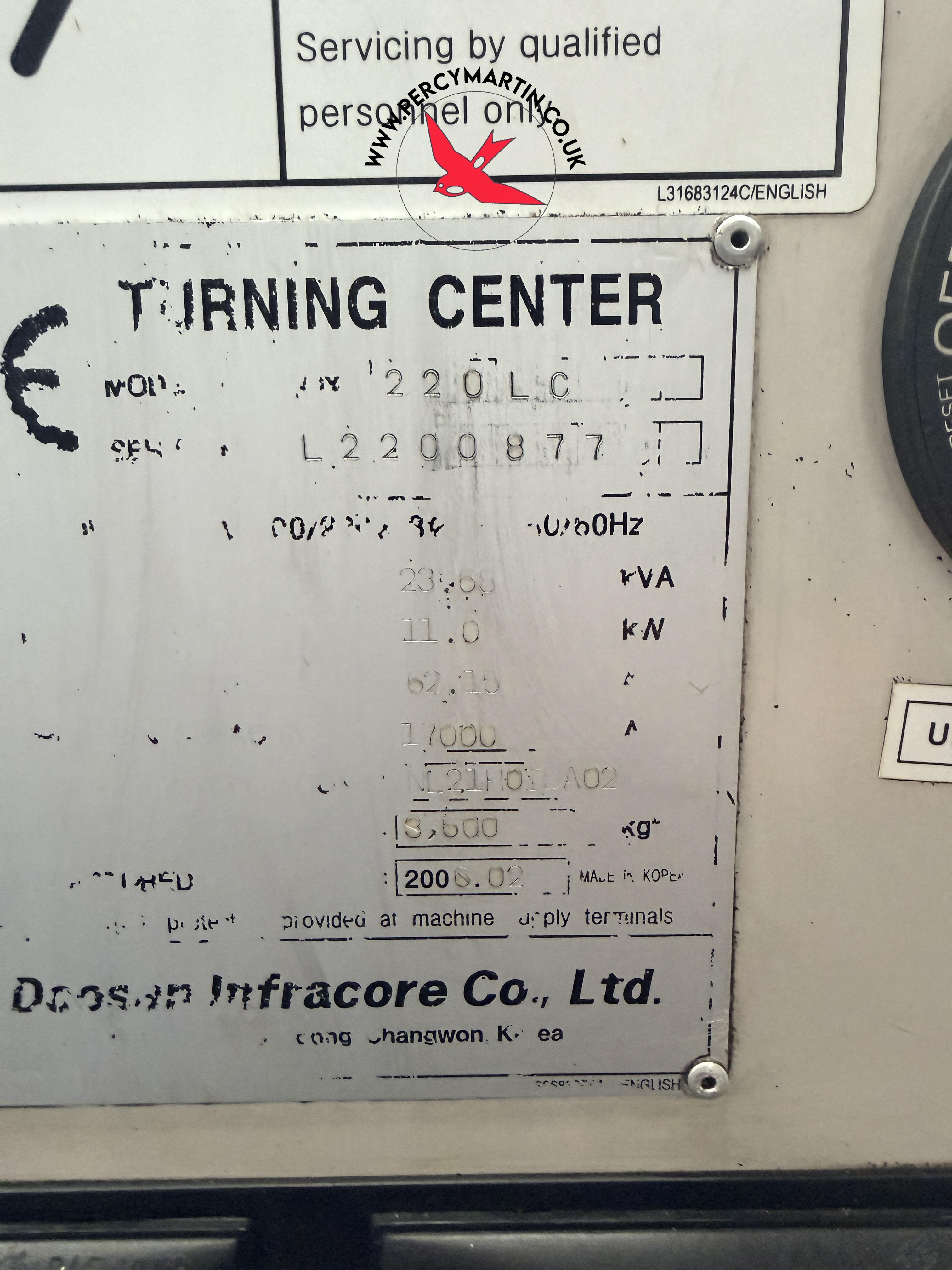

Serial No

L2200877

Price

£POA

Our Reference

Location

Leicester

Doosan Lynx 220LC 2006

Specifications

Bar Capacity

65mm

Chuck Size

200mm

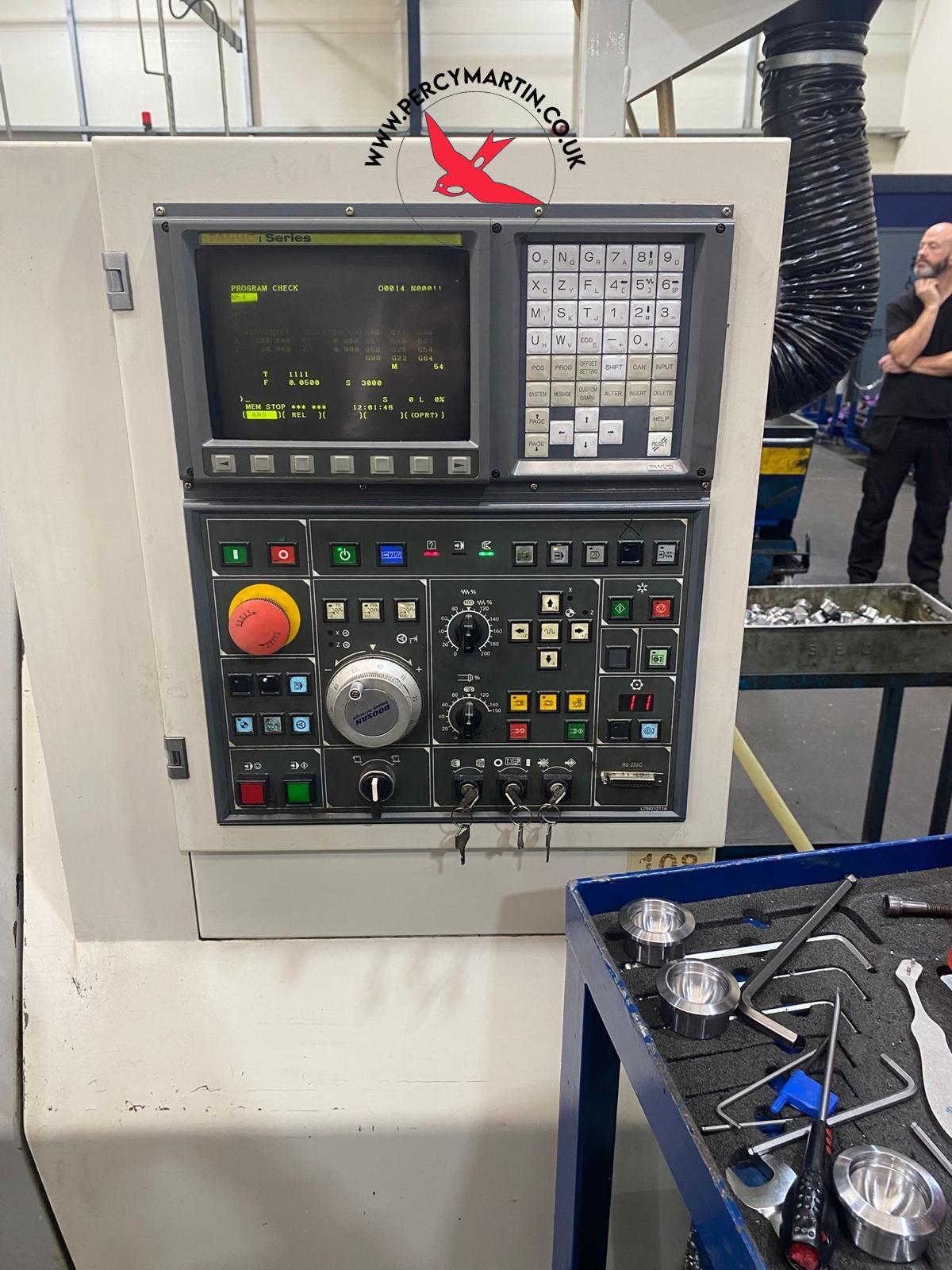

Control

Fanuc Oi

Machine Dimensions

3500 x 1600 x 1665mm

Machine Weight

3500kg

Maximum Cutting Diameter

320mm

Maximum Cutting Length

525mm

Spindle Motor Power

15kW

Spindle Nose

A2-6

Spindle Speed

4000rpm

Swing

510mm

Swing Over Carriage

290mm

Tailstock Quill Diameter

65mm

Tailstock Quill Stroke

80mm

Tailstock Taper

MT#4

Turret Positions

12 Station

Doosan Lynx 220LC 2006
