CNC Lathes with Milling
CMZ TX-66Y3 2015

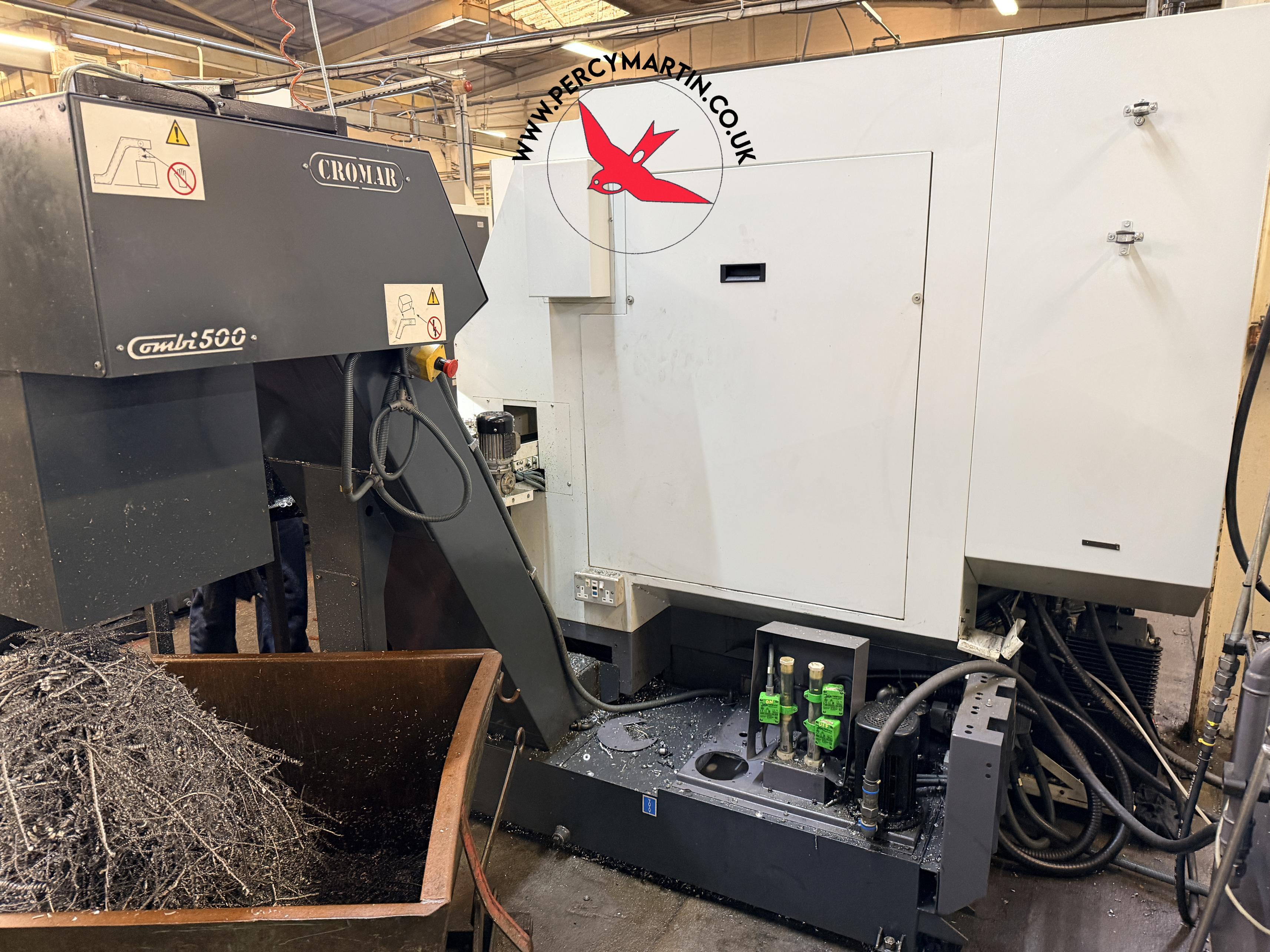

C axis & Milling , C axis on Sub Spindle , Collet Chuck , Coolant , Interlocked guards , Low Volt Light , Magazine Barfeed , Parts Catcher , Sub Spindle , Swarf Conveyor , Tool setter , Tooling , Triple Turret , Twin Spindle , Y-axis
CMZ TX-66Y3 2015
Key Features
Type:
CNC Lathes with Milling
Model:
TX-66Y3
Make:
CMZ
Year:
2015

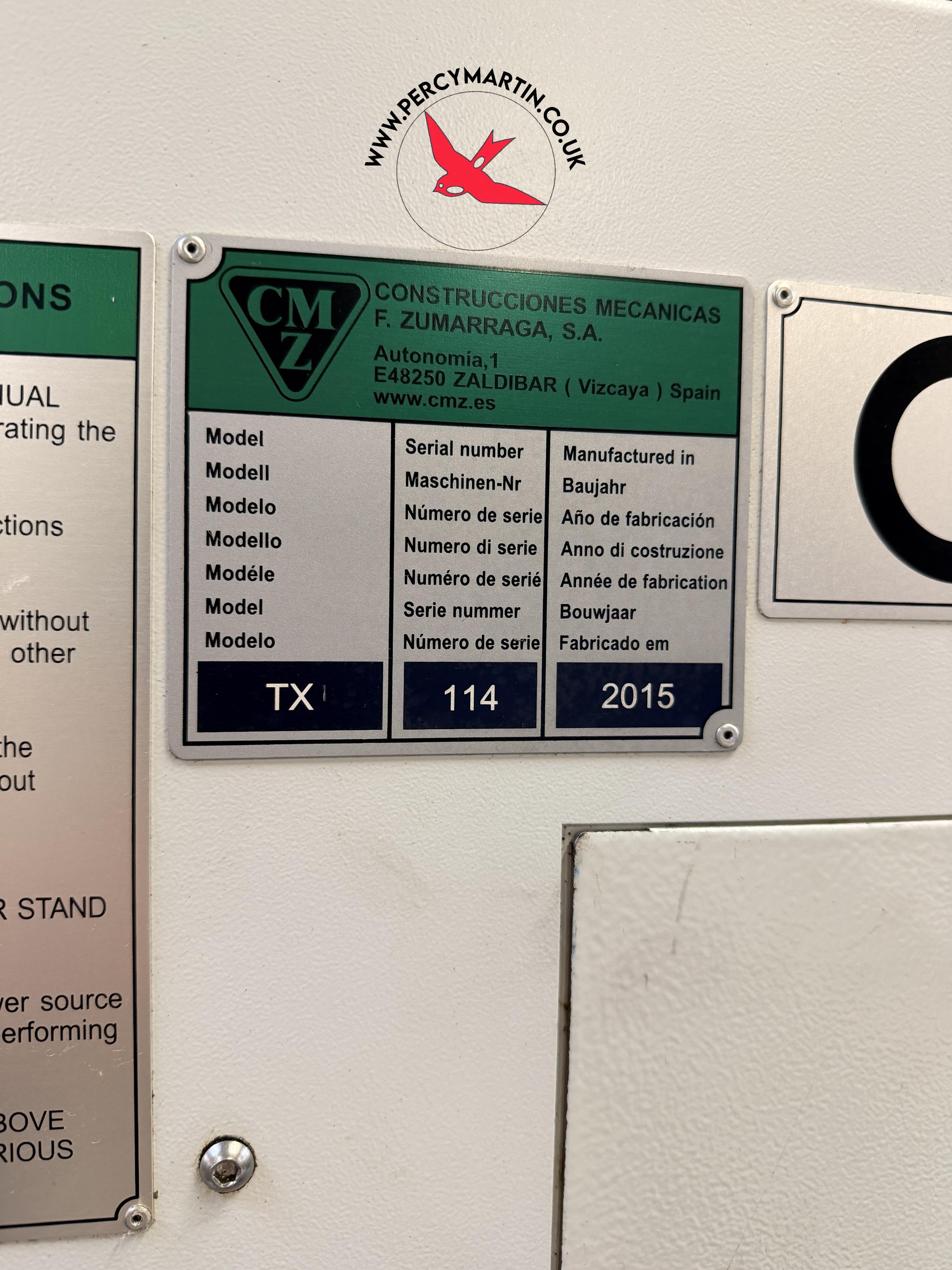

Serial No
114
Price
£POA
Our Reference
PM9873
Location
Leicester
CMZ TX-66Y3 2015
Specifications
Bar Capacity
66mm

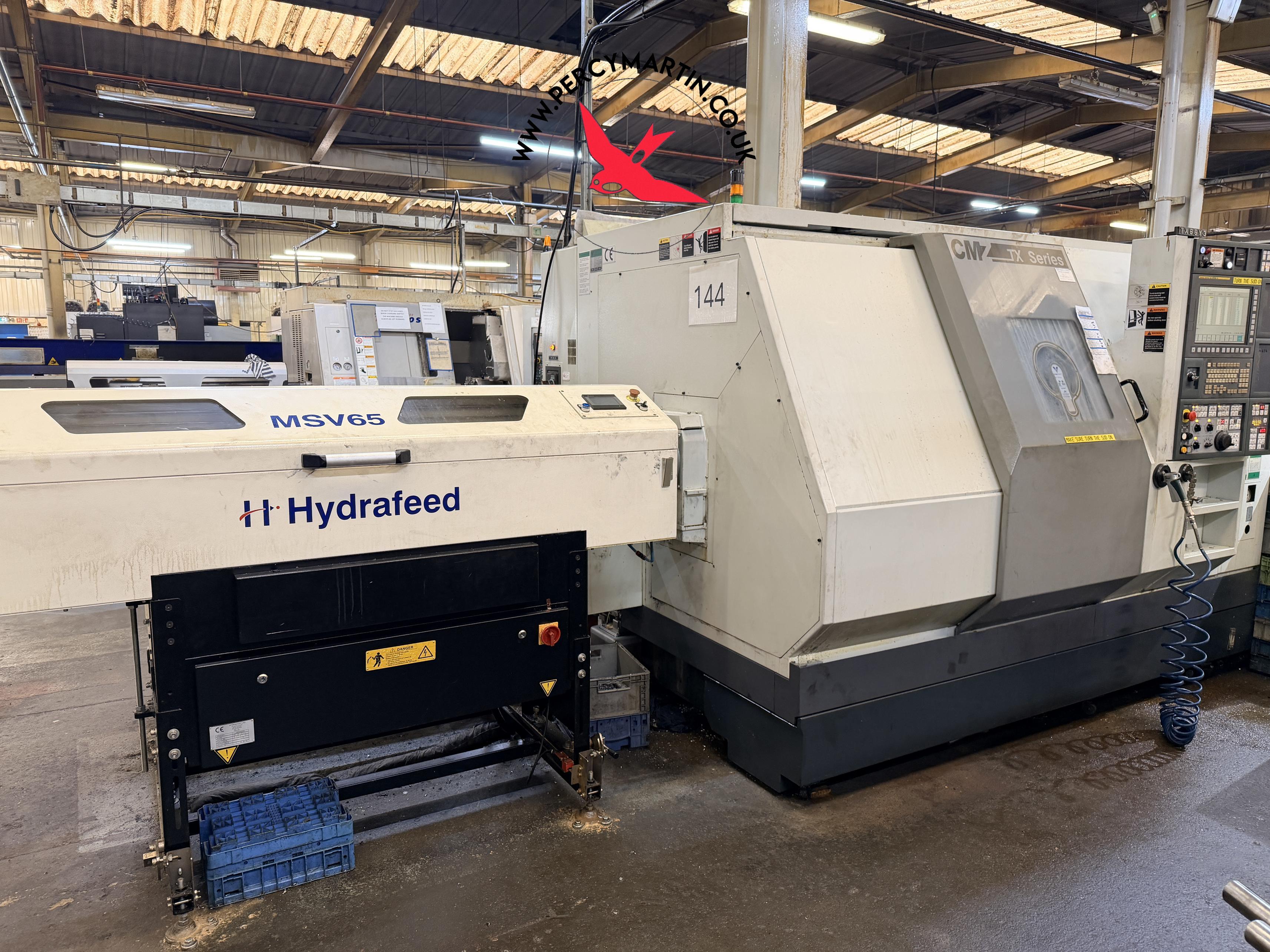

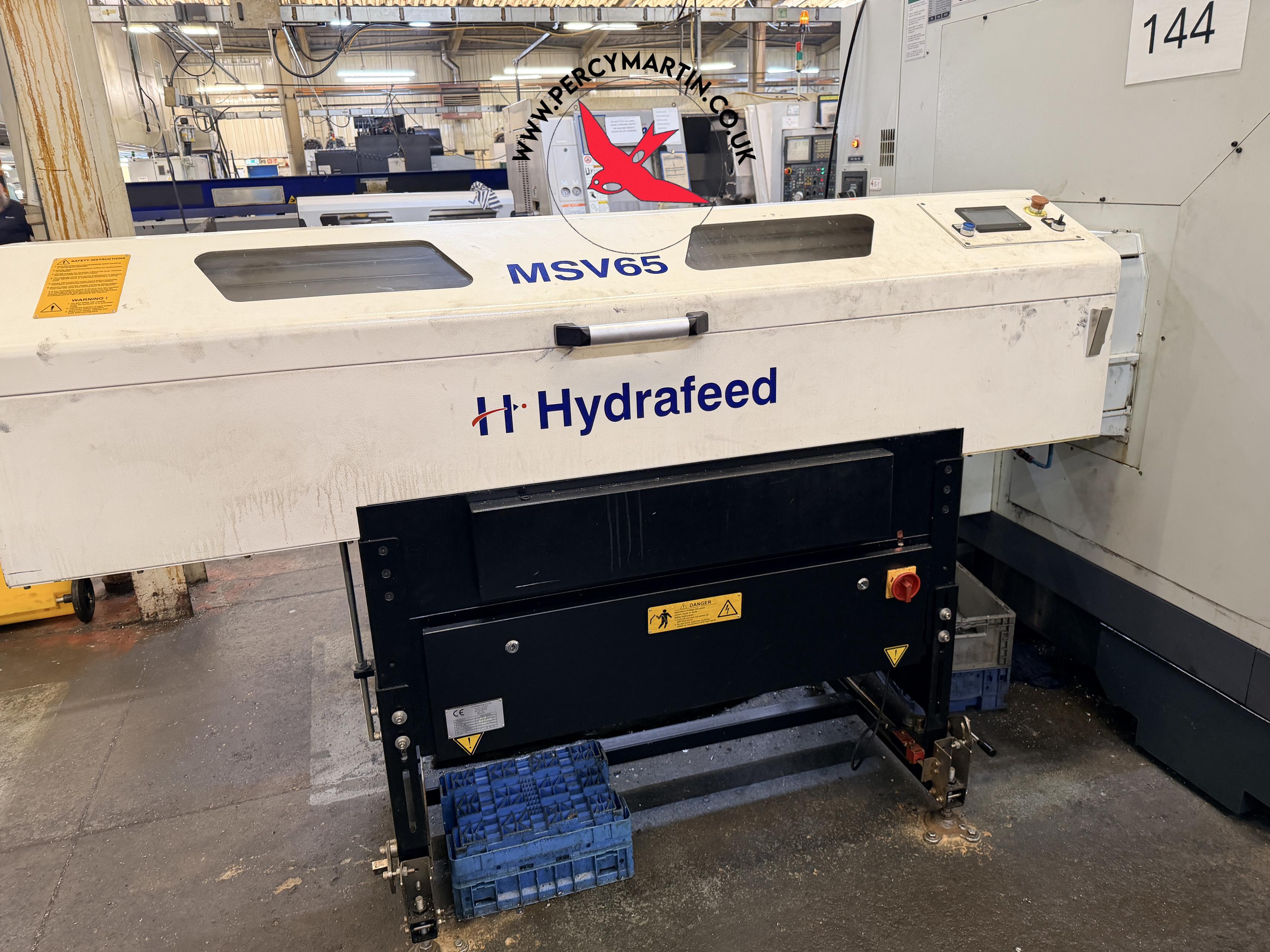

Barfeed
Hydrafeed Multifeed
C axis
0.0001 degree

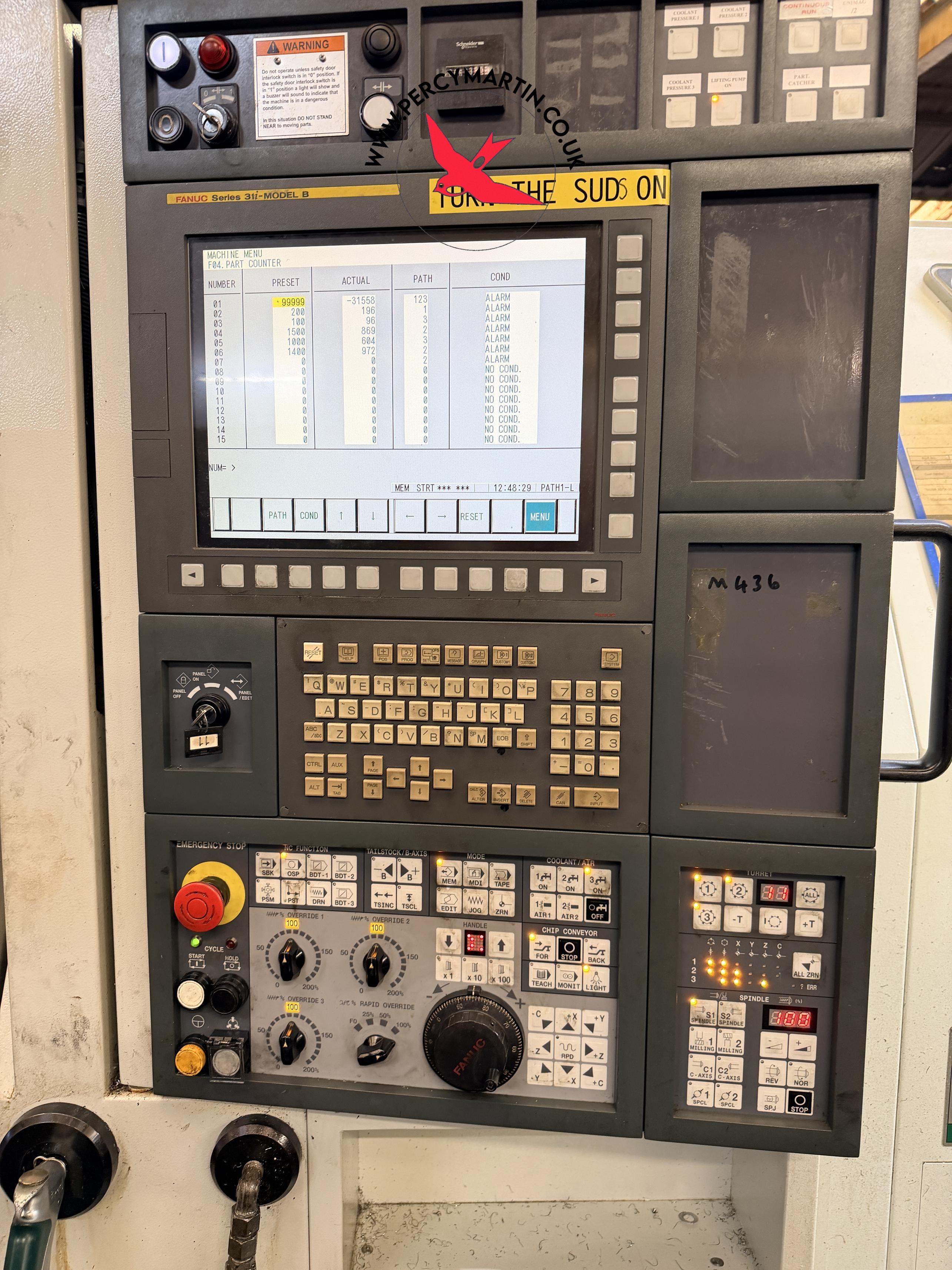

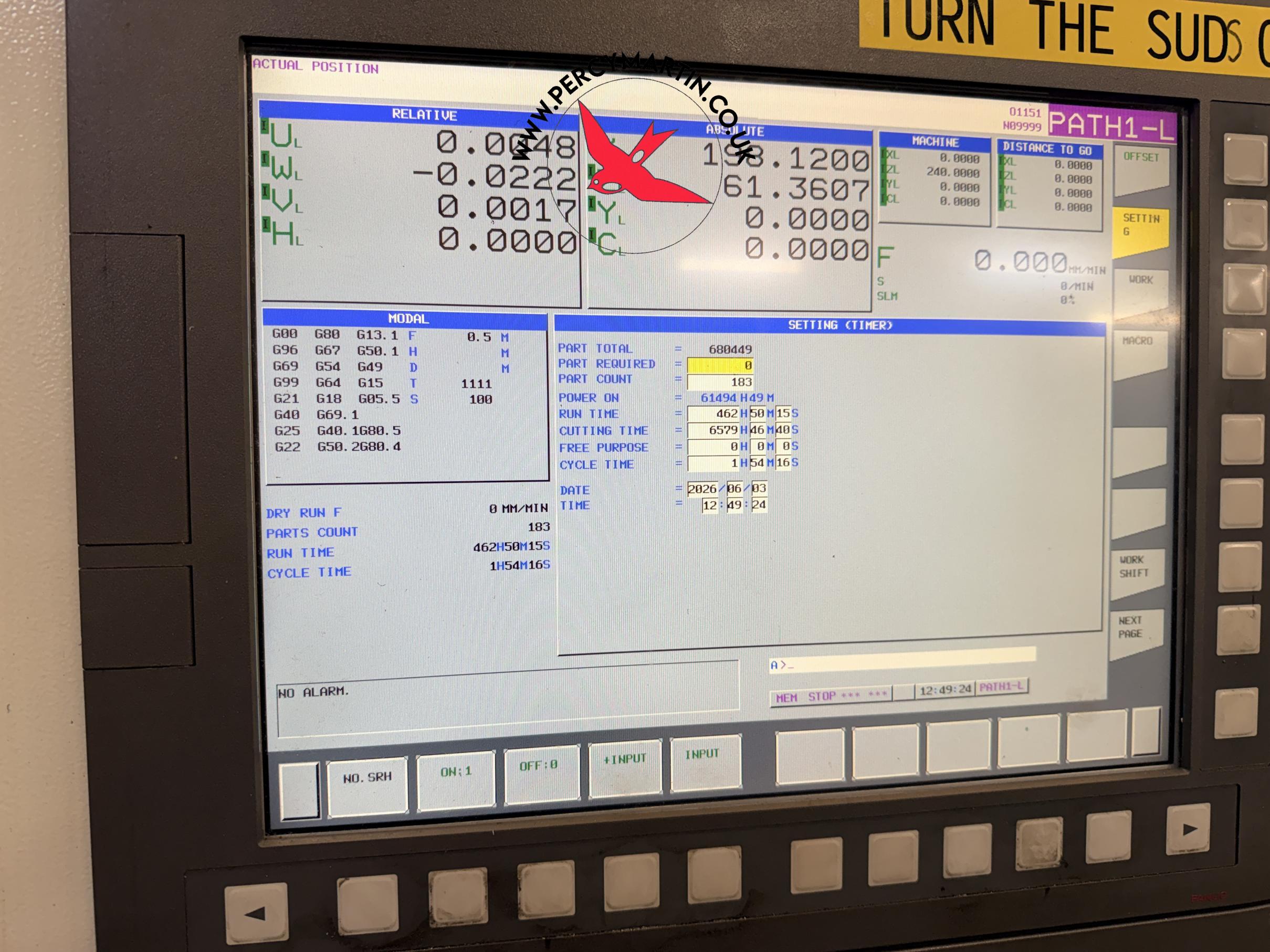

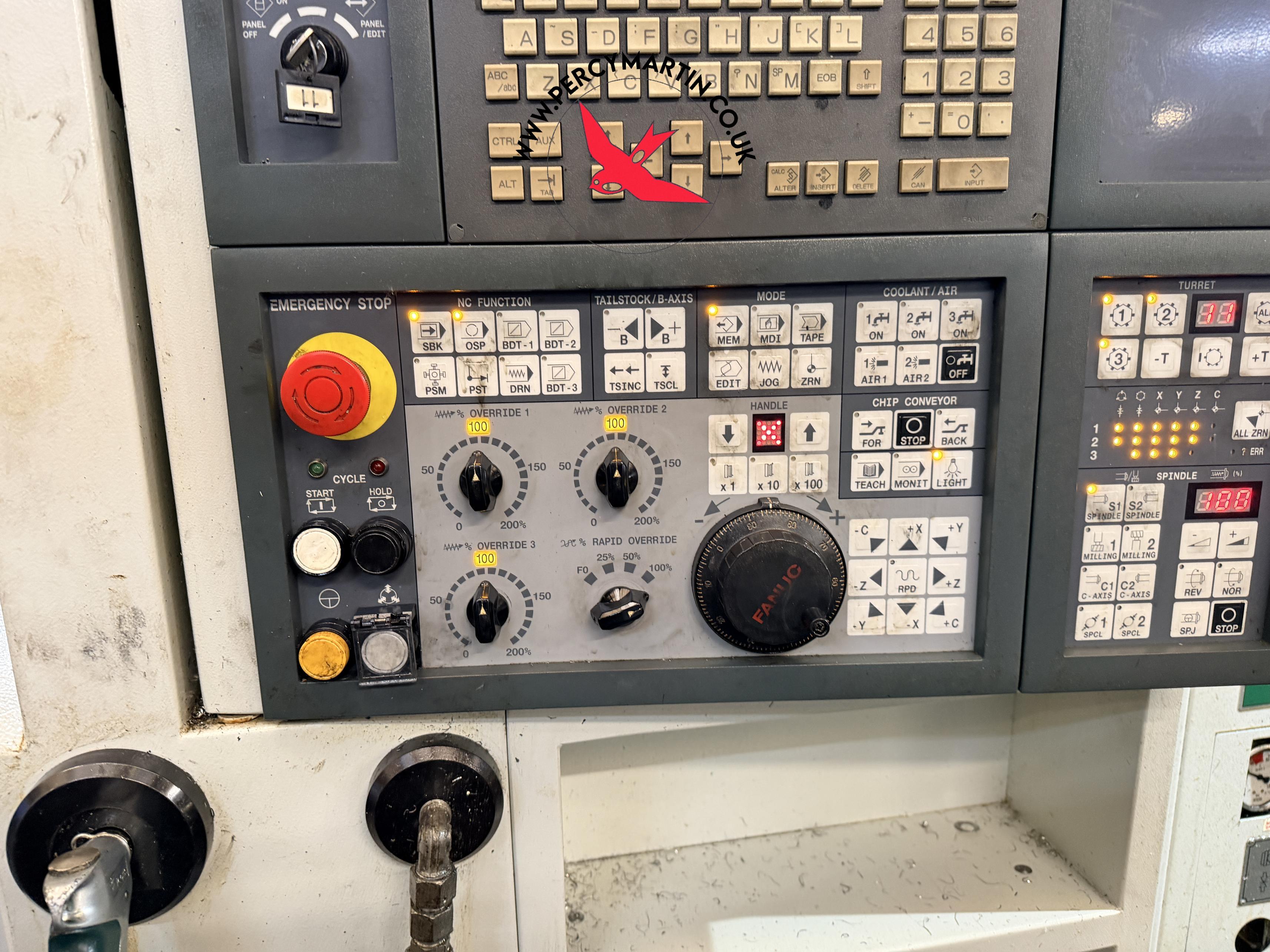

Control
FANUC 32i Model B
Distance Between Spindles
639mm
Machine Dimensions
2840 x 2190 x 2030mm
Machine Weight
9500kg
Maximum Cutting Diameter
255mm
Milling Motor Power
18kW
Milling RPM
6000rpm
Note
Hydrafeed Rota-Rack NOT Included
Rapid Feedrates
XYZ: 16 x 12 x 20m/min
Spindle Motor Power
15/11kW
Spindle Nose
A2-8
Spindle Speed
4000rpm
Strokes Lower Left Turret
XYZ: 190 x +/-40 x 500mm
Strokes Upper Left Turret
XYZ: 190 x +/-40 x 190mm
Strokes Upper Right Turret
XYZ: 190 x +/-40 x 635mm

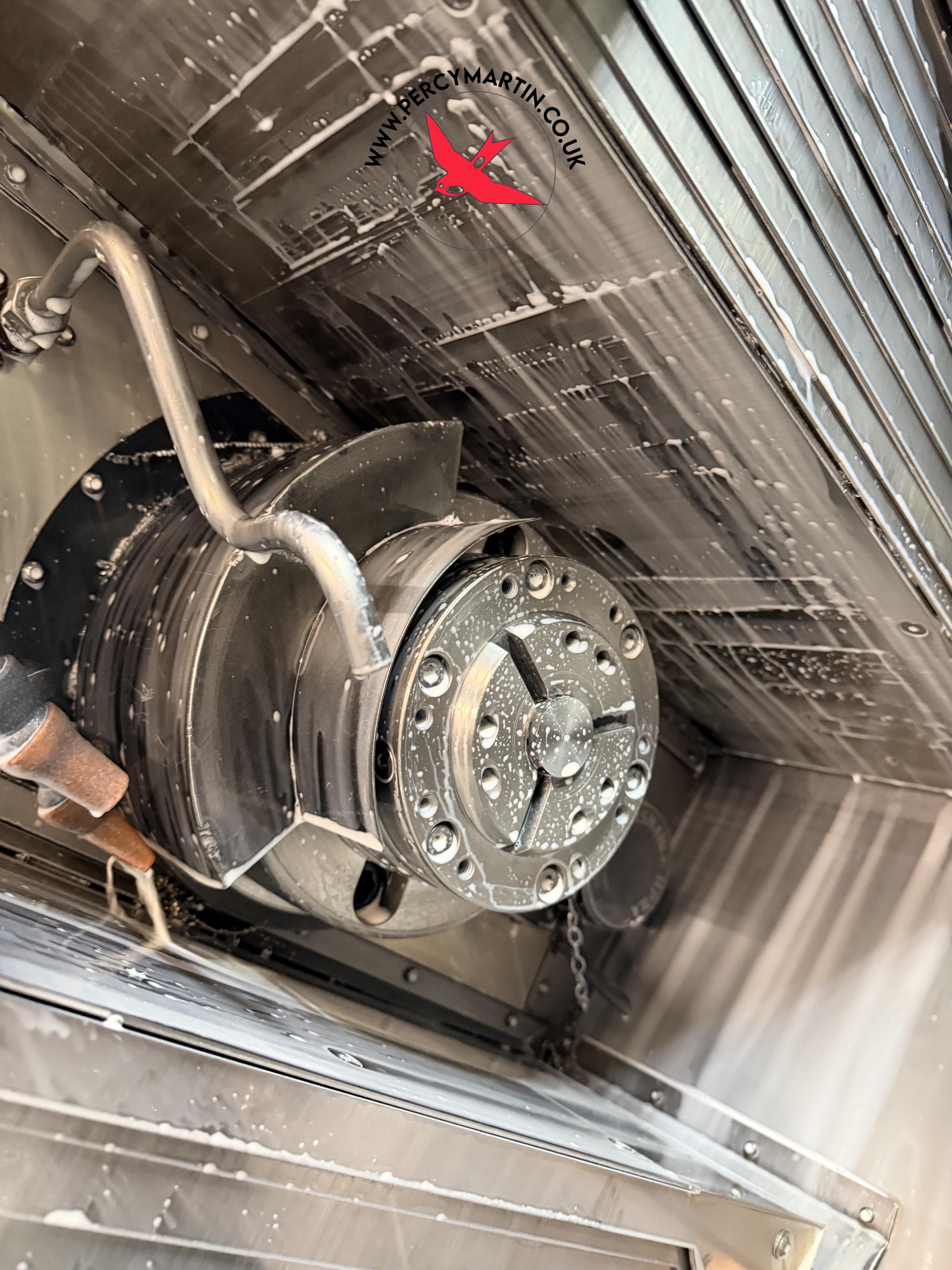

Sub Spindle Bar Capacity
52mm
Sub Spindle C axis
0.0001 degree
Sub Spindle Motor Power
7.5/5.5kW
Sub Spindle Nose
A2-6
Sub Spindle Stroke
635mm
Swing Over Carriage
270mm

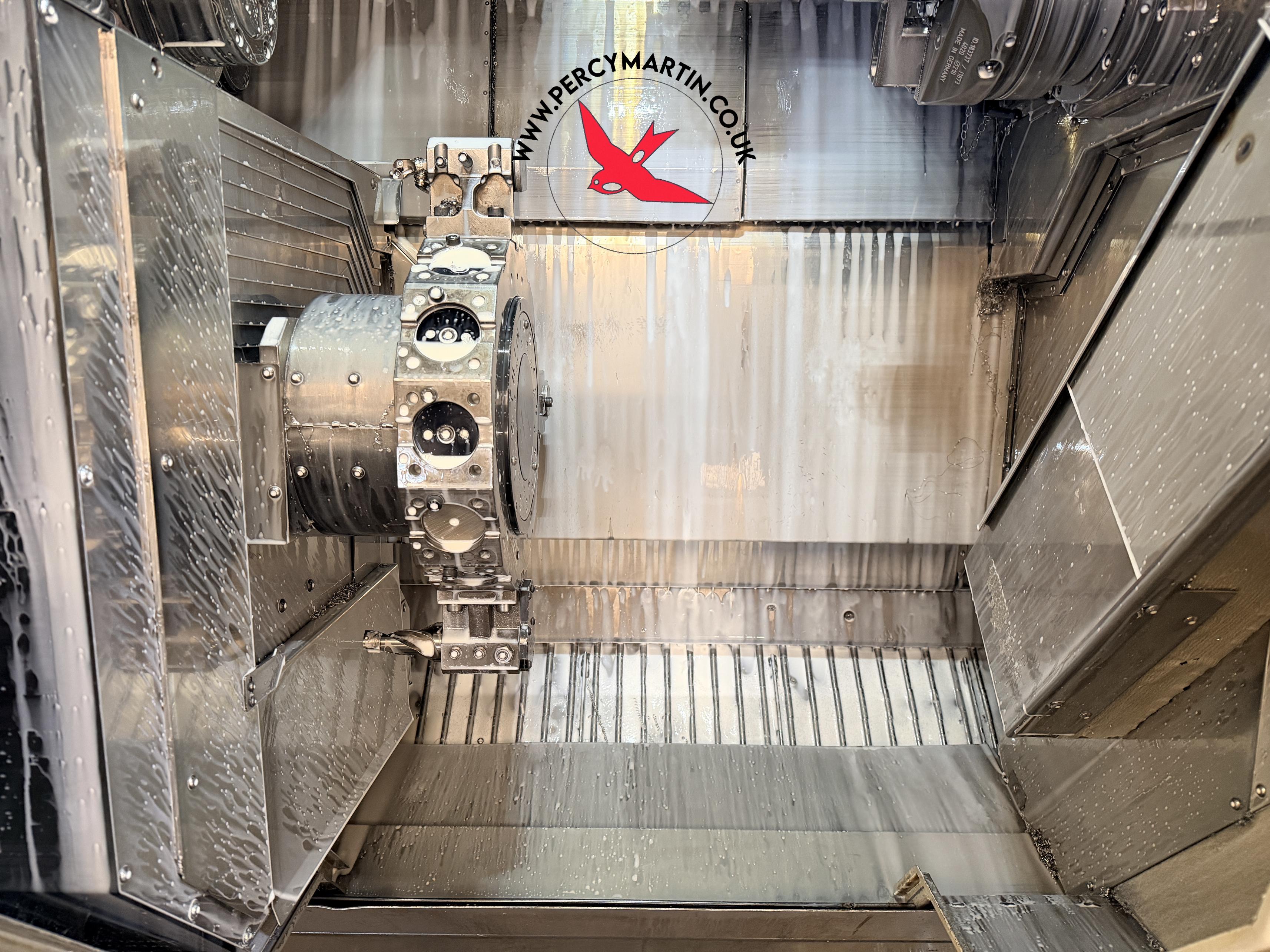

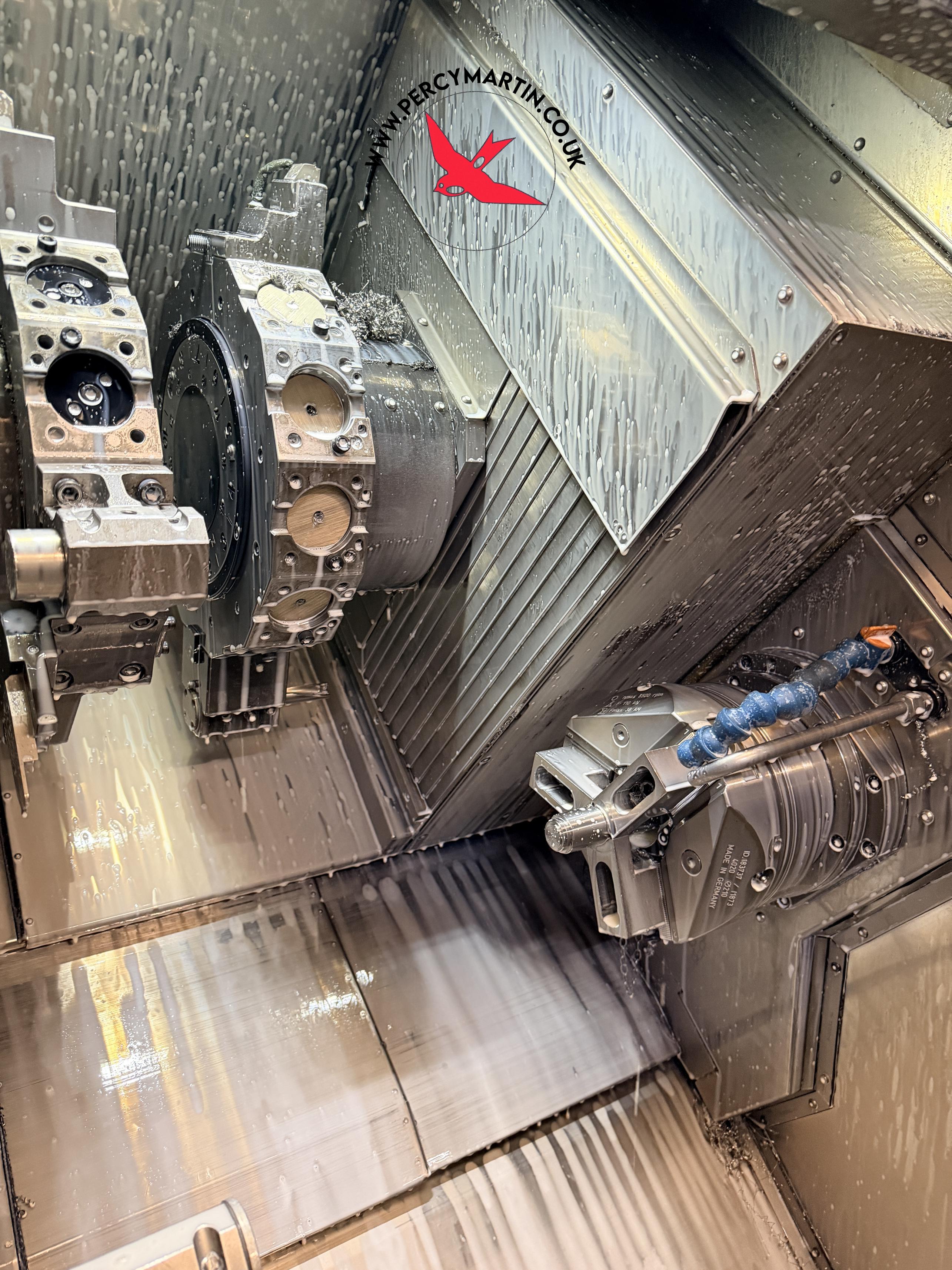

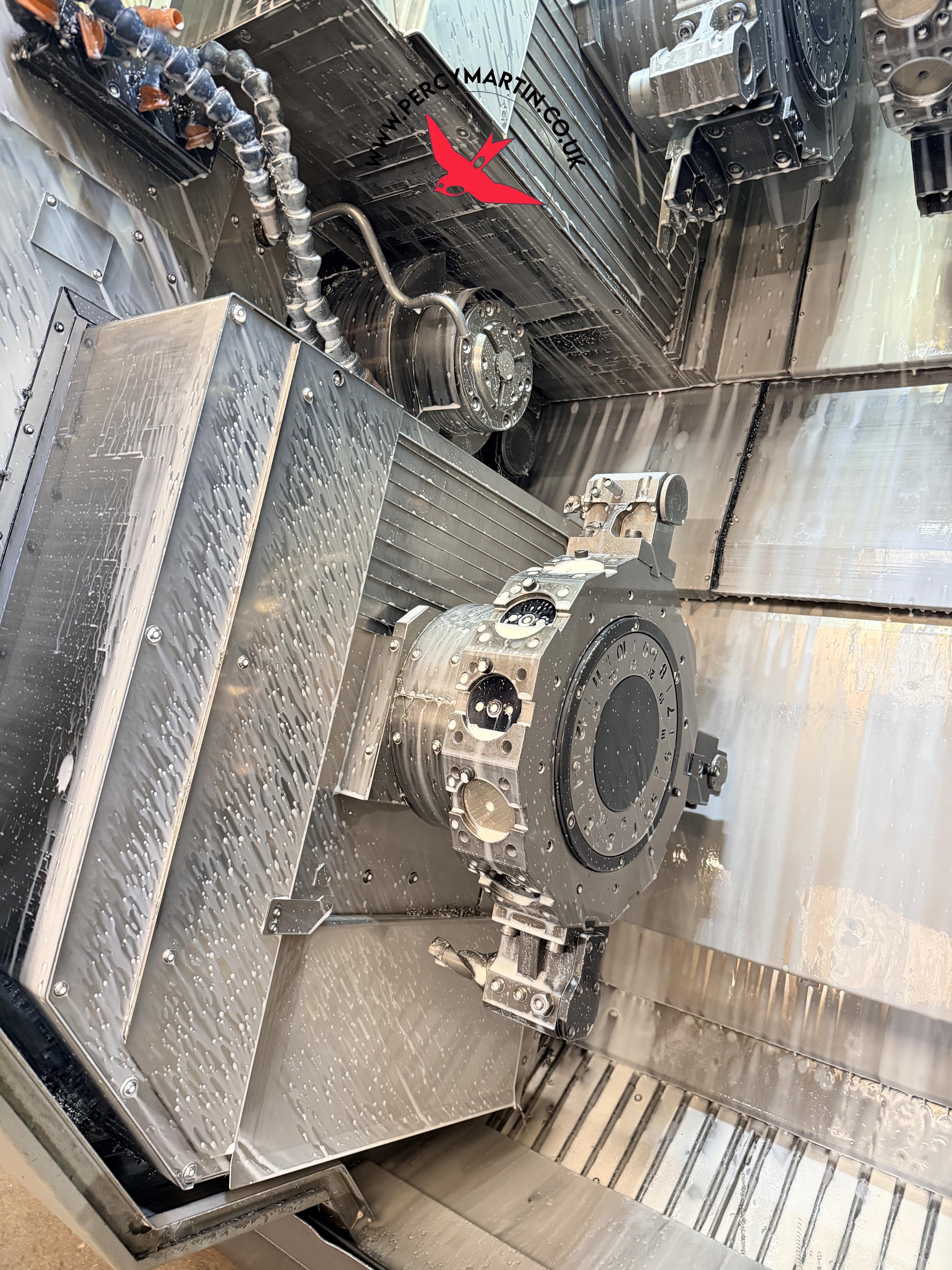

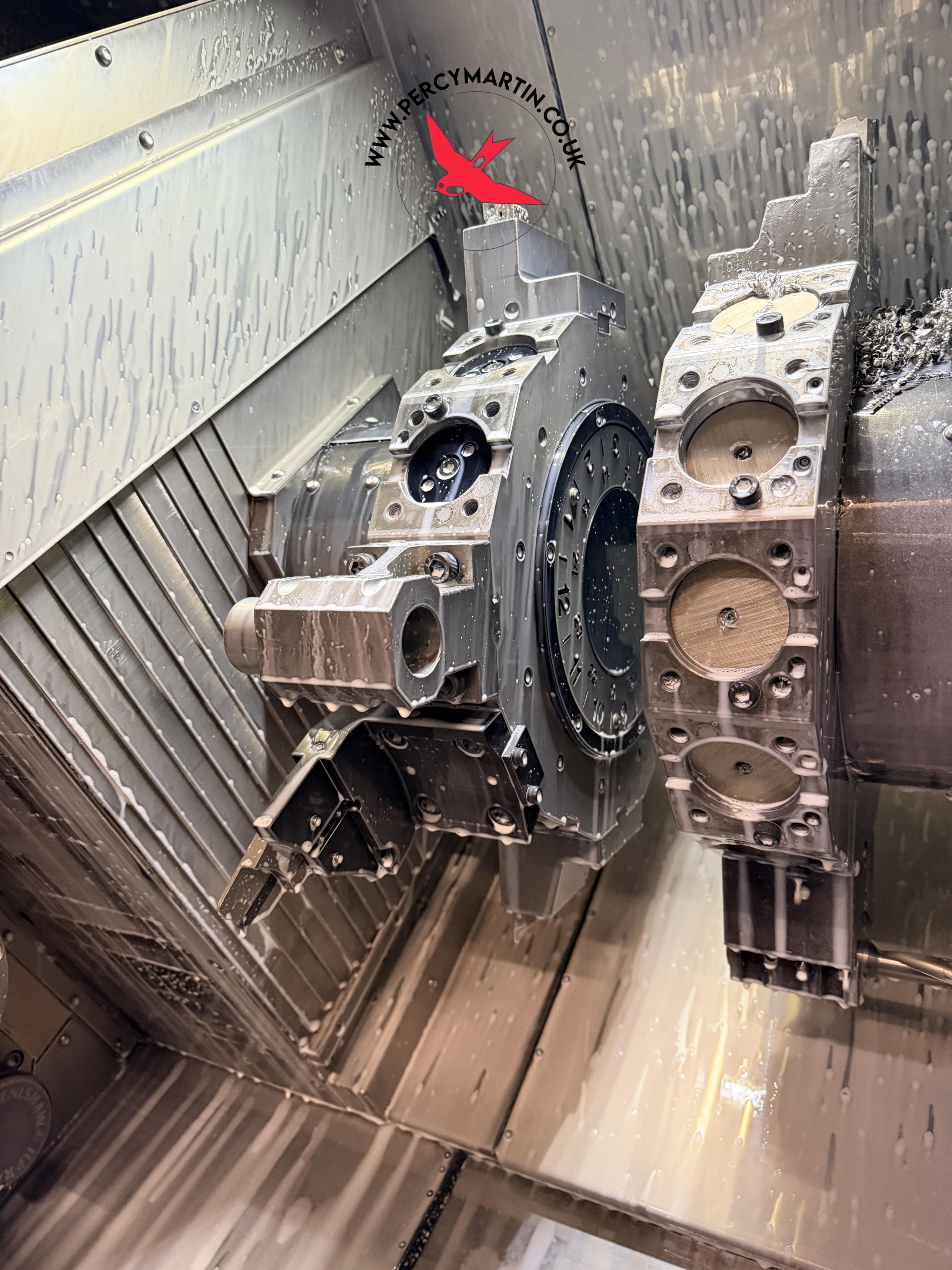

Turret Positions
3 x 24 station (12 driven per turret)
