CNC Lathes with Milling

CMZ TB-67M 2007

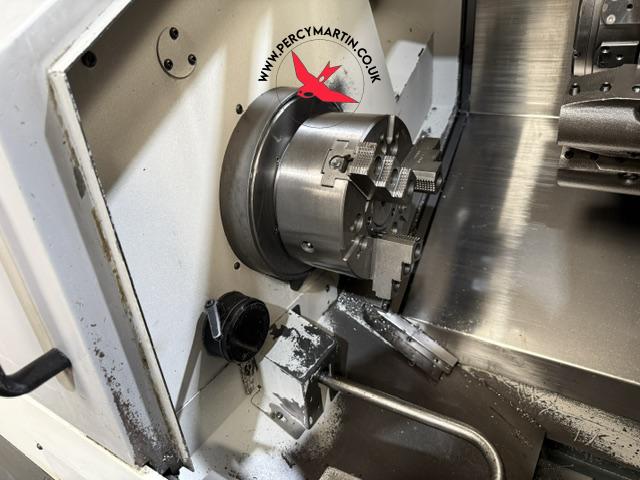

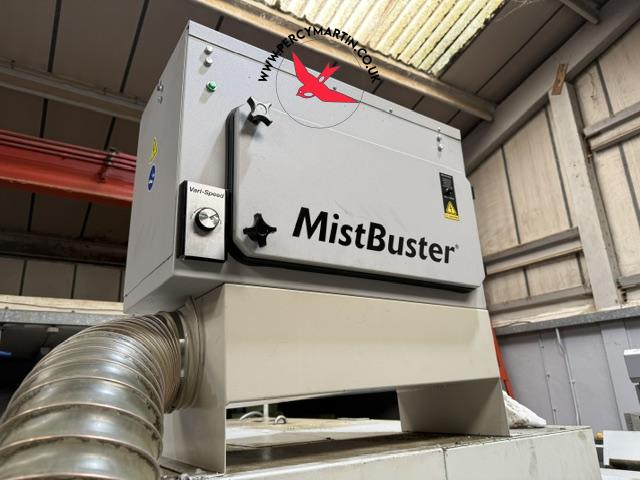

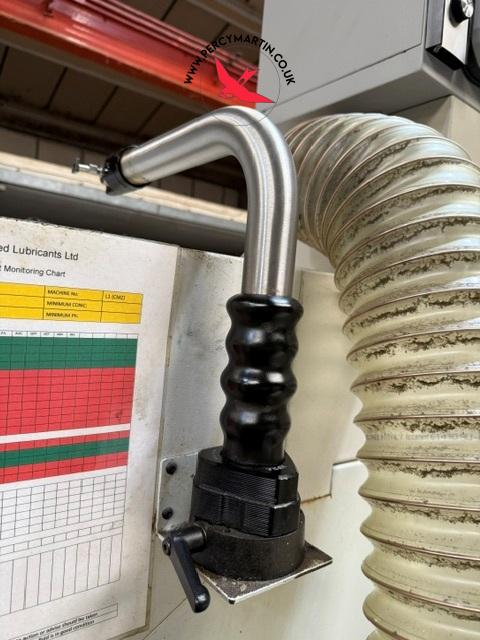

3 Jaw Chuck , C axis & Milling , Coolant , Fume Extractor , Interlocked guards , Low Volt Light , Parts Catcher , Parts Conveyor , Tool setter

Key Features Gallery Specifications More in Stock Register Interest

CMZ TB-67M 2007

Key Features

Type:

CNC Lathes with Milling

Model:

TB-67M

Make:

CMZ

Year:

2007

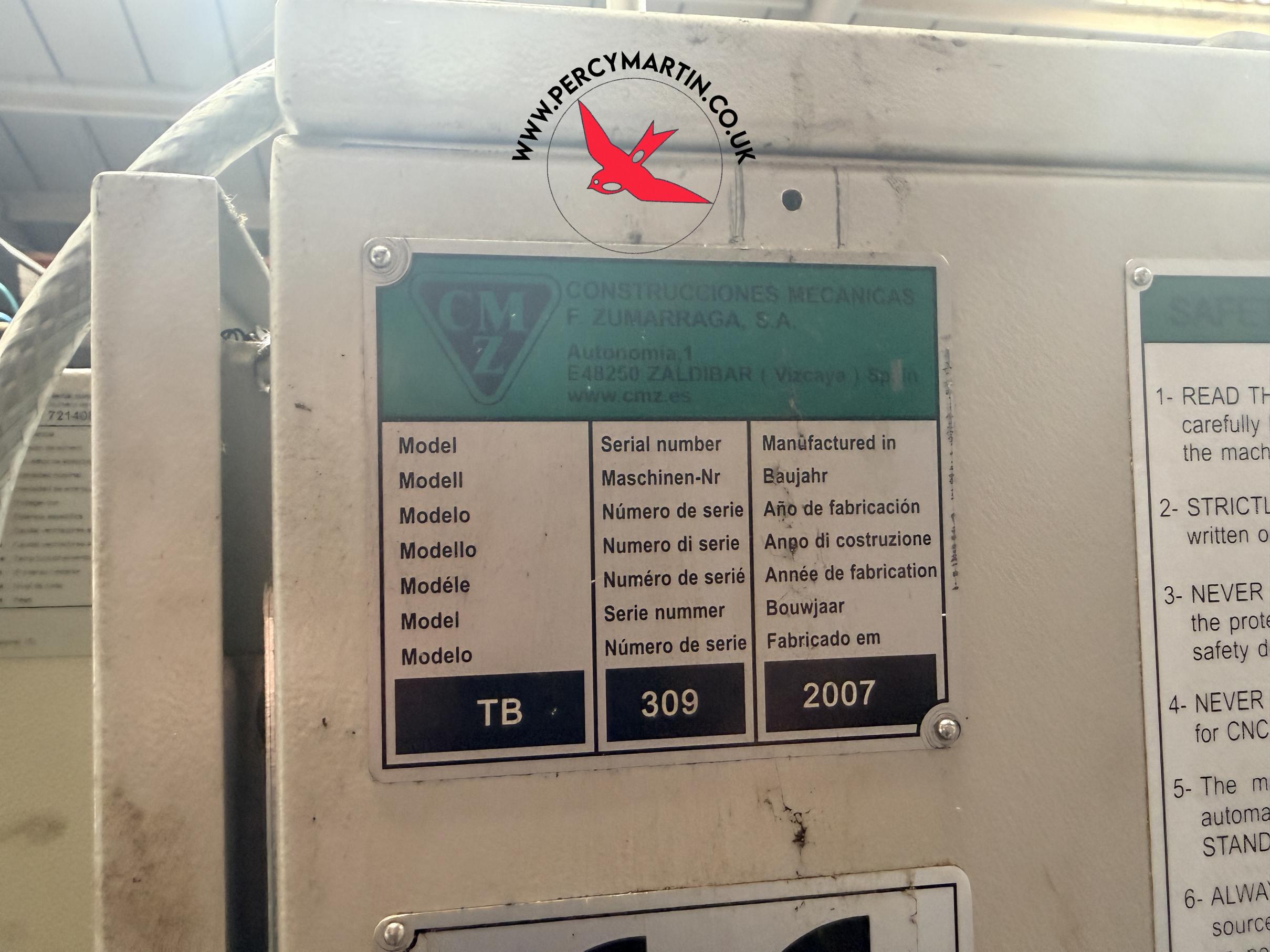

Serial No

309

Price

£POA

Our Reference

Location

Leicester

CMZ TB-67M 2007

Specifications

Bar Capacity

66mm

C axis

0.001 degree

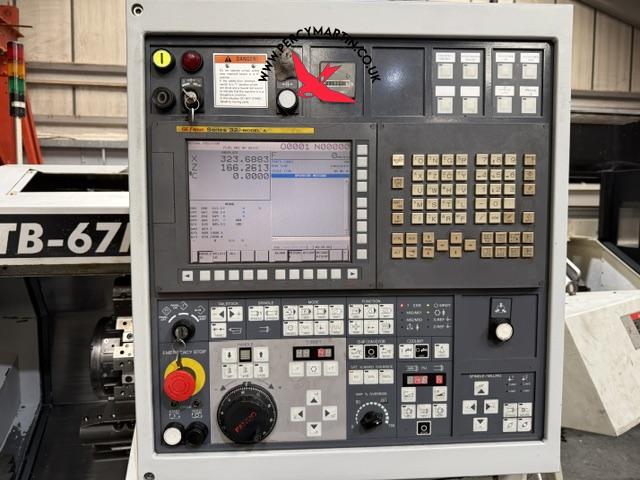

Control

FANUC 32i

Machine Dimensions

1653 x 1620 x 1670mm

Machine Weight

3700kg

Maximum Cutting Diameter

340mm

Maximum Cutting Length

400mm

Milling Motor Power

6kW

Milling RPM

4000rpm

Rapid Feedrates

30m/minute

Spindle Motor Power

17.4kW

Spindle Nose

A2-6

Swing

640mm

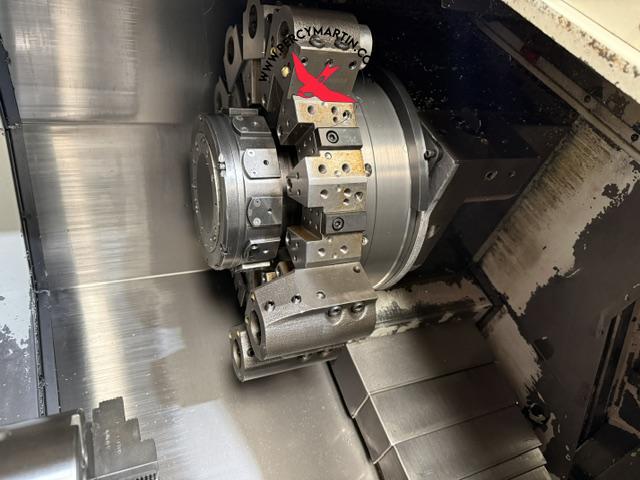

Turret Positions

12 Station

X axis Travel

200mm

Z axis Travel

400mm
