CNC Lathes with Milling

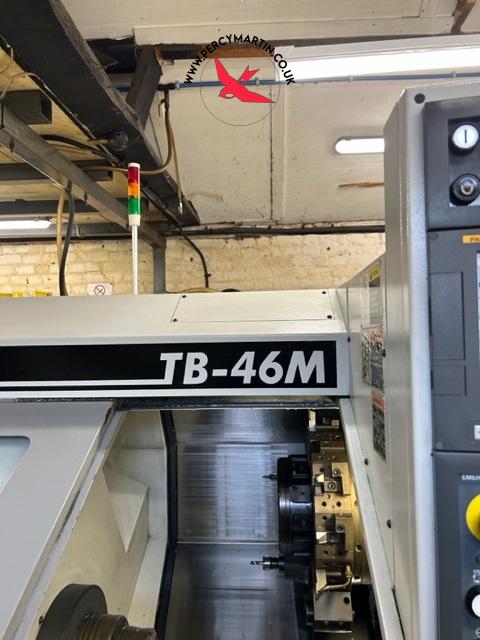

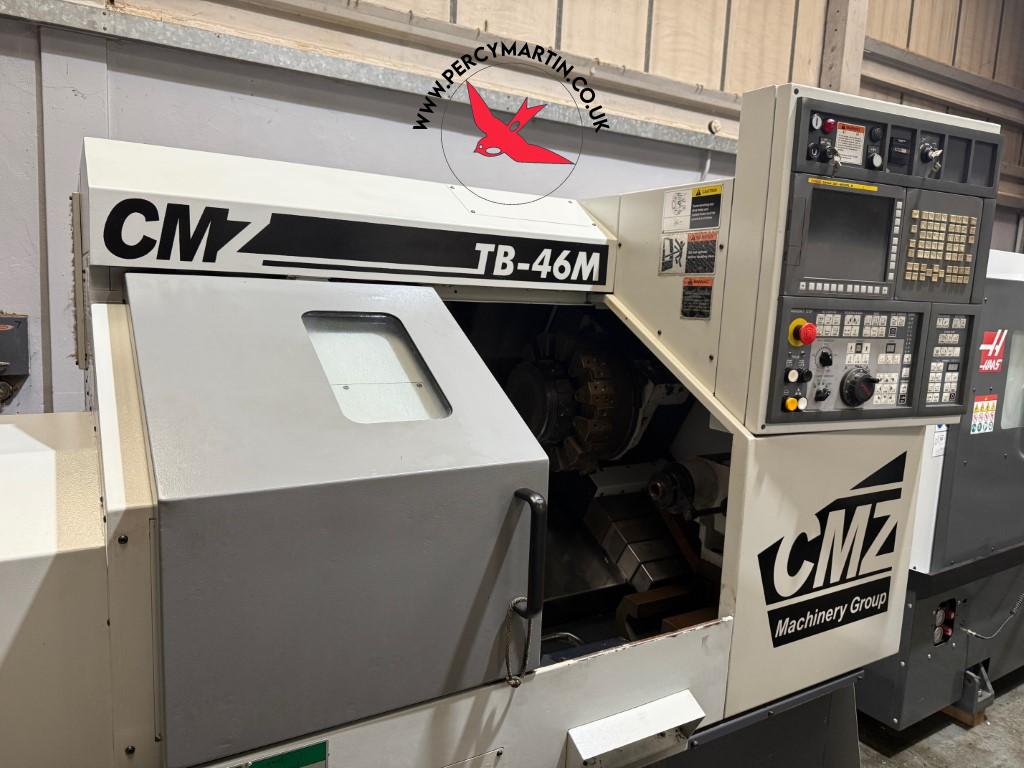

CMZ TB-46M 2012

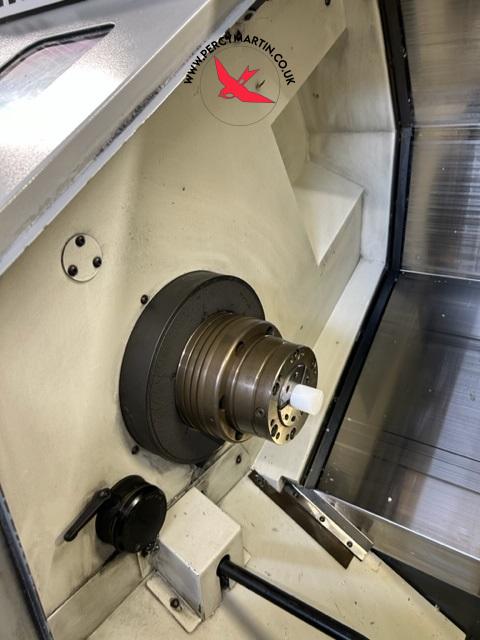

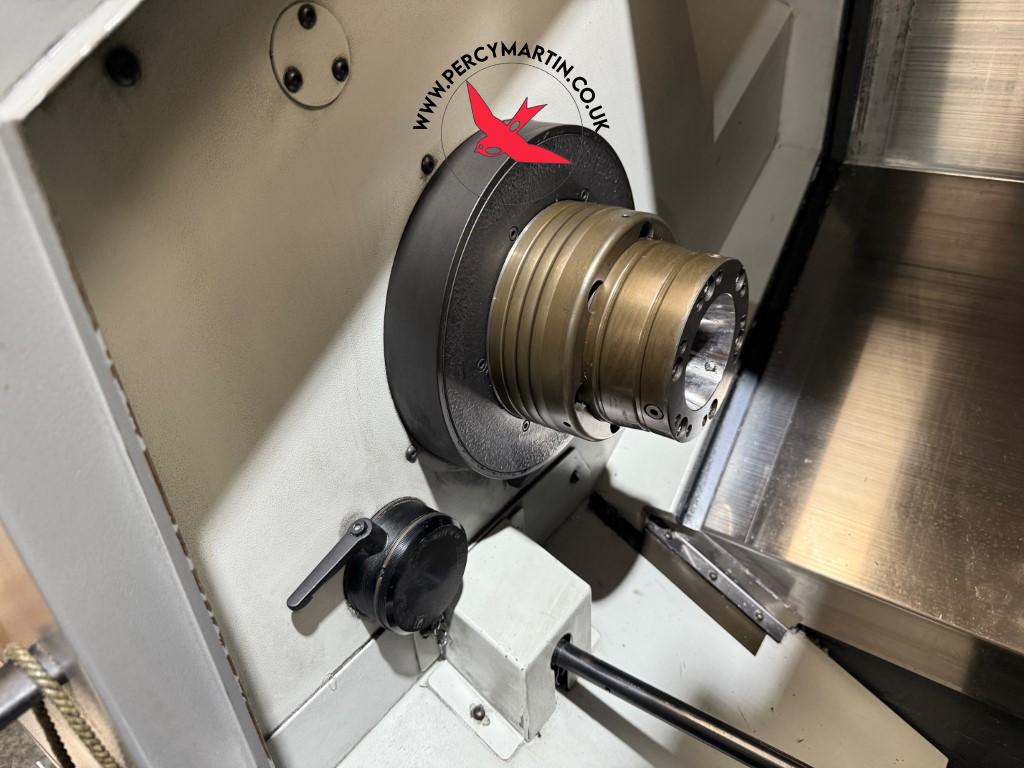

C axis & Milling , Collet Chuck , Coolant , Interlocked guards , Low Volt Light , Tailstock
CMZ TB-46M 2012
Key Features
Type:
CNC Lathes with Milling
Model:
TB-46M
Make:
CMZ
Year:
2012

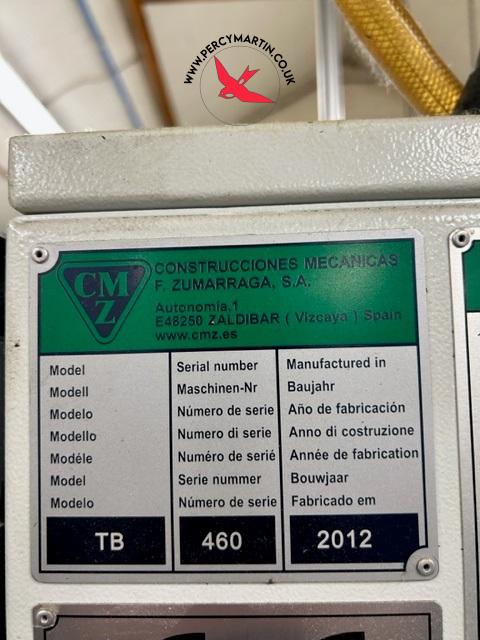

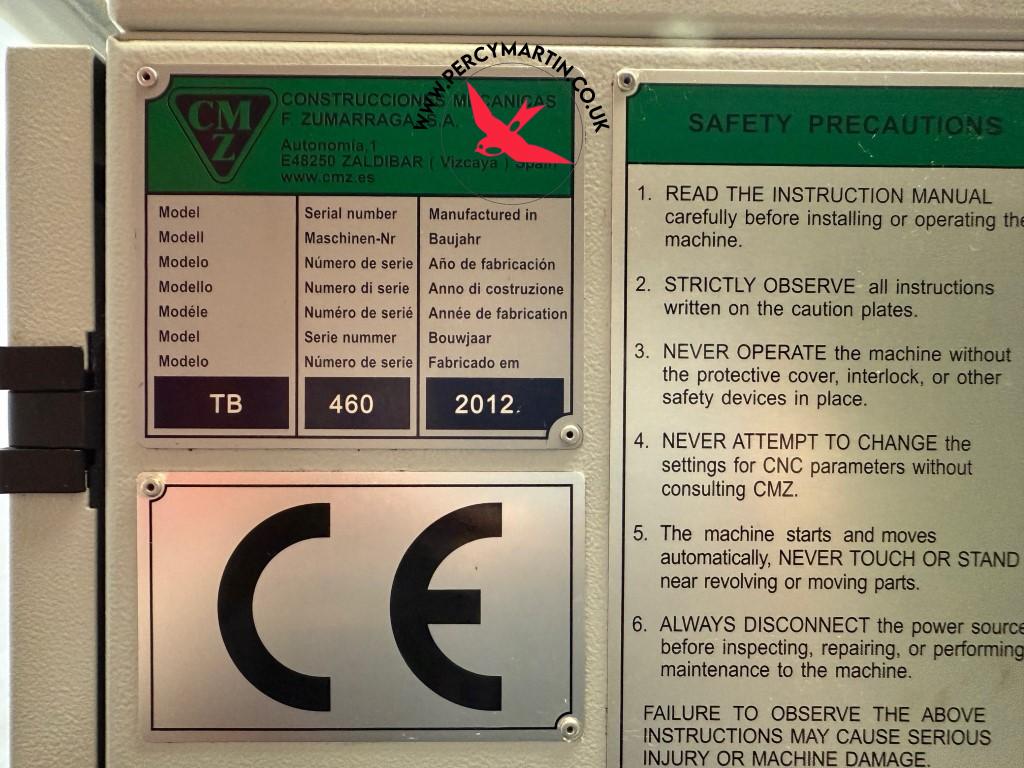

Serial No
460
Price
£POA
Our Reference
PM9283
Location
Leicester
CMZ TB-46M 2012
Specifications
Bar Capacity
45mm
C axis
0.001 degree

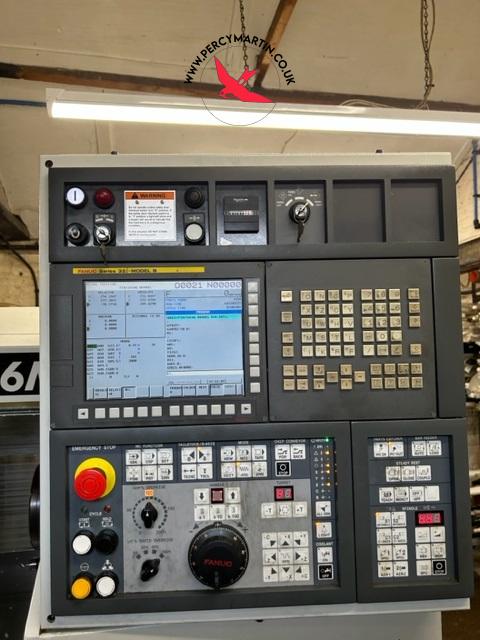

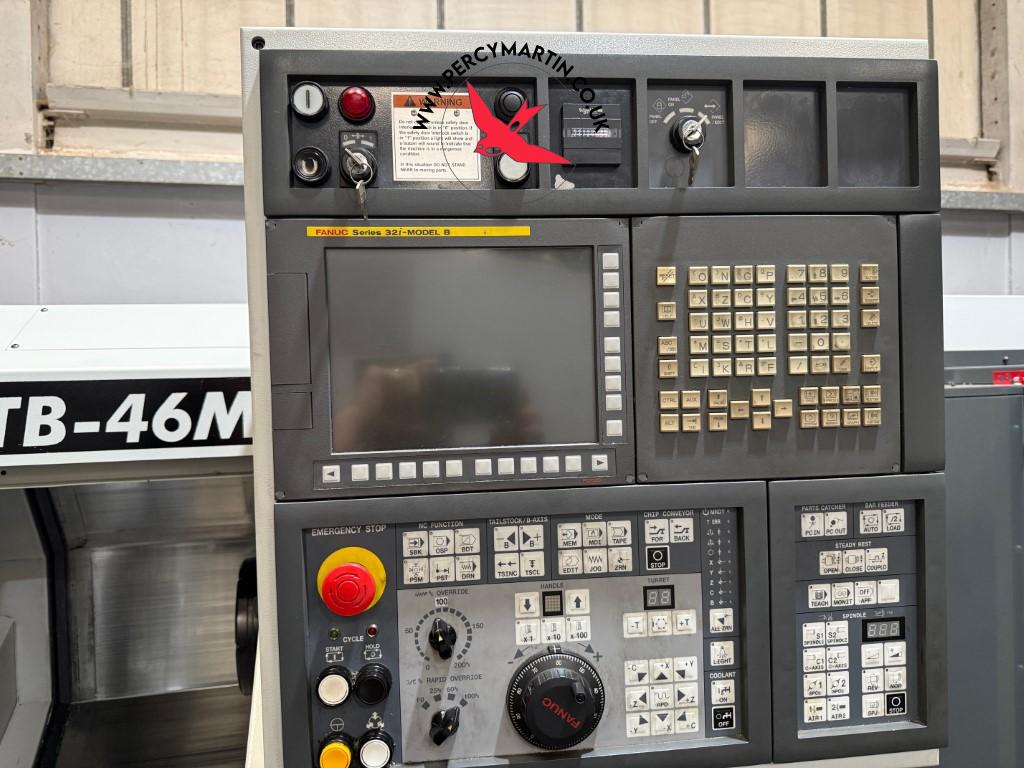

Control
FANUC 32i Model B
Machine Dimensions
1653 x 1620 x 1670mm
Machine Weight
3650kg
Maximum Cutting Diameter
340mm
Milling Motor Power
6kW
Milling RPM
4000rpm
Rapid Feedrates
30m/minute
Spindle Motor Power
14kW
Spindle Nose
A2-6
Spindle Speed
5000rpm
Swing
640mm
Swing Over Carriage
385mm

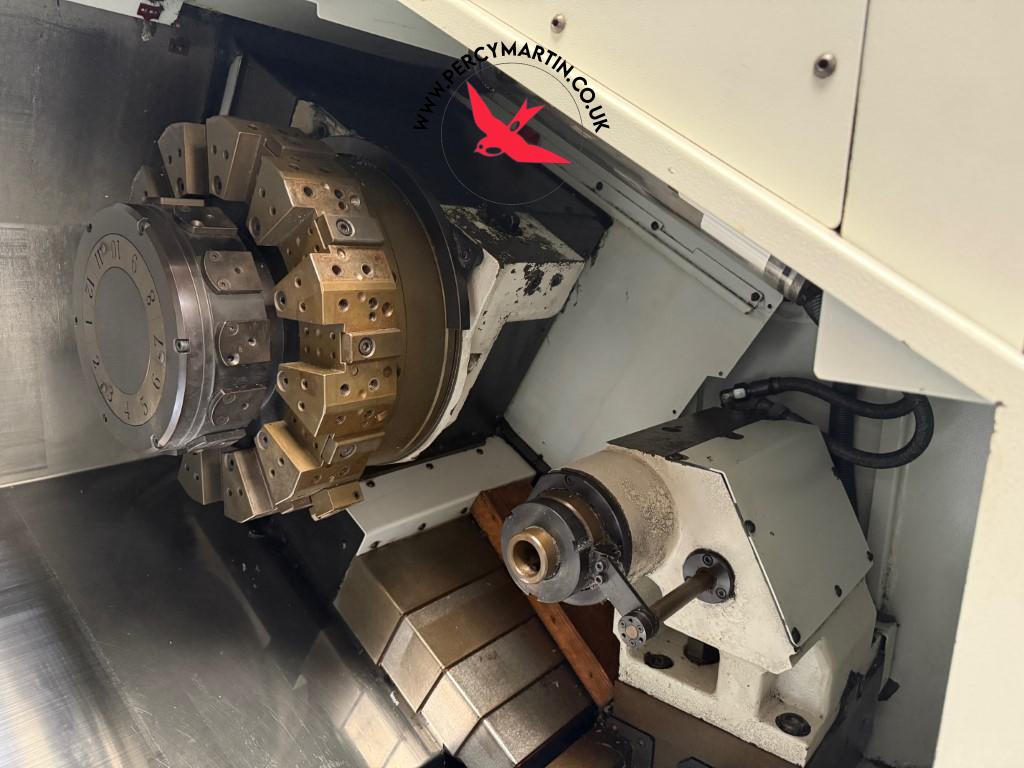

Tailstock Quill Diameter
90mm
Tailstock Quill Stroke
120mm
Tailstock Taper
MT #5
Tool Size
20 x 20mm

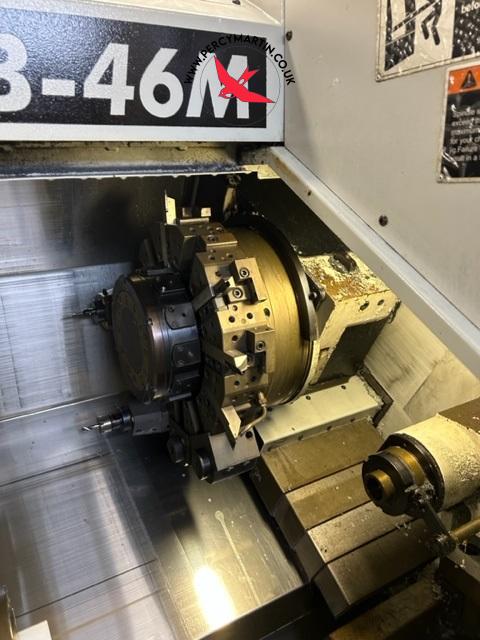

Turret Positions
12 Station
X axis Travel
200mm
Z axis Travel
400mm
