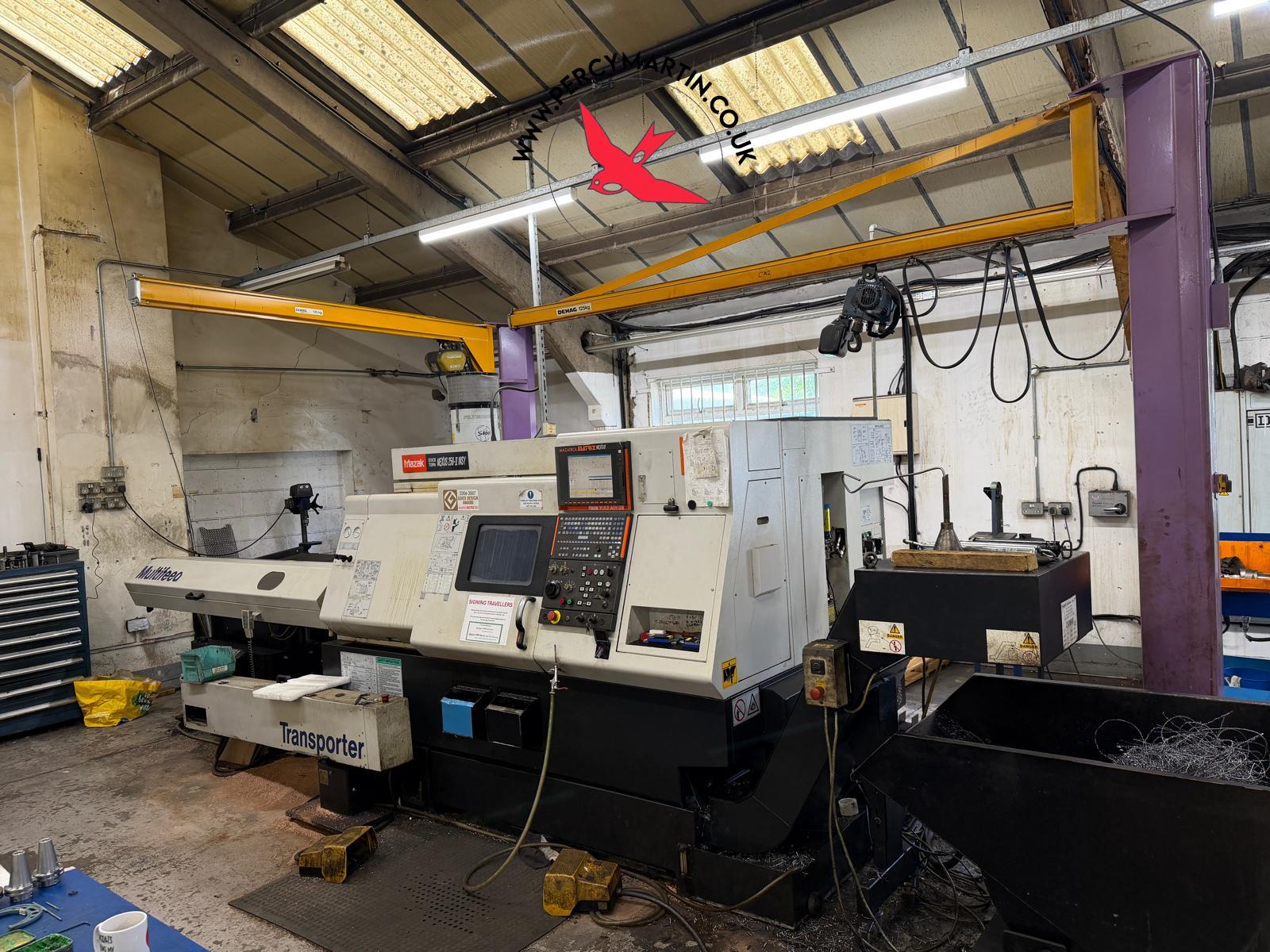

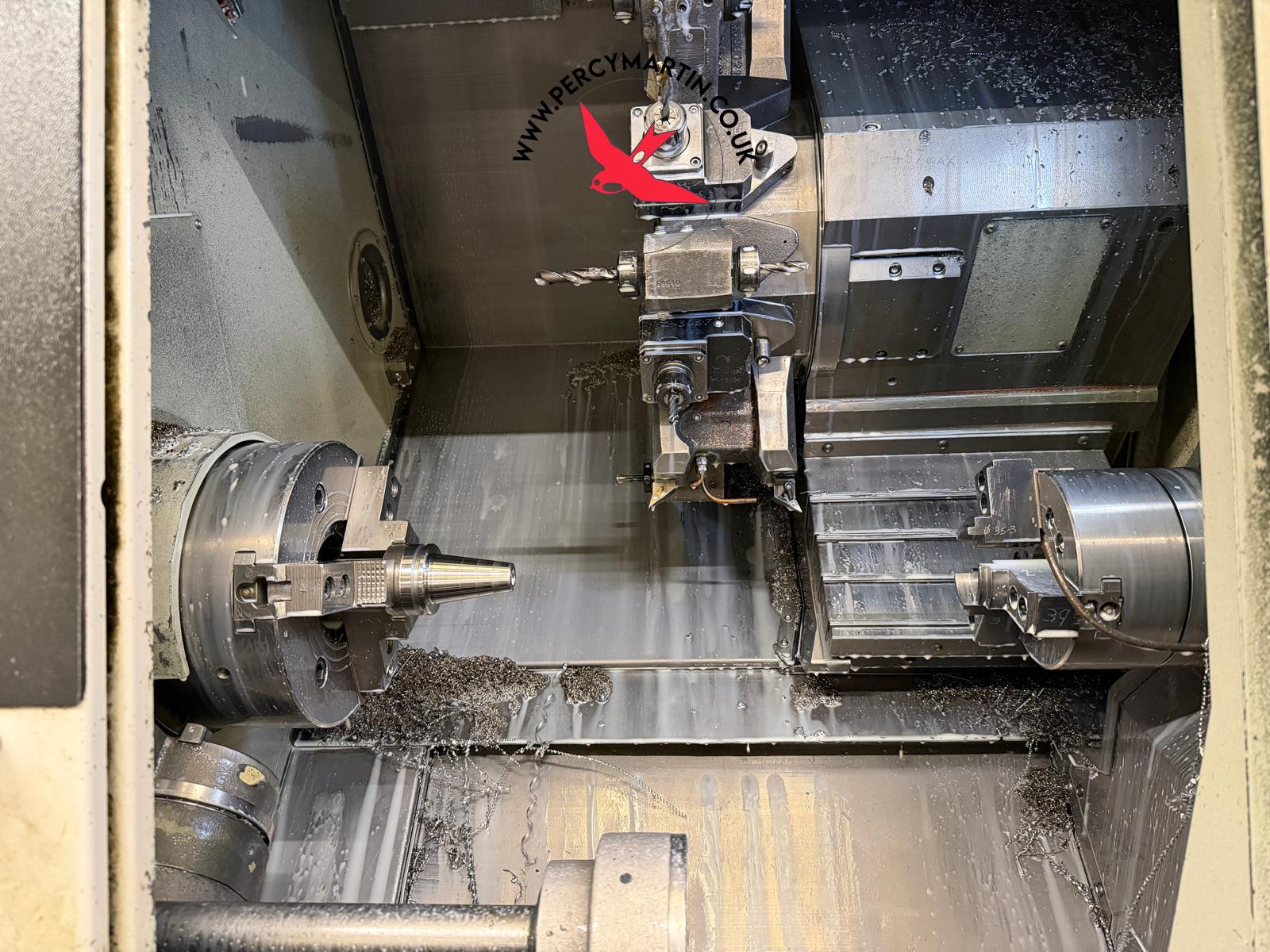

Mazak Quick Turn Nexus 250-II MSY 2007

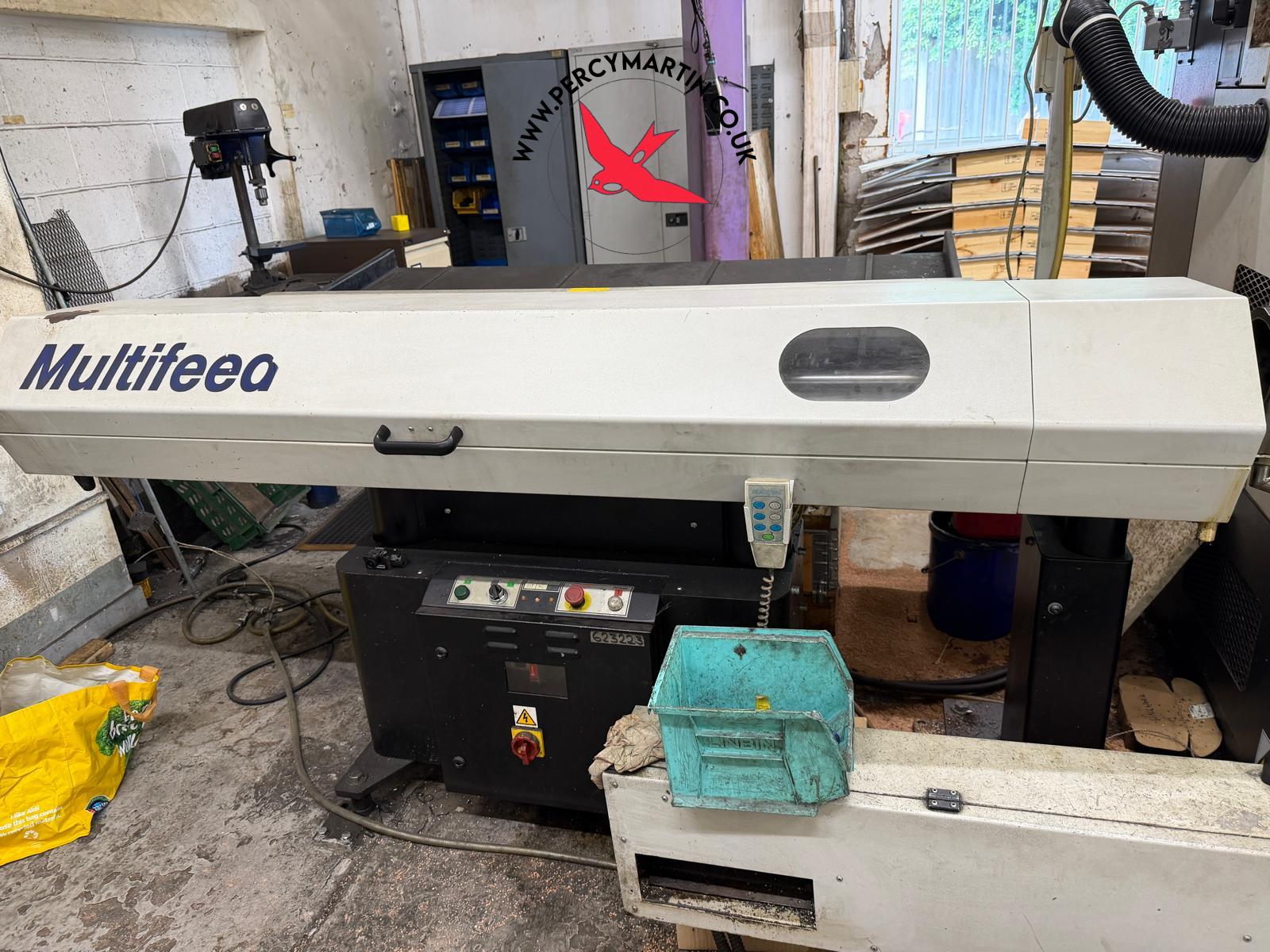

3 Jaw Chuck , C axis & Milling , C axis on Sub Spindle , Coolant , Interlocked guards , Low Volt Light , Magazine Barfeed , Parts Catcher , Parts Conveyor , Sub Spindle , Swarf Auger , Tool setter , Y-axis
Key Features Gallery Specifications More in Stock Register Interest

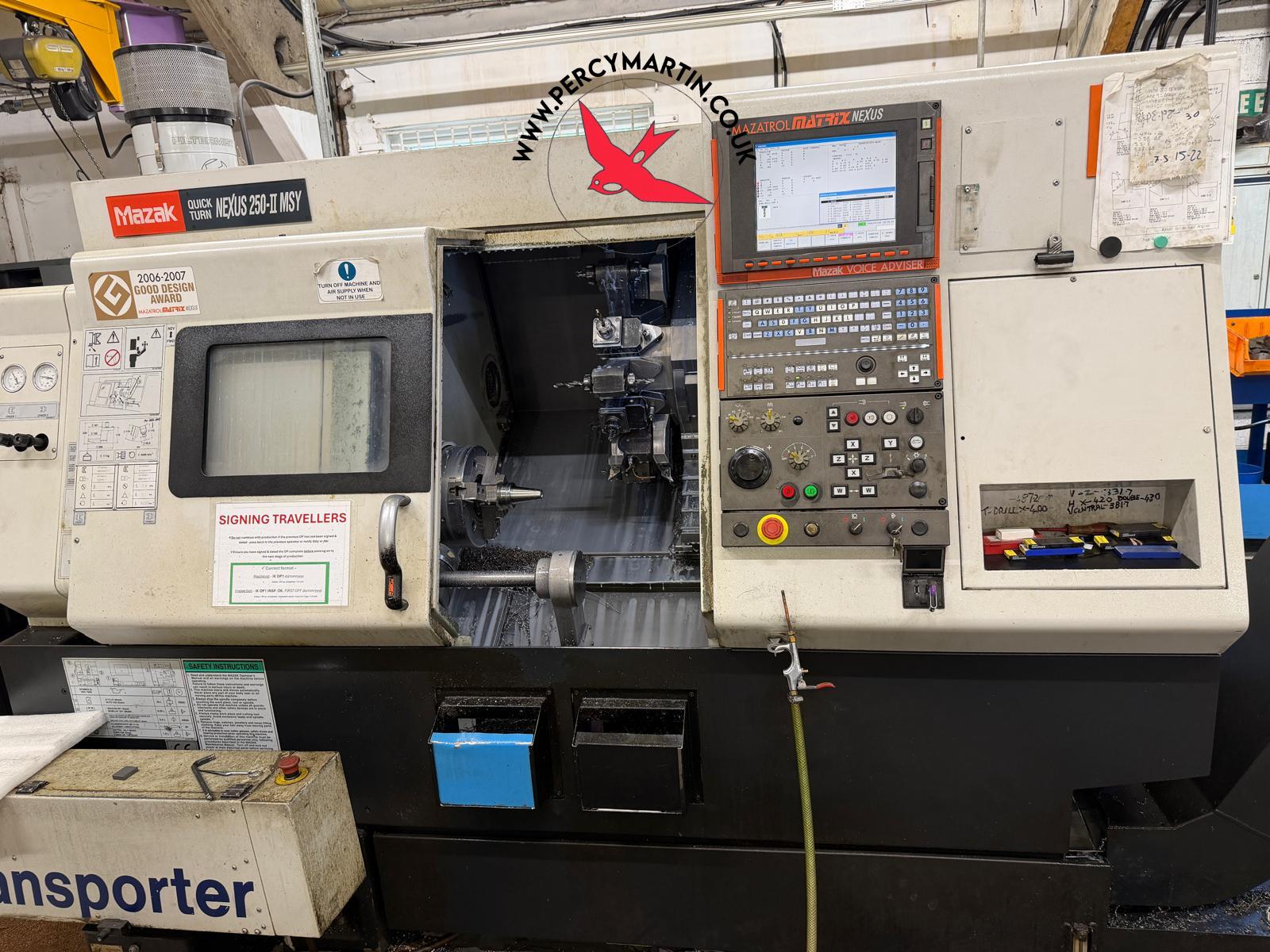

Mazak Quick Turn Nexus 250-II MSY 2007

Key Features

Type:

CNC Lathes with Milling

Model:

Quick Turn Nexus 250-II MSY

Make:

Mazak

Year:

2007

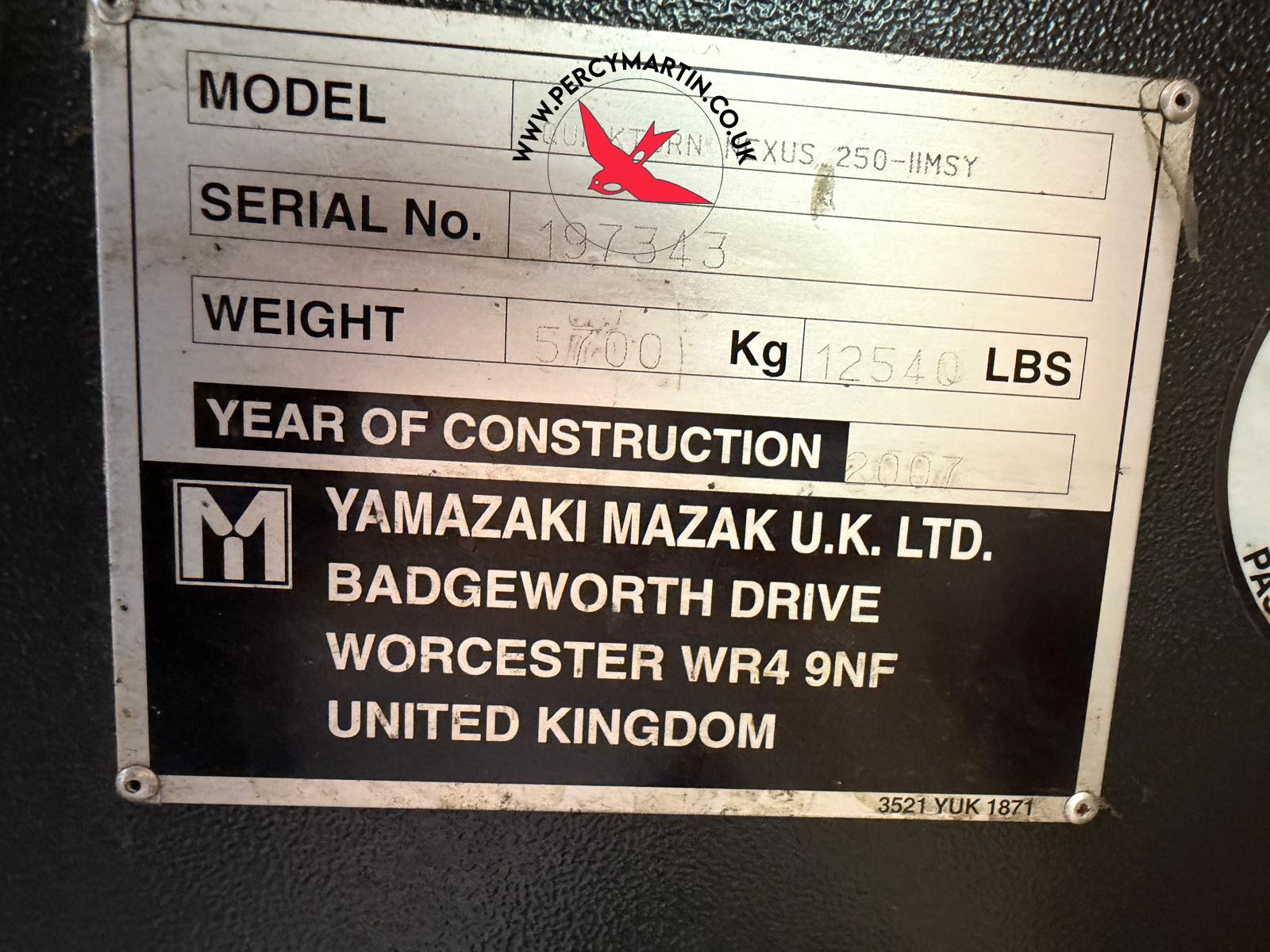

Serial No

197343

Price

£POA

Our Reference

Location

Leicester

Mazak Quick Turn Nexus 250-II MSY 2007

Specifications

Bar Capacity

74mm

C axis

0.0001 degree

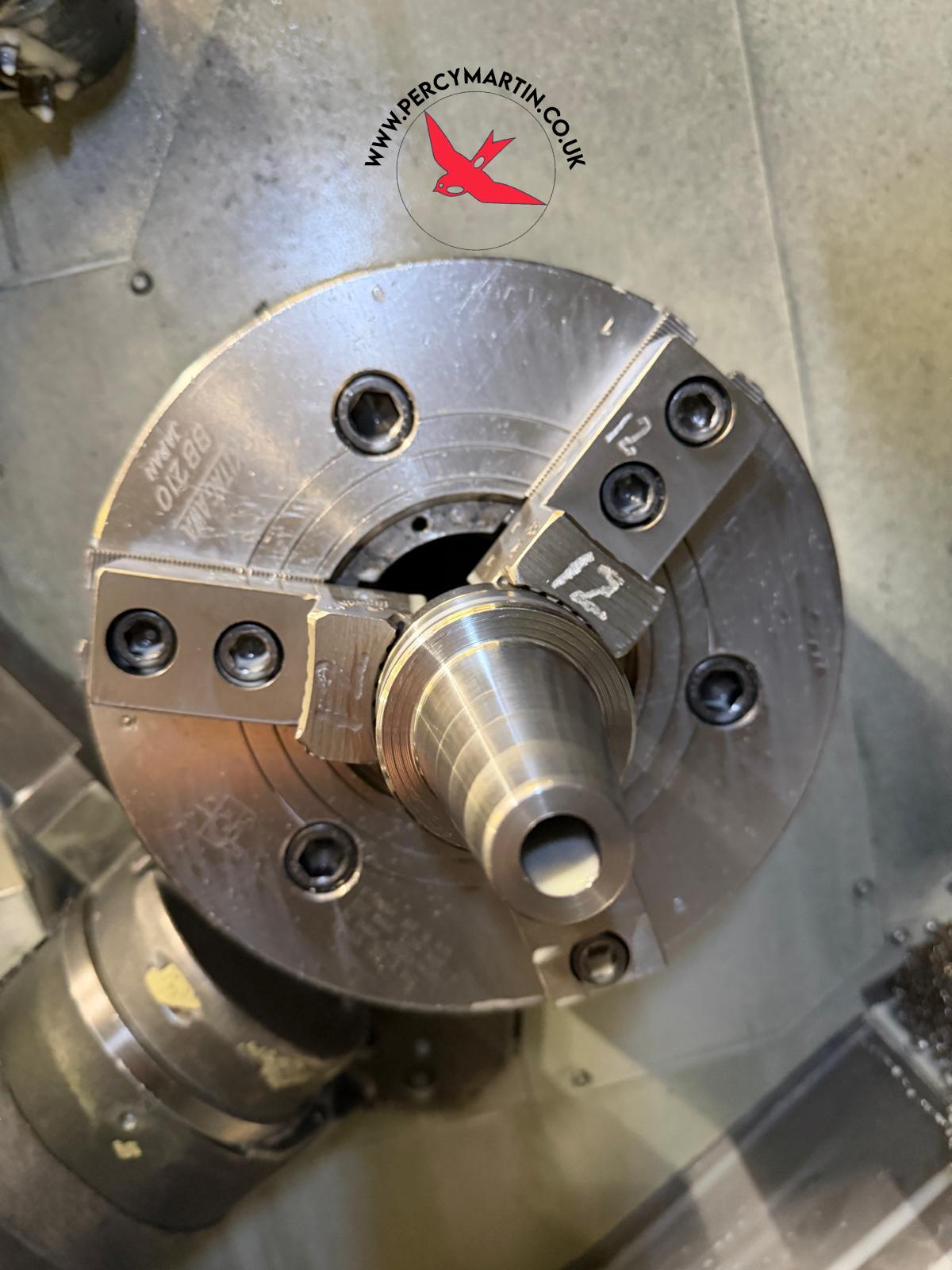

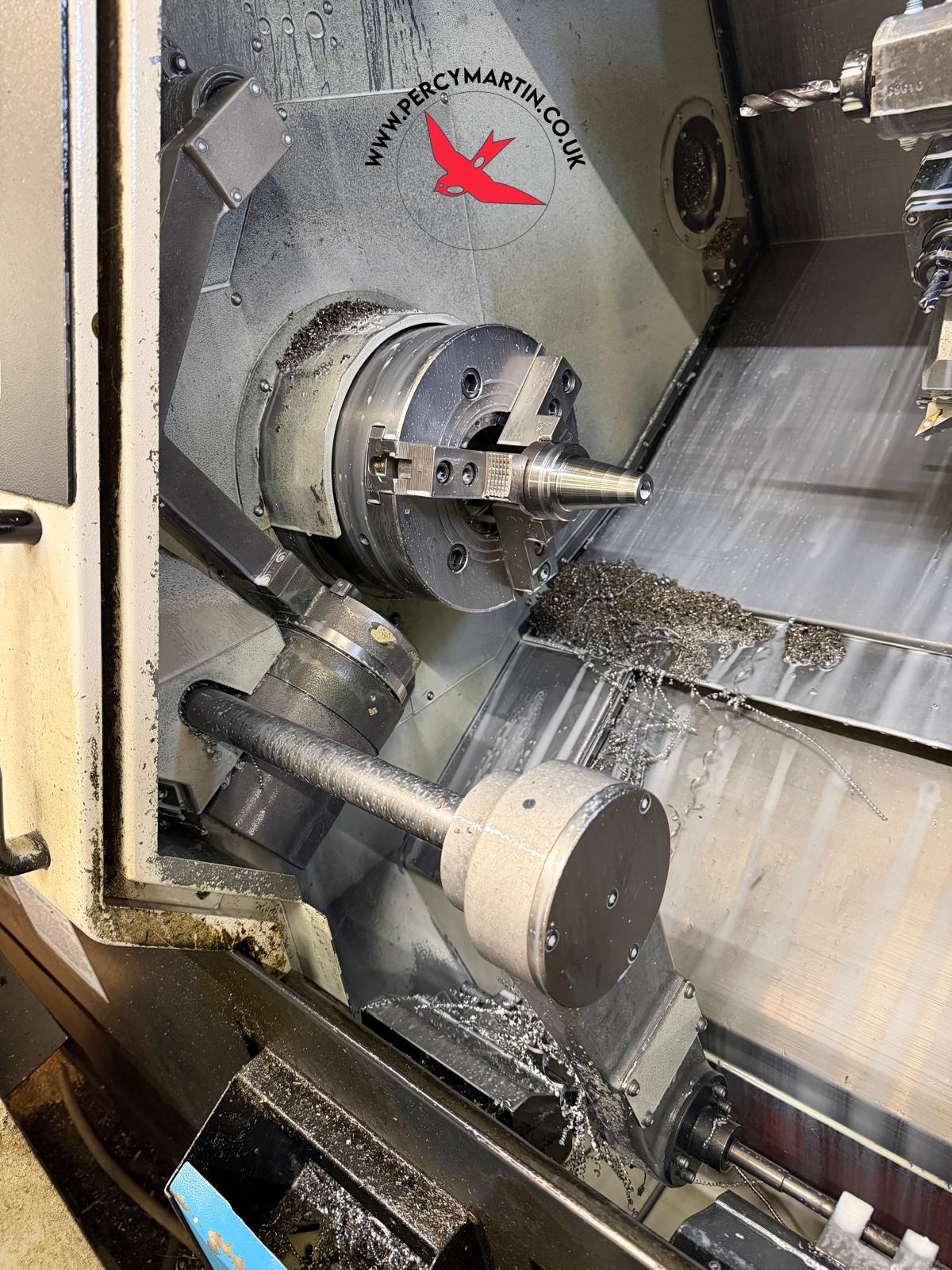

Chuck Size

10" (250mm)

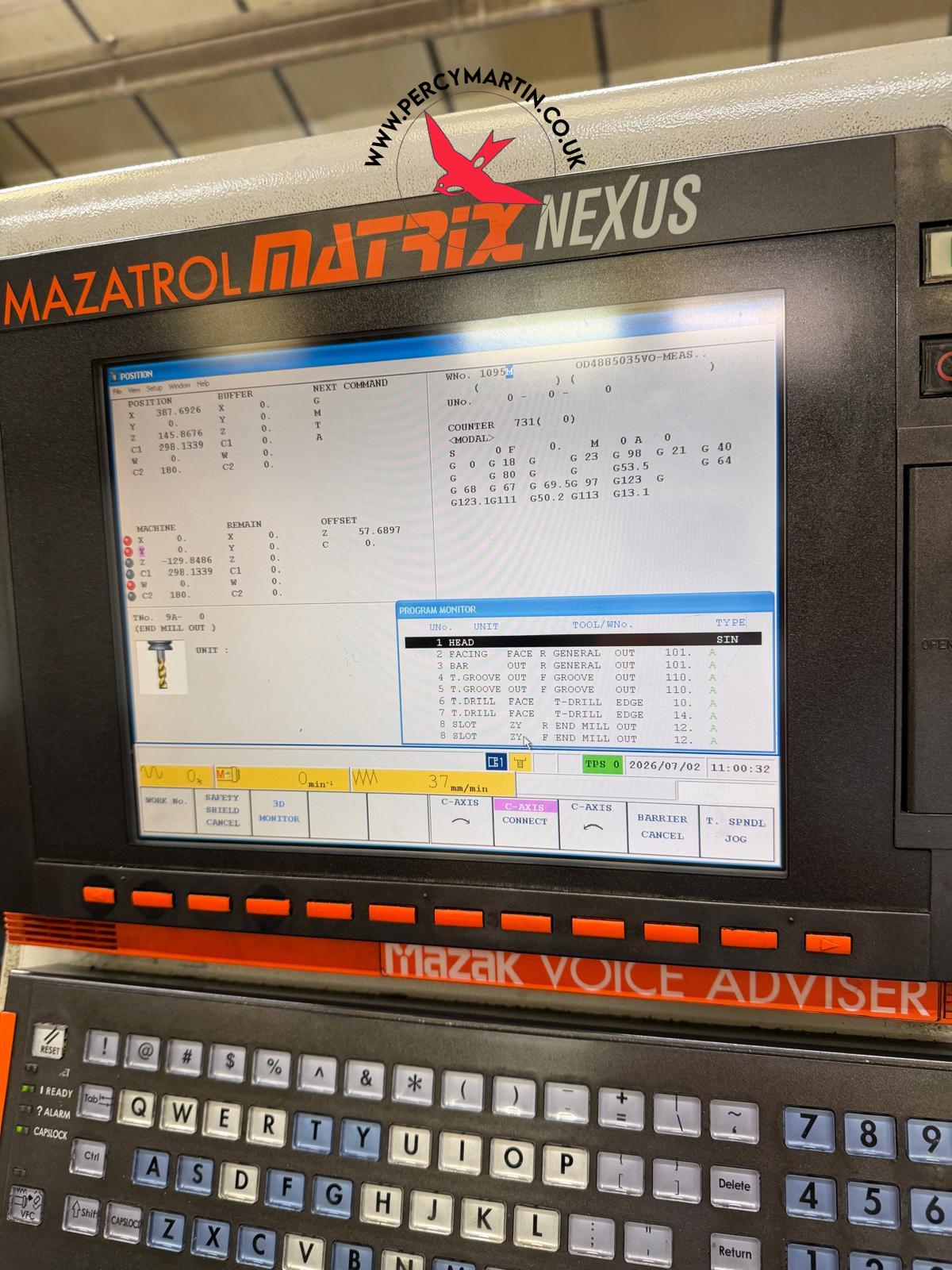

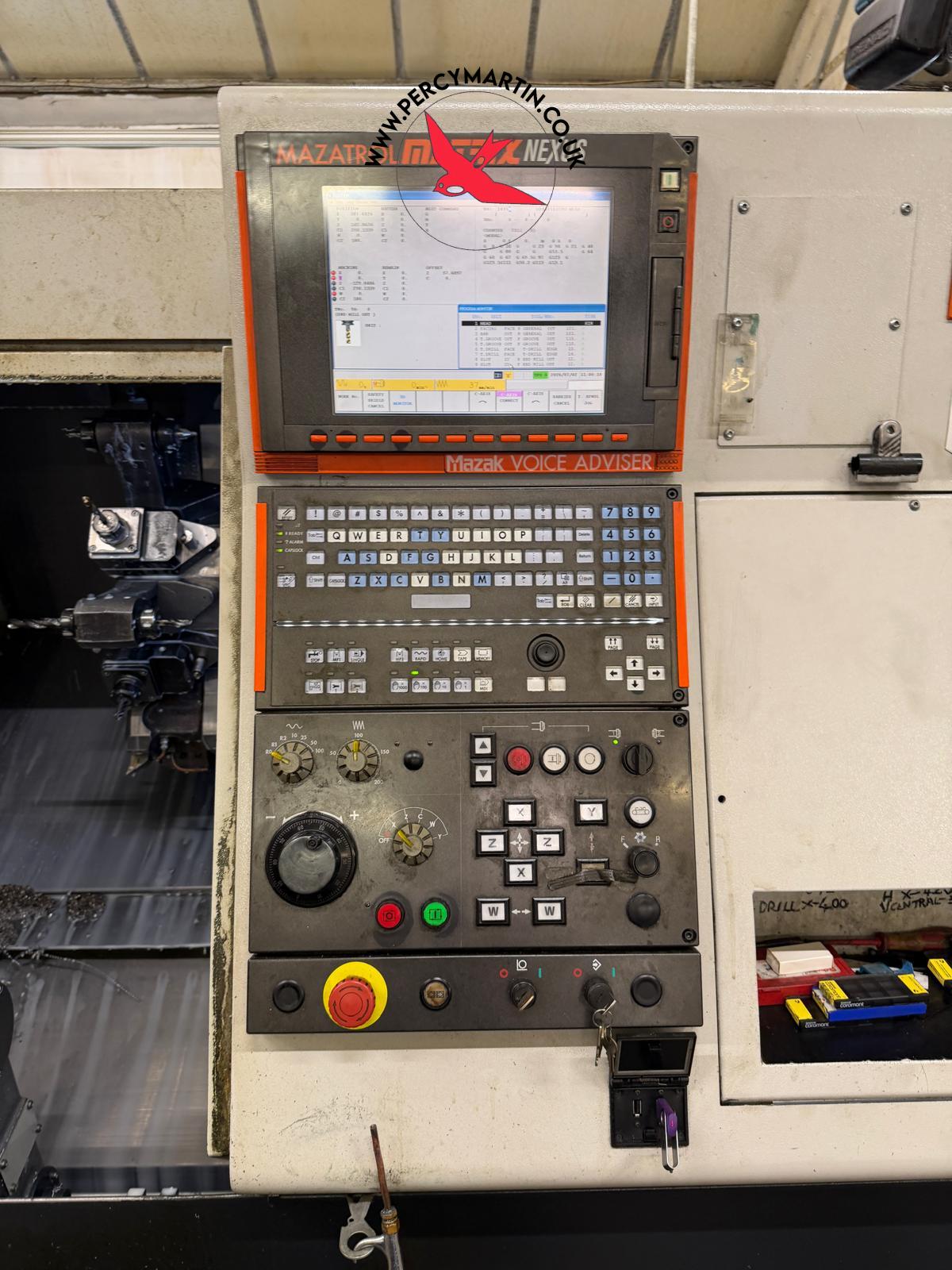

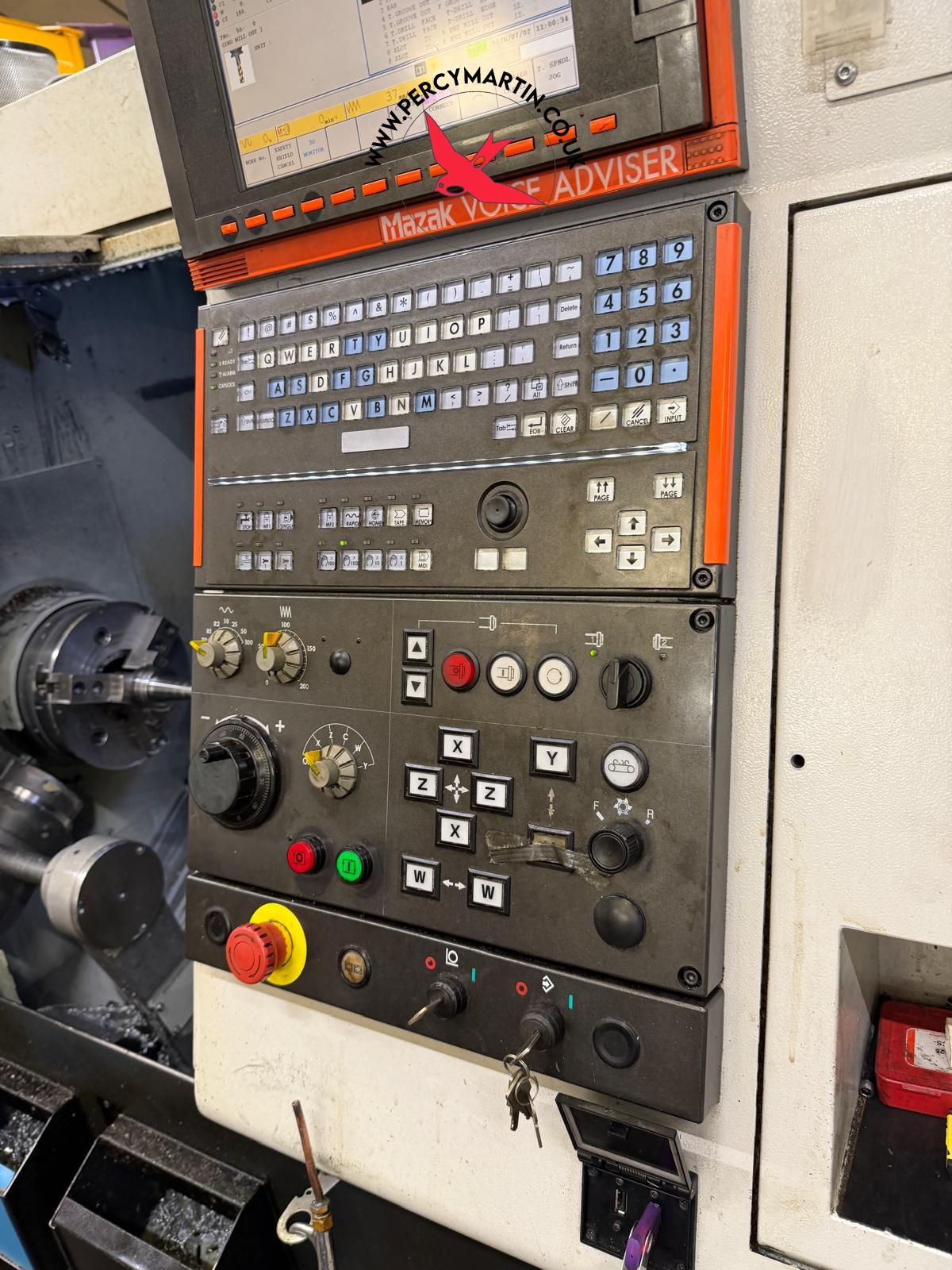

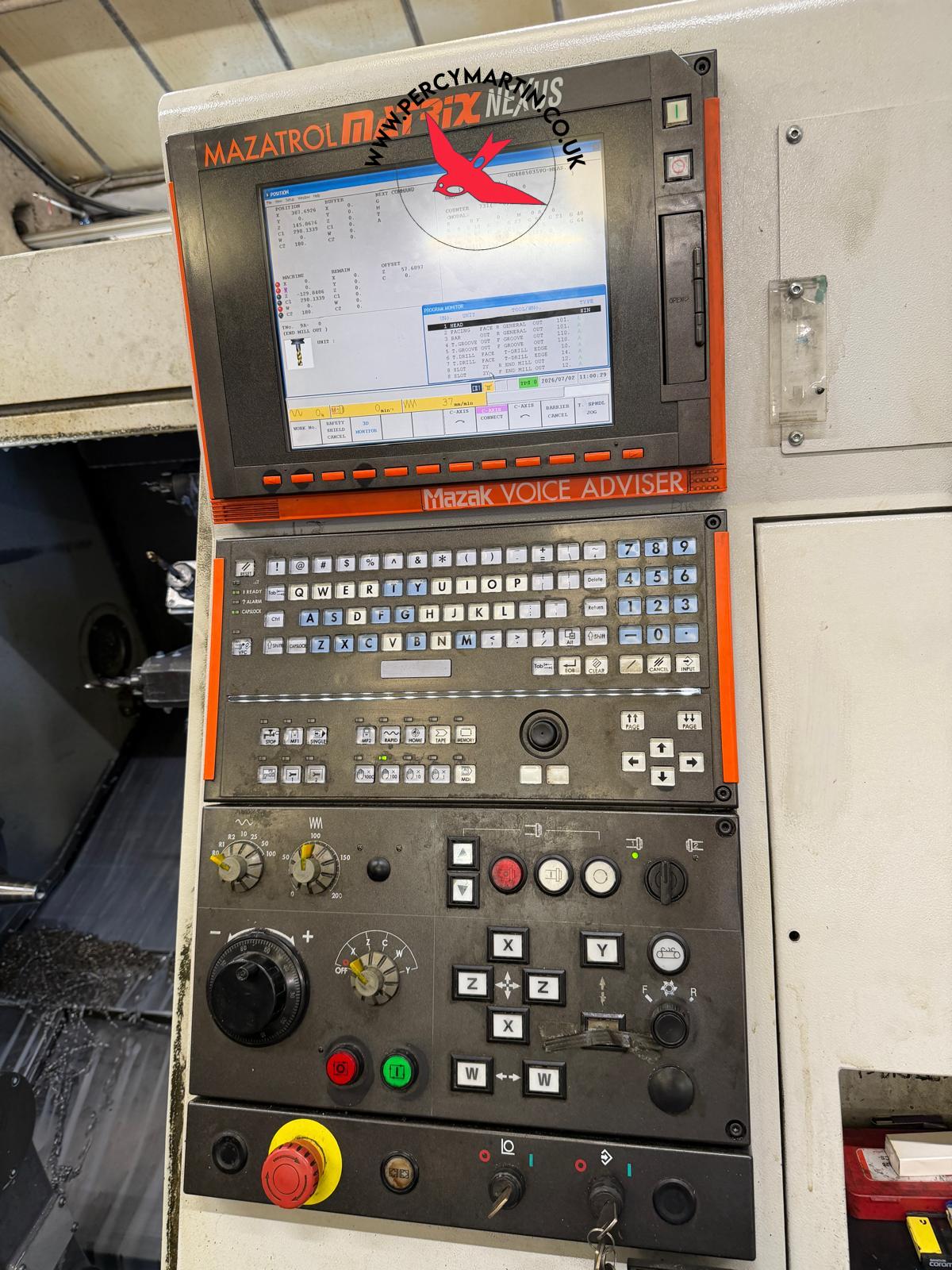

Control

MAZATROL MATRIX NEXUS

Machine Dimensions

2850 x 1900 x 2000mm

Machine Weight

5700kg

Maximum Cutting Diameter

380mm

Maximum Cutting Length

508mm

Milling Motor Power

5.5kW

Milling RPM

4500rpm

Spindle Motor Power

35/26kW

Spindle Speed

4000rpm

Sub Spindle Motor Power

15/11kW

Sub Spindle Speed

6000rpm

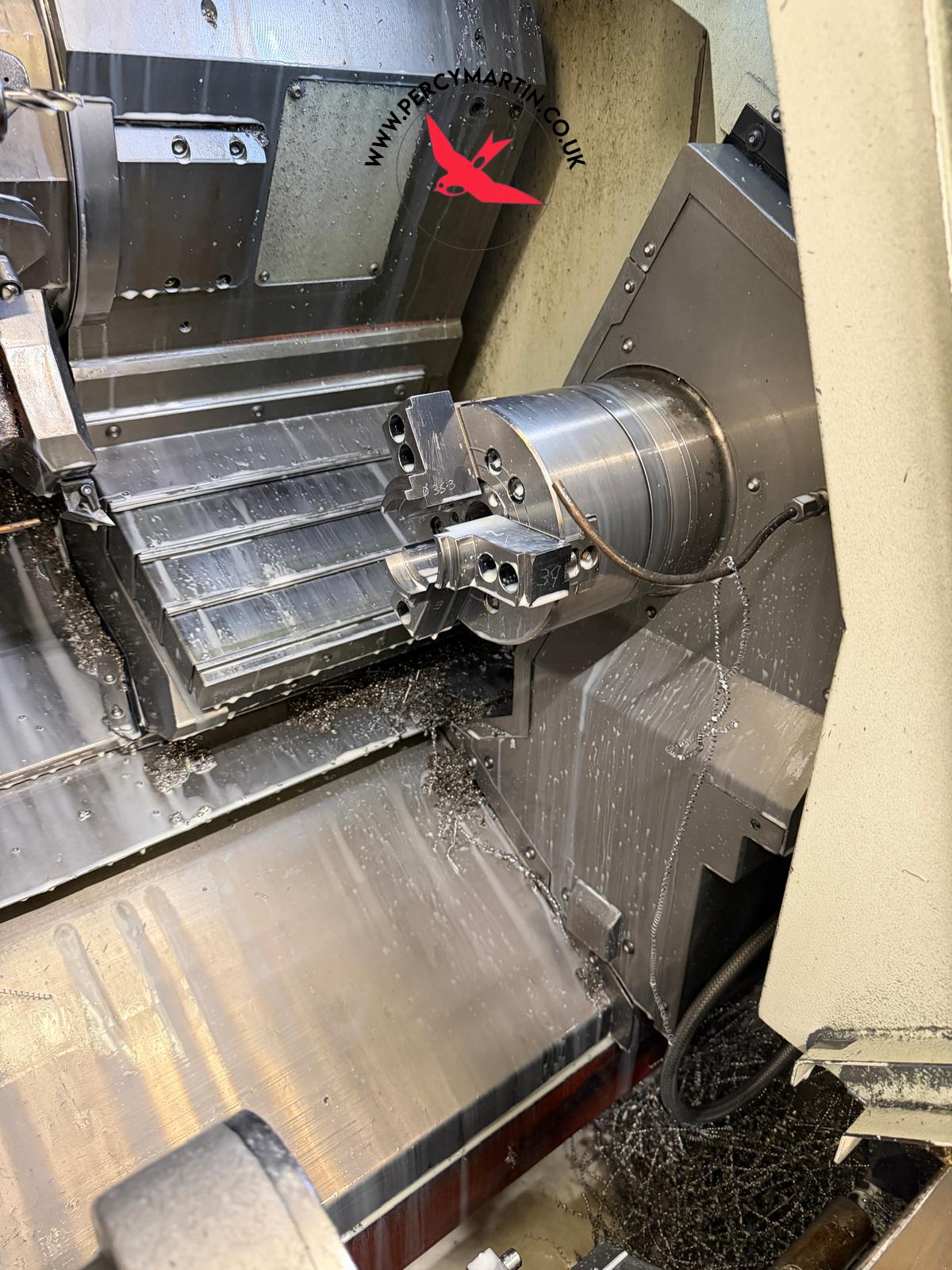

Sub Spindle Stroke

585mm

Swing

675mm

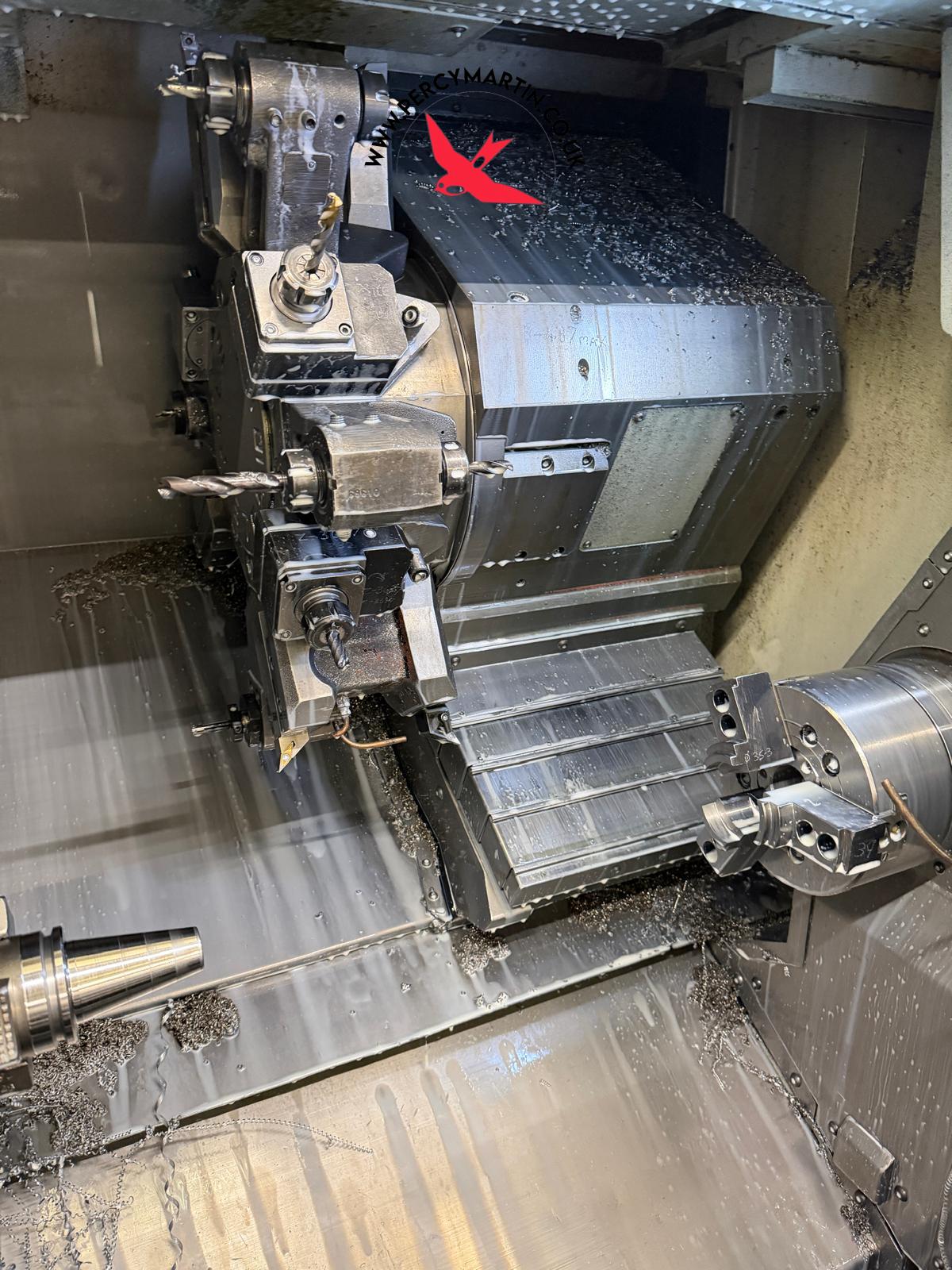

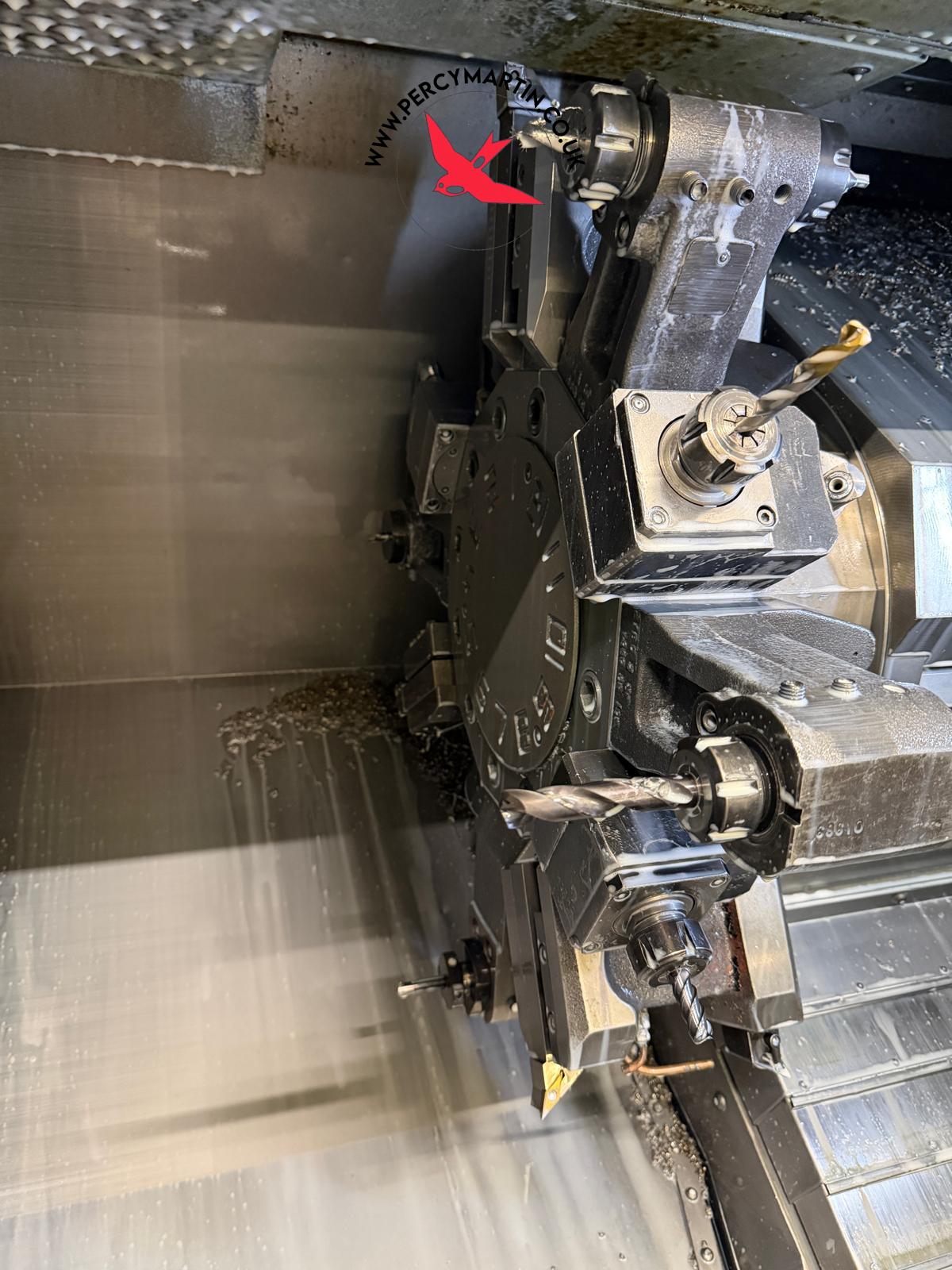

Turret Positions

12 Station

X axis Travel

230mm

Y axis Travel

+/-51mm

Z axis Travel

575mm
