CNC Lathes with Milling

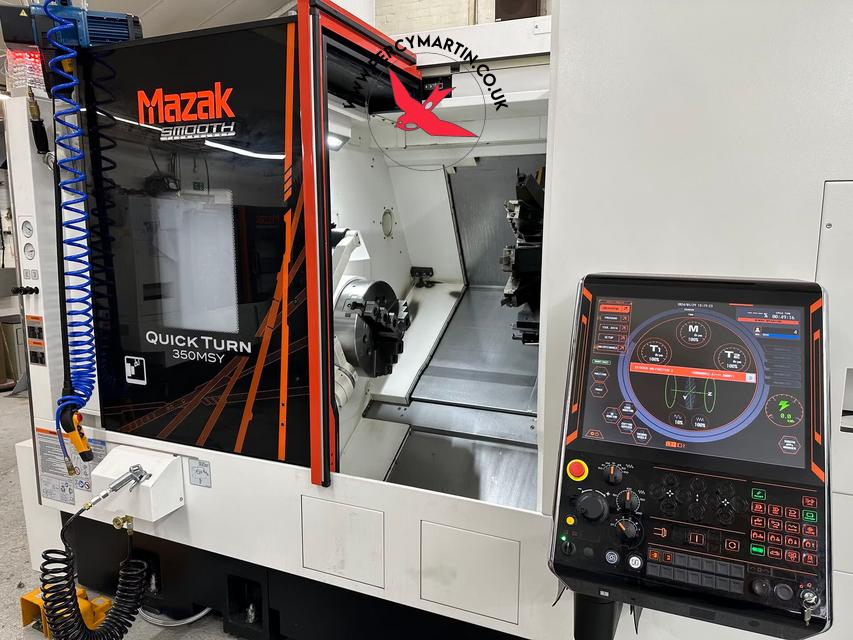

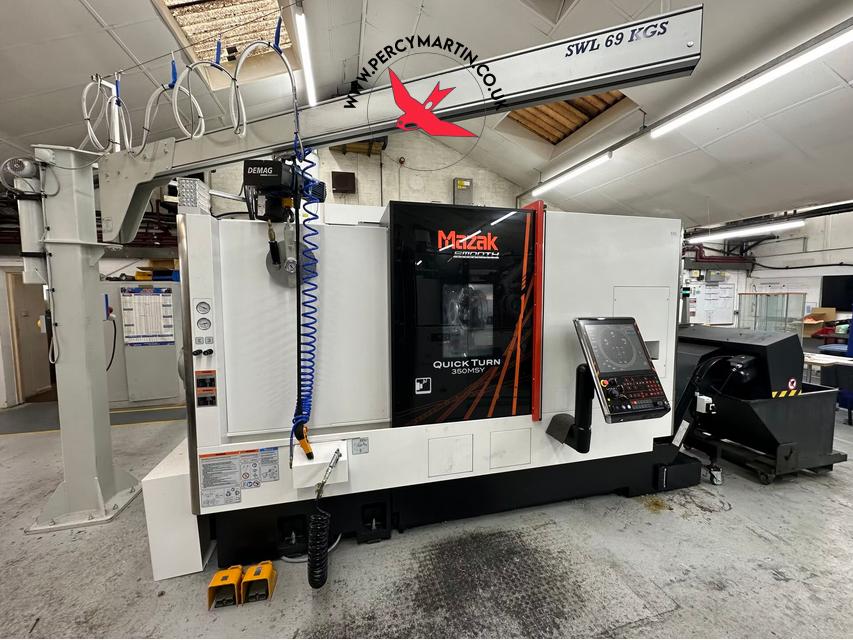

Mazak Quick Turn 350MSY 2022

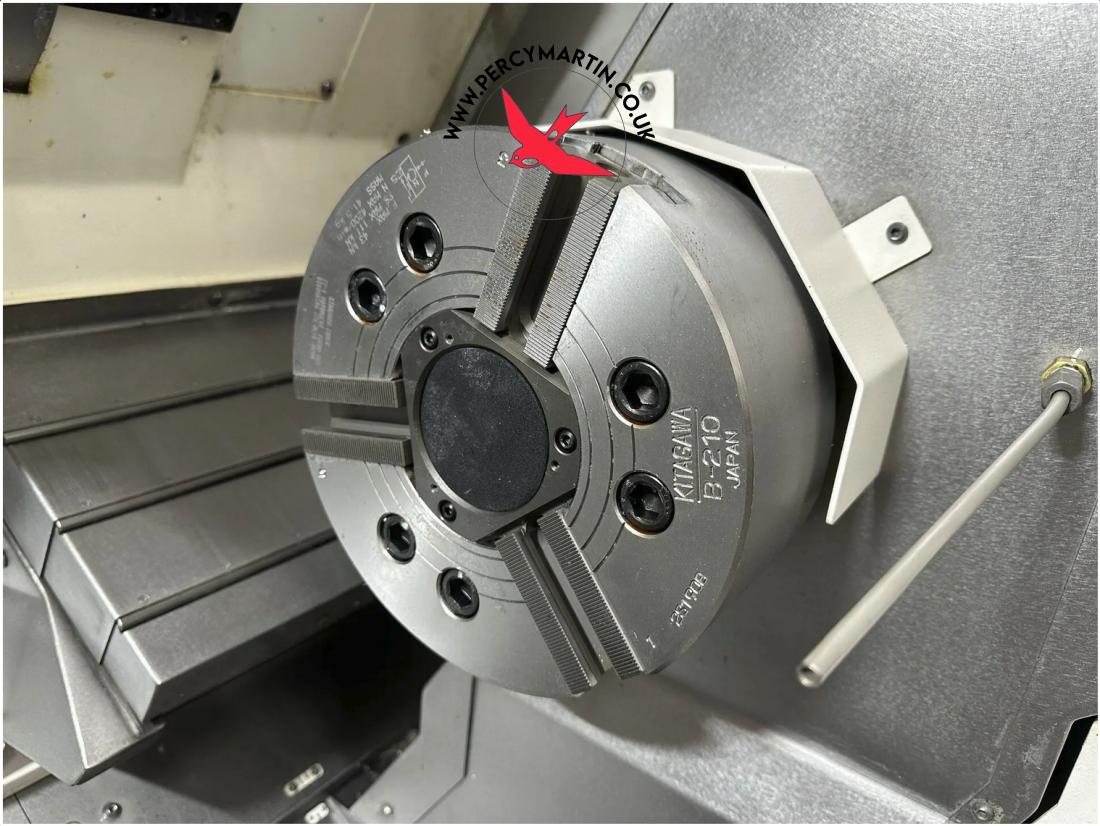

3 Jaw Chuck , C axis & Milling , C axis on Sub Spindle , Coolant , Interlocked guards , Low Volt Light , Manuals , Sub Spindle , Swarf Conveyor , Tool setter , Tooling , Y-axis
Mazak Quick Turn 350MSY 2022
Key Features
Type:
CNC Lathes with Milling
Model:
Quick Turn 350MSY
Make:
Mazak
Year:
2022

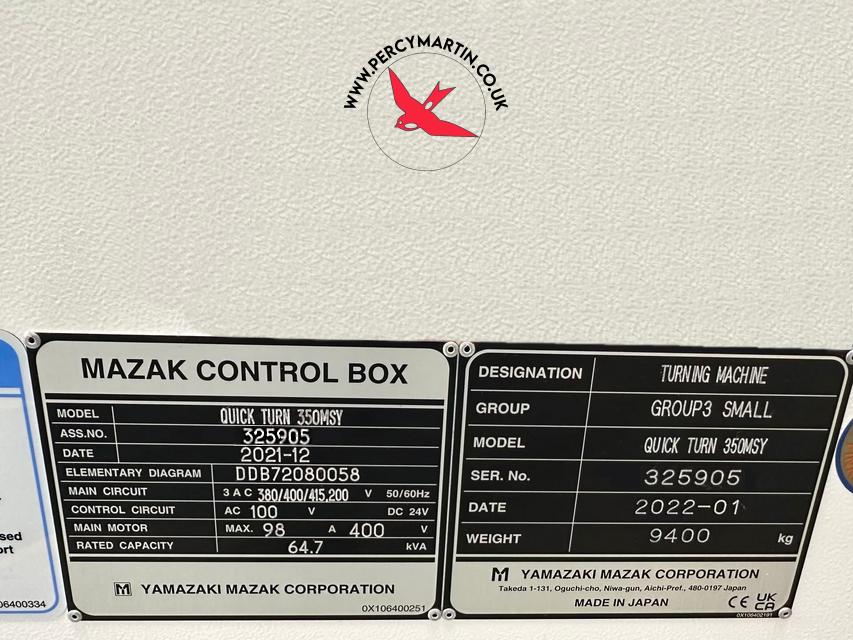

Serial No
325905
Price
£POA
Our Reference
PM9544
Location
Leicester
Mazak Quick Turn 350MSY 2022
Specifications
Bar Capacity
102mm
C axis
0.0001 degree

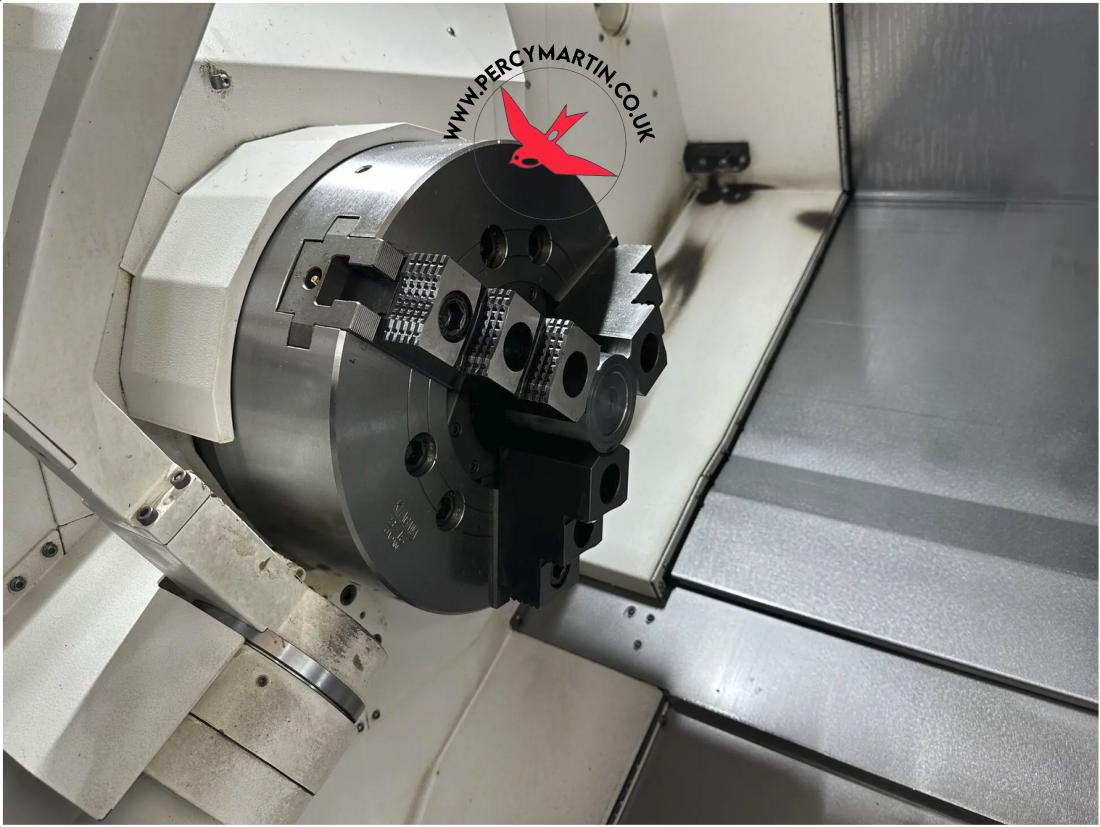

Chuck Size
15"
Control
MAZATROL SMOOTH G
Machine Dimensions
3700 x 3000 x 2300mm
Machine Weight
9400kg
Maximum Cutting Diameter
420mm
Maximum Cutting Length
603mm
Milling Motor Power
8kW
Milling RPM
6000rpm
Spindle Motor Power
30kW
Spindle Speed
4000rpm
Sub Spindle C axis
0.0001 degree

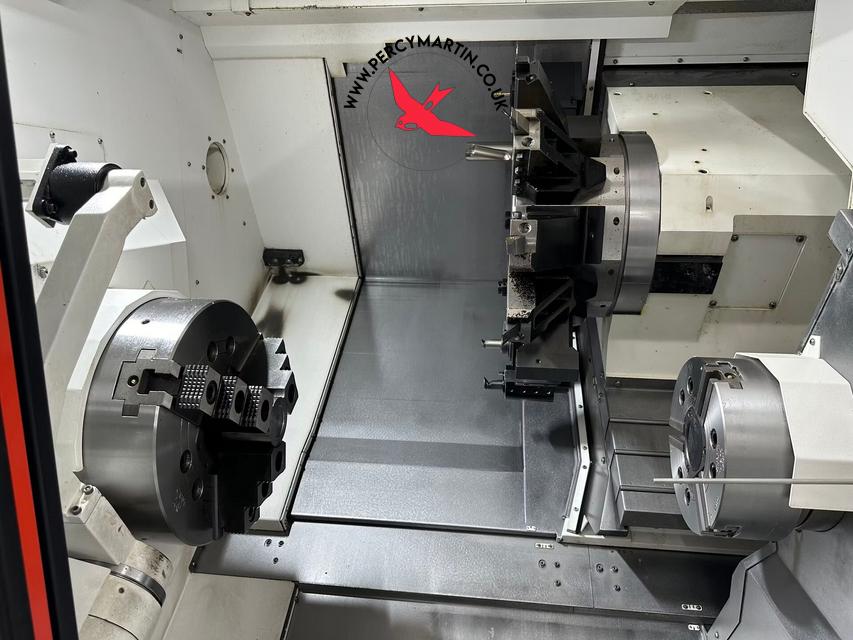

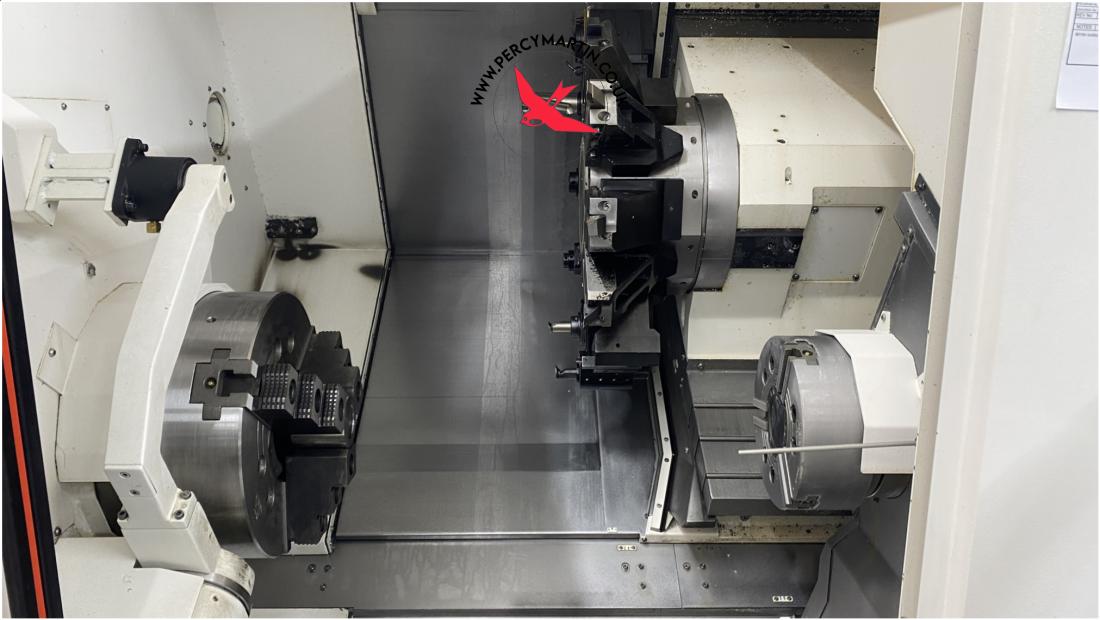

Sub Spindle Chuck Size
10"
Sub Spindle Motor
26kW
Sub Spindle Speed
4000rpm
Sub Spindle Stroke
650mm
Swing
750mm

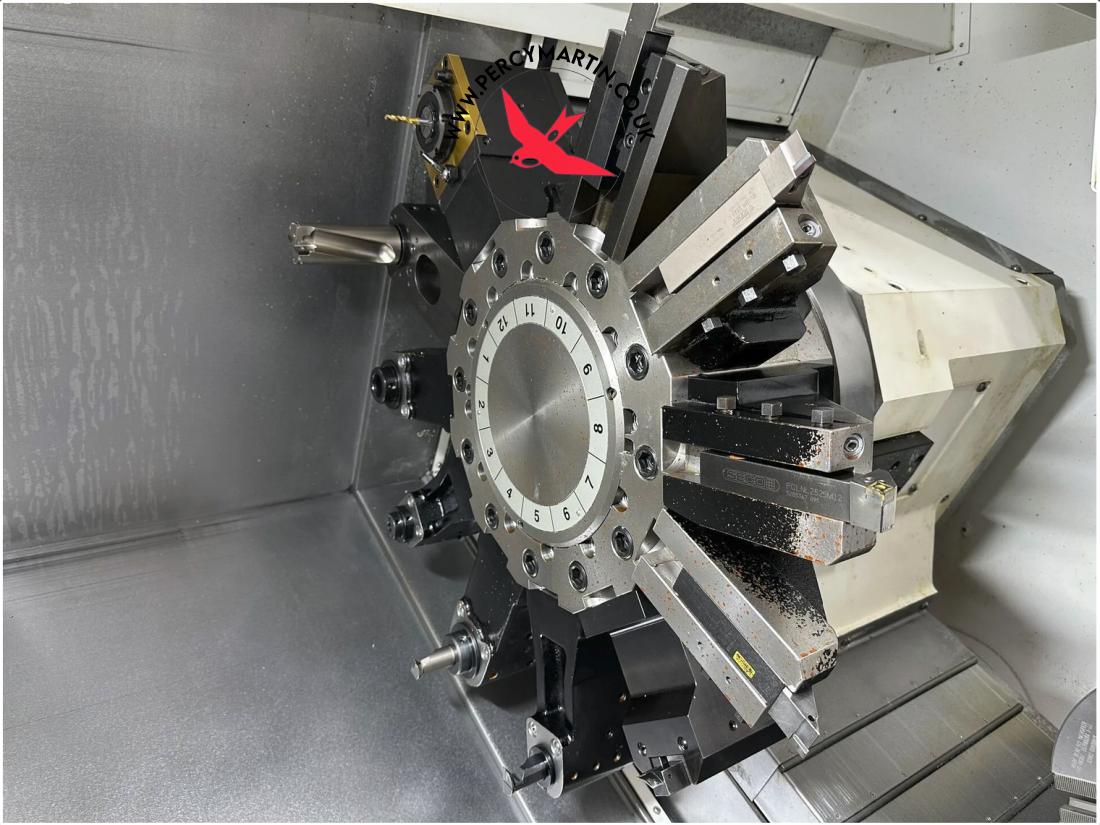

Turret Positions
12 Station
X axis Travel
280mm
Y axis Travel
+/- 75mm
Z axis Travel
670mm
