CNC Lathes with Milling

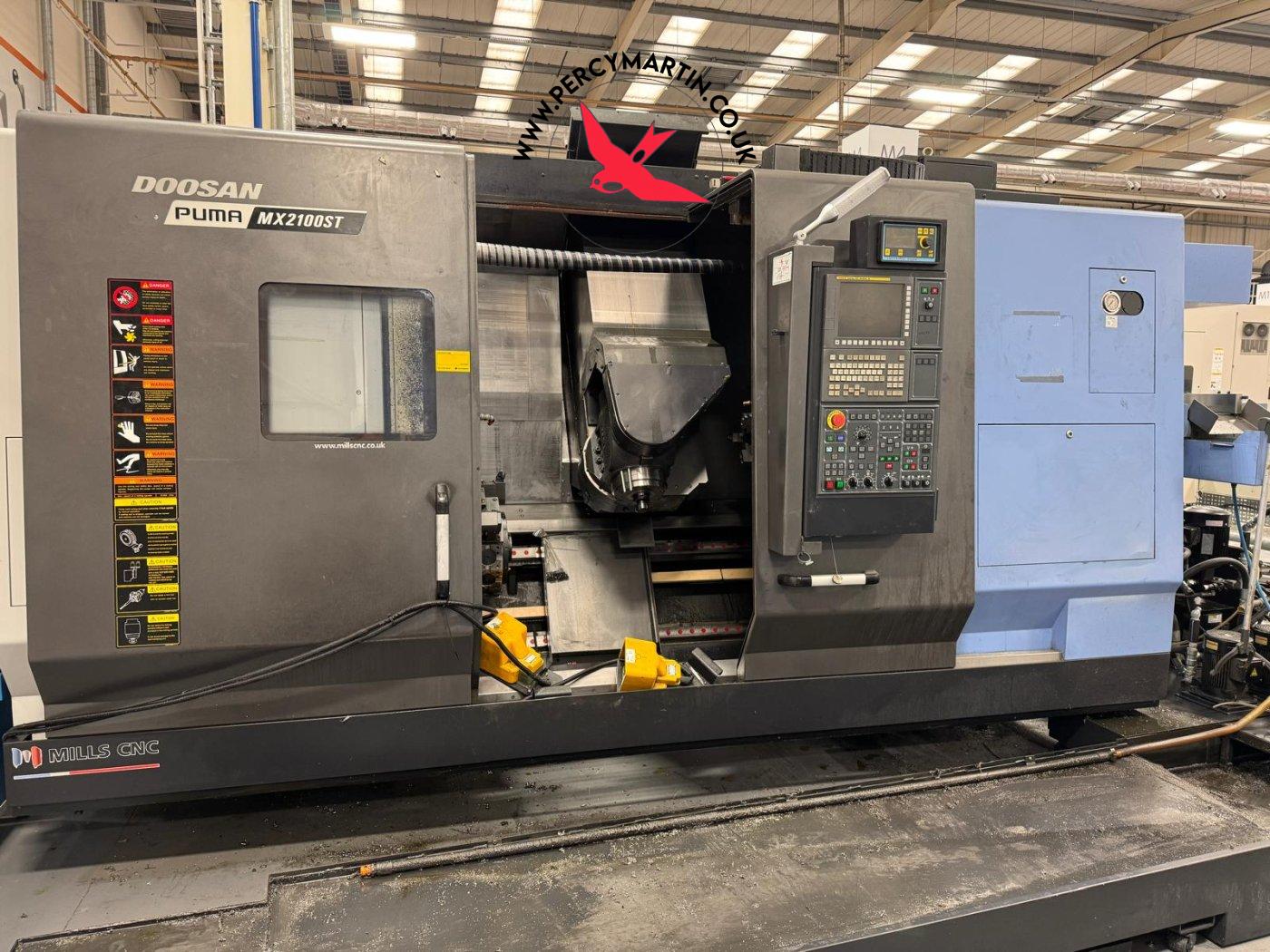

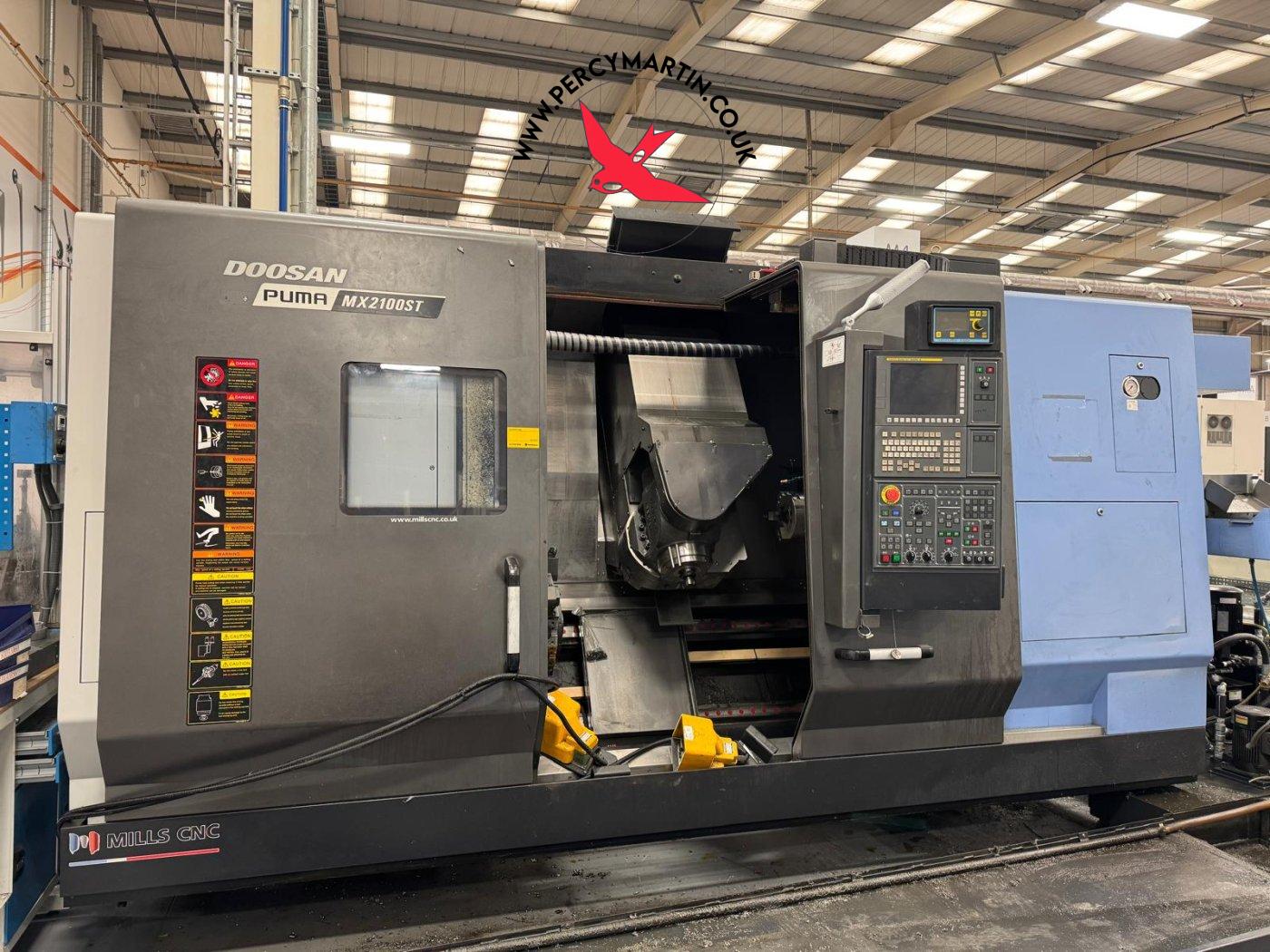

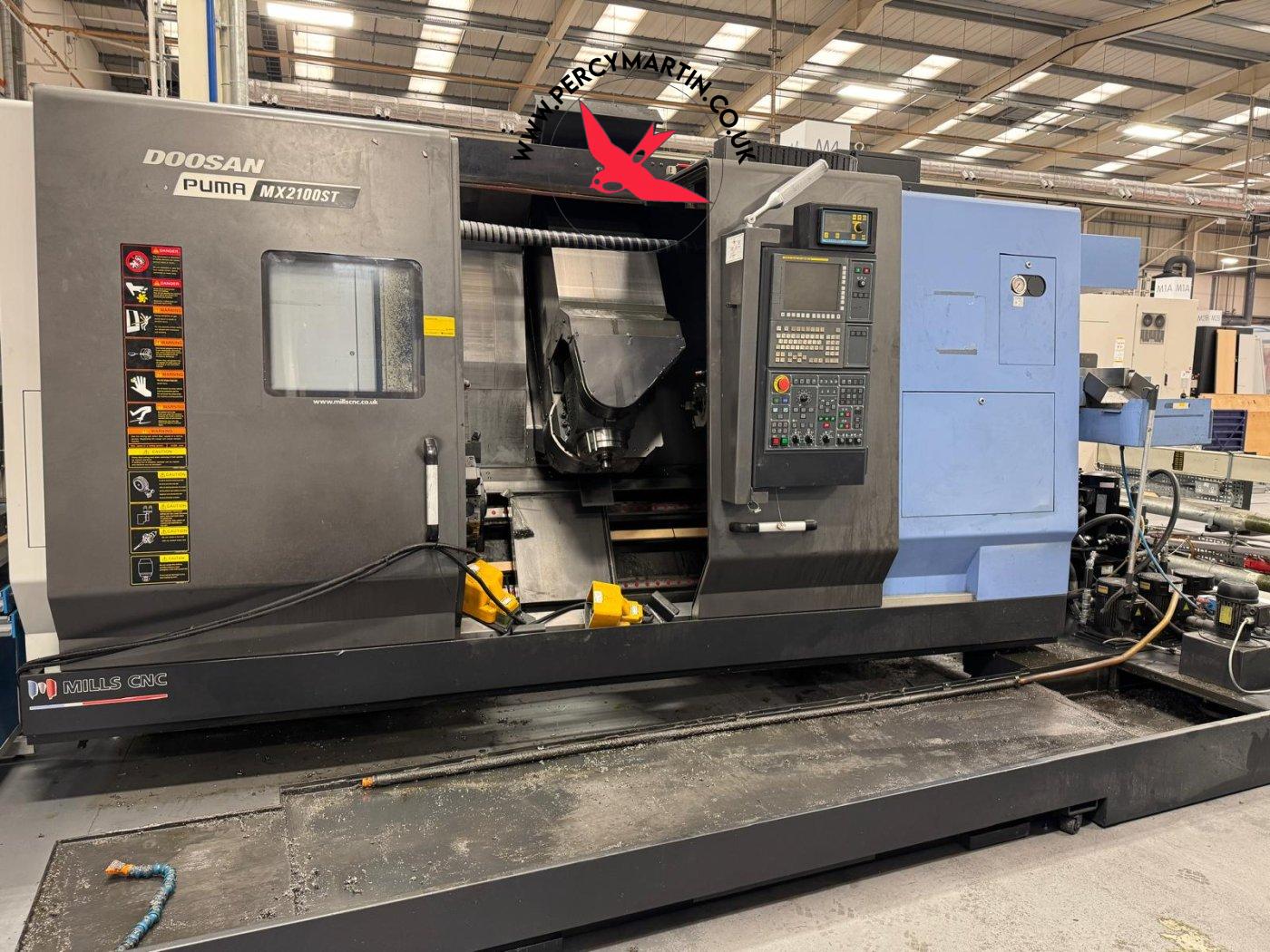

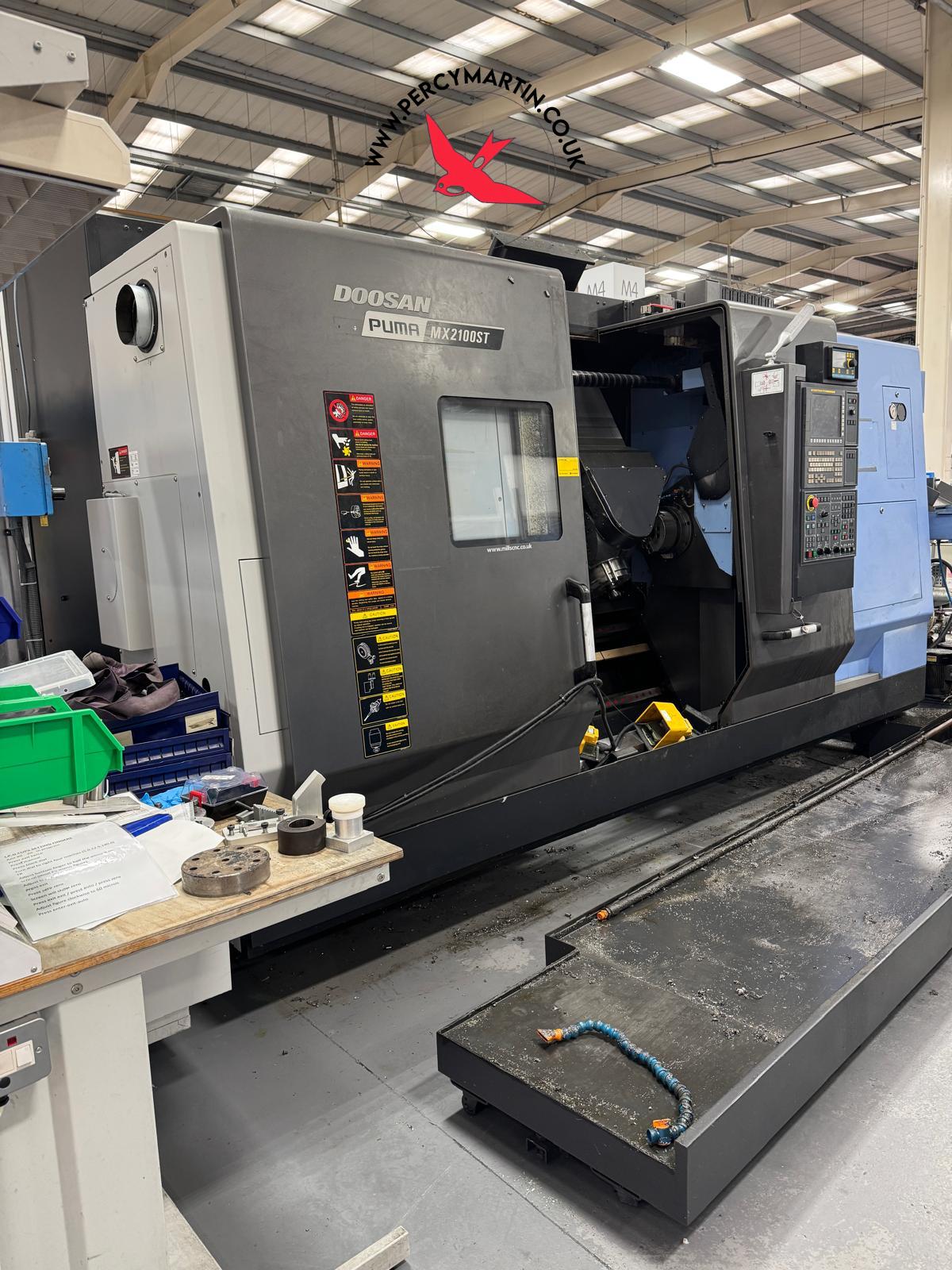

Doosan Puma MX2100ST 2018
3 Jaw Chuck , B axis , C axis & Milling , C axis on Sub Spindle , Collet Chuck , Coolant , Interlocked guards , Low Volt Light , Lower Turret , Manuals , Remote Hand Wheel , Sub Spindle , Tool setter , Tooling , Y-axis
Doosan Puma MX2100ST 2018
Key Features
Type:
CNC Lathes with Milling
Model:
Puma MX2100ST
Make:
Doosan
Year:
2018

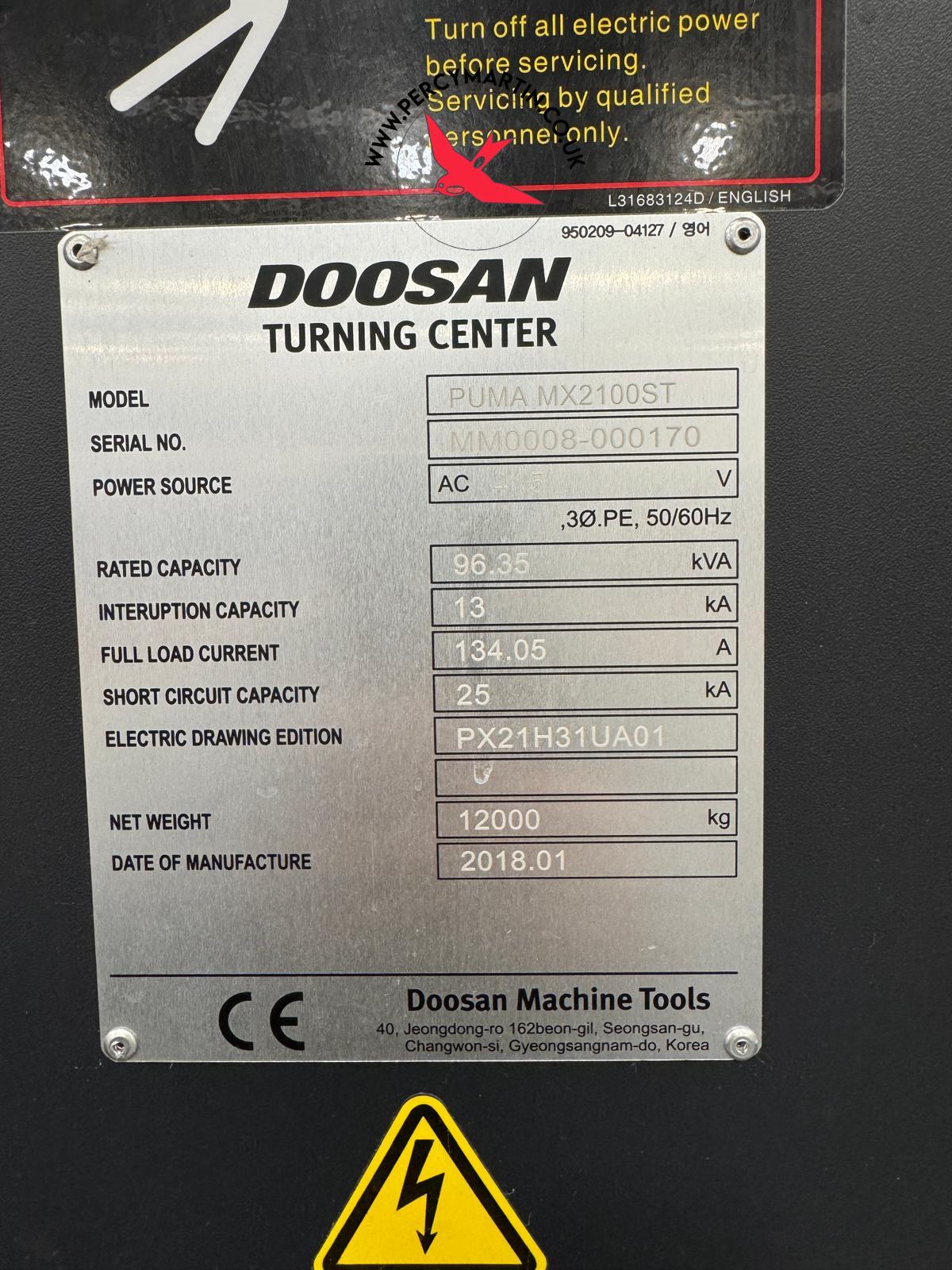

Serial No
MM0008-000170
Price
£POA
Our Reference
PM9464
Location
Leicester
Doosan Puma MX2100ST 2018
Specifications
A axis
1050mm
B axis Travel
+/-120 degrees (0.001 degree)
Bar Capacity
65mm
C axis
0.001 degree
Chuck Size
200mm

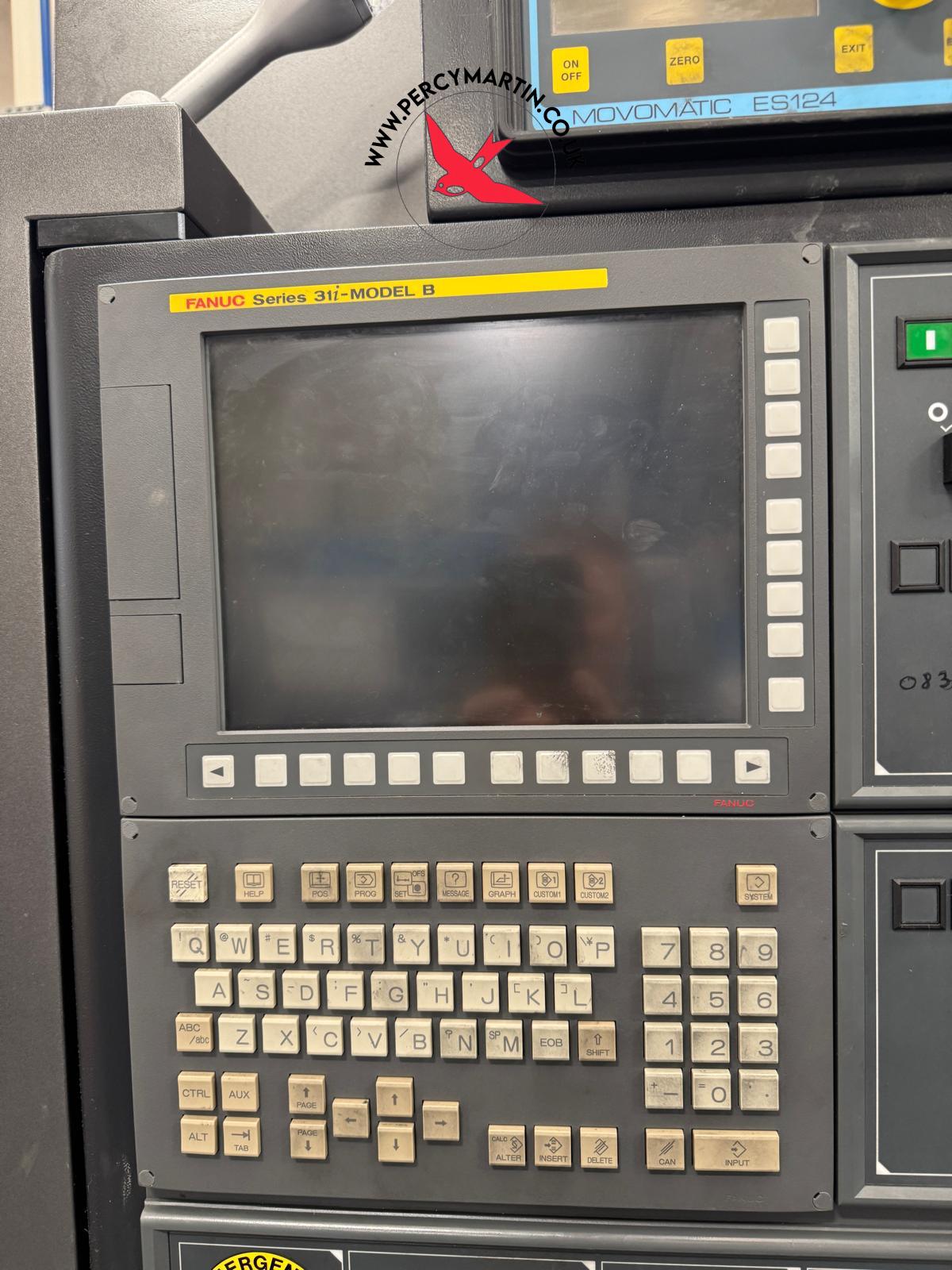

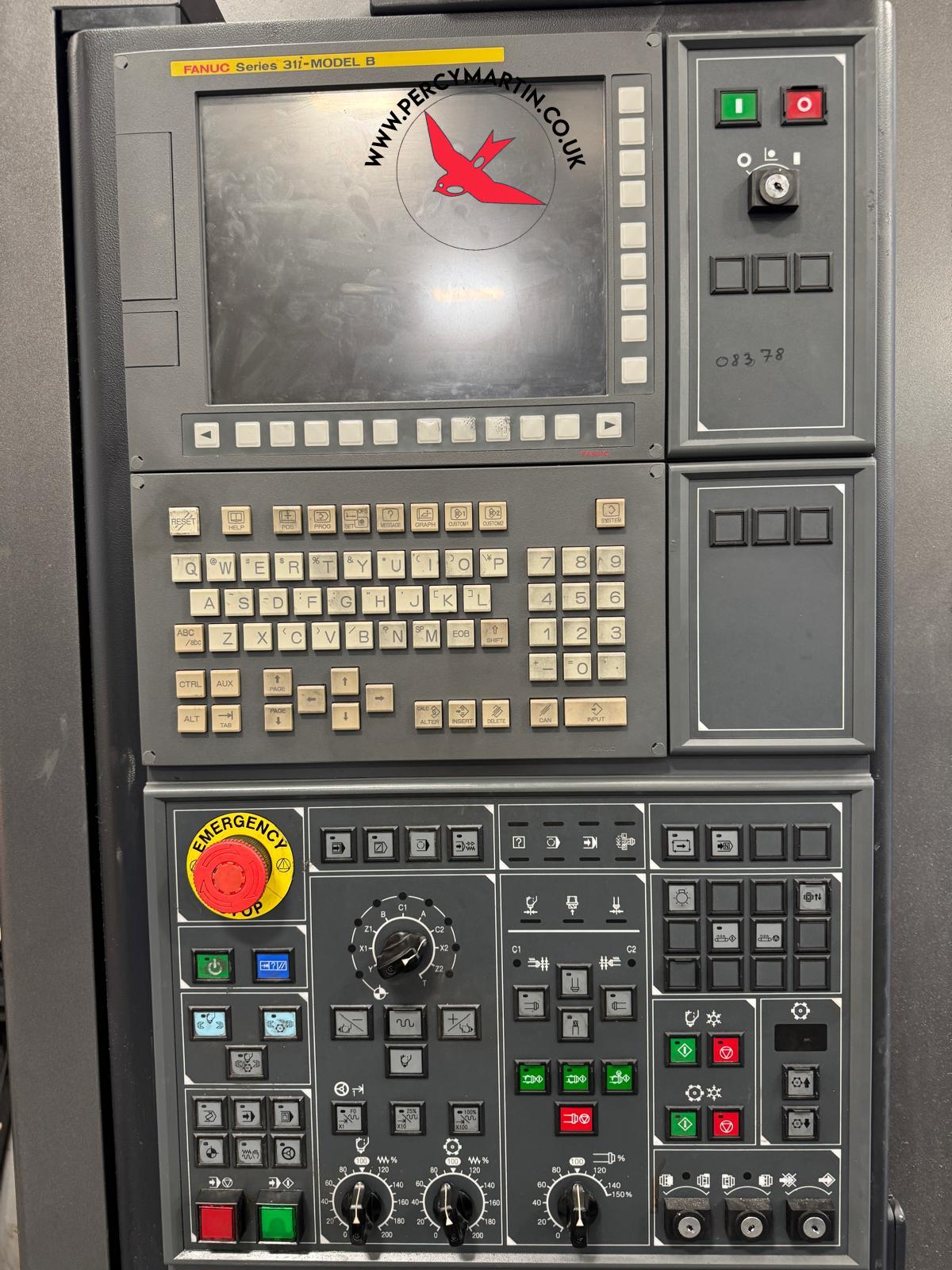

Control

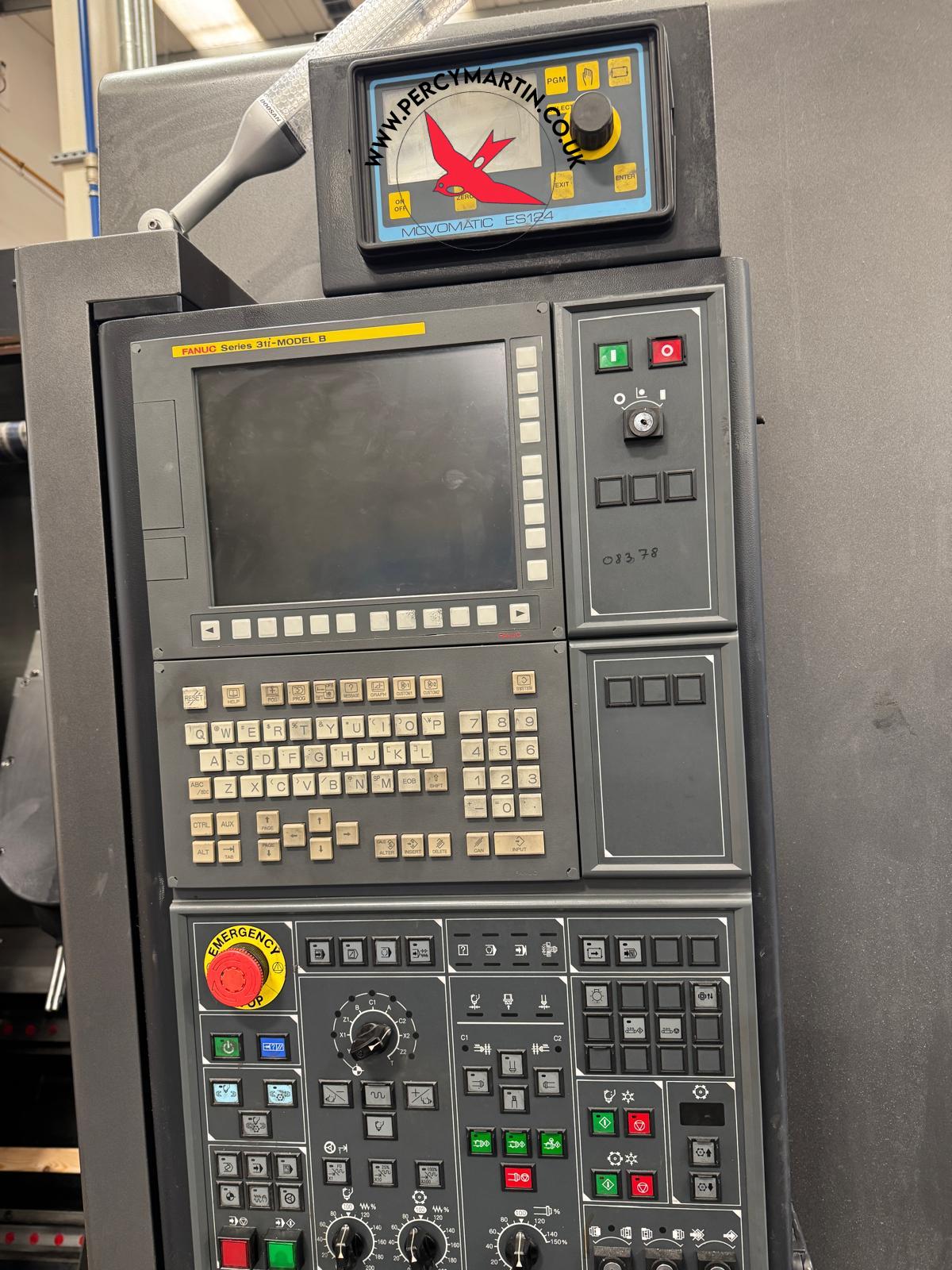

FANUC 32i TA
Machine Dimensions
5386 x 2525 x 2805mm
Machine Weight
12000kg
Maximum Cutting Diameter
540mm
Maximum Cutting Length
1020mm
Maximum Tool Length
300mm
Maximum Tool Weight
90mm (120mm without Adjacent Tools)
Milling Motor Power
18.5kW (5.5kW Bottom Turret)
Milling RPM
12000rpm (5000rpm Lower Turret)
Number of Axis Controlled
9
Rapid Feedrates
X1,X2,Z1,Z2,Y,A: 36 x 24 x 36 x 36 x 26 x 30m/minute
Spindle Diameter
76mm
Spindle Motor Power
22kW
Spindle Nose
A2-6
Spindle Speed
5000rpm
Sub Spindle Bore
76mm
Sub Spindle C axis
0.001 degree
Sub Spindle Motor
22kW
Sub Spindle Speed
5000rpm
Swing
750mm
Swing over the Cross-slide
650mm

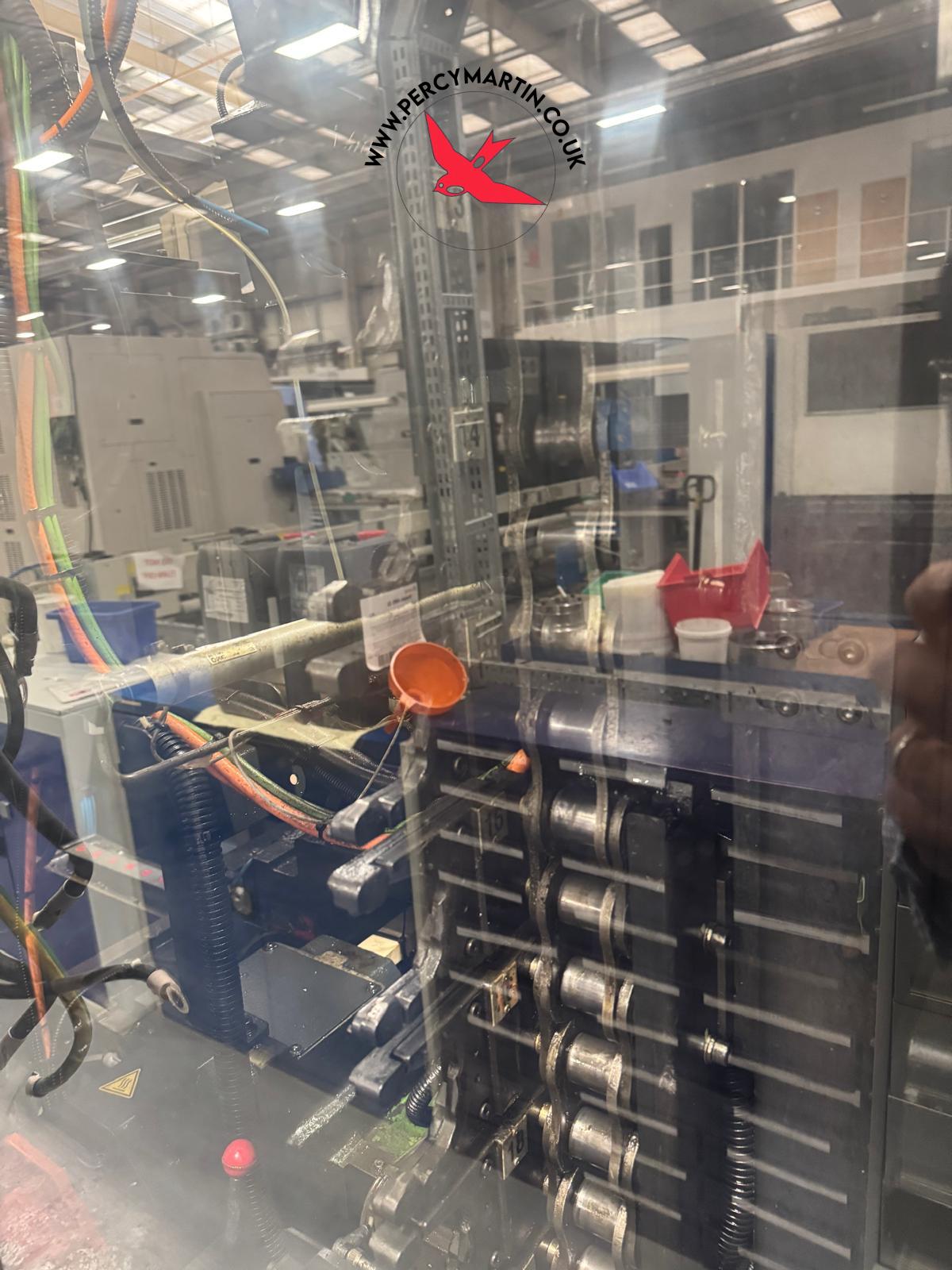

Tool Change Capacity
40 Station
Tool Size
25 x 25mm (Bottom Turret)
Tooling Configuration
CAPTO C6 (Top Turret) BMT55 (Bottom turret)
Turret Positions

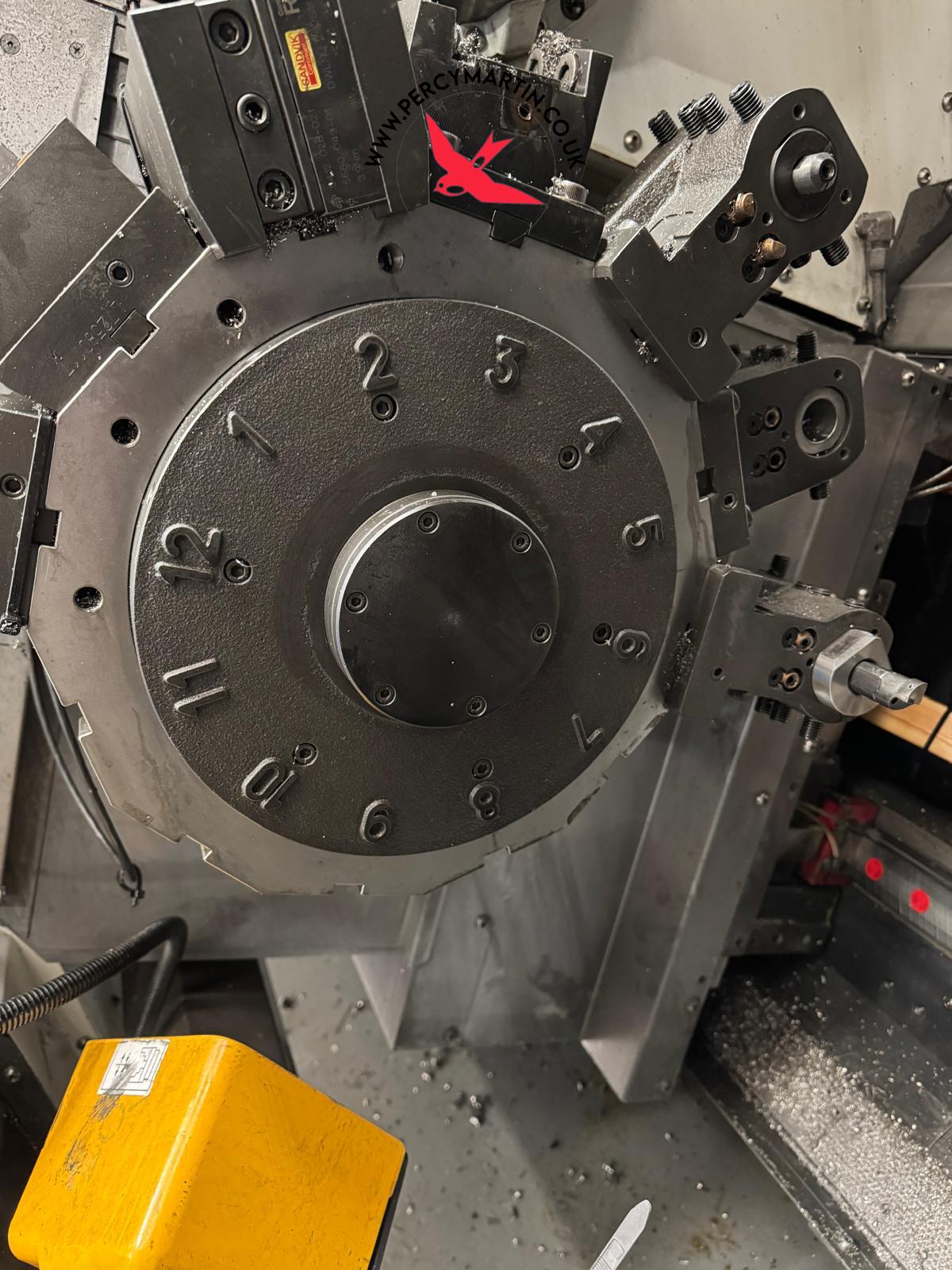

12 Station Upper Turret, 12 Station Lower Turret
X axis Travel
565mm
X2 axis Travel
187mm
Y axis Travel
+/- 85mm
Z axis Travel
1050mm
Z2 axis Travel
1050mm
