CNC Lathes with Milling

Doosan Puma 3100XLY

3 Jaw Chuck , C axis & Milling , Coolant , Interlocked guards , Low Volt Light , Swarf Conveyor , Tailstock , Tool setter , Tooling , Y-axis

Key Features Gallery Specifications More in Stock Register Interest

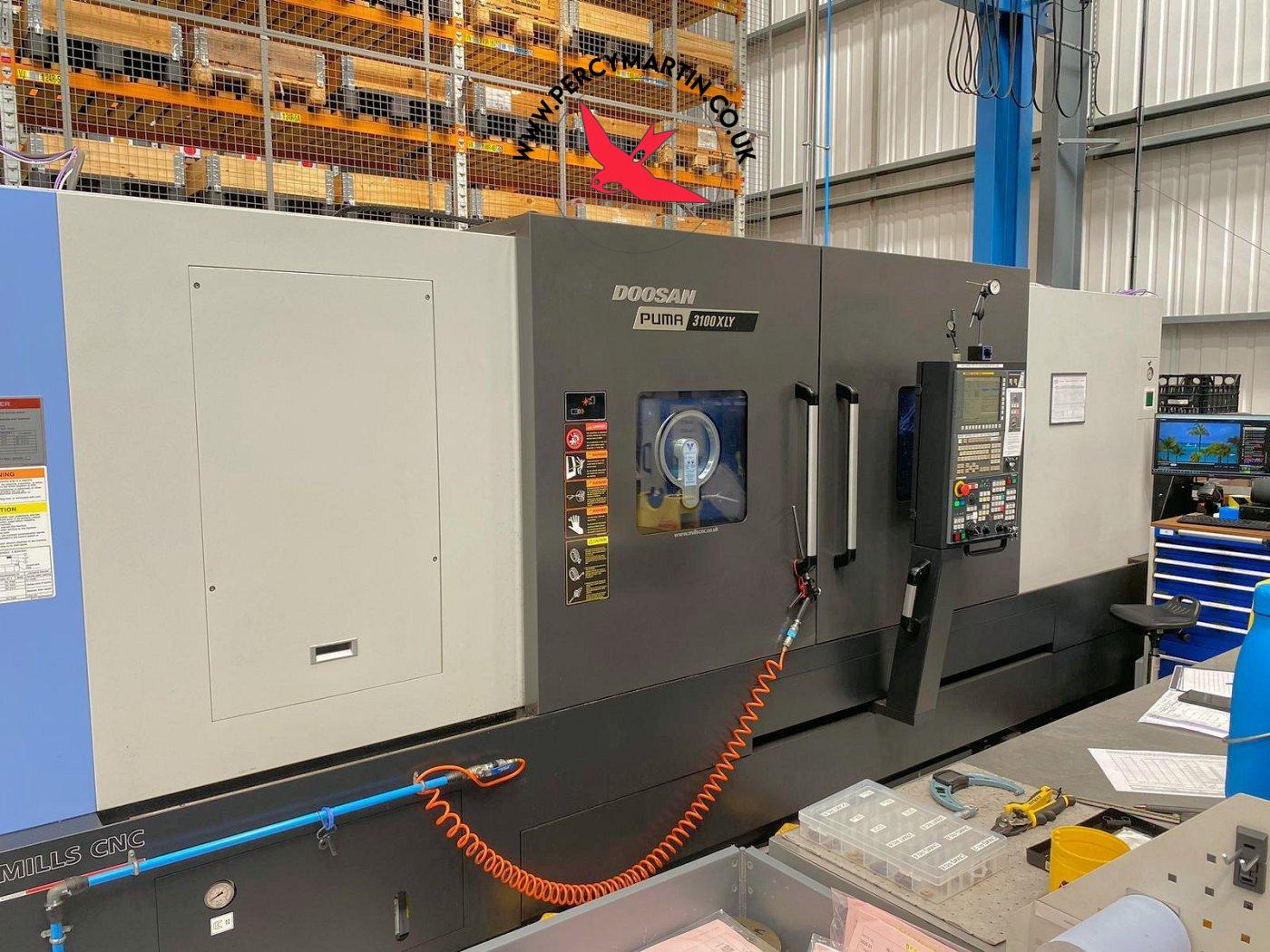

Doosan Puma 3100XLY

Key Features

Type:

CNC Lathes with Milling

Model:

Puma 3100XLY

Make:

Doosan

Year:

Serial No

Price

£POA

Our Reference

Location

Leicester

Doosan Puma 3100XLY

Specifications

Bar Capacity

102mm

C axis

0.001 degree

Control

FANUC

Machine Dimensions

6443 x 2280 x 2315mm

Machine Weight

10800kg

Maximum Cutting Diameter

420mm

Maximum Cutting Length

2125mm

Milling Motor Power

7.5/5.5kW

Milling RPM

5000rpm

Rapid Feedrates

XYZ: 30 x 10 x 30m/minute

Spindle Bore

115mm

Spindle Motor Power

22/18.5kW

Spindle Nose

A2-11

Spindle Speed

2800rpm

Swing

850mm

Swing over the Cross-slide

670mm

Table Configuration

BMT 65P

Tailstock Quill Diameter

120mm

Tailstock Taper

MT #5

Turret Positions

12 Station

X axis Travel

293mm

Y axis Travel

+/-65mm

Z axis Travel

2190mm
