CNC Lathes with Milling
Takisawa FX-600 2017

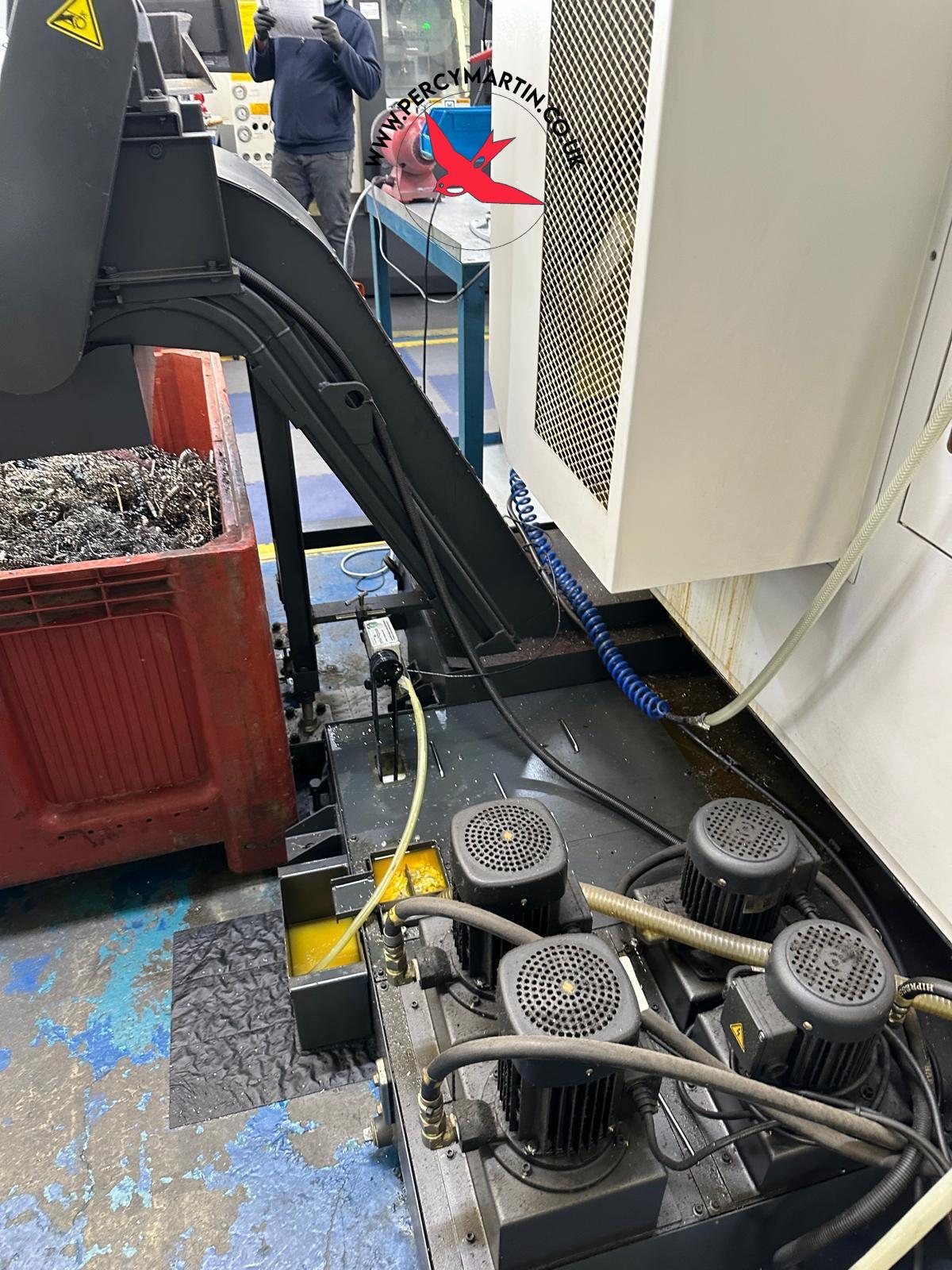

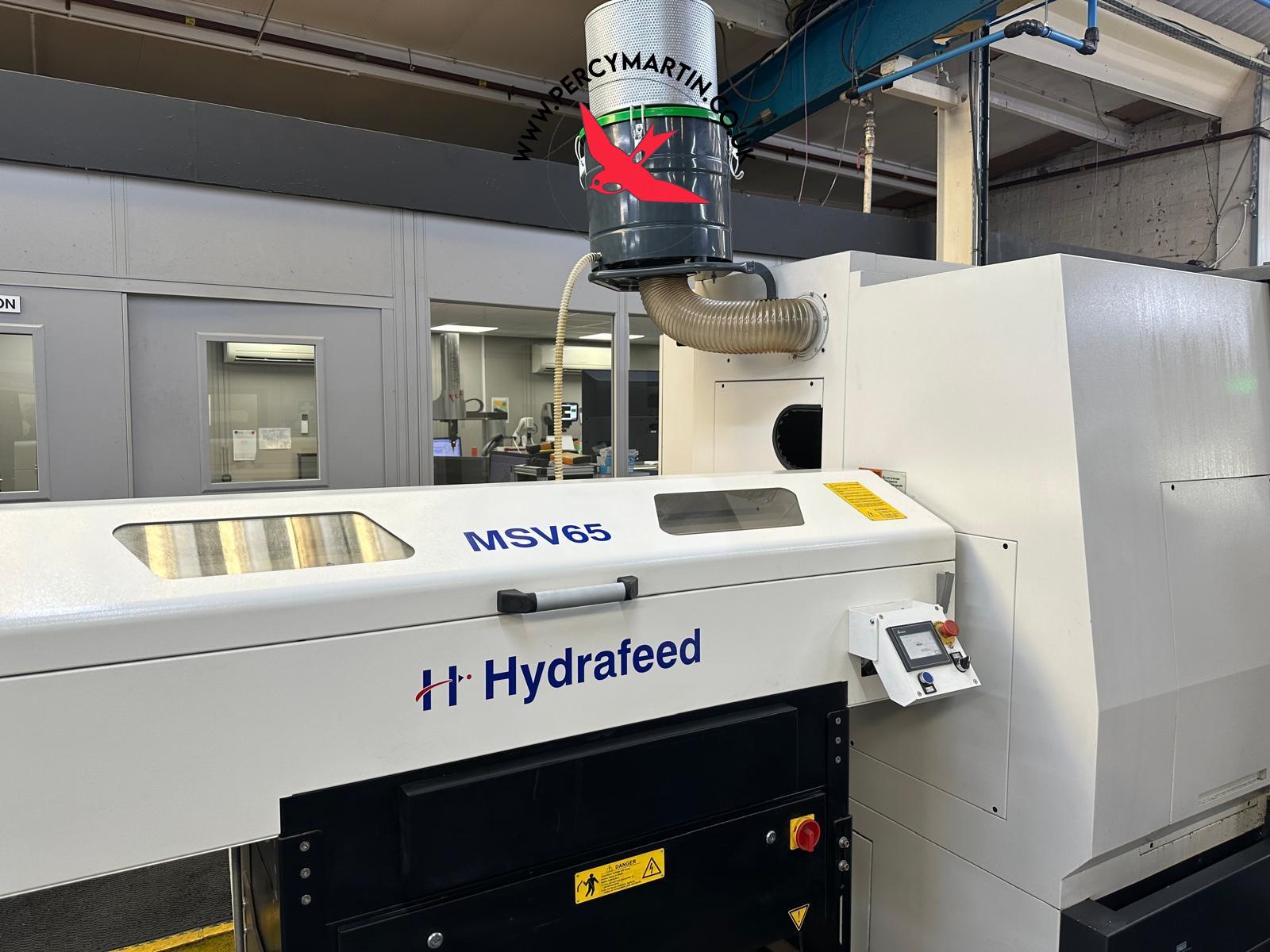

C axis & Milling , C axis on Sub Spindle , Collet Chuck , Conveyor , Interlocked guards , Low Volt Light , Lower Turret , Magazine Barfeed , Parts Catcher , Parts Conveyor , Swarf Conveyor , Tool setter , Twin Spindle , Twin Turret , Y-axis
Takisawa FX-600 2017
Key Features
Type:
CNC Lathes with Milling
Model:
FX-600
Make:
Takisawa
Year:
2017

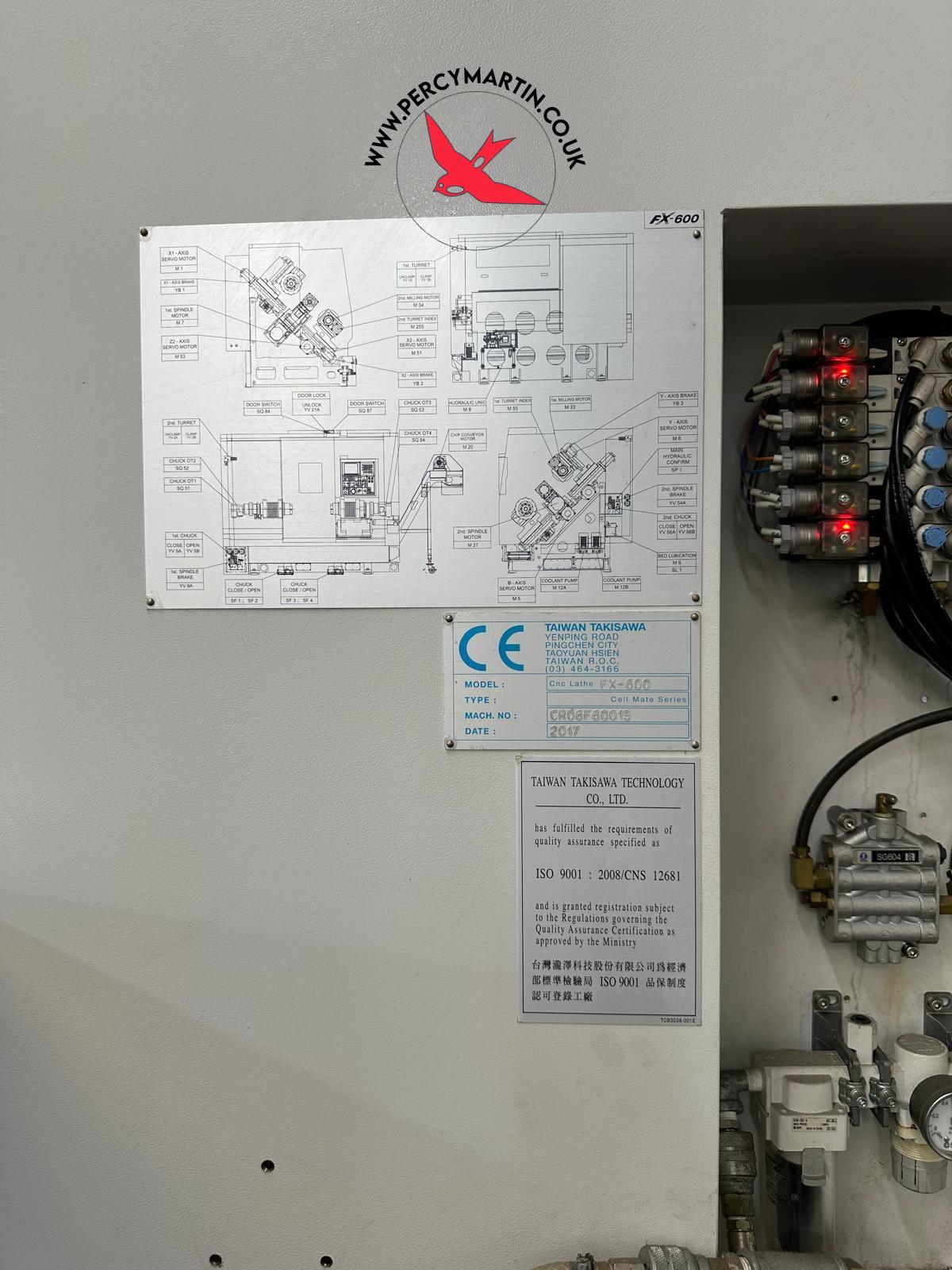

Serial No
CR08F60015
Price
£POA
Our Reference
PM9874
Location
Leicester
Takisawa FX-600 2017
Specifications
Bar Capacity
42mm
Boring Bar Holder Diameter
25mm
C axis
0.001 degree

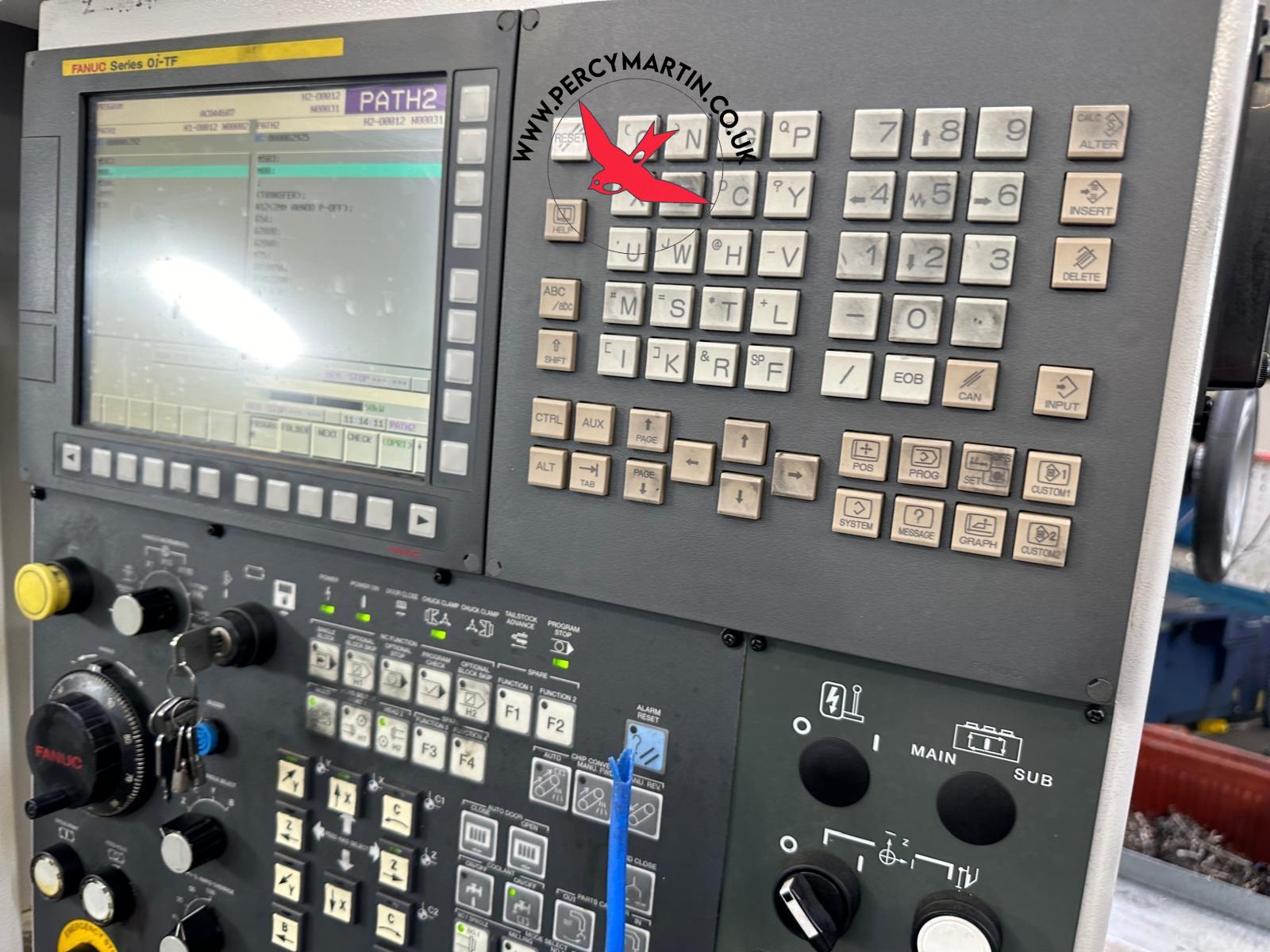

Control
FANUC 0i-TF
Distance Between Spindles
200 ~ 800mm

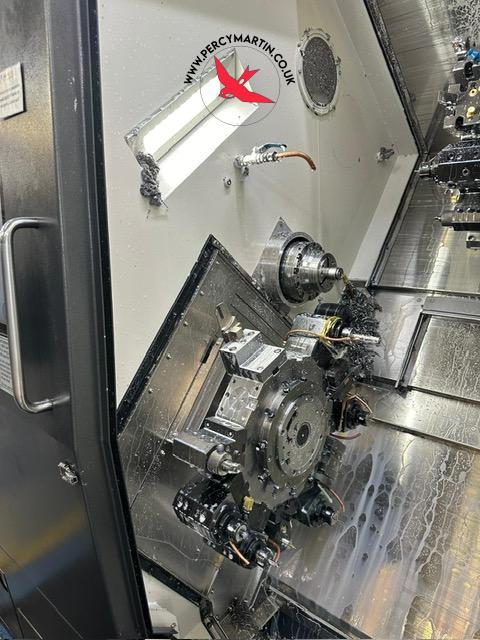

Lower Turret
12 Station
Machine Dimensions
2740 x 2022 x 2200mm
Machine Weight
8000kg
Maximum Cutting Diameter
300mm
Maximum Cutting Length
510mm
Milling Motor Power
2.2kW
Milling RPM
6000rpm
Rapid Feedrates
XYZB: 20 x 40 x 24 x 40m/minute
Spindle Motor Power
7.5/11kW
Spindle Speed
6000rpm
Standard Cutting Diameter
220mm

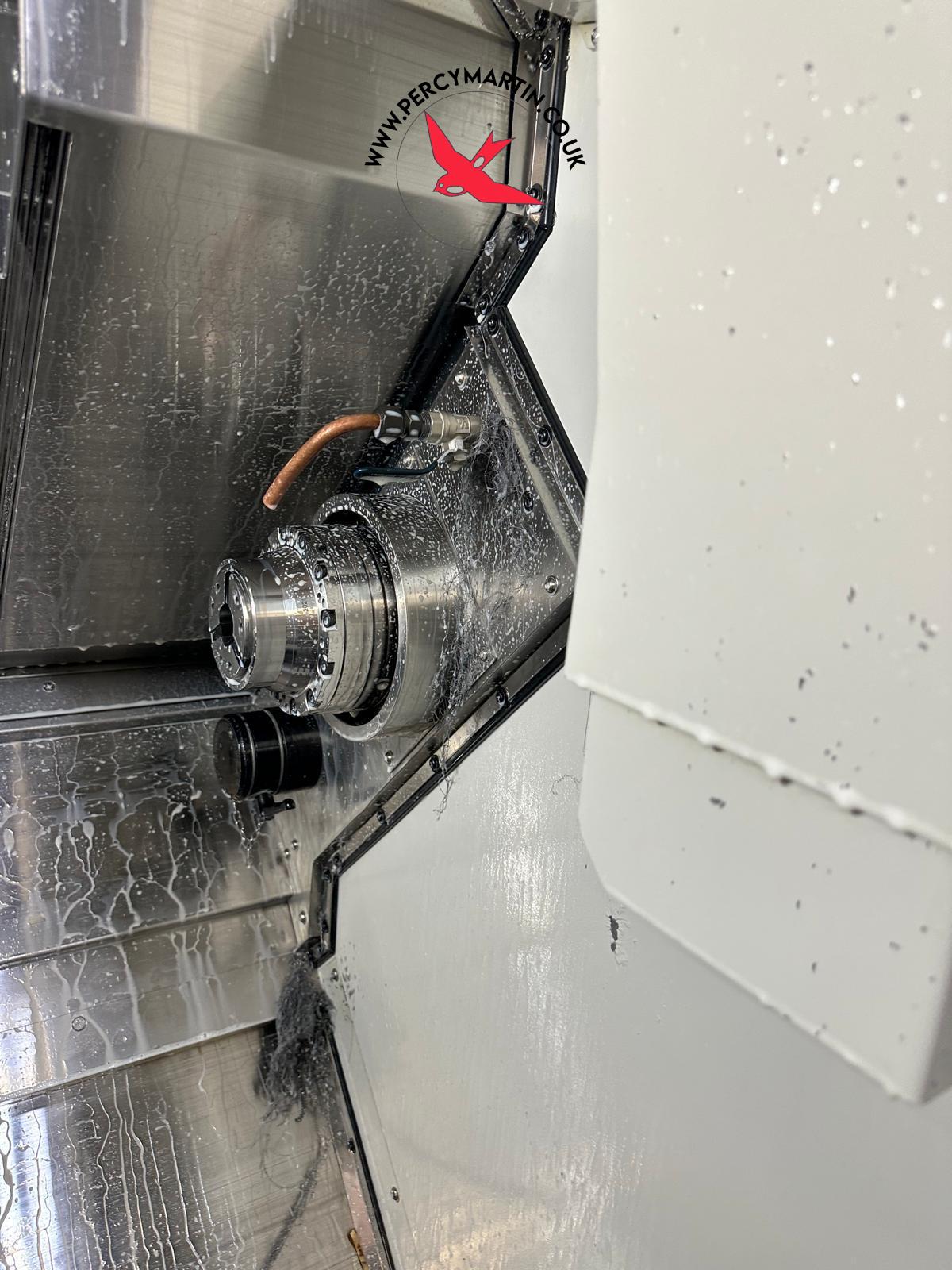

Sub Spindle Motor
7.5/11kW
Sub Spindle Speed
6000rpm
Tool Size
20 x 20mm

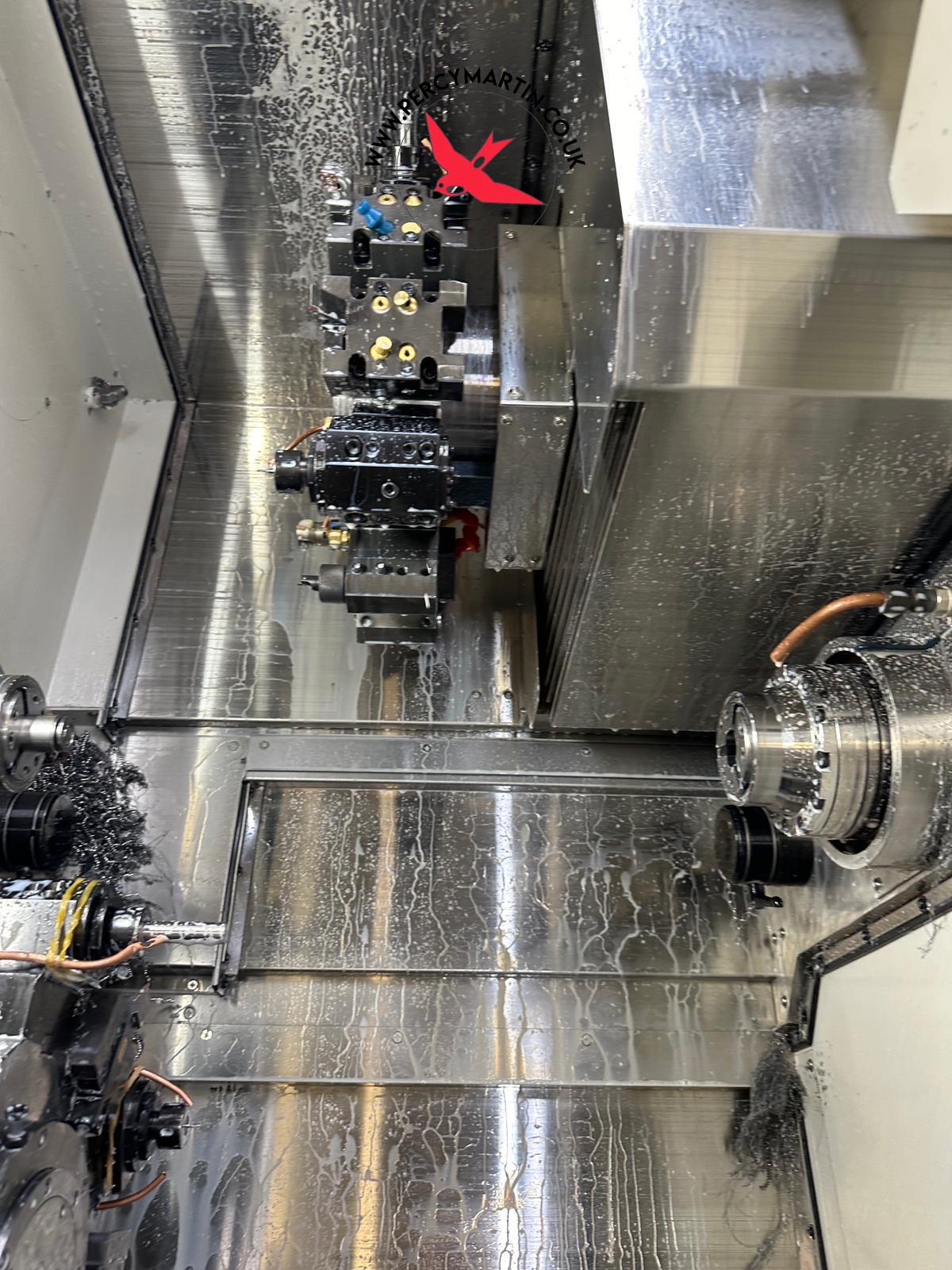

Upper Turret
12 Station
X axis Travel
180mm
X2 axis Travel
180mm
Y axis Travel
+/-35mm
Y2 Axis Travel
+/-35mm
Z axis Travel
540mm
Z2 axis Travel
540mm
Takisawa FX-600 2017
