CNC Lathes with Milling

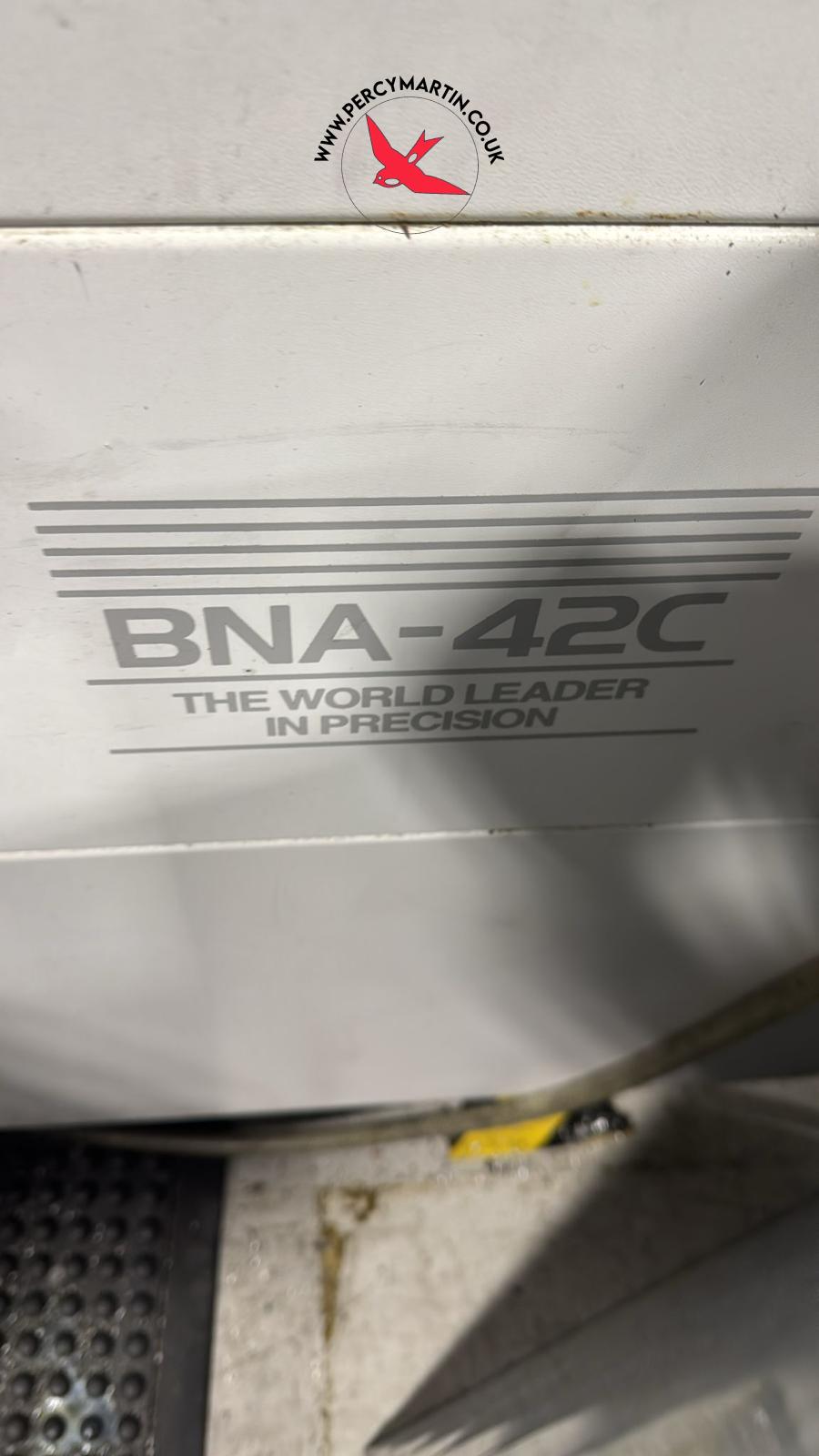

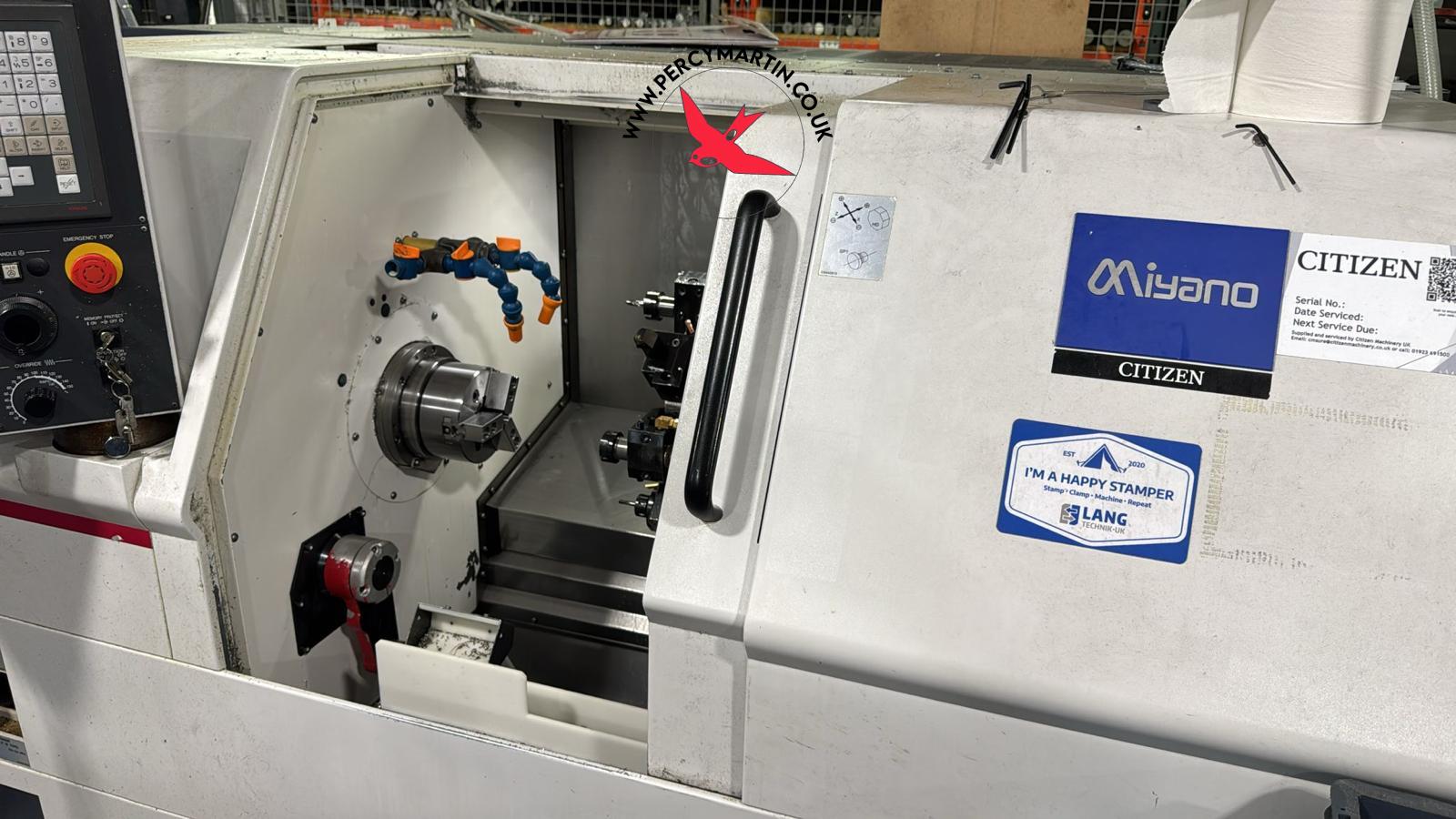

Miyano BNA-42C 2011
3 Jaw Chuck , C axis & Milling , Coolant , Interlocked guards , Low Volt Light , Parts Catcher
Miyano BNA-42C 2011
Key Features
Type:
CNC Lathes with Milling
Model:
BNA-42C
Make:
Miyano
Year:
2011
Serial No
Price
£POA
Our Reference
Location
Leicester
Miyano BNA-42C 2011
Specifications
Bar Capacity
42mm
Boring Bar Holder Diameter
25mm
C axis
0.001 degree
Chuck Size
5"
Control
FANUC 0i-TD
Machine Dimensions
2054 × 1290mm x 1660mm
Machine Weight
2700kg
Maximum Cutting Length
175mm
Milling Motor Power
2.8 /1.0kW
Milling RPM
5000rpm
Spindle Motor Power
7.5/5.5kW
Spindle Speed
5000rpm
Tool Size
20 x 20mm
Turret Positions
8 Station
X axis Travel
135mm
Z axis Travel
235mm
Miyano BNA-42C 2011
