CNC Lathes with Milling

Nakamura AS-200L 2024

3 Jaw Chuck , C axis & Milling , Coolant , Interlocked guards , Low Volt Light , NEVER USED , Parts Catcher , Swarf Conveyor , Tailstock , Tool setter , Tooling , Y-axis
Key Features Gallery Specifications More in Stock Register Interest

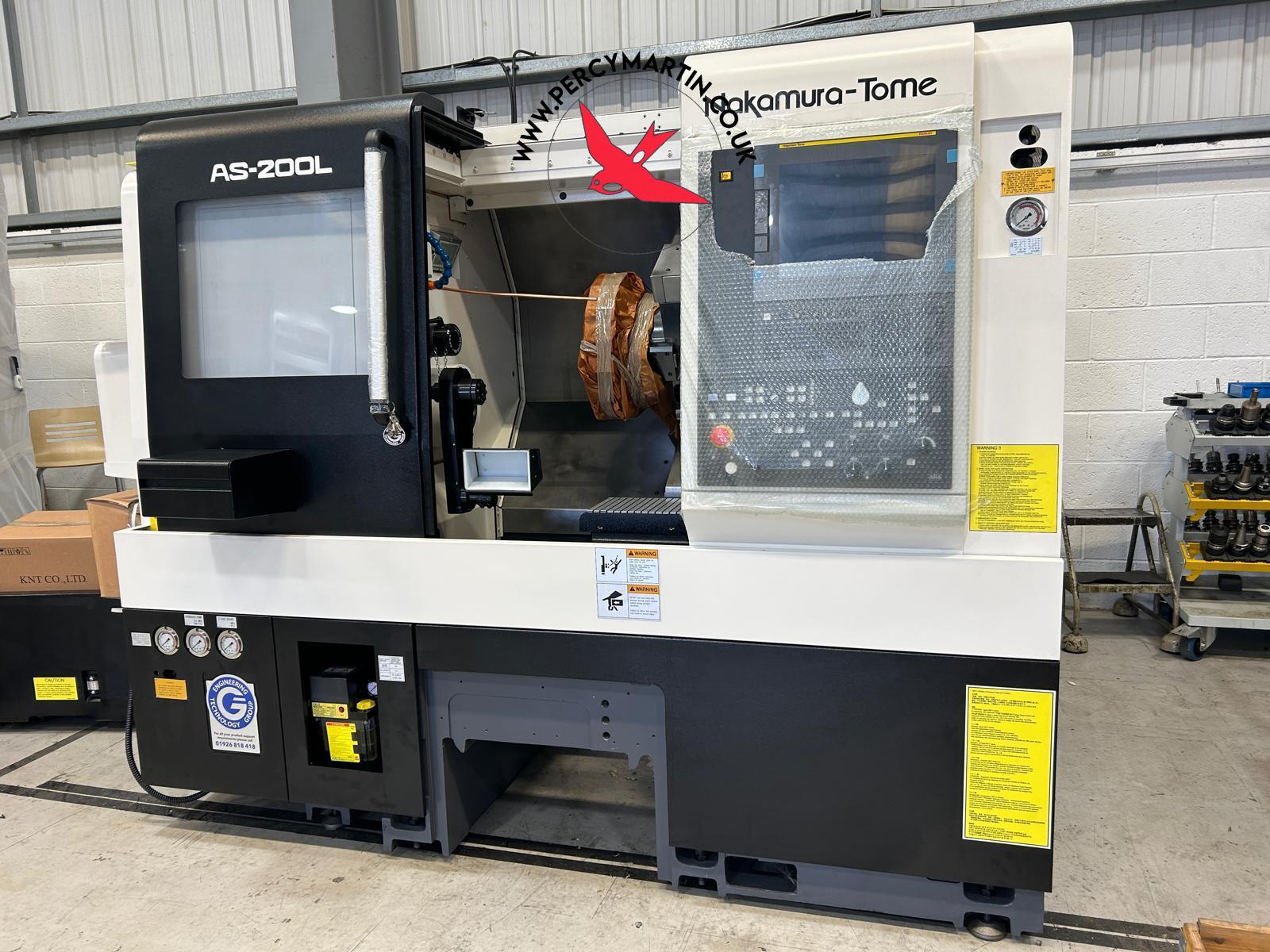

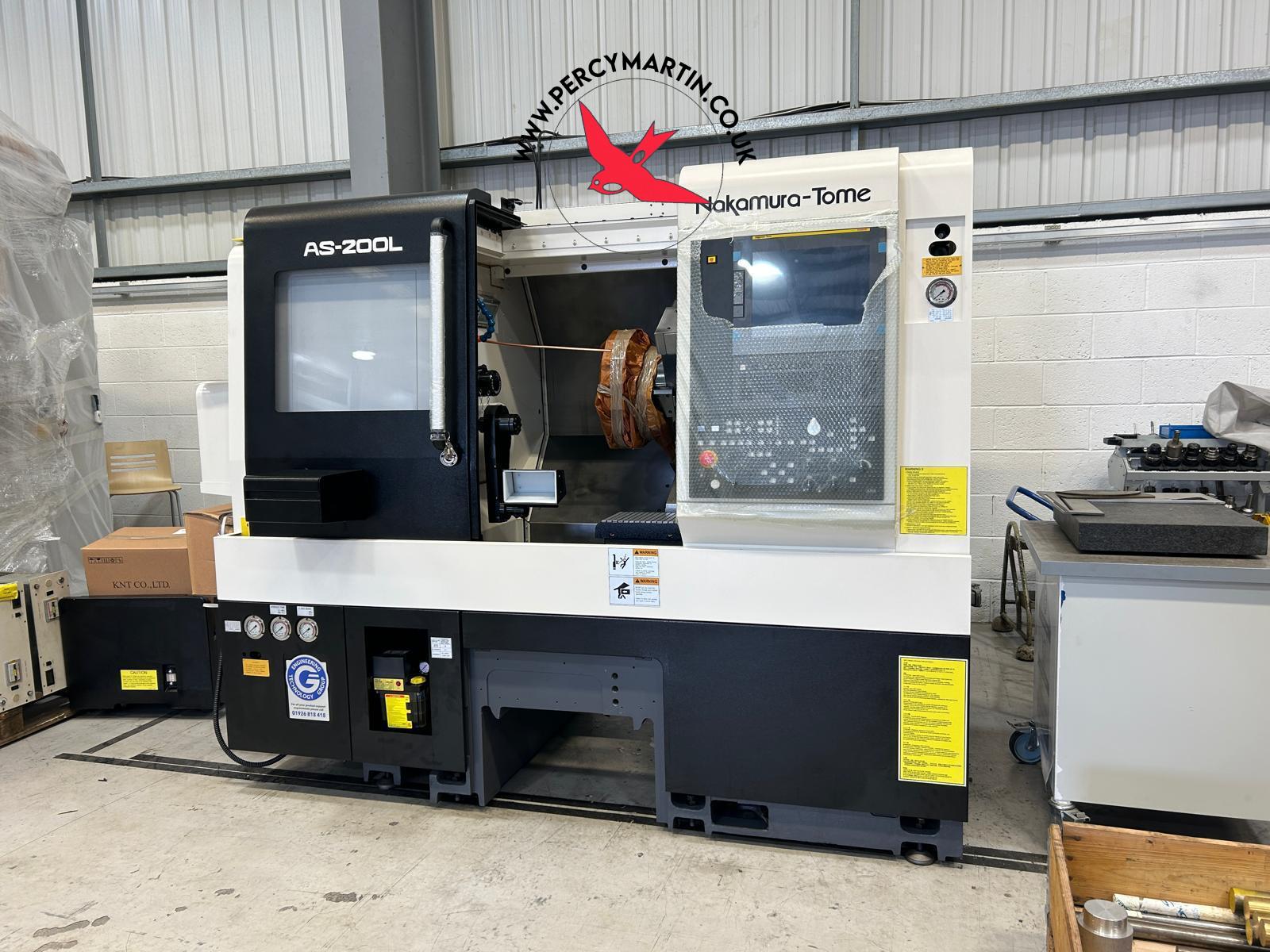

Nakamura AS-200L 2024

Key Features

Type:

CNC Lathes with Milling

Model:

AS-200L

Make:

Nakamura

Year:

2024

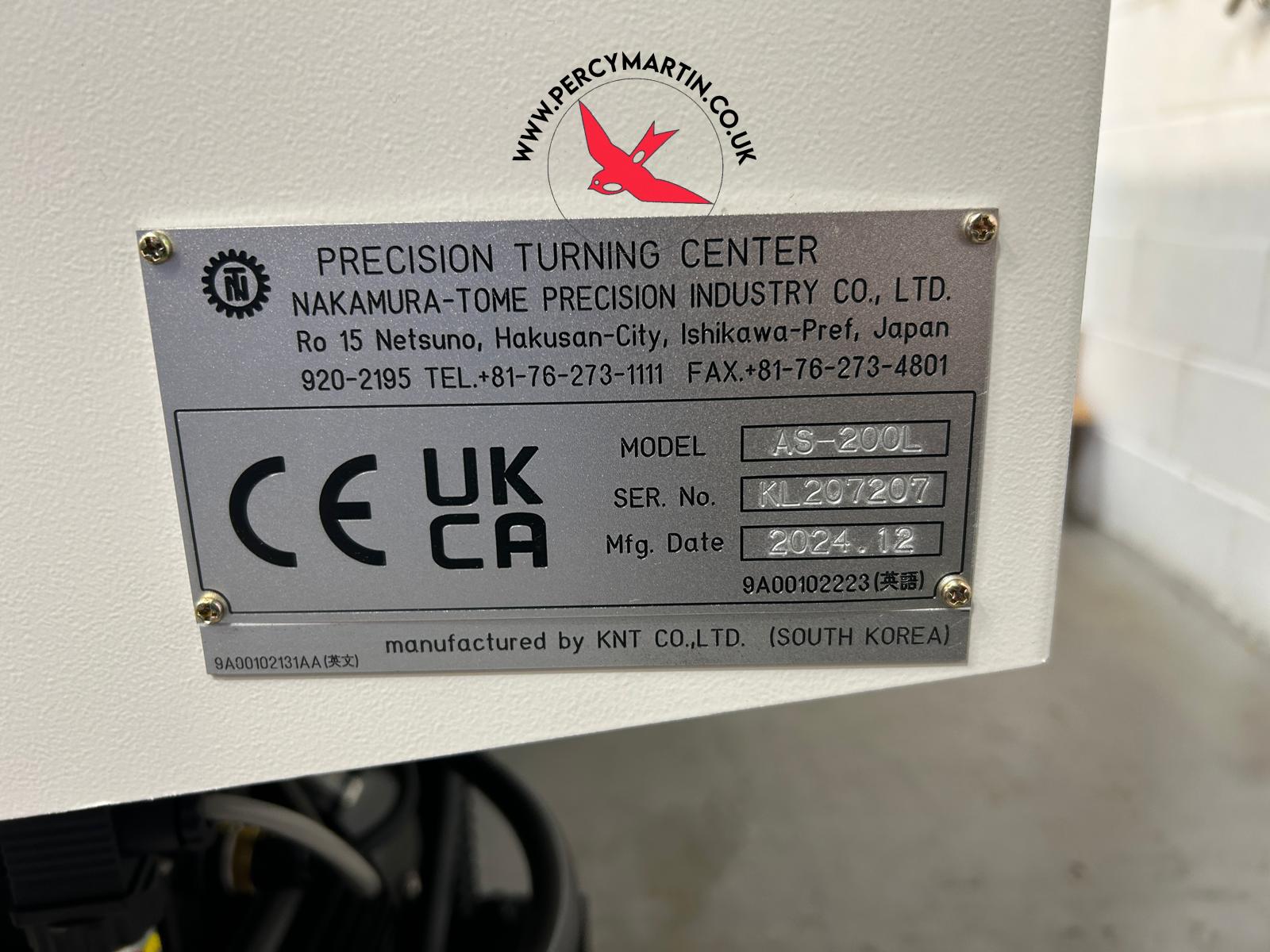

Serial No

KL207207

Price

£POA

Our Reference

PM9876c

Location

Leicester

Nakamura AS-200L 2024

Specifications

Bar Capacity

65mm

C axis

0.001 degree

Chuck Size

8" (200mm)

Control

FANUC Nakamura

Distance Between Centres

800mm

Machine Dimensions

2716 x 1805 x 1935mm

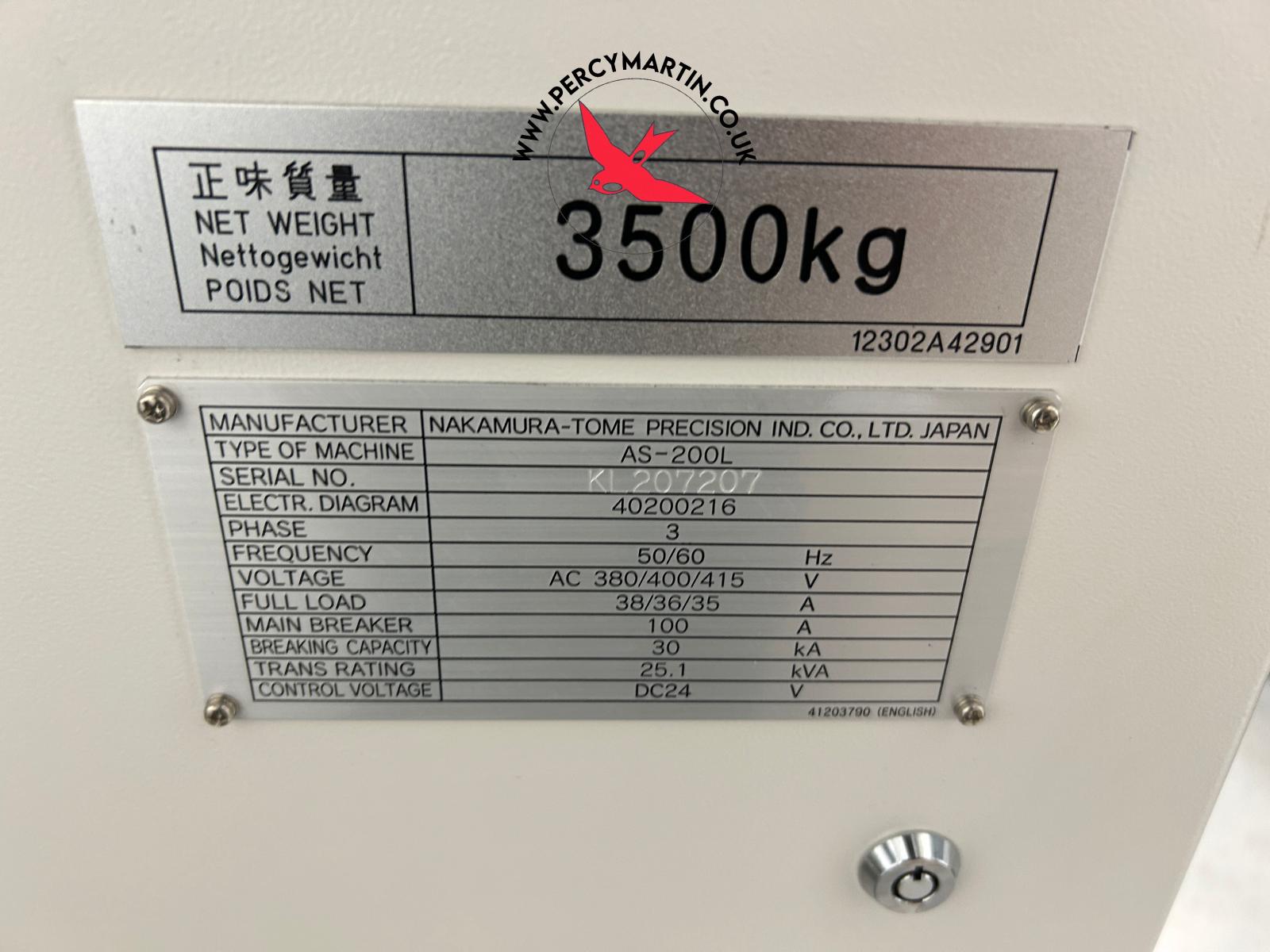

Machine Weight

3500kg

Maximum Cutting Diameter

340mm

Maximum Cutting Length

570mm

Milling Motor Power

5.5/3.7kW

Milling RPM

6000rpm

Rapid Feedrates

XYZ: 24 x 6 x 36m/minute

Spindle Nose

A2-6

Spindle Speed

4500rpm

Standard Cutting Diameter

190mm

Swing

400mm

Tailstock Body Travel

435mm

Tailstock Quill Diameter

80mm

Tailstock Quill Stroke

80mm

Tailstock Taper

MT #4

X axis Travel

227.5mm

Y axis Travel

+/-41mm

Z axis Travel

585mm
