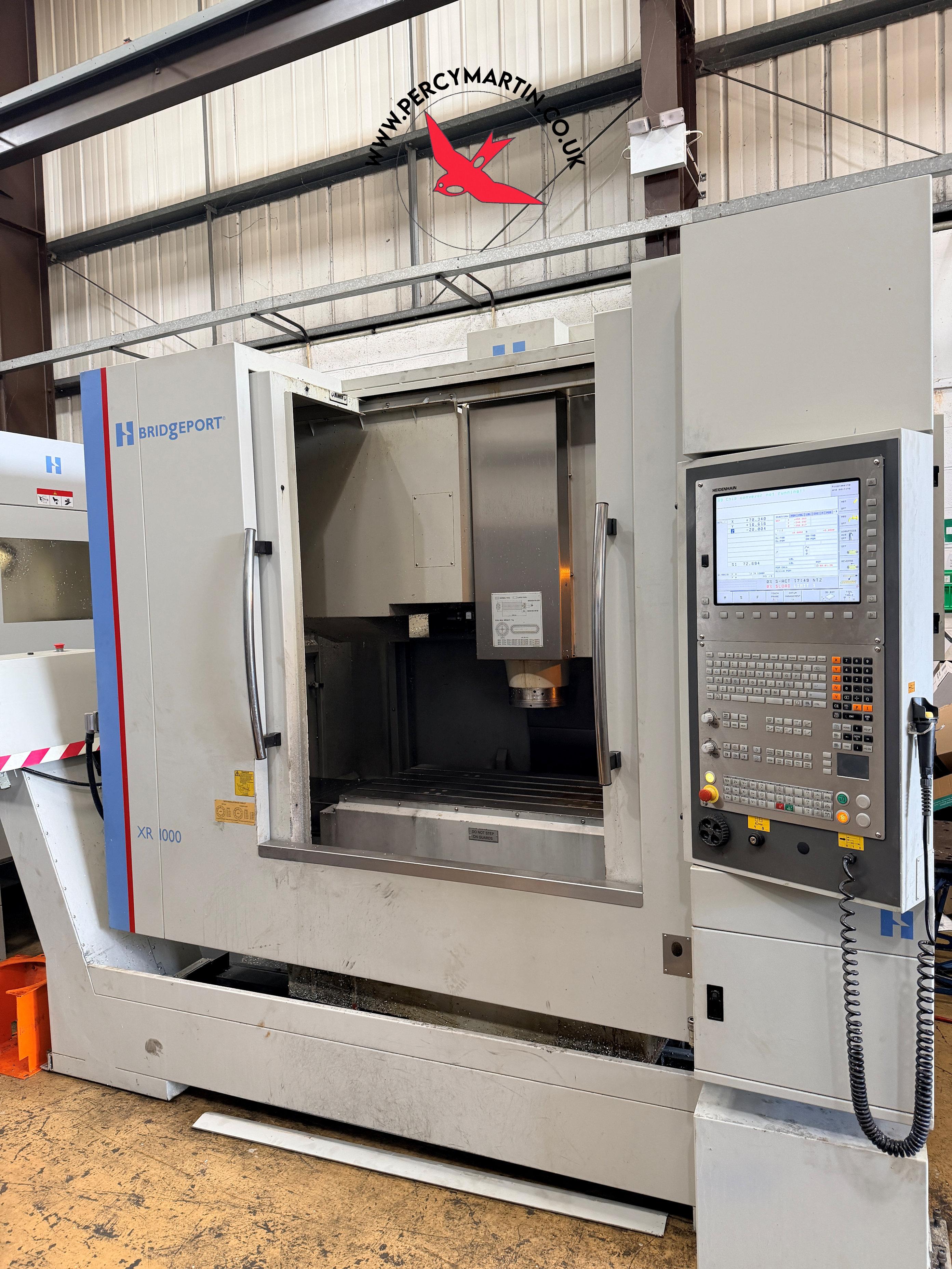

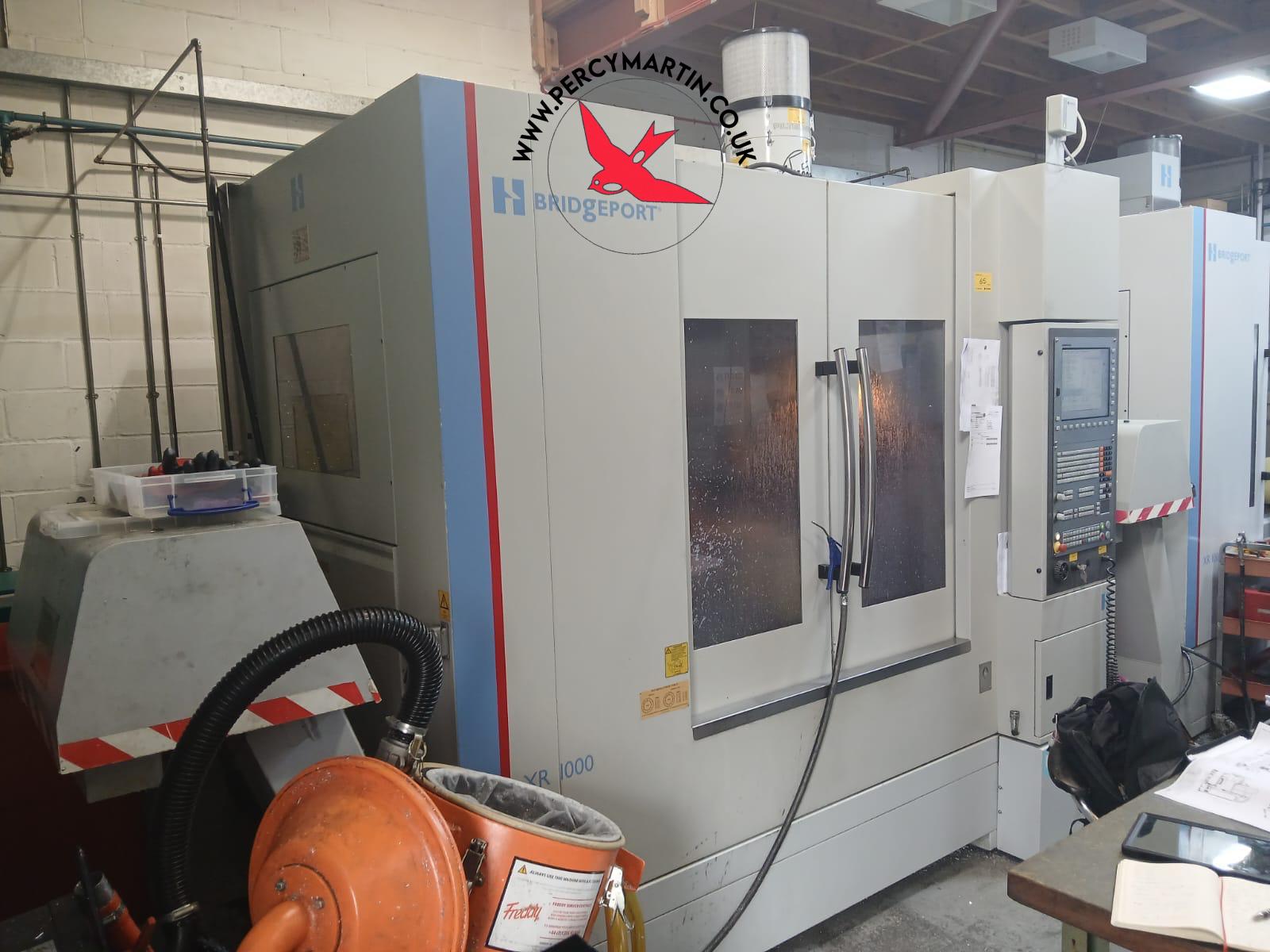

Bridgeport XR1000 2013
Coolant , Interlocked guards , Low Volt Light , Swarf Conveyor , Through Spindle Coolant
Bridgeport XR1000 2013
Key Features
Type:
All Products
Model:
XR1000
Make:
Bridgeport
Year:
2013

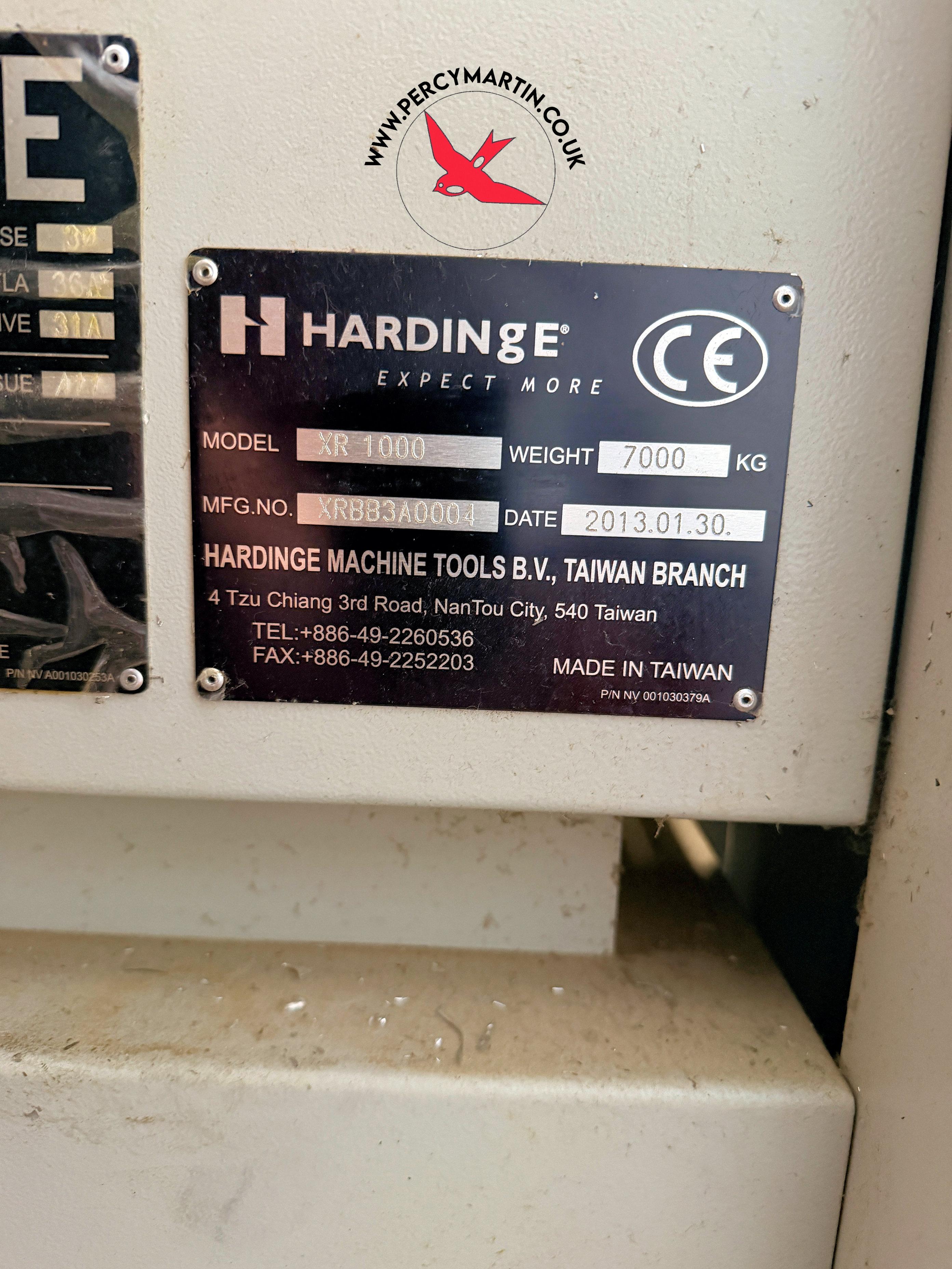

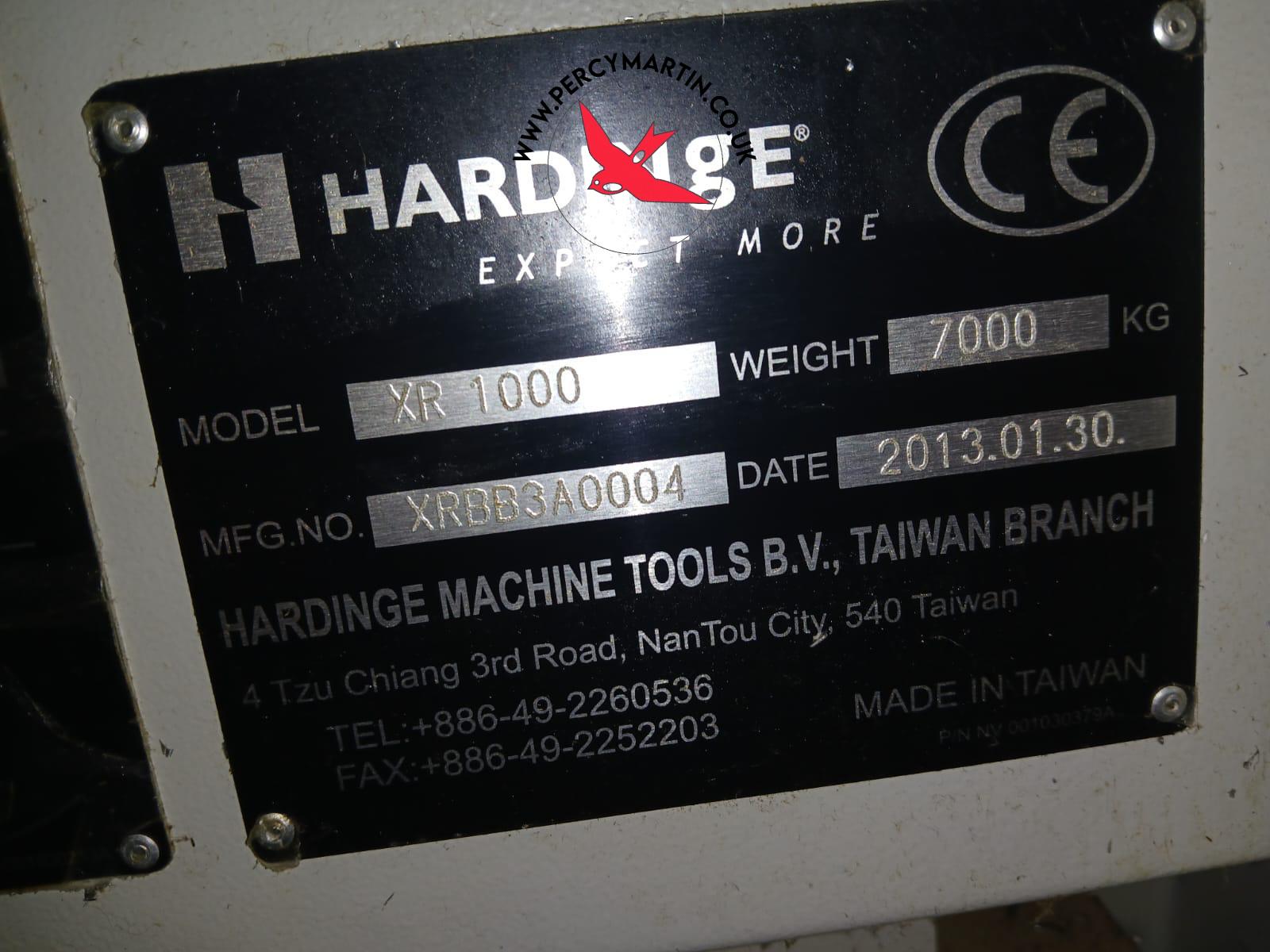

Serial No
XRBB3A0004
Price
£POA
Our Reference
Location
Leicester
Bridgeport XR1000 2013
Specifications
Control

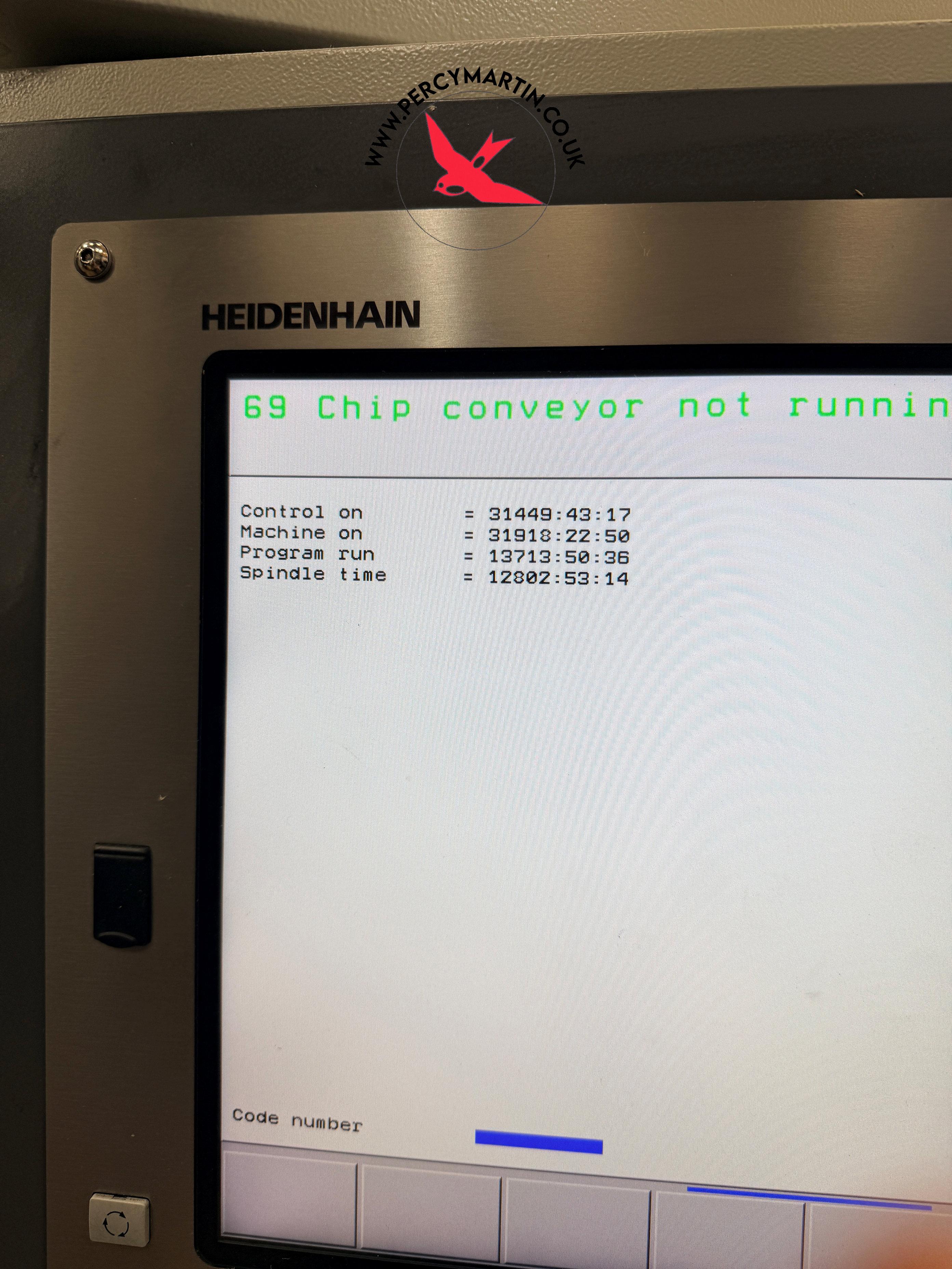

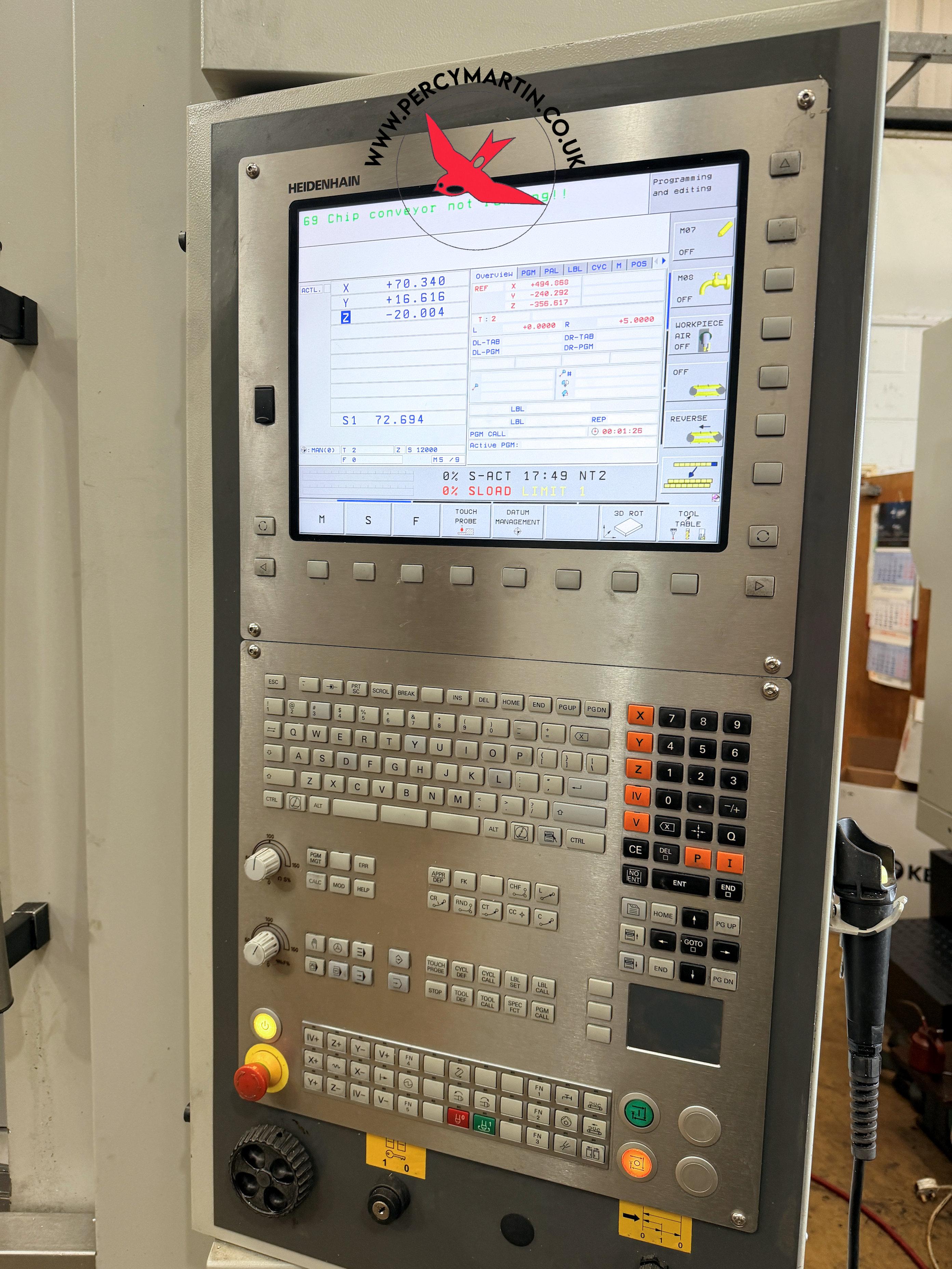

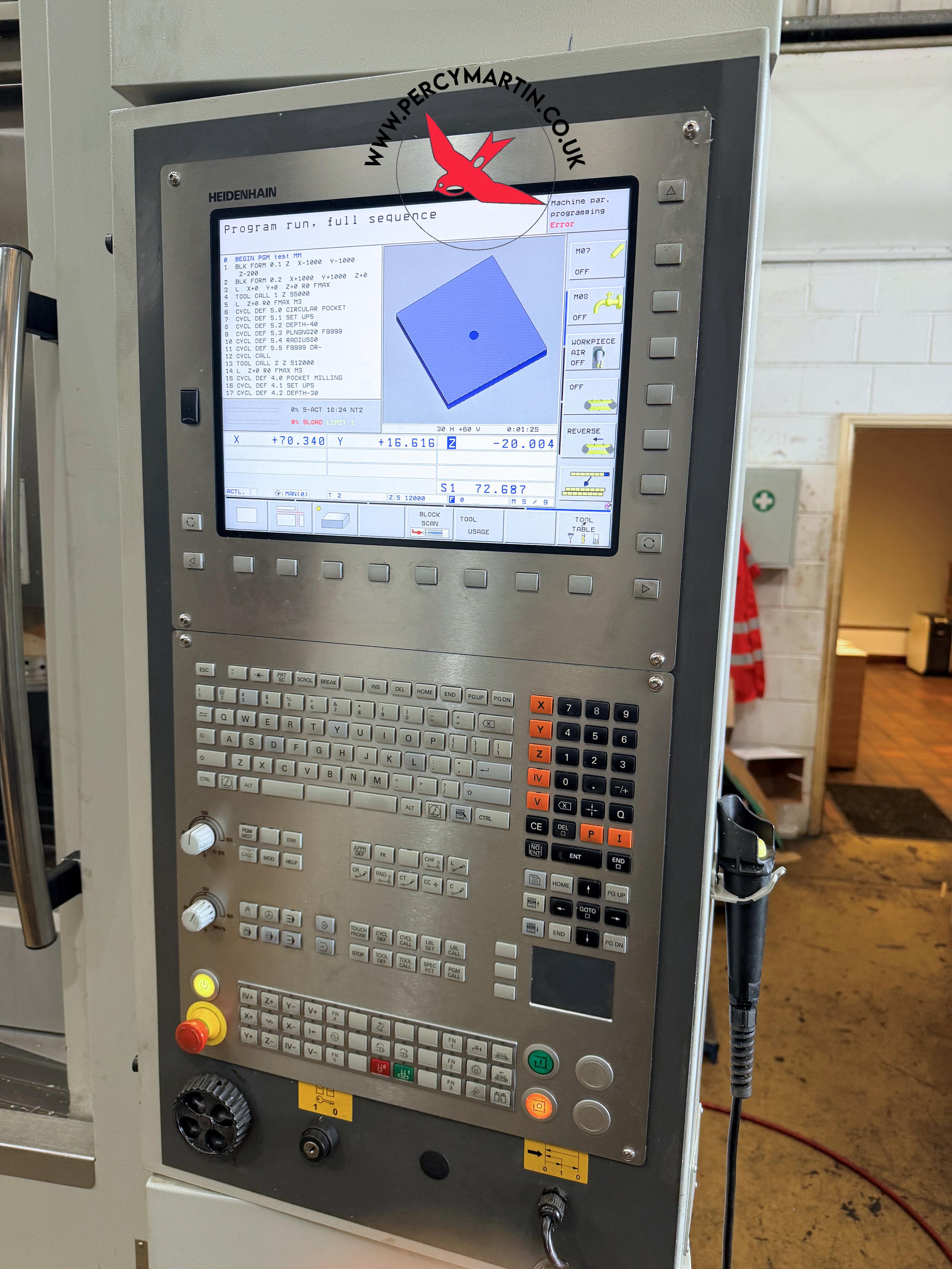

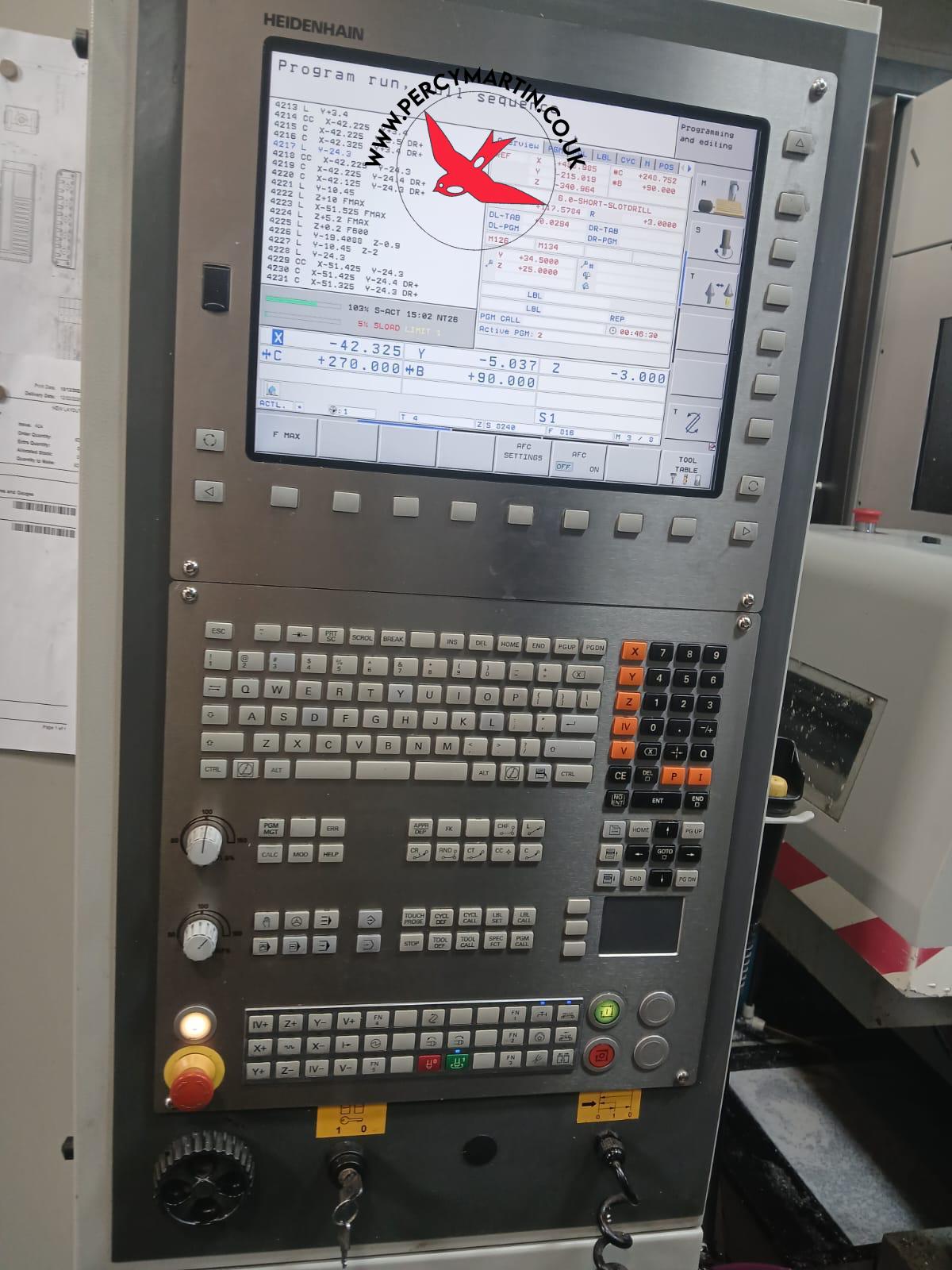

Heidenhain iTNC530
Machine Dimensions
4300 x 3000 x 2921mm
Machine Weight
7000kg
Maximum Cutting Feedrate
20000mm/minute
Maximum Tool Diameter
85mm
Maximum Tool Diameter with Empty Adjacent Pockets
125mm
Maximum Tool Length
300mm
Maximum Tool Weight
7kg
Maximum workpiece weight
900kg
Min - Max Height under Spindle
100 ~ 710mm
Rapid Feedrates
XYZ: 43 x 43 x 36m/minute
Spindle Motor Power
18.5kW
Spindle Speed
12000rpm
T- Slots
5 x 18mm

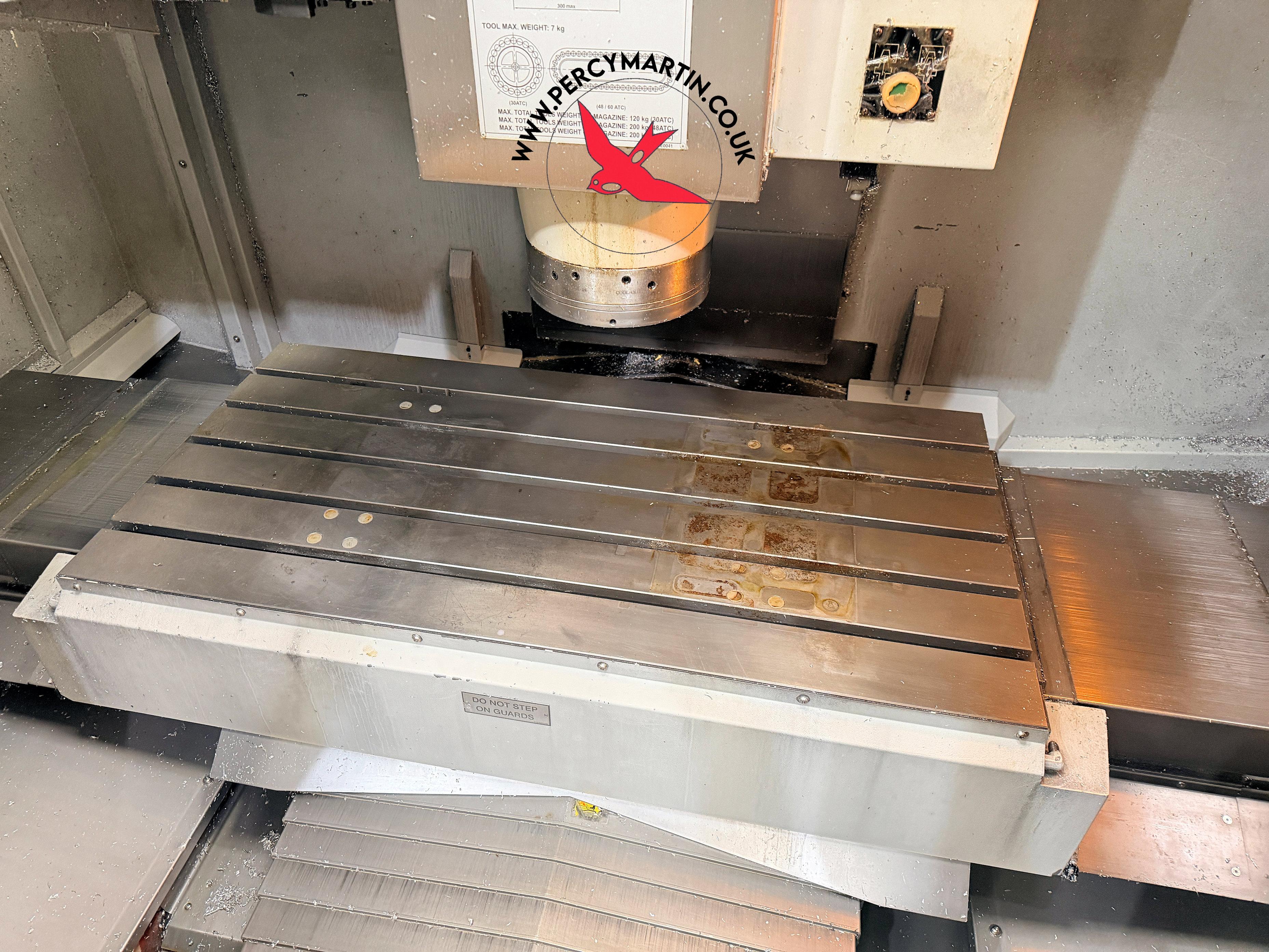

Table Size
1200 x 600mm
Tool Change Capacity
30 Station
Tool Change Time (Chip to Chip)
4 seconds
Tool Size
BT40
Traverses XYZ
1020 x 610 x 610mm
Bridgeport XR1000 2013
