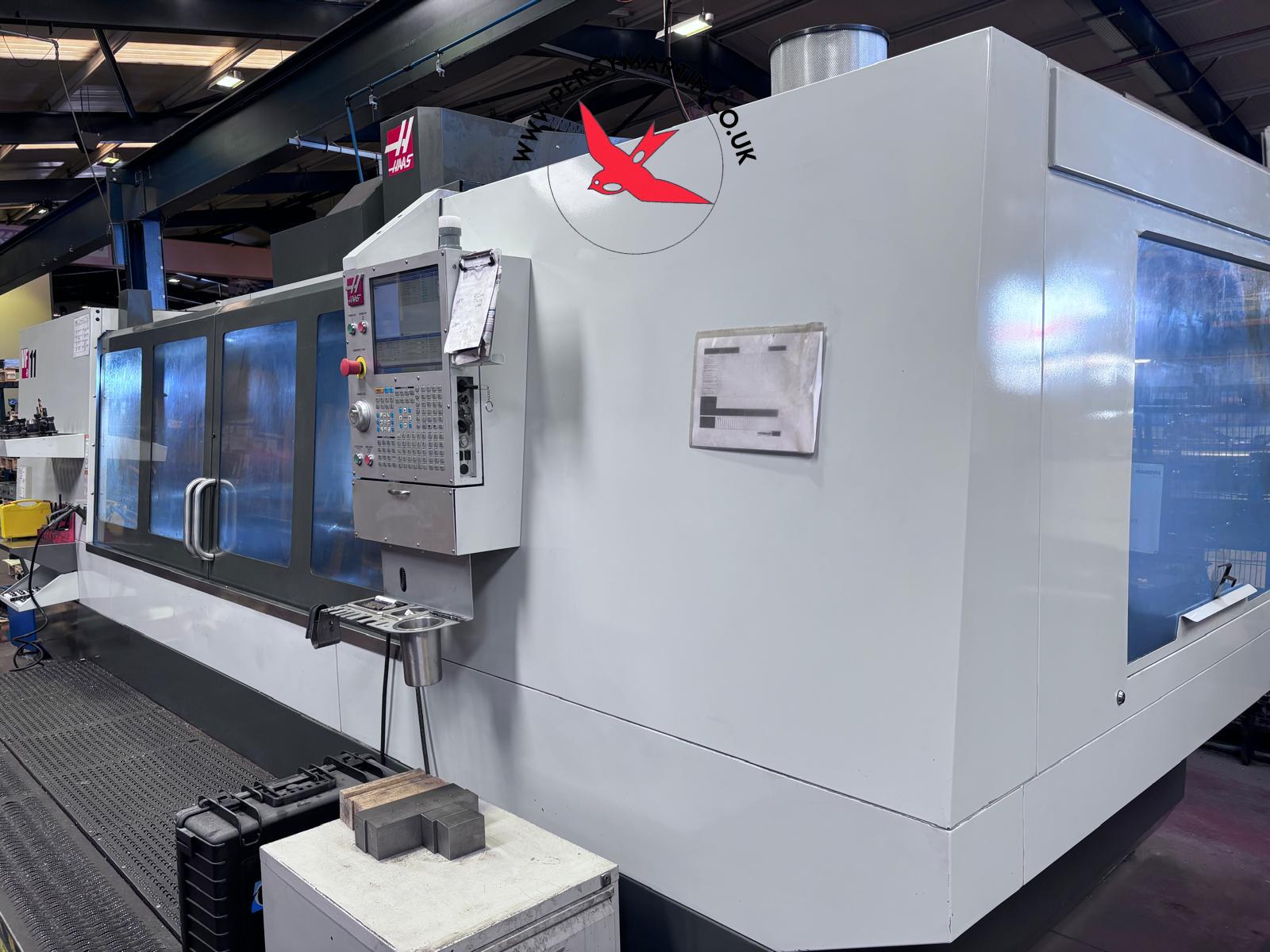

HAAS VF-11 2020
Coolant , Fume Extractor , Interlocked guards , Low Volt Light , Remote Hand Wheel , Swarf Auger
HAAS VF-11 2020
Key Features
Type:
All Products
Model:
VF-11
Make:
HAAS
Year:
2020
Serial No
Price
£POA
Our Reference
Location
Leicester
HAAS VF-11 2020
Specifications
Control
HAAS
Machine Dimensions
7080 x 3531 x 3150mm
Machine Weight
13336kg
Maximum Tool Diameter
127mm
Maximum Tool Diameter with Empty Adjacent Pockets
152mm
Maximum Tool Length
406mm
Maximum Tool Weight
5.4kg
Maximum workpiece weight
1814 kg
Min - Max Height under Spindle
102 - 864mm
Rapid Feedrates
XYZ: 9.1 x 15.2 x 15.2m/minute
Spindle Motor Power
30Hp
Spindle Speed
8100rpm
T- Slots
5 off 16mm
Table Size
3048 x 711mm
Tool Change Capacity
30 Station
Tool Change Time (Chip to Chip)
3.6 seconds
Tool Size
BT40
Traverses XYZ
3048 x 1016 x 762mm
