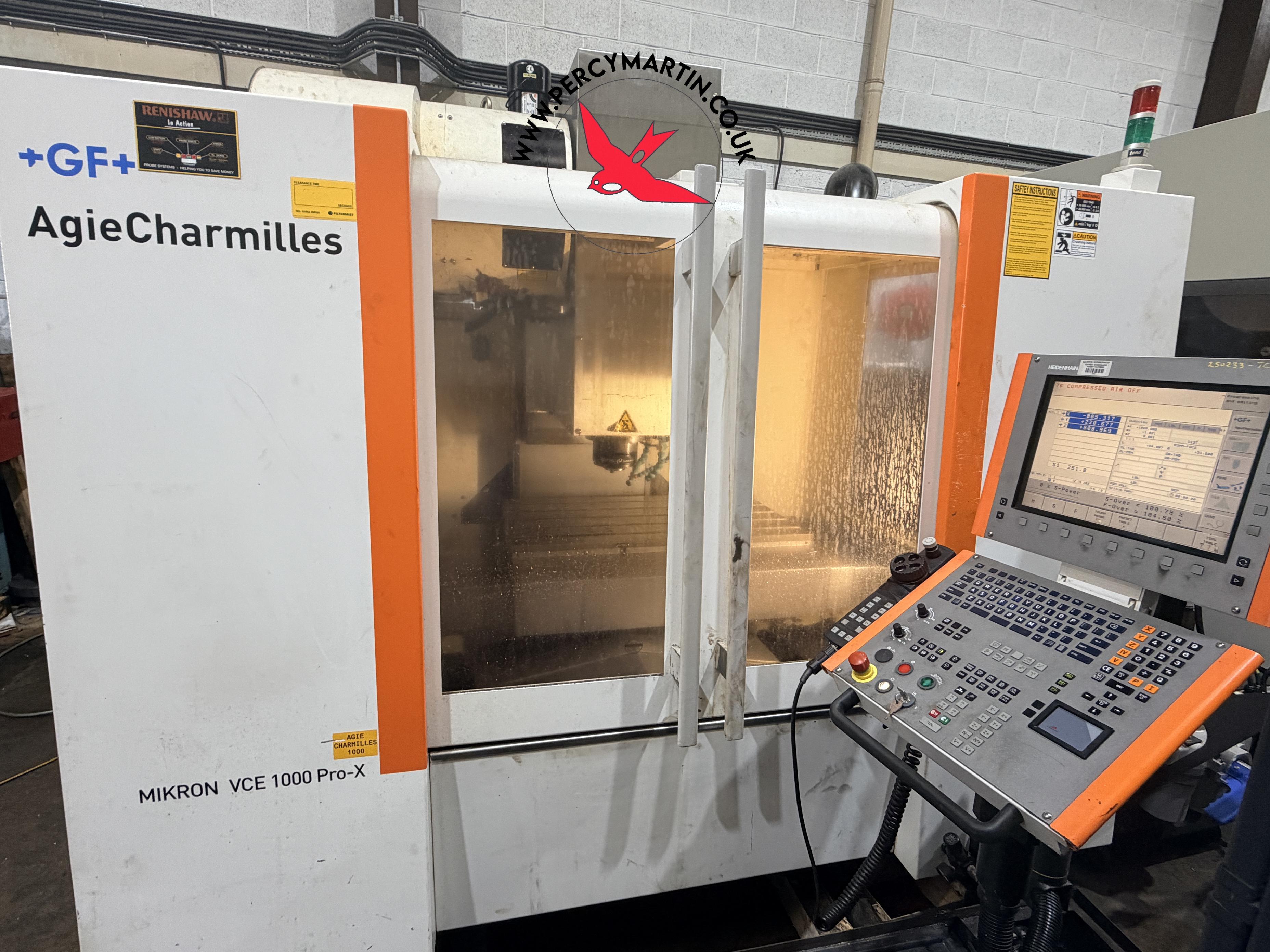

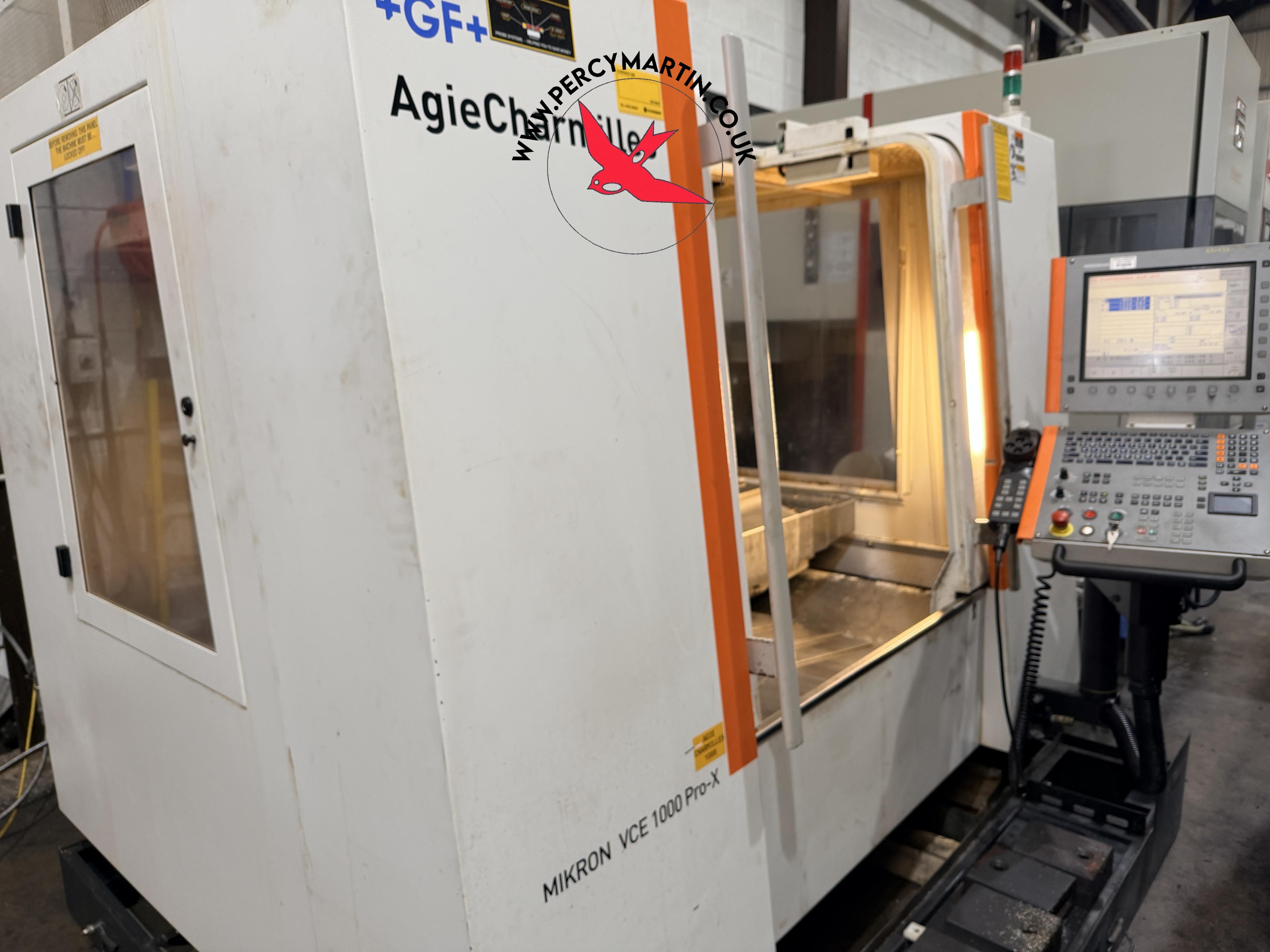

Mikron VCE1000 PRO 2012

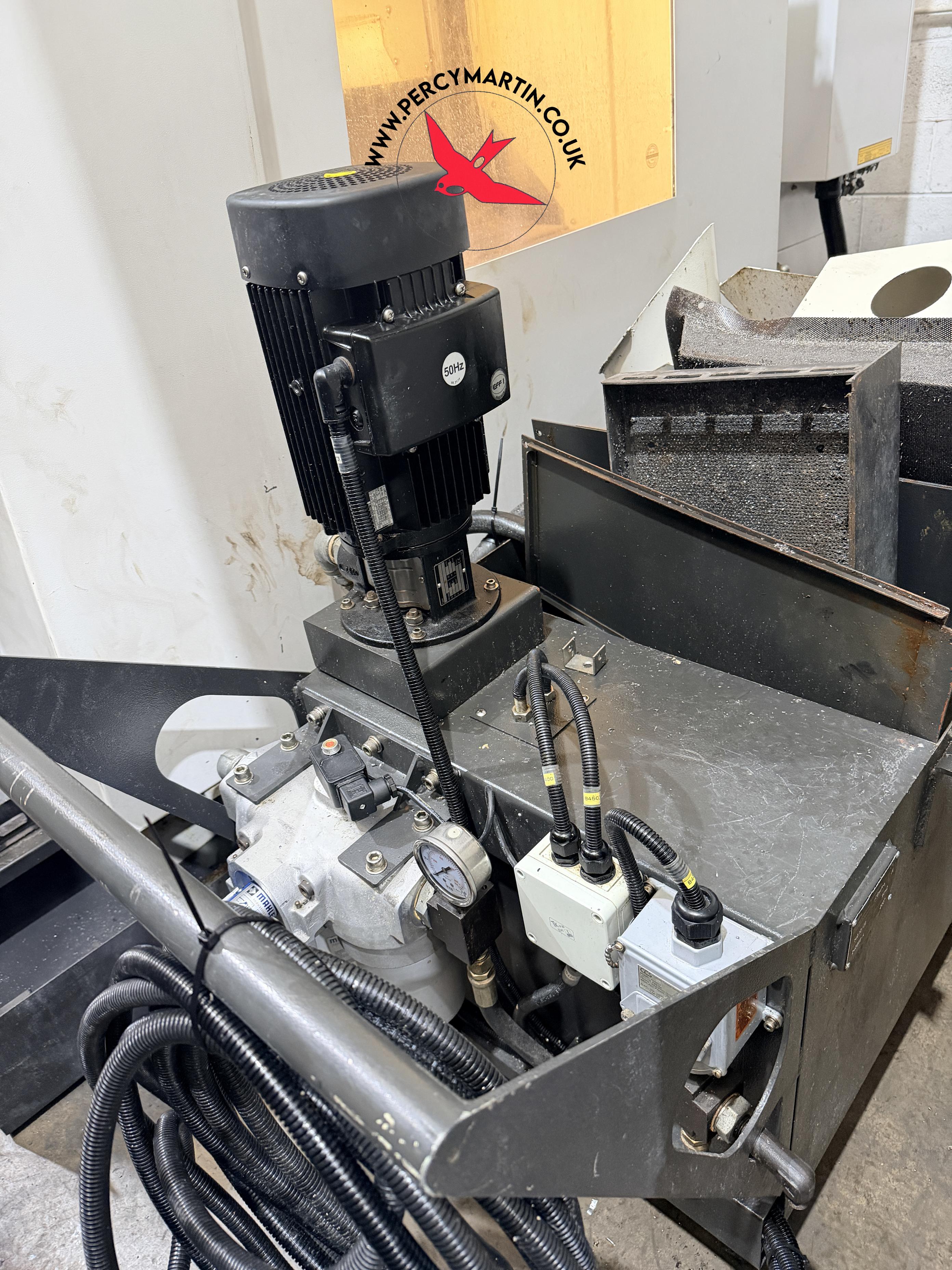

Coolant , Interlocked guards , Low Volt Light , Remote Hand Wheel , Swarf Auger , Through Spindle Coolant
Mikron VCE1000 PRO 2012
Key Features
Type:
All Products
Model:
VCE1000 PRO
Make:
Mikron
Year:
2012

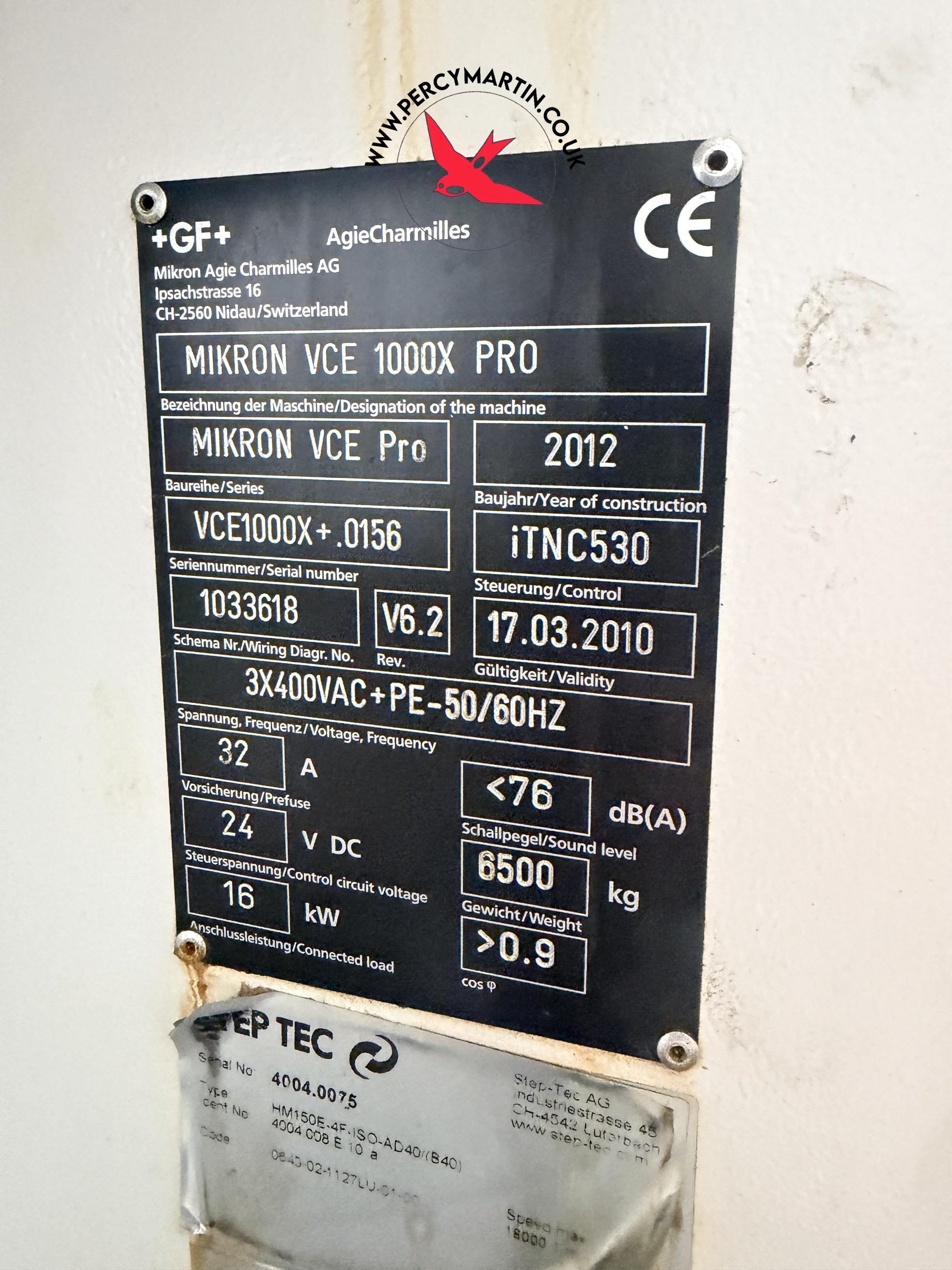

Serial No
1033618
Price
£POA
Our Reference
PM9781
Location
Leicester
Mikron VCE1000 PRO 2012
Specifications

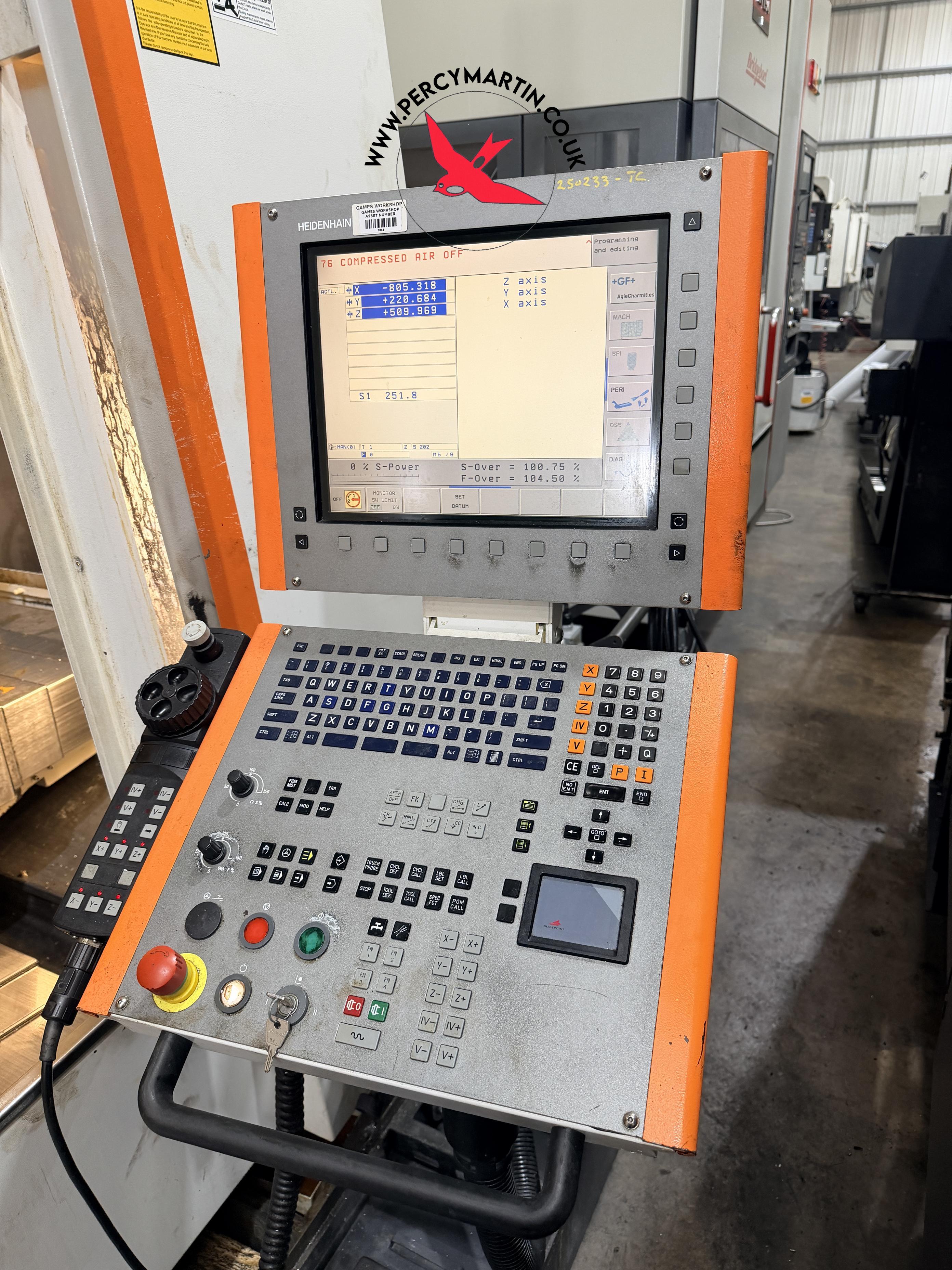

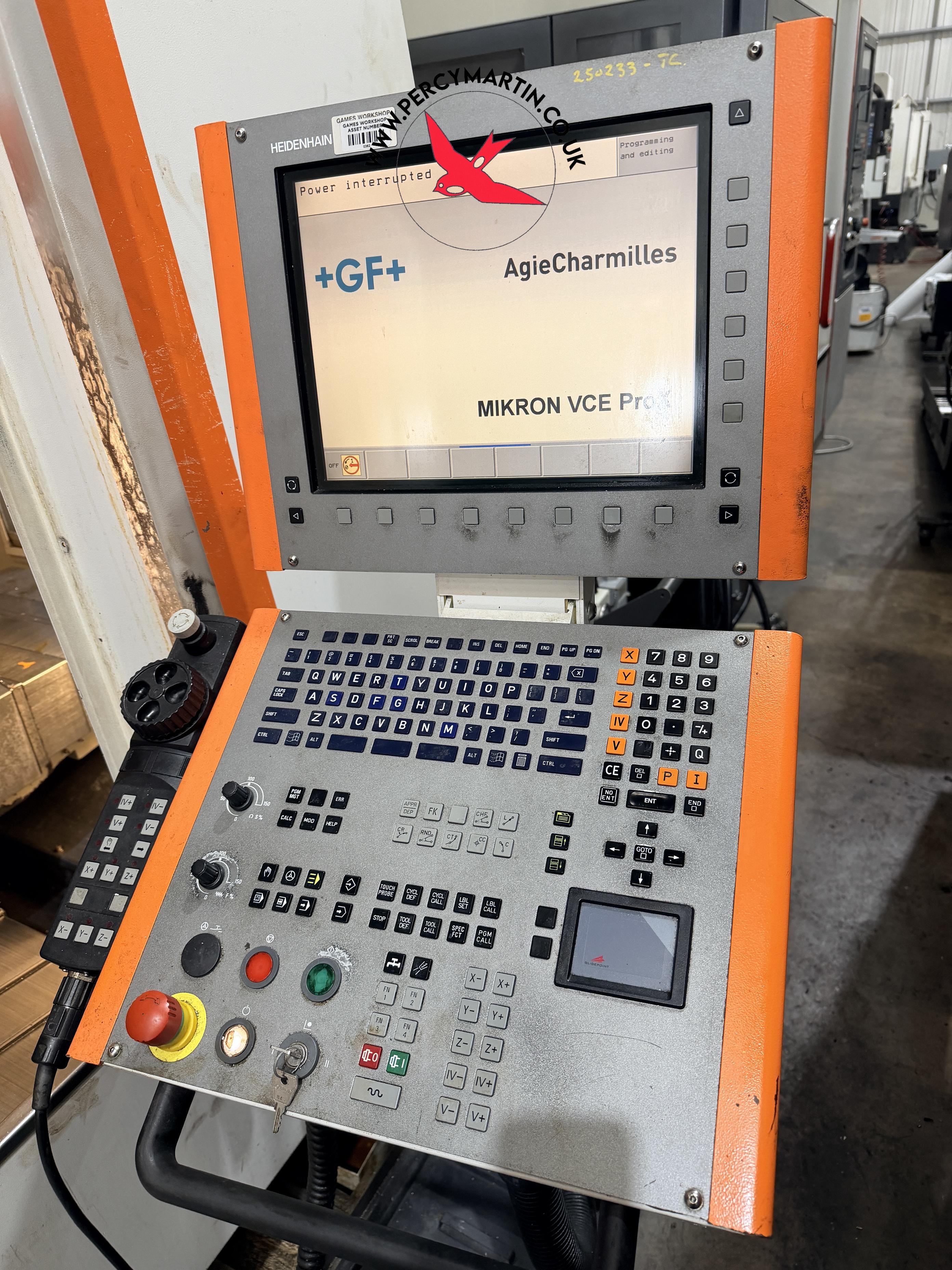

Control
Heidenhain TNC530i
Machine Dimensions
2270 x 3477 x 2865mm
Machine Weight
6500kg
Maximum Tool Diameter
77mm
Maximum Tool Diameter with Empty Adjacent Pockets
115mm
Maximum Tool Length
305mm
Maximum workpiece weight
1350kg
Min - Max Height under Spindle
735mm
Rapid Feedrates
40m/minute
Spindle Motor Power
18.5kW
Spindle Speed
16000rpm
T- Slots
5 x 18mm
Table Size
1000 x 560mm
Tool Change Capacity
24 Station
Tool Size
BT40
Traverses XYZ
1020 x 560 x 600mm
