CMZ TD 30Y 2020

3 Jaw Chuck , C axis & Milling , Coolant , Interlocked guards , Low Volt Light , Swarf Conveyor , Tailstock , Tool setter , Y-axis

Key Features Gallery Specifications More in Stock Register Interest

CMZ TD 30Y 2020

Key Features

Type:

All Products

Model:

TD 30Y

Make:

CMZ

Year:

2020

Serial No

469

Price

£POA

Our Reference

Location

Leicester

CMZ TD 30Y 2020

Specifications

Bar Capacity

78mm

C axis

0.001 degrees

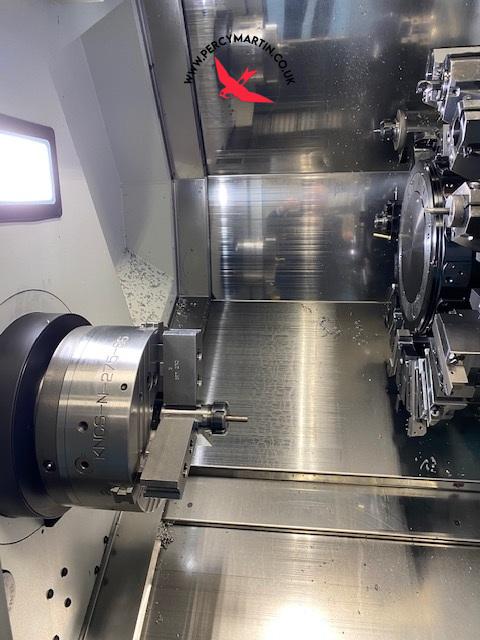

Chuck Size

10" (255mm)

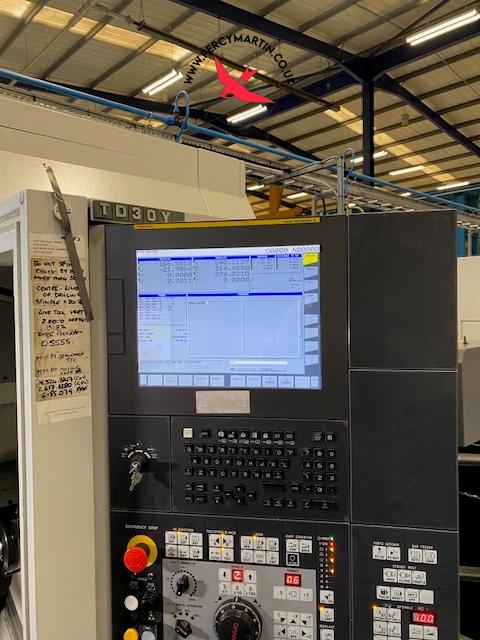

Control

FANUC i Series

Distance Between Centres

800mm

Machine Dimensions

4062 x 1991 x 1941mm

Machine Weight

8700kg

Maximum Cutting Diameter

550mm

Milling Motor Power

137.7/11kW

Milling RPM

12000rpm

Spindle Motor Power

42/27kW

Spindle Speed

3500rpm

Swing

950mm

Swing over the Cross-slide

715mm

X axis Travel

380mm

Y axis Travel

-60 ~ +80mm

Z axis Travel

800mm
