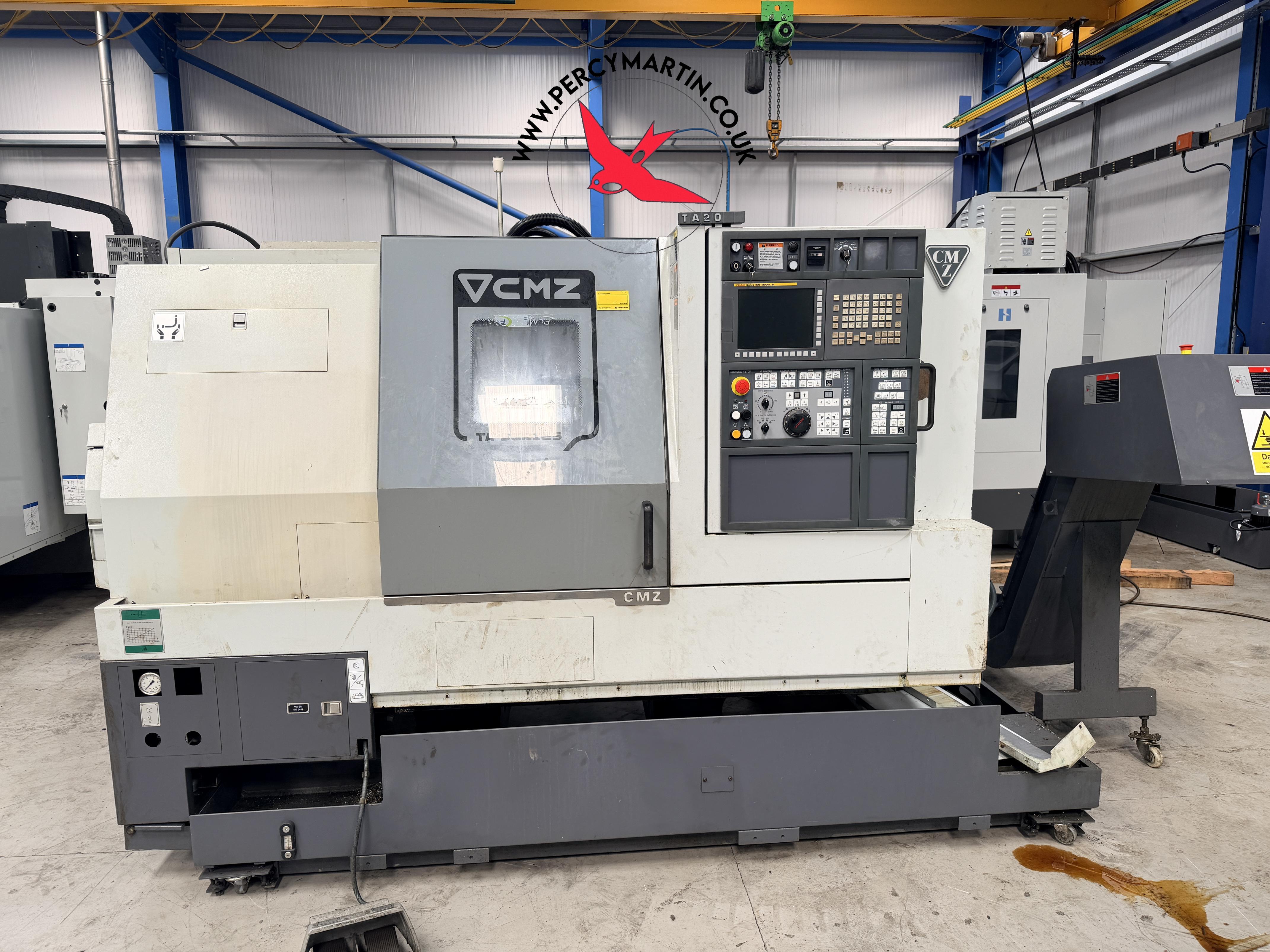

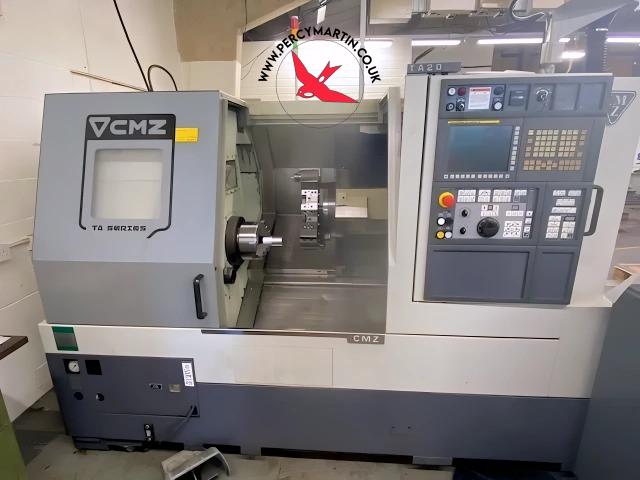

CMZ TA-20 2015

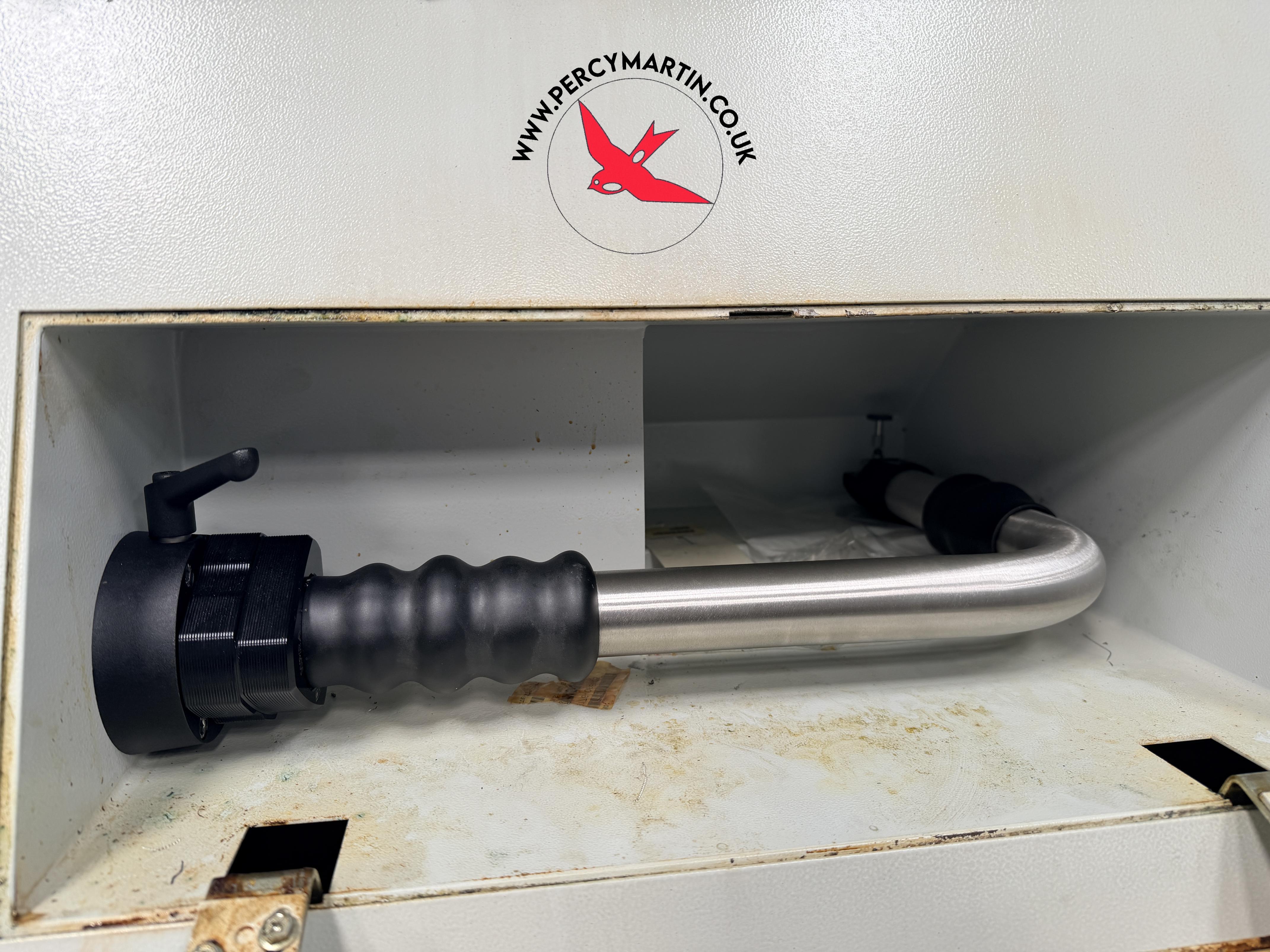

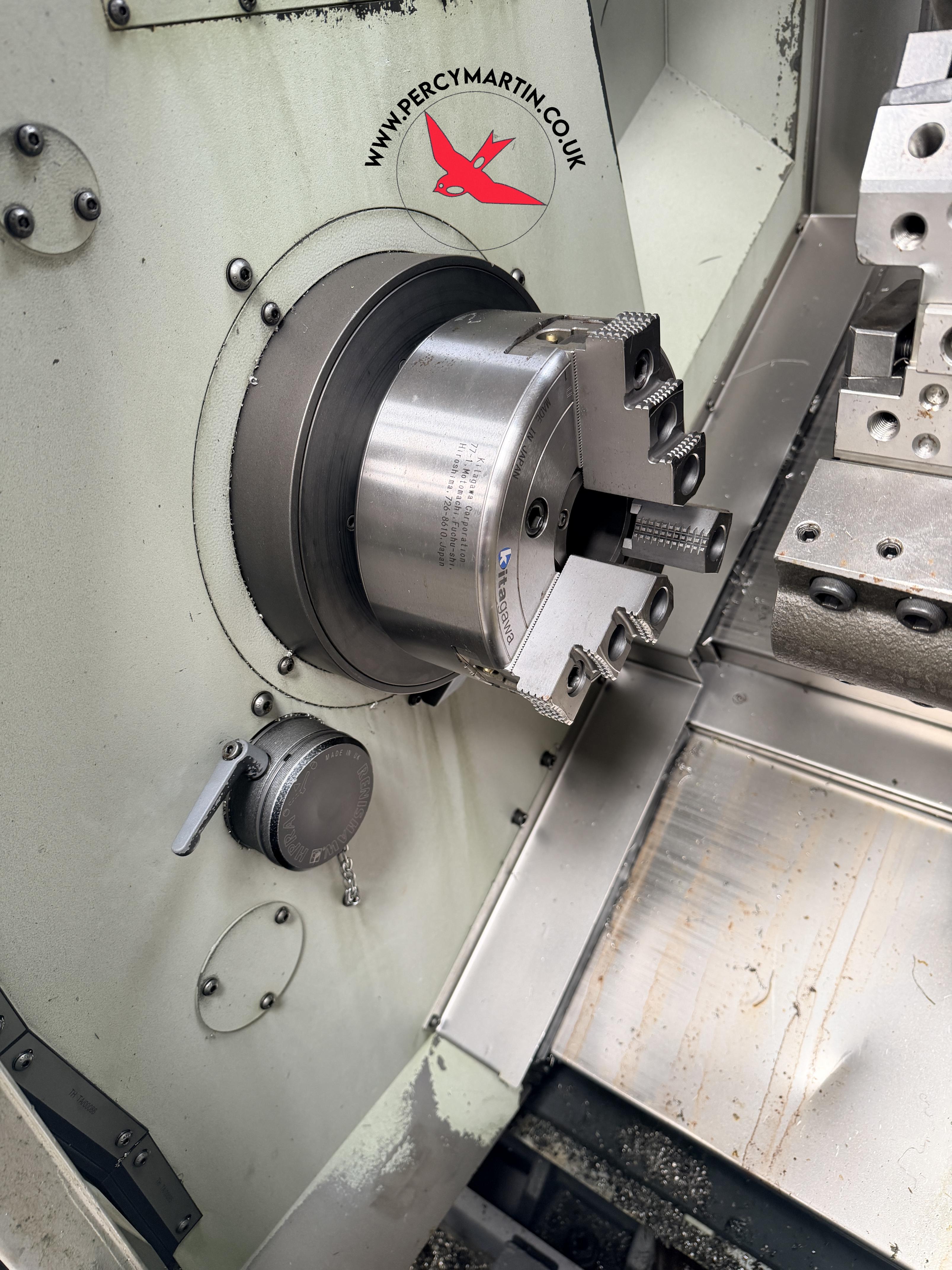

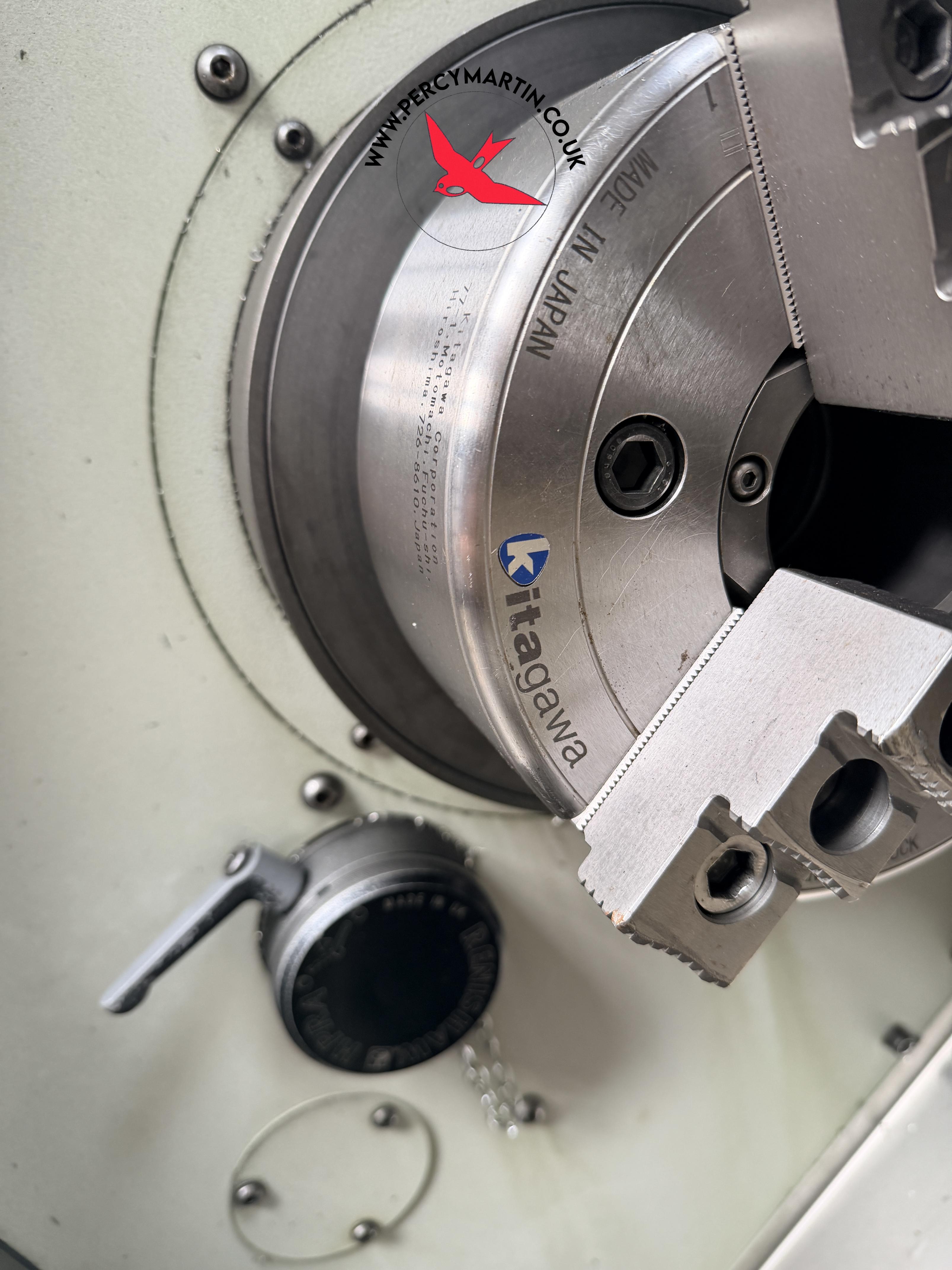

3 Jaw Chuck , Coolant , Interlocked guards , Low Volt Light , Swarf Conveyor , Tailstock , Tool setter

Key Features Gallery Specifications More in Stock Register Interest

CMZ TA-20 2015

Key Features

Type:

All Products

Model:

TA-20

Make:

CMZ

Year:

2015

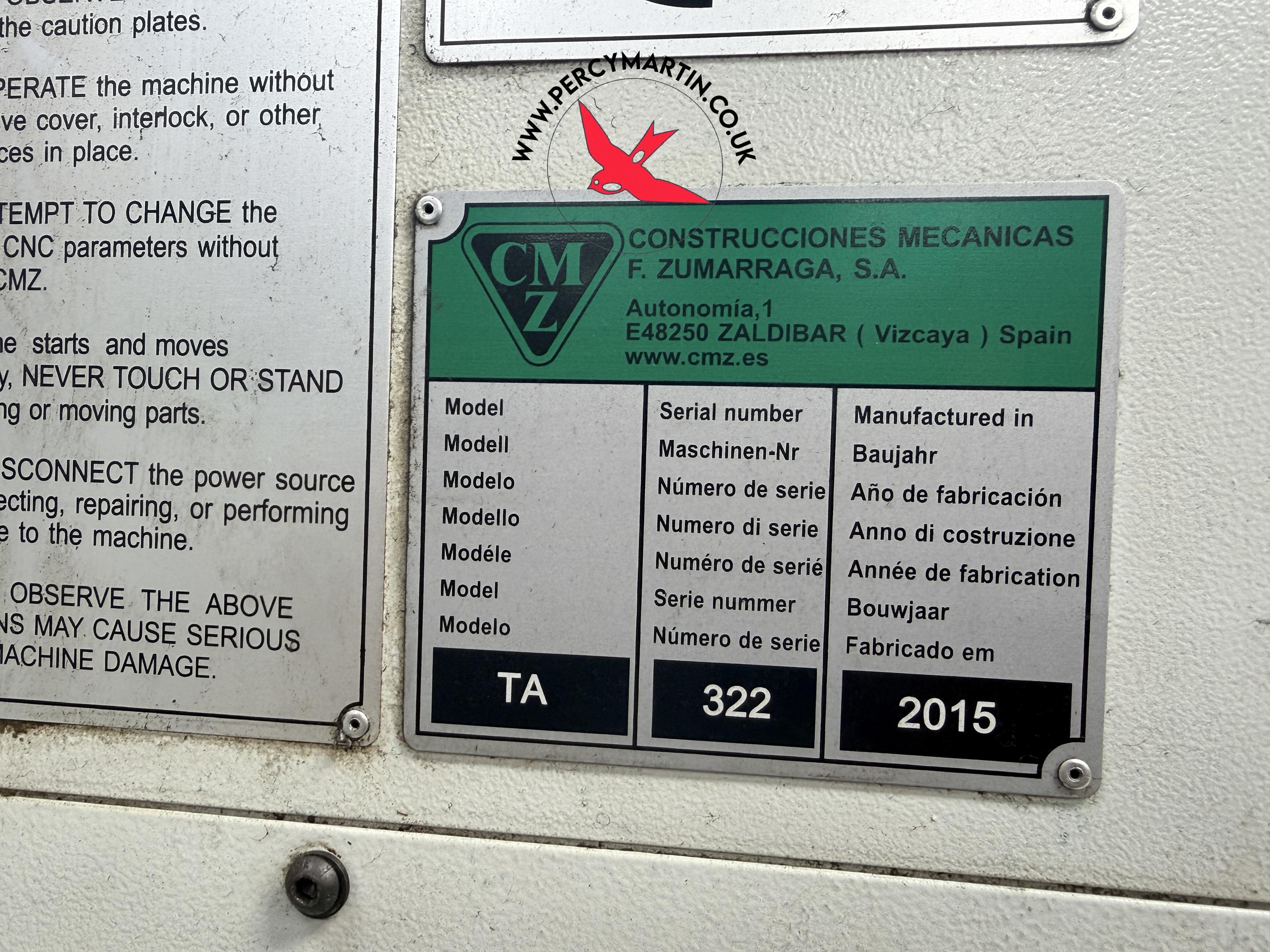

Serial No

322

Price

£POA

Our Reference

PM9816

Location

Leicester

CMZ TA-20 2015

Specifications

Bar Capacity

66mm

Chuck Size

8" (210mm)

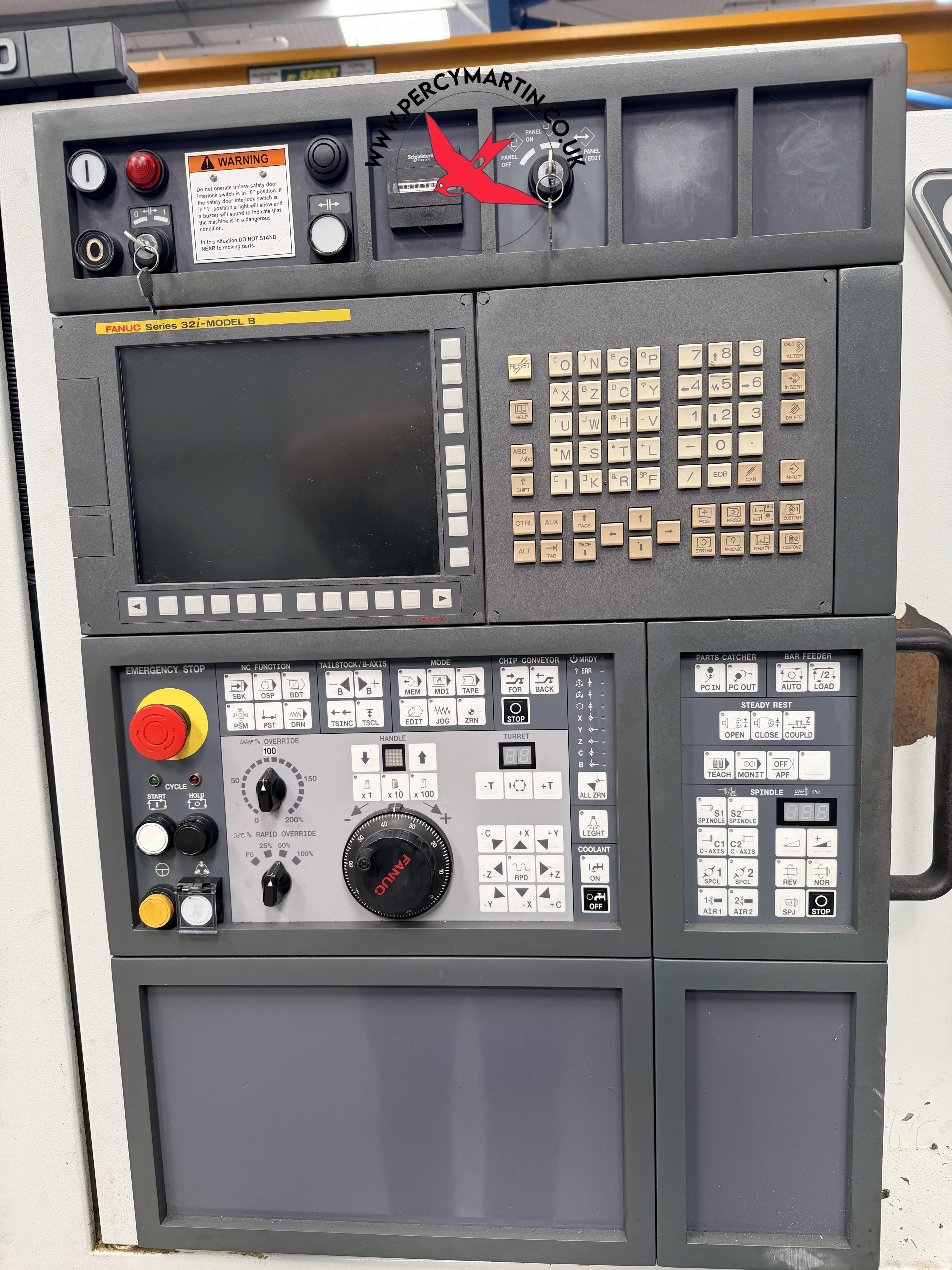

Control

FANUC

Machine Dimensions

3500 x 1950 x 1900mm

Machine Dimensions

2302 x 1760 x 880mm

Machine Weight

6800kg

Maximum Cutting Diameter

460mm

Maximum Cutting Length

473mm

Rapid Feedrates

30m/minute

Spindle Motor Power

22/15kW

Spindle Nose

A2-6

Spindle Speed

4000rpm

Swing

760mm

Swing Over Carriage

600mm

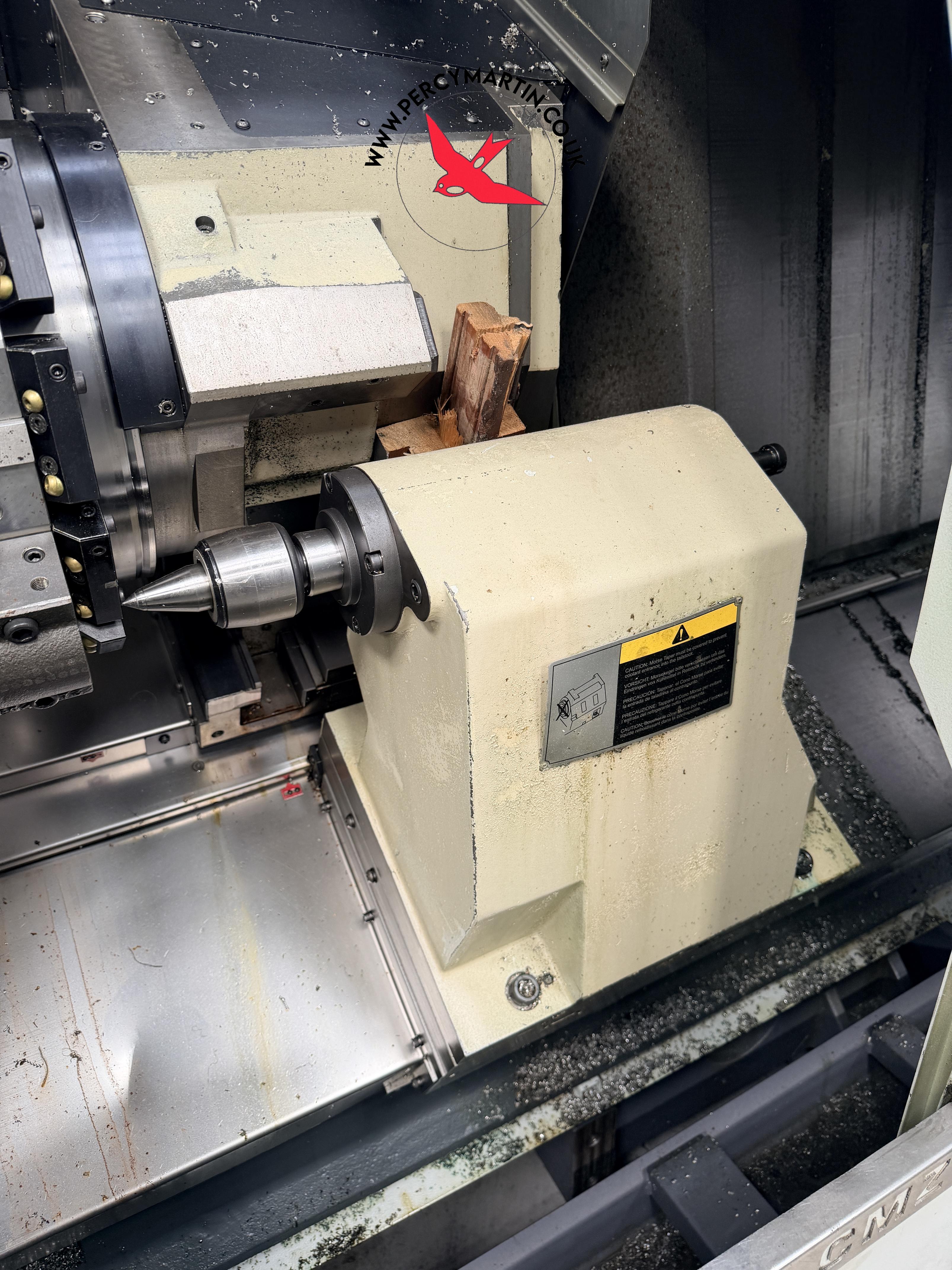

Tailstock Body Travel

400mm

Tailstock Taper

MT #5

Tool Size

25 x 25mm

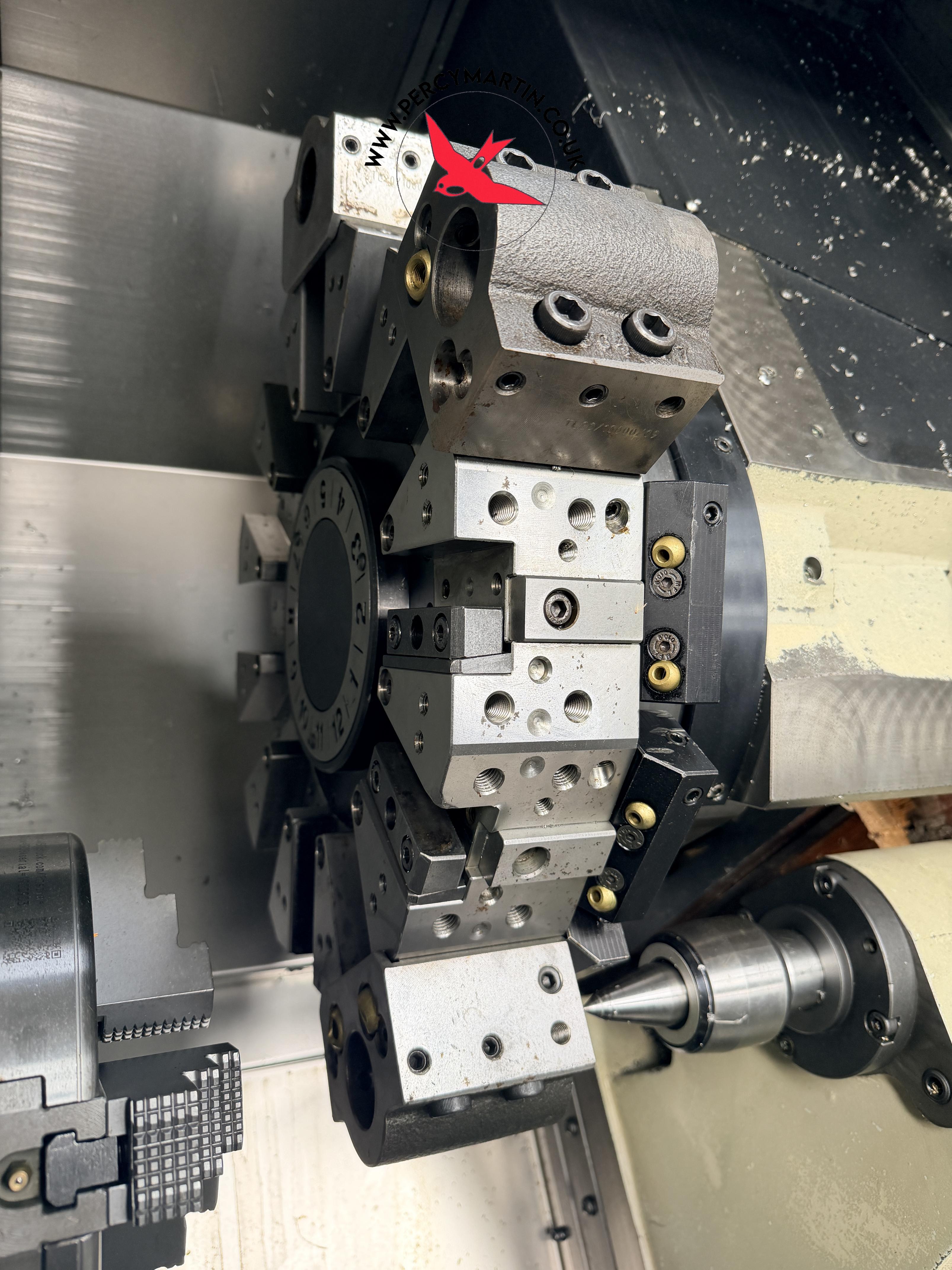

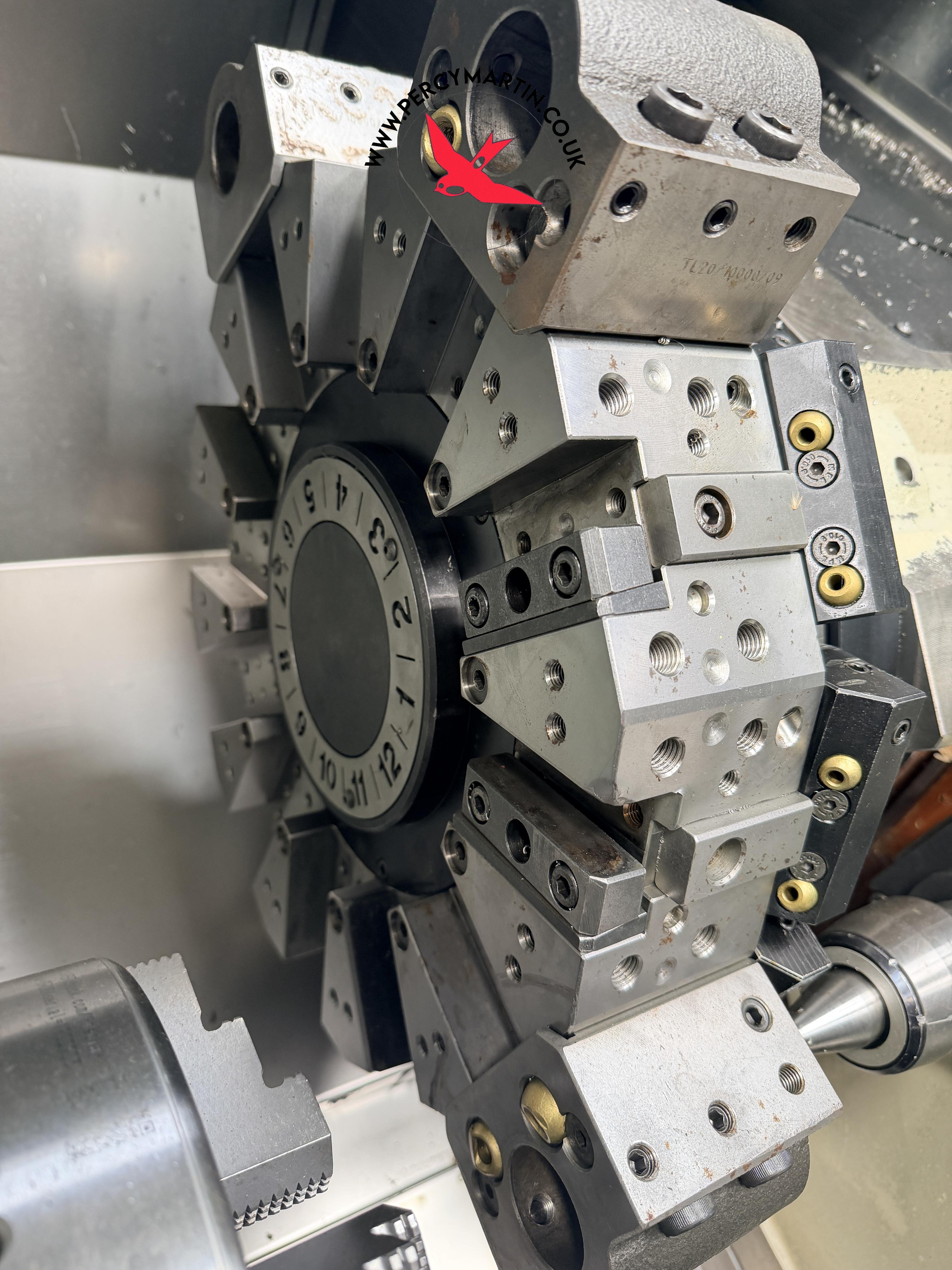

Turret Positions

12 Station

X axis Travel

310mm

Z axis Travel

400mm
