Leadwell T6 2011

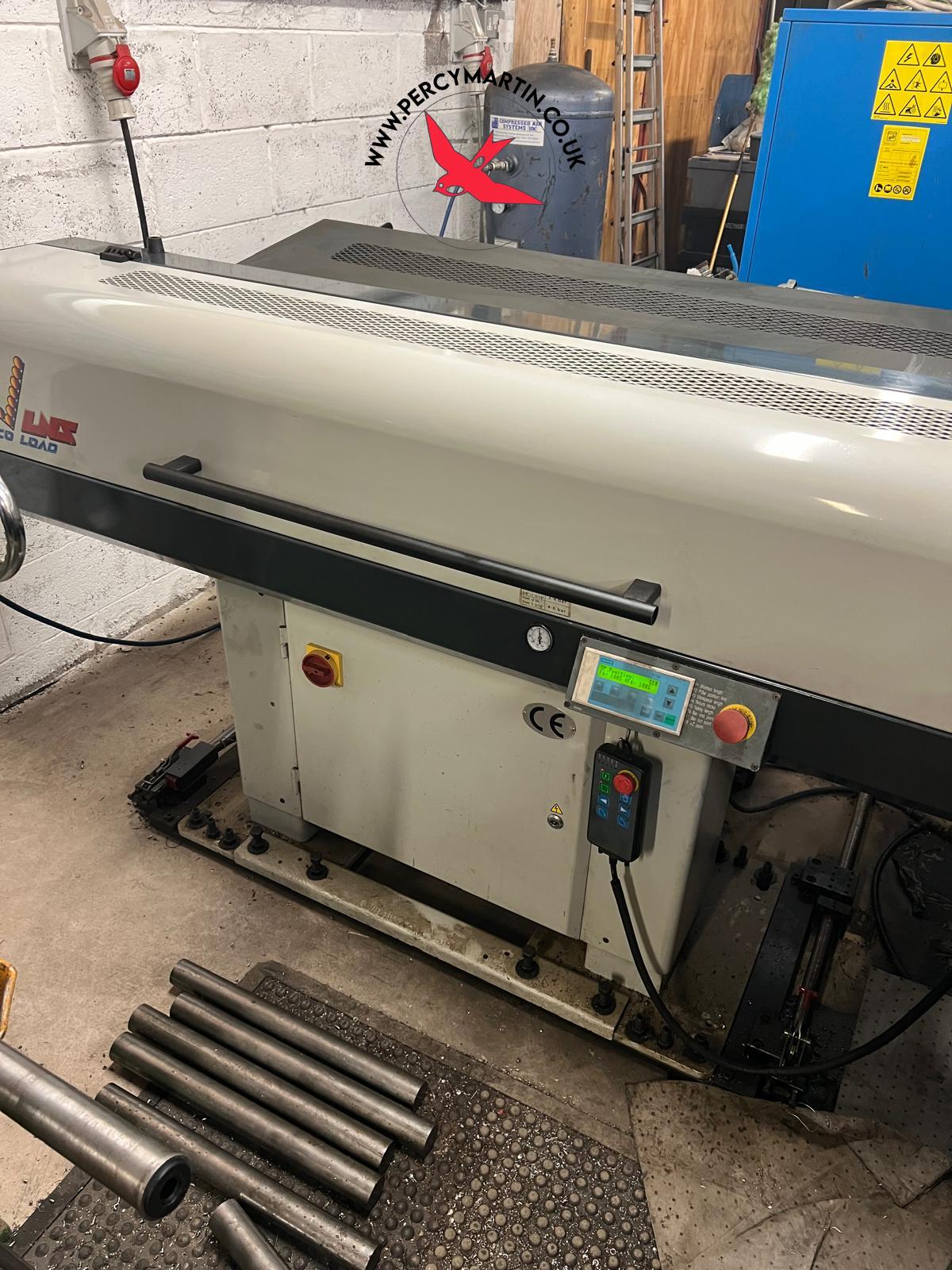

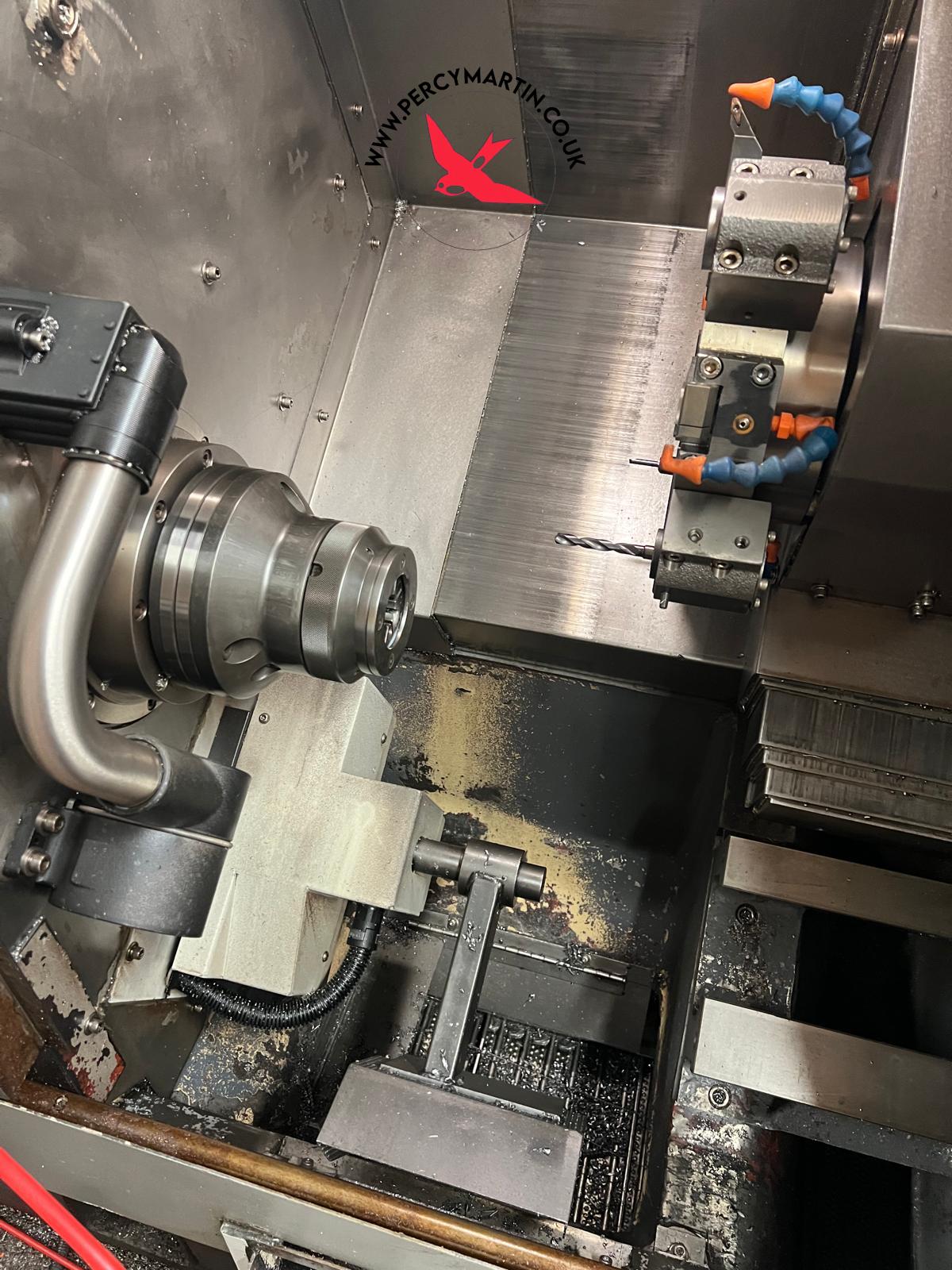

Collet Chuck , Coolant , Interlocked guards , Low Volt Light , Magazine Barfeed , Swarf Conveyor , Tailstock , Tool setter , Tooling
Leadwell T6 2011
Key Features
Type:
All Products
Model:
T6
Make:
Leadwell
Year:
2011
Serial No
L2TAJ1195
Price
£POA
Our Reference
PM9664
Location
Leicester
Leadwell T6 2011
Specifications
Bar Capacity
51mm
Boring Bar Holder Diameter
32mm
Chuck Size
165mm

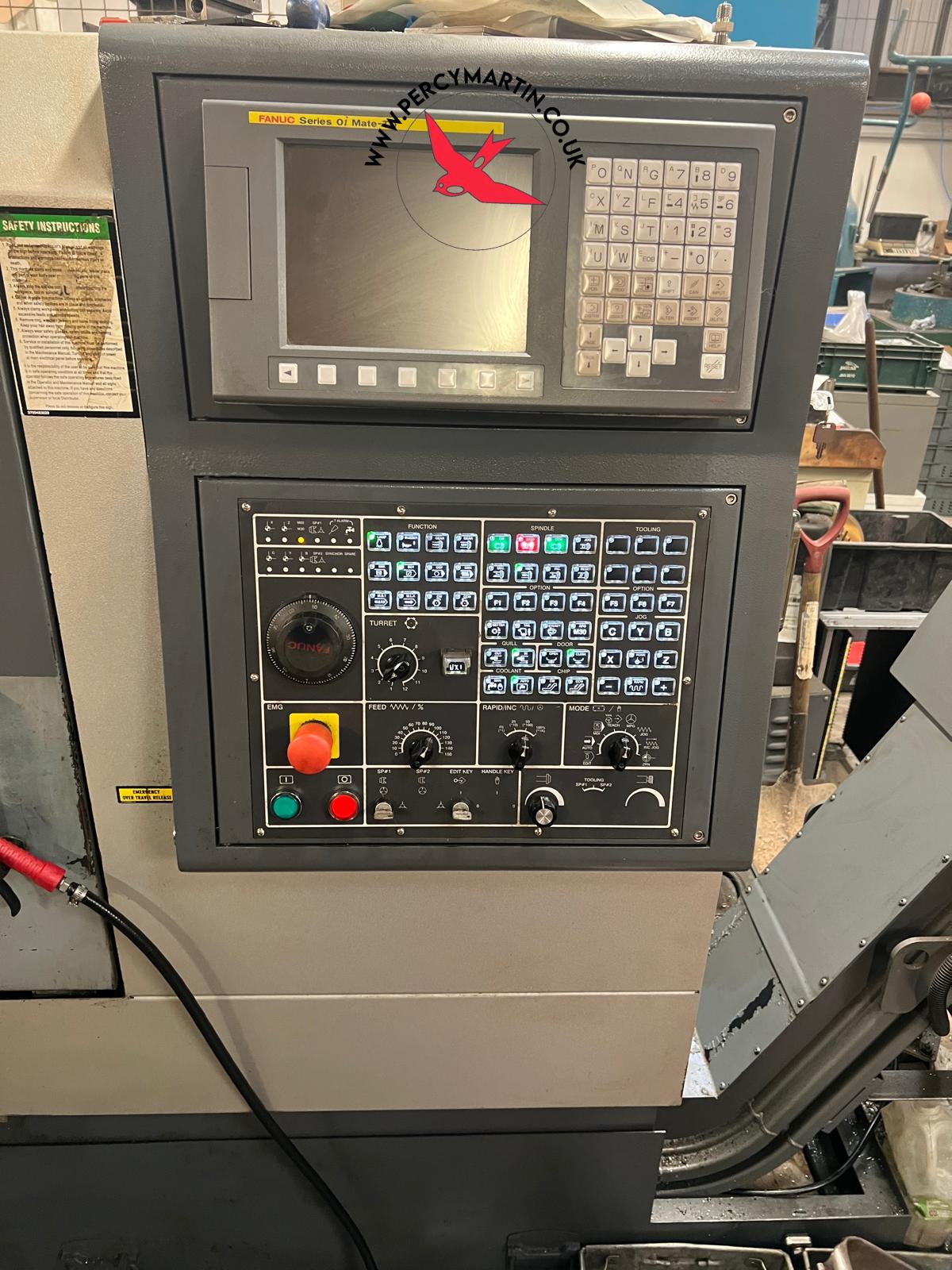

Control
FANUC 0i
Machine Dimensions
2896 x 1580 x 1595mm
Machine Weight
3000kg
Maximum Cutting Diameter
210mm
Maximum Cutting Length
420mm
Rapid Feedrates
XZ: 20 x 24m/minute
Spindle Motor Power
11/7.5kW
Spindle Nose
A2-5
Spindle Speed
4500rpm
Swing
450mm
Tailstock Quill Diameter
75mm
Tailstock Taper
MT #4
Tool Size
20 x 20mm

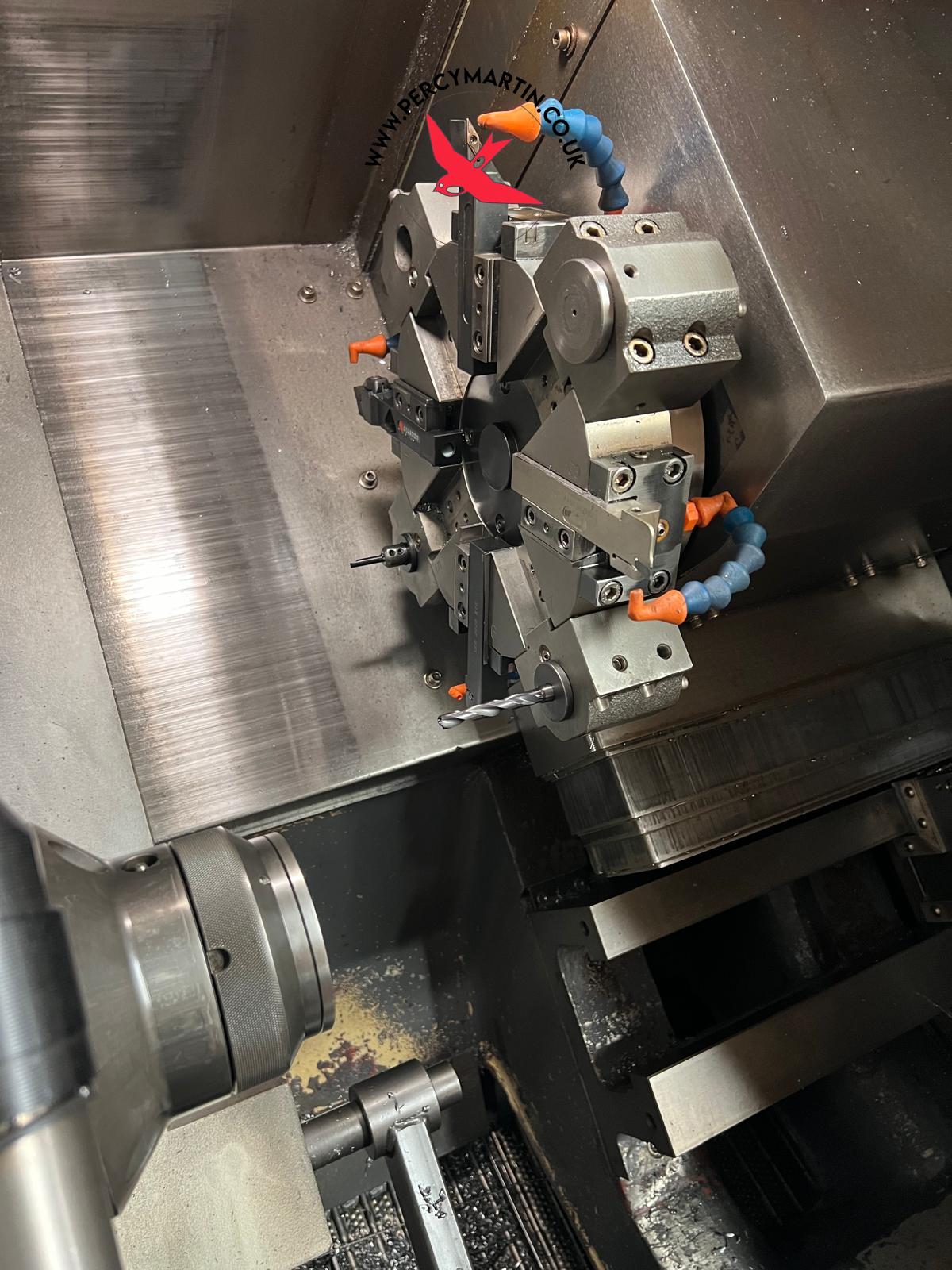

Turret Positions
12 Station
X axis Travel
125mm
Z axis Travel
460mm
