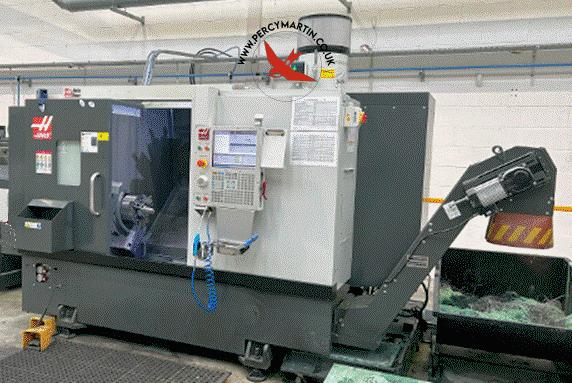

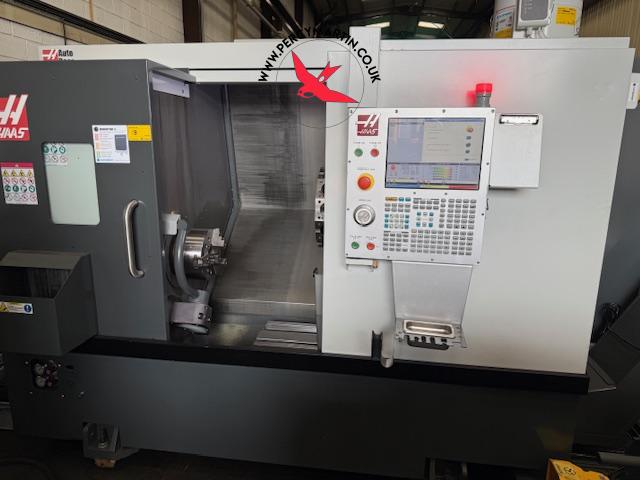

HAAS ST-25Y 2020

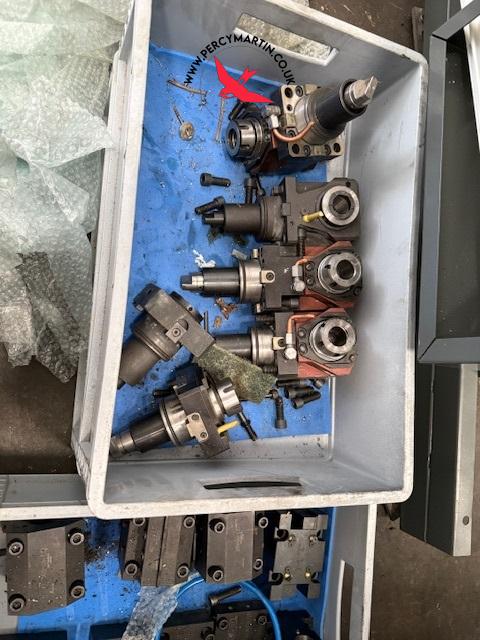

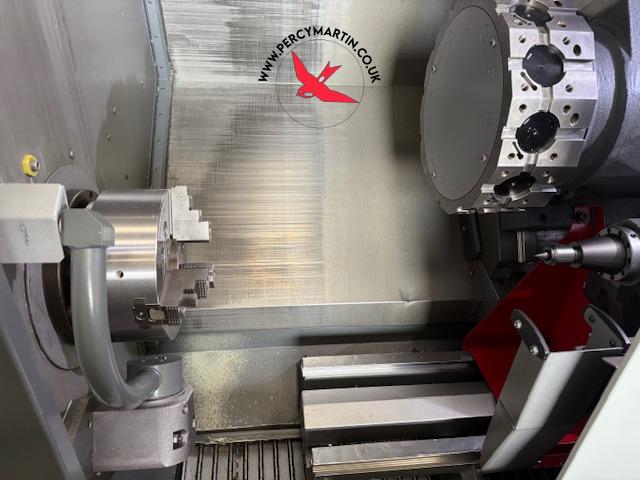

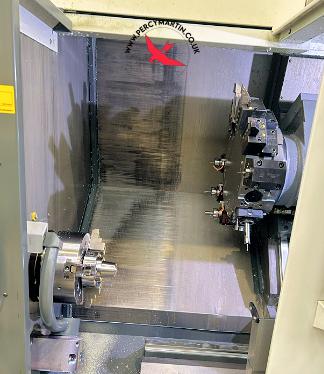

3 Jaw Chuck , C axis & Milling , Coolant , Interlocked guards , Low Volt Light , Parts Catcher , Swarf Conveyor , Tailstock , Tool setter , Tooling , Y-axis
HAAS ST-25Y 2020
Key Features
Type:
All Products
Model:
ST-25Y
Make:
HAAS
Year:
2020

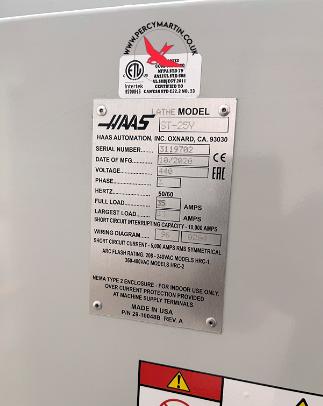

Serial No
3119702
Price
£POA
Our Reference
PM9373
Location
Leicester
HAAS ST-25Y 2020
Specifications
Bar Capacity
76mm
C axis
0.01 degree

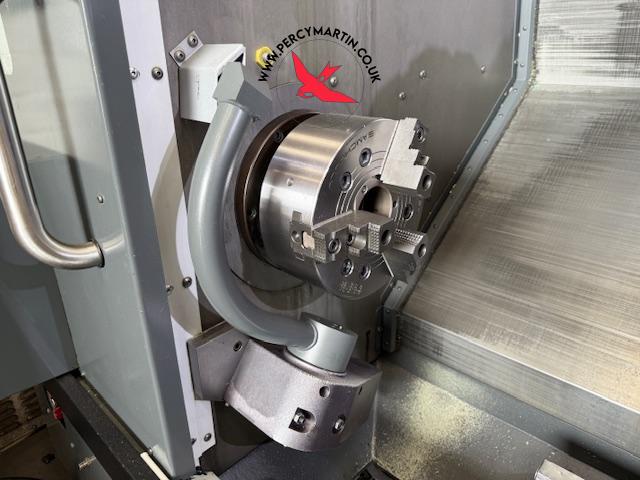

Chuck Size
10" (250mm)

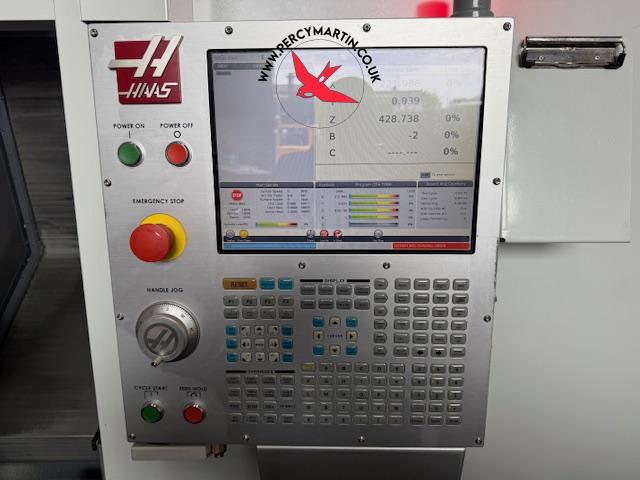

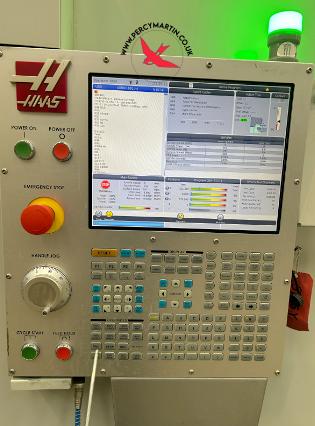

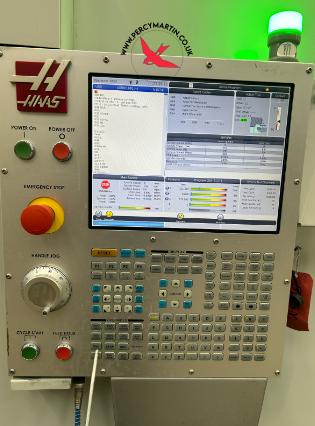

Control
HAAS
Machine Dimensions
3610 x 2290 x 2340mm
Machine Weight
5580kg
Maximum Cutting Diameter
298mm
Maximum Cutting Length
572mm
Milling RPM
4000rpm
Rapid Feedrates
XYZ: 12 x 12 x 24m/minute
Spindle Motor Power
30Hp (22.4kW)
Spindle Nose
A2-6
Spindle Speed
3400rpm
Swing
533mm

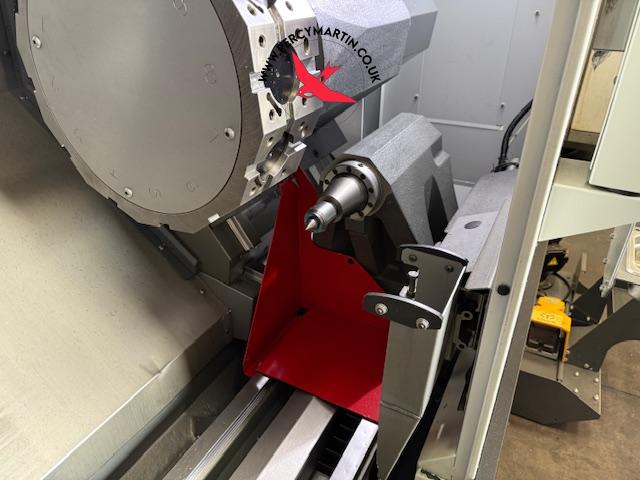

Tailstock Taper
MT #4
Tooling Configuration
BMT-65

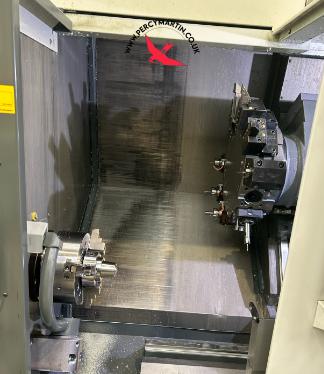

Turret Positions
12 Station
X axis Travel
213mm
Y axis Travel
+/-50.8mm
Z axis Travel
572mm
