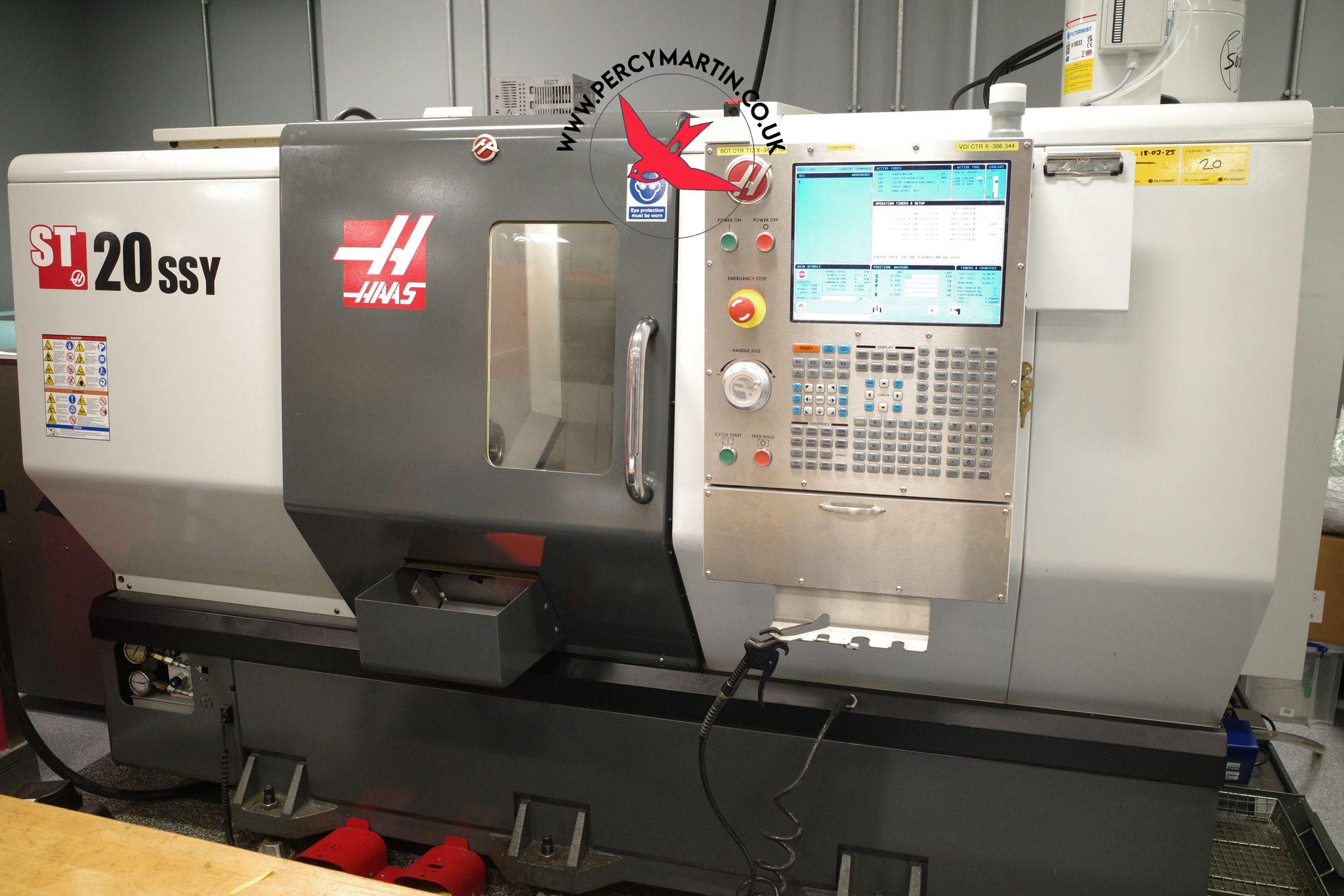

HAAS ST-20SSY 2013
3 Jaw Chuck , C axis & Milling , Collet Chuck , Coolant , Interlocked guards , Low Volt Light , Swarf Conveyor , Tailstock , Y-axis
HAAS ST-20SSY 2013
Key Features
Type:
All Products
Model:
ST-20SSY
Make:
HAAS
Year:
2013

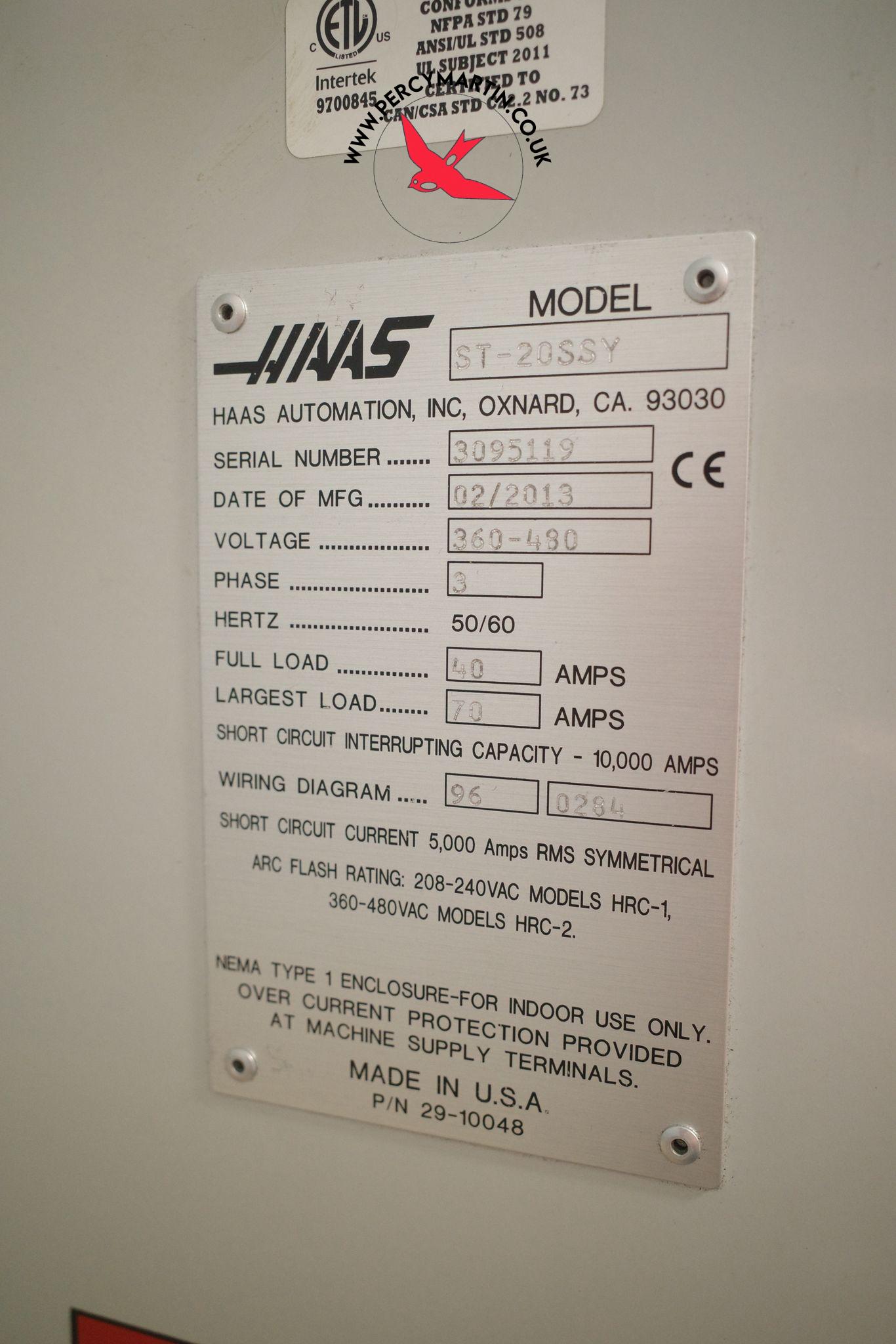

Serial No
3095119
Price
£POA
Our Reference
PM9805
Location
Leicester
HAAS ST-20SSY 2013
Specifications
Bar Capacity
51mm
C axis
0.01 degree
Control
HAAS
Machine Dimensions
4191 x 2464 x 1956mm
Machine Weight
4800kg
Maximum Cutting Diameter
254mm
Maximum Cutting Length
533mm
Milling Motor Power
5Hp
Milling RPM
6000rpm
Rapid Feedrates
XYZ: 24 x 12.7 x 30.5m/minute
Spindle Motor Power
30Hp
Spindle Nose
A2-6
Spindle Speed
5000rpm
Swing
806mm
Swing over the Cross-slide
527mm
Tailstock Body Travel
534mm
Tooling Configuration
Hybrid - VDI40 & BOT
Turret Positions

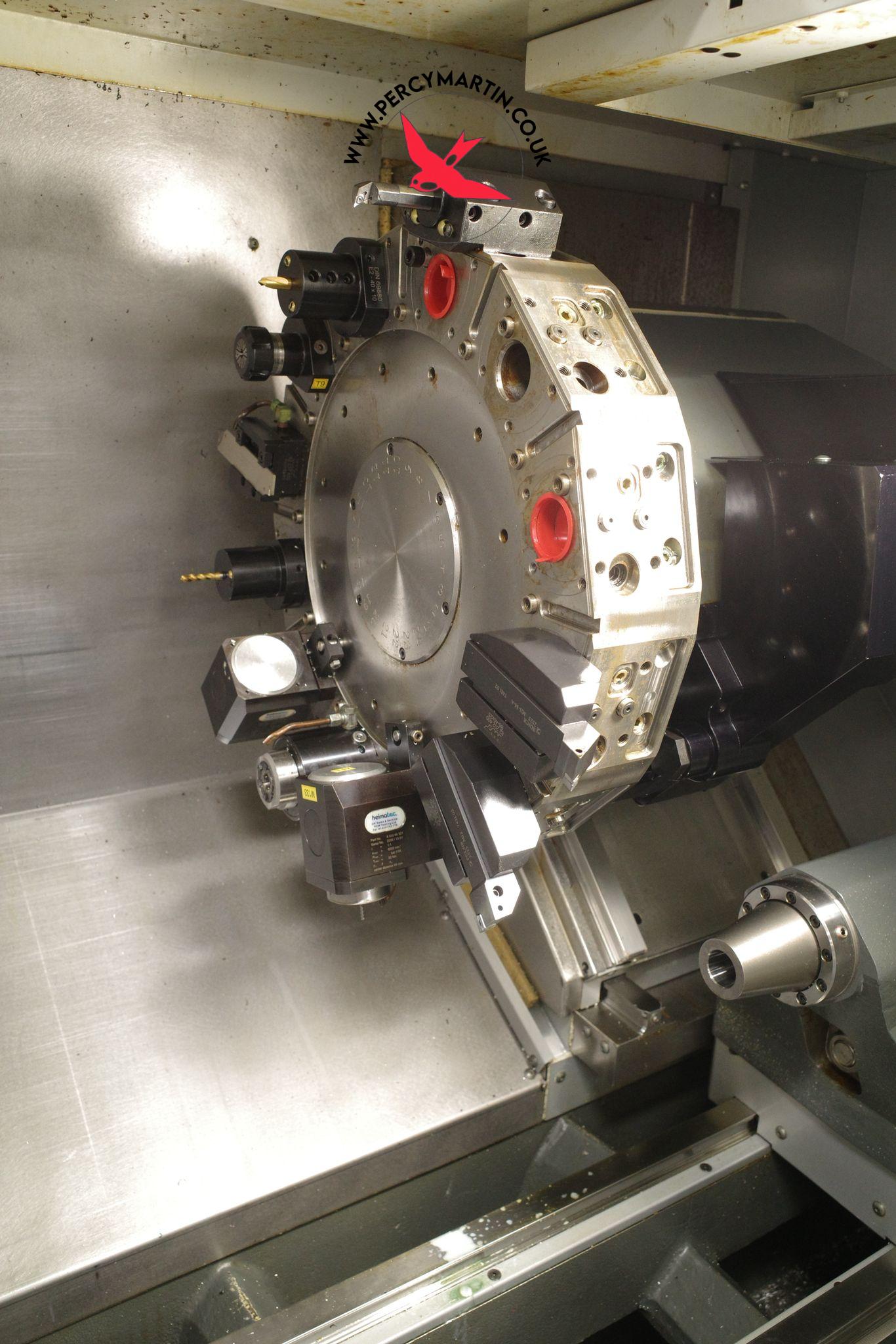

24 Station Hybrid (VDI40 & BOT)
X axis Travel
236mm
Y axis Travel
+/-51mm
Z axis Travel
584mm
