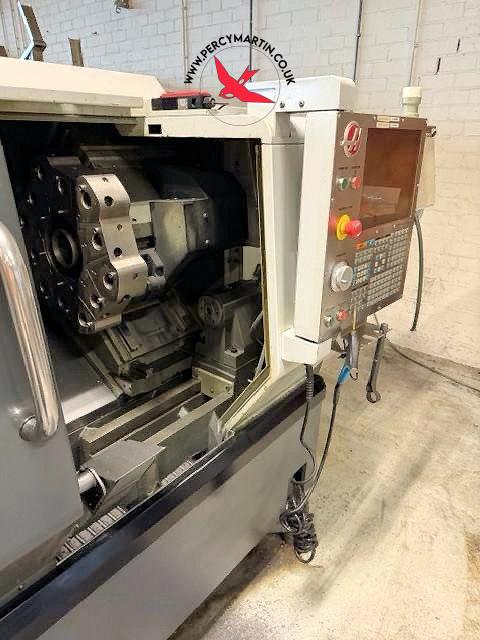

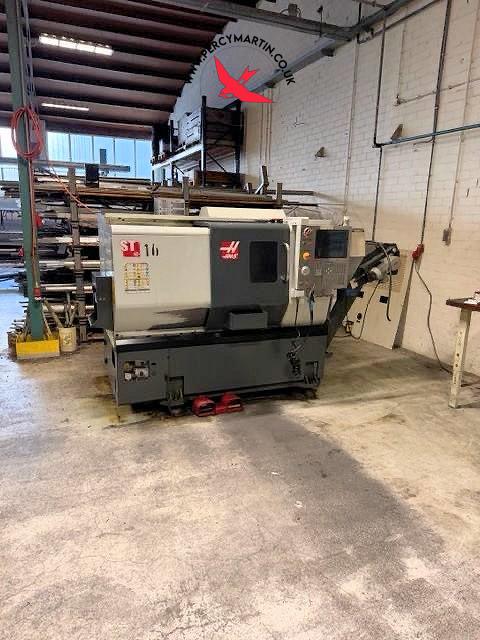

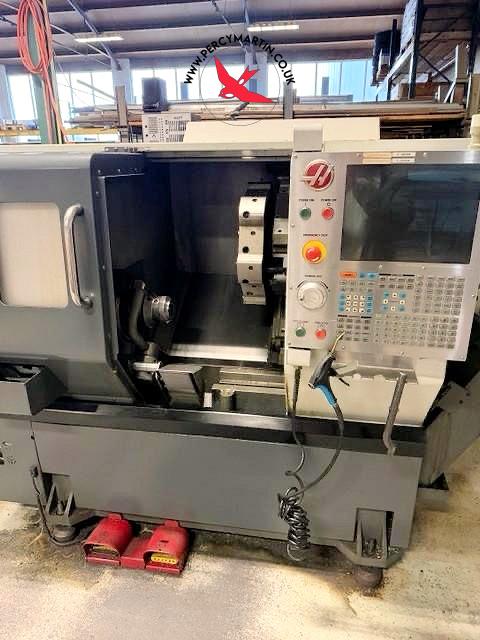

HAAS ST-10Y 2012

3 Jaw Chuck , C axis & Milling , Coolant , Interlocked guards , Low Volt Light , Parts Catcher , Swarf Conveyor , Tailstock , Tool setter , USB Port , Y-axis
Key Features Gallery Specifications More in Stock Register Interest
HAAS ST-10Y 2012

Key Features

Type:

All Products

Model:

ST-10Y

Make:

HAAS

Year:

2012

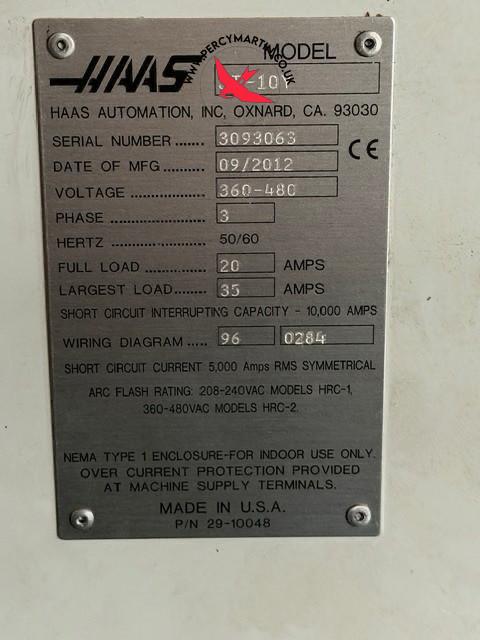

Serial No

3093063

Price

£POA

Our Reference

PM9814

Location

Leicester

HAAS ST-10Y 2012

Specifications

Bar Capacity

44mm

C axis

0.01 degrees

Control

HAAS

Machine Dimensions

3048 x 2108 x 1803mm

Maximum Cutting Diameter

229mm

Maximum Cutting Length

356mm

Milling RPM

6000rpm

Rapid Feedrates

XYZ: 30.5 x 12.7 x 30.5m/minute

Spindle Motor Power

15Hp

Spindle Nose

A2-5

Spindle Speed

6000rpm

Swing

641mm

Swing Over Carriage

413mm

Turret Positions

12 Station

X axis Travel

200mm

Y axis Travel

+/-50mm

Z axis Travel

355mm
