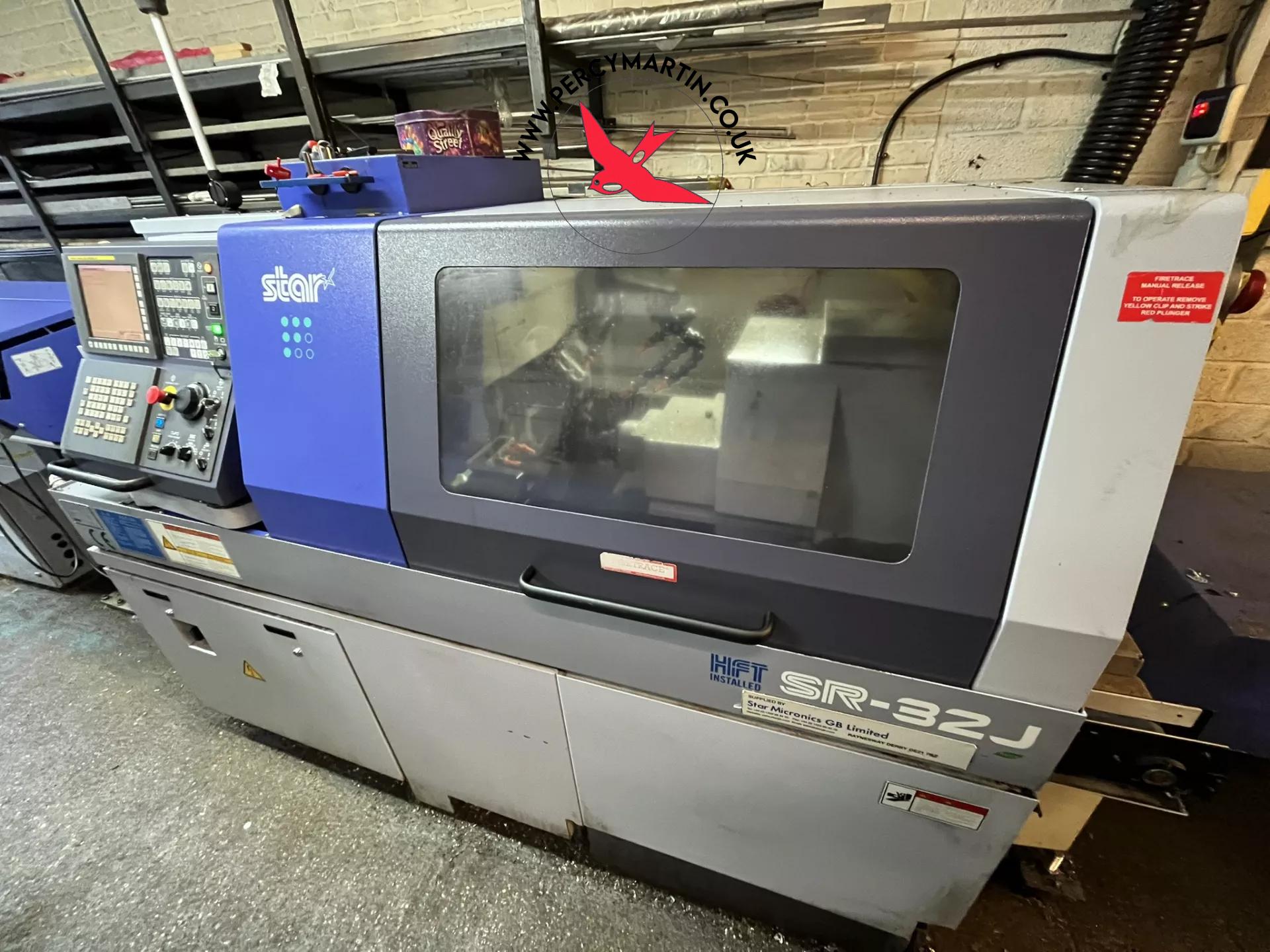

Star SR-32J 2021
C Axis (0.001degree) on Sub Spindle , C axis & Milling , Coolant , Interlocked guards , Low Volt Light , Magazine Barfeed , Parts Conveyor , Sub Spindle , Swarf Conveyor , Tooling , Y-axis
Star SR-32J 2021
Key Features
Type:
All Products
Model:
SR-32J
Make:
Star
Year:
2021
Serial No
Price
£POA
Our Reference
Location
Leicester
Star SR-32J 2021
Specifications
Bar Capacity
32mm

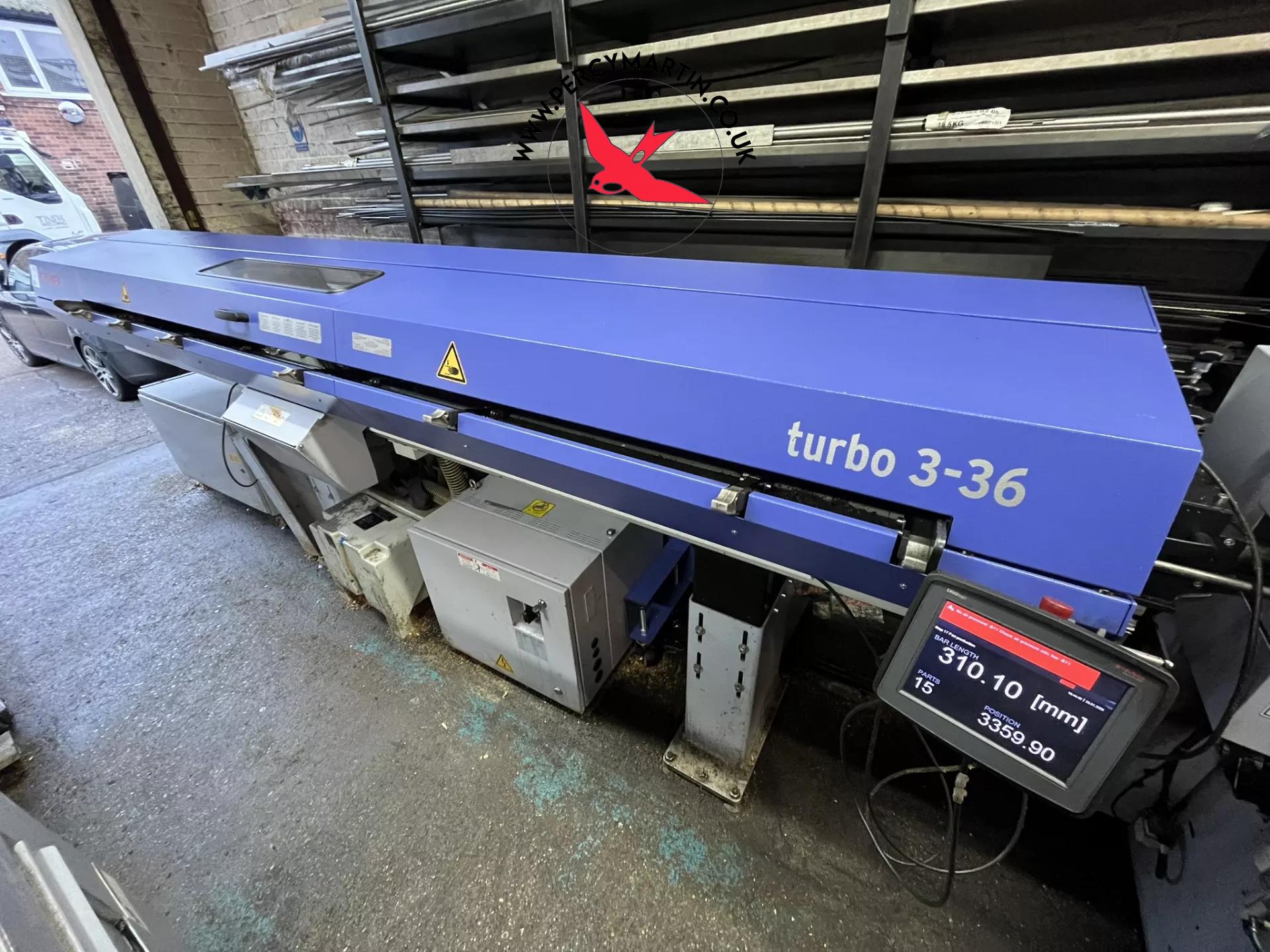

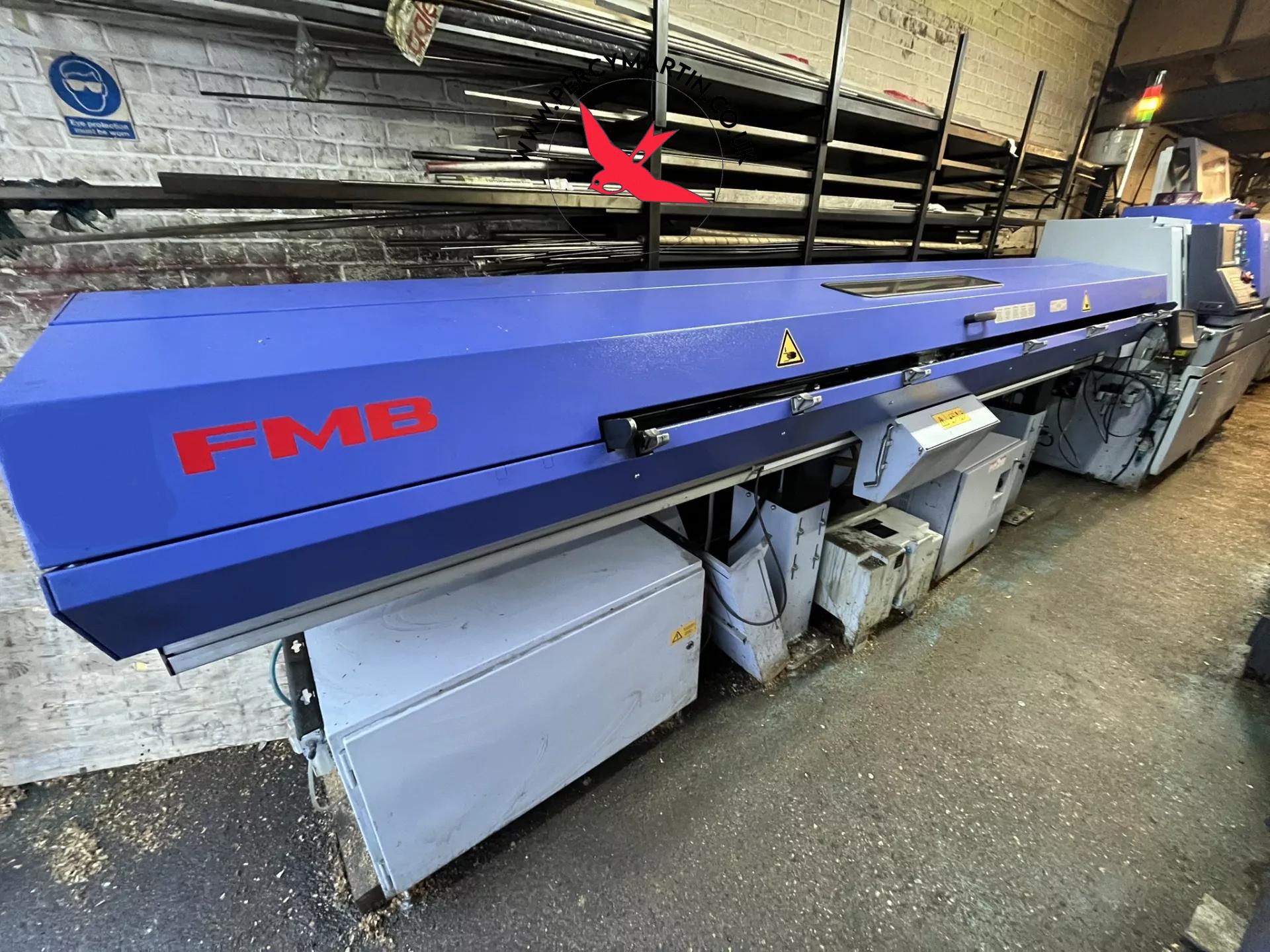

Barfeed
FMB Turbo 3-36/3200
C axis
0.001 degree

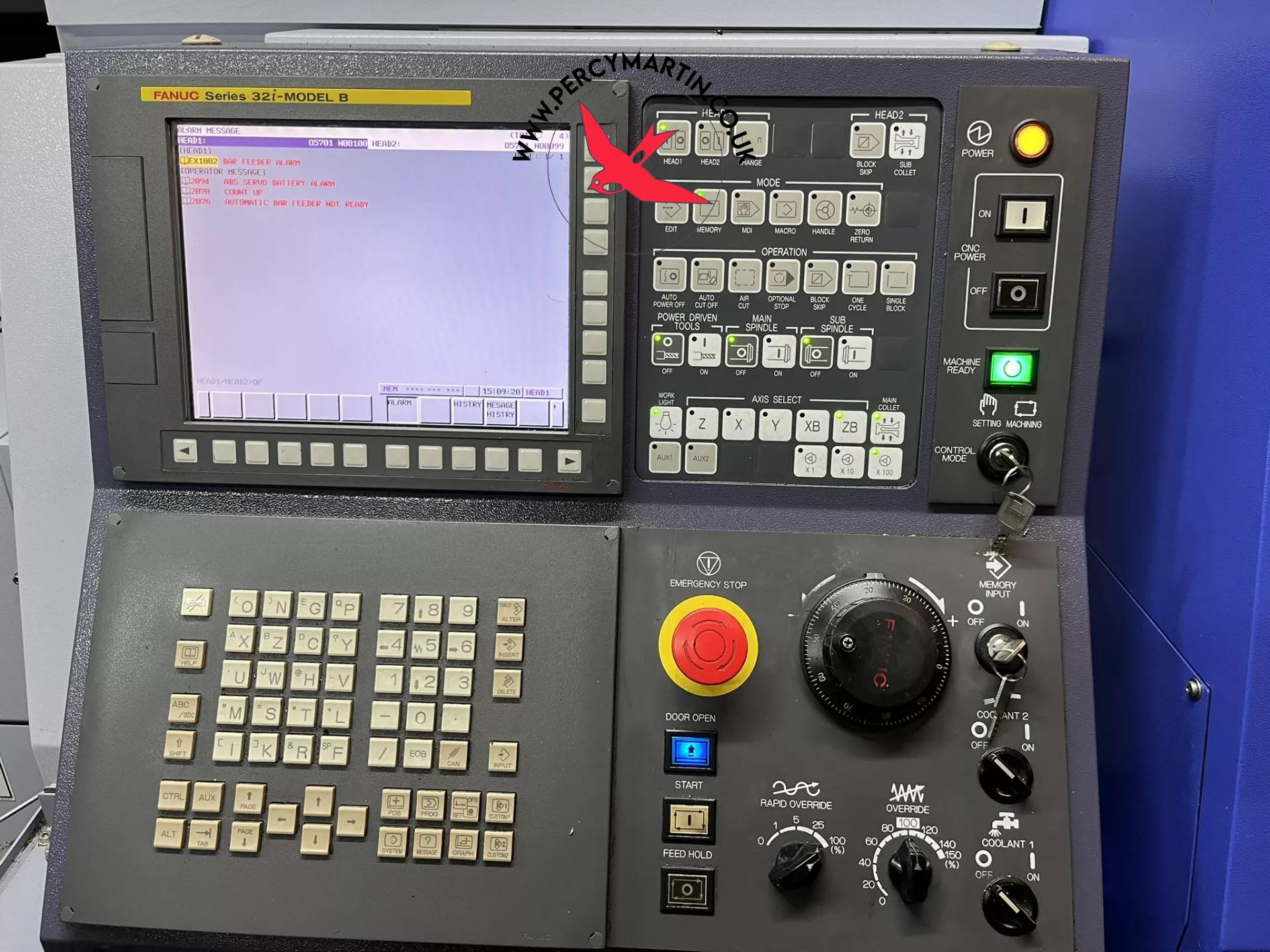

Control
FANUC 32i-TB
Machine Dimensions
2711 x 1275 x 1705mm
Machine Weight
3100kg
Maximum Cutting Diameter
32mm
Maximum Cutting Length
80mm
Maximum Drilling diameter
8mm
Maximum Tapping Capacity
M6 10
Milling Motor Power
1.2kW
Milling RPM
5000rpm
Number of Axis Controlled
7 (Z, ZB, X, XB, C1, C2. Y)
Rapid Feedrates
24m/minute
Spindle Motor Power
7.5kW
Spindle Speed
7000rpm

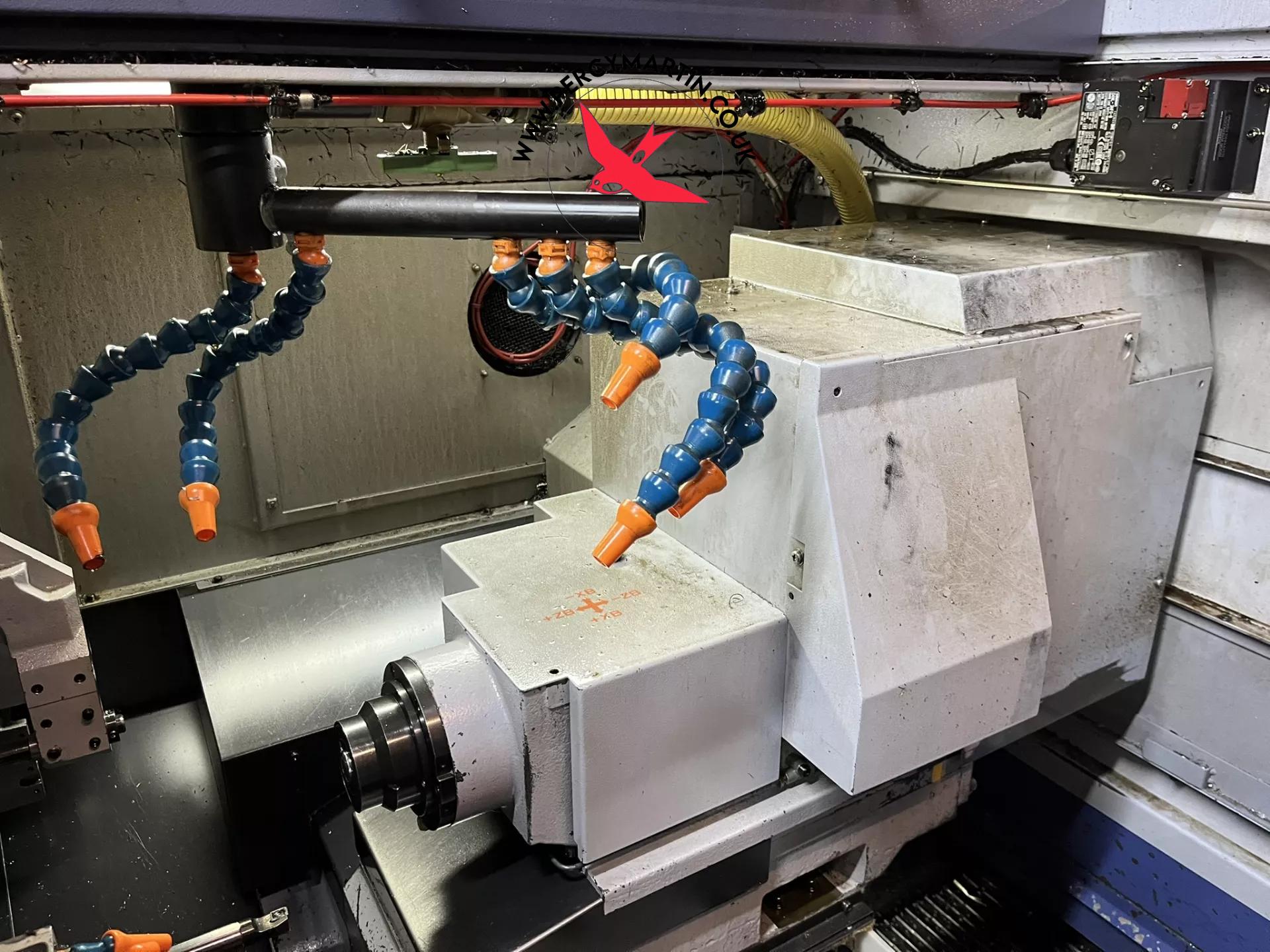

Sub Spindle C axis
0.001 degree
Sub Spindle Max Speed
7000rpm
Sub Spindle Motor
3.7kW
Tool Change Capacity
6 + 4 + 4 + 5 + 4
