Star SB-20 2011

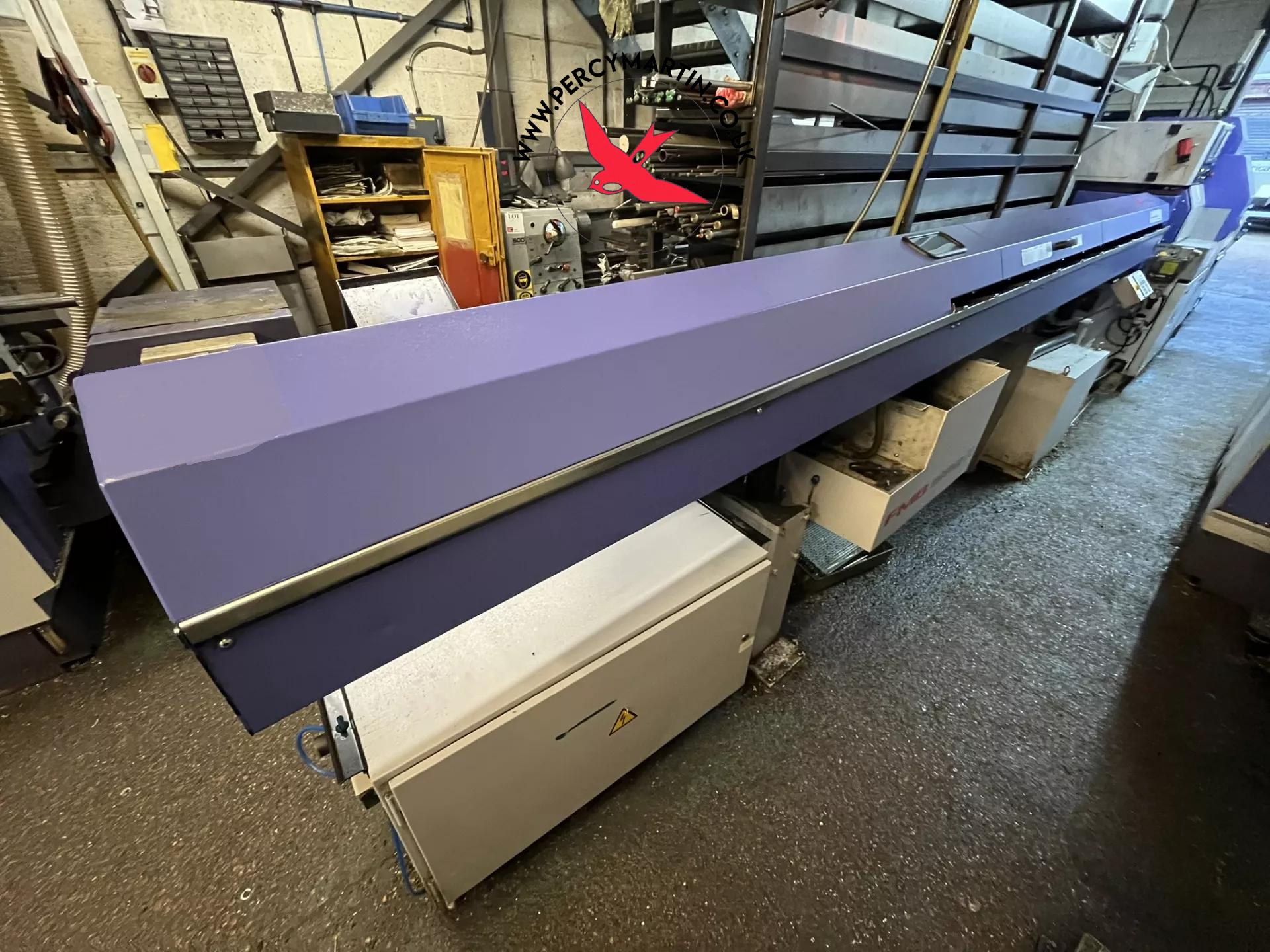

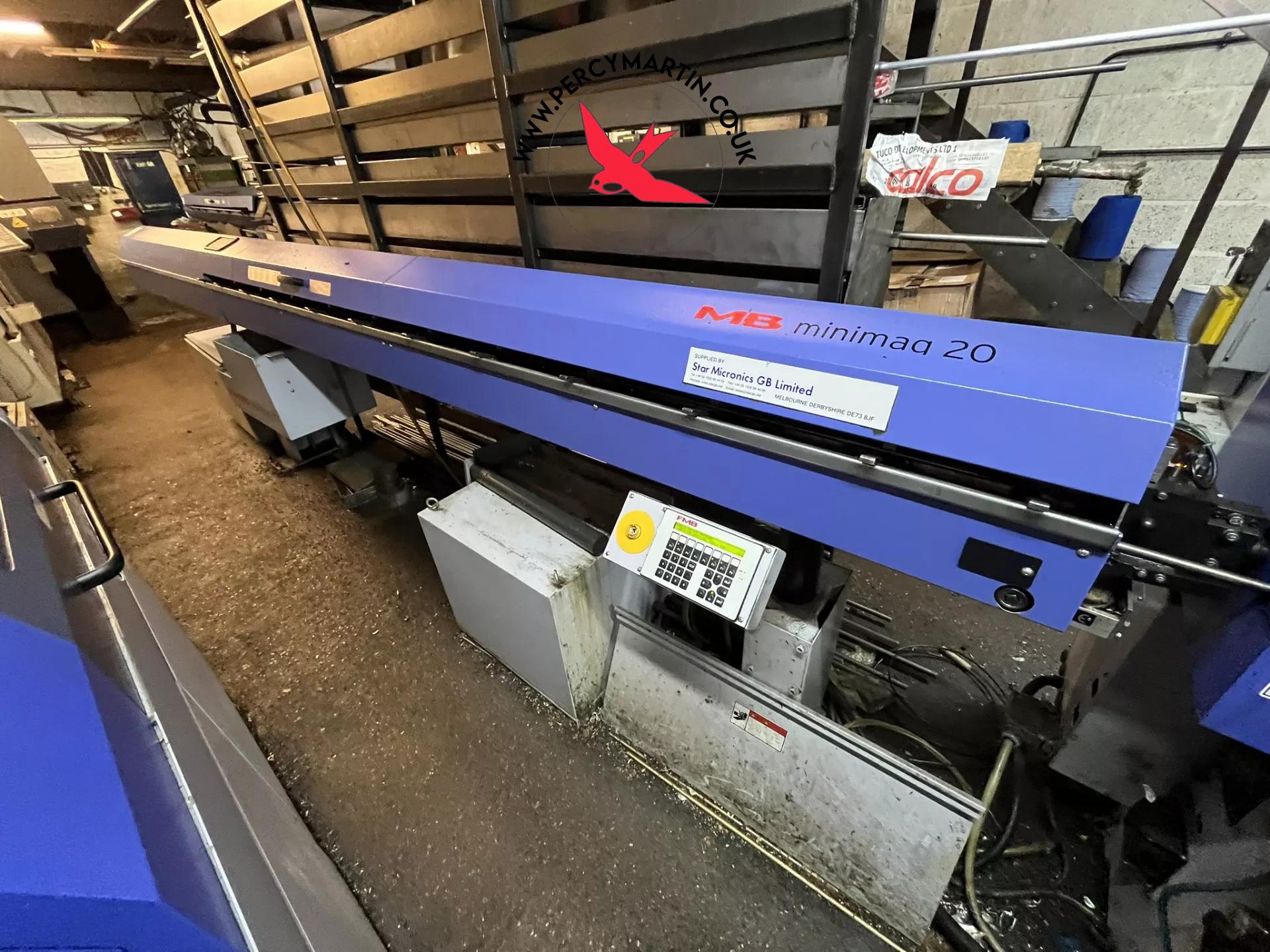

C axis & Milling , C axis on Sub Spindle , Coolant , Low Volt Light , Magazine Barfeed , Tooling , Y-axis
Star SB-20 2011
Key Features
Type:
All Products
Model:
SB-20
Make:
Star
Year:
2011
Serial No
Price
£POA
Our Reference
PM9784
Location
Leicester
Star SB-20 2011
Specifications

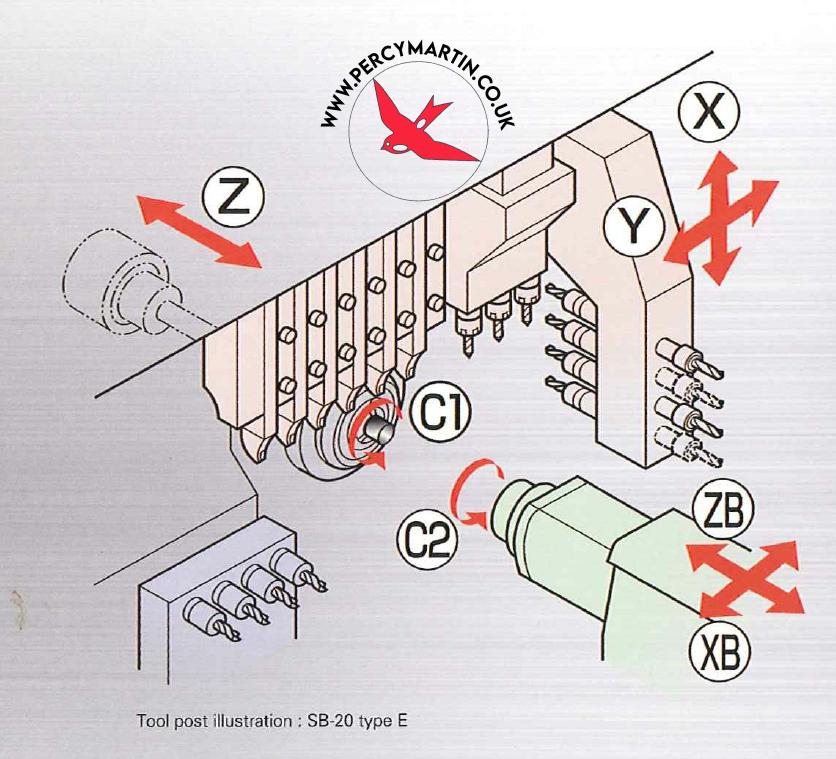

Back Spindle End Working Tools
4 Station Static & 4 Station Driven
Bar Capacity
20mm
C axis
0.001 degree

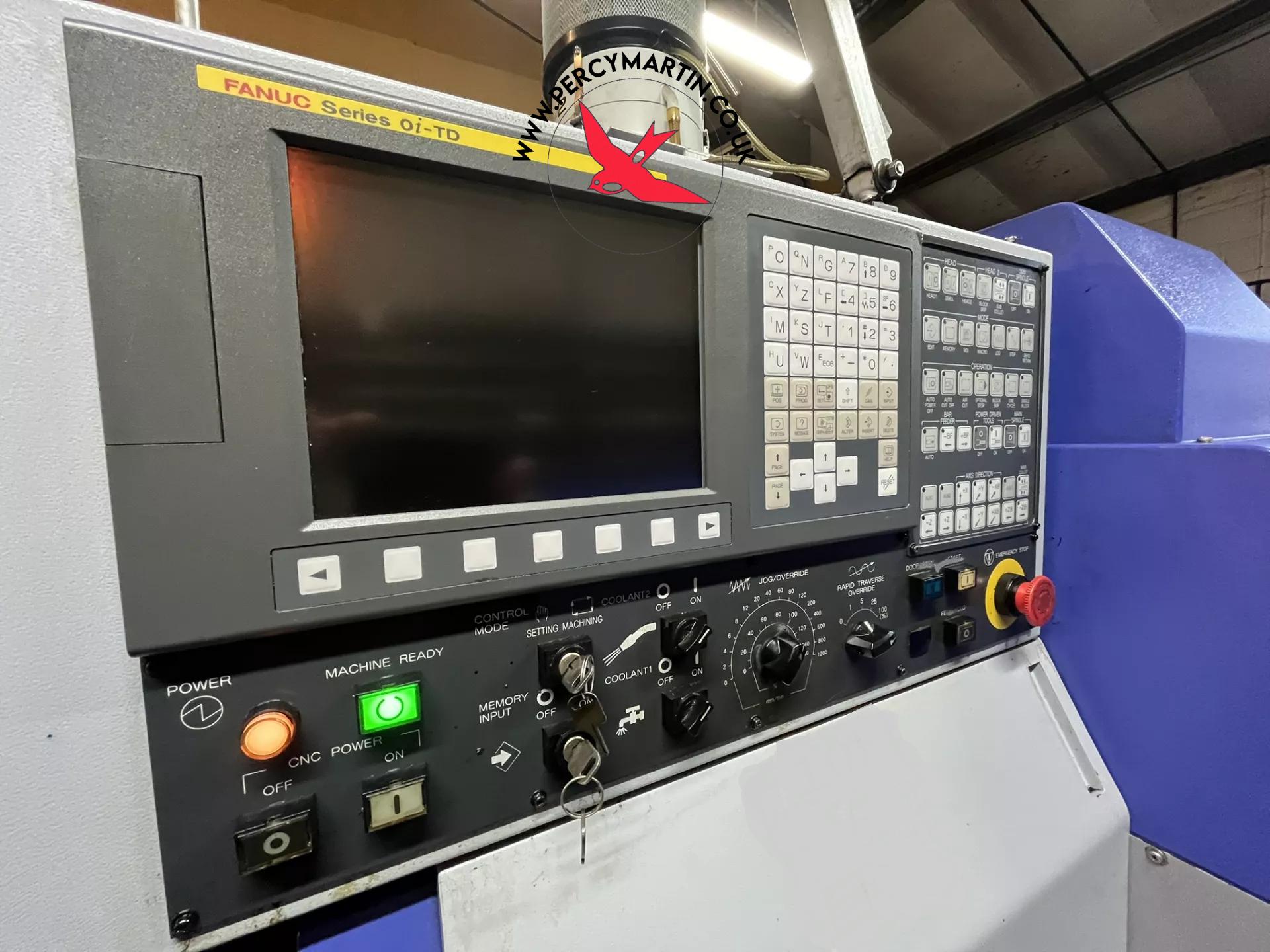

Control
FANUC 0i-TD
Machine Weight
1700kg
Main Spindle End Working Tools
4 Station Driven
Main Spindle Stroke
183mm (Guide Bush) / 155mm (Non Guide Bush)
Number of Axis Controlled
7
Rapid Feedrates
35m/minute
Spindle Motor Power
3.7/2.2kW
Spindle Speed
1000rpm
Sub Spindle C axis
0.001 degree
Sub Spindle Speed
9000rpm
Upper Tool Slide Configuration
6 Station Static & 3 Station Driven
Star SB-20 2011
