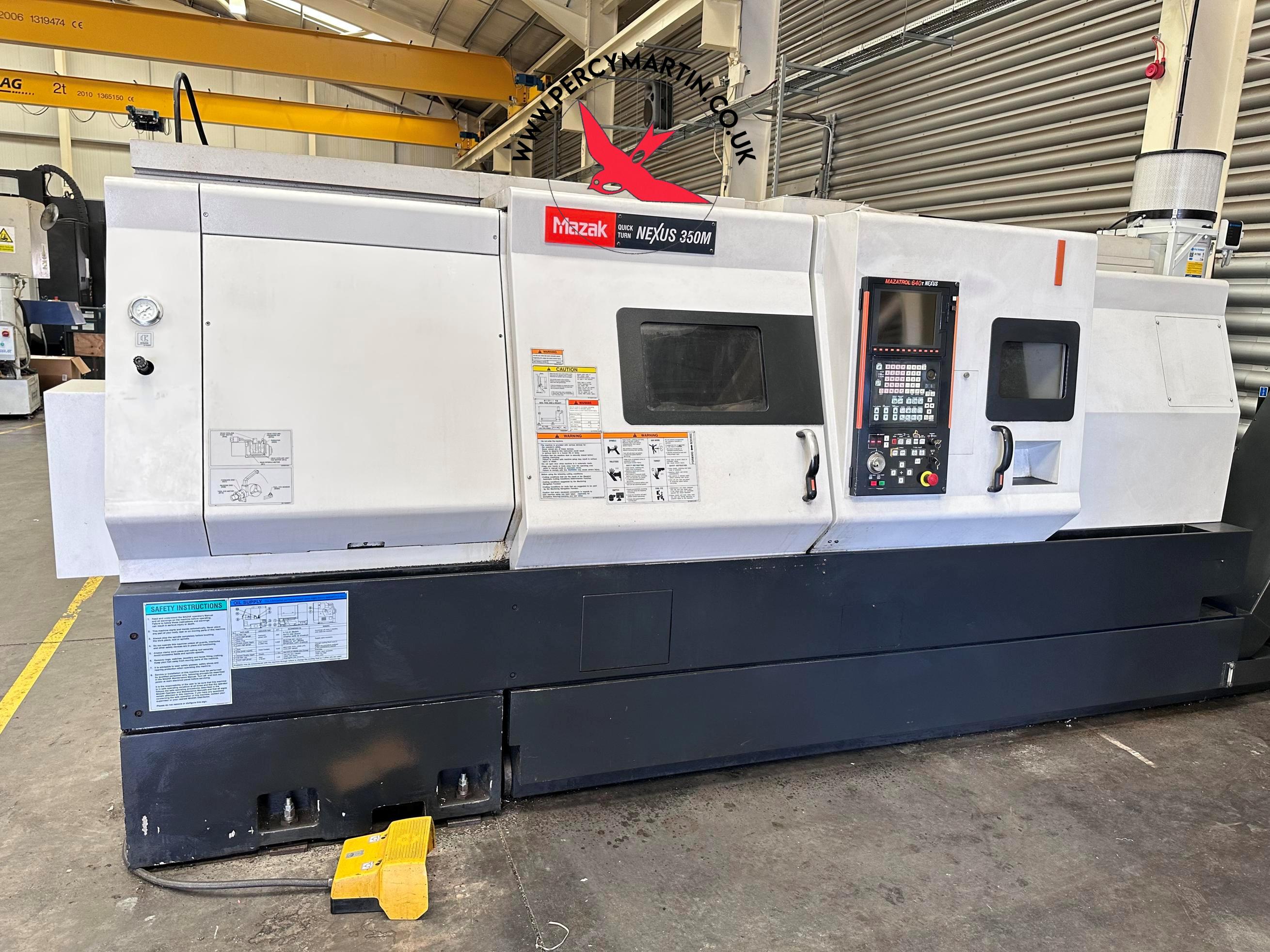

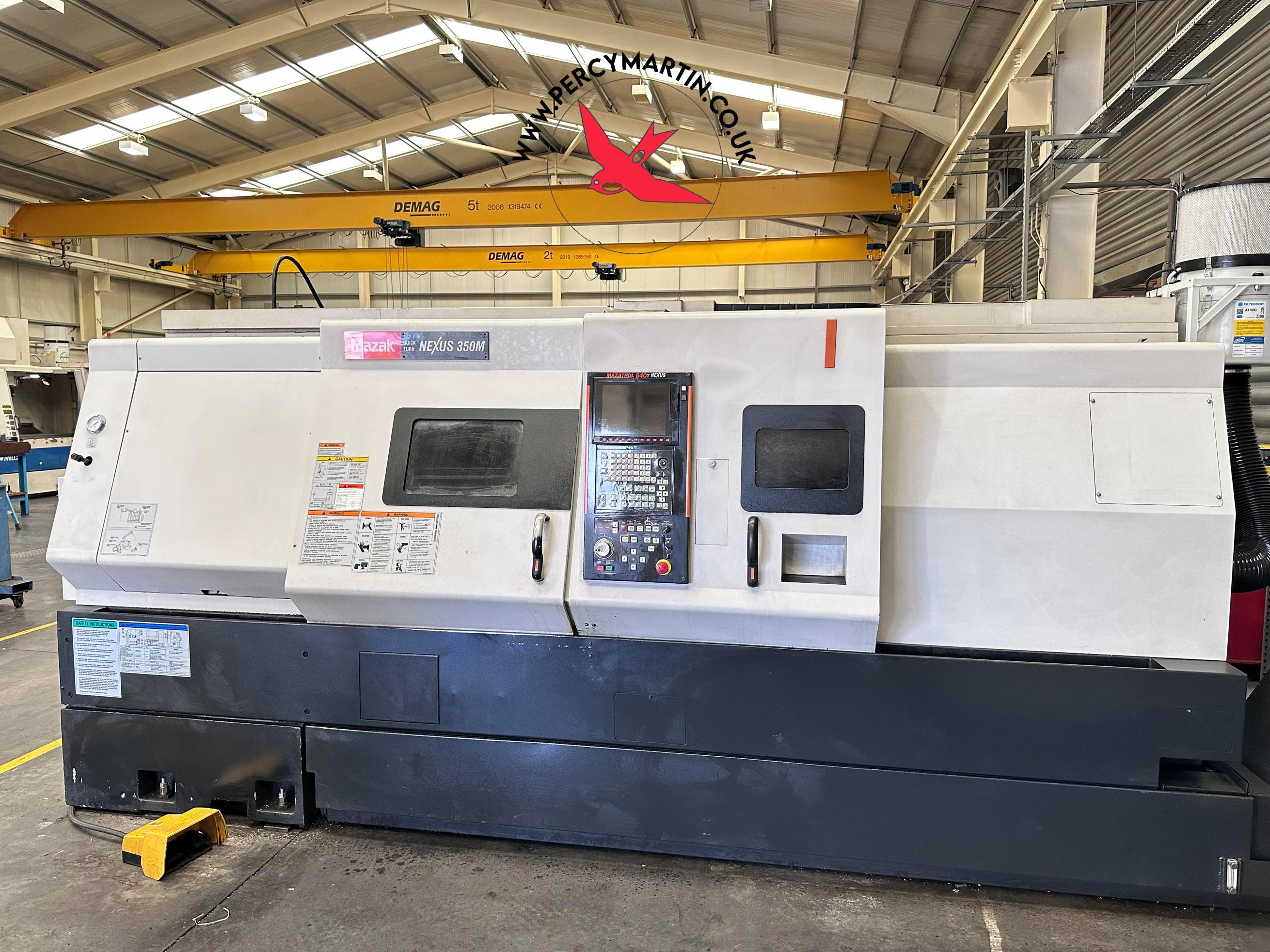

Mazak Quick Turn 350M 2006

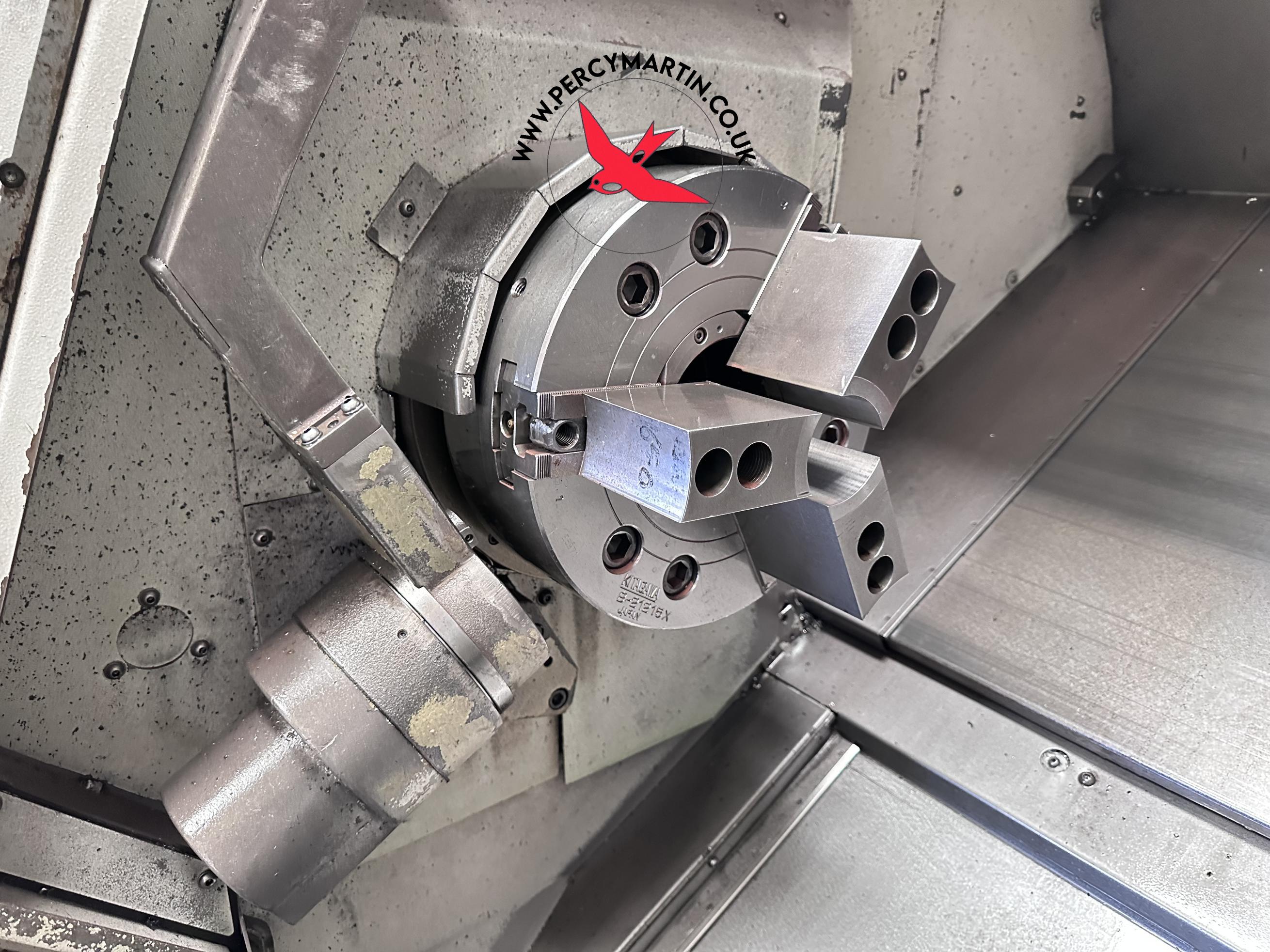

3 Jaw Chuck , C axis & Milling , Coolant , Interlocked guards , Low Volt Light , Swarf Conveyor , Tailstock , Tool setter

Key Features Gallery Specifications More in Stock Register Interest

Mazak Quick Turn 350M 2006

Key Features

Type:

All Products

Model:

Quick Turn 350M

Make:

Mazak

Year:

2006

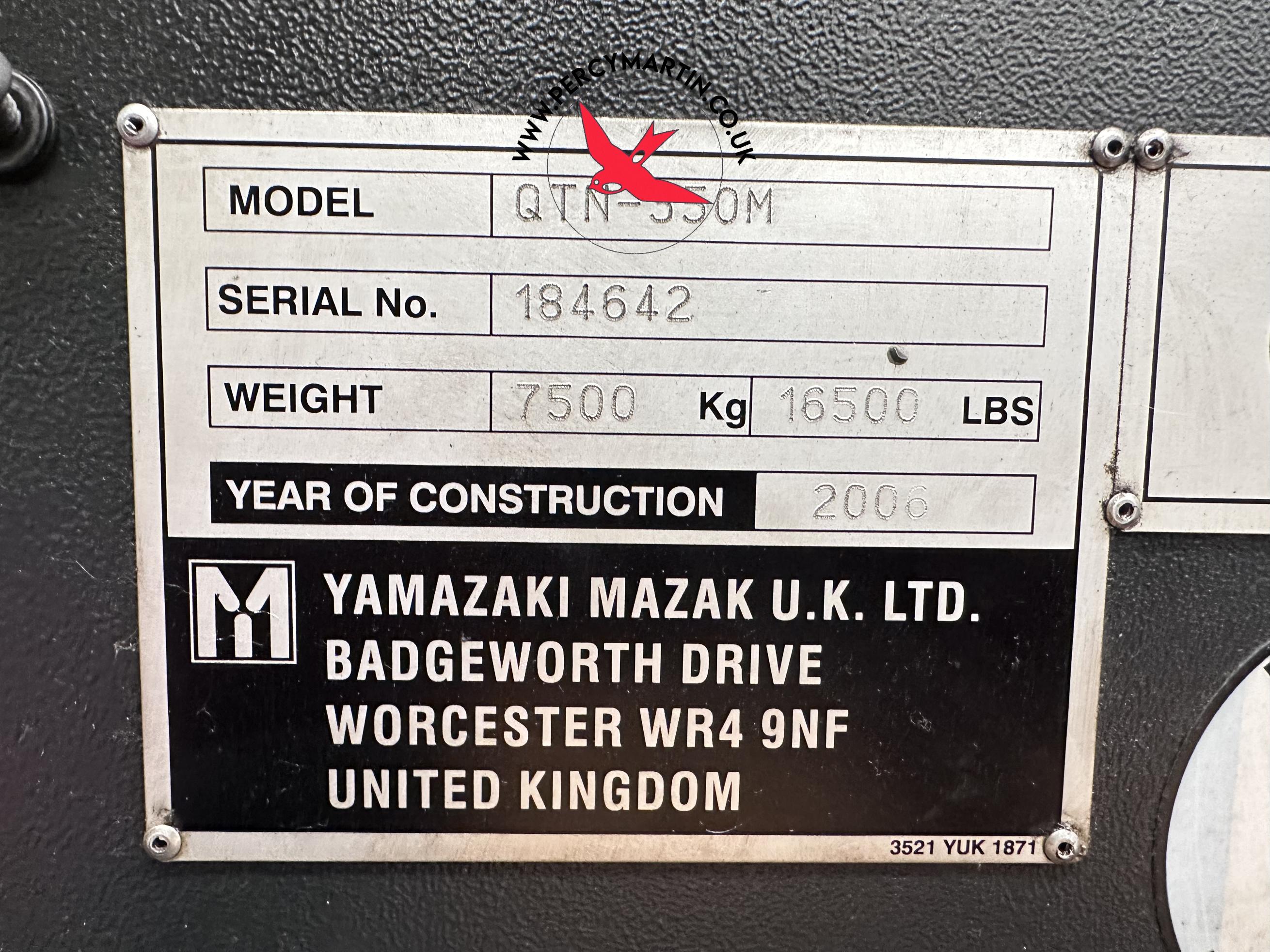

Serial No

184642

Price

£POA

Our Reference

PM9787a

Location

Leicester

Mazak Quick Turn 350M 2006

Specifications

Bar Capacity

102mm

C axis

0.001 degree

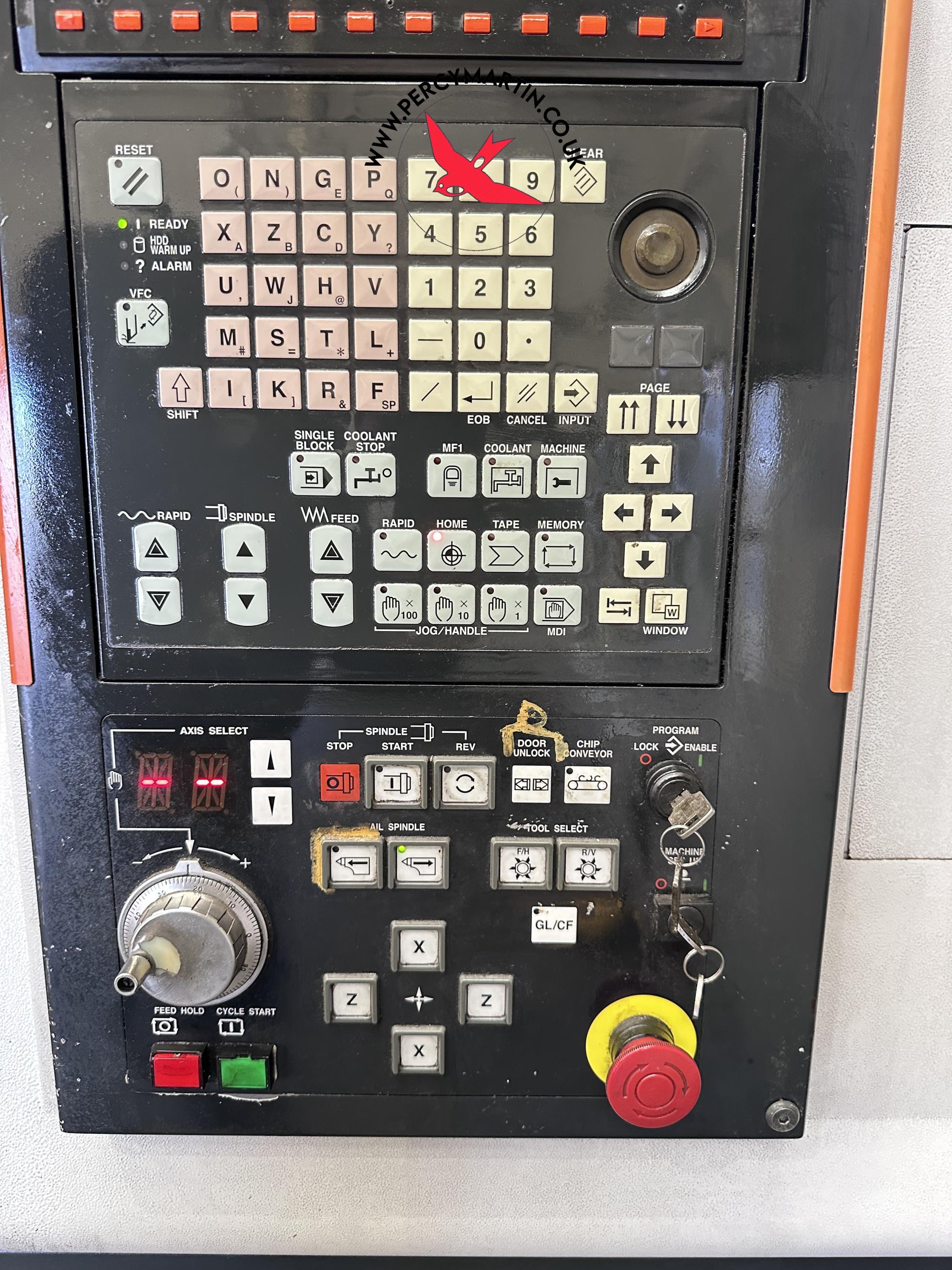

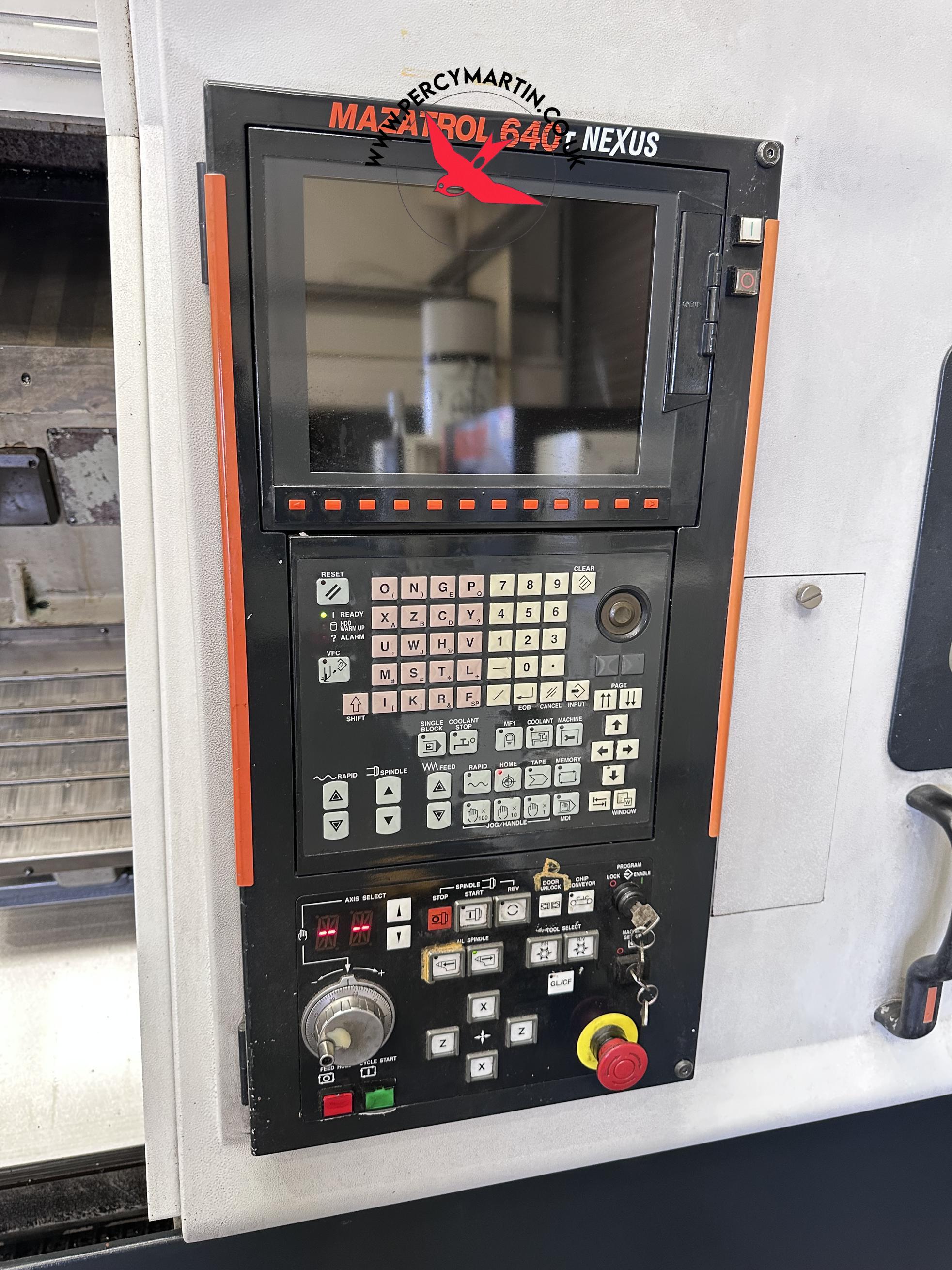

Control

MAZATROL 640T Nexus

Distance Between Centres

1500mm

Machine Dimensions

4270 x 2050 x 2000mm

Machine Weight

7500kg

Maximum Cutting Diameter

420mm

Milling Motor Power

7.5kW

Milling RPM

25 - 4000rpm

Spindle Motor Power

30kW

Spindle Nose

A2-8

Spindle Speed

3300rpm

Swing

750mm

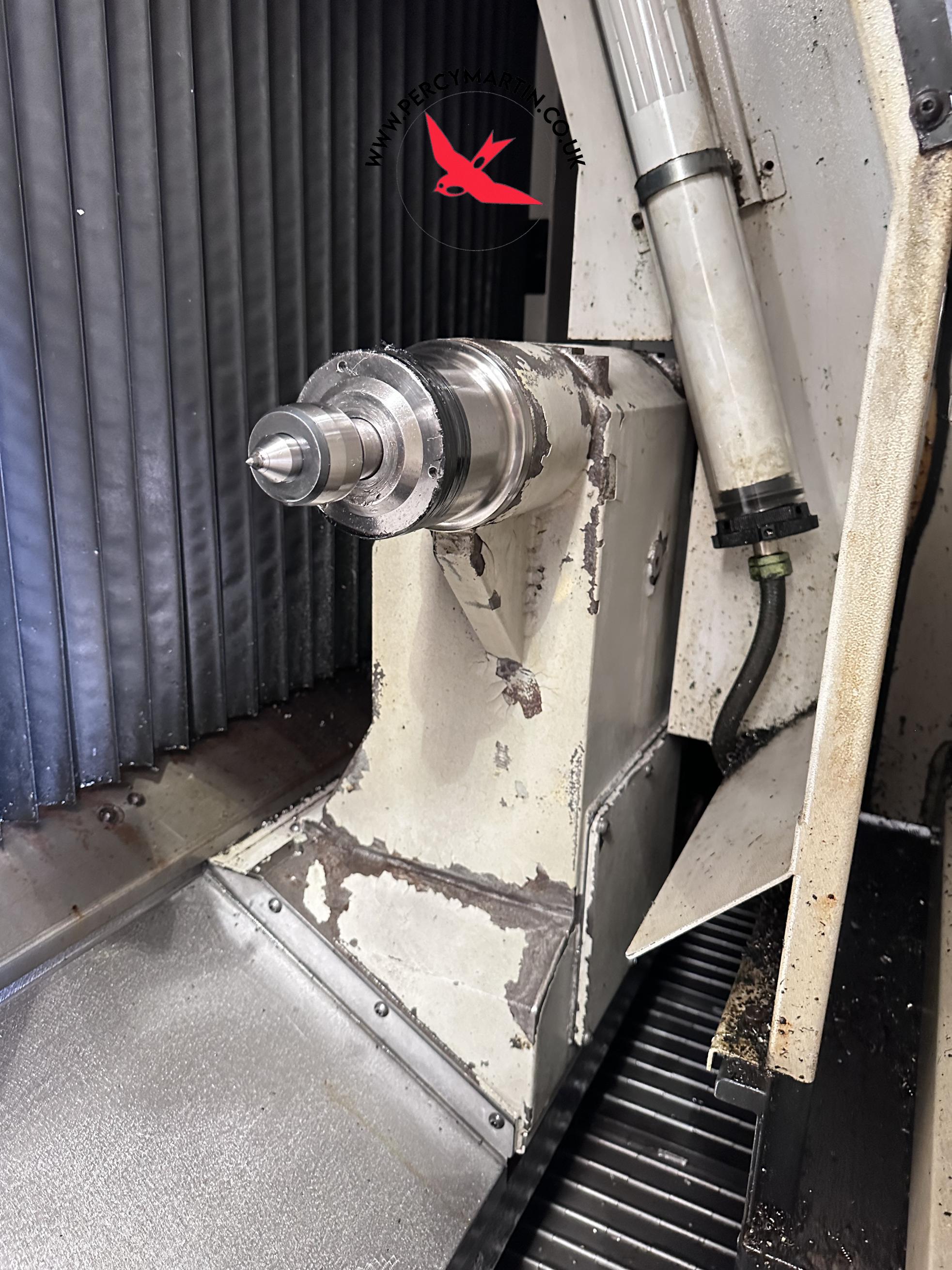

Tailstock Taper

MT #4

Tooling Configuration

VDI 50

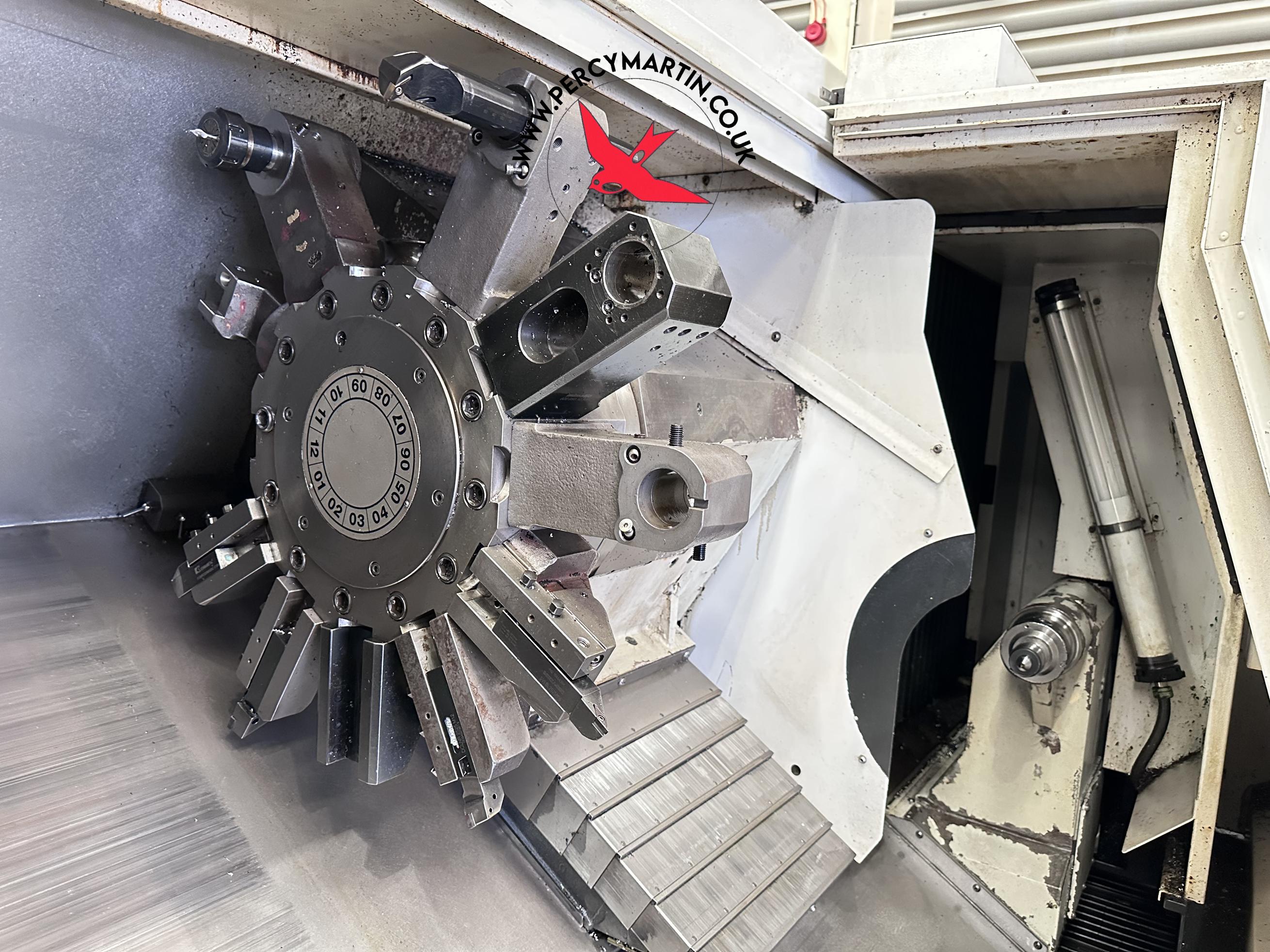

Turret Positions

12 Station

X axis Travel

260mm

Z axis Travel

1605mm
