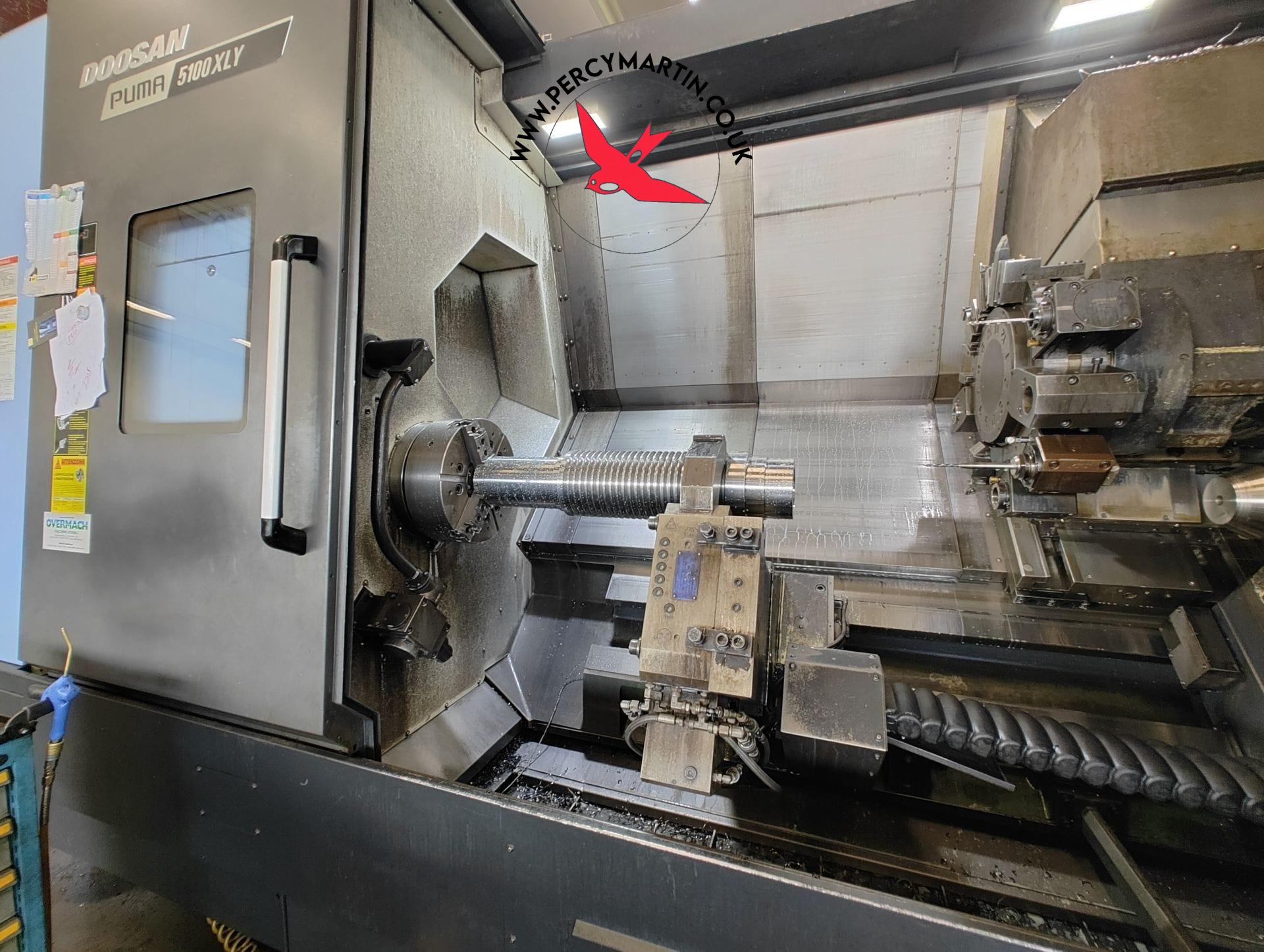

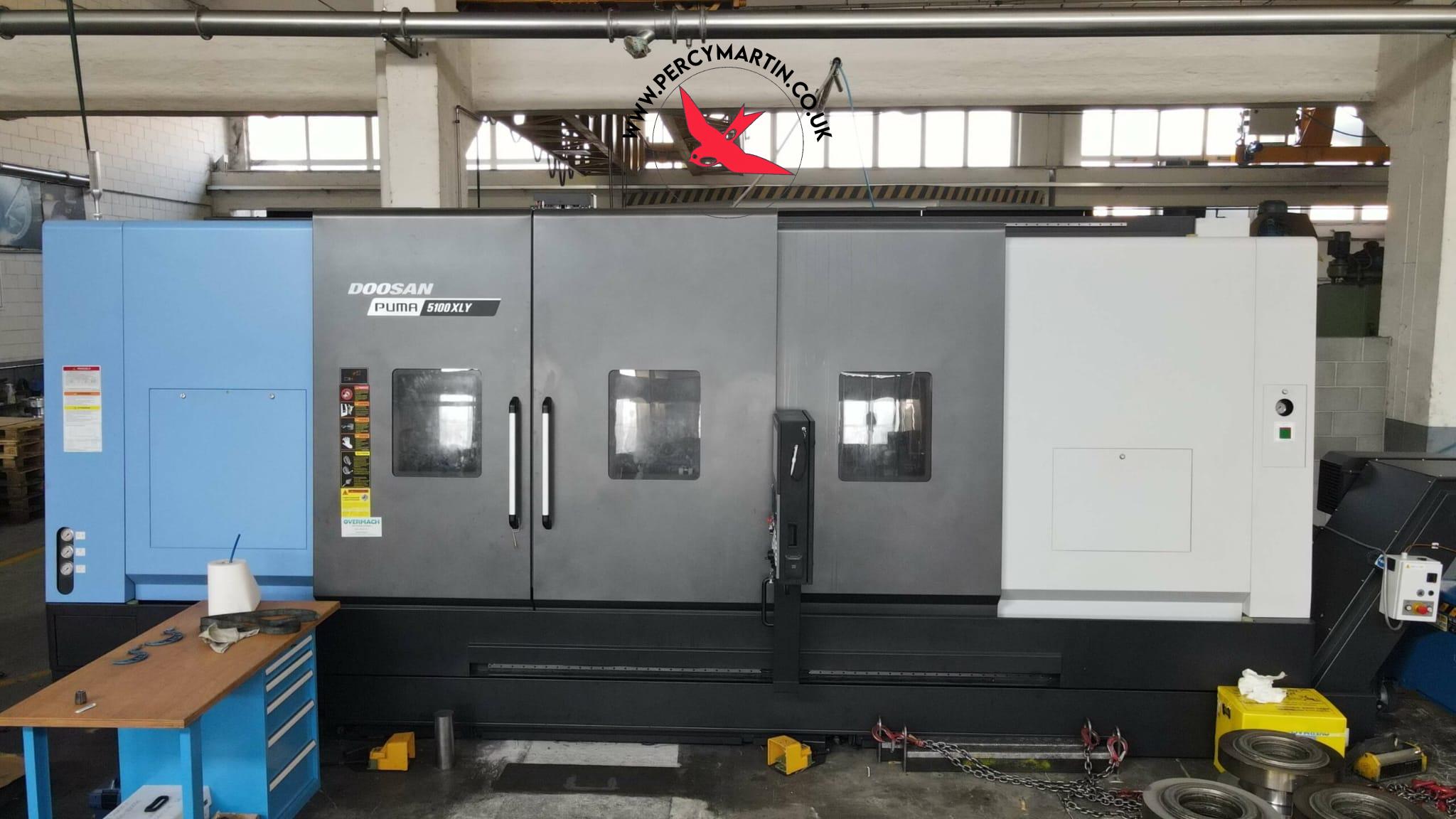

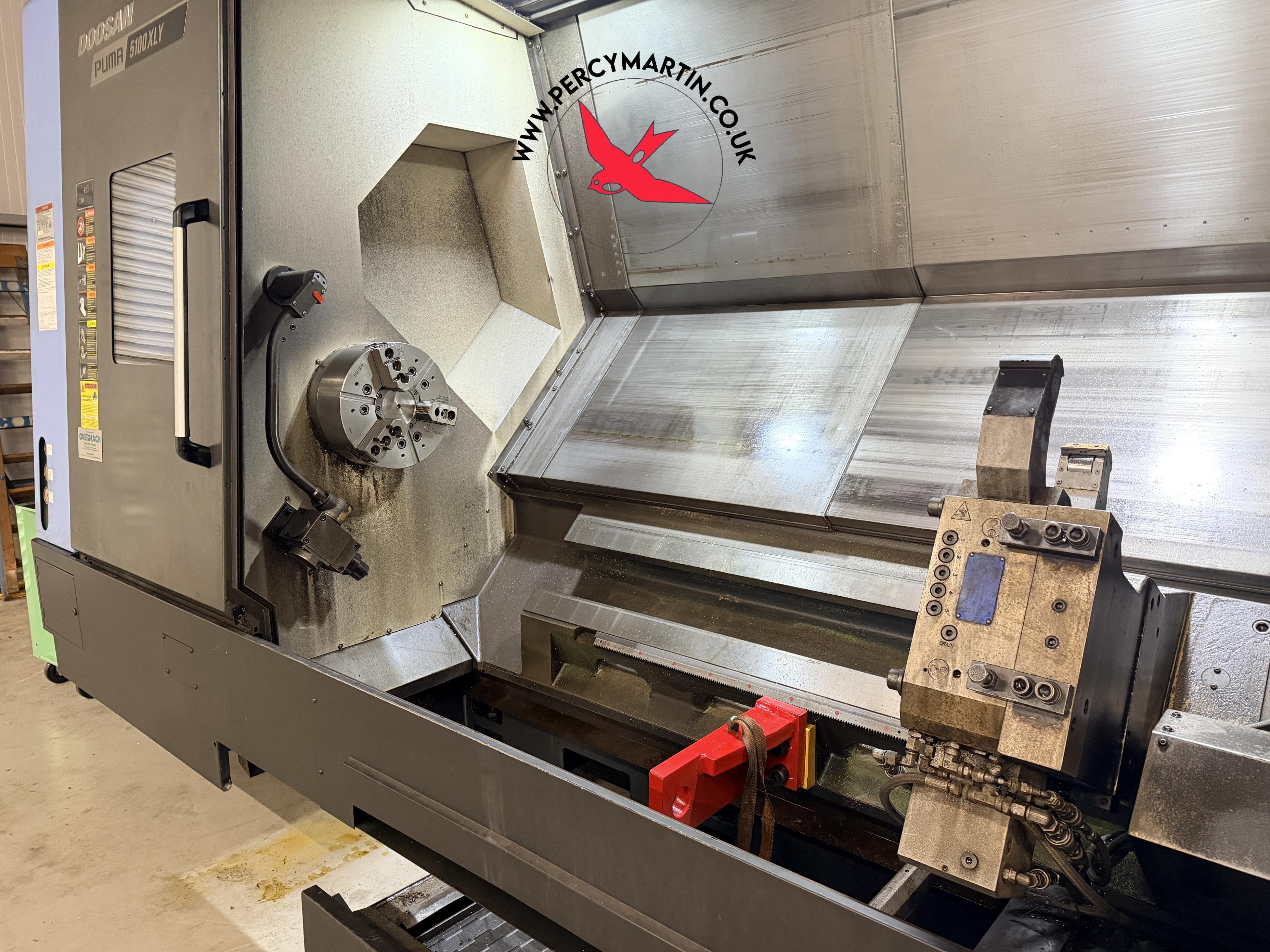

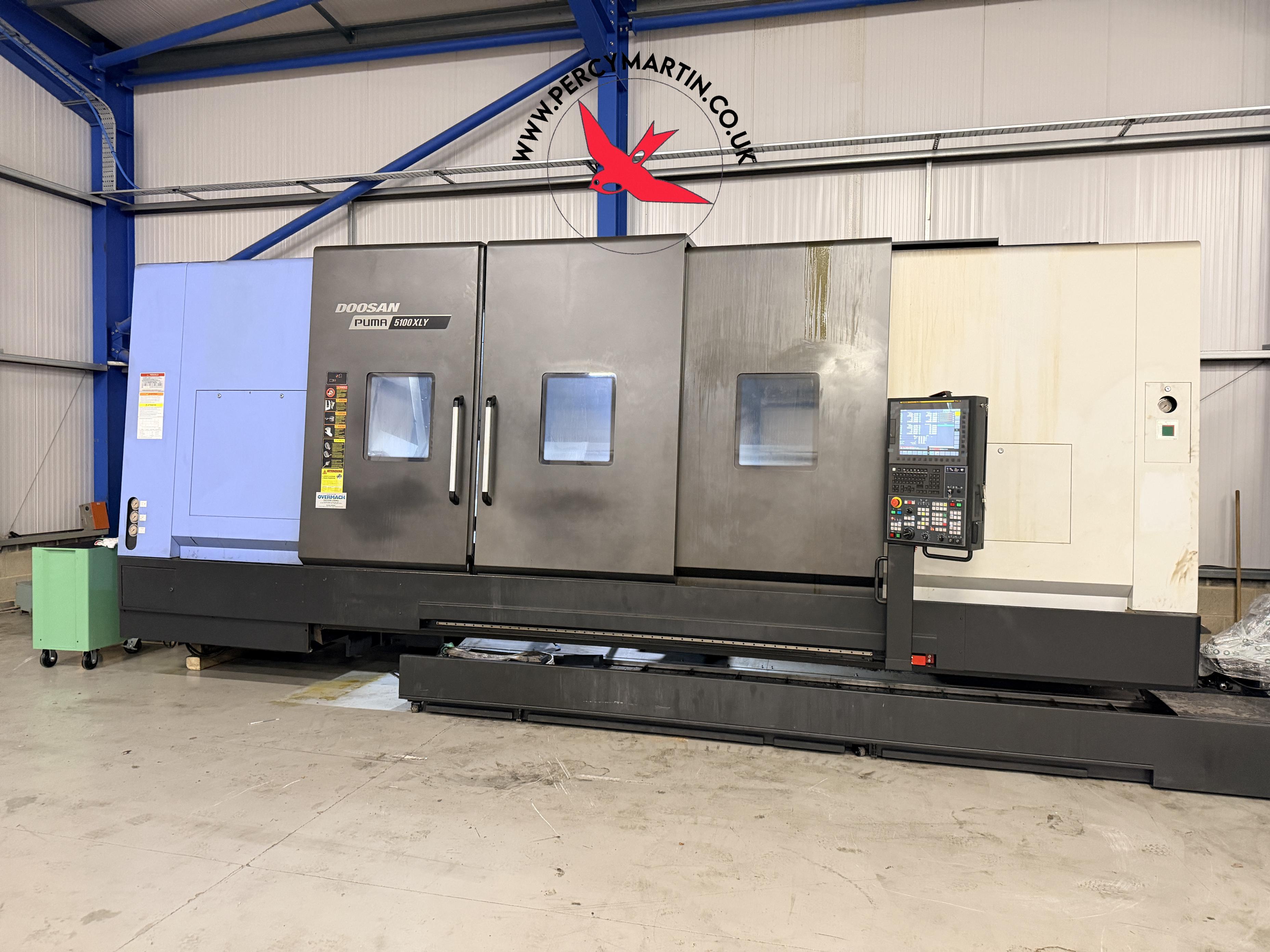

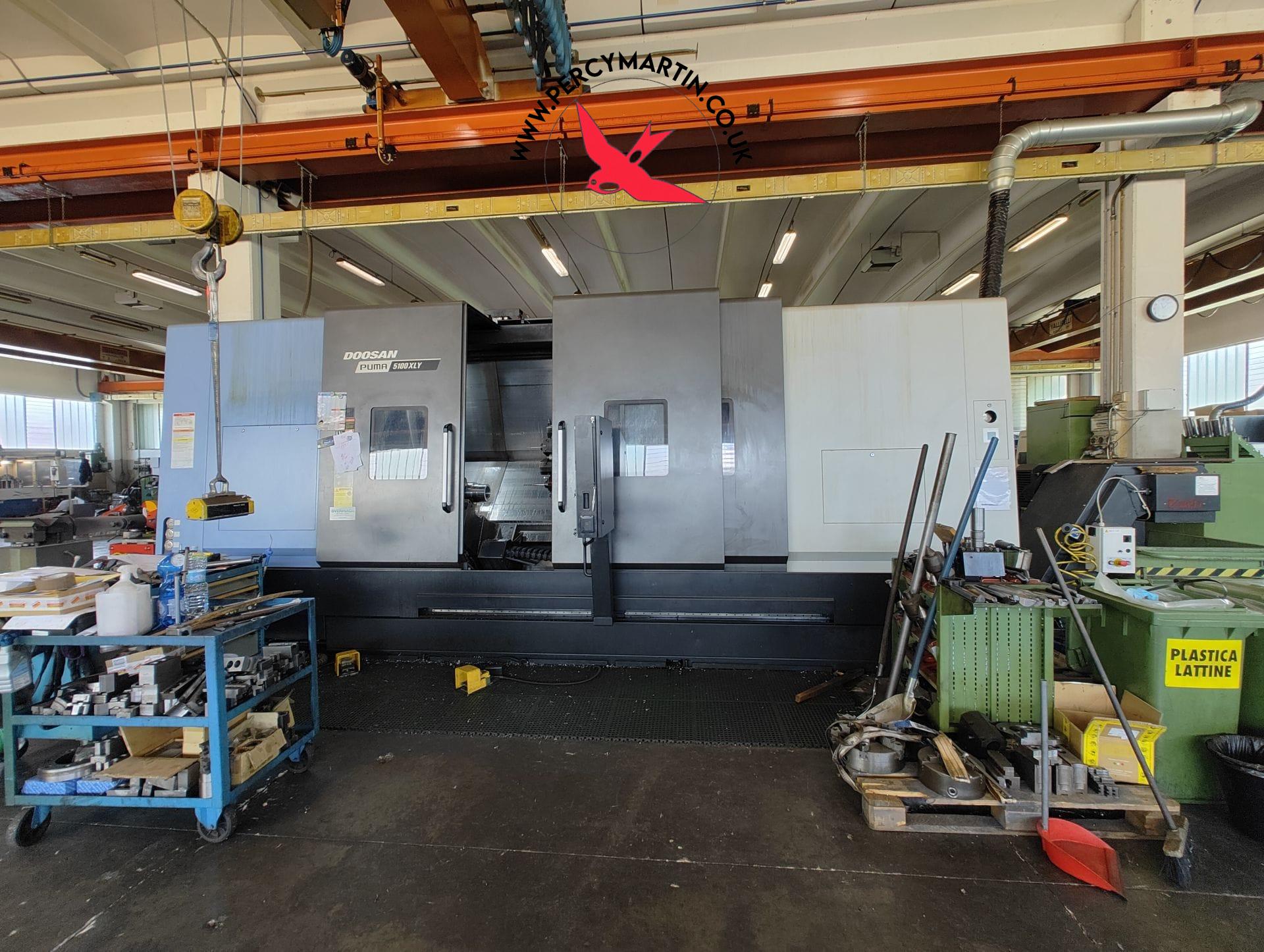

Doosan Puma 5100XLY 2020

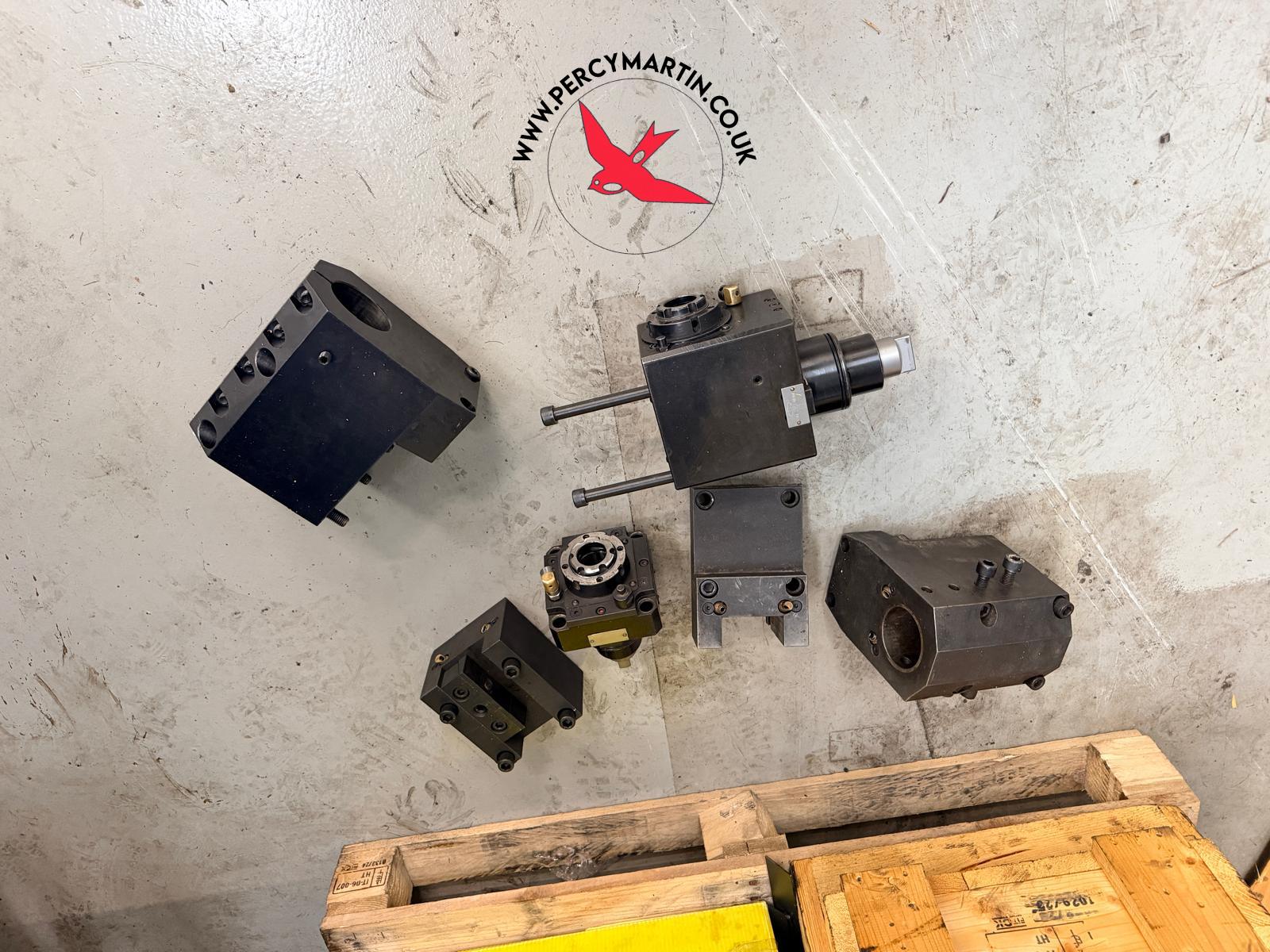

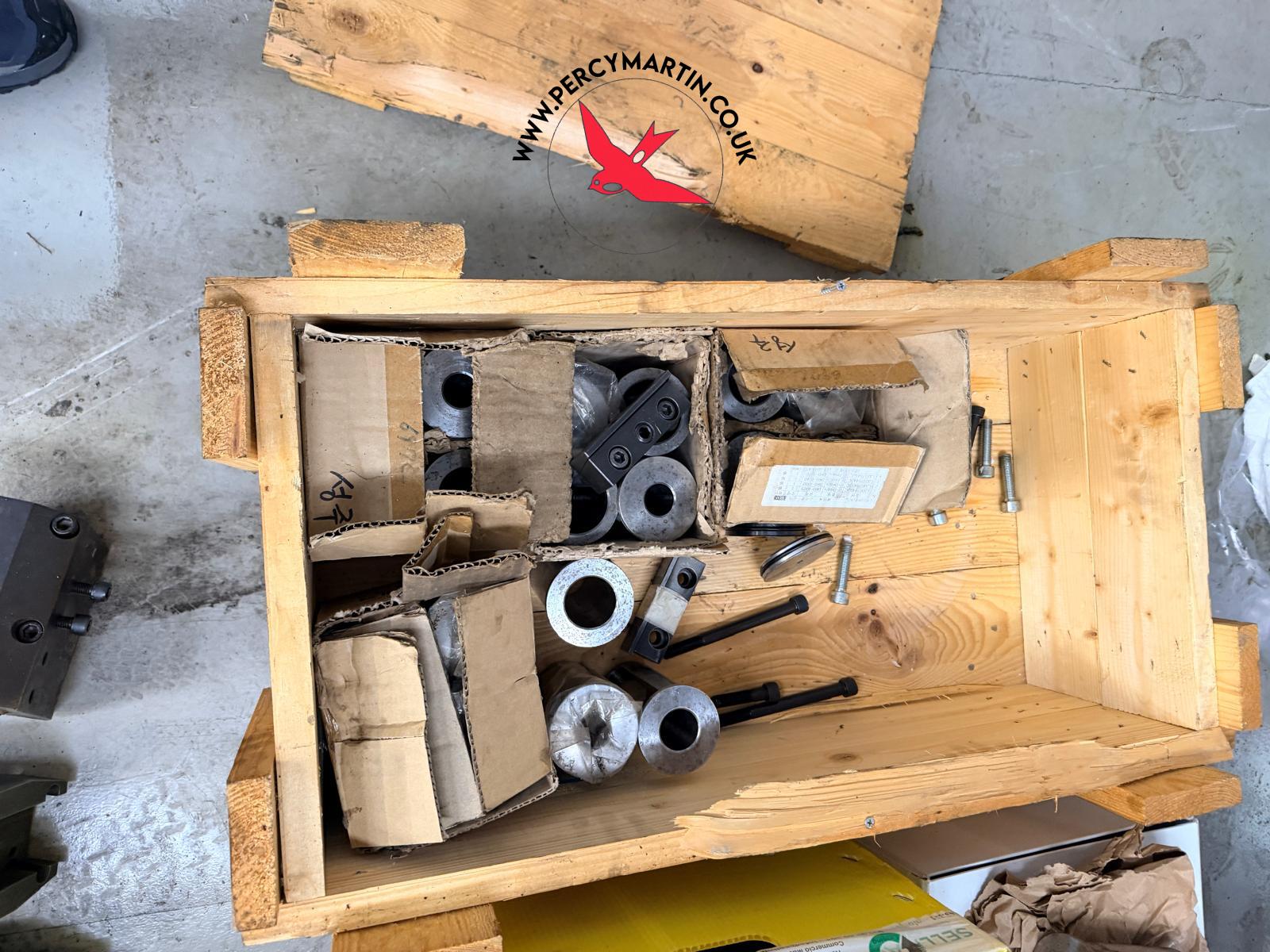

3 Jaw Chuck , C axis & Milling , Coolant , Hydraulic Power Work Steady , Interlocked guards , Low Volt Light , Swarf Conveyor , Tailstock , Tool setter , Tooling , Y-axis
Doosan Puma 5100XLY 2020
Key Features
Type:
All Products
Model:
Puma 5100XLY
Make:
Doosan
Year:
2020

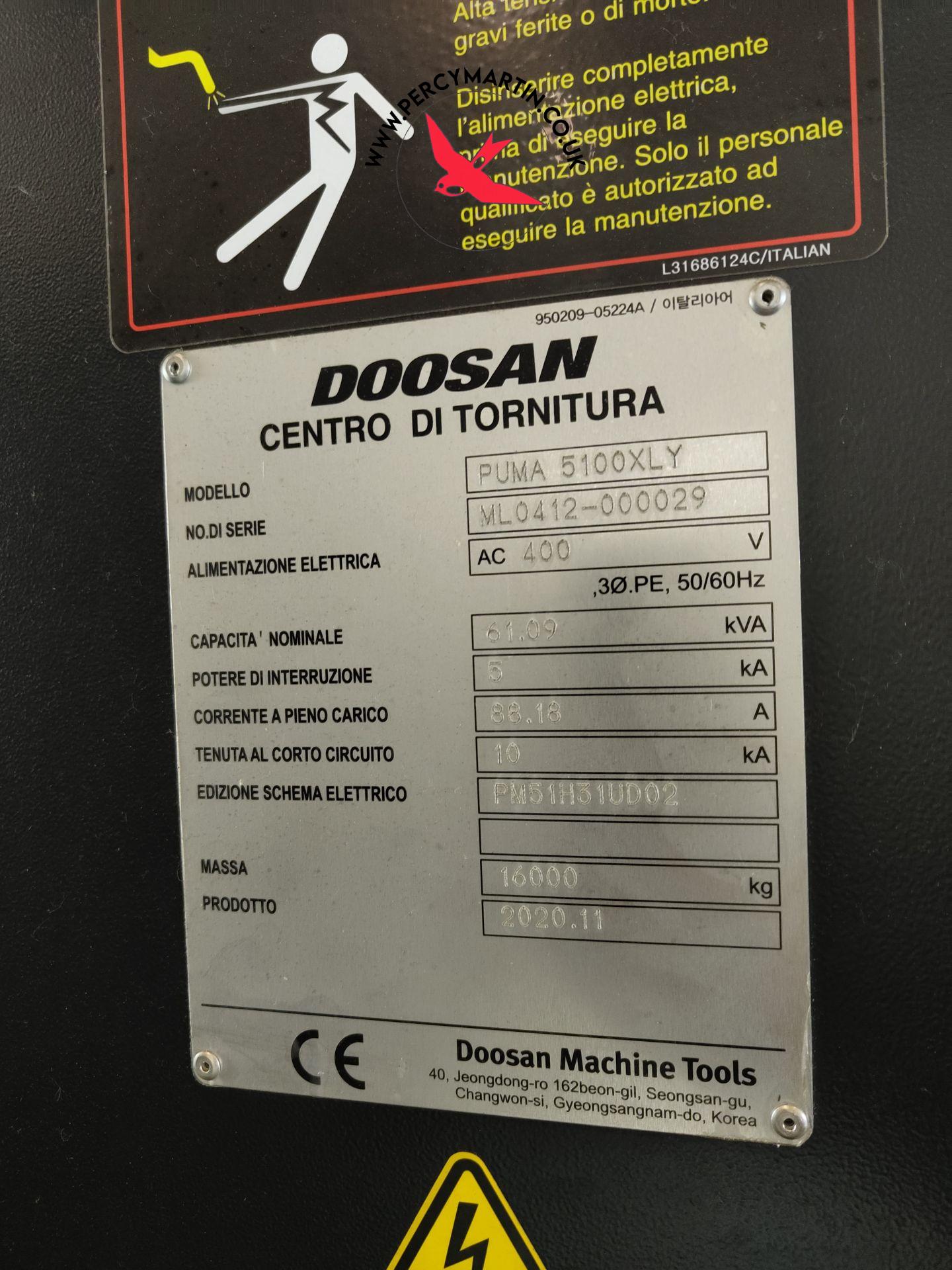

Serial No
ML0412-000029
Price
£POA
Our Reference
PM9726
Location
Leicester
Doosan Puma 5100XLY 2020
Specifications
Bar Capacity
116.5mm
Boring Bar Holder Diameter
60mm
C axis
0.001 degree

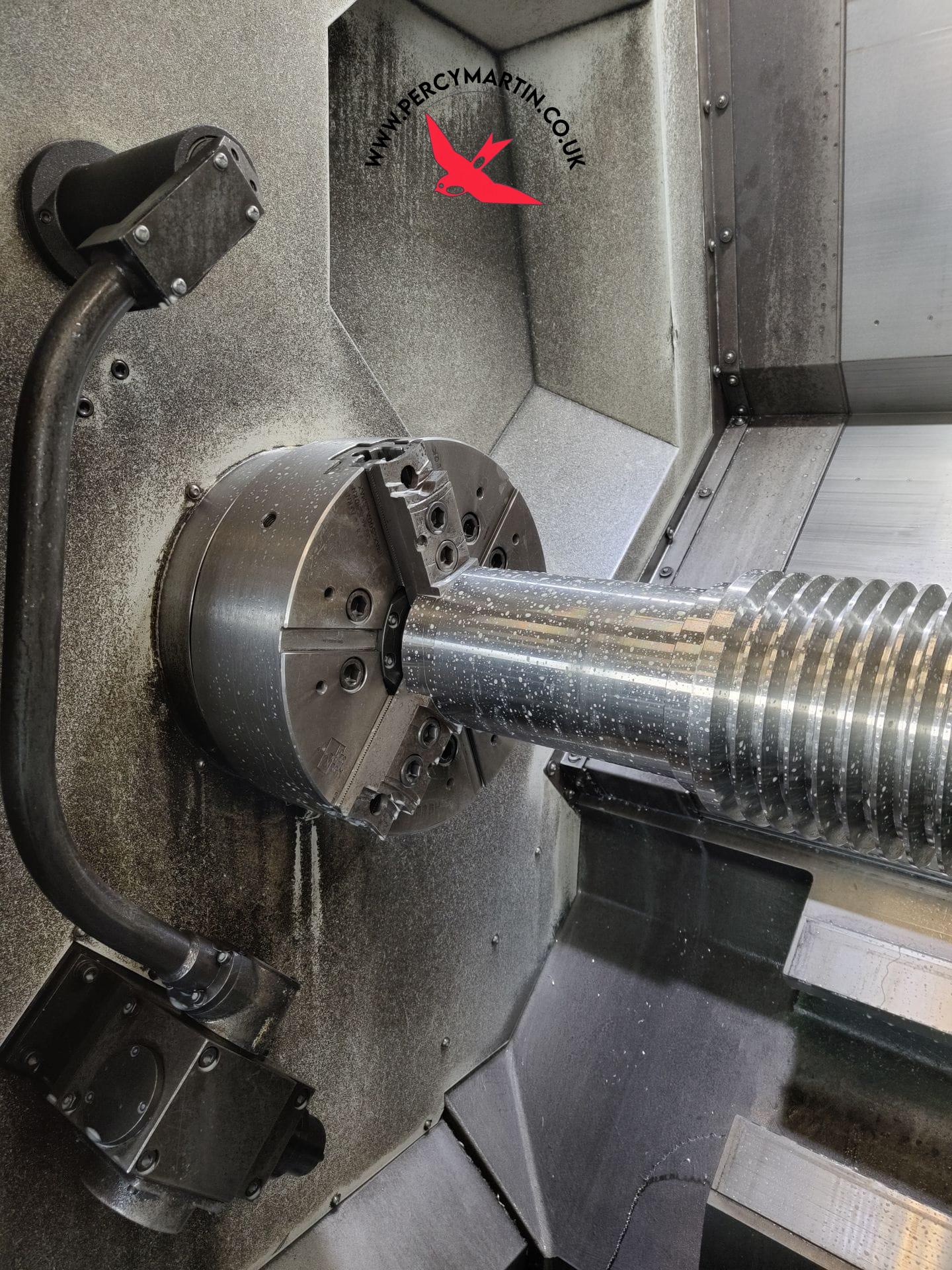

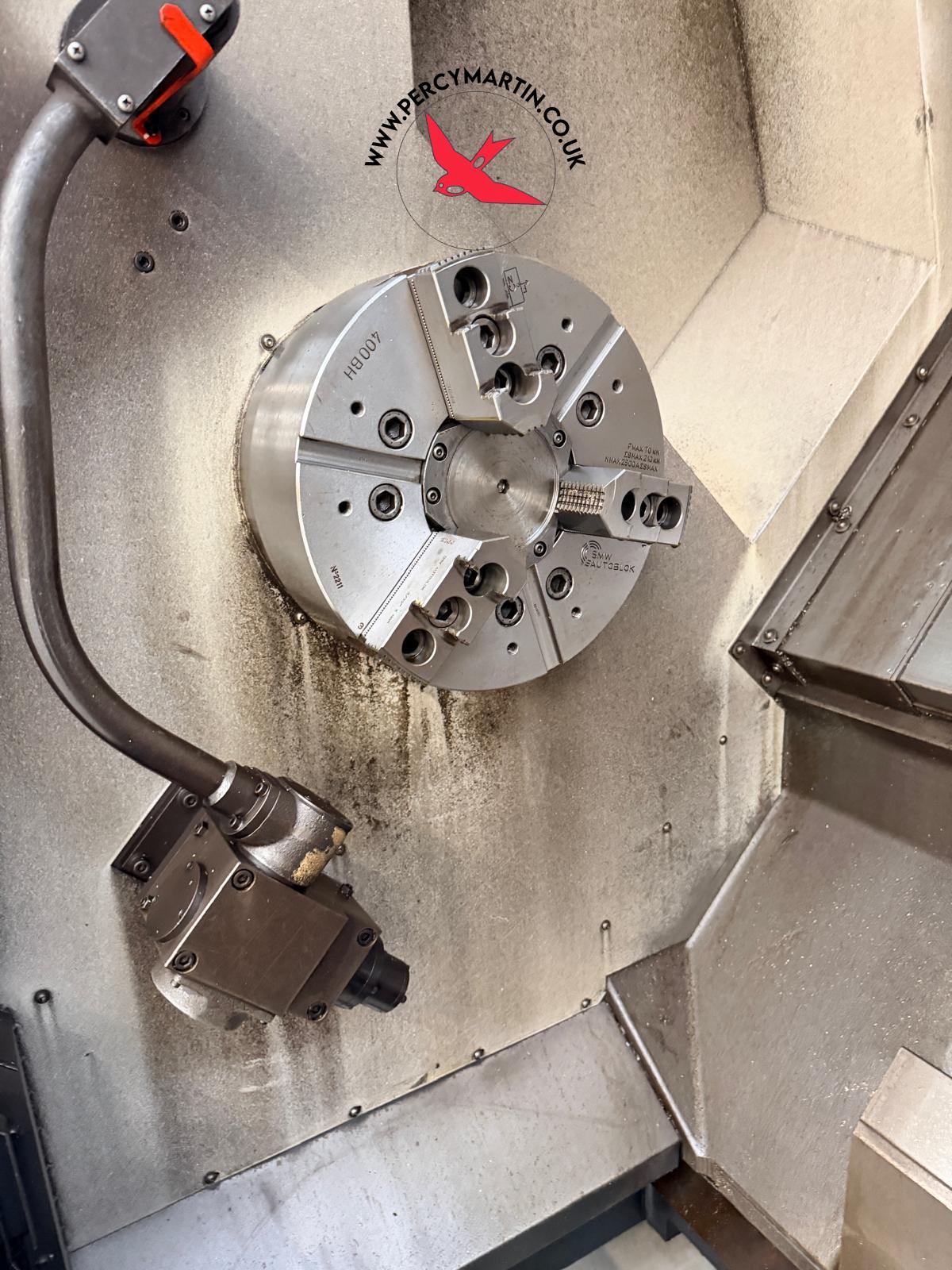

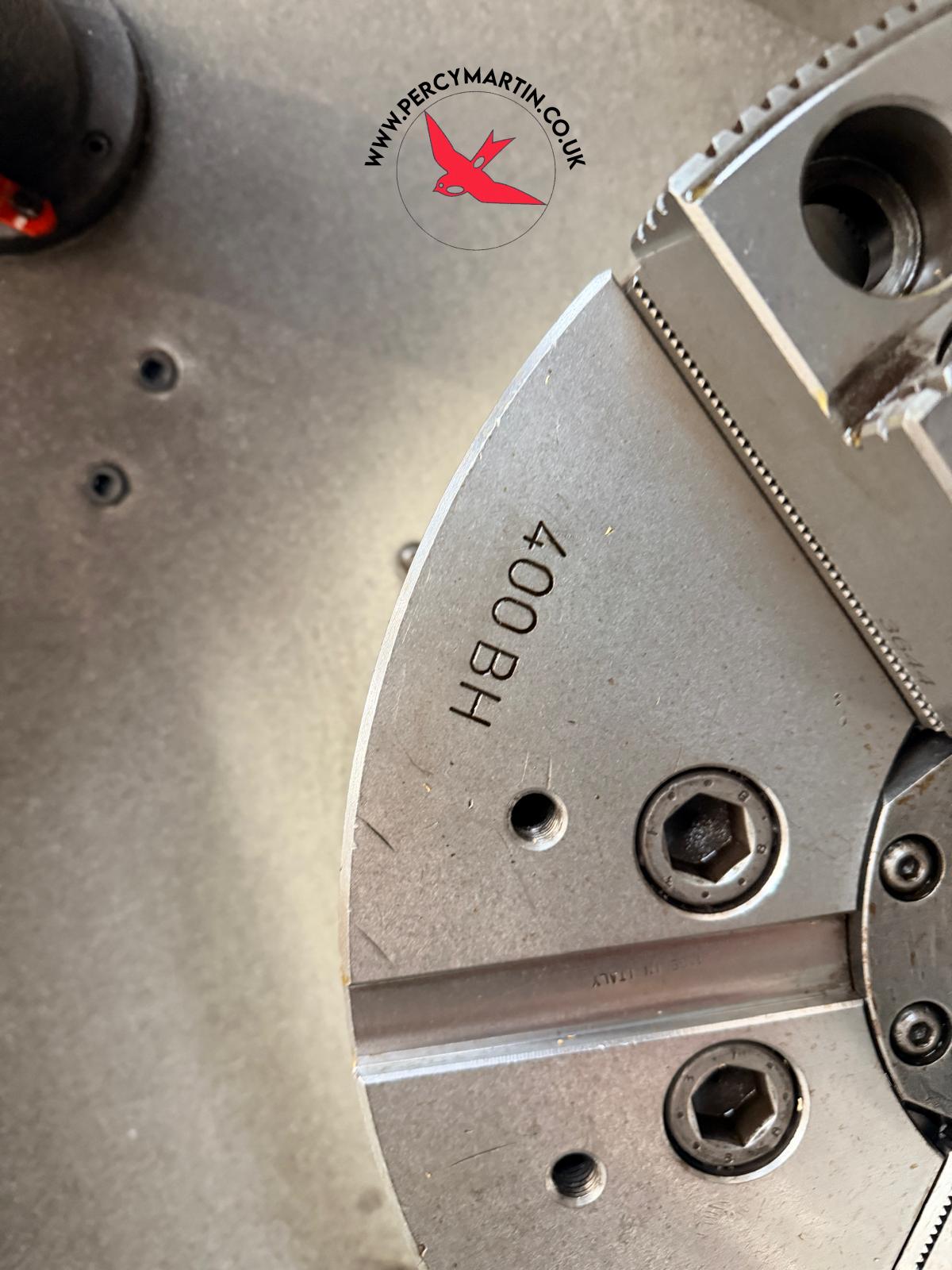

Chuck Size
400mm

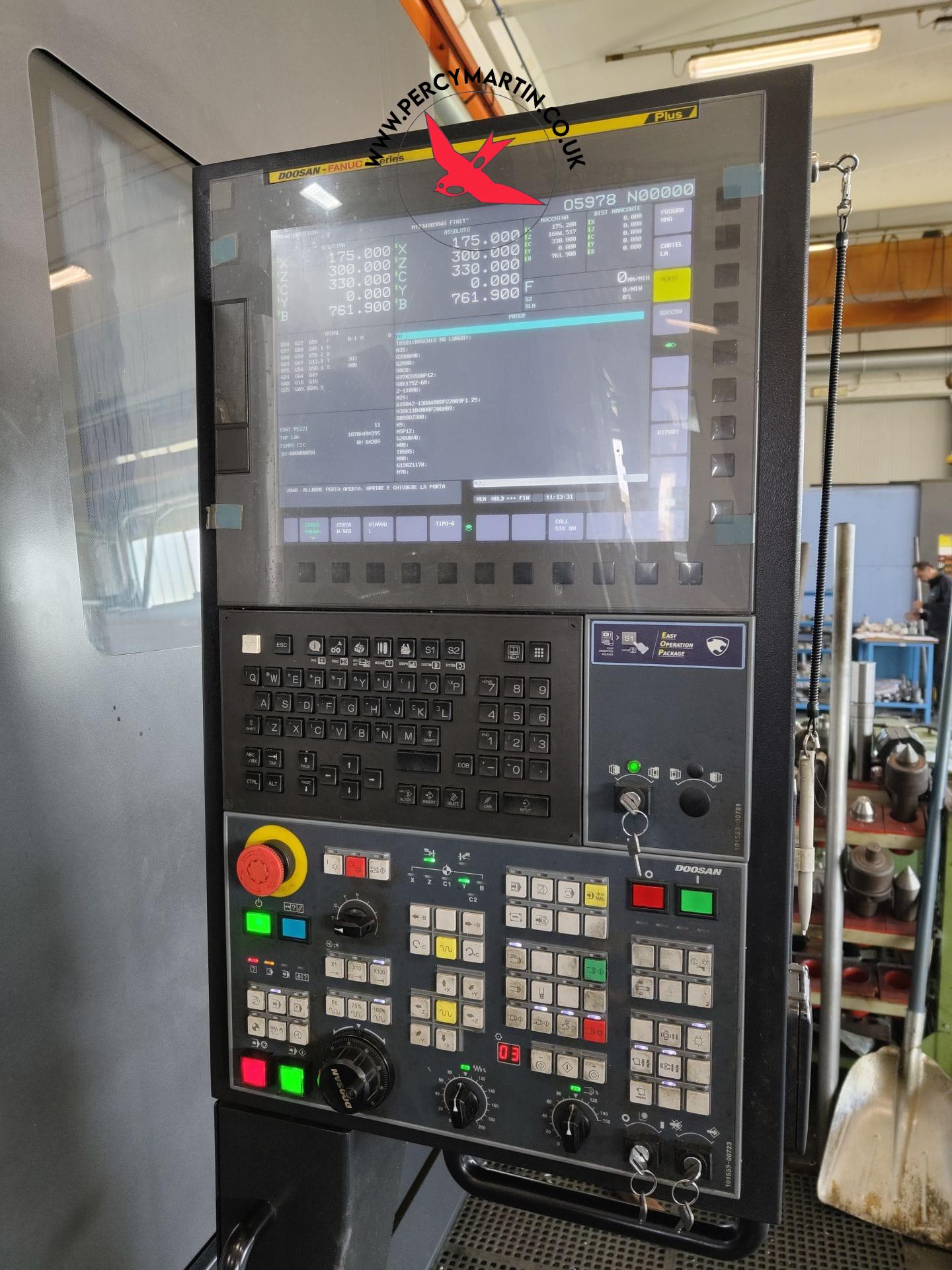

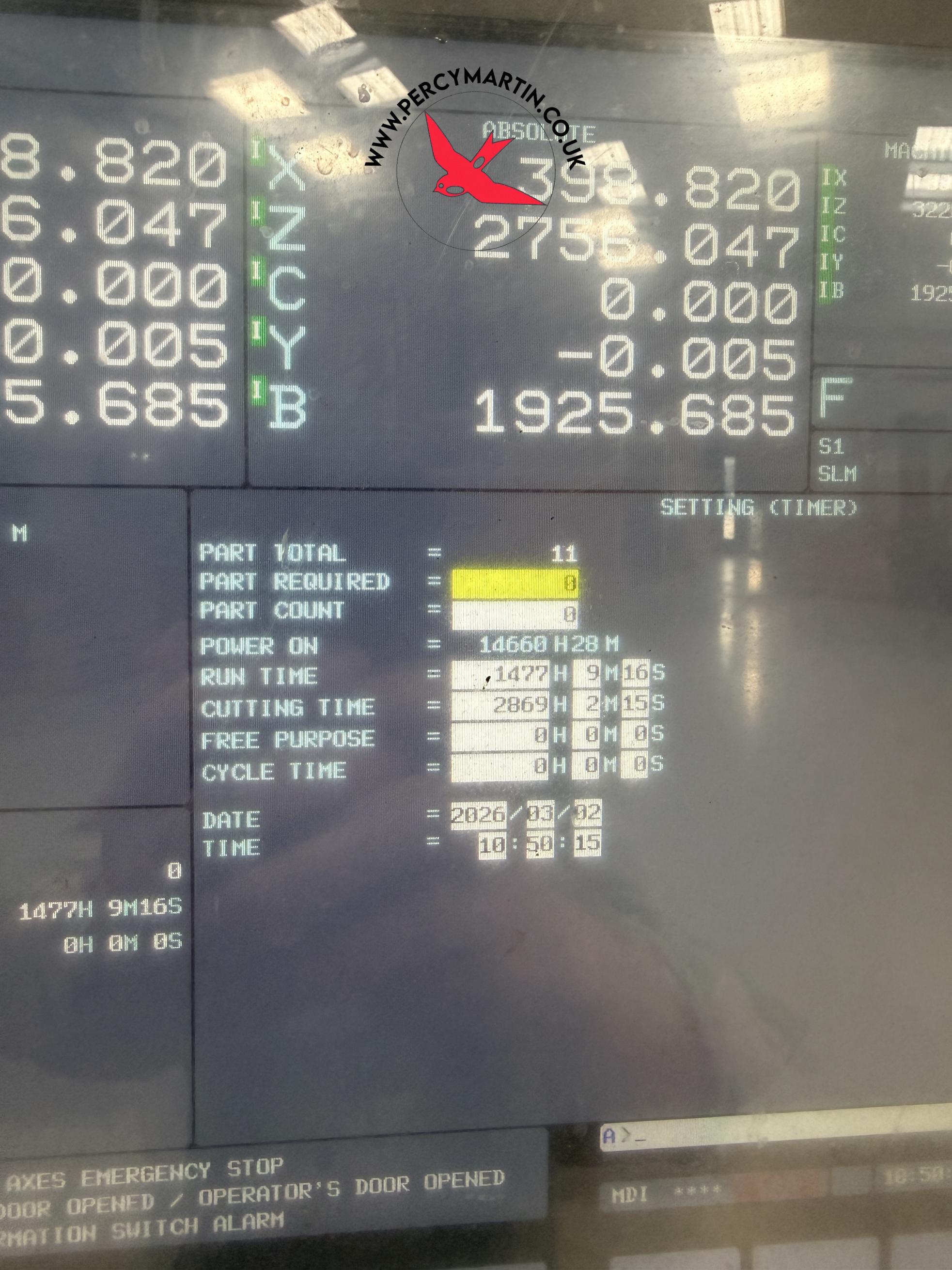

Control

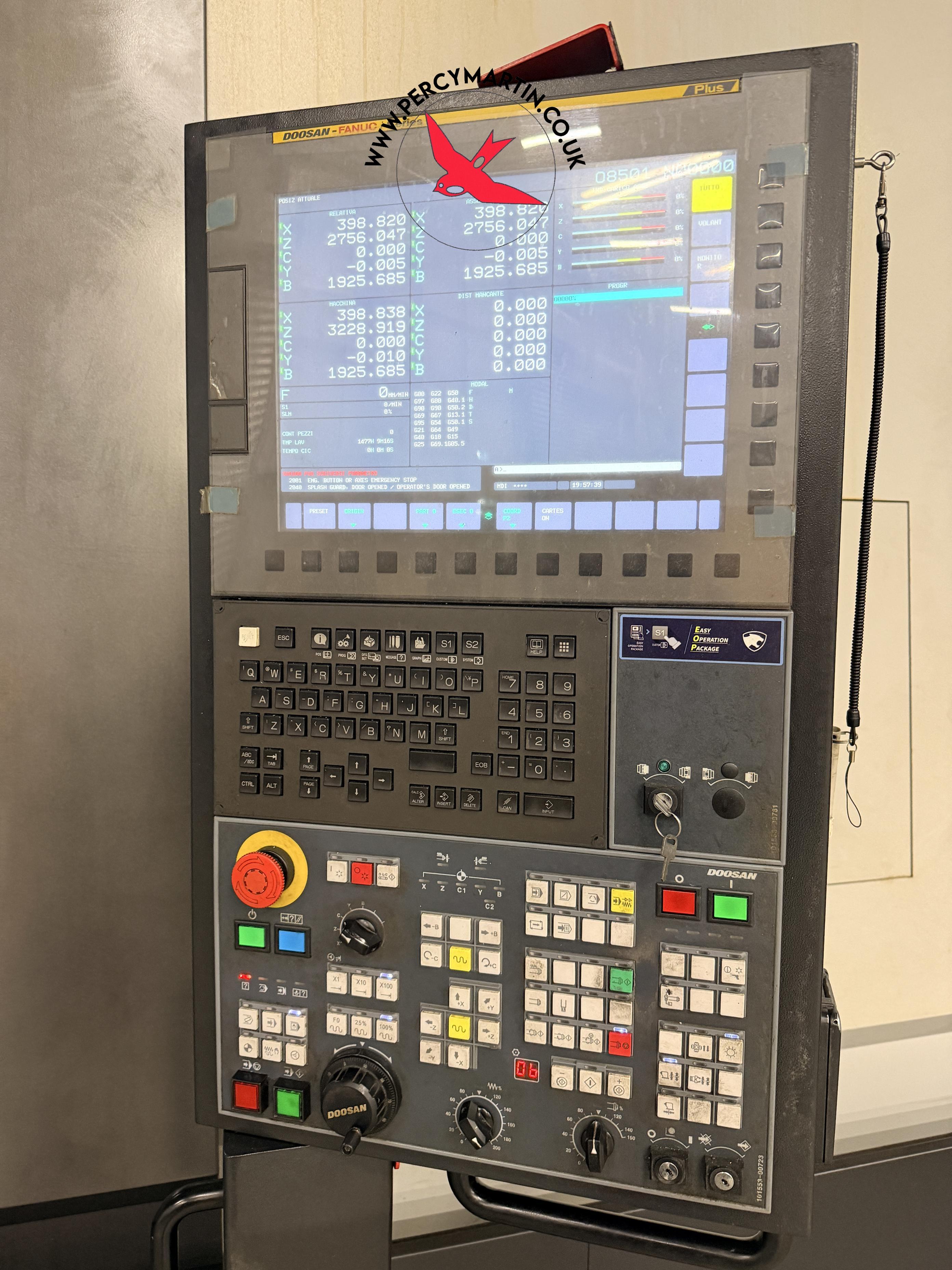

FANUC iPLUS iHMI
Machine Dimensions
8175 x 2632 x 2937mm
Machine Weight
16000kg
Maximum Cutting Diameter
550mm
Maximum Cutting Length
3070mm
Milling Motor Power
23/15kW
Milling RPM
4000rpm
Rapid Feedrates
XYZ: 20 x 10 x 18m/minute
Spindle Motor Power
37/30kW
Spindle Nose
A2-11
Spindle Speed
2000rpm
Standard Cutting Diameter
380mm

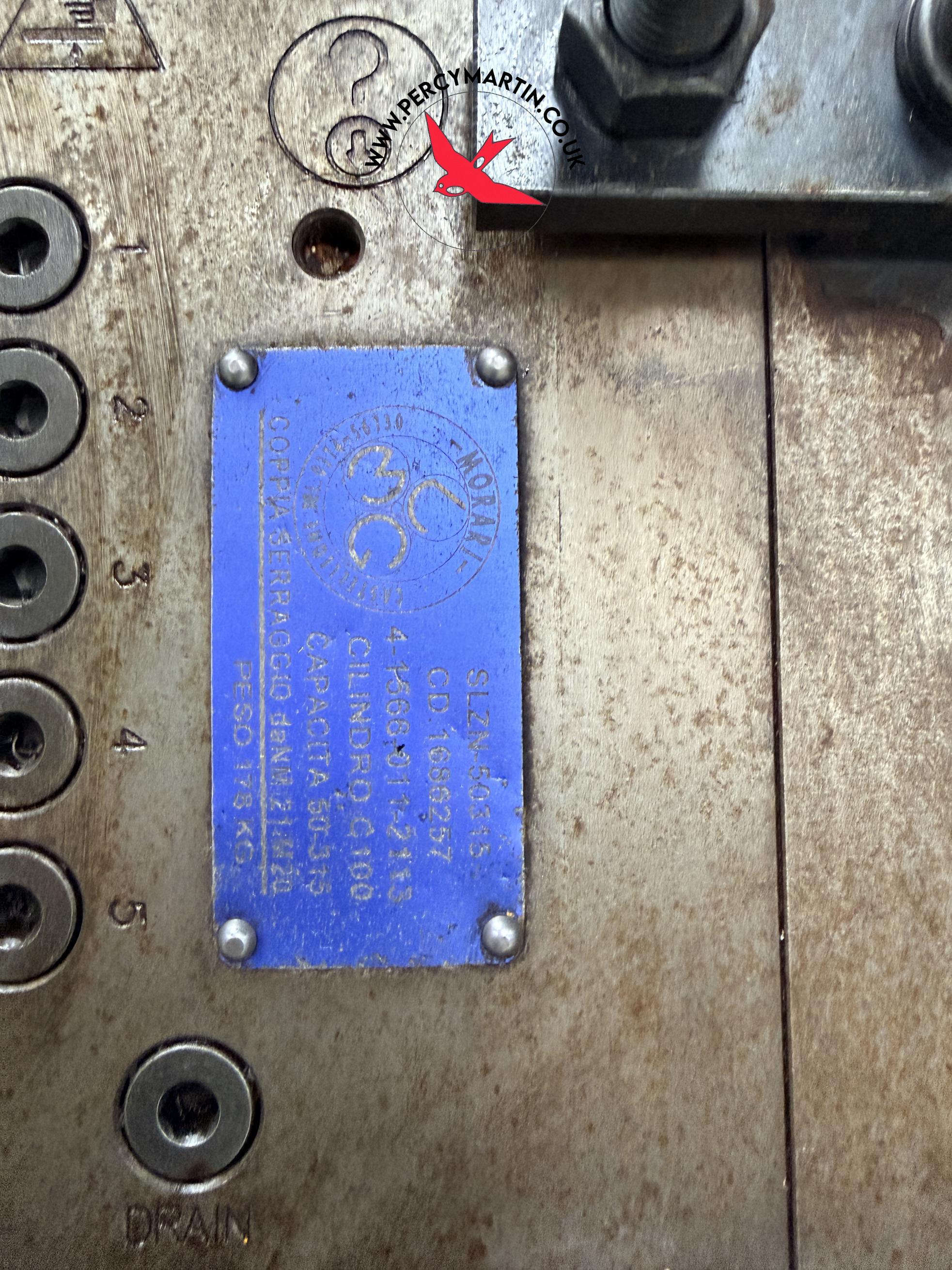

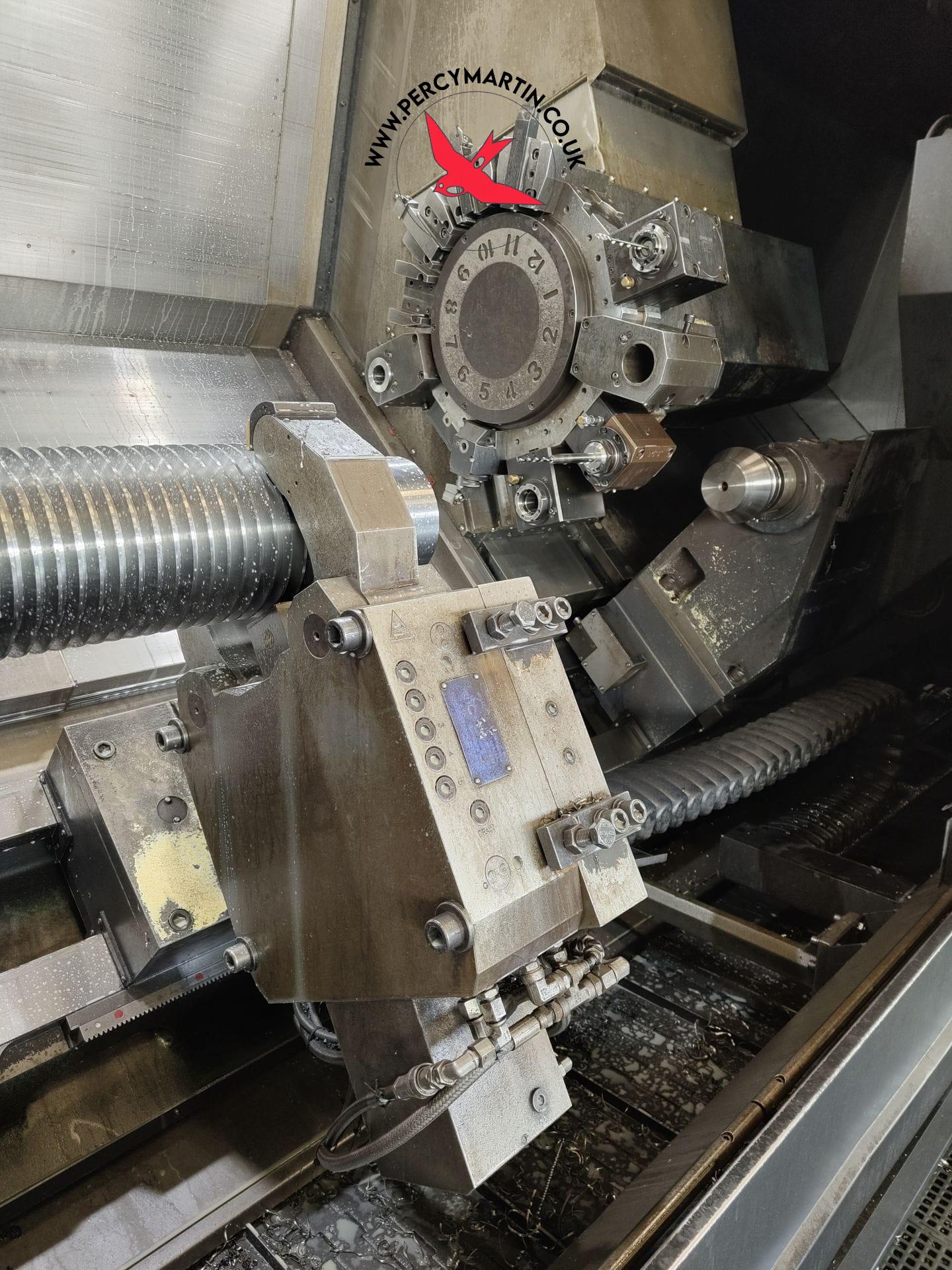

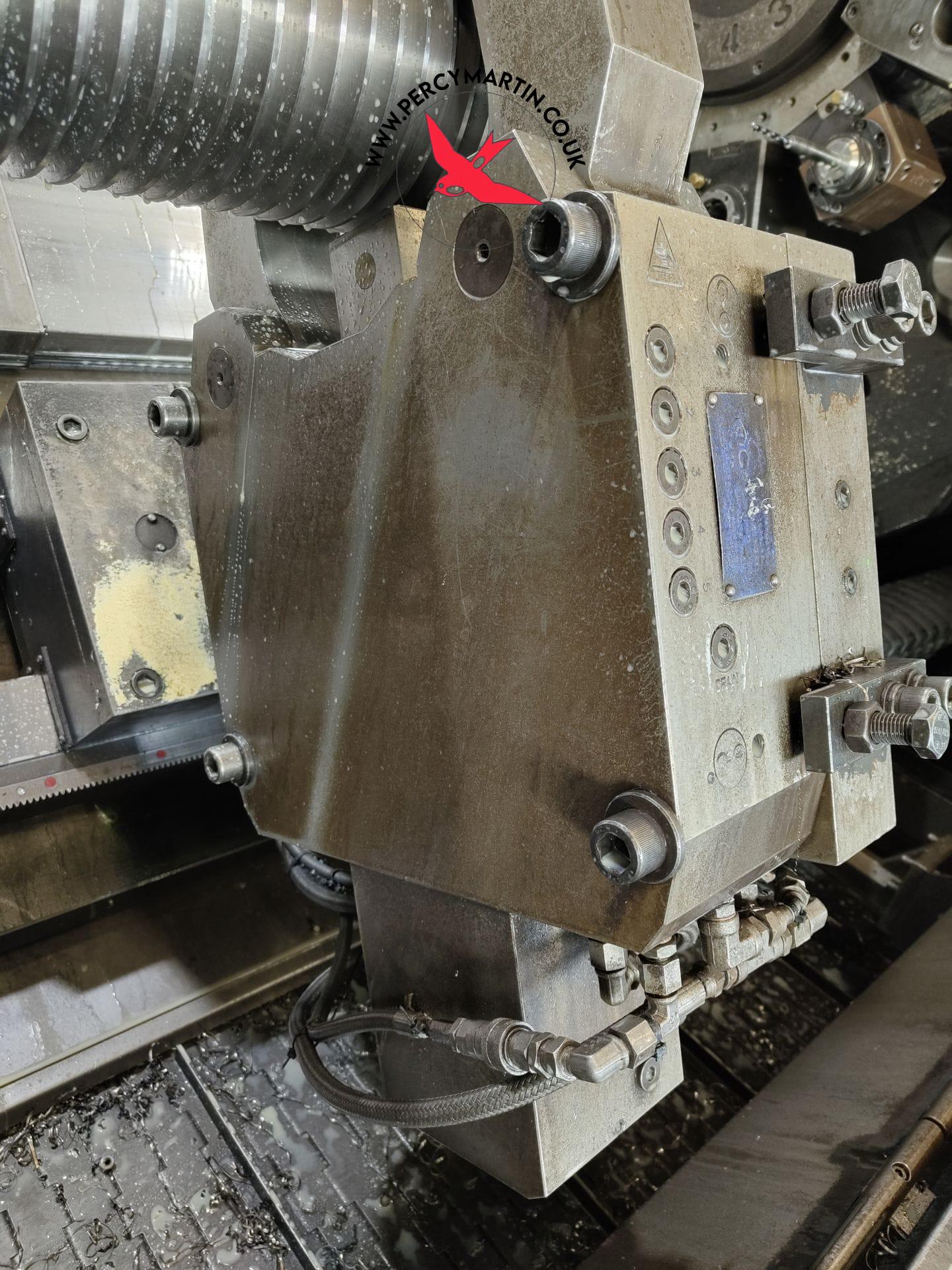

Steady
Morari SLZN-50315 (50-315mm capacity)
Swing
880mm
Swing over the Cross-slide
817mm
Tailstock Body Travel
3070mm
Tailstock Quill Diameter
120mm
Tailstock Quill Stroke
120mm
Tailstock Taper
MT #6
Tool Size
25 x 25mm
Tooling Configuration
BMT75P

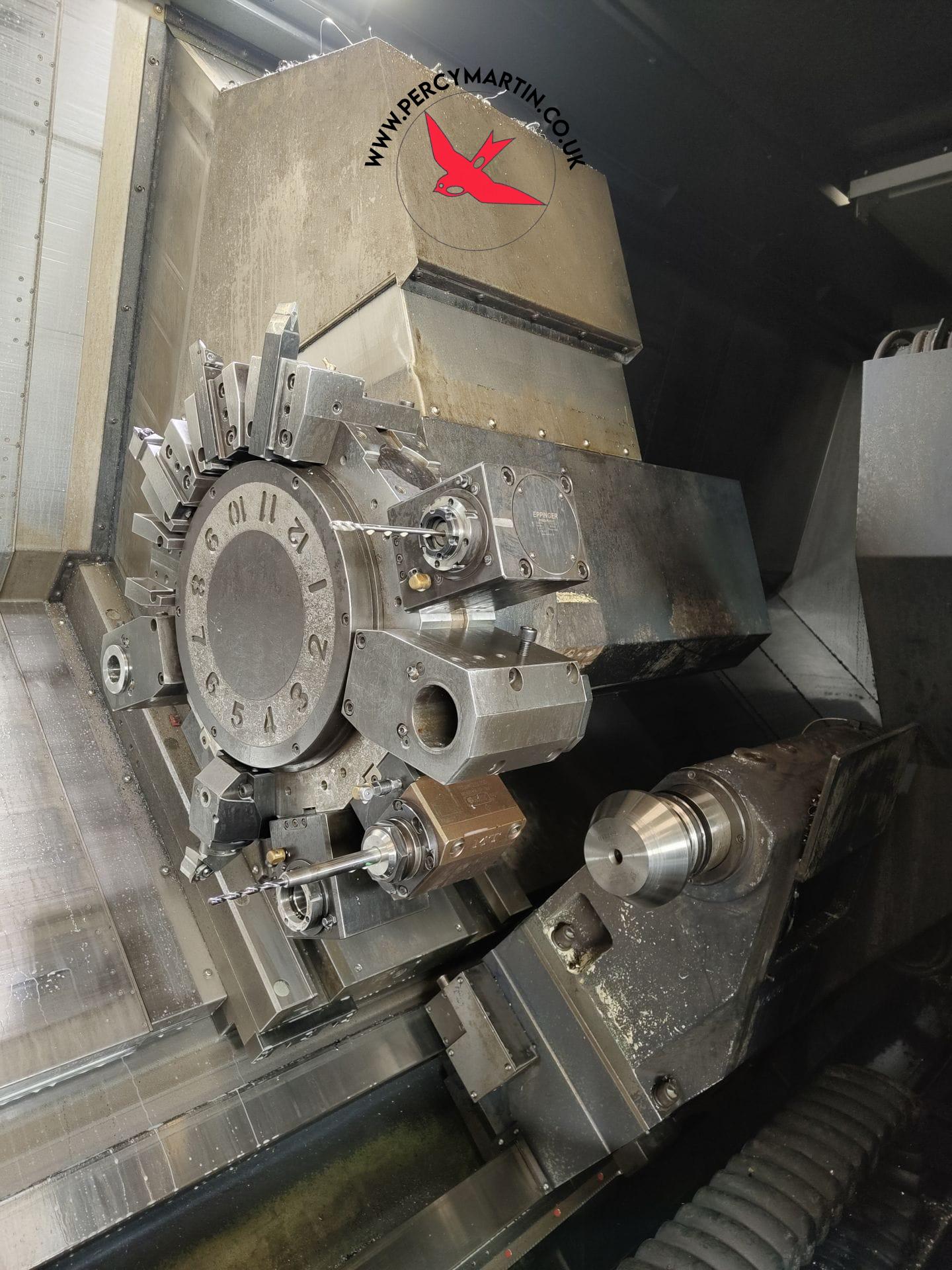

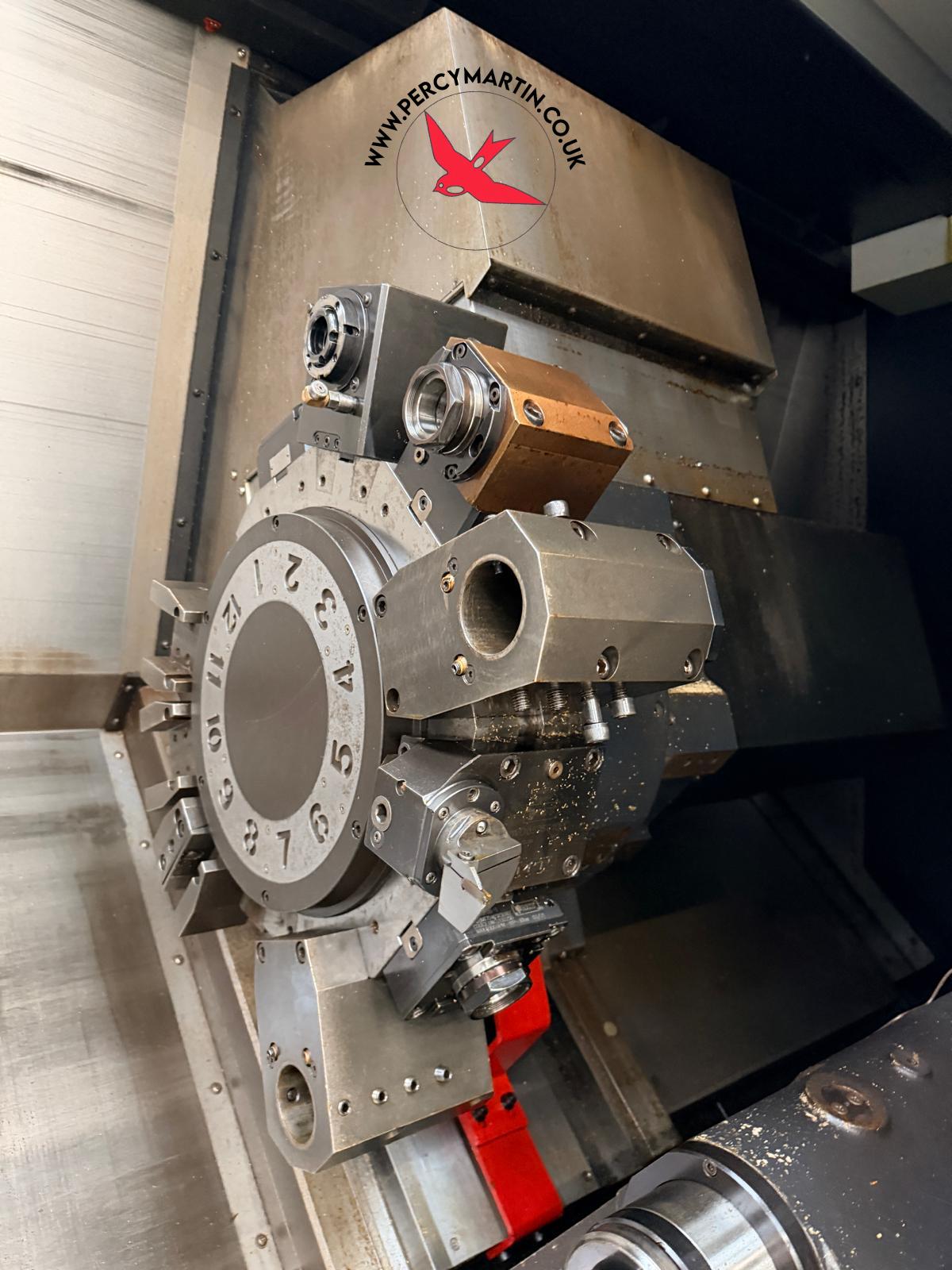

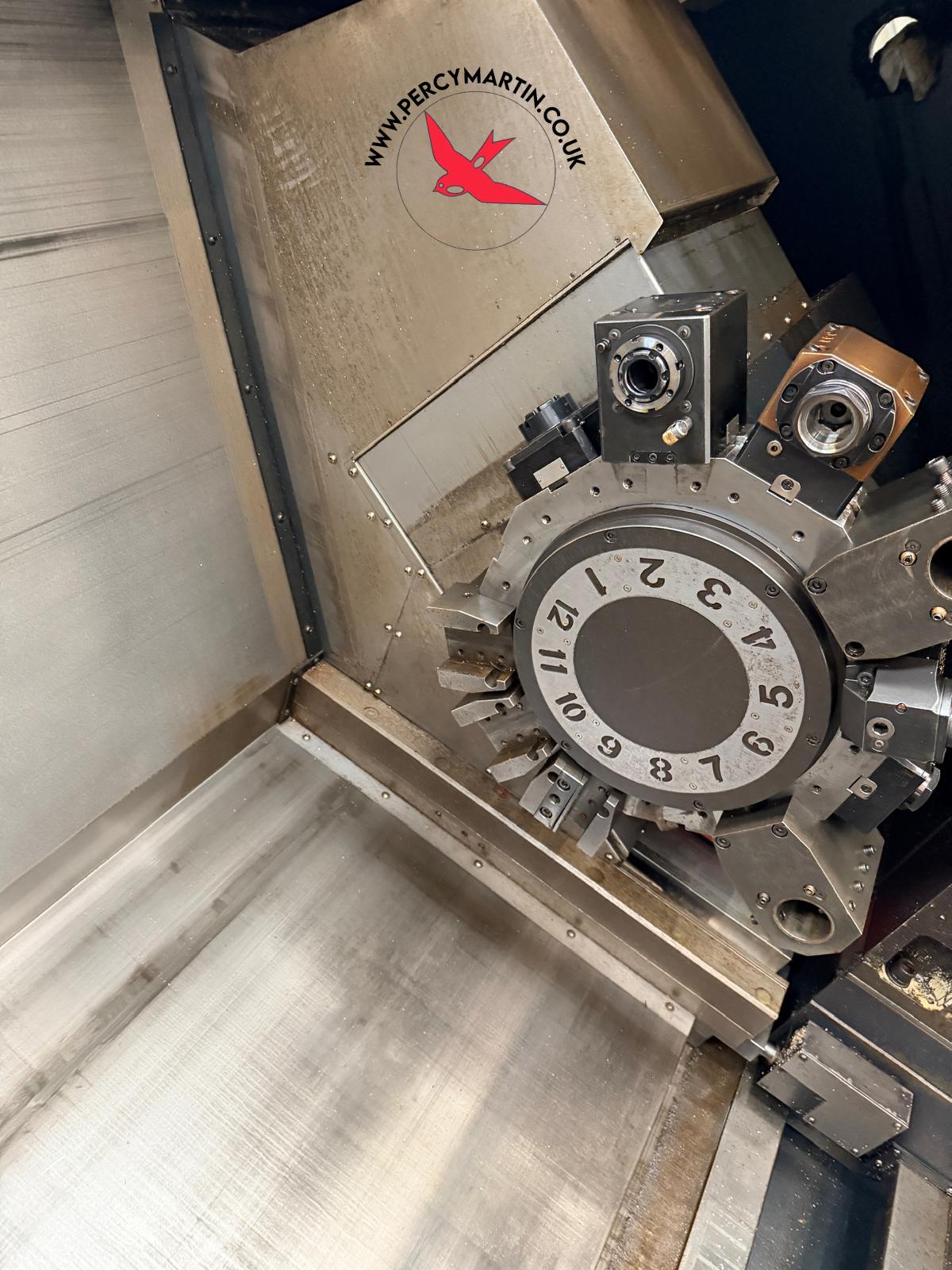

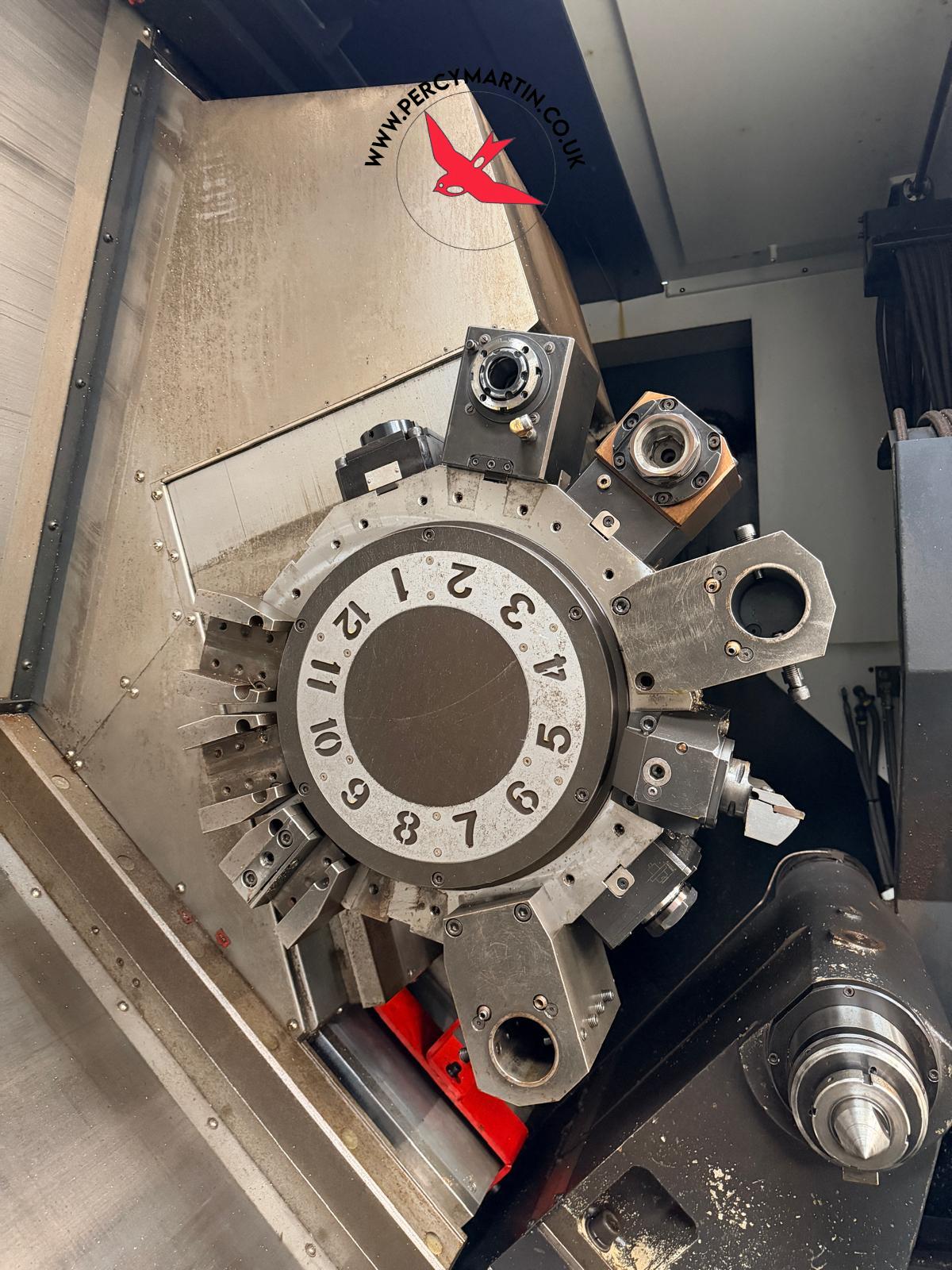

Turret Positions
12 Station
X axis Travel
355mm
Y axis Travel
+/-75mm
Z axis Travel
3150m
