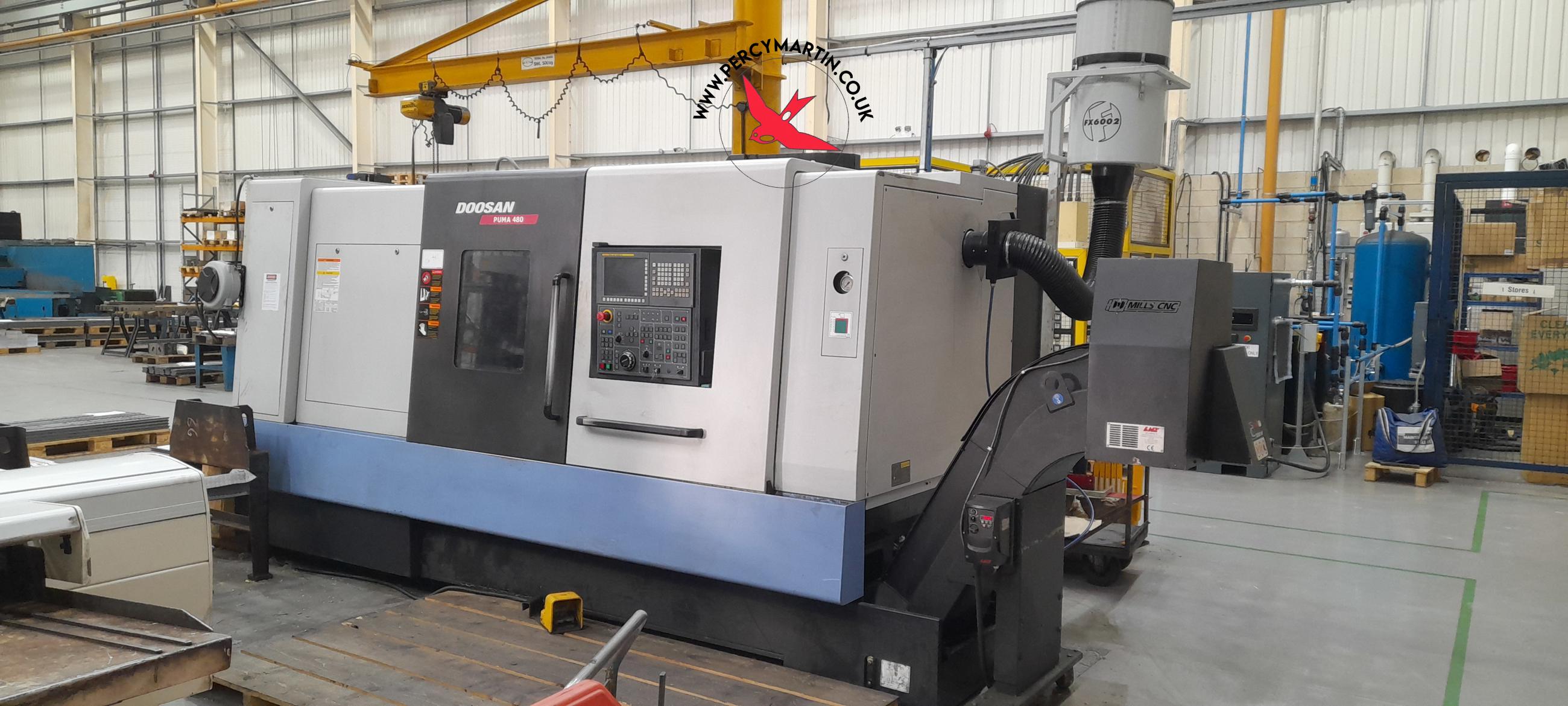

Doosan Puma 480D 2014
3 Jaw Chuck , Coolant , Interlocked guards , Low Volt Light , Rear Mounted Chuck , Swarf Conveyor , Tailstock , Tooling
Doosan Puma 480D 2014
Key Features
Type:
All Products
Model:
Puma 480D
Make:
Doosan
Year:
2014

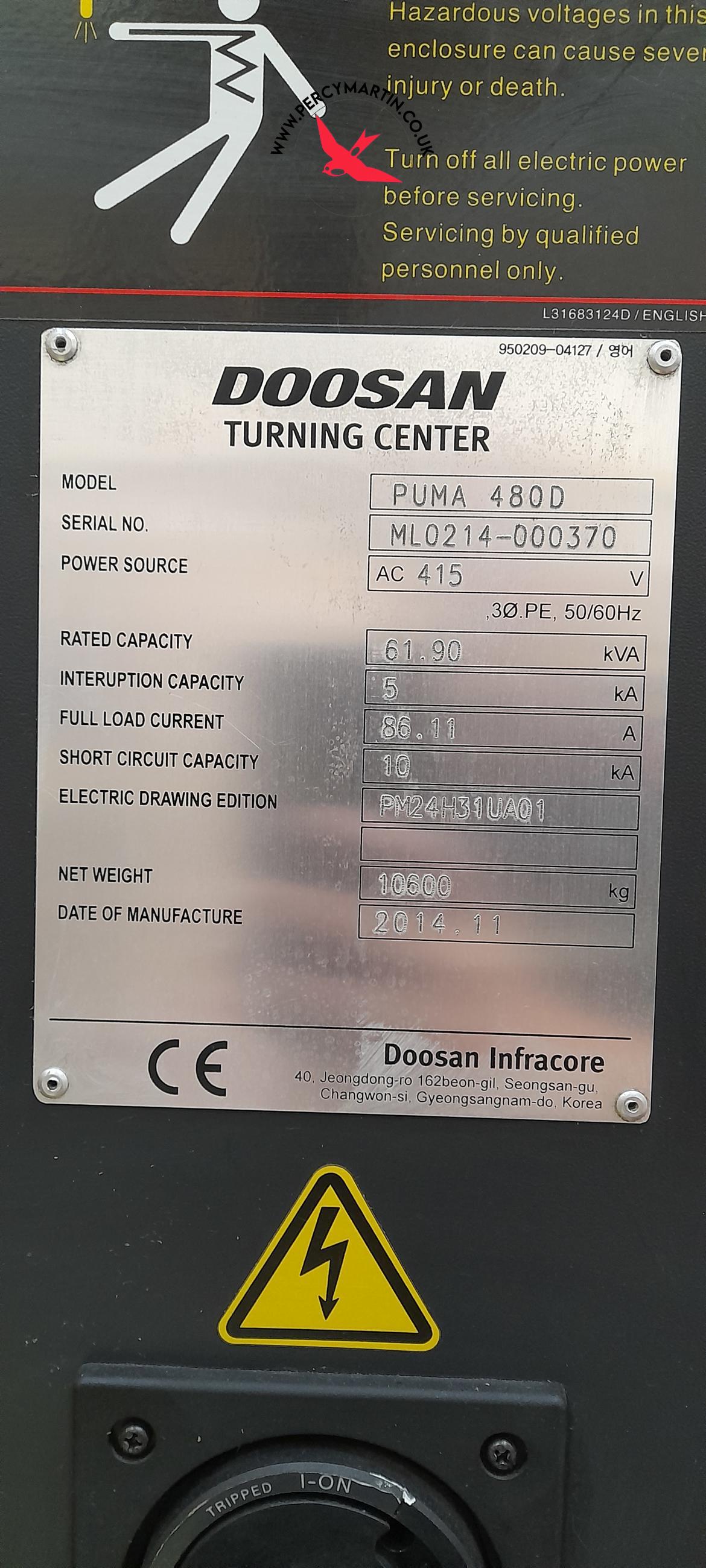

Serial No
ML0214-000370
Price
£POA
Our Reference
PM9579b
Location
Leicester
Doosan Puma 480D 2014
Specifications
Boring Bar Holder Diameter
80mm

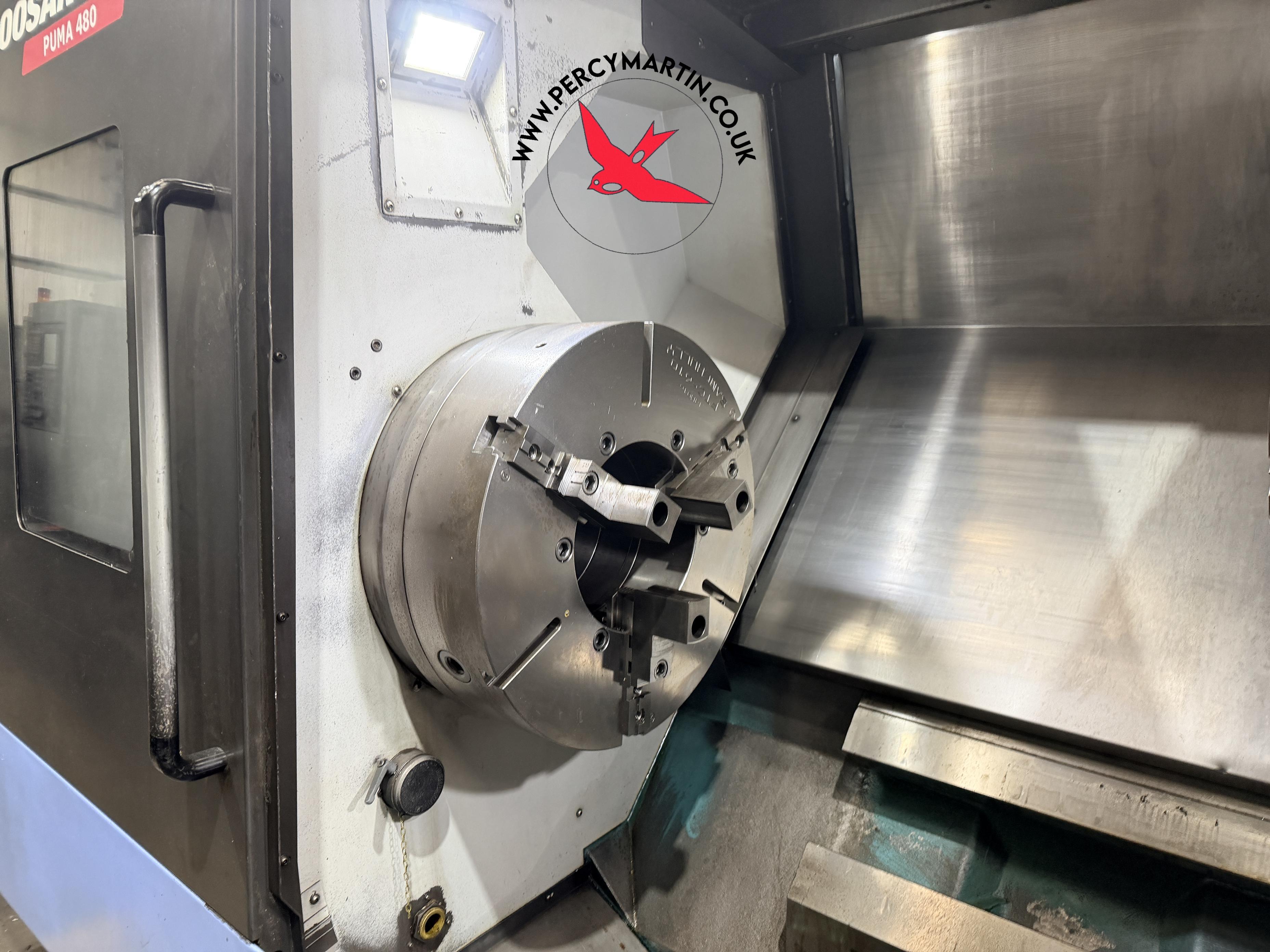

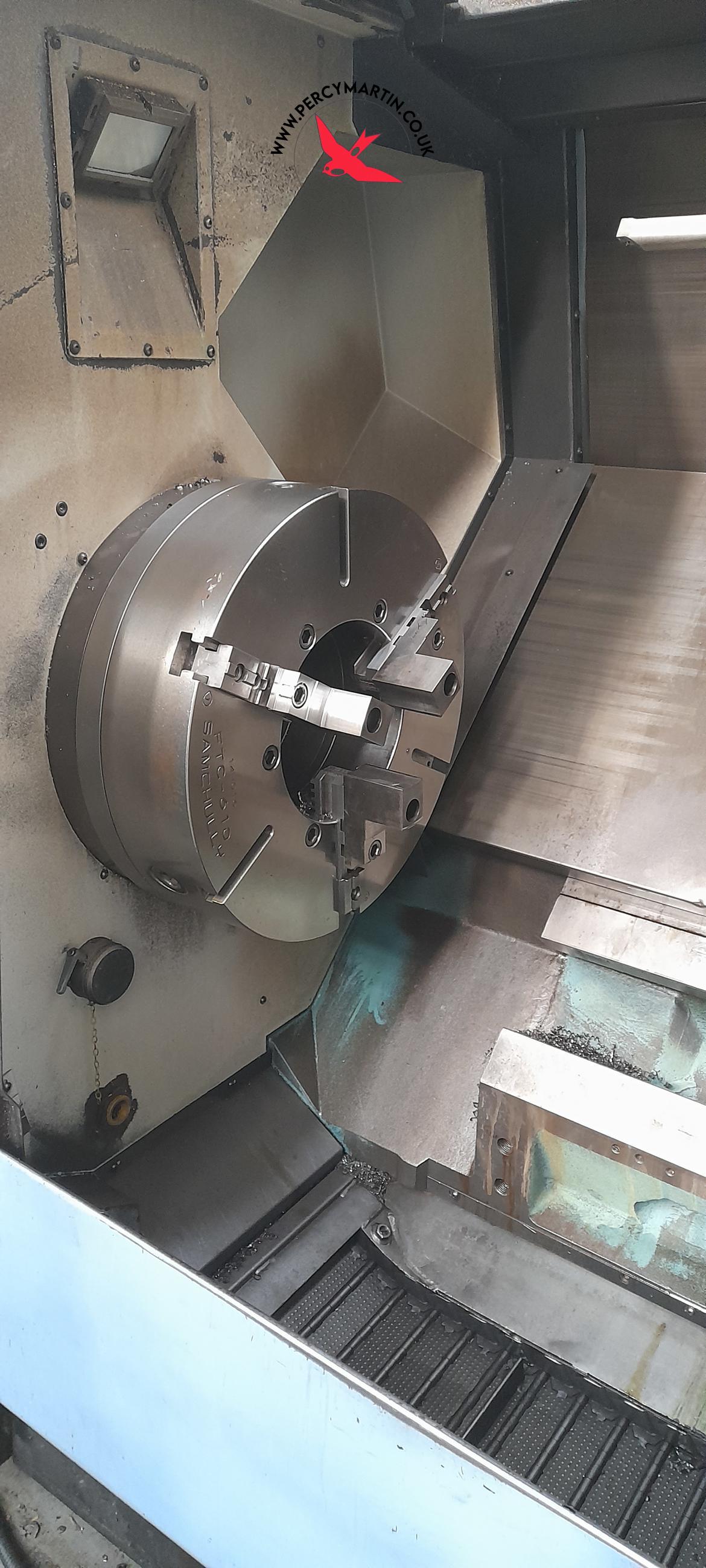

Chuck Size
610mm (24")

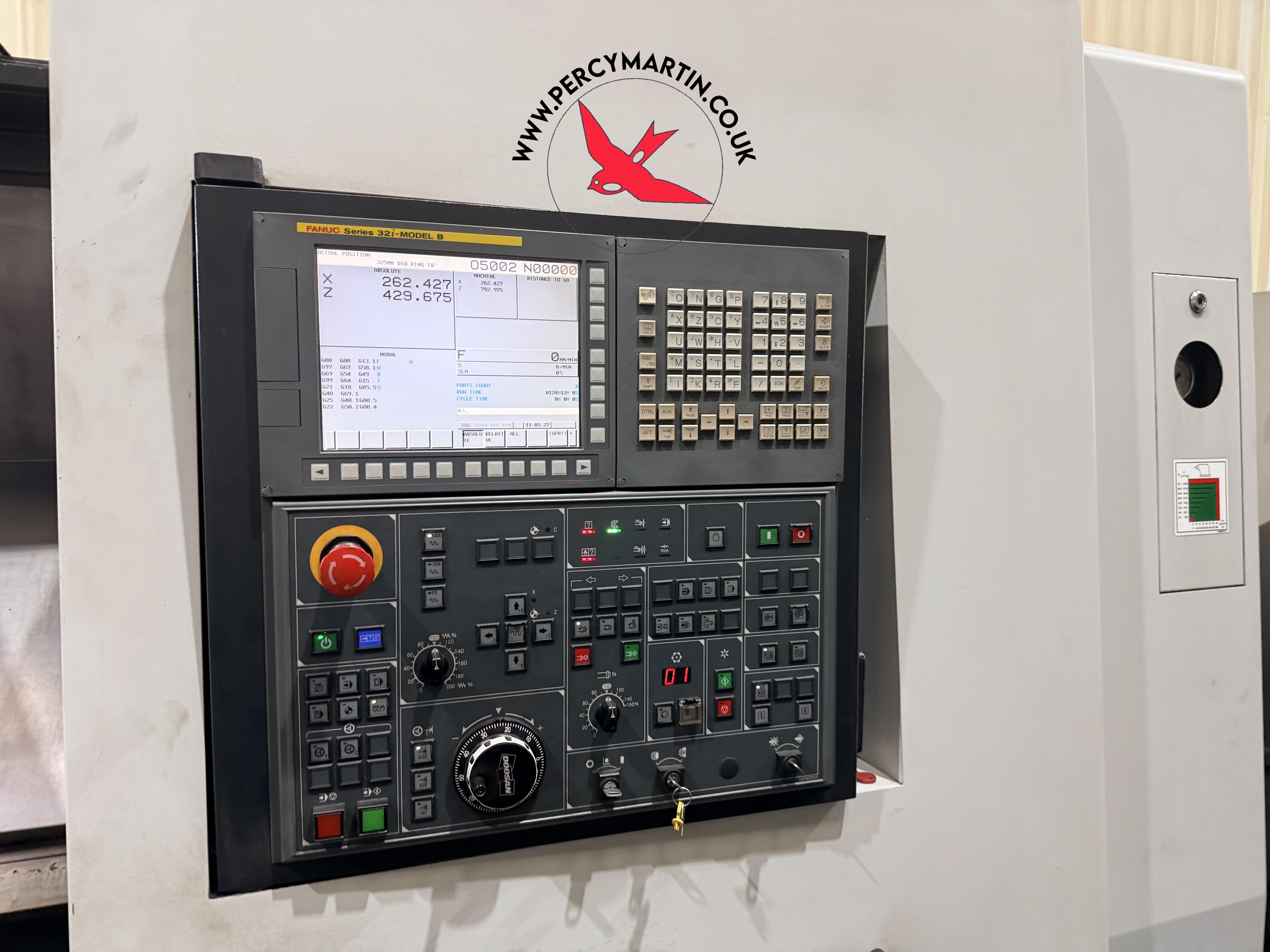

Control

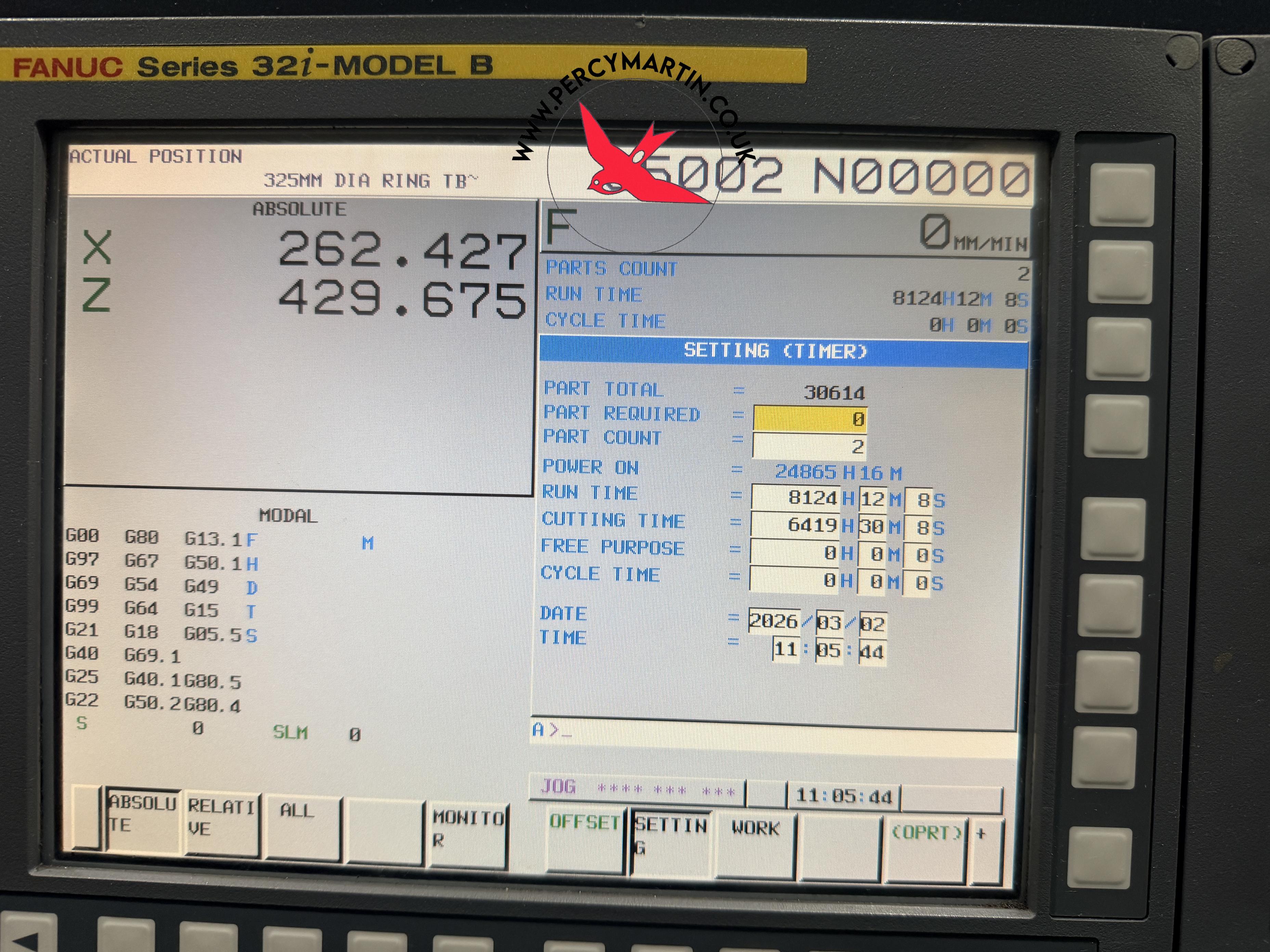

FANUC 32i Model B
Machine Dimensions
4613 x 2050 x 2197mm
Machine Weight
10800kg
Maximum Cutting Diameter
650mm
Maximum Cutting Length
992mm
Rapid Feedrates
XZ: 16 x 10m/minute
Spindle Bore
275mm
Spindle Motor Power
45kW
Spindle Nose
ISO 702-4 No.20
Spindle Speed
1000rpm
Standard Cutting Diameter
380mm
Swing
900mm
Swing over the Cross-slide
720mm
Tailstock Quill Diameter
120mm
Tailstock Quill Stroke
120mm
Tailstock Taper
MT #6
Tool Size
32 x 32mm

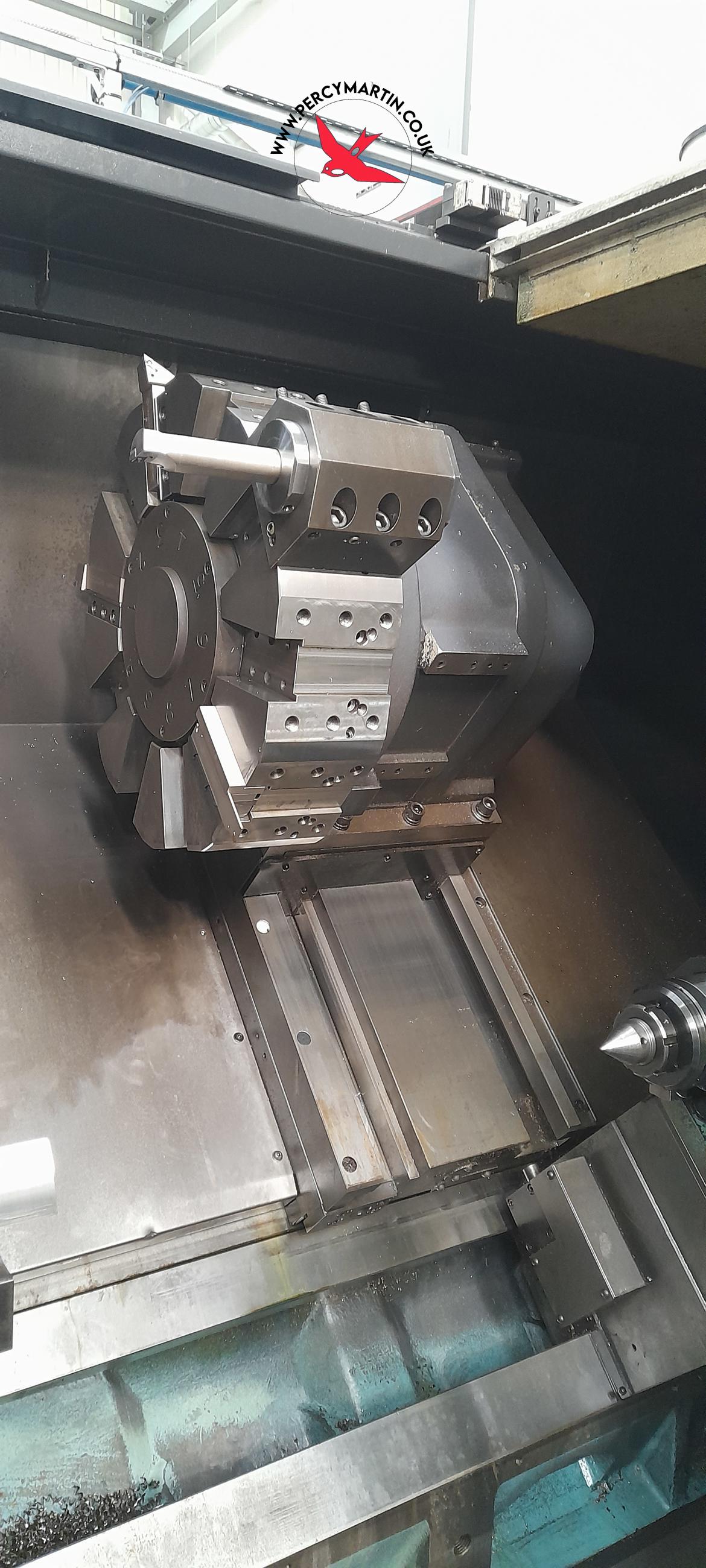

Turret Positions
10 Station
X axis Travel
362mm
Z axis Travel
1105mm
