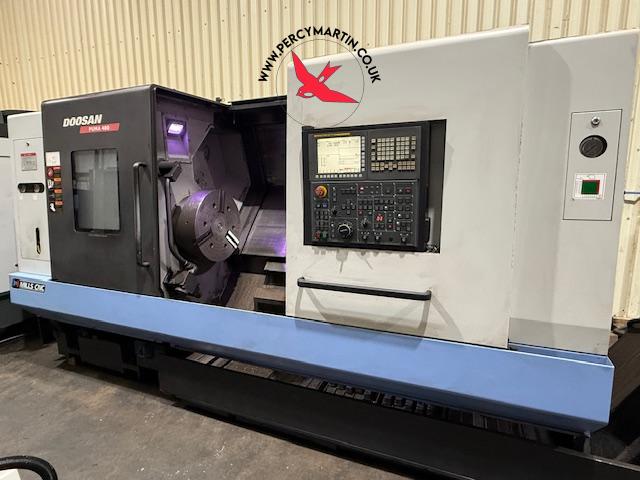

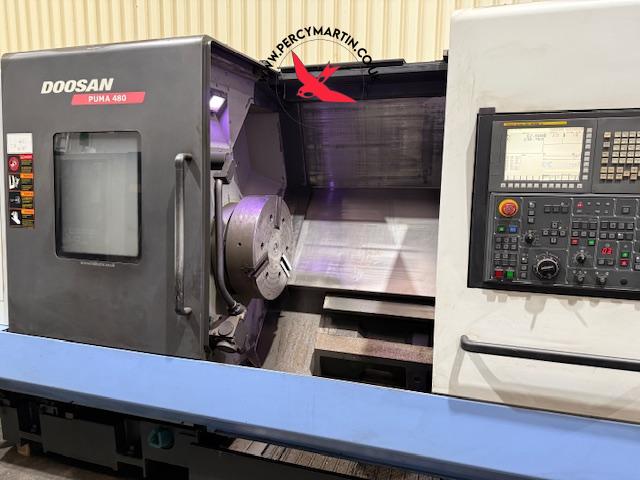

Doosan Puma 480 2013

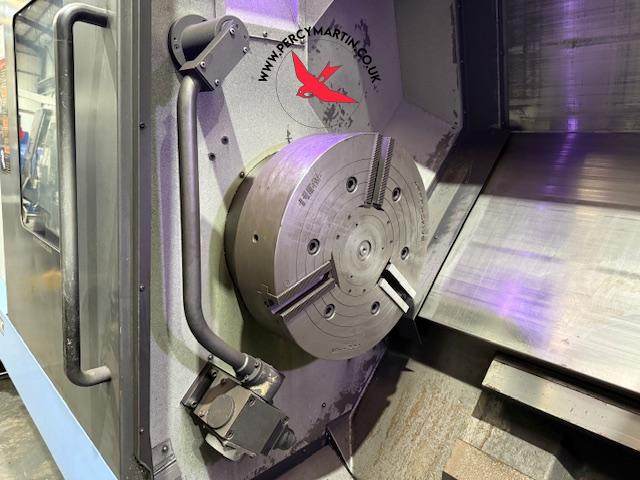

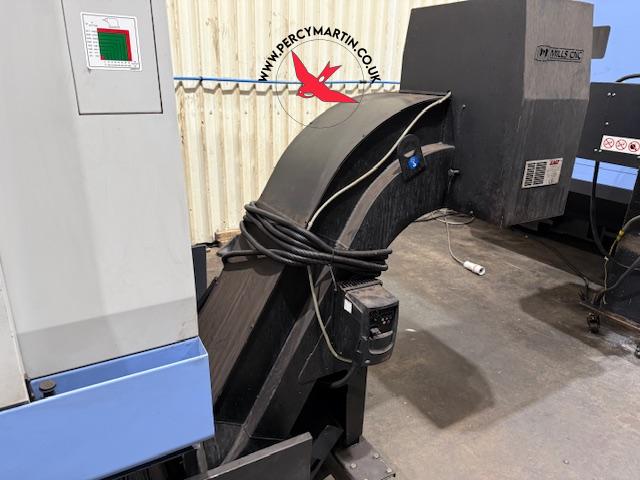

3 Jaw Chuck , Coolant , Interlocked guards , Low Volt Light , Swarf Conveyor , Tailstock , Tool setter

Key Features Gallery Specifications More in Stock Register Interest

Doosan Puma 480 2013

Key Features

Type:

All Products

Model:

Puma 480

Make:

Doosan

Year:

2013

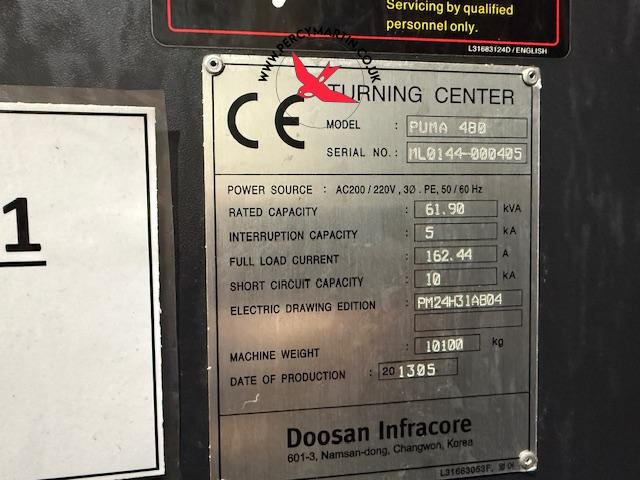

Serial No

ML0144-000405

Price

£POA

Our Reference

PM9765

Location

Leicester

Doosan Puma 480 2013

Specifications

Bar Capacity

165mm

Boring Bar Holder Diameter

80mm

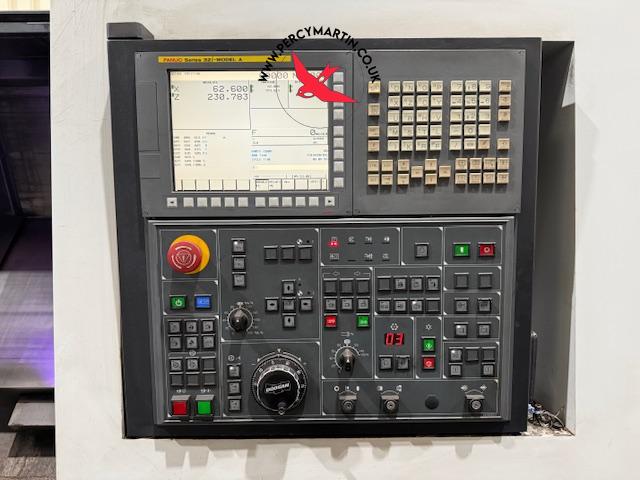

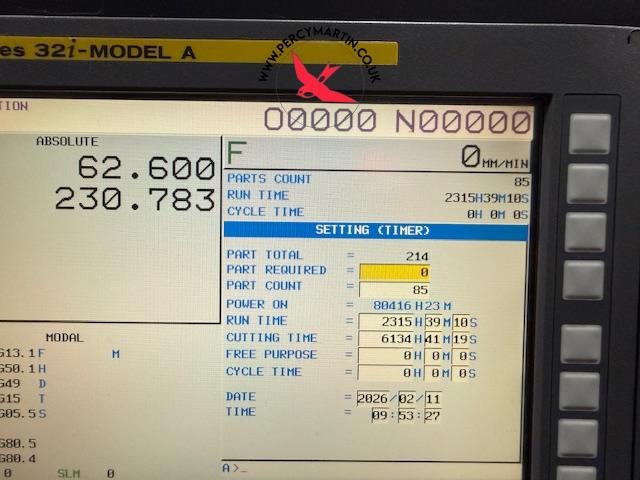

Control

FANUC 32i

Machine Dimensions

4613 x 2050 x 2197mm

Machine Weight

10100kg

Maximum Cutting Diameter

650mm

Maximum Cutting Length

992mm

Rapid Feedrates

XZ: 16 x 20m/minute

Spindle Bore

181mm

Spindle Motor Power

45kW

Spindle Nose

A1-15

Spindle Speed

1500rpm

Swing

900mm

Swing over the Cross-slide

720mm

Tailstock Body Travel

120mm

Tailstock Quill Diameter

120mm

Tailstock Taper

MT #6

Tool Size

32 x 32mm

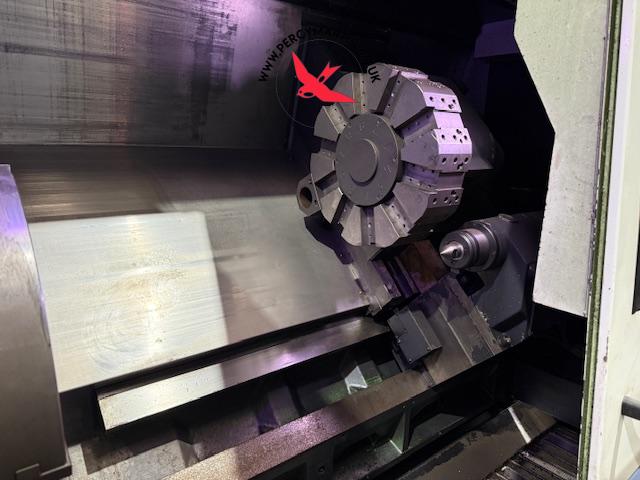

Tooling Configuration

10 Station

X axis Travel

362mm

Z axis Travel

1105mm
