Doosan Puma 400LB 2008

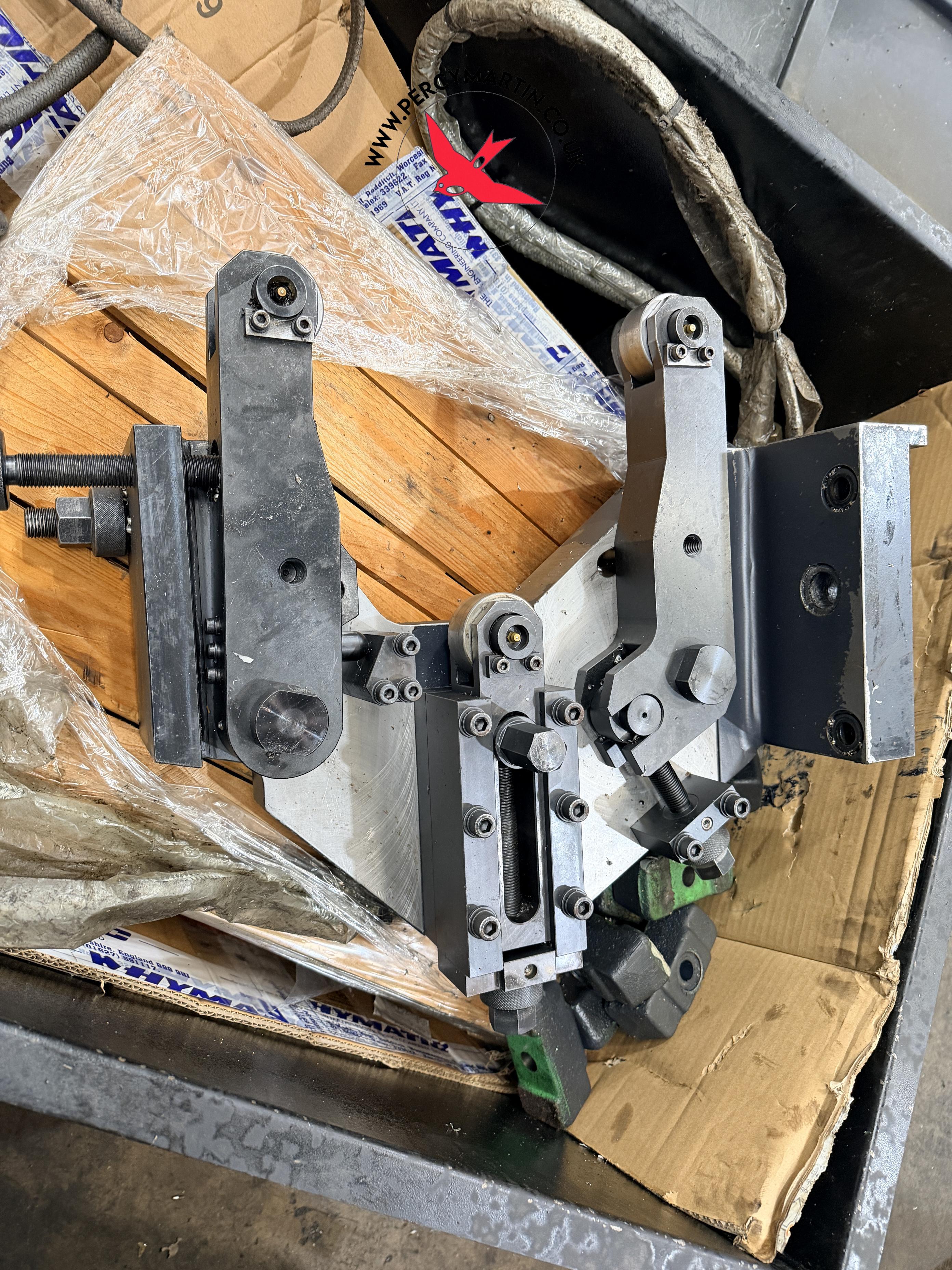

3 Jaw Chuck , Coolant , Fixed Steady , Interlocked guards , Low Volt Light , Swarf Conveyor , Tailstock , Tool setter
Doosan Puma 400LB 2008
Key Features
Type:
All Products
Model:
Puma 400LB
Make:
Doosan
Year:
2008

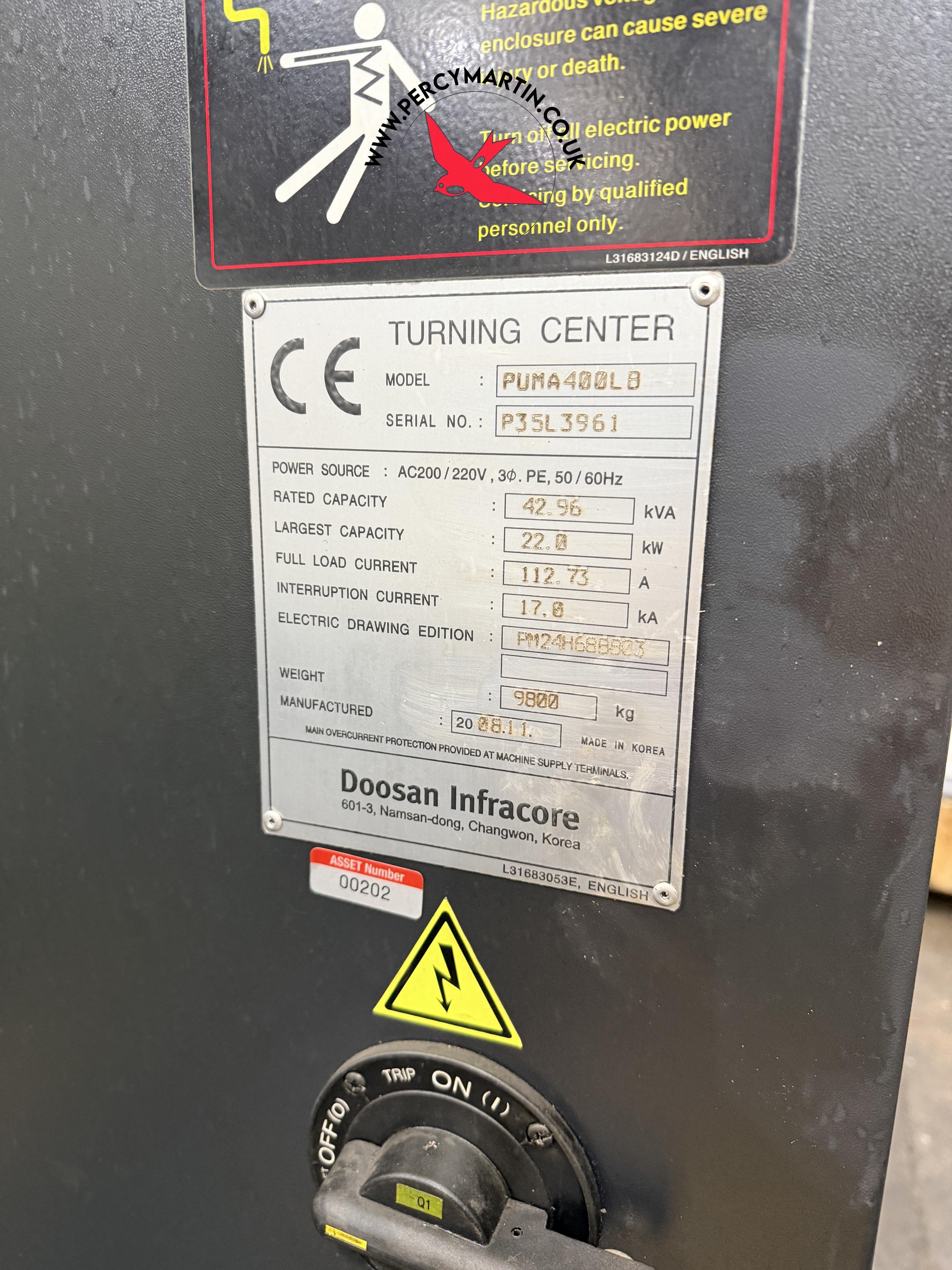

Serial No
P35L3961
Price
£POA
Our Reference
PM9806
Location
Leicester
Doosan Puma 400LB 2008
Specifications
Bar Capacity
117mm
Boring Bar Holder Diameter
60mm

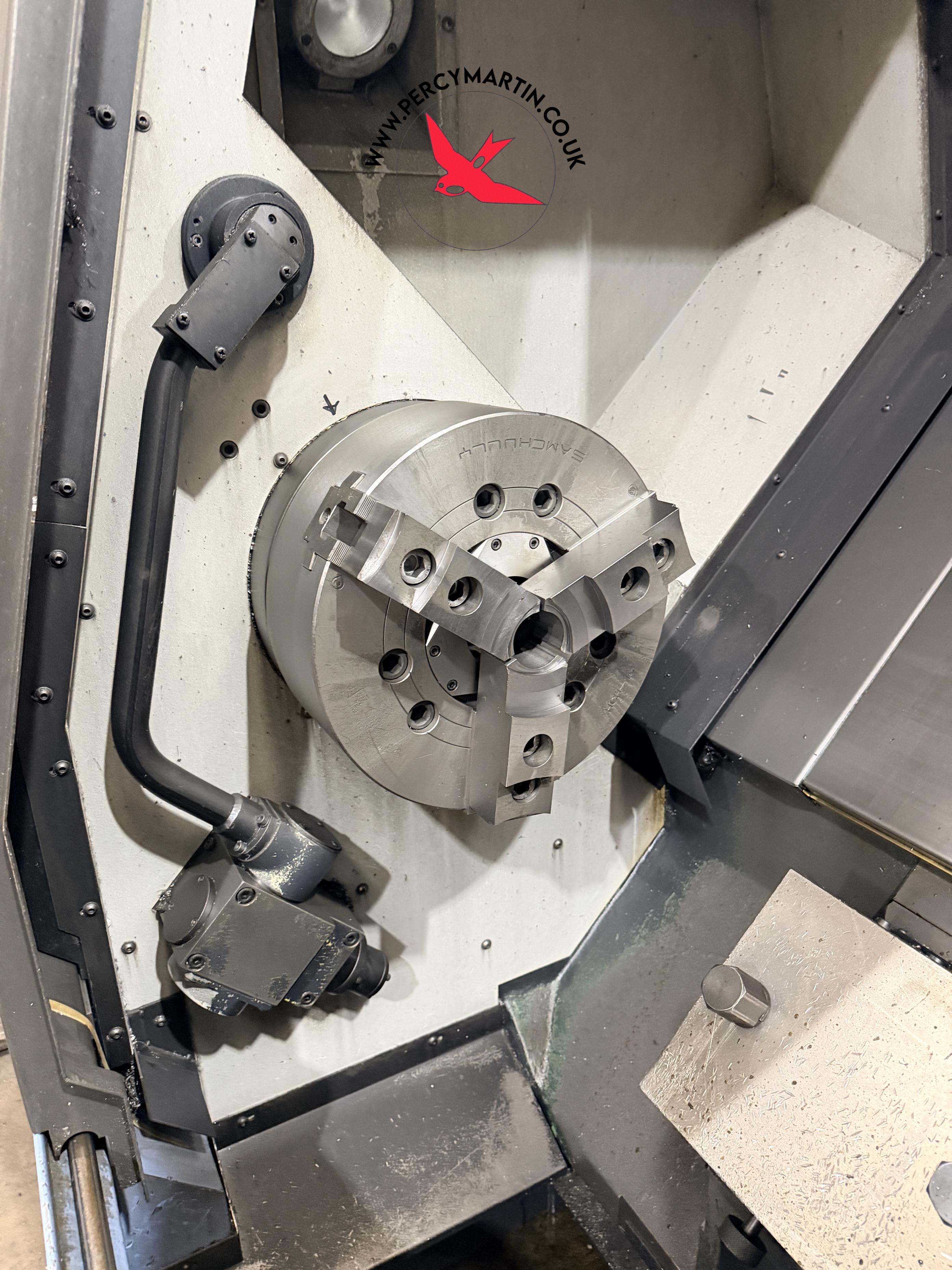

Chuck Size
15"

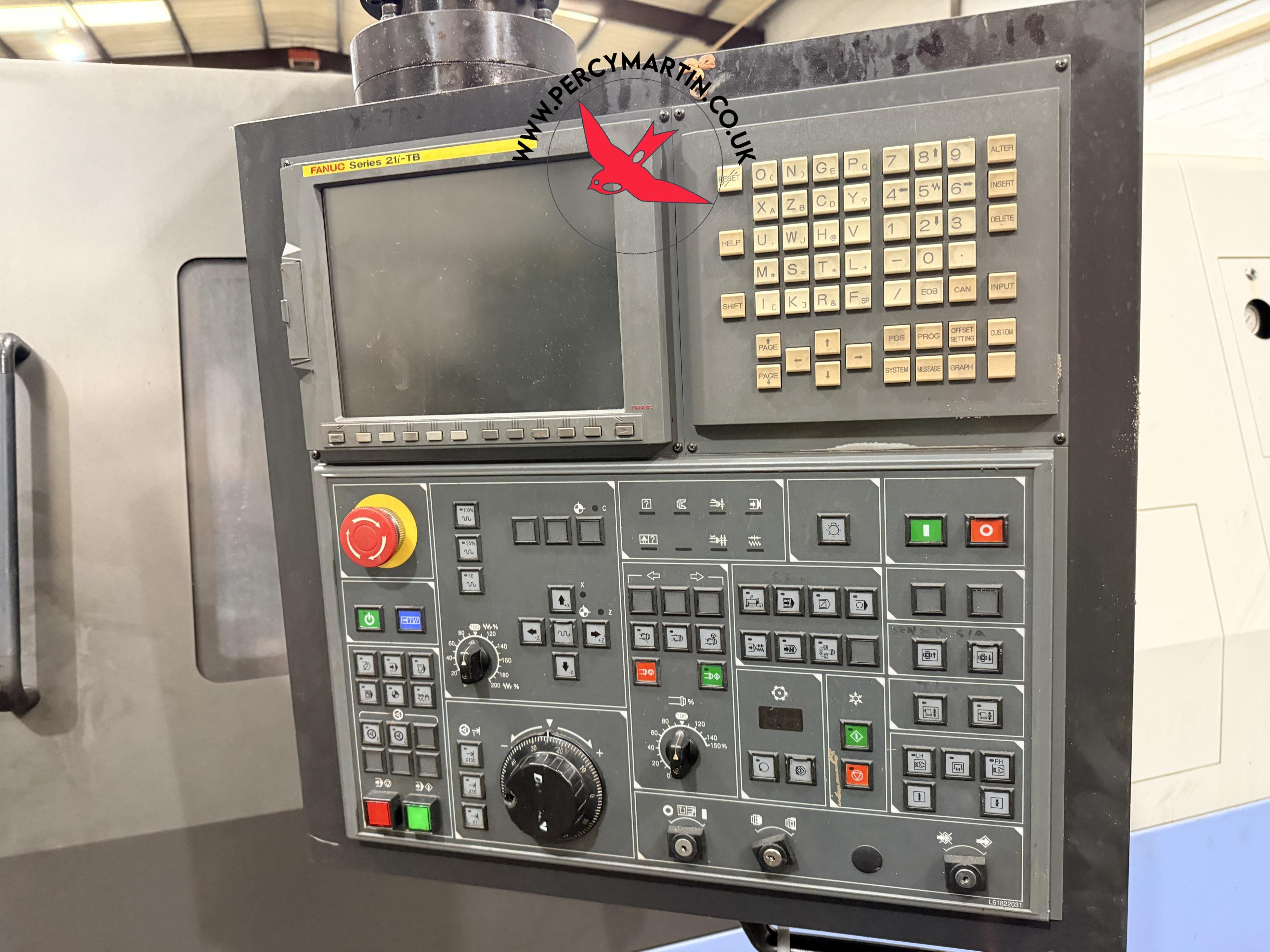

Control
FANUC 21i-TB
Machine Dimensions
5702 x 2440 x 2292mm
Machine Weight
9800kg
Maximum Cutting Diameter
550mm
Maximum Cutting Length
2093mm
Rapid Feedrates
XZ: 16 x 20m/minute
Spindle Motor Power
22 / 26kW
Spindle Nose
A2-11
Spindle Speed
2000mm
Standard Cutting Diameter
380mm
Swing
770mm
Swing Over Carriage
590mm
Tailstock Quill Diameter
120mm
Tailstock Taper
MT #6

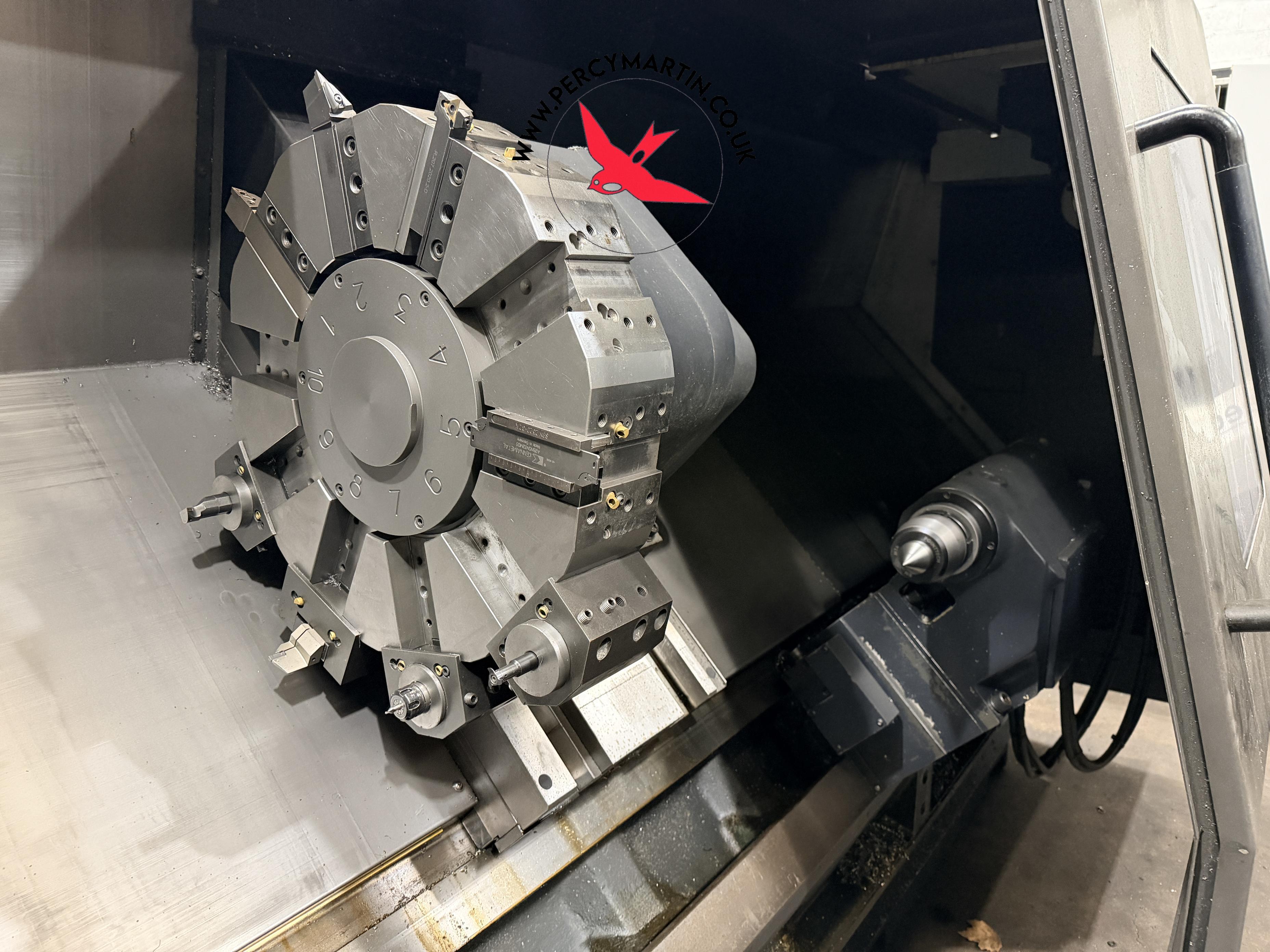

Turret Positions
10 Station
X axis Travel
362mm
Z axis Travel
2155mm
Doosan Puma 400LB 2008
