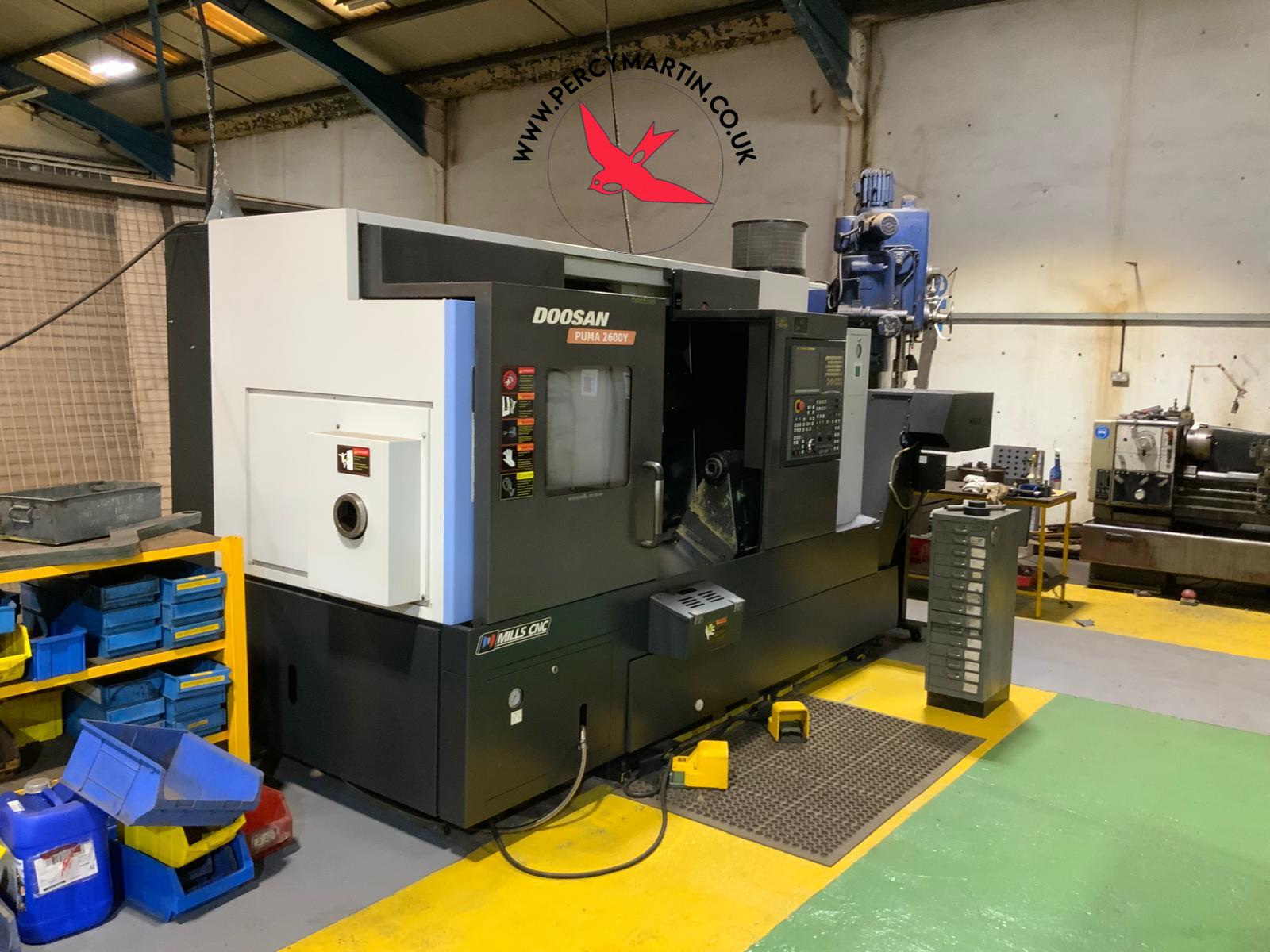

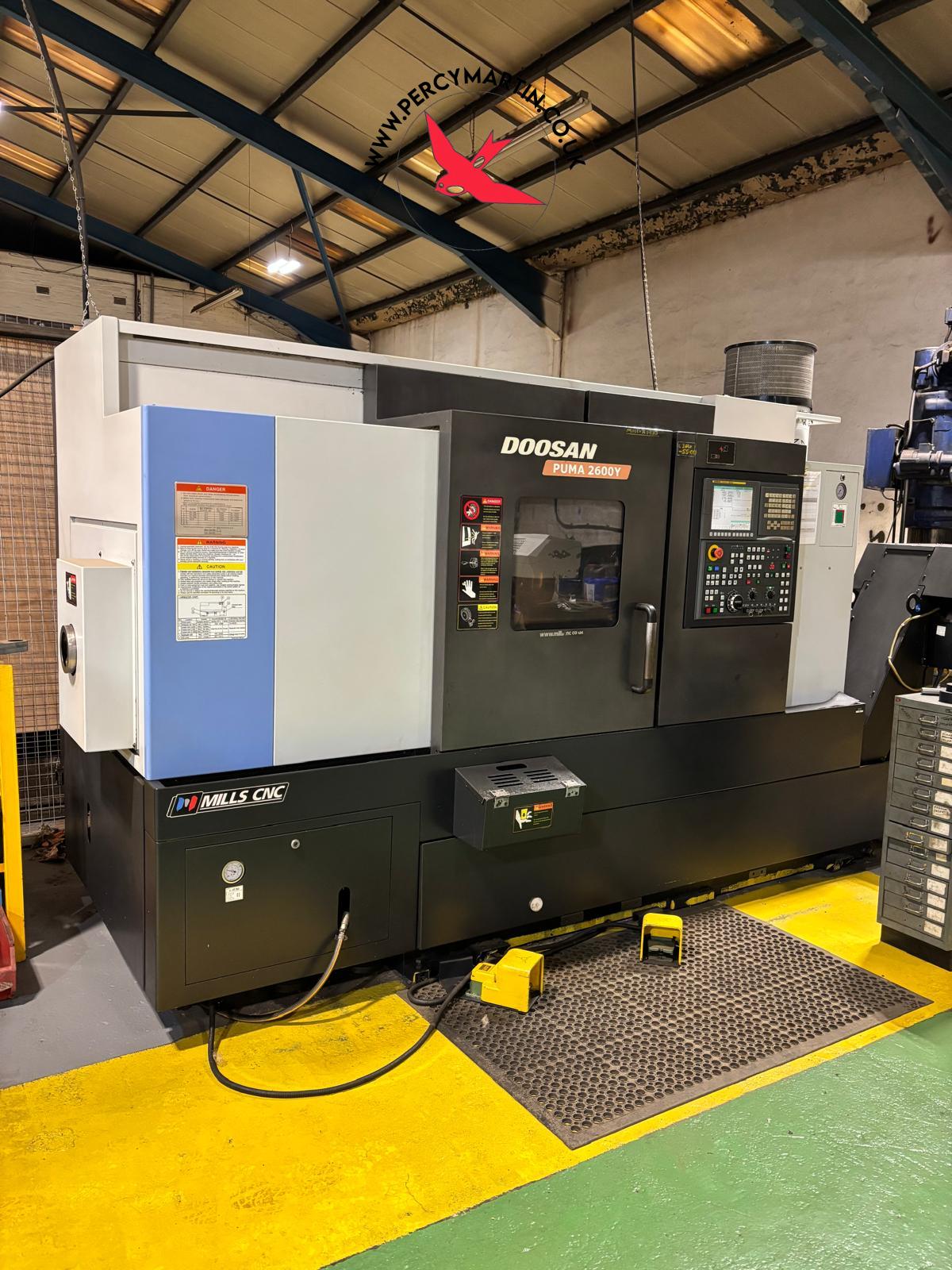

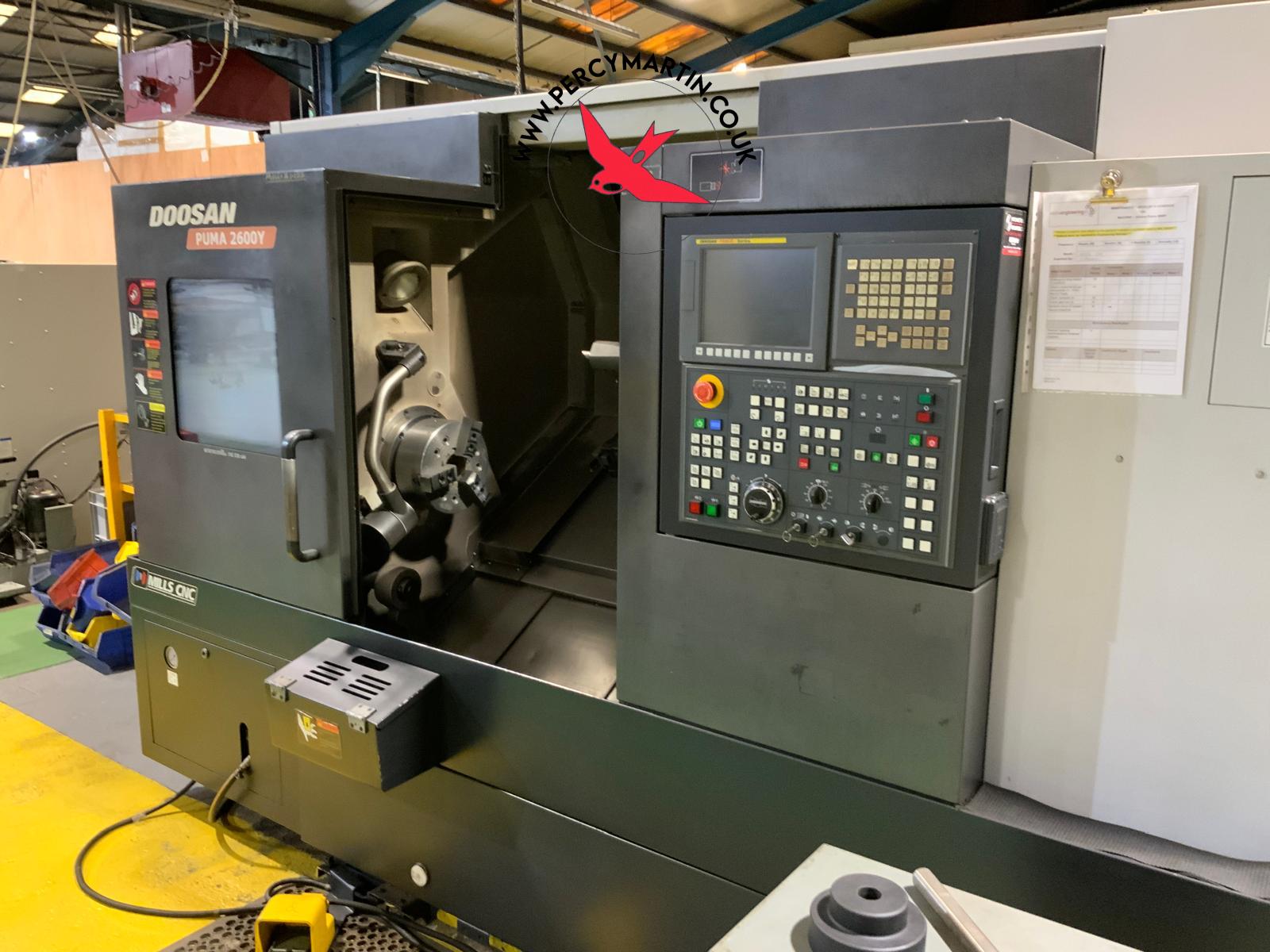

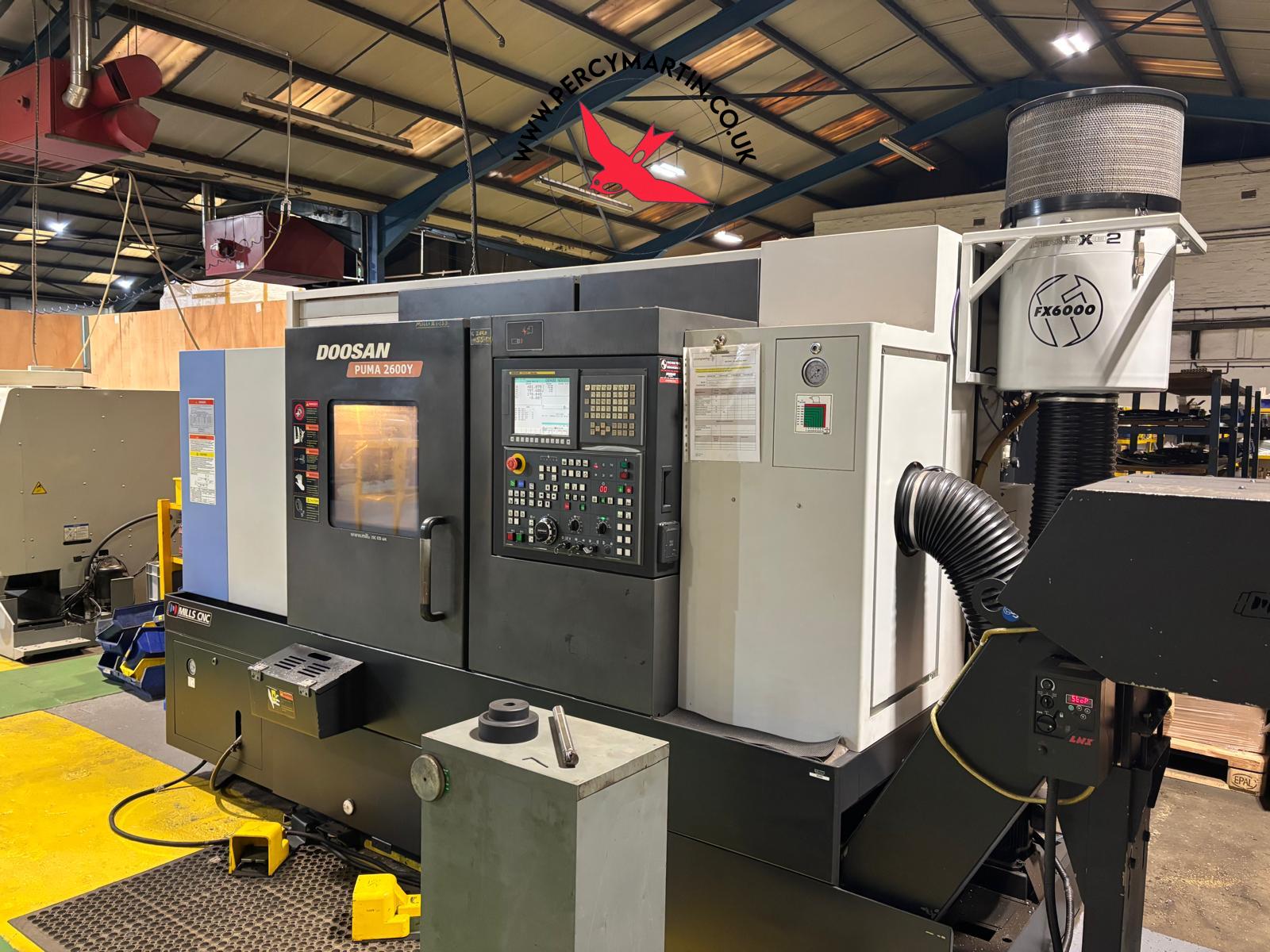

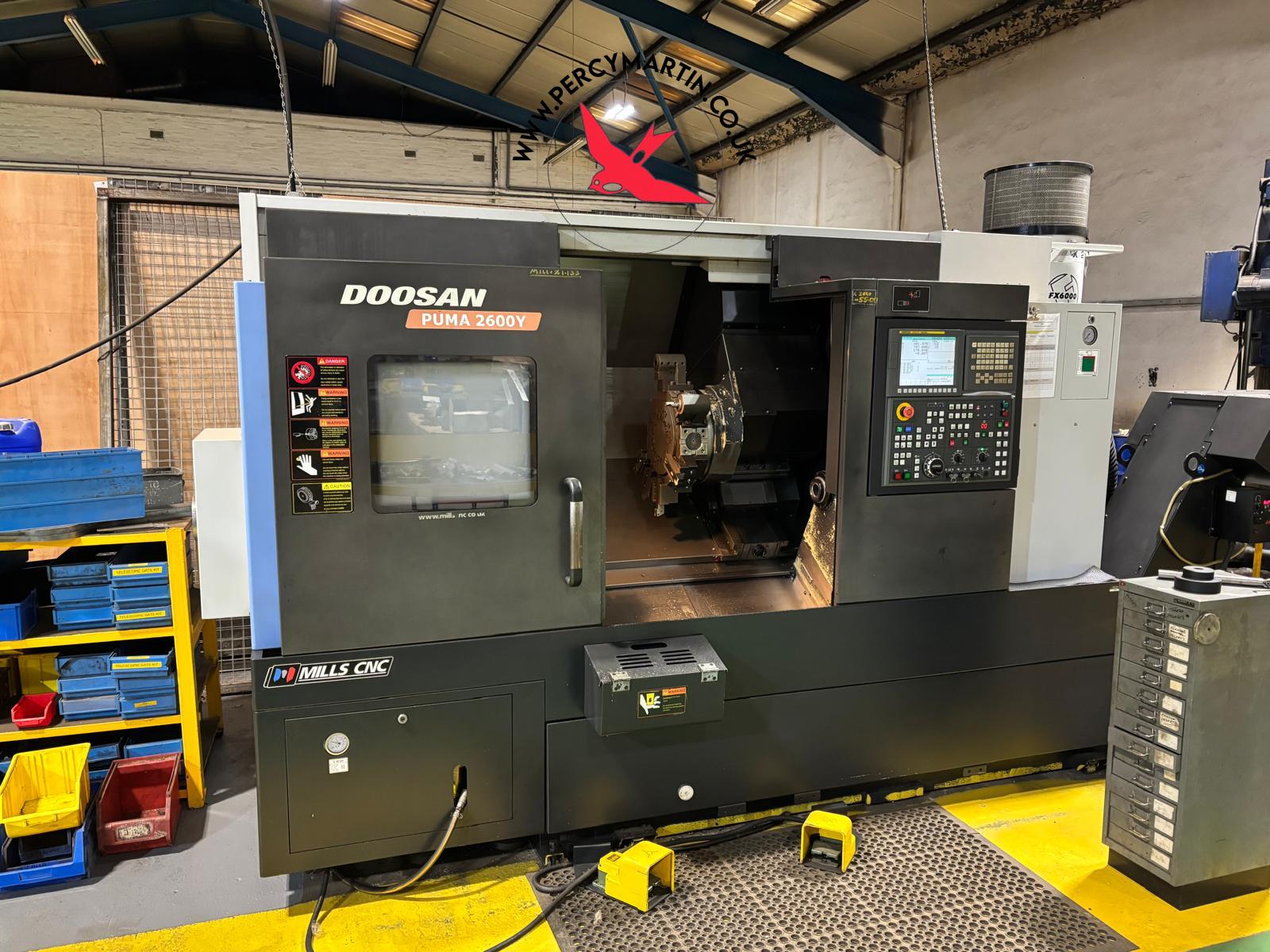

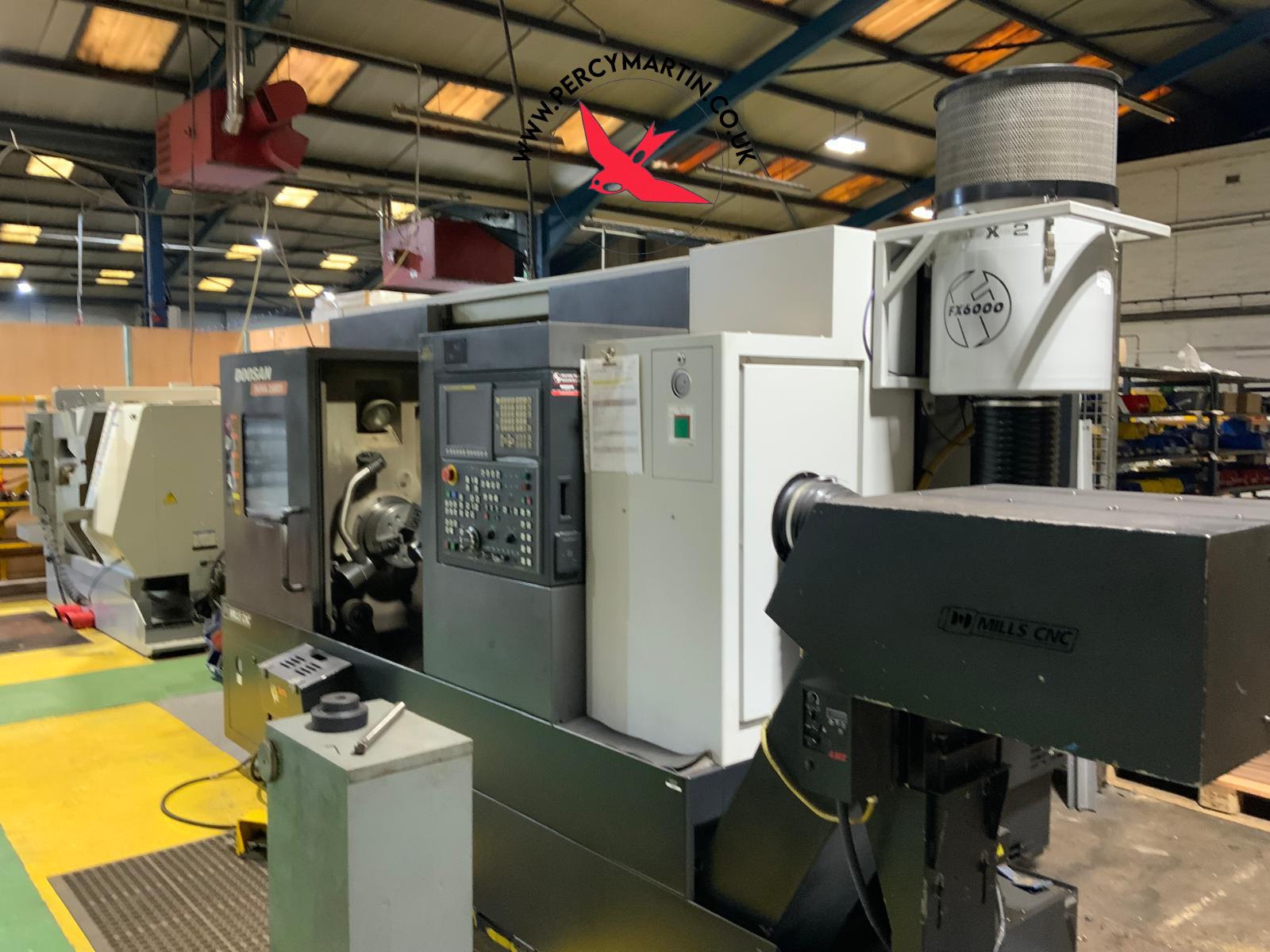

Doosan Puma 2600Y 2011

C axis & Milling , Coolant , Interlocked guards , Parts Catcher , Swarf Conveyor , Tool setter , Y-axis
Key Features Gallery Specifications More in Stock Register Interest
Doosan Puma 2600Y 2011

Key Features

Type:

All Products

Model:

Puma 2600Y

Make:

Doosan

Year:

2011

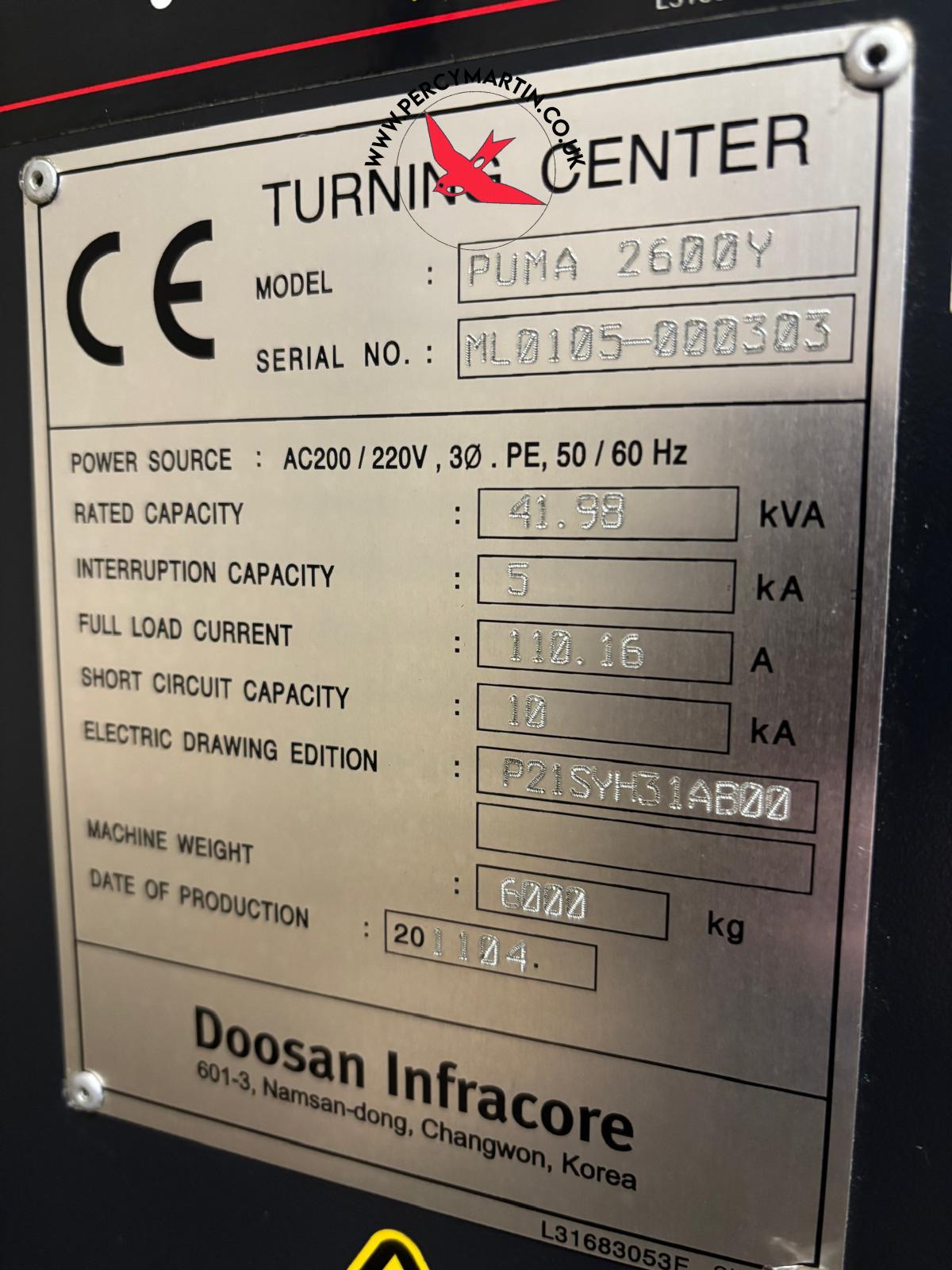

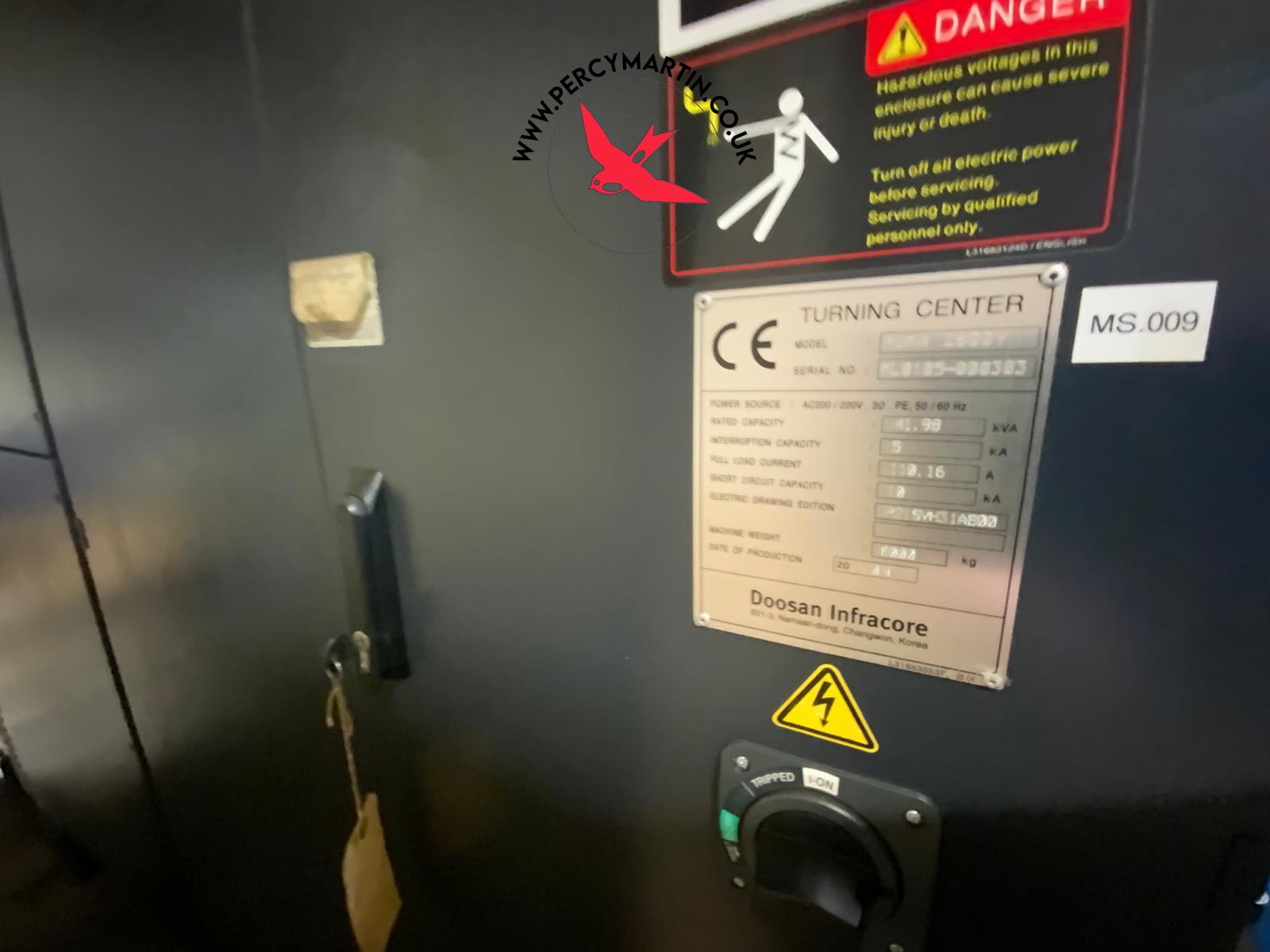

Serial No

ML0105-000303

Price

£POA

Our Reference

PM9792

Location

Leicester

Doosan Puma 2600Y 2011

Specifications

Bar Capacity

76 mm

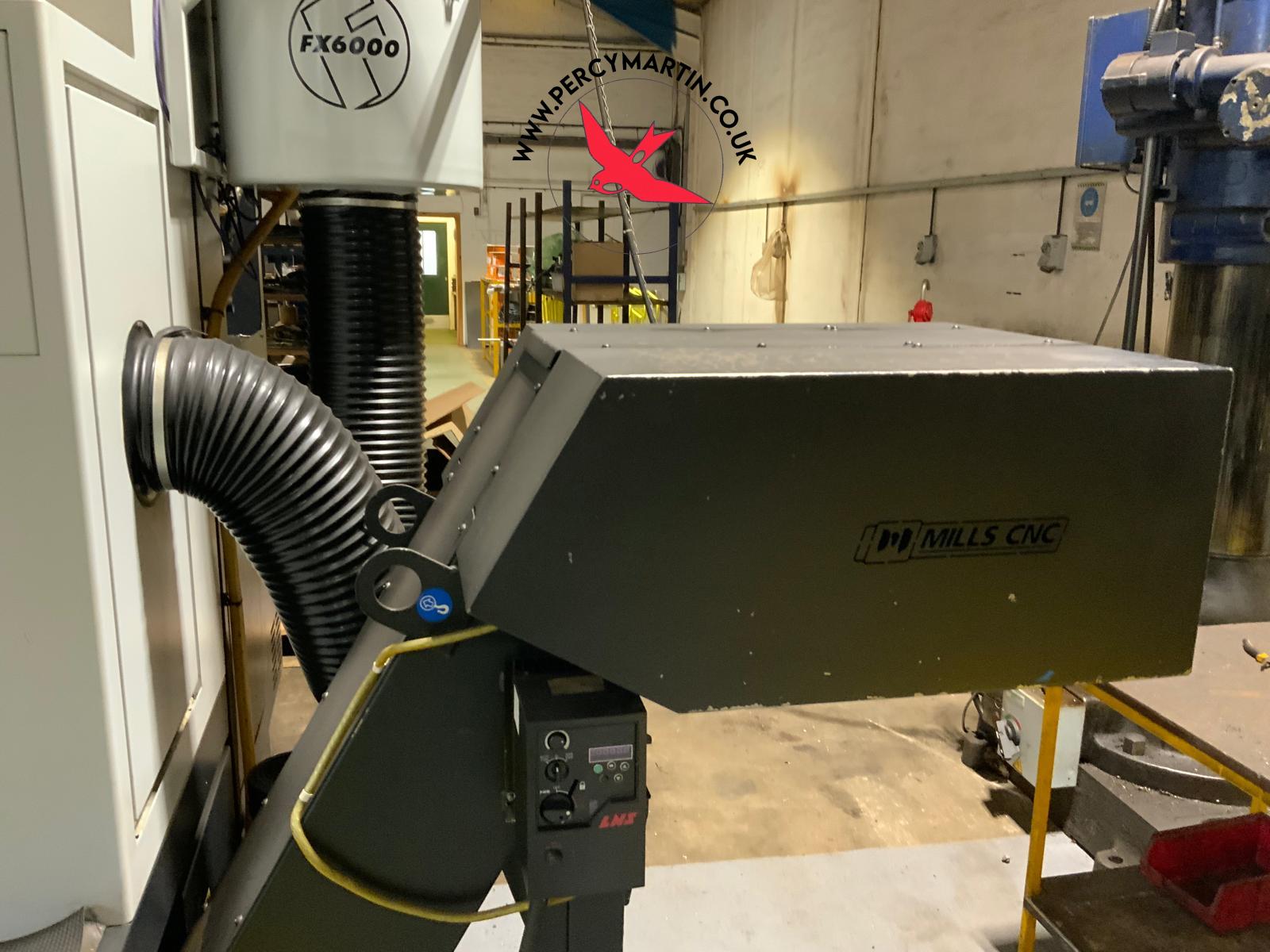

Barfeed

Hydrafeed MX-1B

C axis

0.001 degree

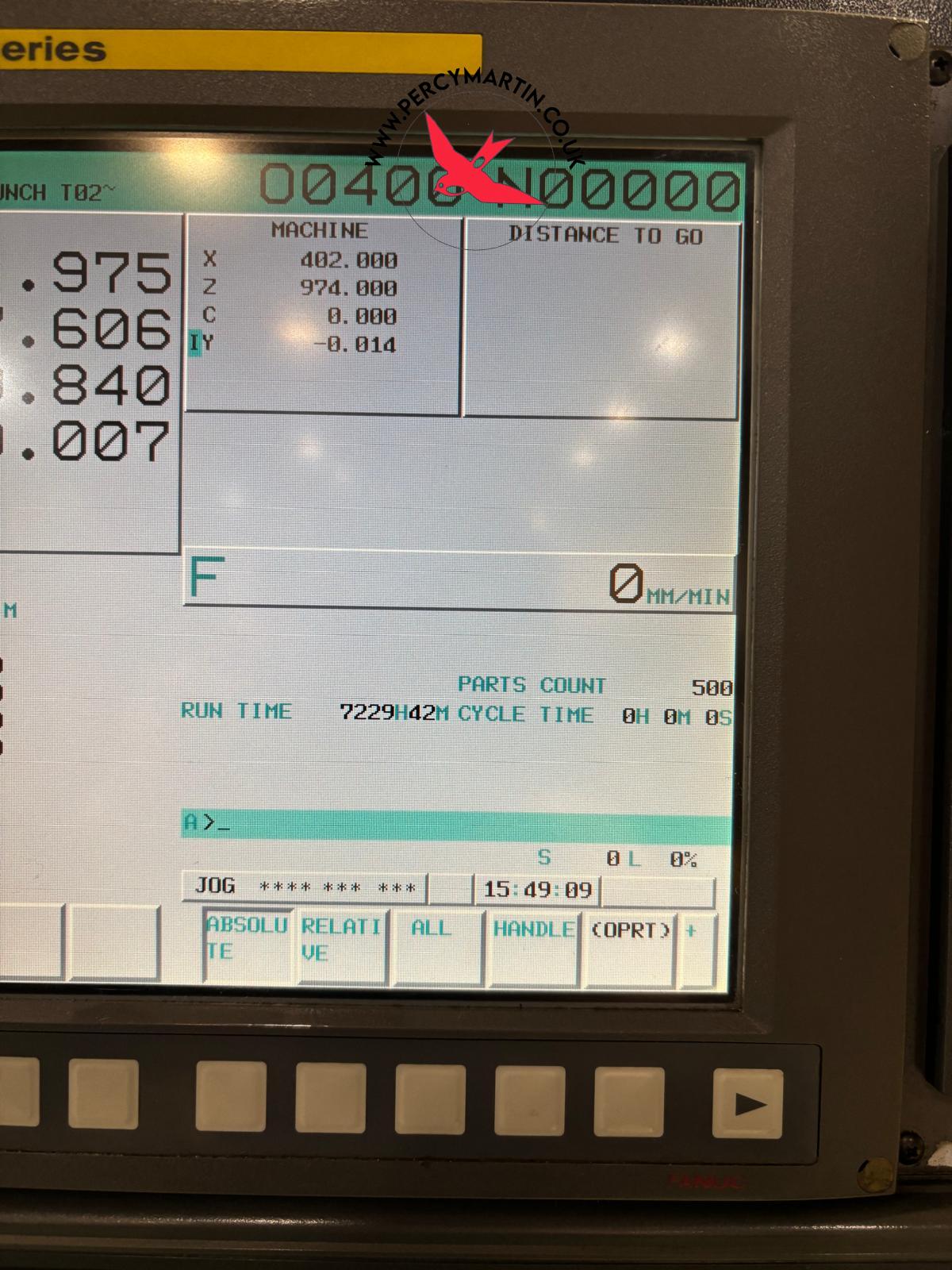

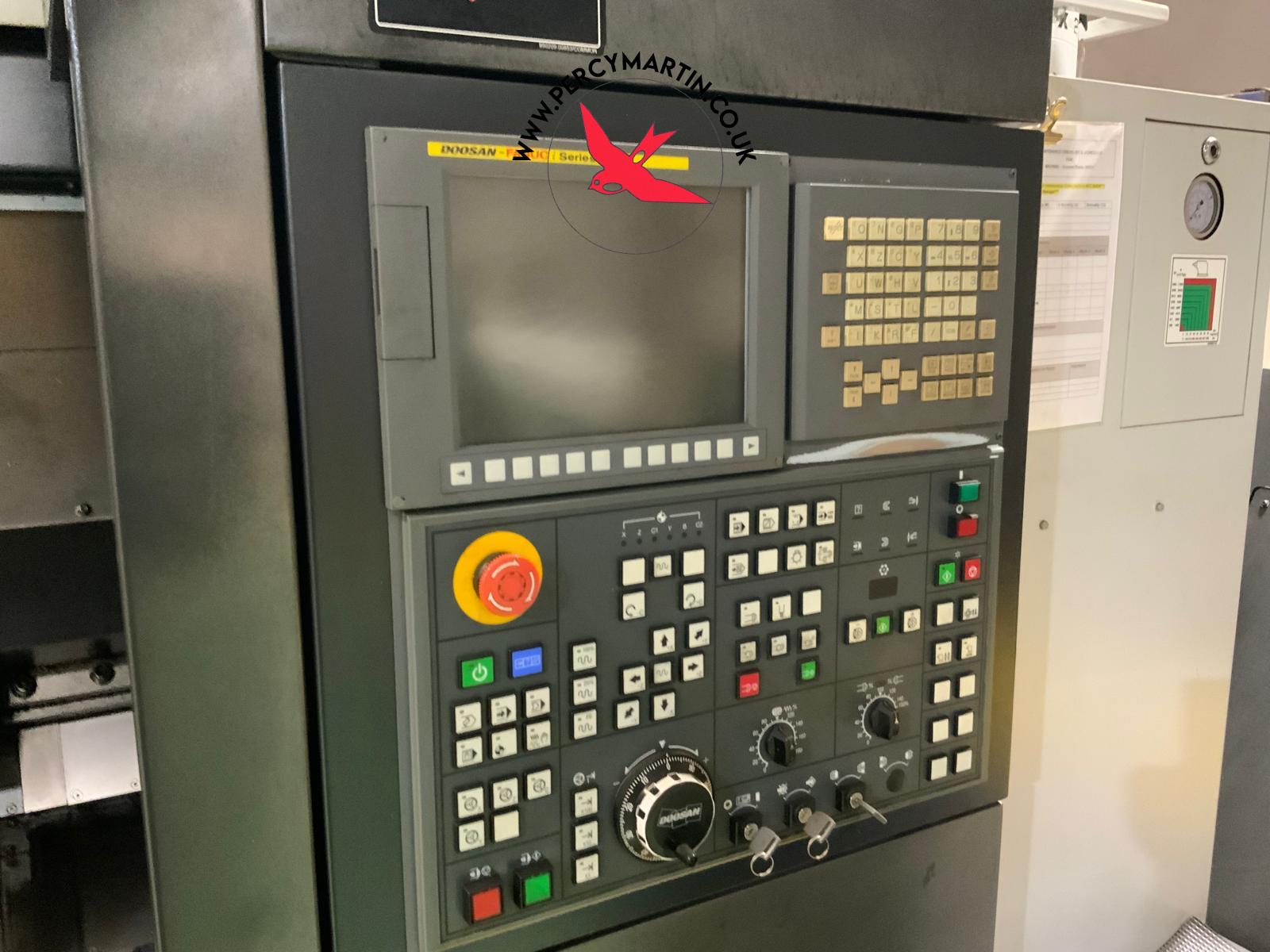

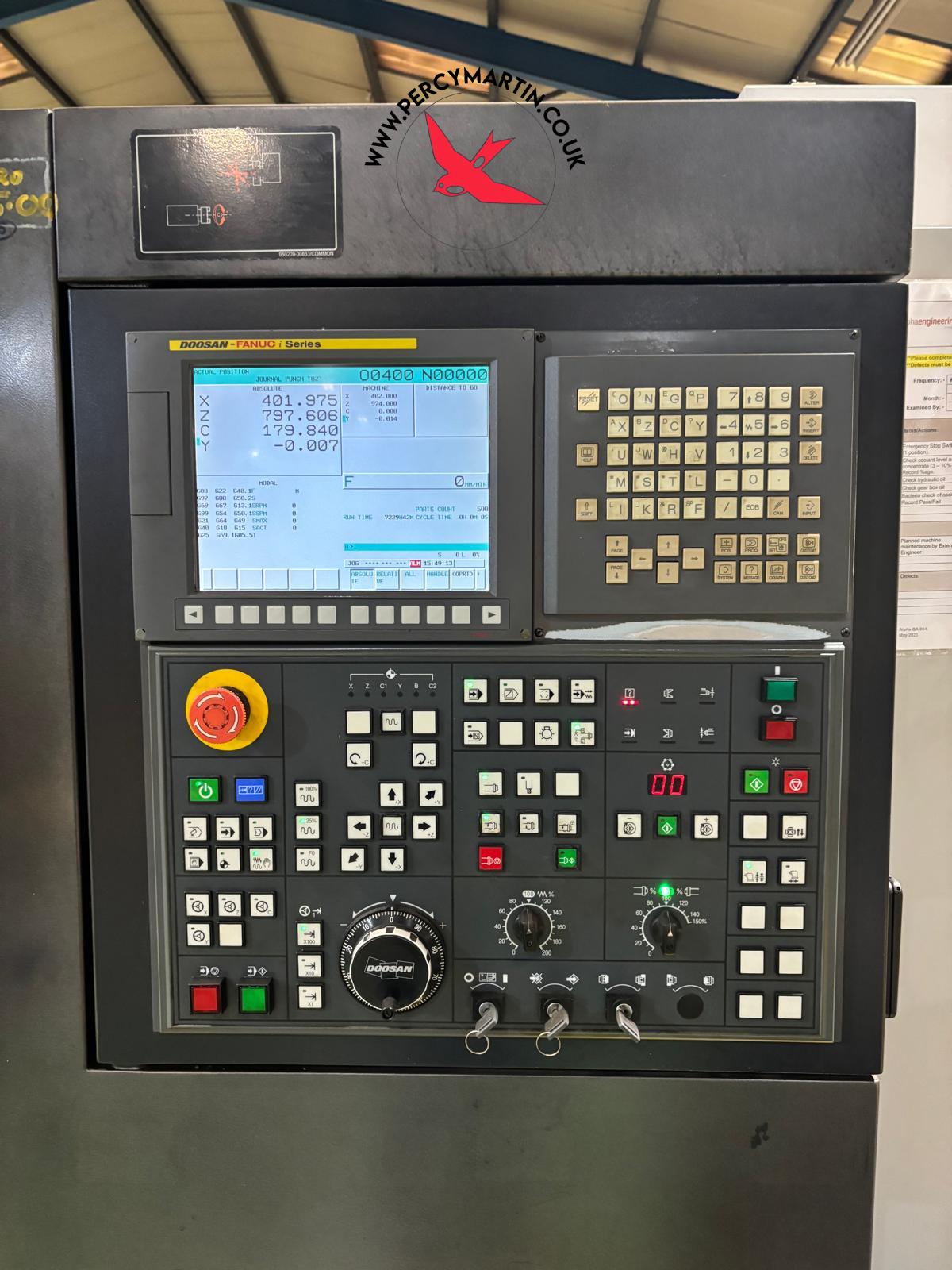

Control

Fanuc i series

Driven Tools Motor Power

7.5 kw

Machine Dimensions

4600(plus barfeed) x 1965 x 1863mm

Machine Weight

6000kg

Main Motor

22 KW

Maximum Cutting Diameter

376mm

Maximum Cutting Length

760mm

Milling RPM

5000rpm

Rapid Feedrates

XYZ 30 x 30 x 10 m/min

Spindle Motor Power

22 kw

Spindle Nose

A2-8

Spindle Speed

3500rpm

Swing

780mm

Swing over the Cross-slide

630mm

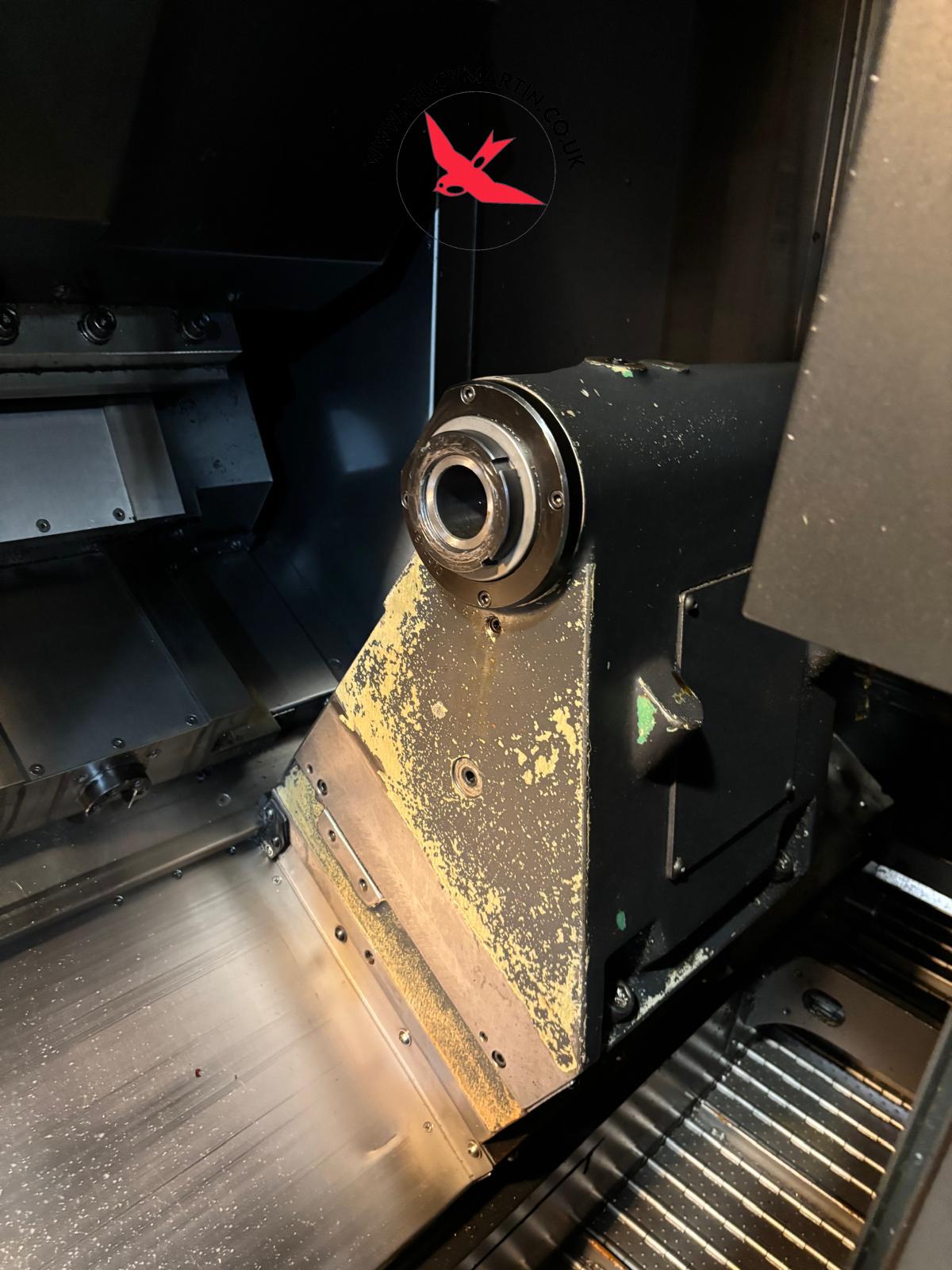

Tailstock Quill Diameter

100mm

Tailstock Taper

MT #5

Tooling Configuration

BMT65

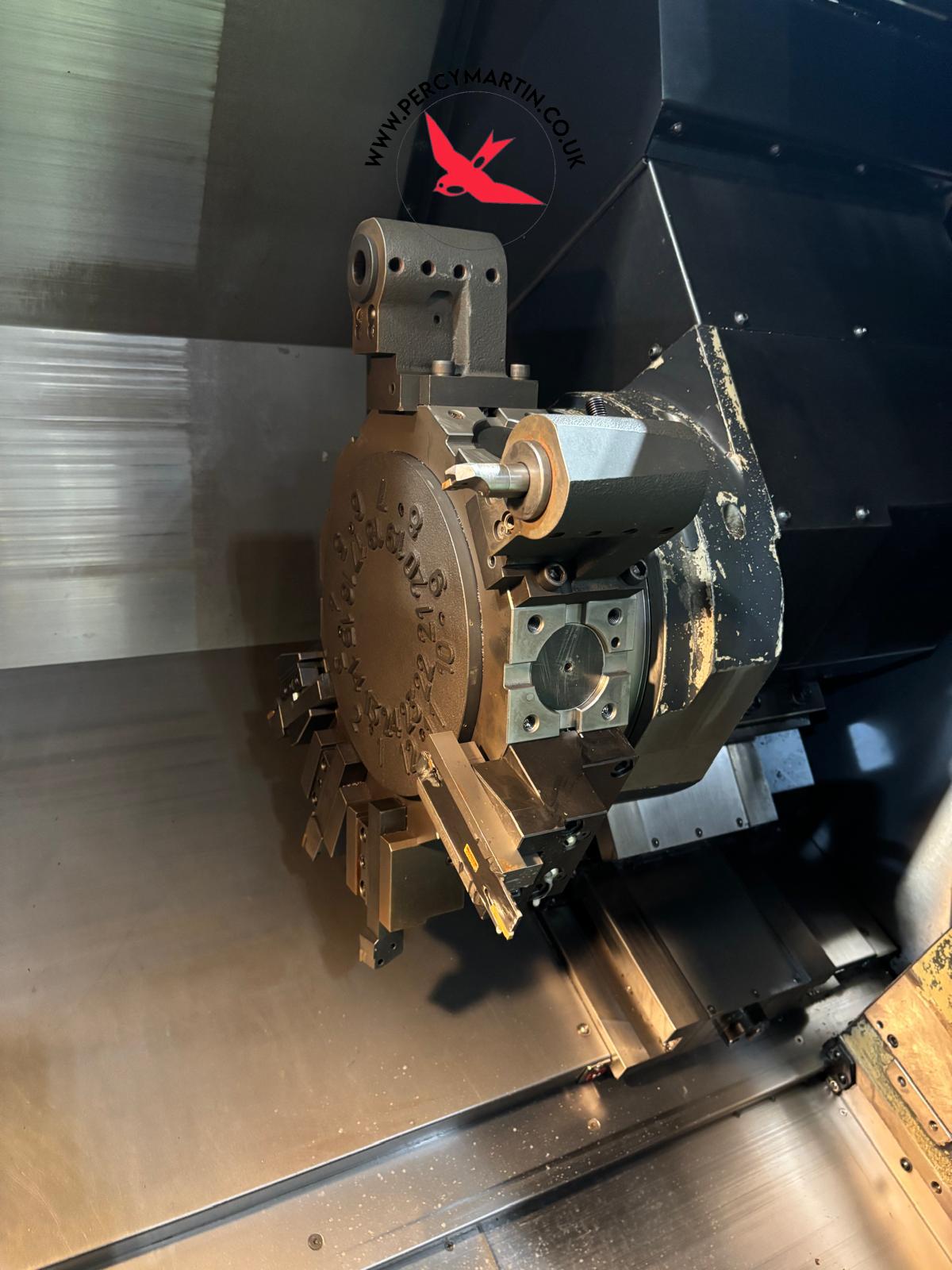

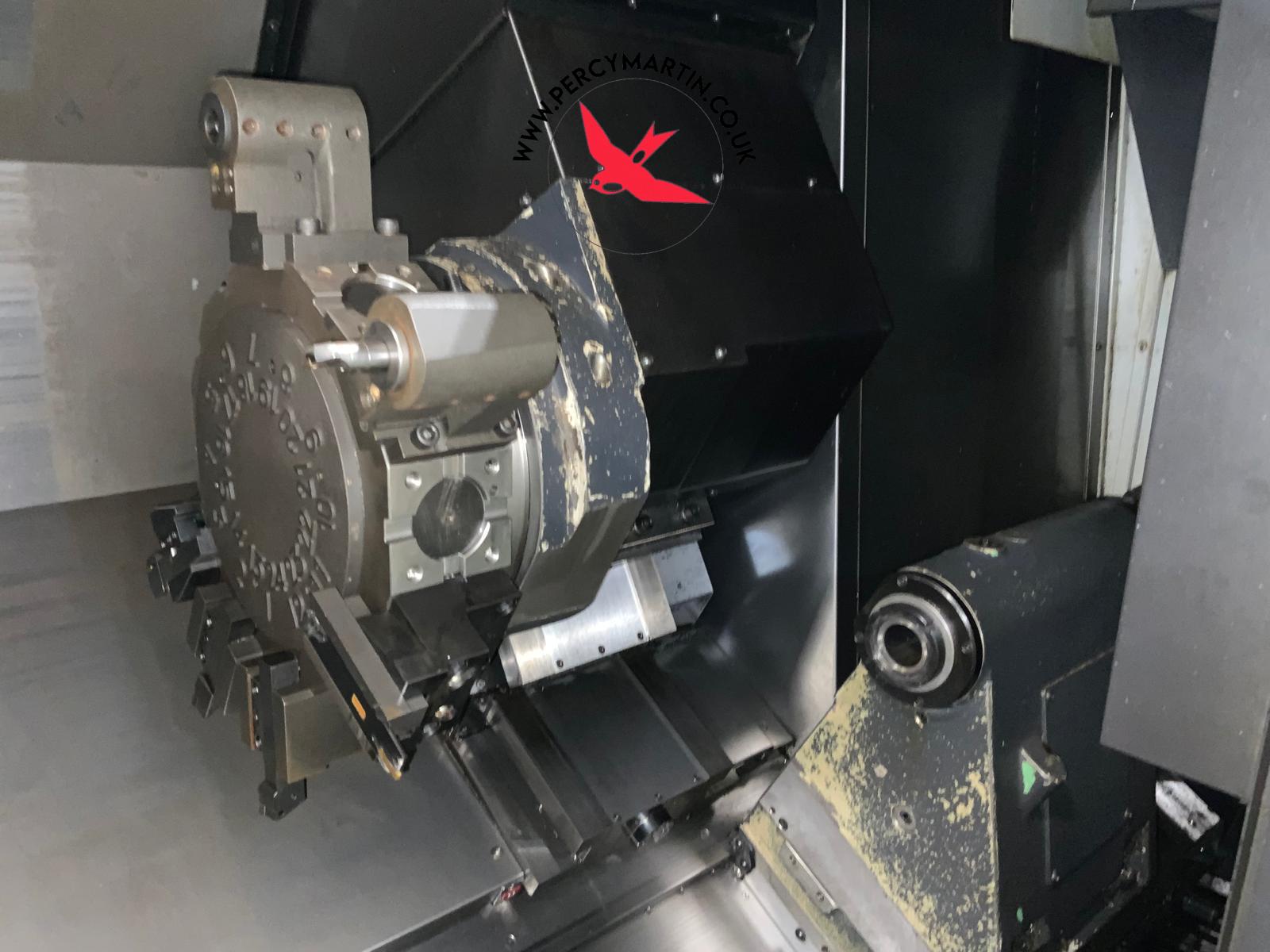

Turret Positions

24

X axis Travel

260 mm

Y axis Travel

+/- 52.5 mm

Z axis Travel

830 mm
