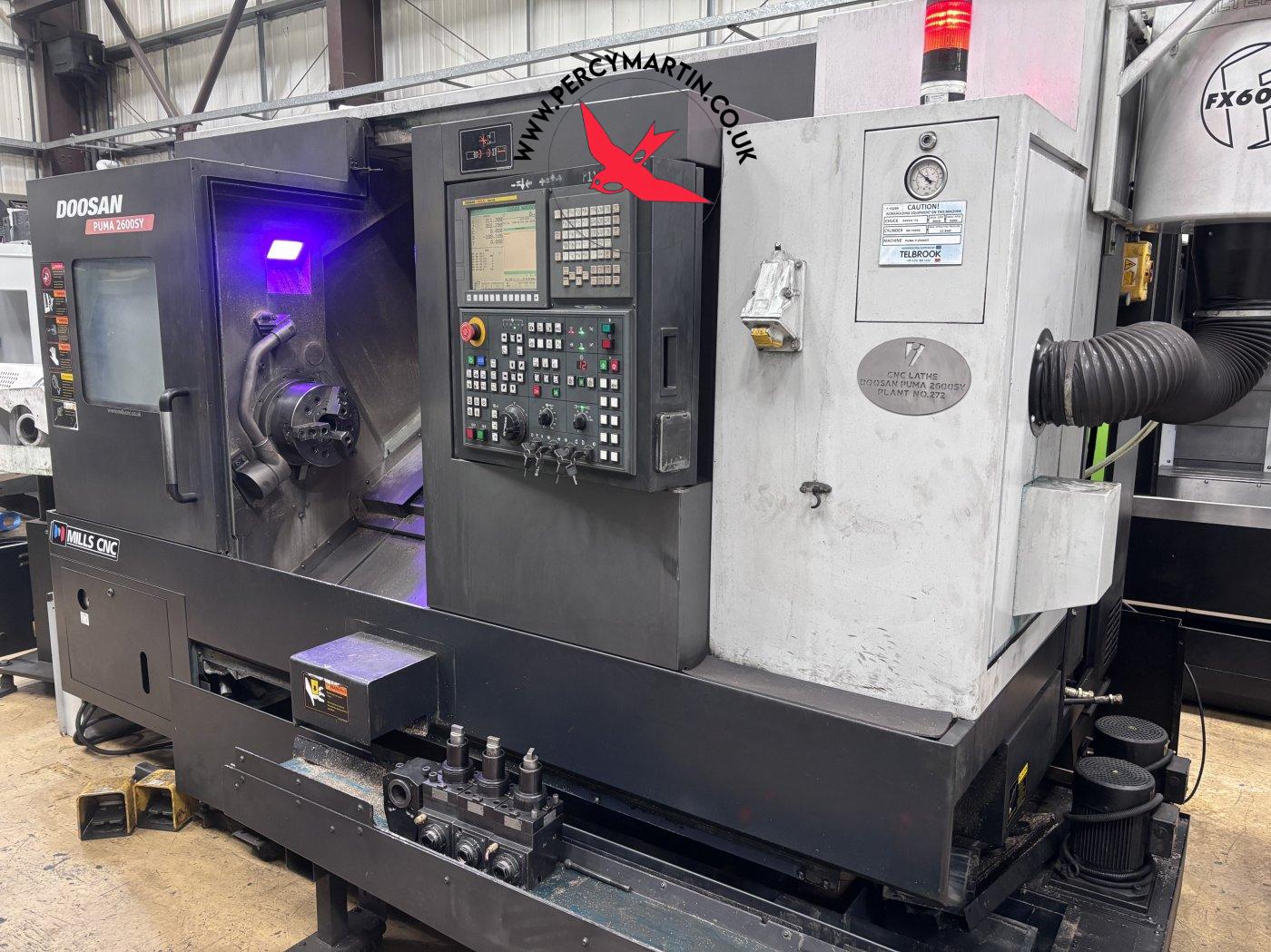

Doosan Puma 2600SY 2013

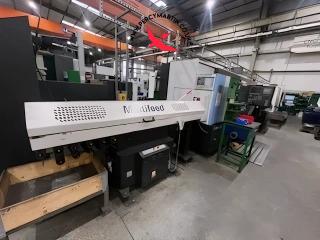

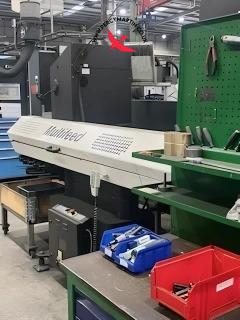

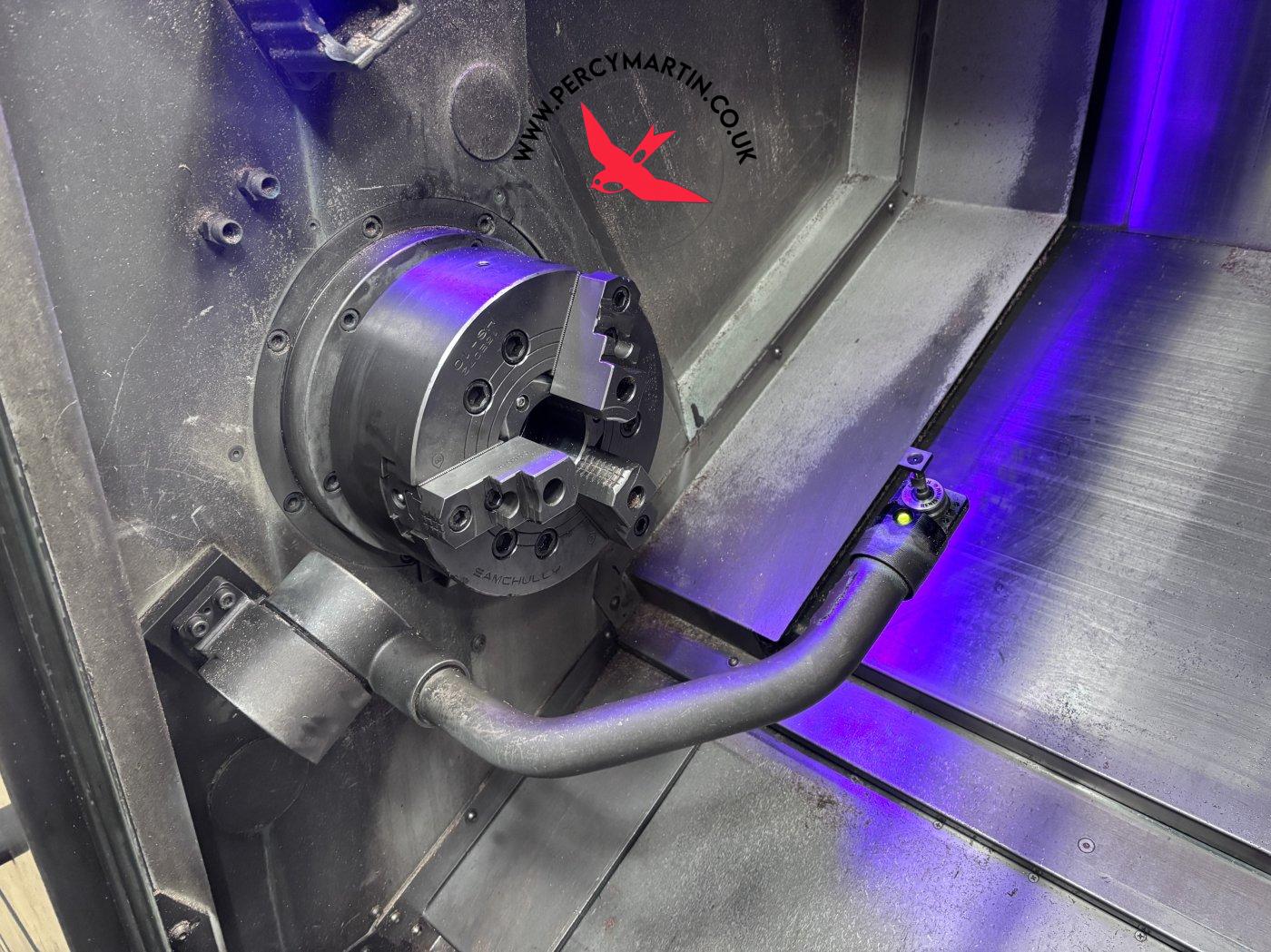

3 Jaw Chuck , C axis & Milling , Coolant , Interlocked guards , Low Volt Light , Magazine Barfeed , Parts Catcher , Parts Conveyor , Sub Spindle , Swarf Conveyor , Tool setter , Tooling , Y-axis

Key Features Gallery Specifications More in Stock Register Interest

Doosan Puma 2600SY 2013

Key Features

Type:

All Products

Model:

Puma 2600SY

Make:

Doosan

Year:

2013

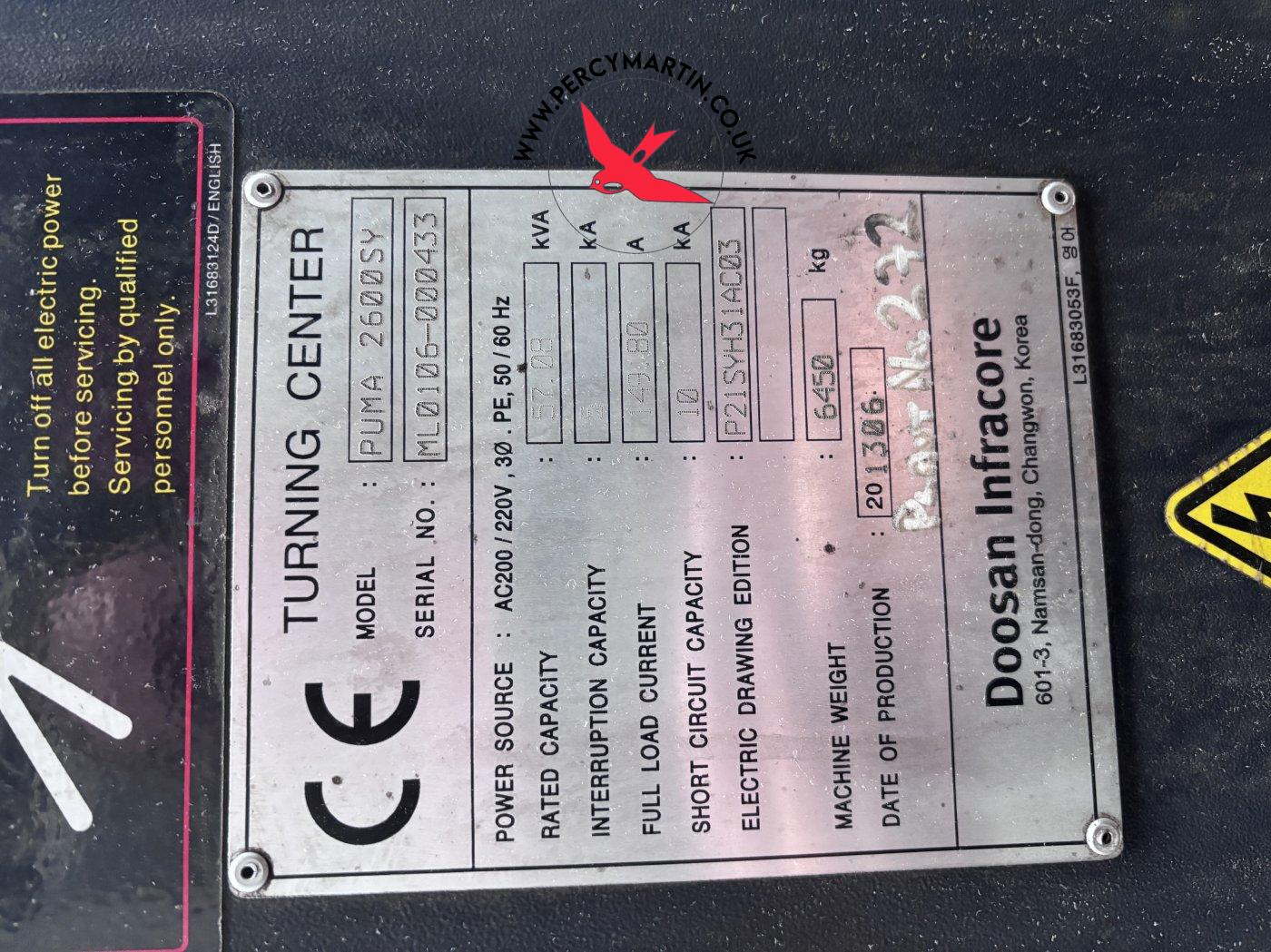

Serial No

ML0106-000433

Price

£POA

Our Reference

PM9600

Location

Leicester

Doosan Puma 2600SY 2013

Specifications

Bar Capacity

76mm

C axis

0.001 degree

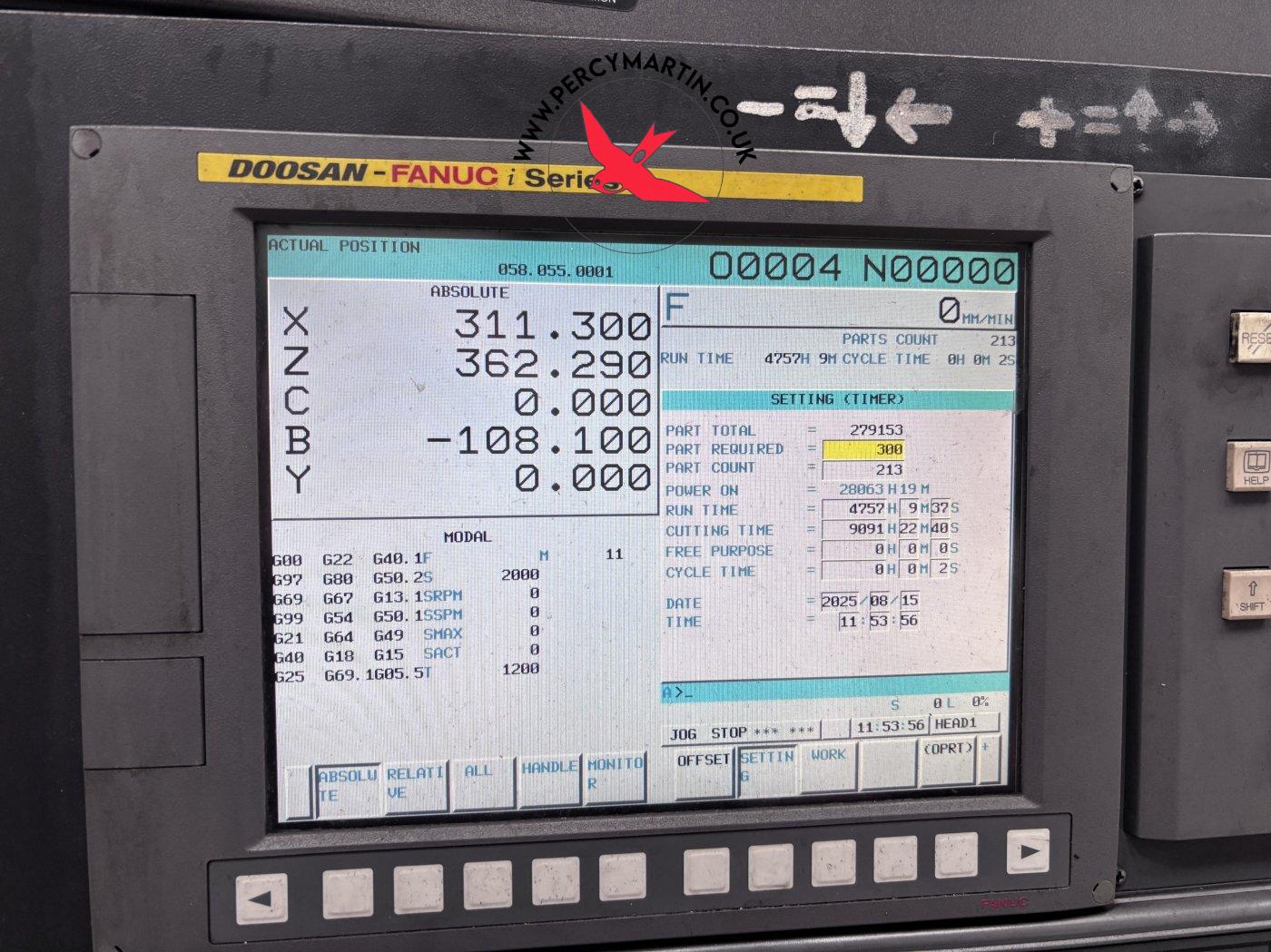

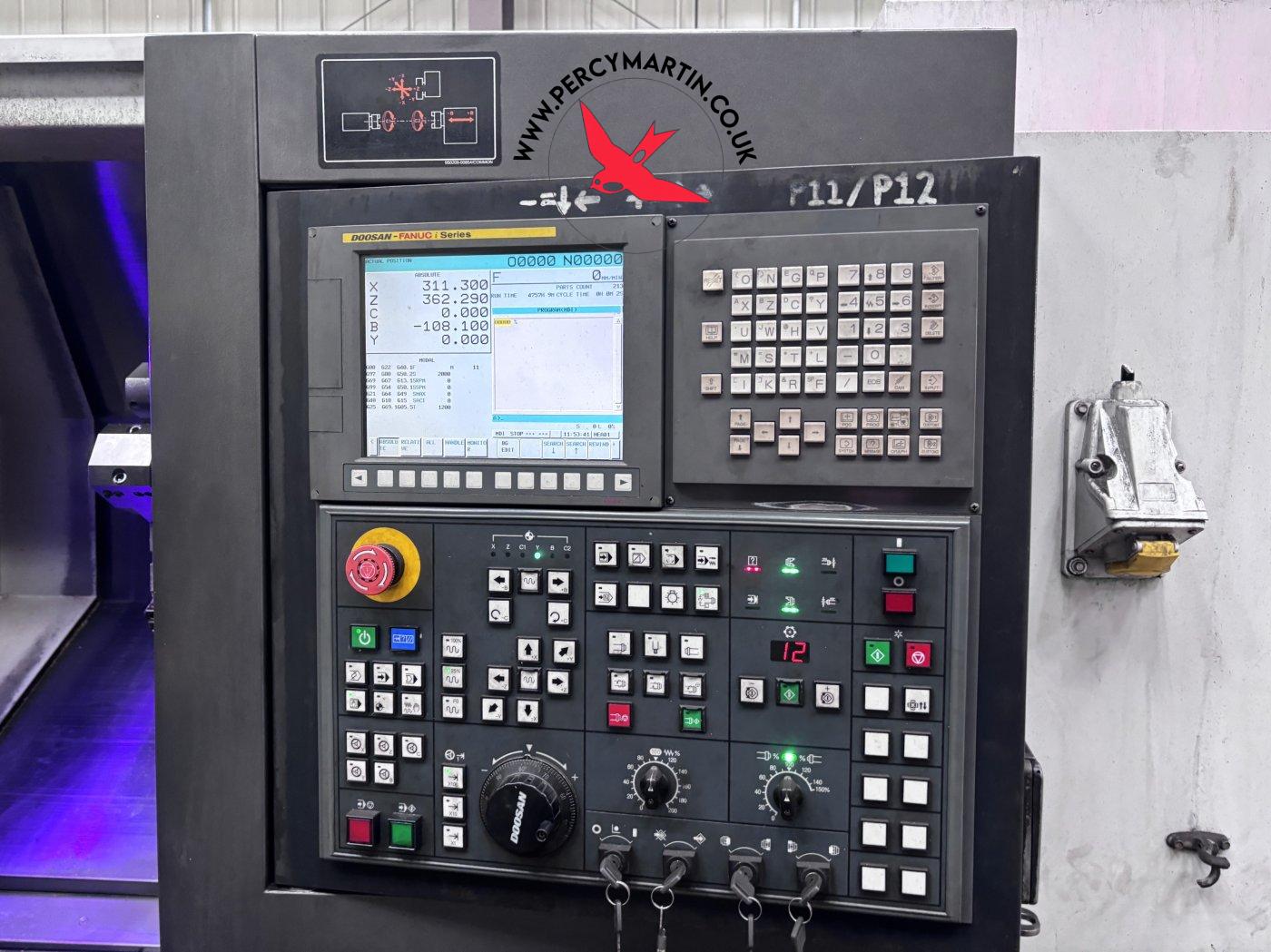

Control

FANUC i Series

Machine Dimensions

6600 x 1863 x 2163mm

Machine Weight

6000kg

Maximum Cutting Diameter

376mm

Maximum Cutting Length

760mm

Milling RPM

5000rpm

Rapid Feedrates

XYZ: 30 x 10 x 30m/minute

Spindle Motor Power

22kW

Spindle Nose

A2-8

Spindle Speed

3500rpm

Sub Spindle C axis

0.001 degree

Sub Spindle Motor

7.5kW

Sub Spindle Speed

4500rpm

Swing

780mm

Swing Over Carriage

630mm

Tool Size

25 x 25mm

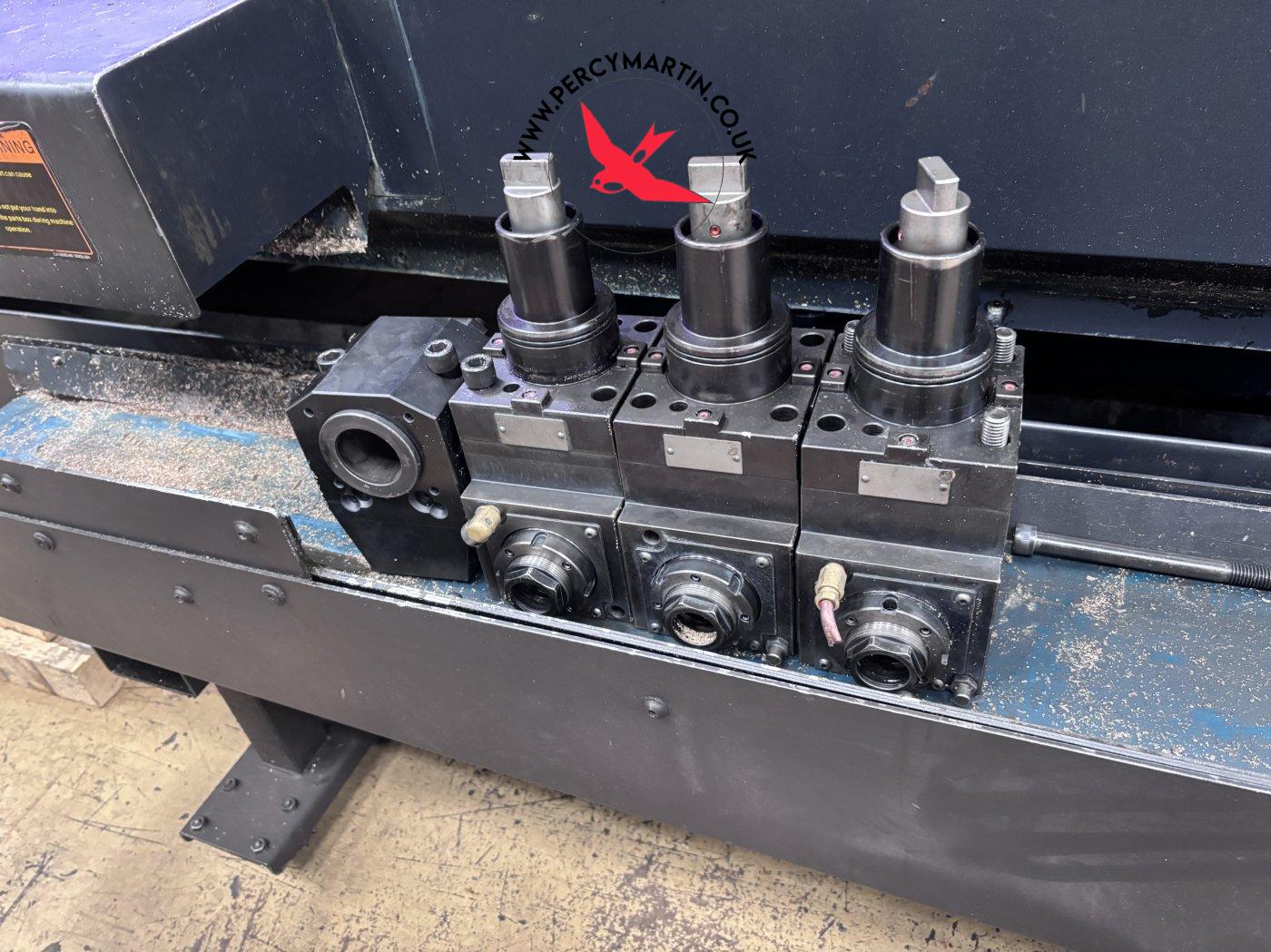

Tooling Configuration

BMT65

Turret Positions

12 Station

X axis Travel

260mm

Y axis Travel

+/- 52.5mm

Z axis Travel

830mm
