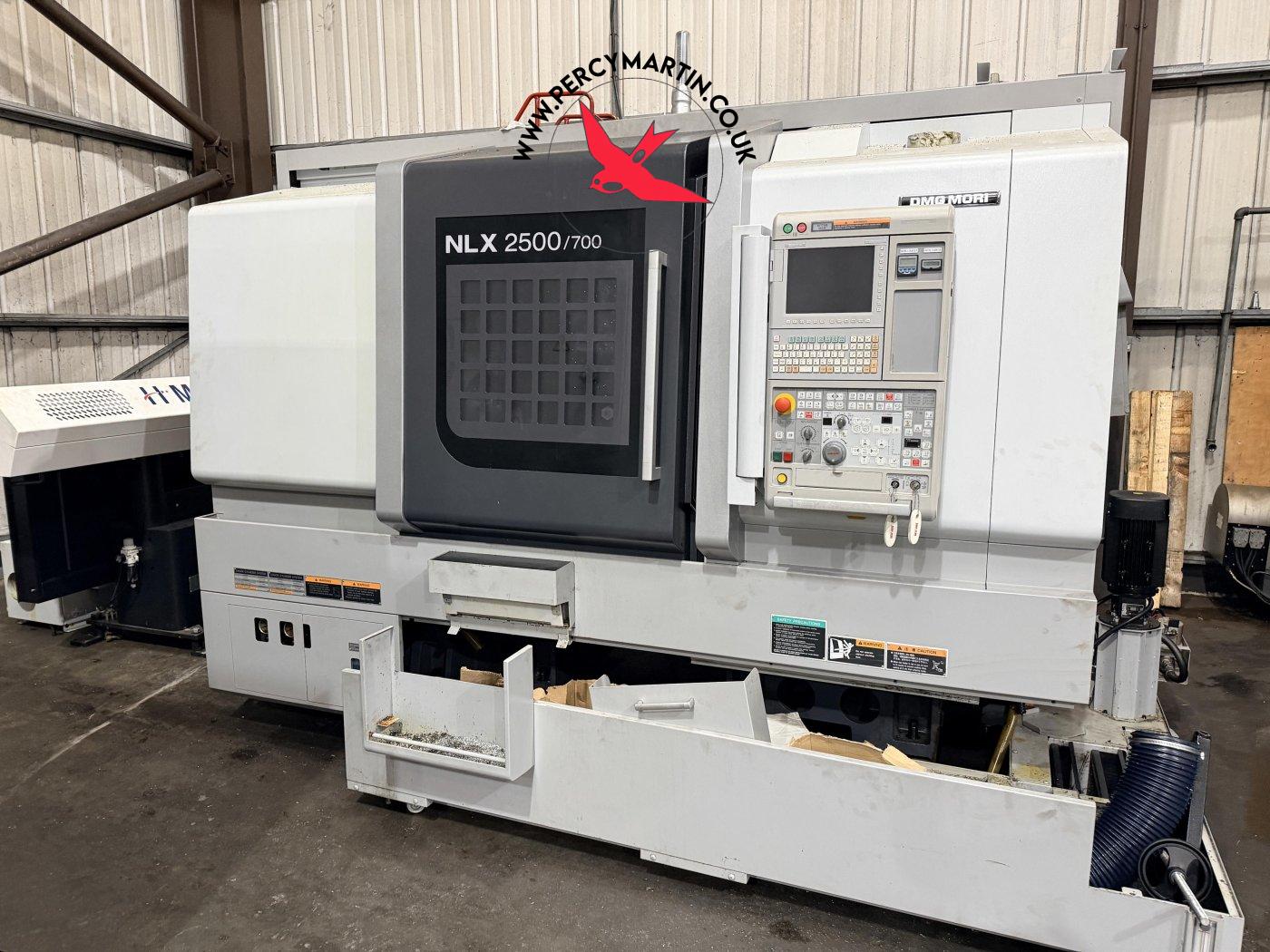

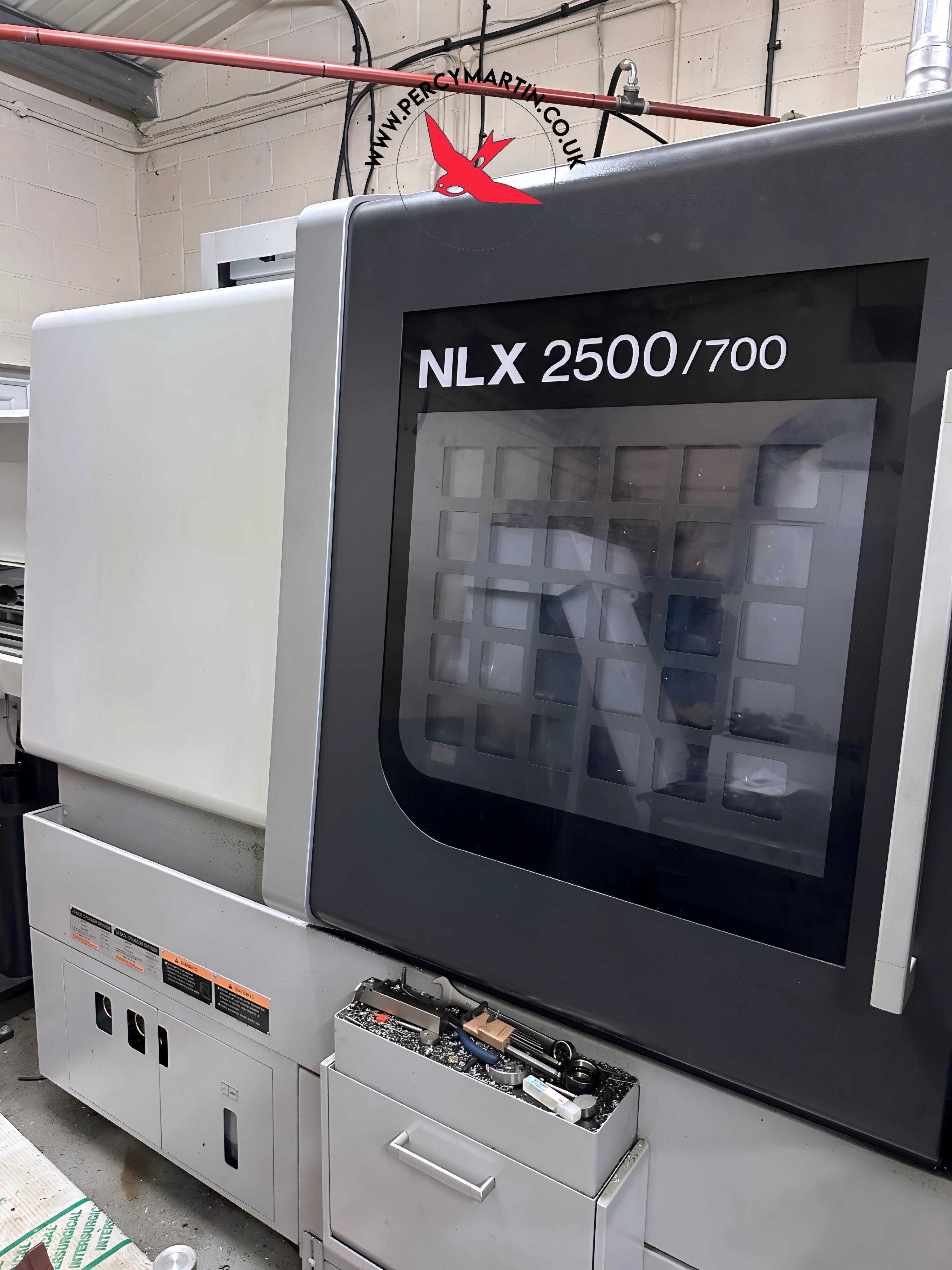

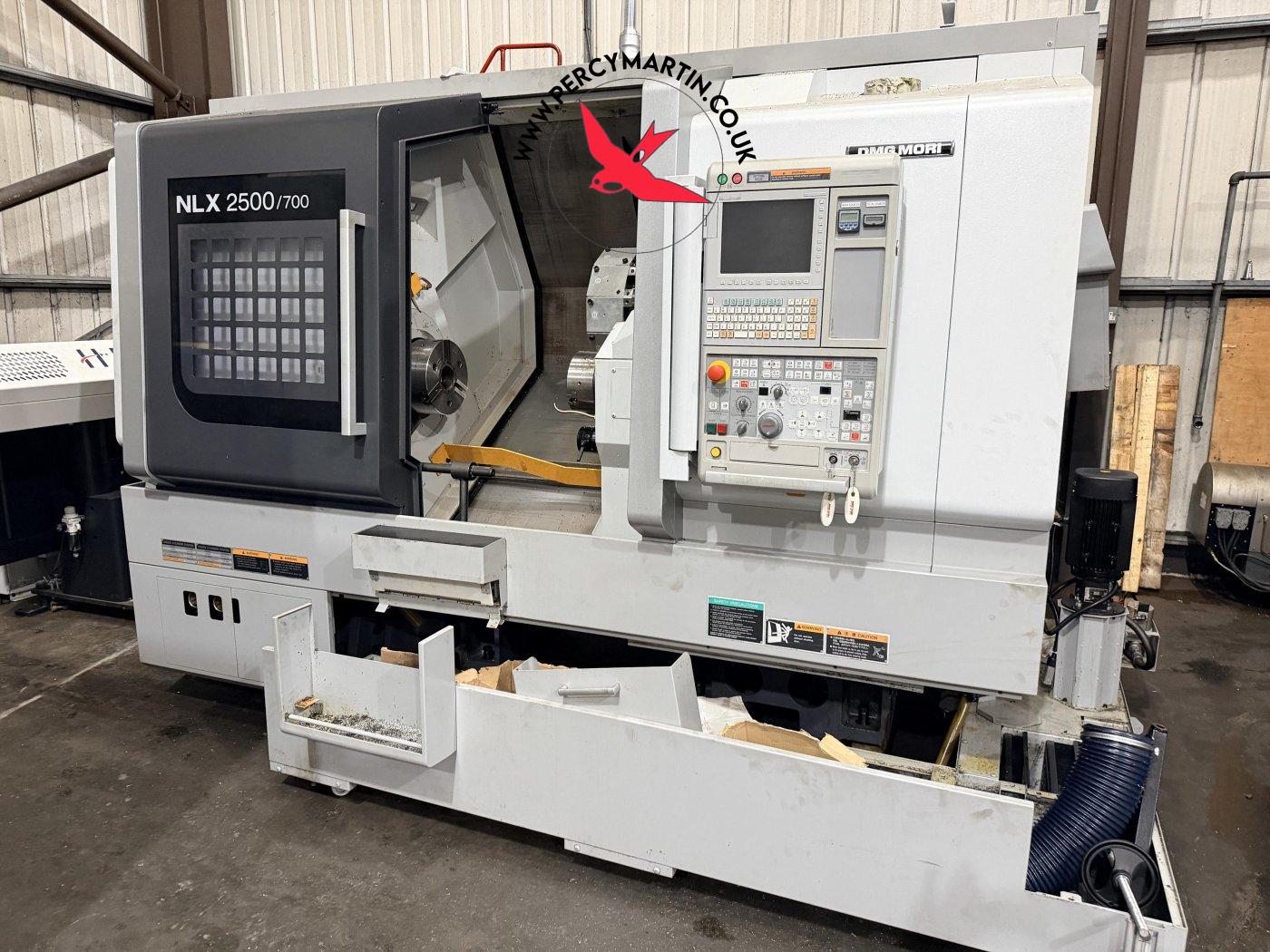

Mori Seiki NLX2500SY 700 2013

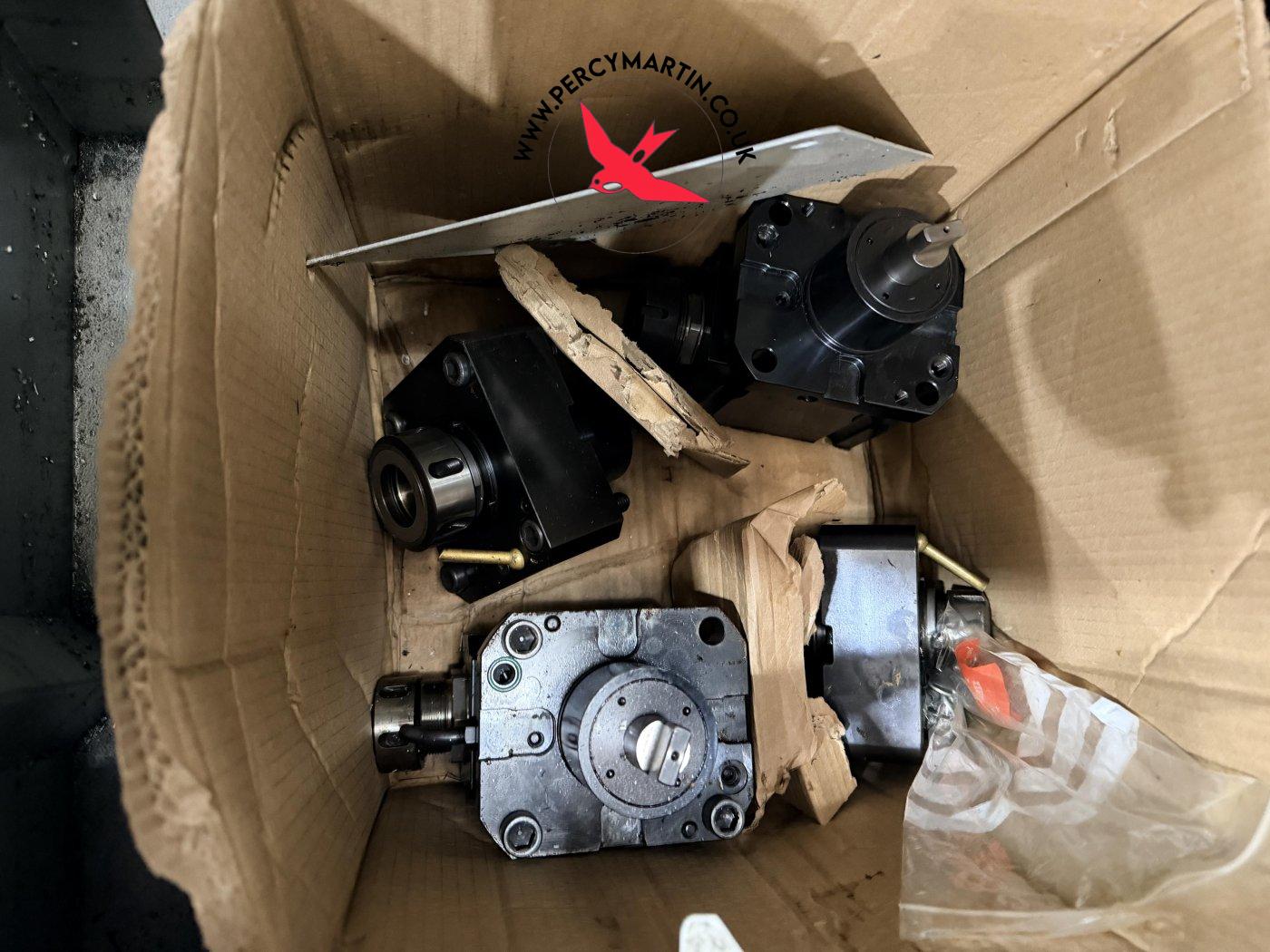

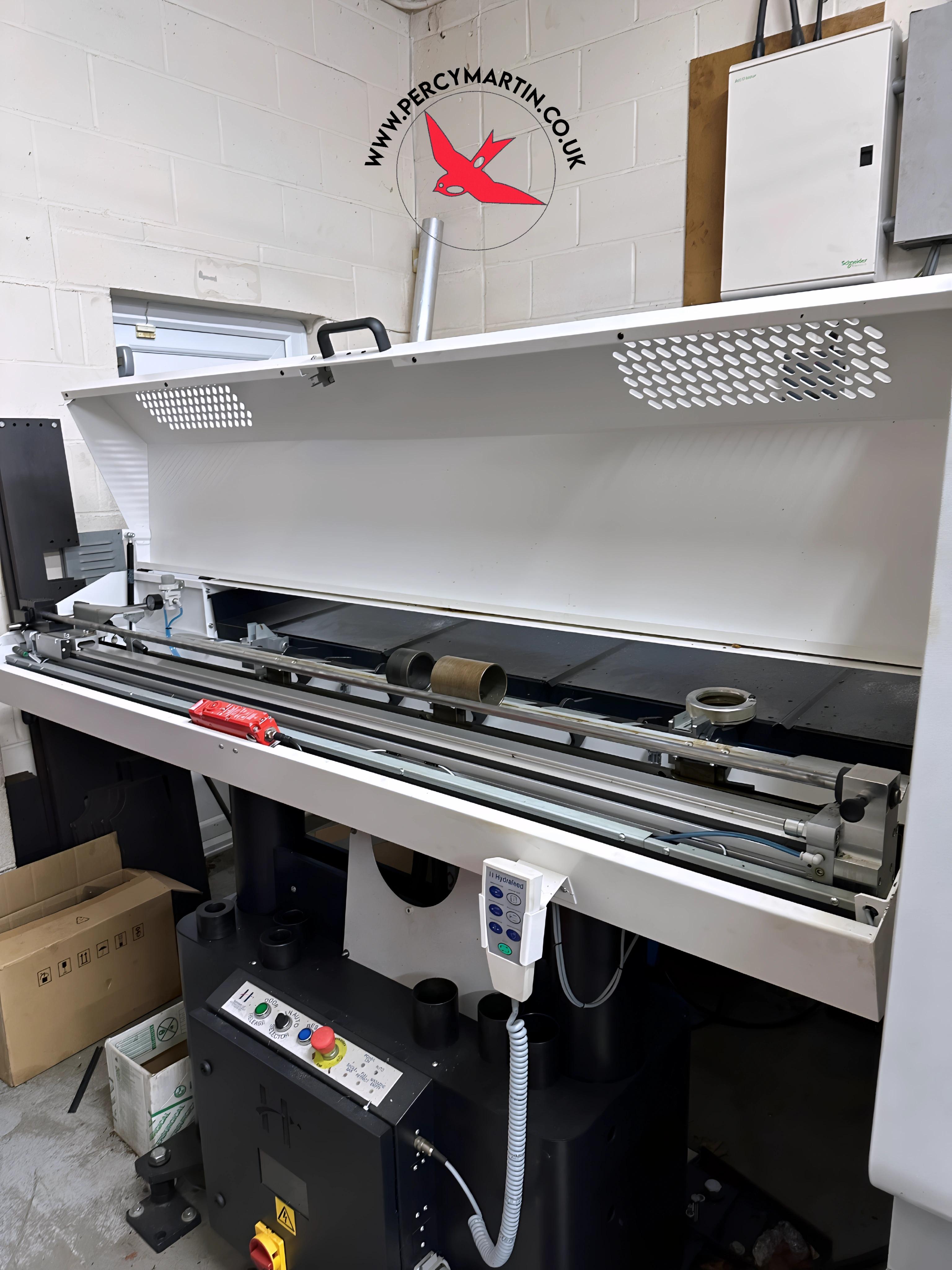

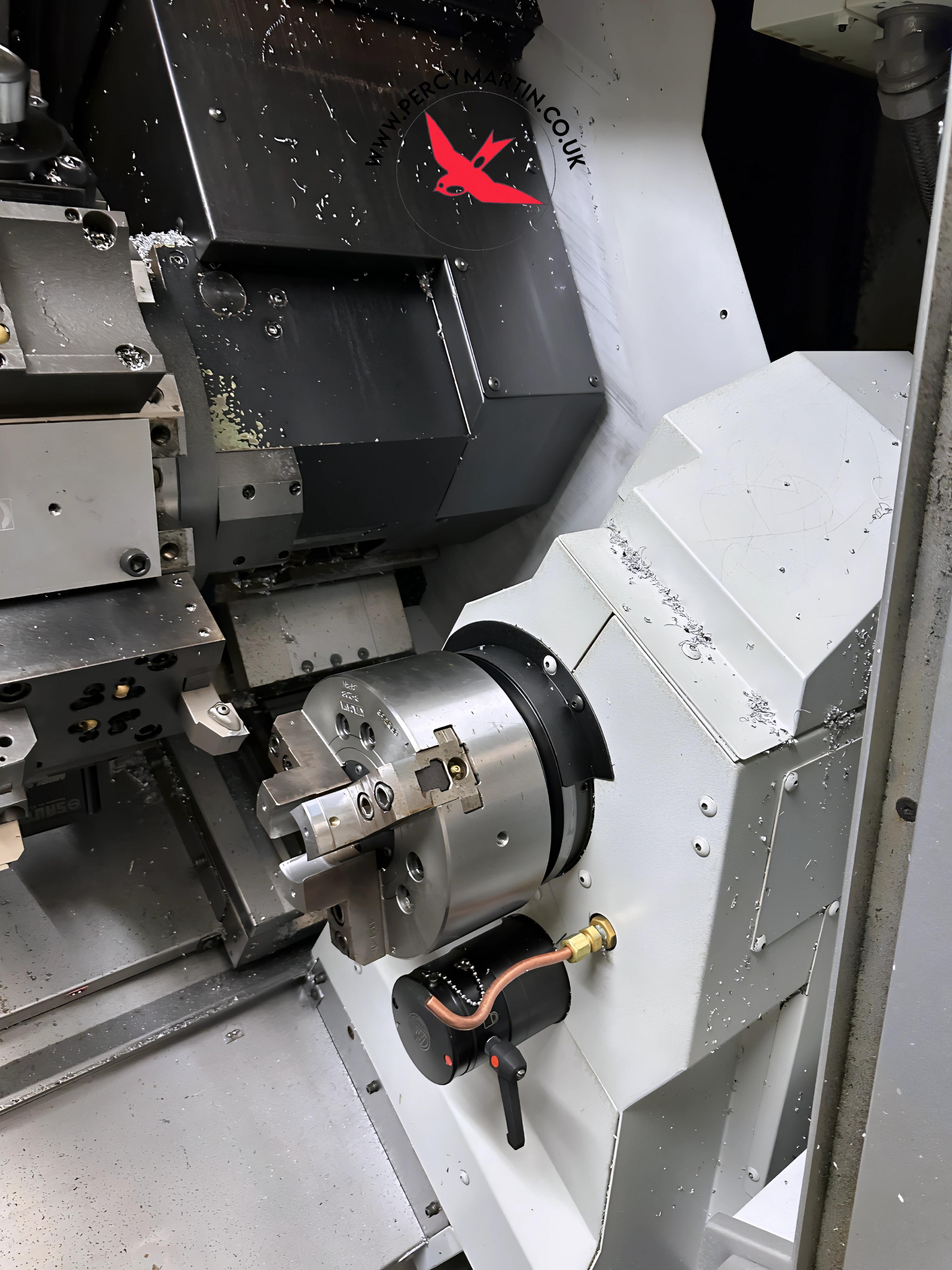

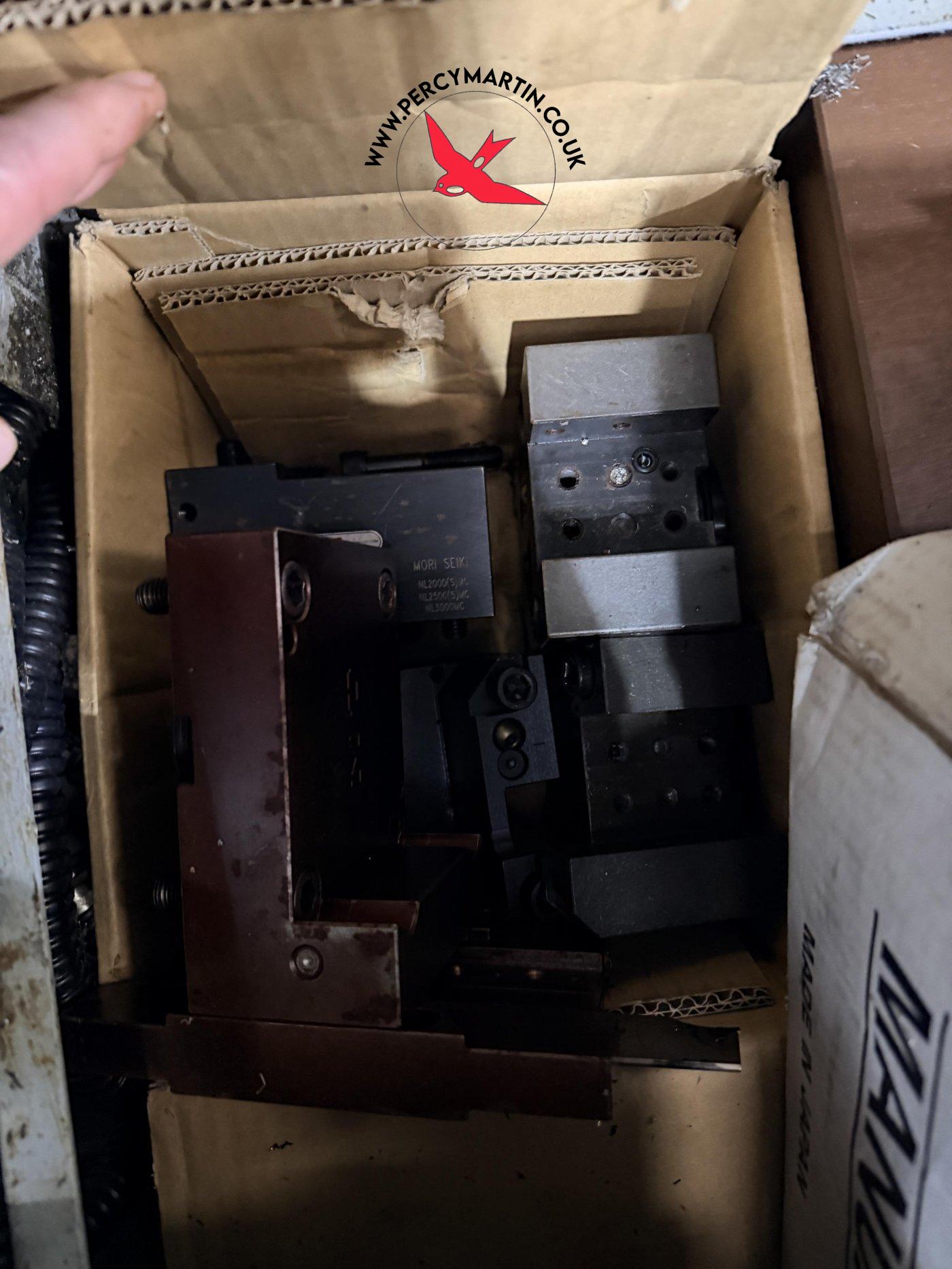

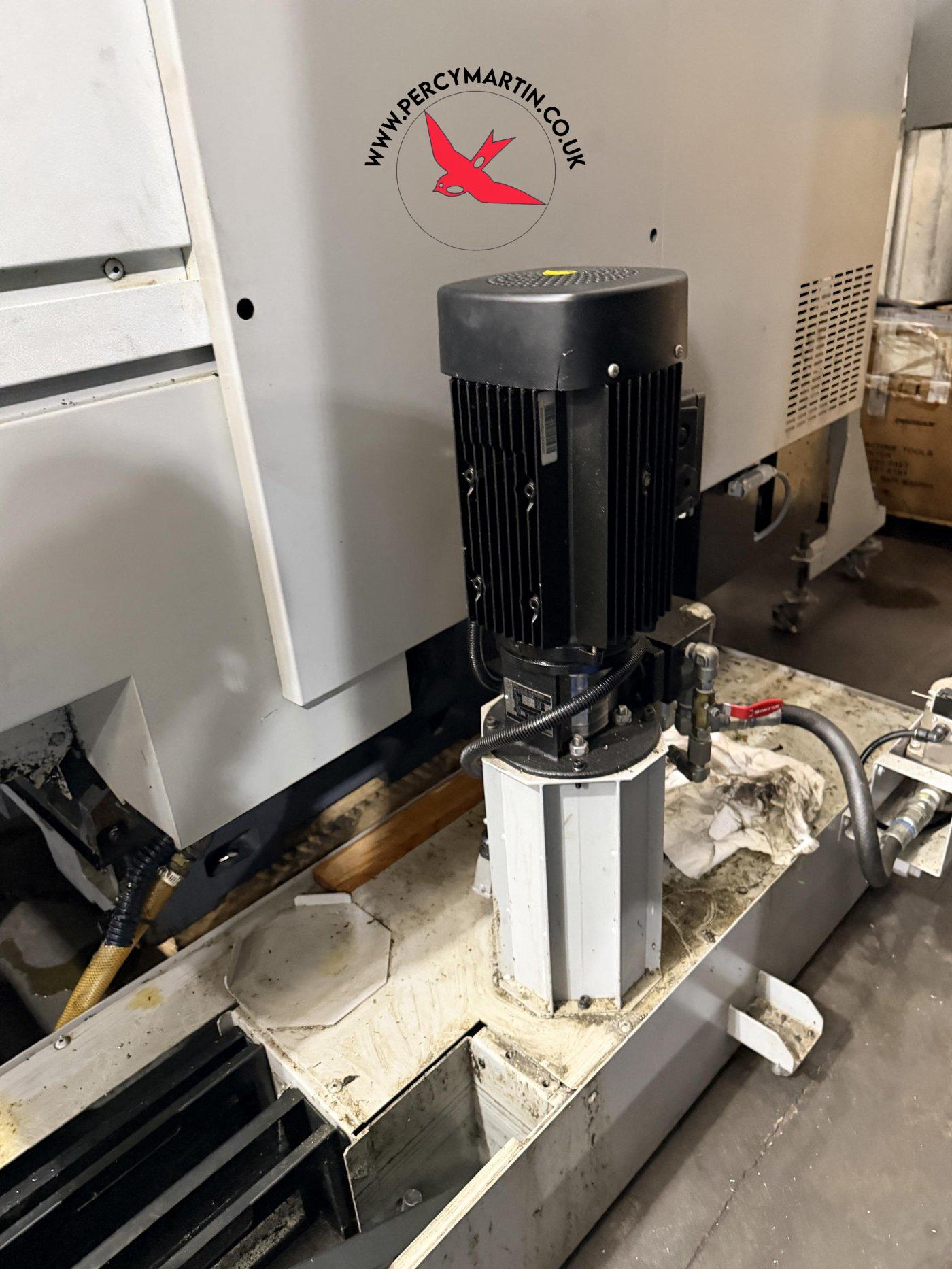

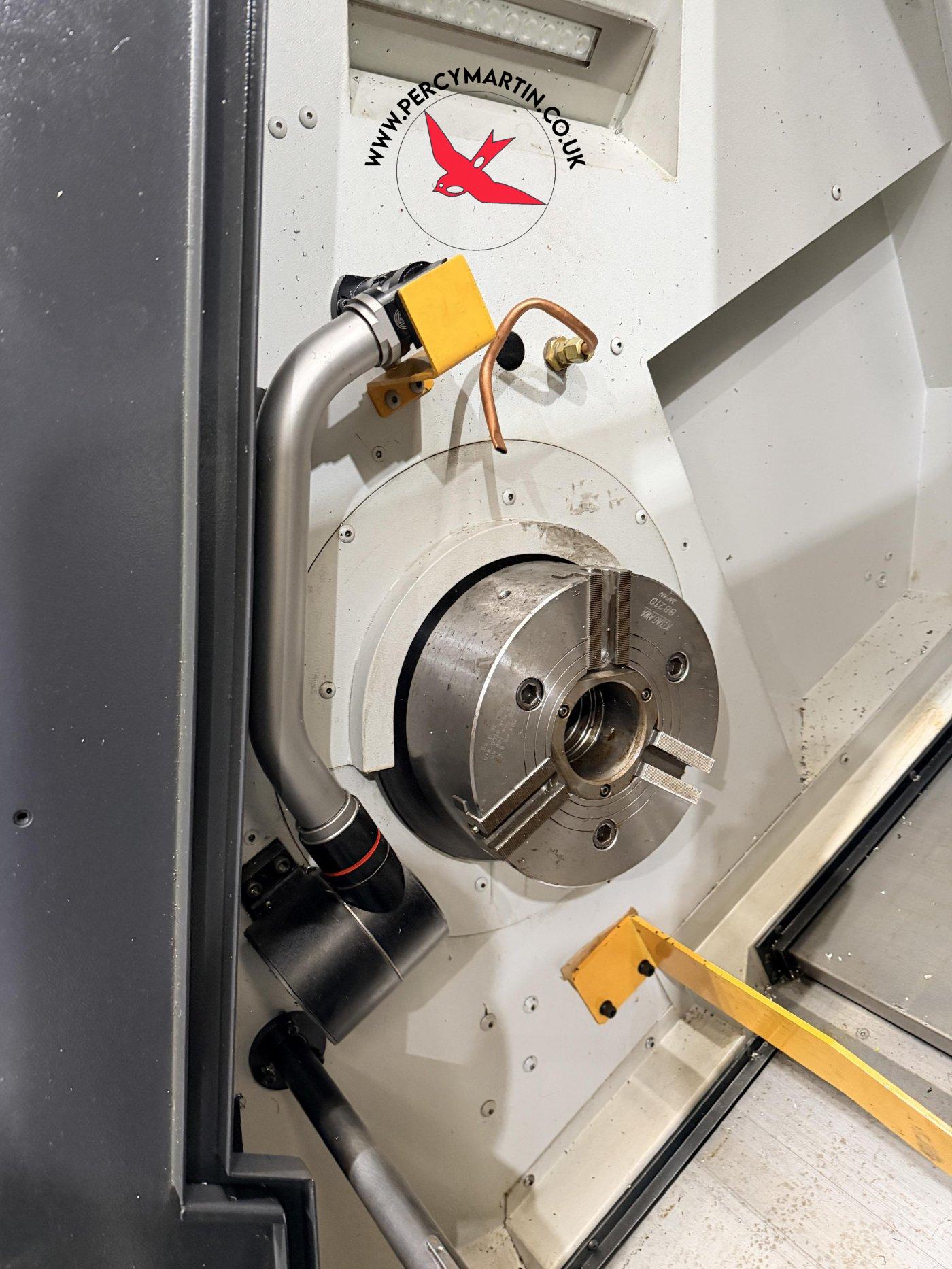

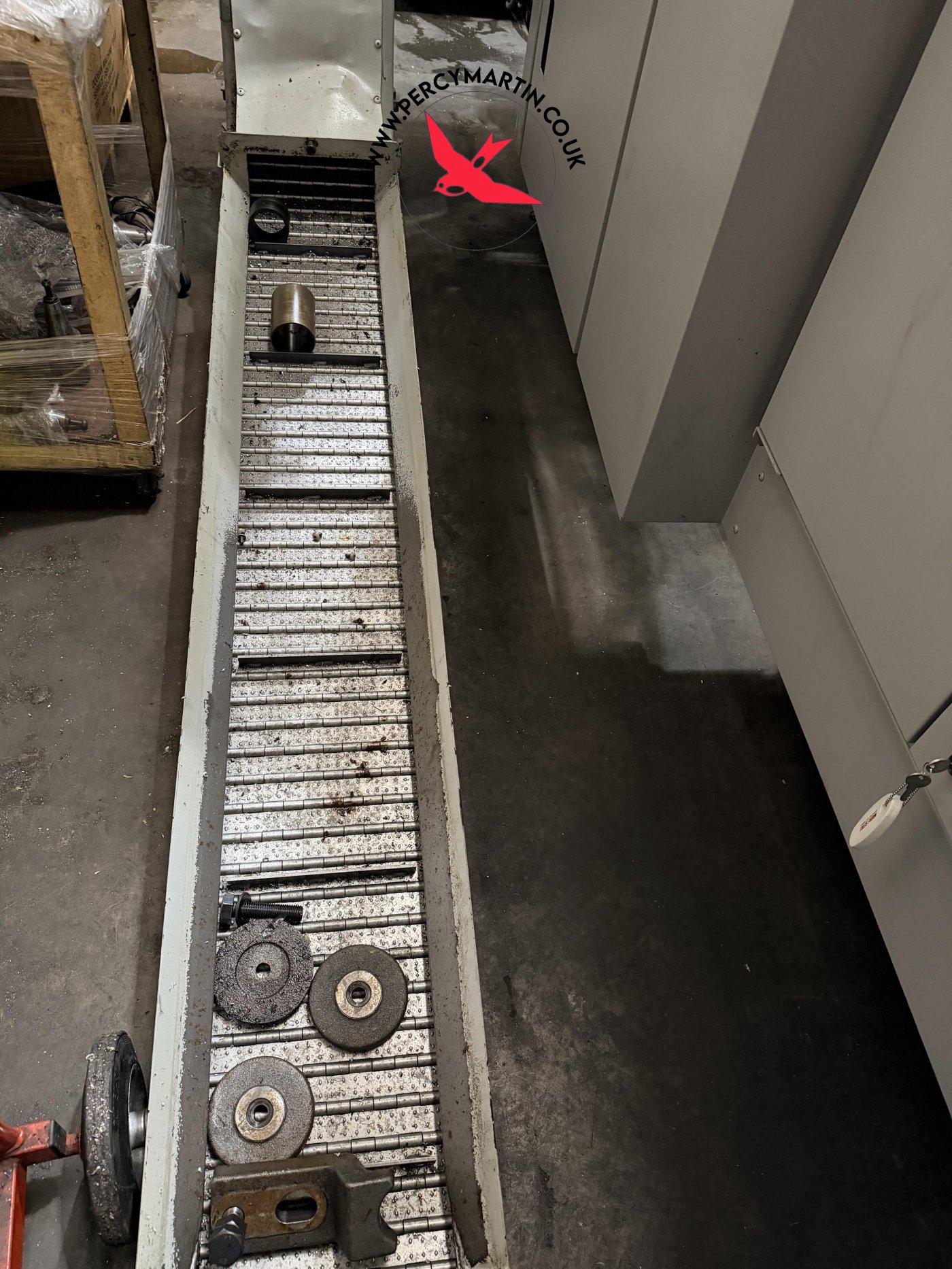

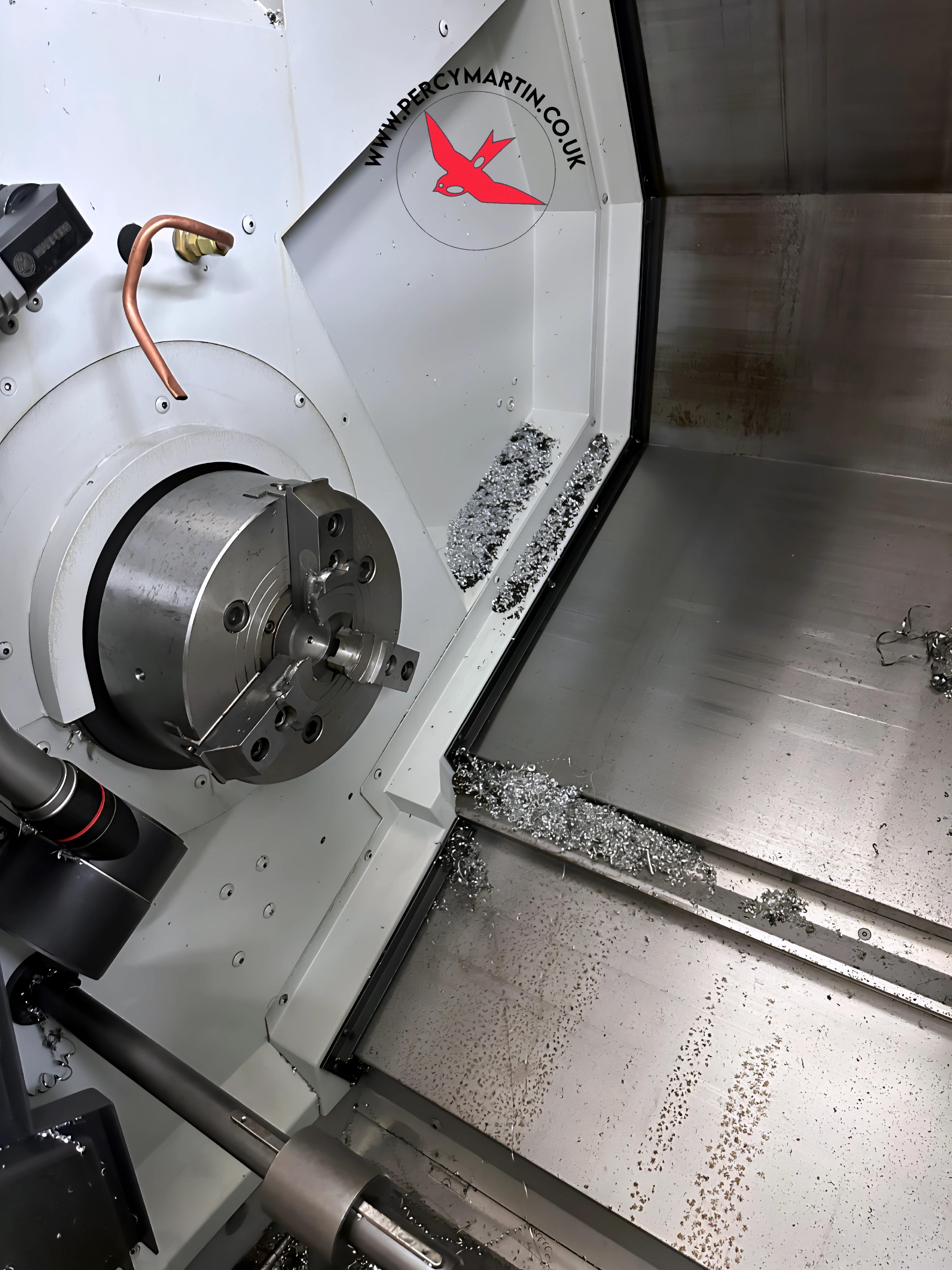

3 Jaw Chuck , C axis & Milling , C axis on Sub Spindle , Coolant , Interlocked guards , Low Volt Light , Magazine Barfeed , Parts Catcher , Sub Spindle , Swarf Conveyor , Tool setter , Tooling , Y-axis
Mori Seiki NLX2500SY 700 2013
Key Features
Type:
All Products
Model:
NLX2500SY 700
Make:
Mori Seiki
Year:
2013

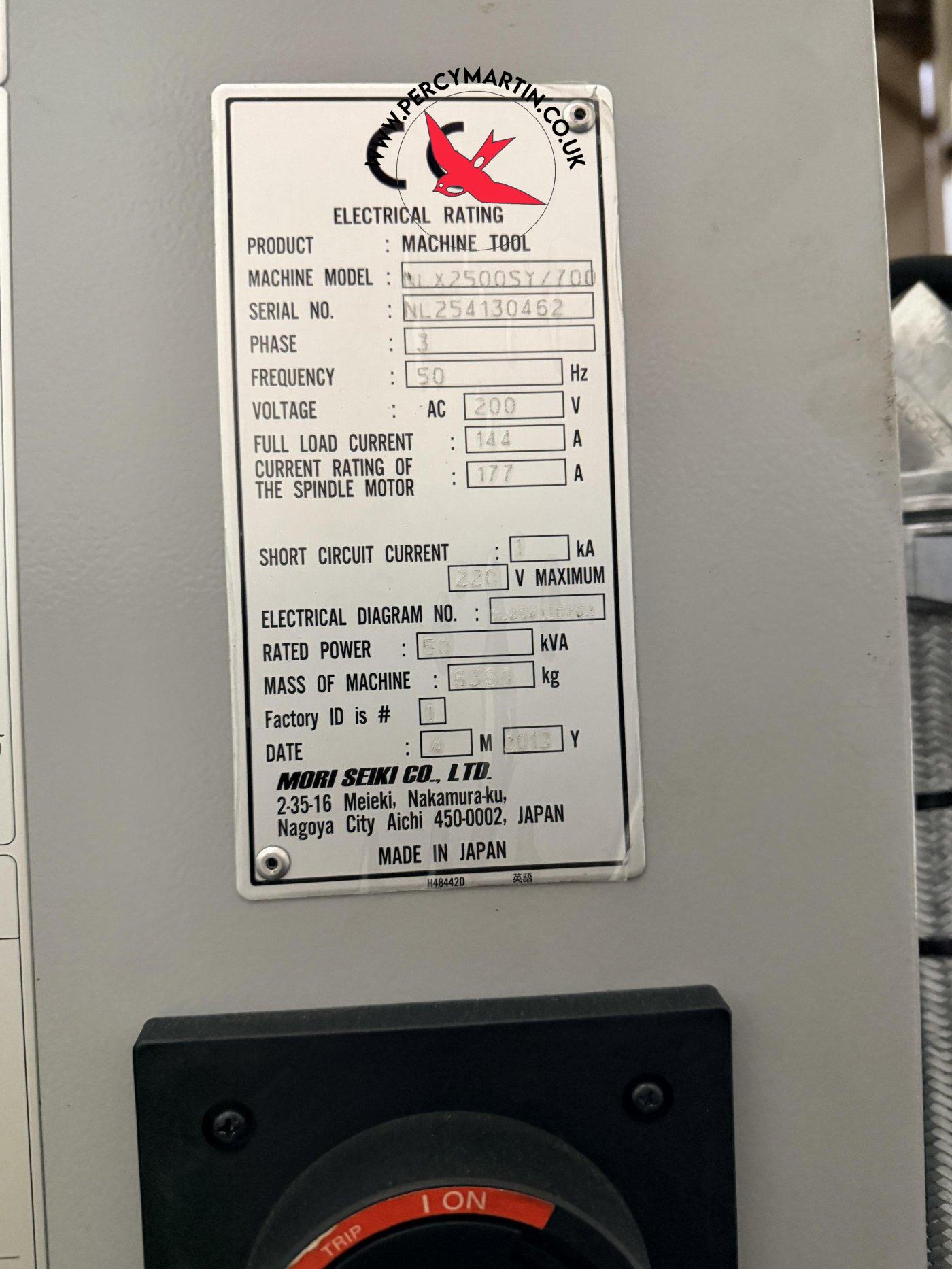

Serial No
NL254130462
Price
£POA
Our Reference
PM9709
Location
Leicester
Mori Seiki NLX2500SY 700 2013
Specifications
Bar Capacity
80mm

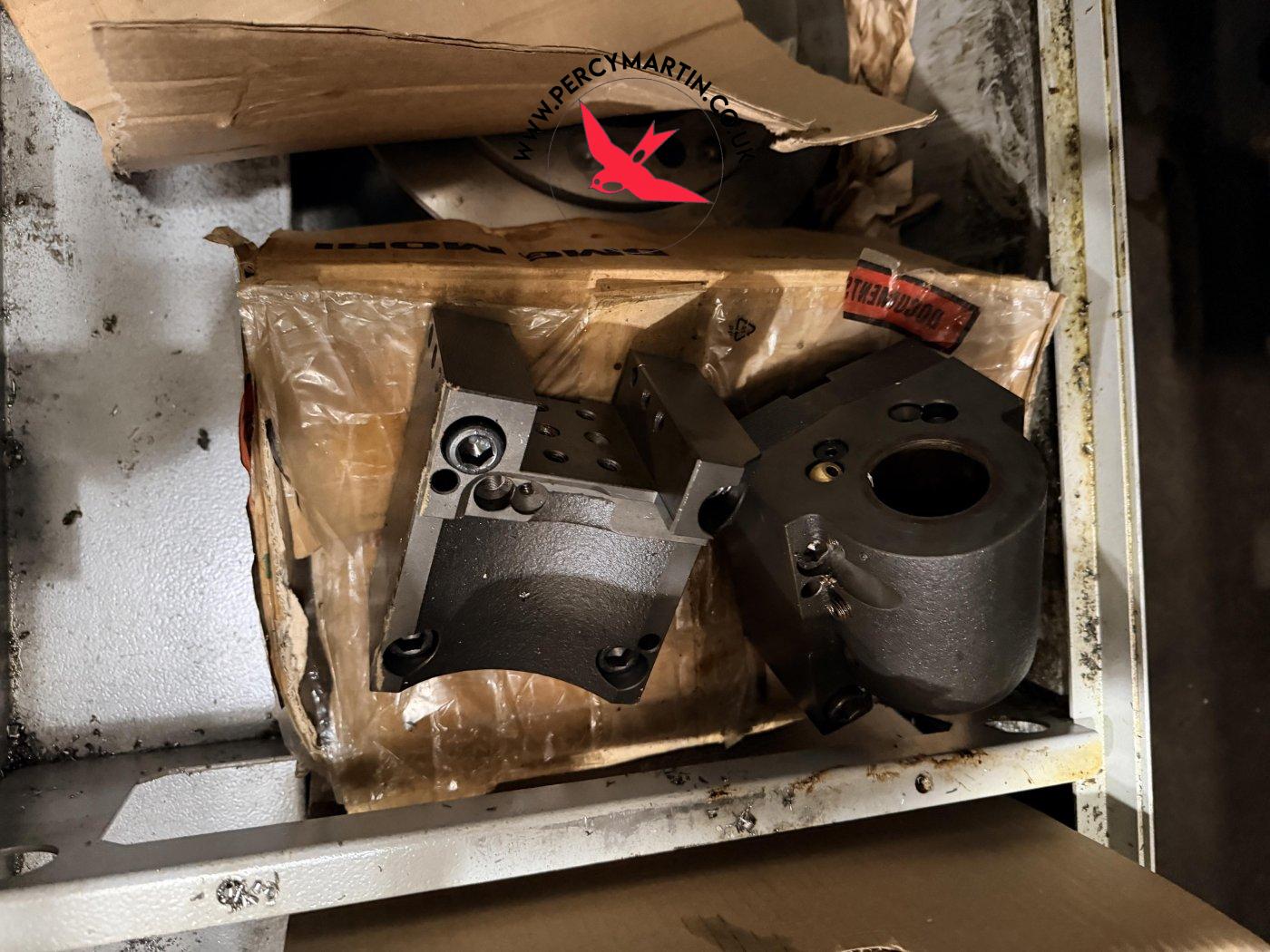

Boring Bar Holder Diameter
50mm
C axis
0.001 degree

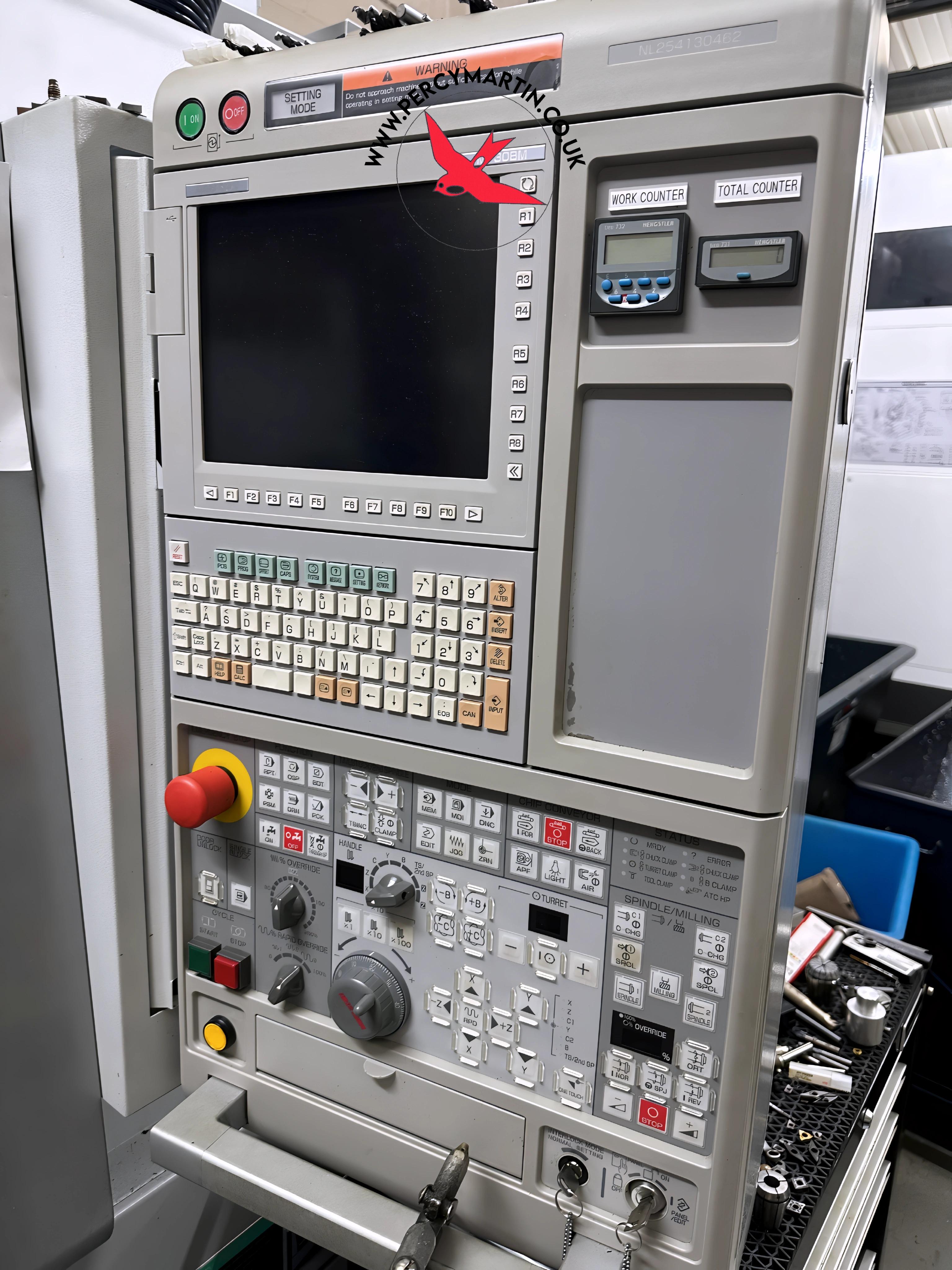

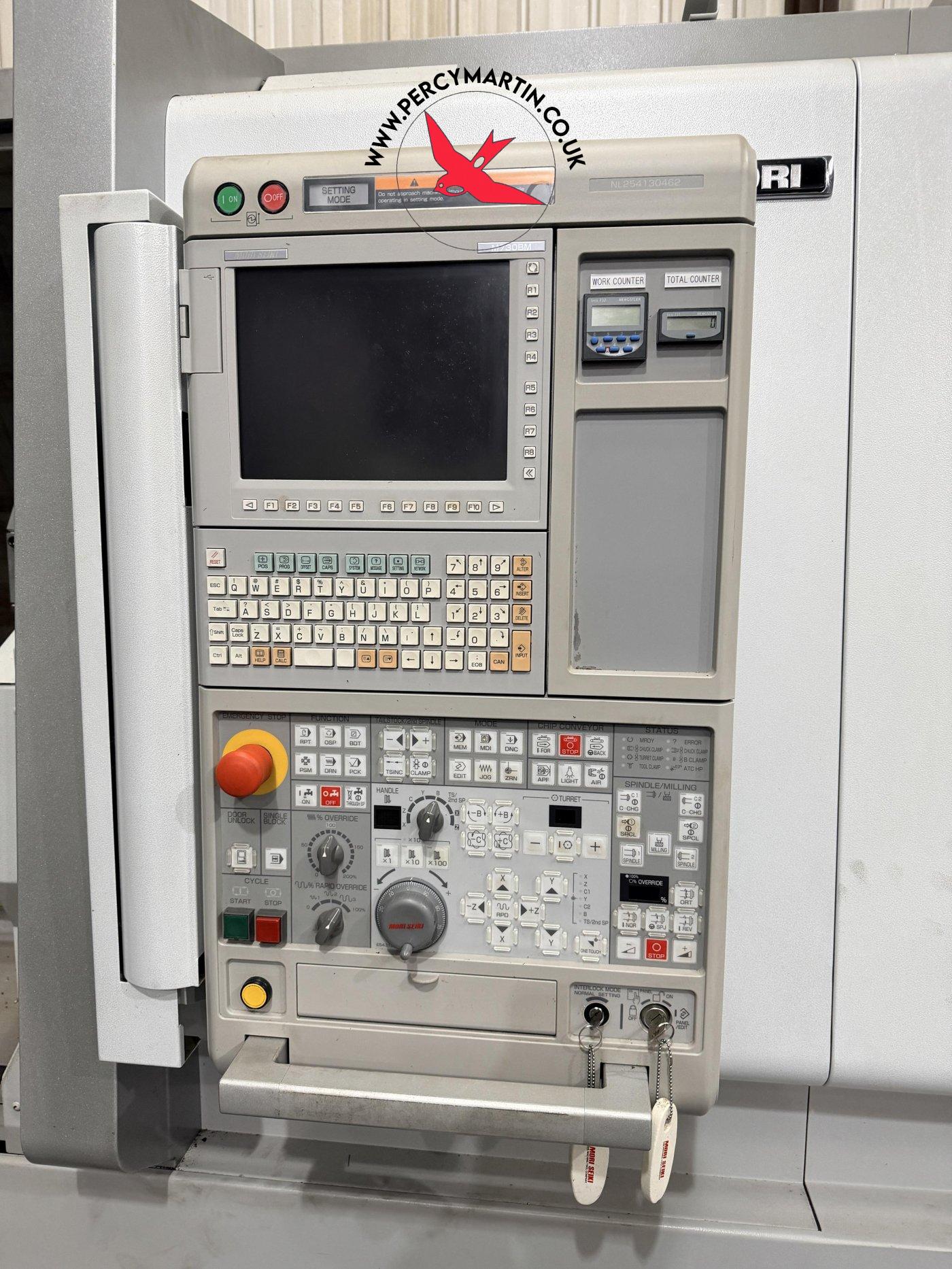

Control
M730BM
Machine Dimensions
3994 × 2080 x 2187mm
Machine Weight
6360kg
Maximum Cutting Diameter
366mm
Maximum Cutting Length
705mm
Milling Motor Power
5.5kW
Milling RPM
10,000rpm
Rapid Feedrates
XYZB: 30 x 10 x 30 x 30m/minute
Spindle Motor Power
18.5/15kW
Spindle Nose
A2-8
Spindle Speed
4000rpm
Standard Cutting Diameter
271mm
Sub Spindle Bore
43mm
Sub Spindle C axis
0.001 degree
Sub Spindle Motor Power
11/7.5kW
Sub Spindle Nose
A2-5
Sub Spindle Speed
6000rpm
Sub Spindle Stroke
734mm
Swing
920mm
Swing over the Cross-slide
742mm

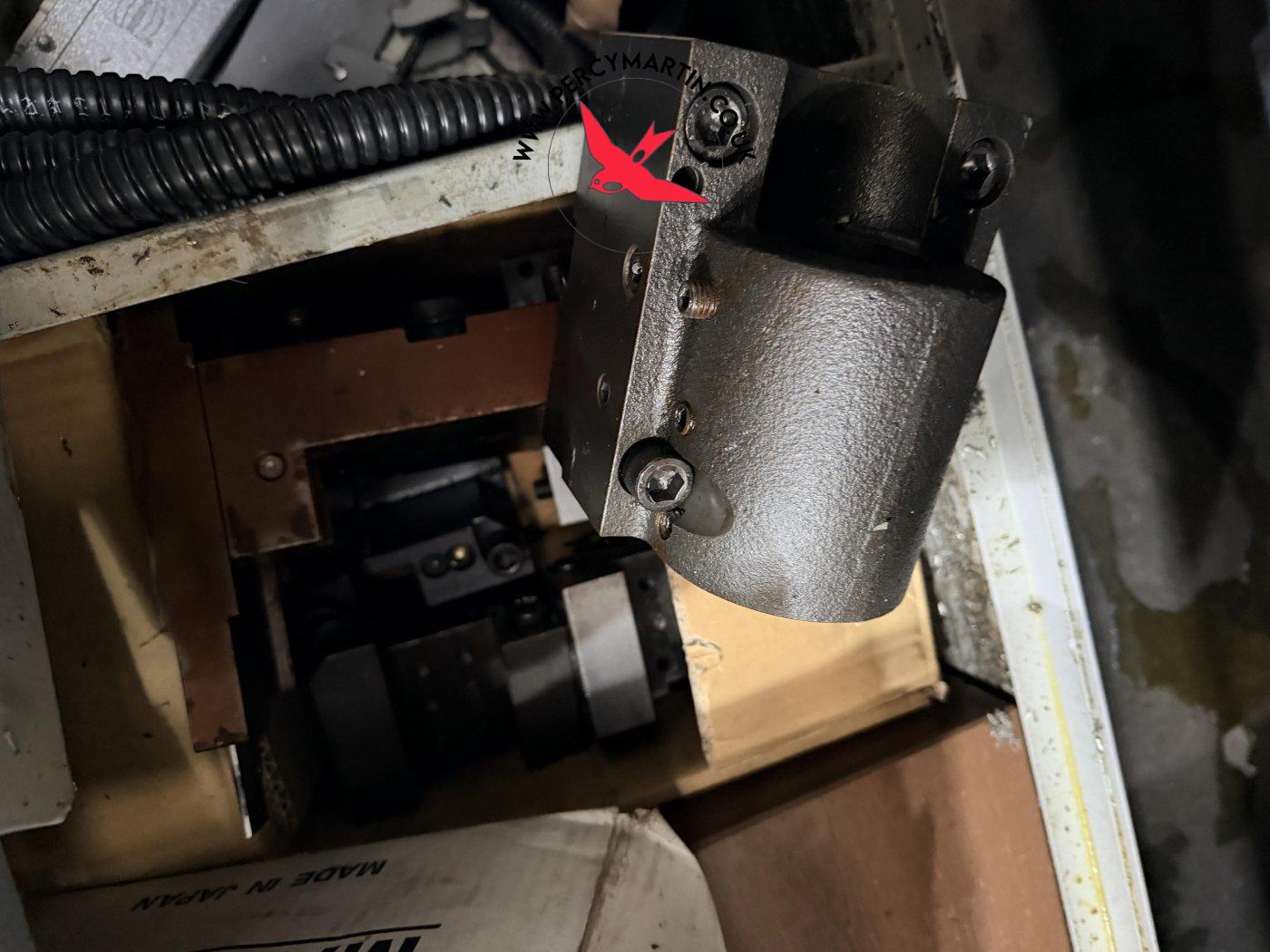

Tool Size
25 x 25mm

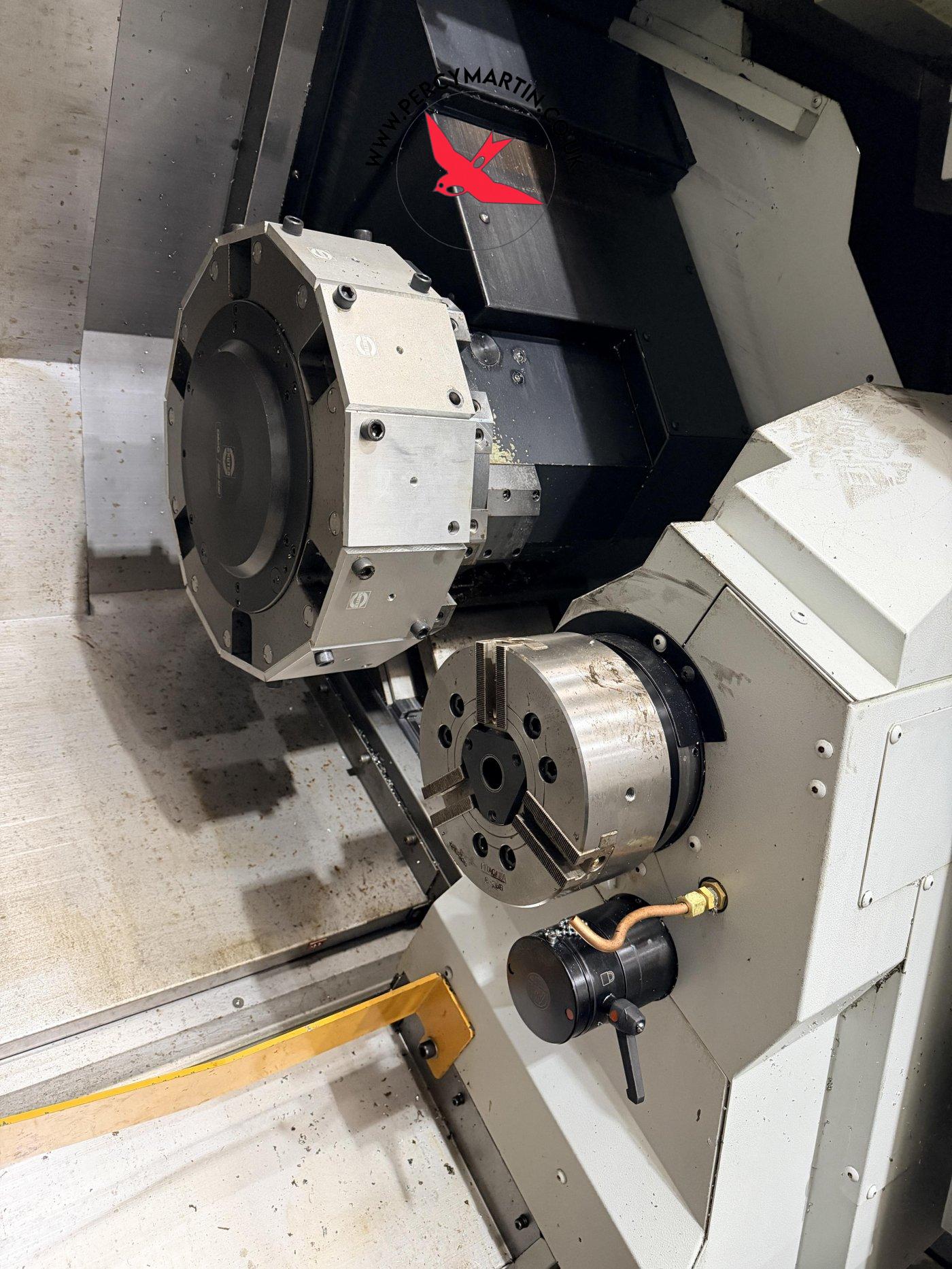

Turret Positions
12 Station
X axis Travel
260mm
Y axis Travel
+/-50mm
Z axis Travel
795mm
