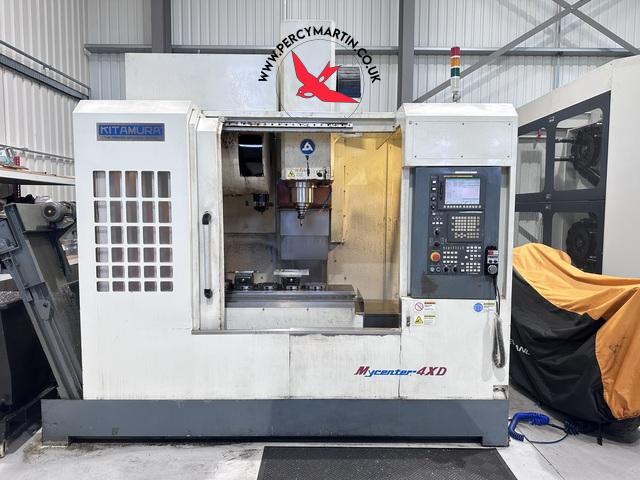

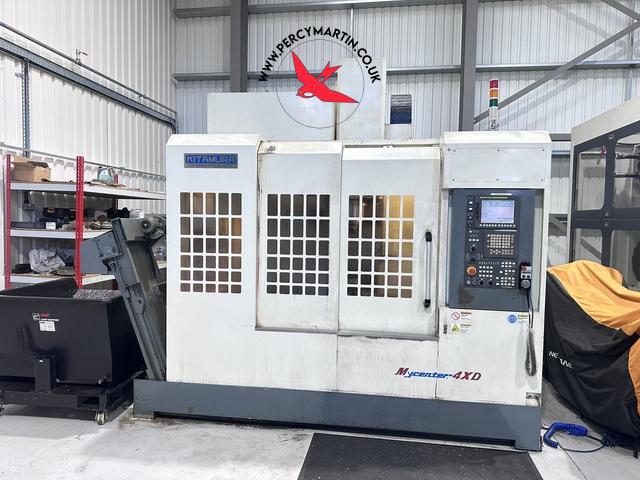

Kitamura Mycenter-4XD 2014

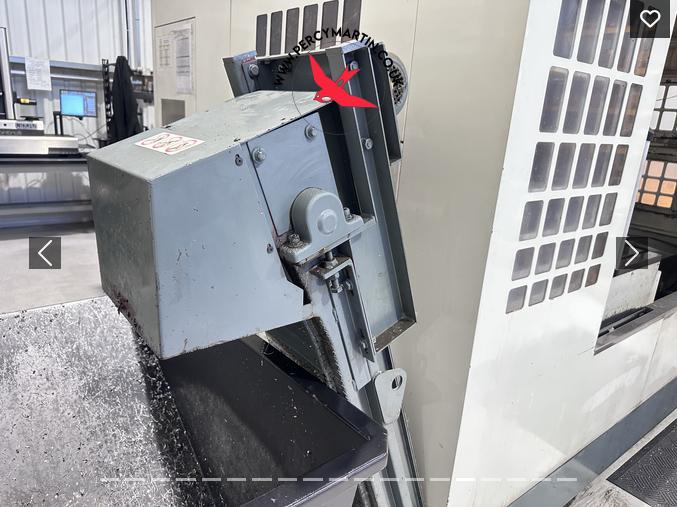

Coolant , Interlocked guards , Swarf Conveyor

Key Features Gallery Specifications More in Stock Register Interest

Kitamura Mycenter-4XD 2014

Key Features

Type:

All Products

Model:

Mycenter-4XD

Make:

Kitamura

Year:

2014

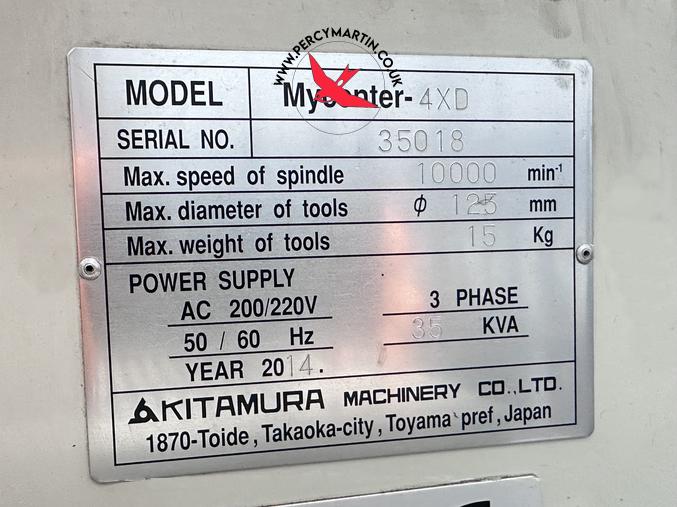

Serial No

35018

Price

£POA

Our Reference

PM9757

Location

Leicester

Kitamura Mycenter-4XD 2014

Specifications

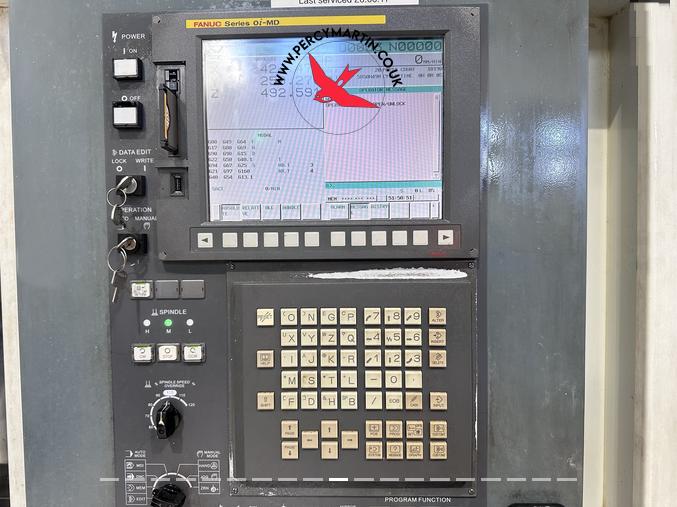

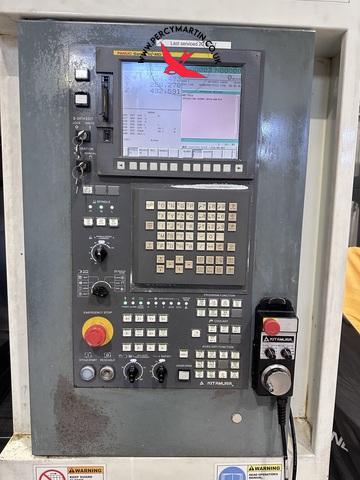

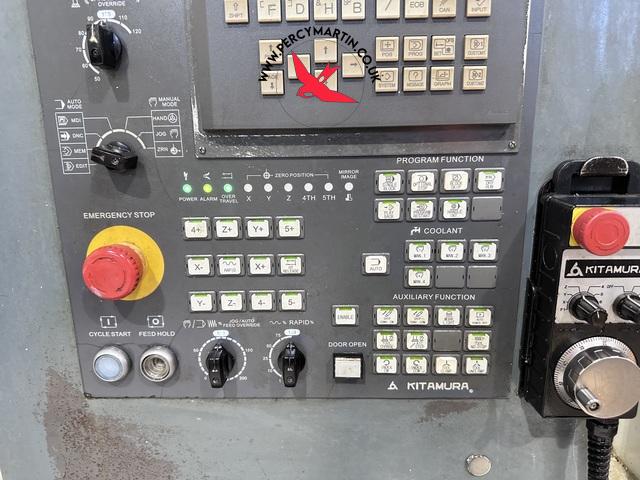

Control

FANUC 0i-MD

Machine Weight

7300kg

Maximum Cutting Feedrate

24000mm/minute

Maximum Tool Diameter

74mm

Maximum Tool Diameter with Empty Adjacent Pockets

150mm

Maximum Tool Length

300mm

Maximum Tool Weight

8kg

Maximum workpiece weight

1200kg

Min - Max Height under Spindle

100 - 710mm

Rapid Feedrates

XYZ: 36 x 36 x 30m/minute

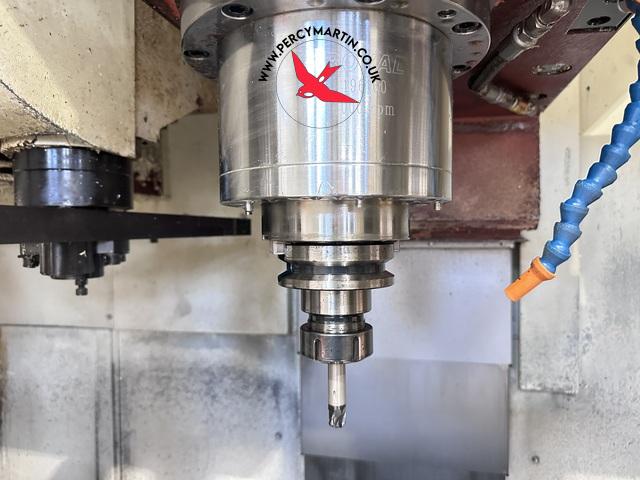

Spindle Speed

10000rpm

T- Slots

5 x 18mm

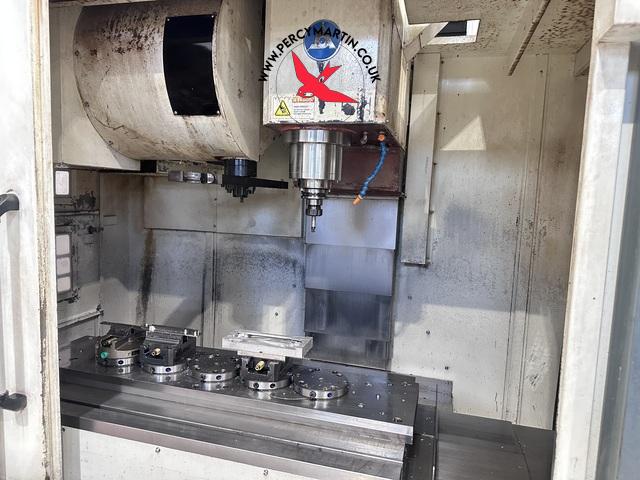

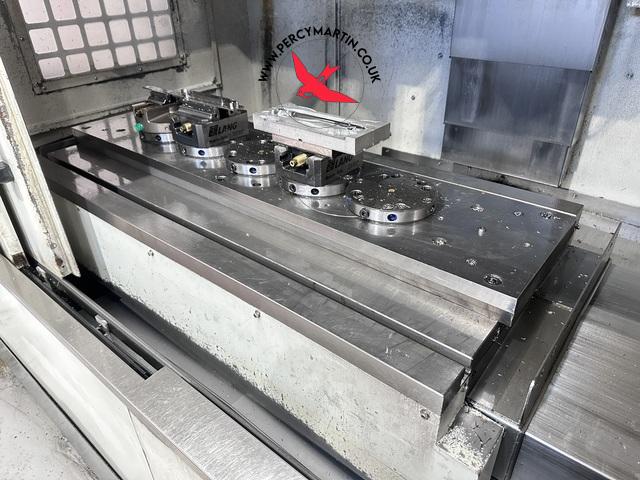

Table Size

1270 x 640mm

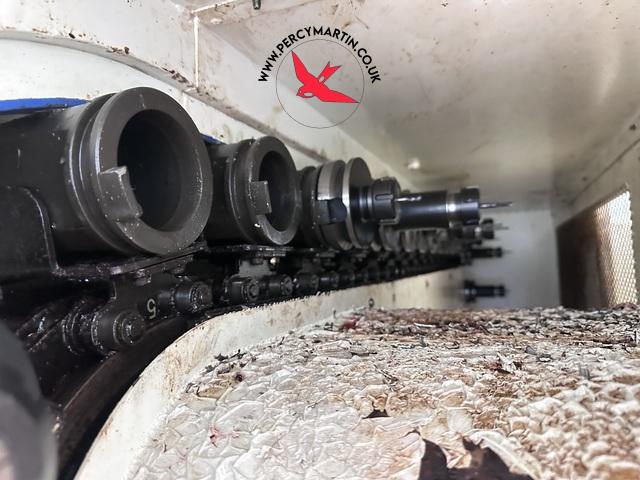

Tool Change Capacity

30 Station

Tool Change Time (Chip to Chip)

5 seconds

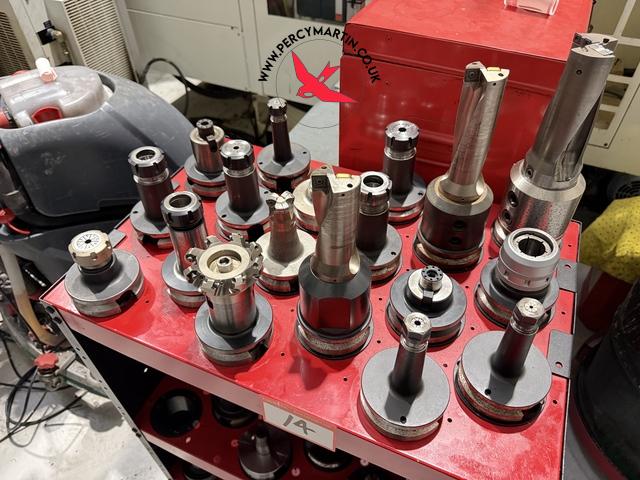

Tool Size

BT50

Traverses XYZ

1100 x 610 x 610mm
