Doosan Lynx 220LSY 2013
3 Jaw Chuck , C axis & Milling , C axis on Sub Spindle , Coolant , Interlocked guards , Low Volt Light , Parts Catcher , Sub Spindle , Swarf Conveyor , Tool setter , Y-axis
Doosan Lynx 220LSY 2013
Key Features
Type:
All Products
Model:
Lynx 220LSY
Make:
Doosan
Year:
2013
Serial No
Price
£POA
Our Reference
Location
Leicester
Doosan Lynx 220LSY 2013
Specifications
Bar Capacity
51mm
Boring Bar Holder Diameter
32mm
C axis
0.001 degree
Chuck Size
6"

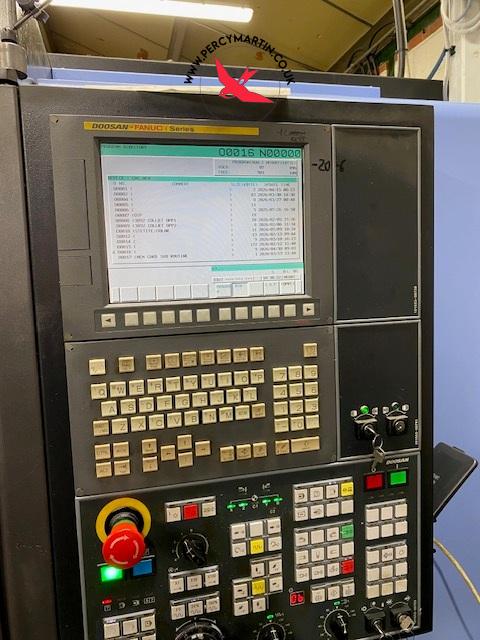

Control
FANUC i Series
Machine Dimensions
2850 x 1710 x 1920mm
Machine Weight
4150kg
Maximum Cutting Diameter
300mm
Maximum Cutting Length
510mm
Milling Motor Power
3.7kW
Milling RPM
6000rpm
Rapid Feedrates
XYZ: 30 x 10 x 36m/minute
Spindle Motor Power
15/11kW
Spindle Nose
A2-5
Spindle Speed
6000rpm
Standard Cutting Diameter
170mm
Sub Spindle C axis
0.001 degree
Sub Spindle Motor Power
5.5/3.7kW
Sub Spindle Speed
6000rpm
Swing
600mm
Swing over the Cross-slide
400mm
Tool Size
20 x 20mm
Turret Positions
12 Station (plus 12 half index)
X axis Travel
205mm
Y axis Travel
+/-52.5mm
Z axis Travel
560mm
