Doosan Lynx 220LM 2014

C axis & Milling , Collet Chuck , Coolant , Interlocked guards , Low Volt Light , Magazine Barfeed , Parts Catcher , Swarf Conveyor , Tailstock , Tool setter

Key Features Gallery Specifications More in Stock Register Interest

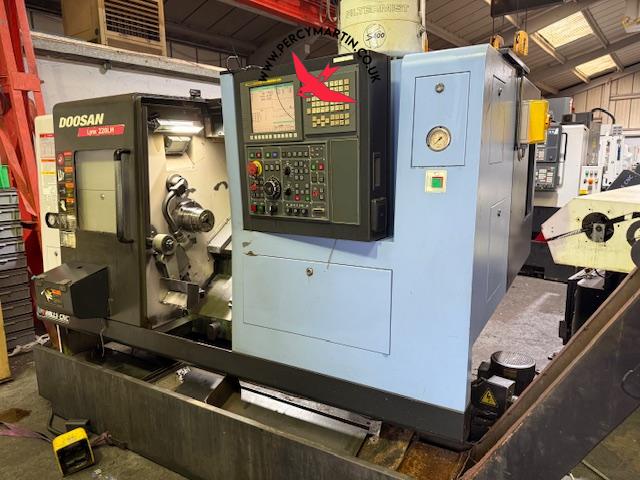

Doosan Lynx 220LM 2014

Key Features

Type:

All Products

Model:

Lynx 220LM

Make:

Doosan

Year:

2014

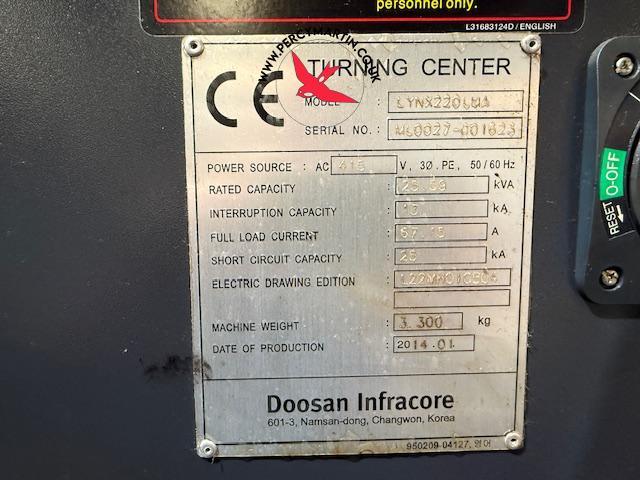

Serial No

ML0027-001623

Price

£POA

Our Reference

PM9752

Location

Leicester

Doosan Lynx 220LM 2014

Specifications

Bar Capacity

51mm

C axis

0.001 degree

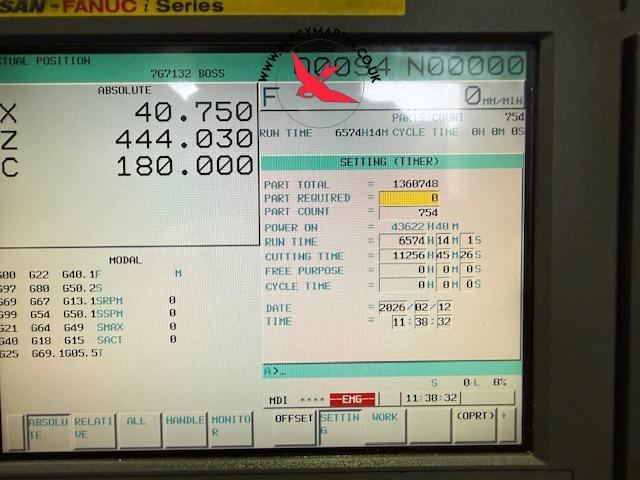

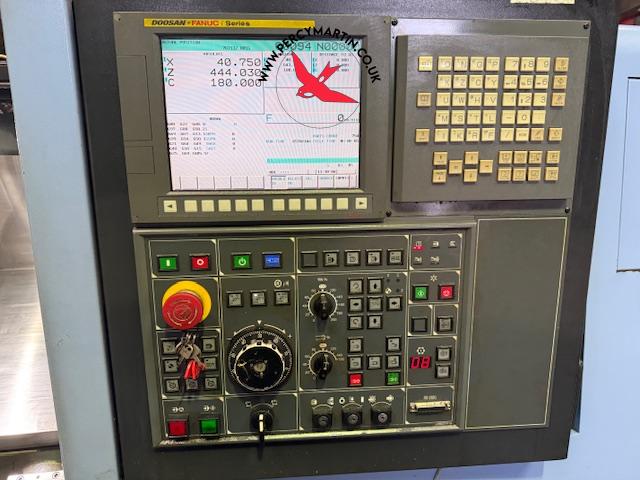

Control

FANUC 0i

Machine Dimensions

2630 x 1600 x 1655mm

Machine Weight

3100kg

Maximum Cutting Diameter

250mm

Maximum Cutting Length

510mm

Rapid Feedrates

XZ: 30 x 36m/minute

Spindle Motor Power

15kW

Spindle Nose

A2-5

Spindle Speed

6000rpm

Swing

510mm

Swing over the Cross-slide

290mm

Tailstock Quill Diameter

65mm

Tailstock Quill Stroke

80mm

Tailstock Taper

MT #4

Turret Positions

24 (1-12 driven)

X axis Travel

175mm

Z axis Travel

550mm
