Doosan Lynx 220B 2011

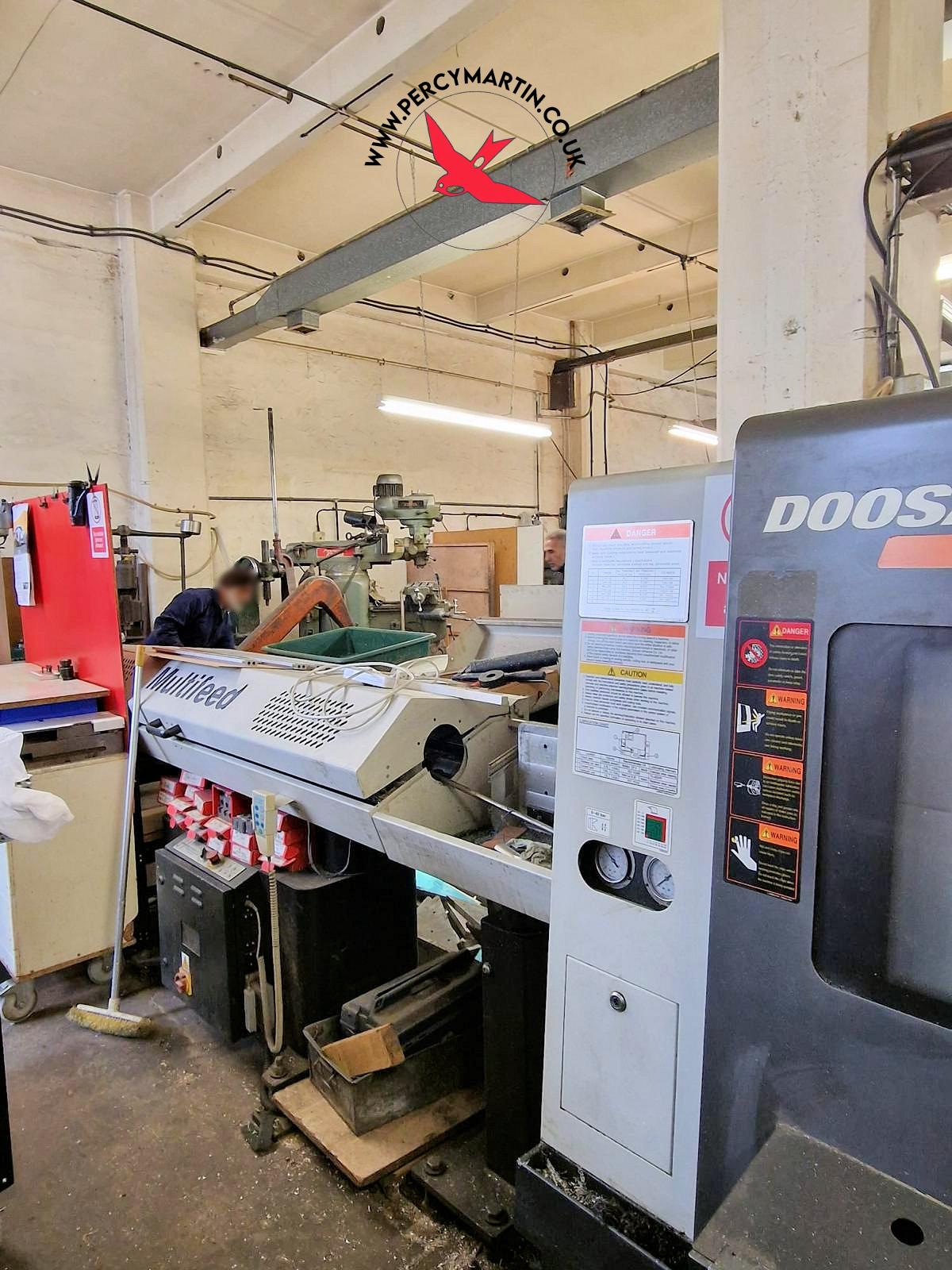

3 Jaw Chuck , Coolant , Interlocked guards , Low Volt Light , Magazine Barfeed , Parts Catcher , Tailstock , Tool setter

Key Features Gallery Specifications More in Stock Register Interest

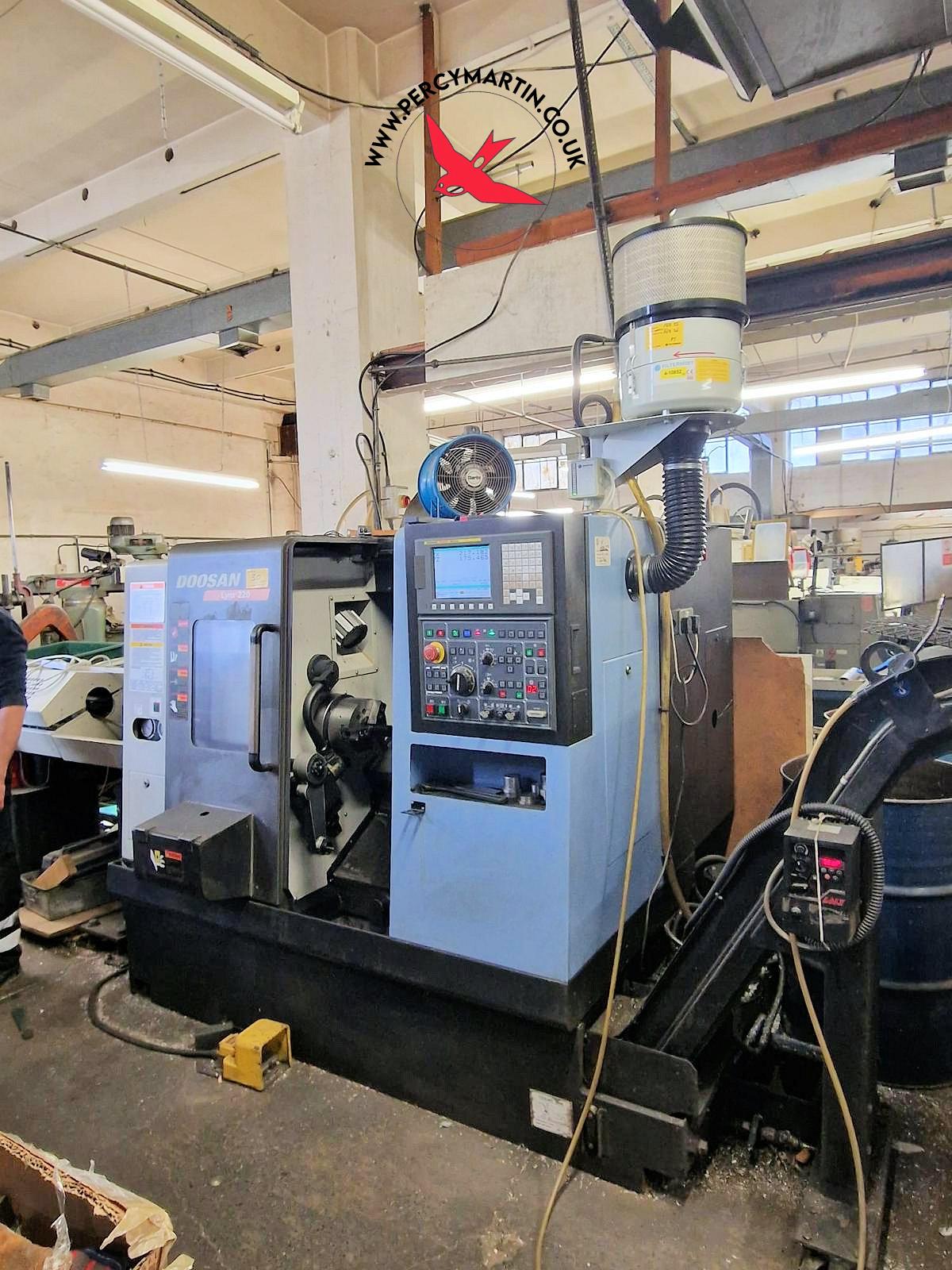

Doosan Lynx 220B 2011

Key Features

Type:

All Products

Model:

Lynx 220B

Make:

Doosan

Year:

2011

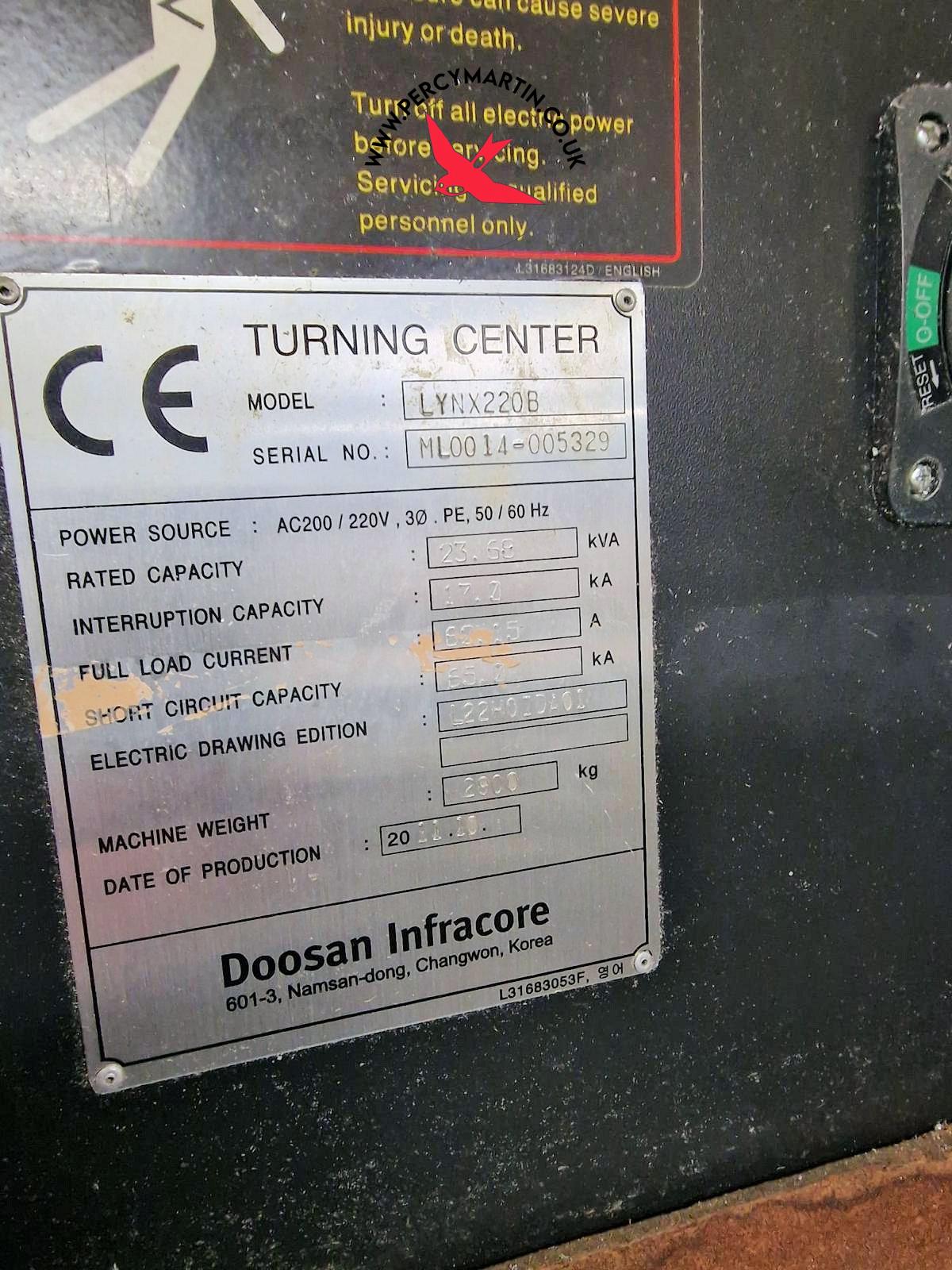

Serial No

ML0014-005329

Price

£POA

Our Reference

PM9796

Location

Leicester

Doosan Lynx 220B 2011

Specifications

Bar Capacity

51mm

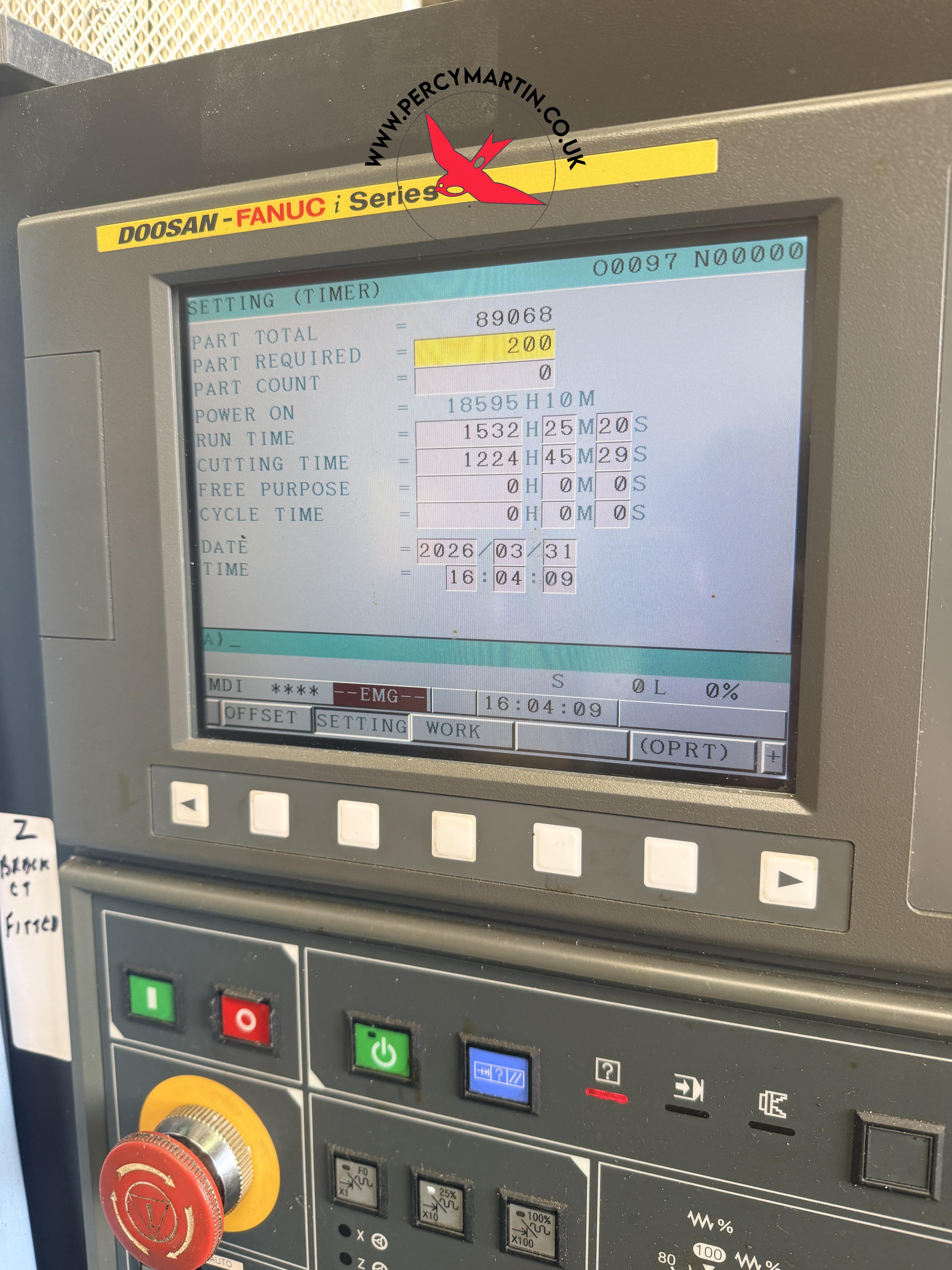

Control

FANUC Oi Series

Machine Dimensions

2325 x 1600 x 1600mm

Machine Weight

2900kg

Maximum Cutting Diameter

320mm

Maximum Cutting Length

305mm

Rapid Feedrates

XZ: 30 x 36m/minute

Spindle Motor Power

11kW

Spindle Nose

A2-6

Spindle Speed

5000rpm

Swing

510mm

Swing Over Carriage

290mm

Tailstock Quill Diameter

65mm

Tailstock Quill Stroke

80mm

Tailstock Taper

MT #4

Tool Size

25 x 25mm

Turret Positions

12 Station

X axis Travel

175mm

Z axis Travel

330mm
