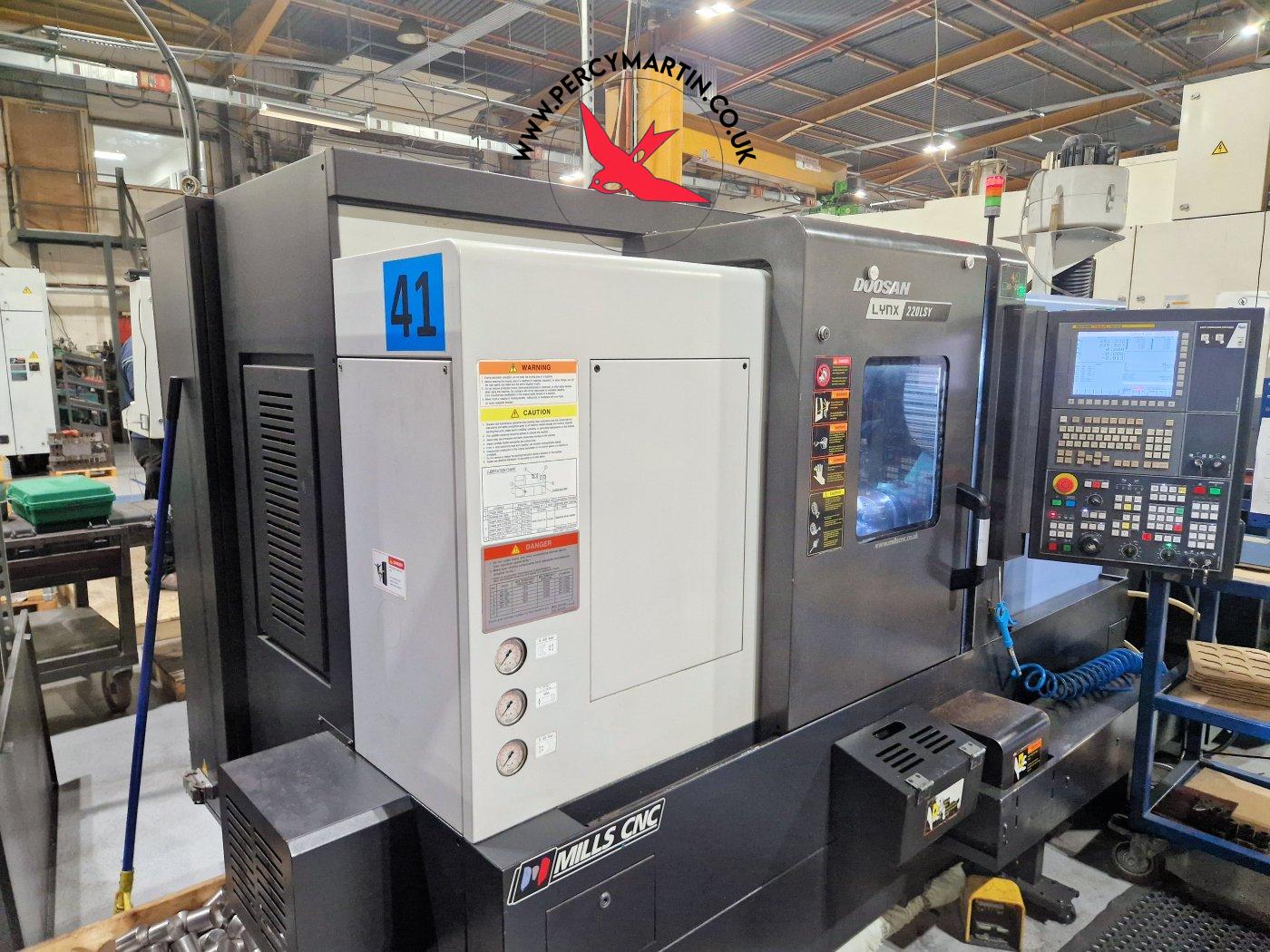

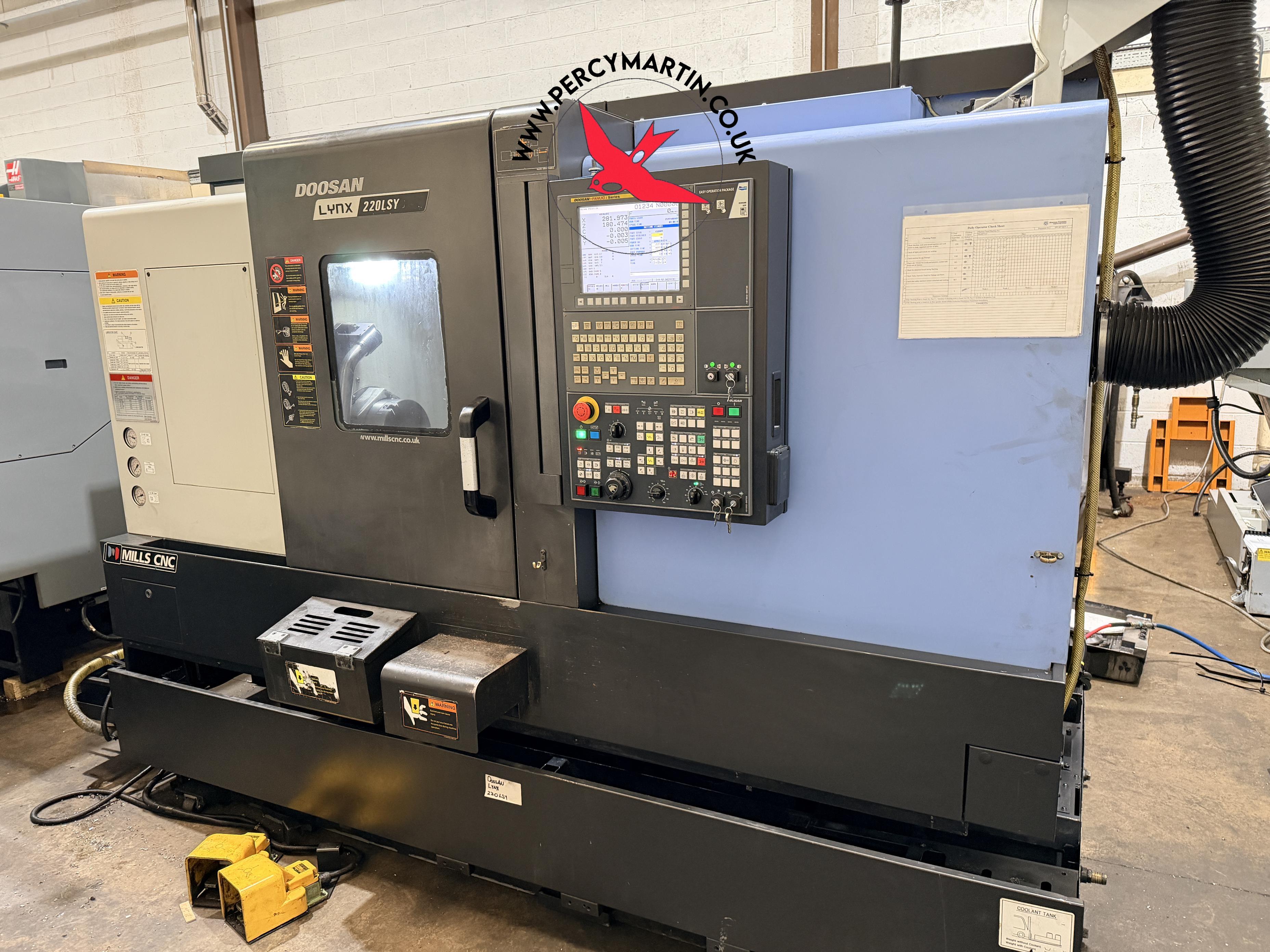

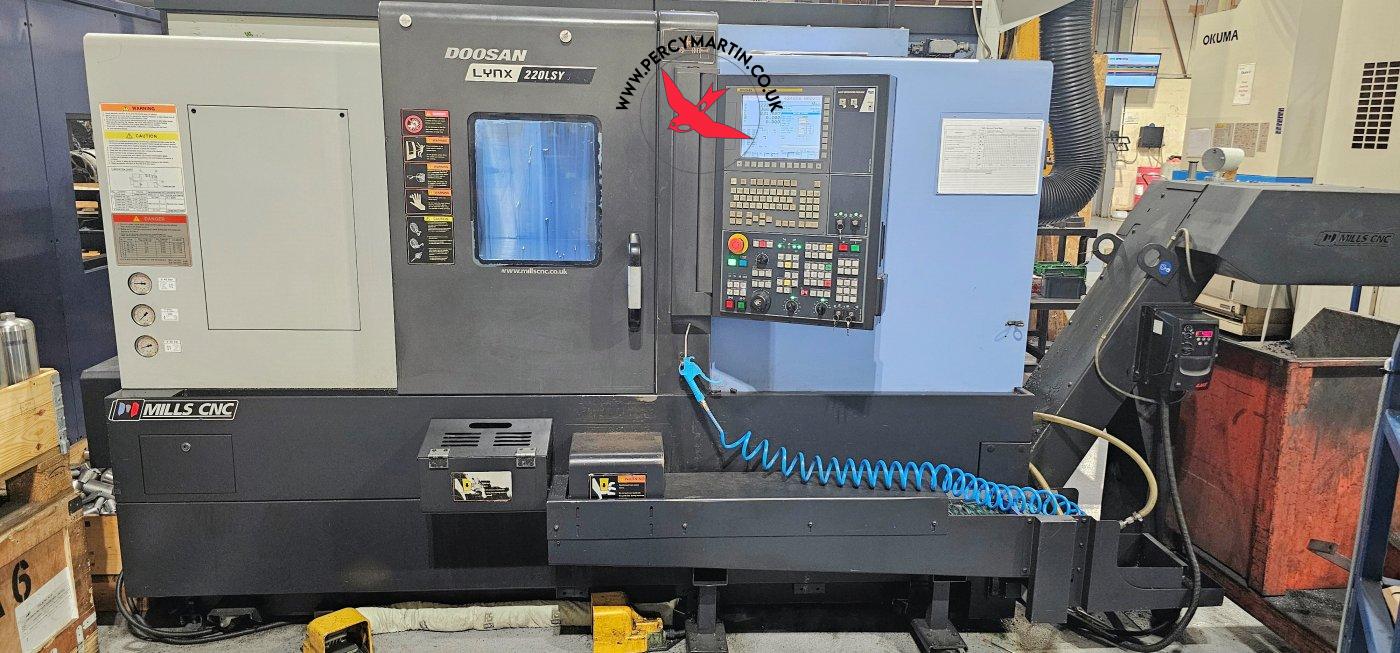

Doosan Lynx 220 LSYC 2016

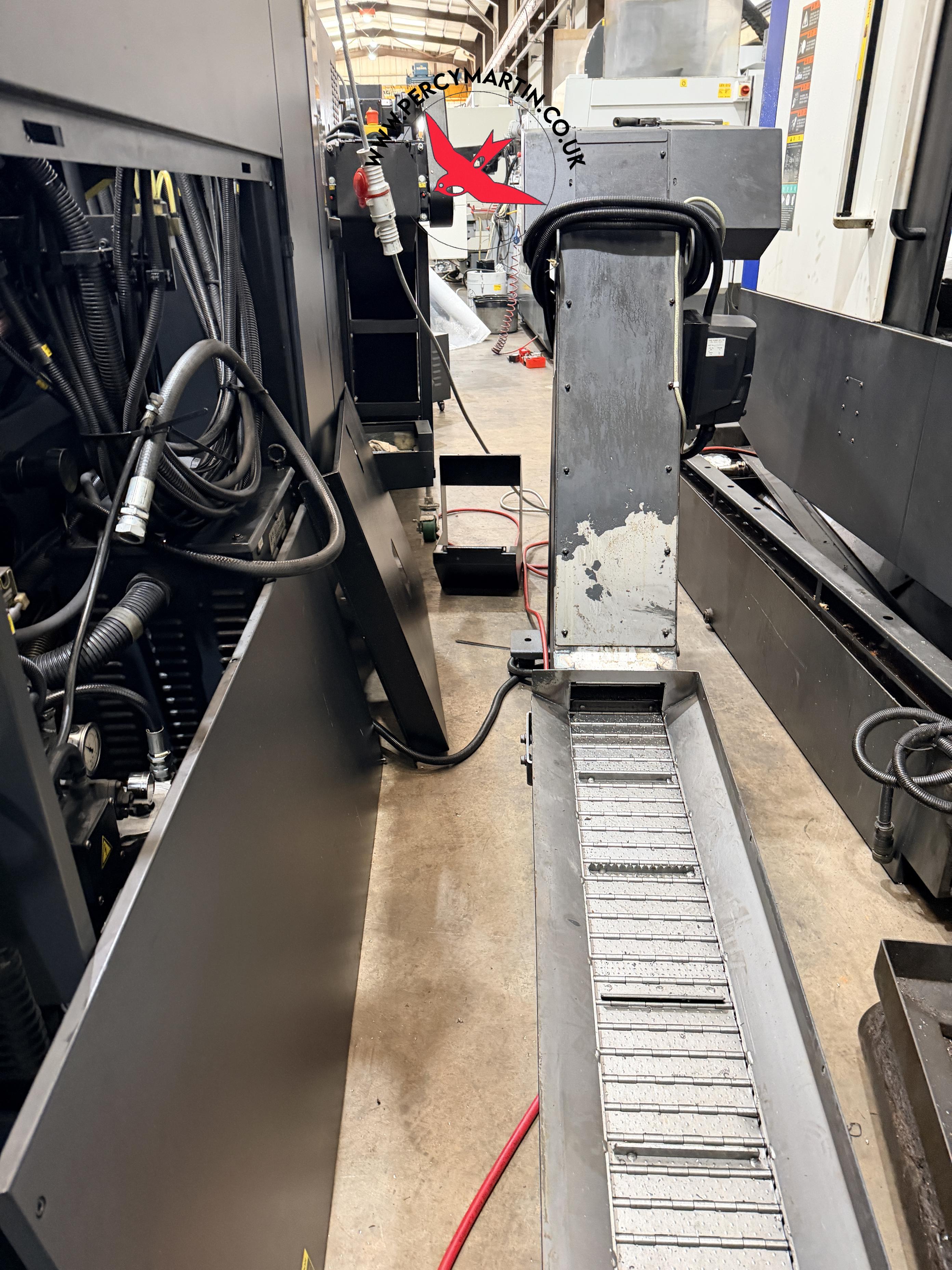

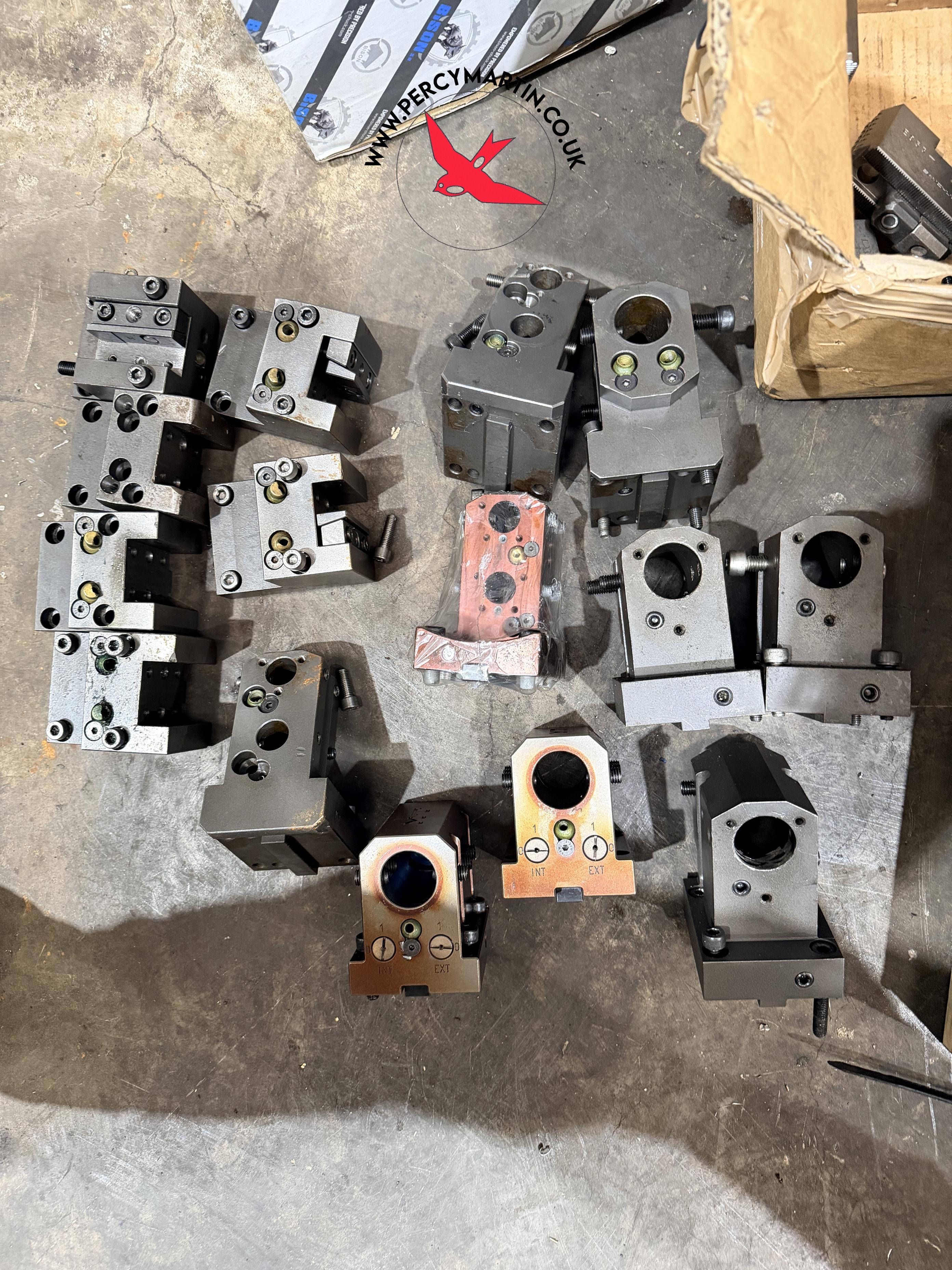

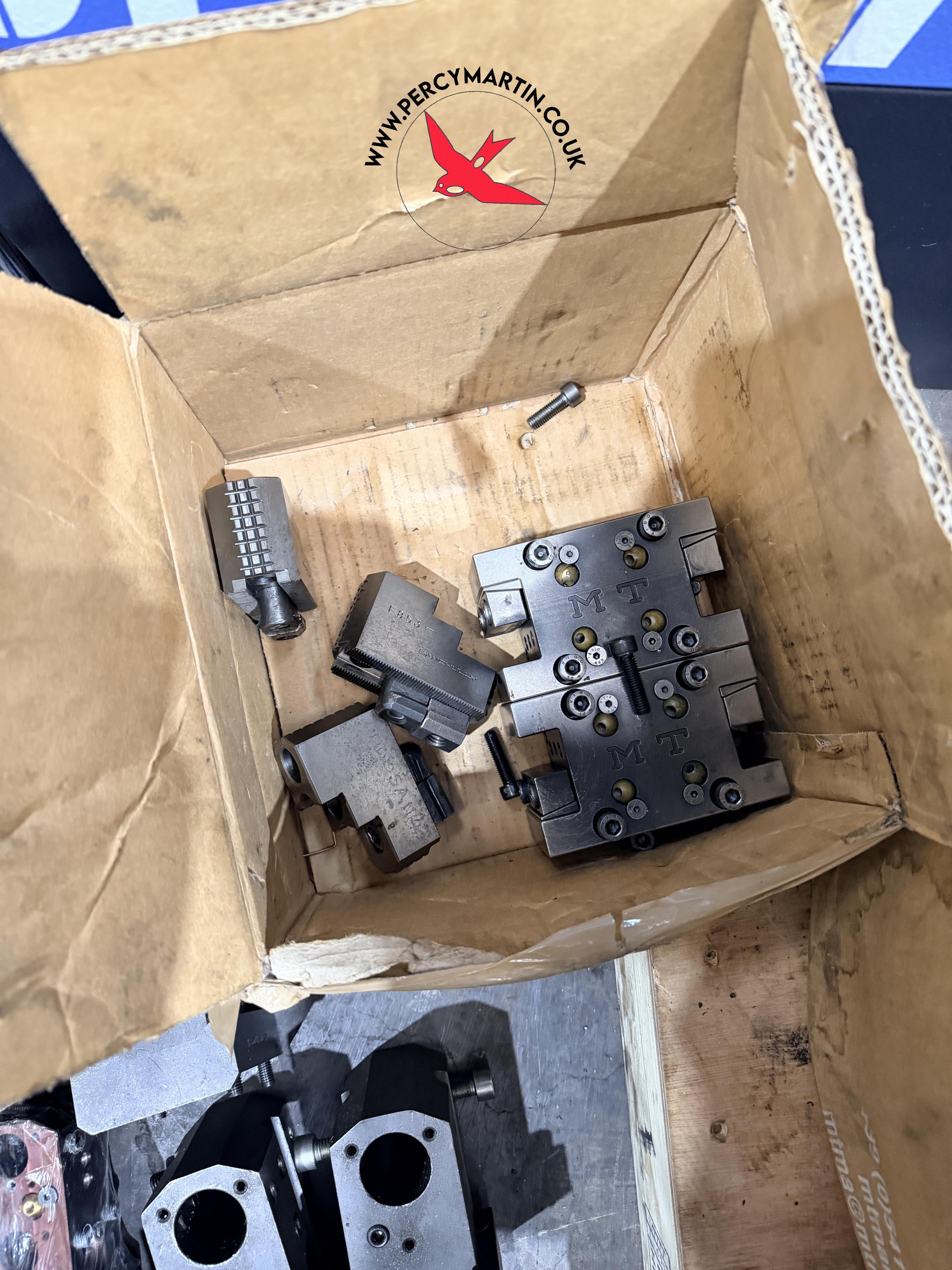

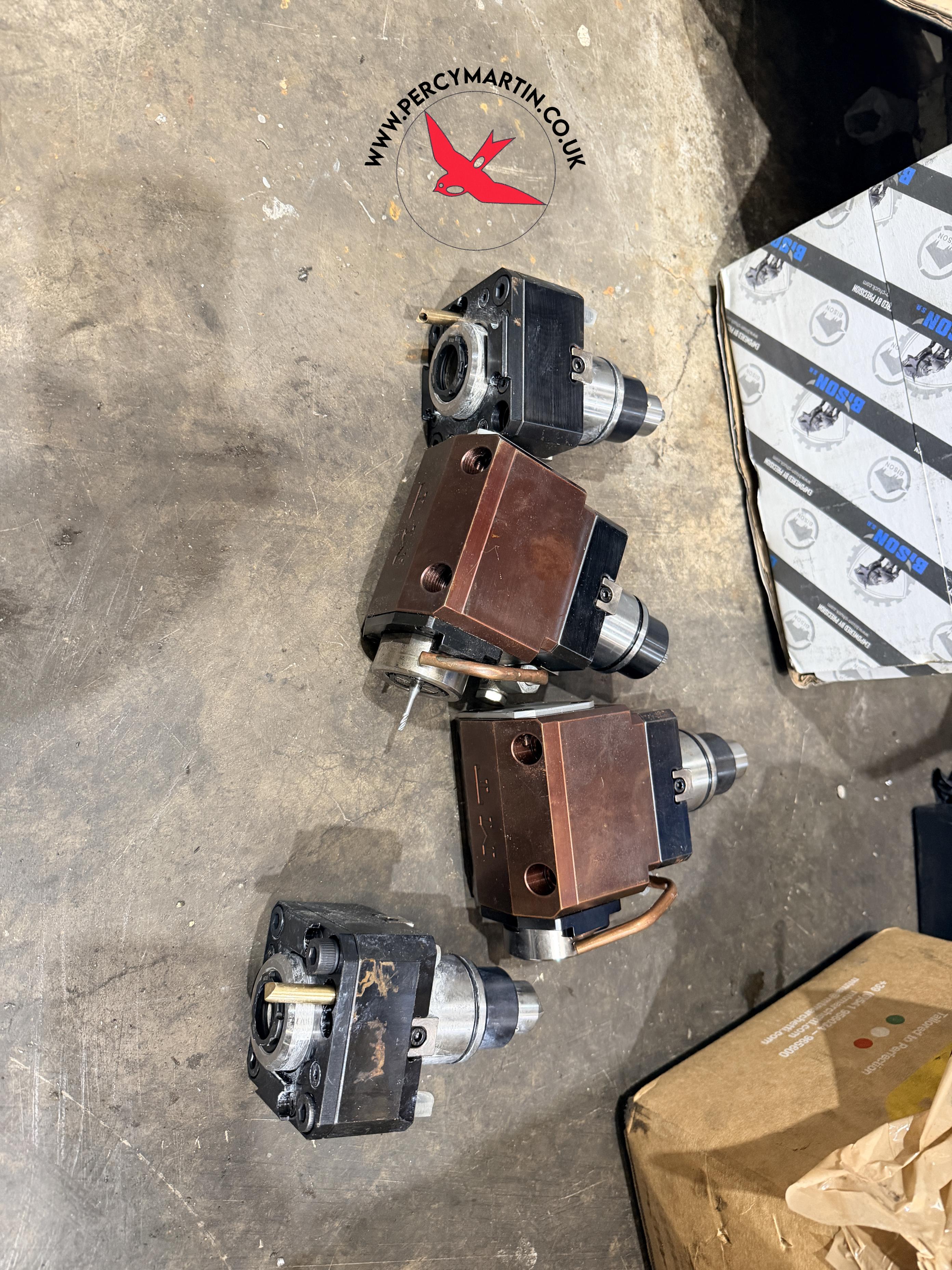

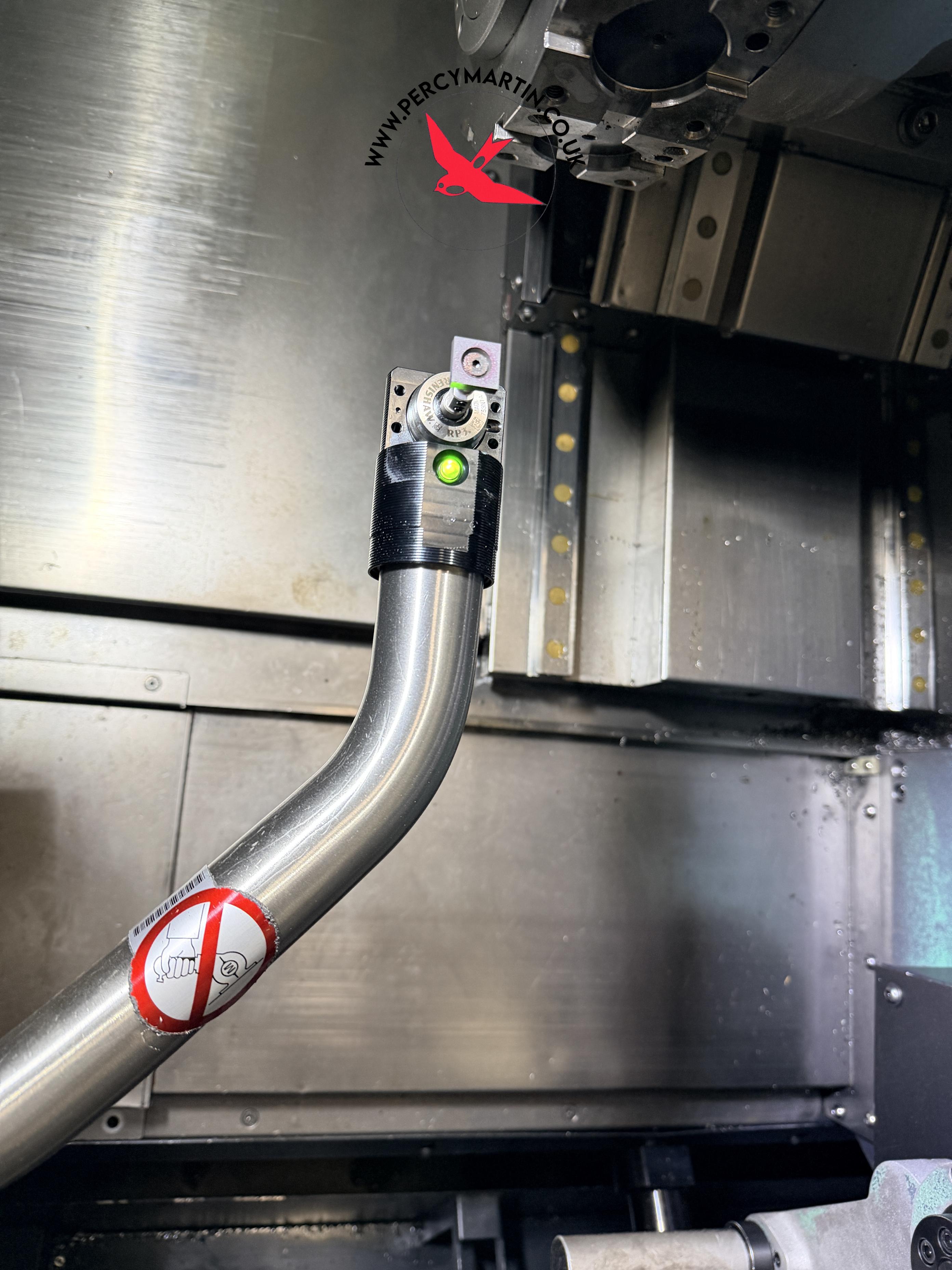

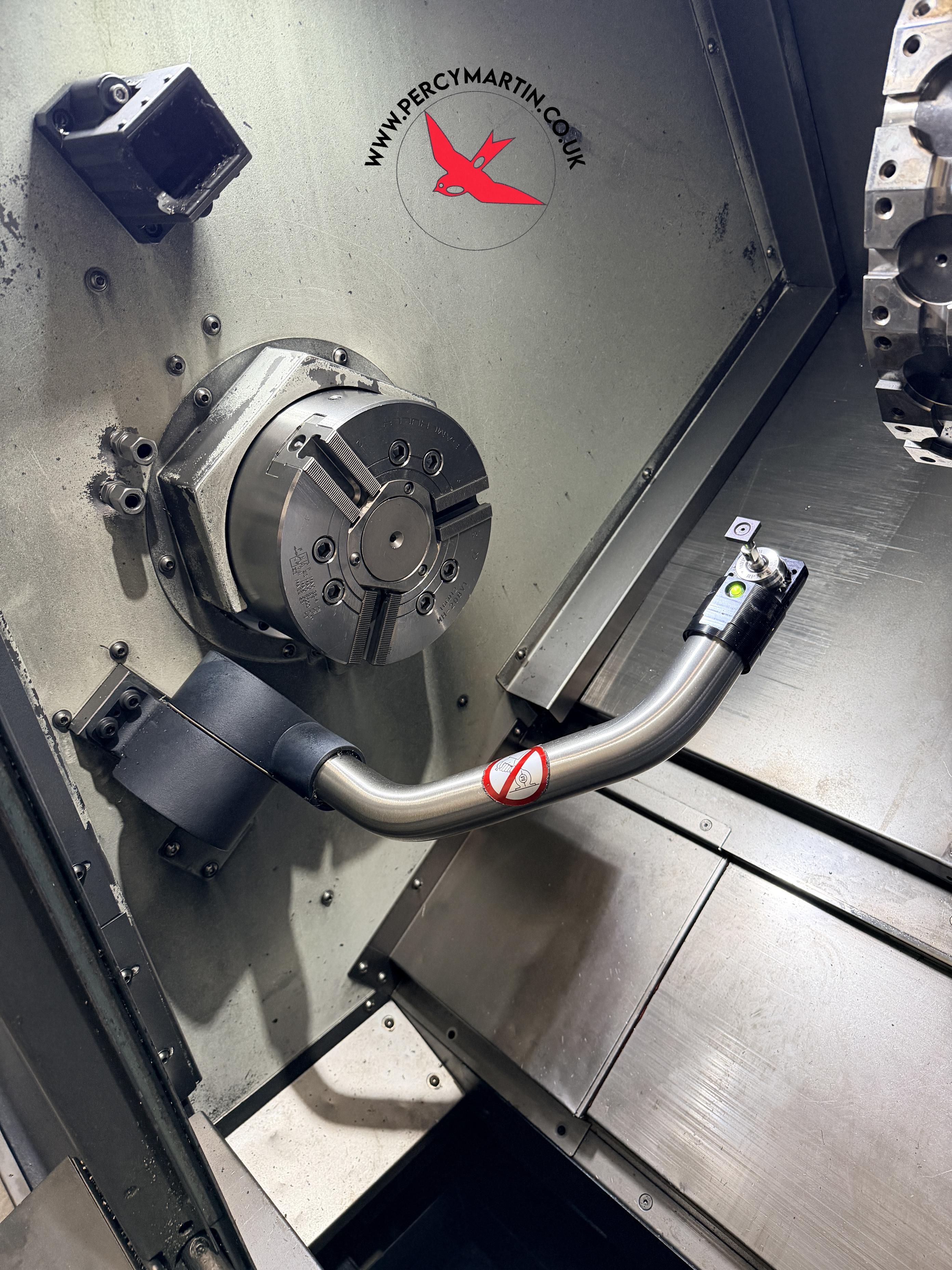

3 Jaw Chuck , C axis & Milling , C axis on Sub Spindle , Coolant , Interlocked guards , Low Volt Light , Parts Catcher , Parts Conveyor , Sub Spindle , Swarf Conveyor , Tool setter , Tooling , Y-axis
Doosan Lynx 220 LSYC 2016
Key Features
Type:
All Products
Model:
Lynx 220 LSYC
Make:
Doosan
Year:
2016

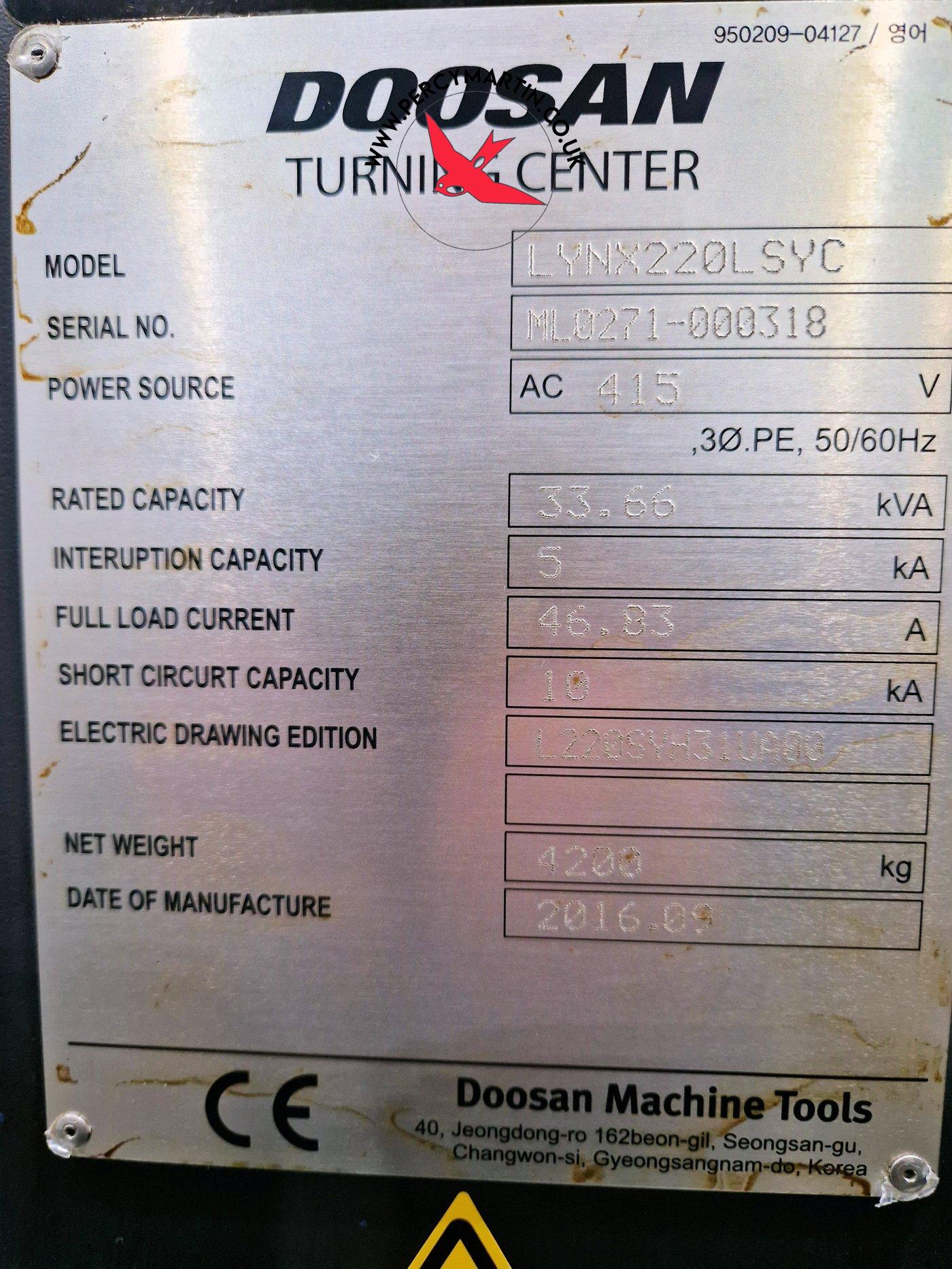

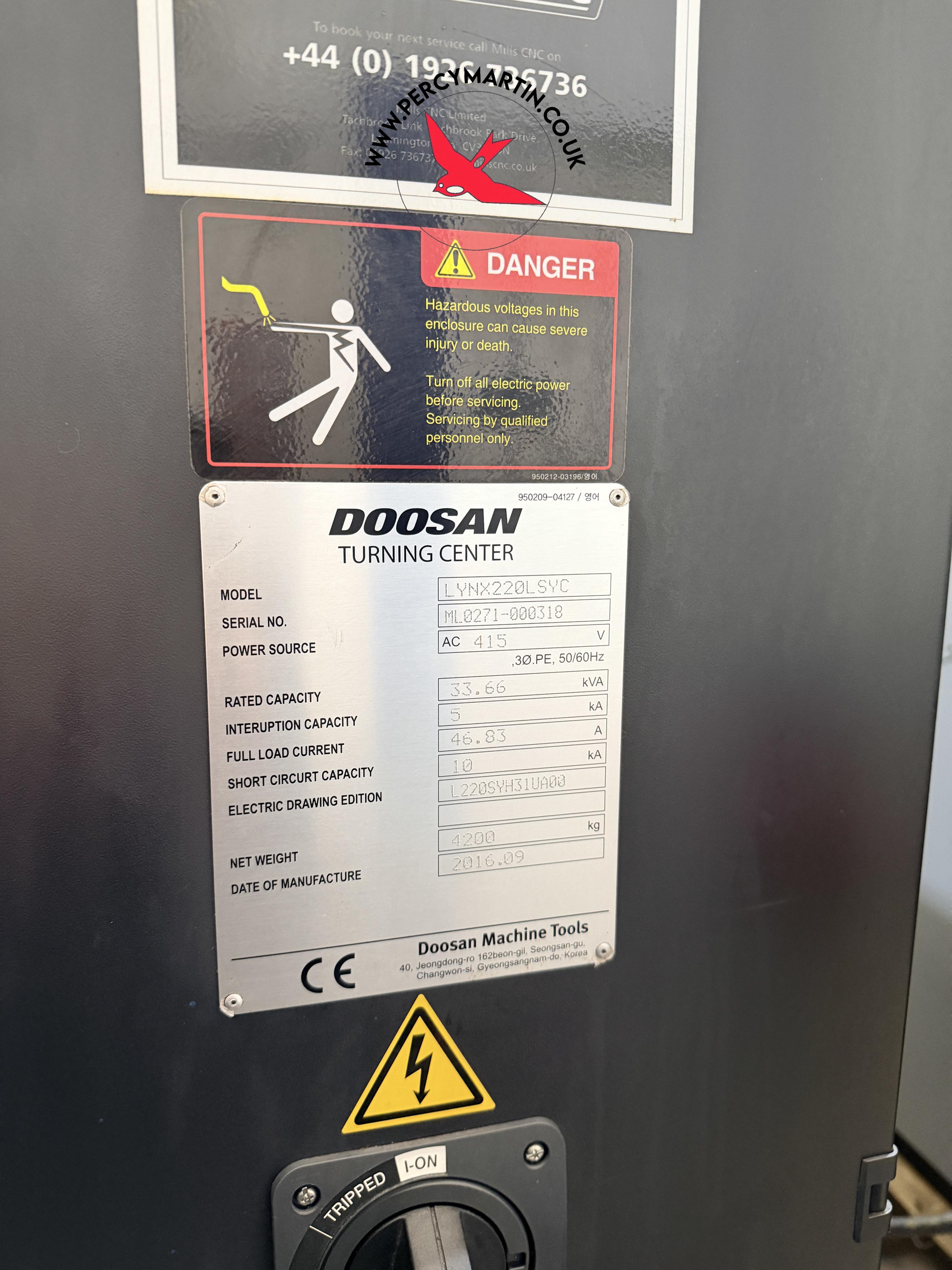

Serial No
ML0271-000318
Price
£POA
Our Reference
PM9712a
Location
Leicester
Doosan Lynx 220 LSYC 2016
Specifications
Bar Capacity
65mm
Boring Bar Holder Diameter
20mm
C axis
0.001 degree
Chuck Size
200mm (8")

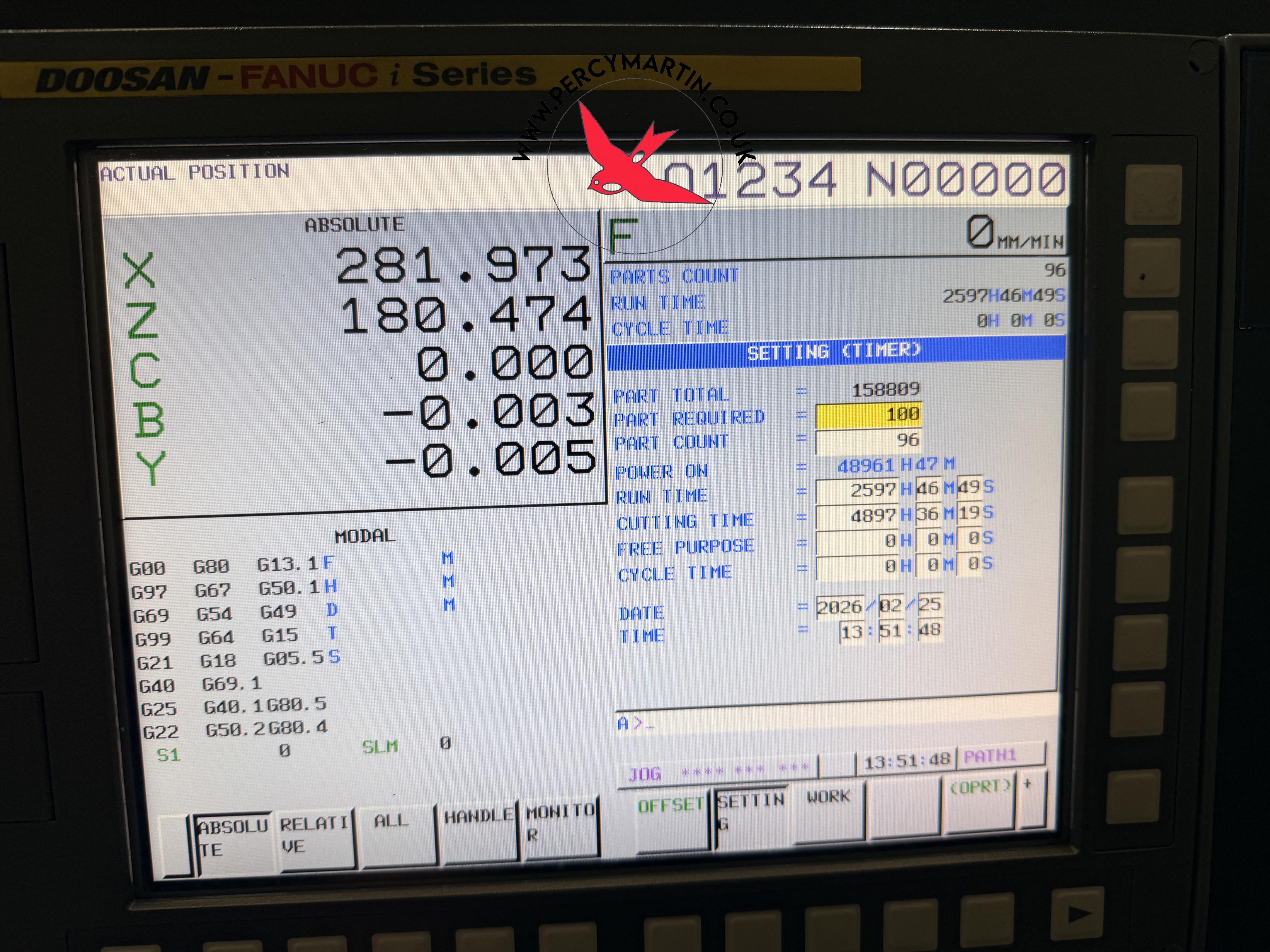

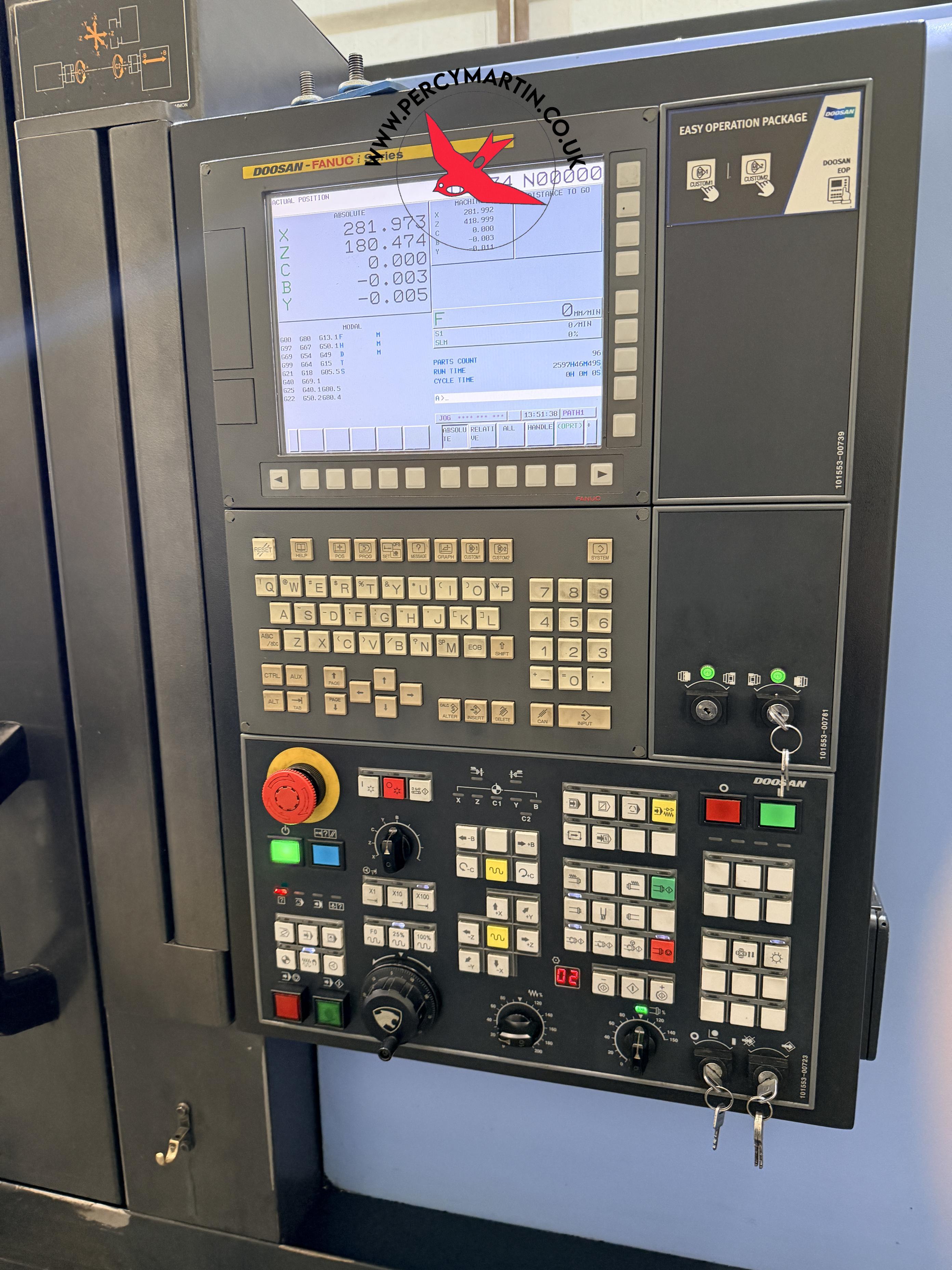

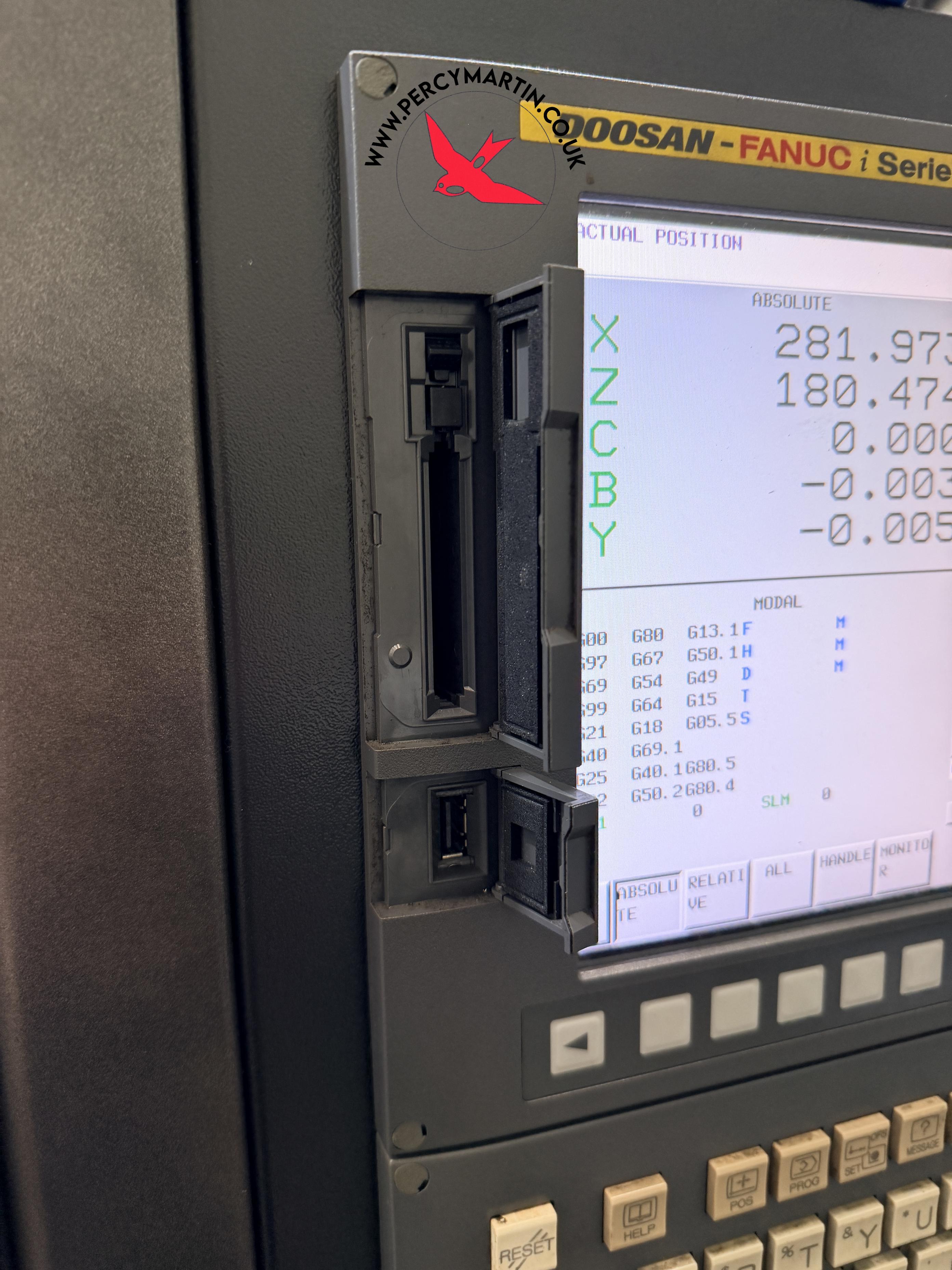

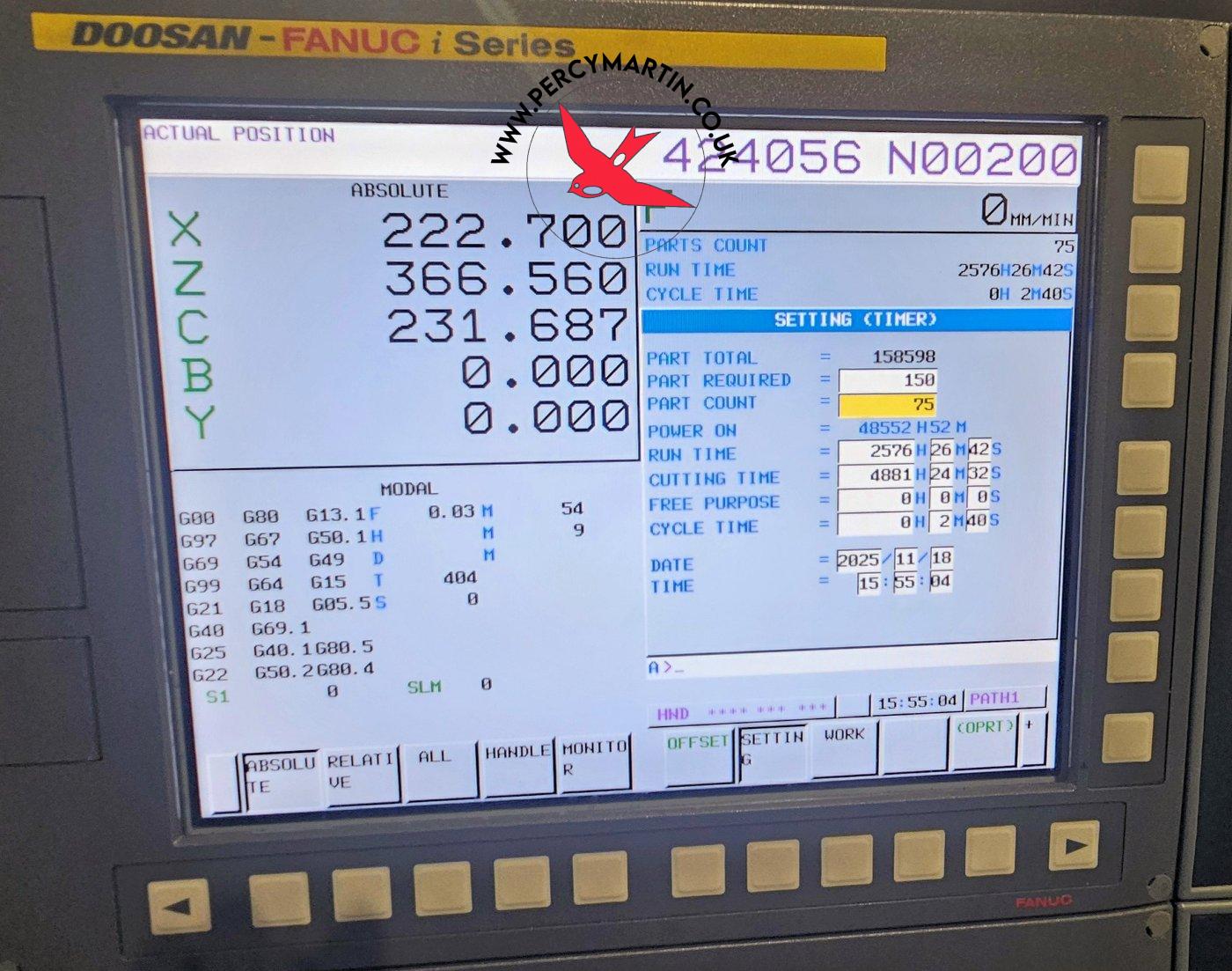

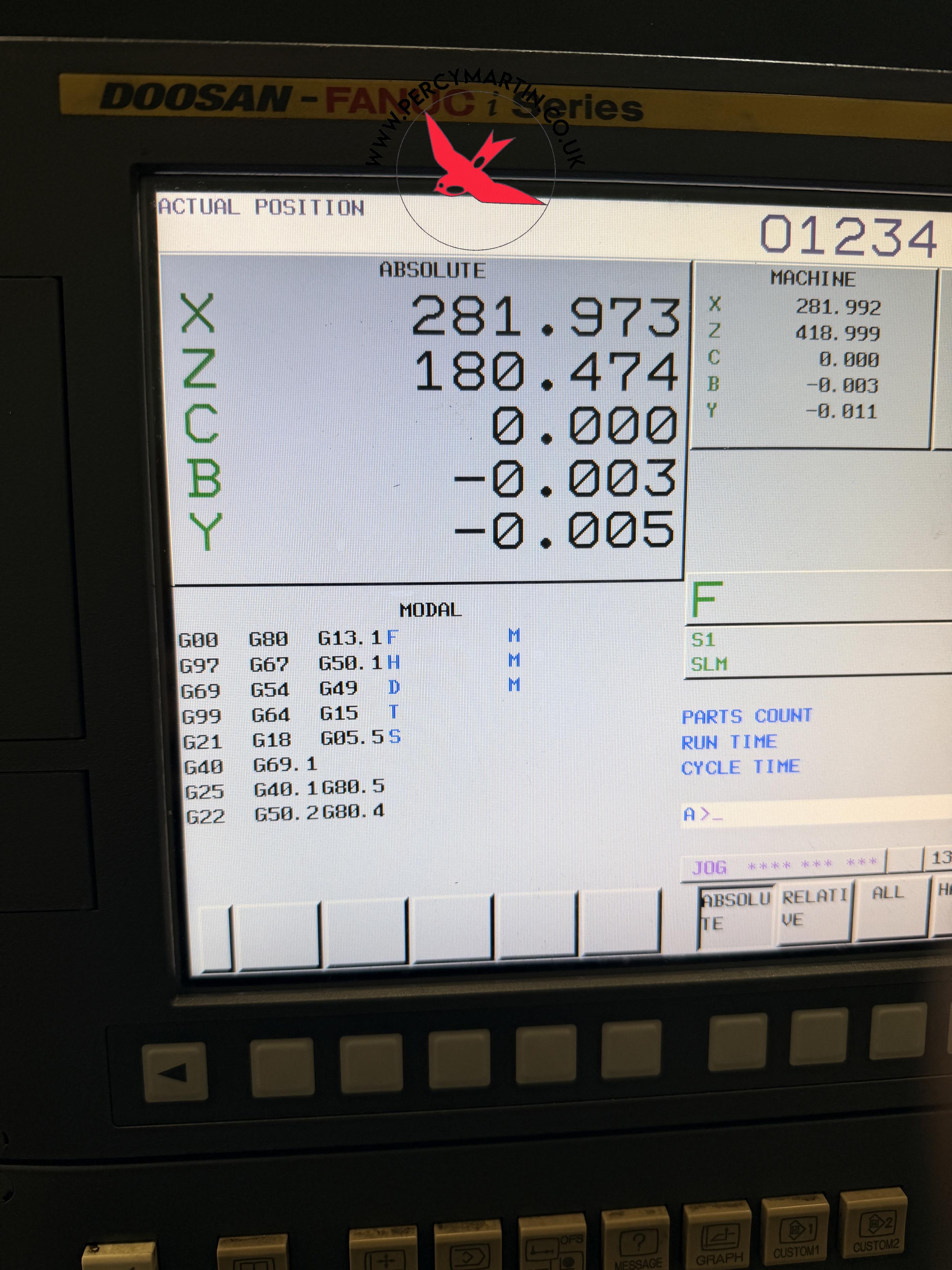

Control
FANUC i Series
Machine Dimensions
2880 x 1710 x 1920mm
Machine Weight
4150kg
Maximum Cutting Diameter
300mm
Maximum Cutting Length
510mm
Milling Motor Power
3.7kW
Milling RPM
6000rpm
Rapid Feedrates
XYZ: 30 x 10 x 36m/minute
Spindle Motor Power
15kW
Spindle Nose
A2-6
Spindle Speed
4500rpm
Standard Cutting Diameter
210mm

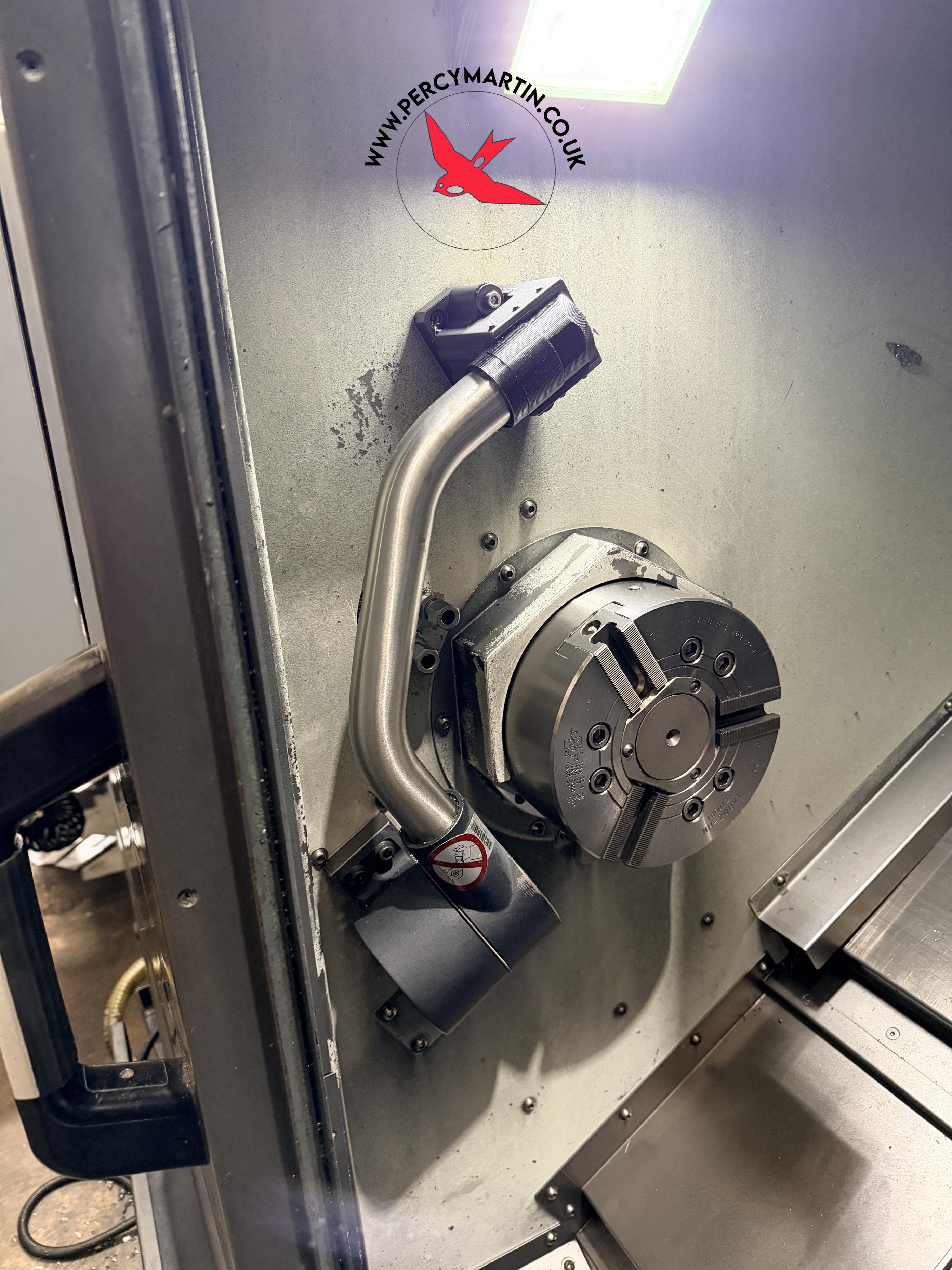

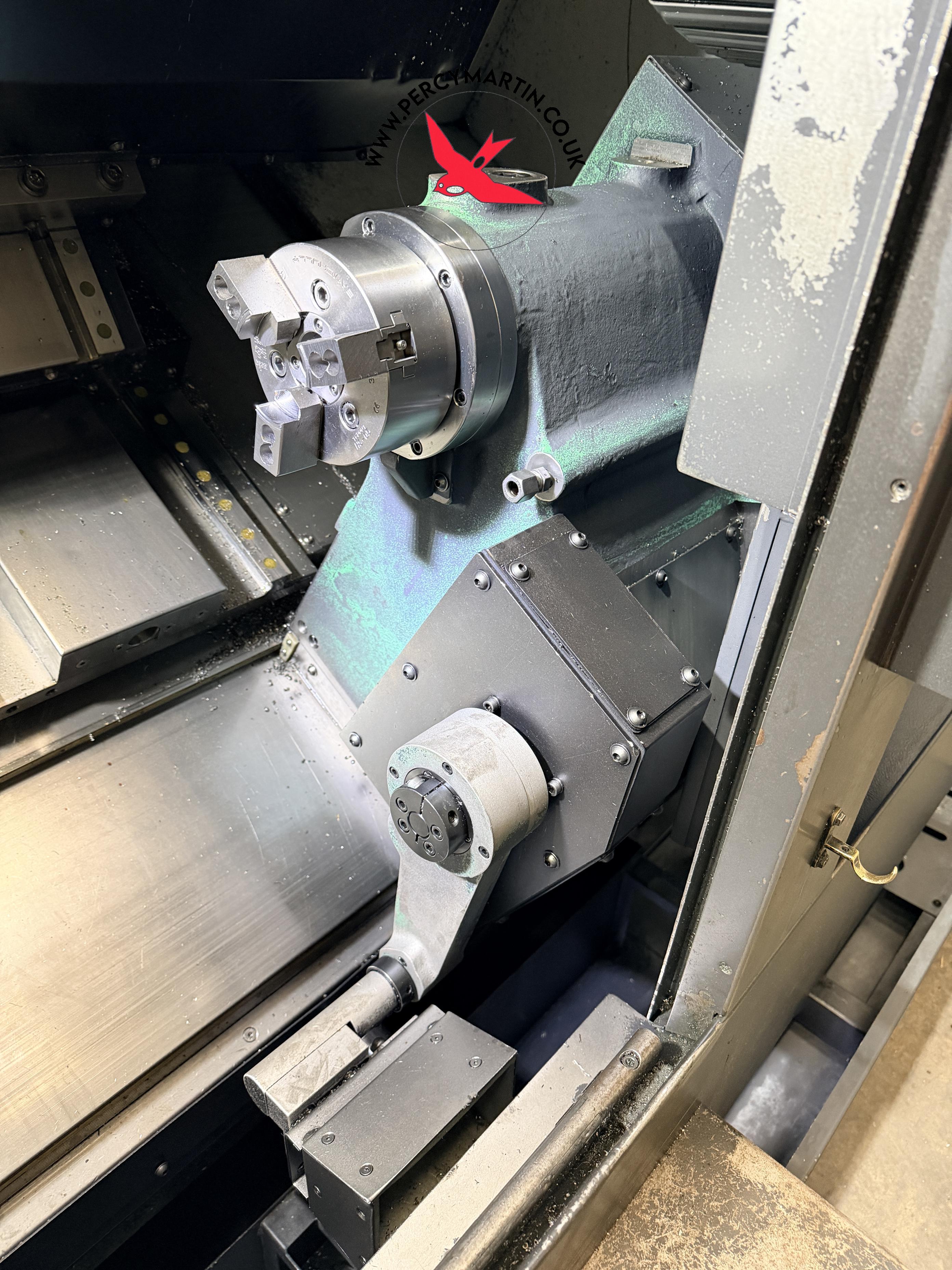

Sub Spindle C axis
0.001 degree

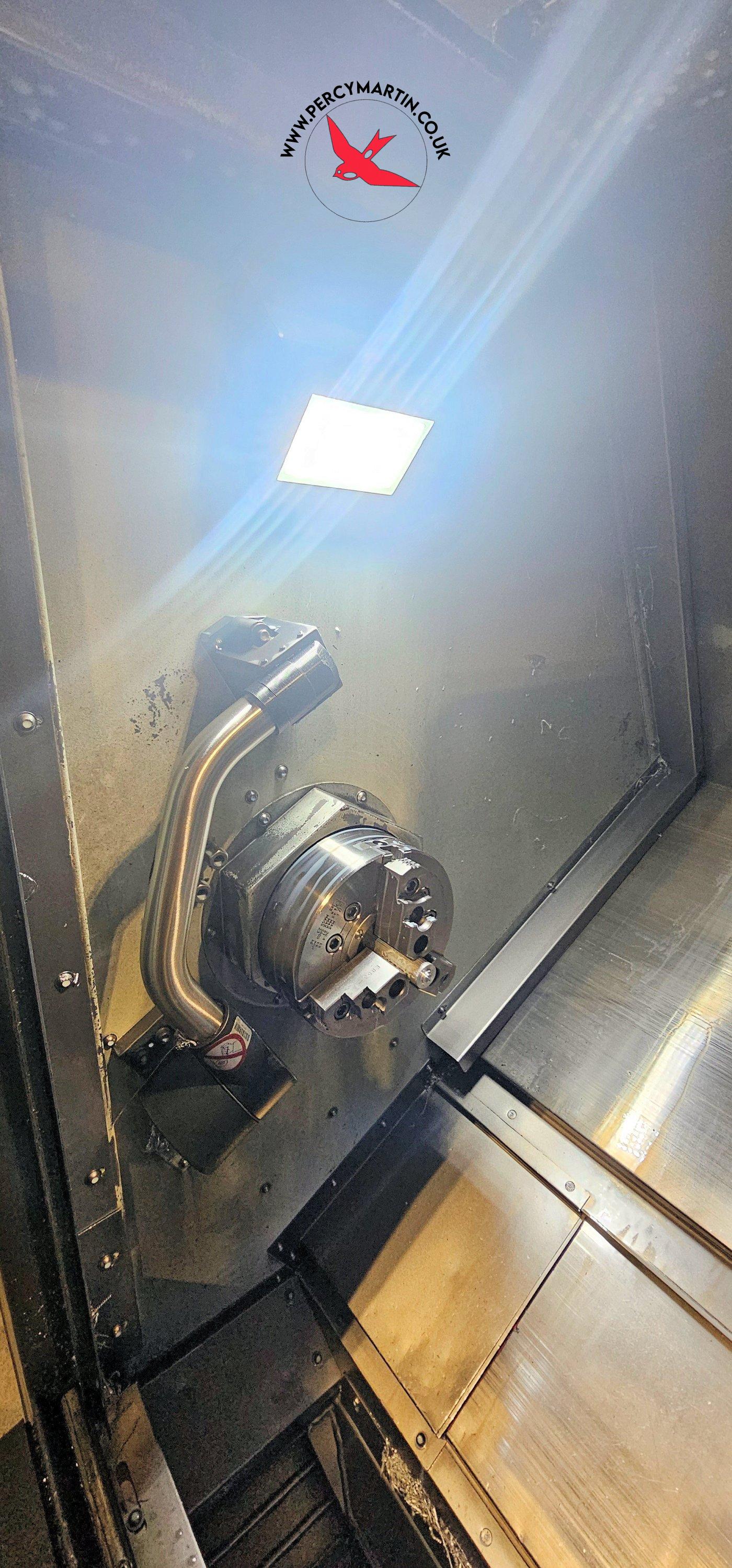

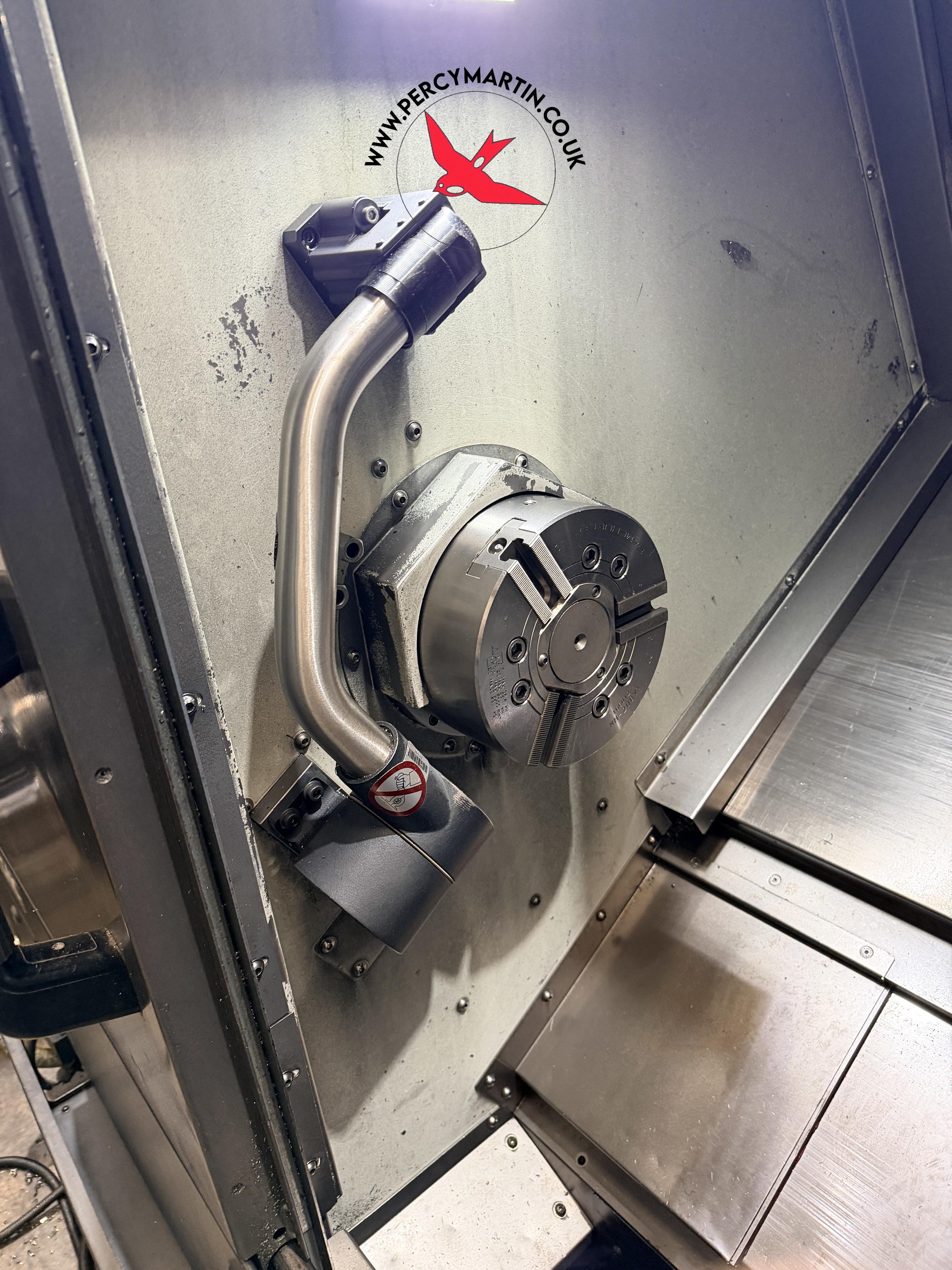

Sub Spindle Motor
5.5kW
Sub Spindle Speed
6000rpm
Swing
600mm
Swing over the Cross-slide
400mm
Tool Size
20 x 20mm

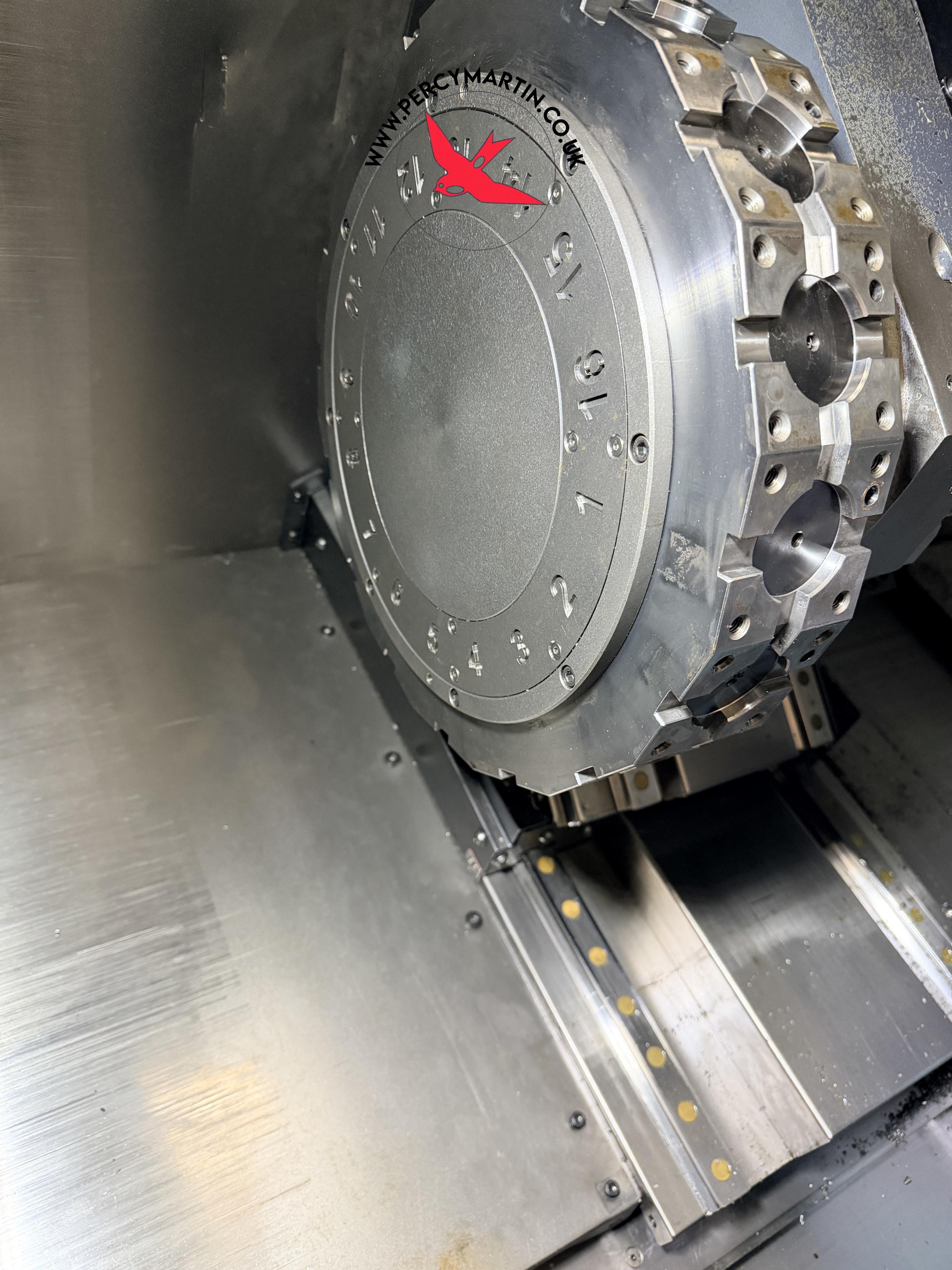

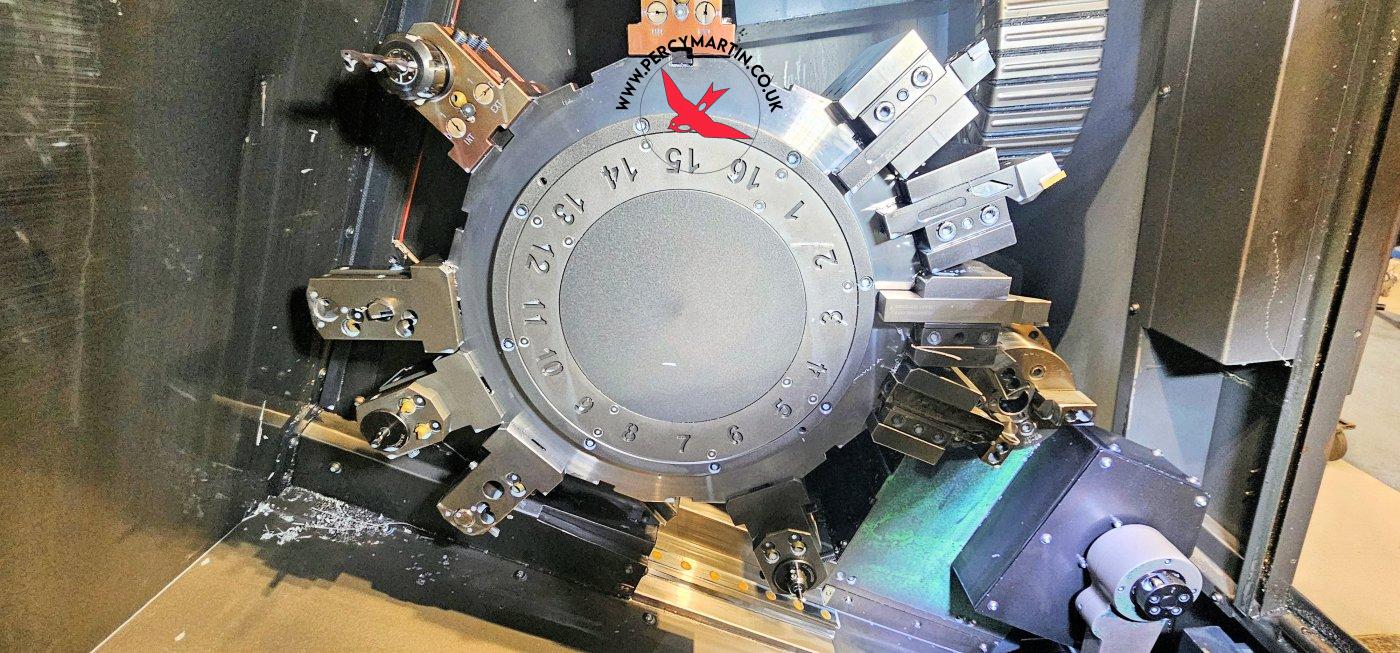

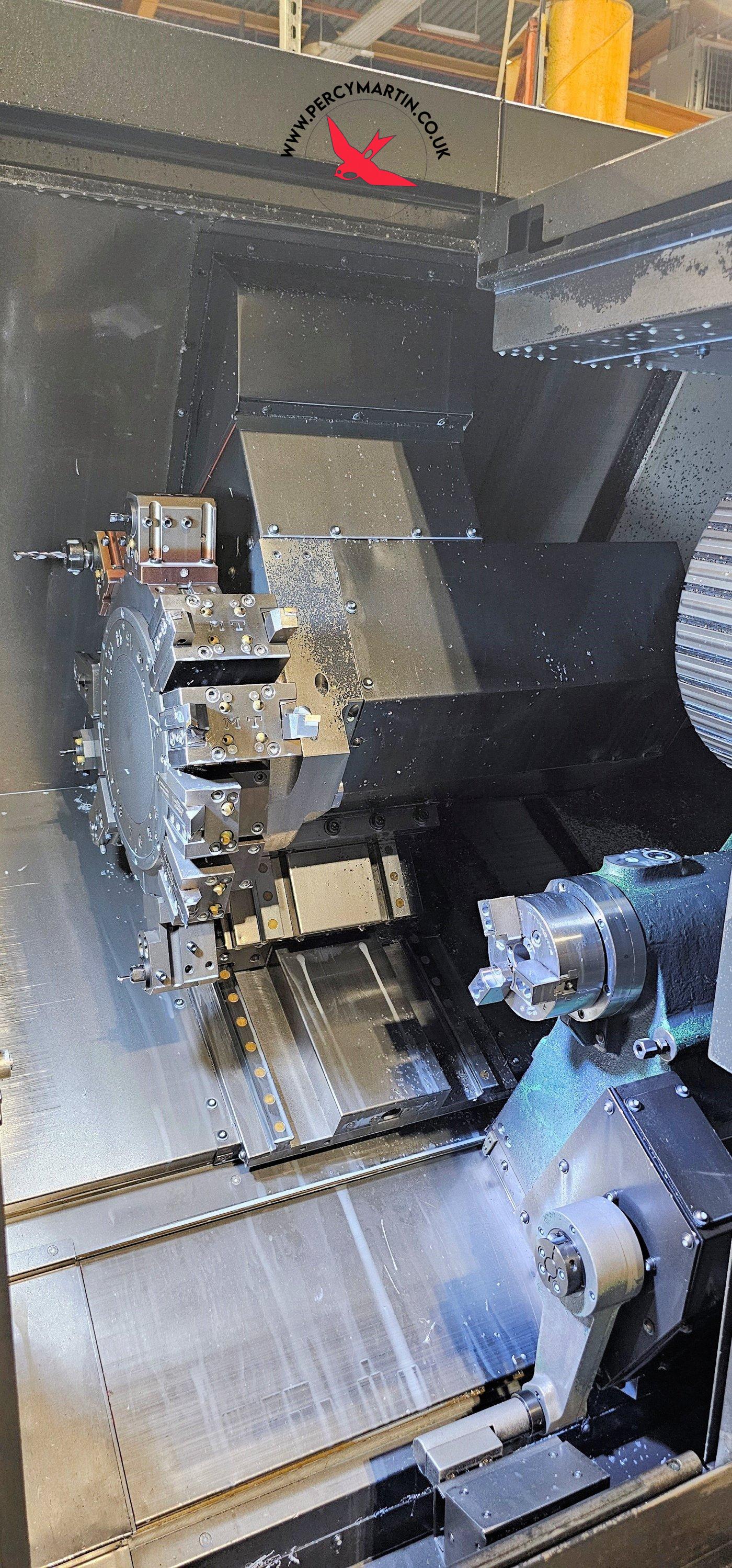

Turret Positions
16 Station
X axis Travel
205mm
Y axis Travel
+/-52.5mm
Z axis Travel
560mm
