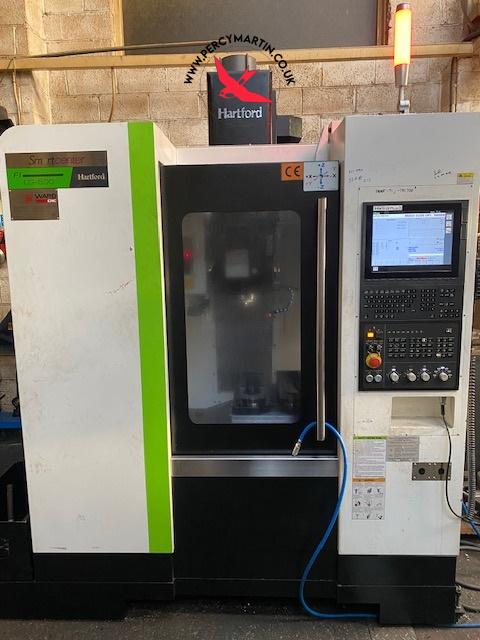

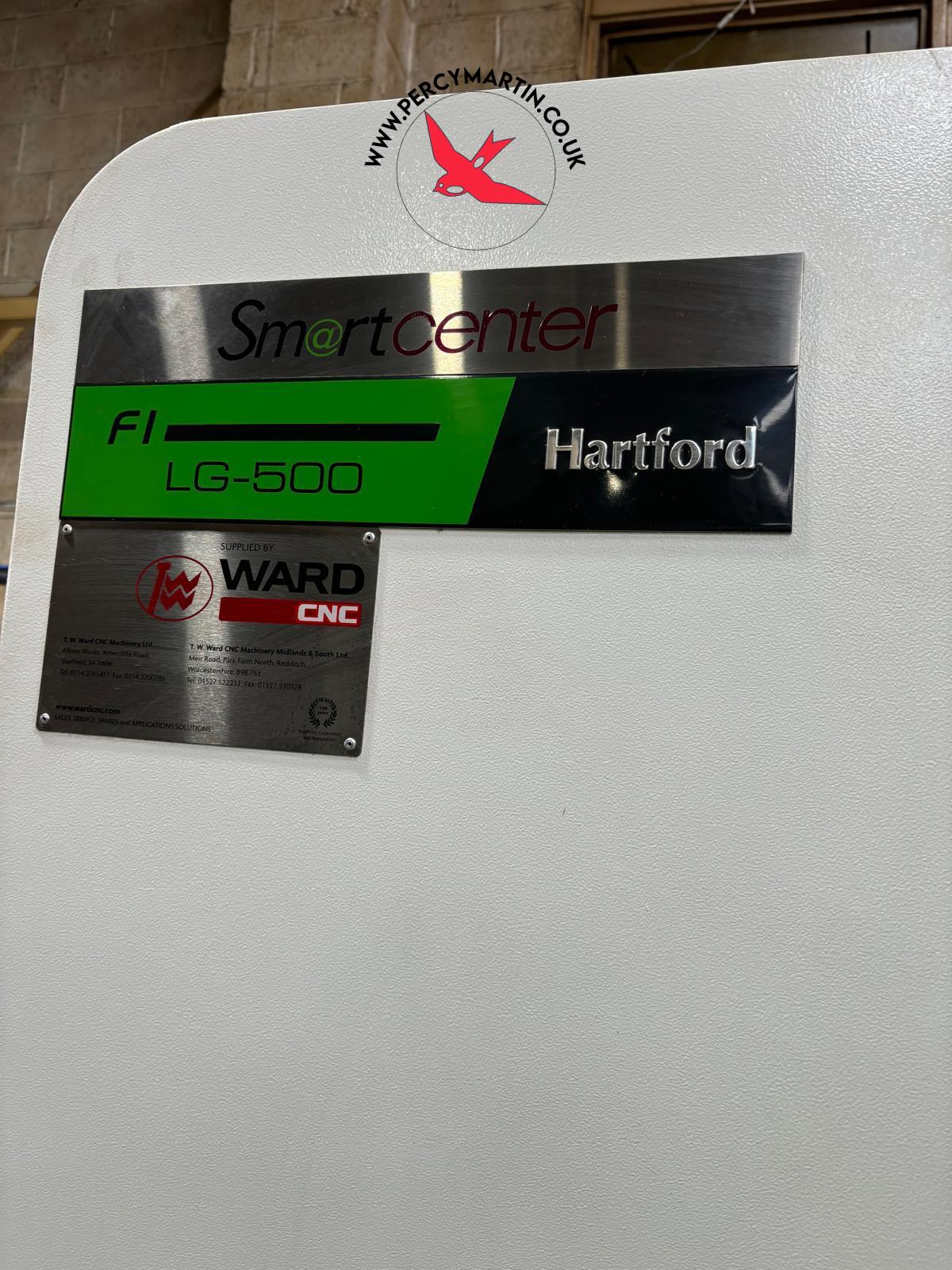

Hartford LG-500 2018

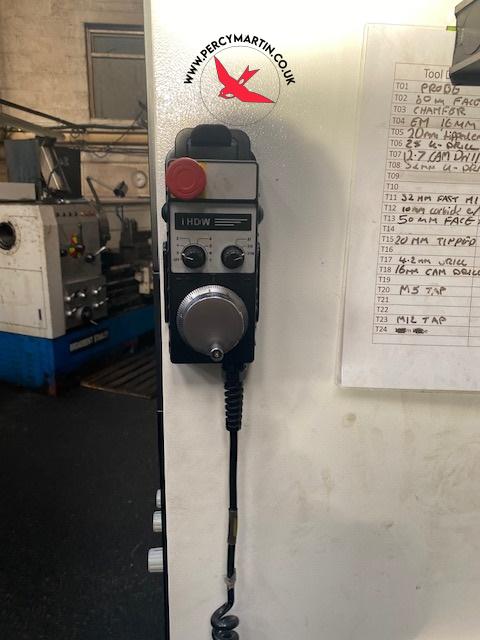

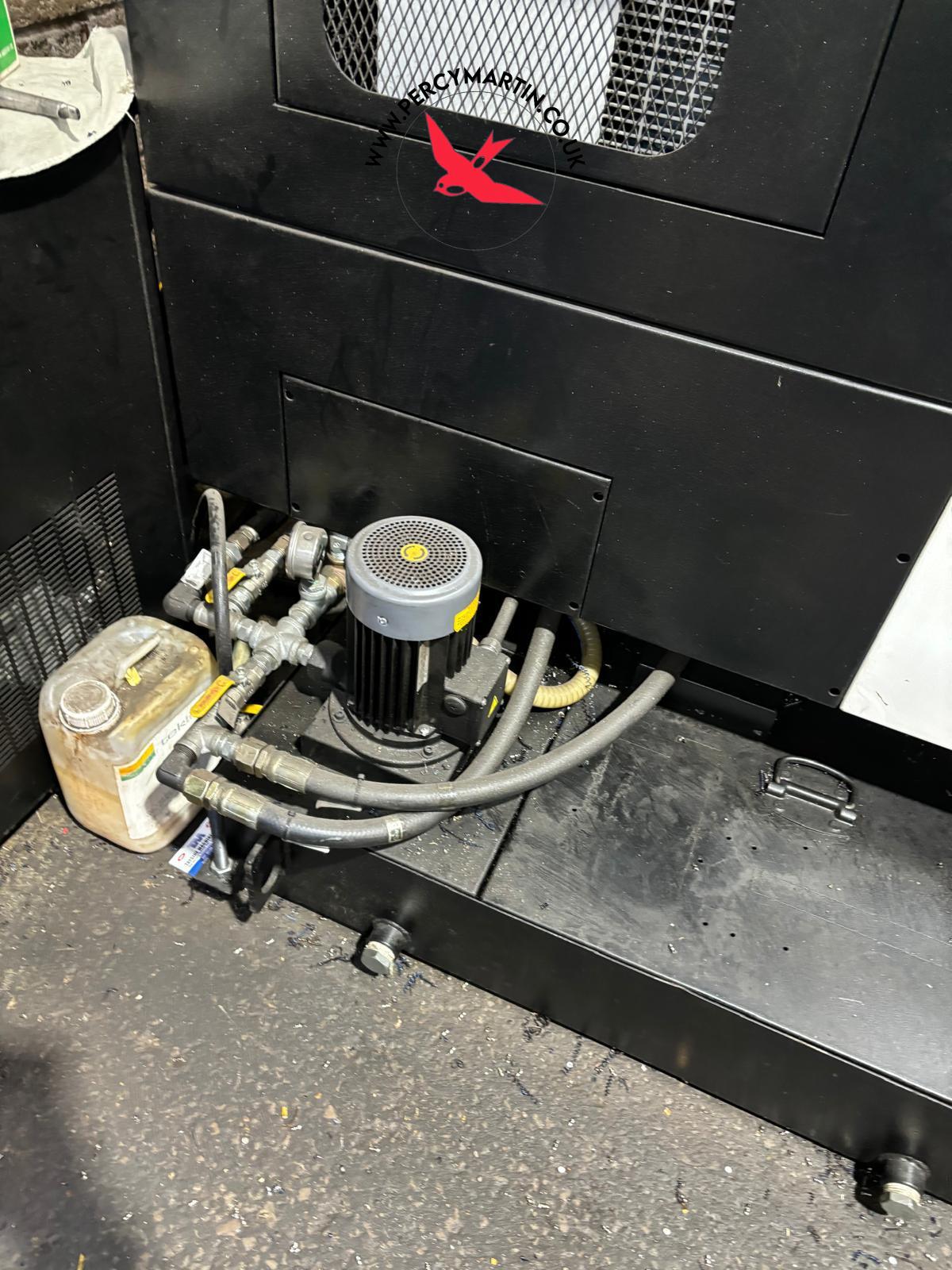

Coolant , Interlocked guards , Low Volt Light , Remote Hand Wheel
Key Features Gallery Specifications More in Stock Register Interest
Hartford LG-500 2018

Key Features

Type:

All Products

Model:

LG-500

Make:

Hartford

Year:

2018

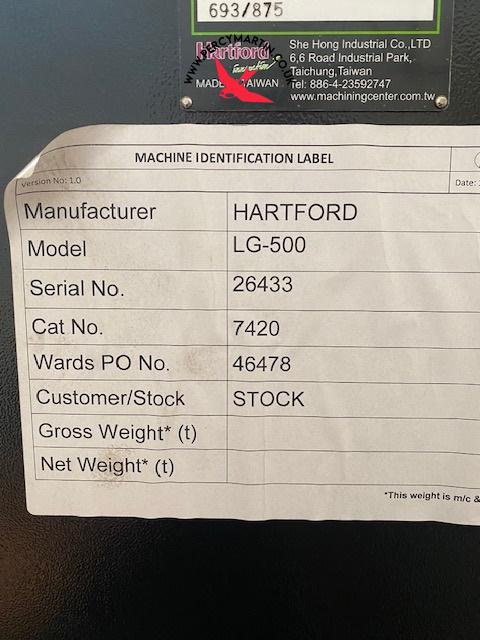

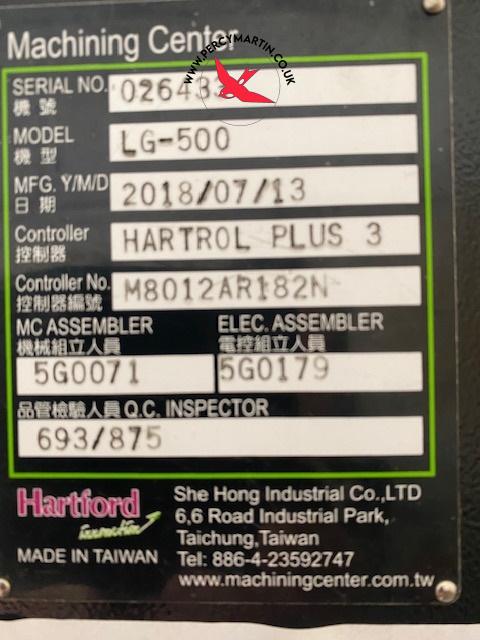

Serial No

026433

Price

£POA

Our Reference

PM9370

Location

Leicester

Hartford LG-500 2018

Specifications

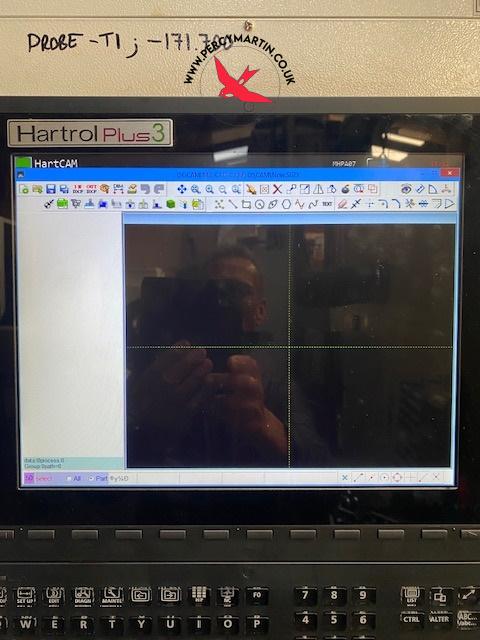

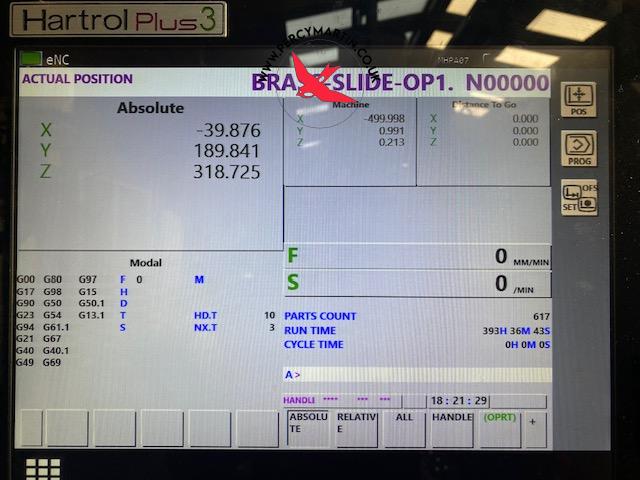

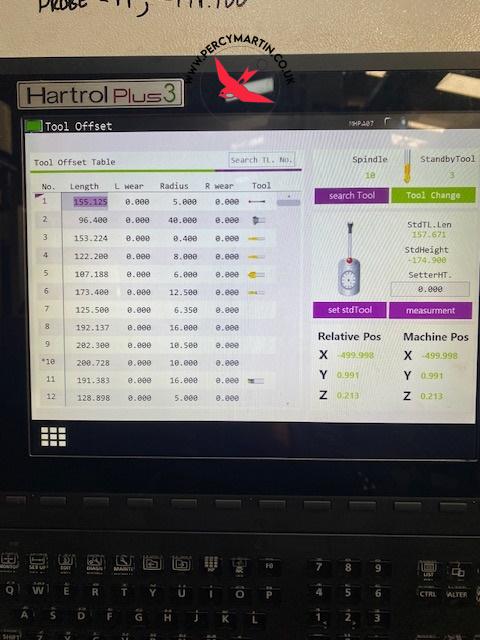

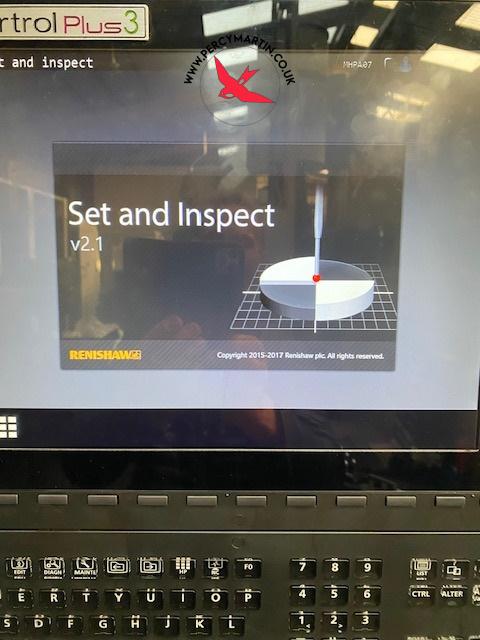

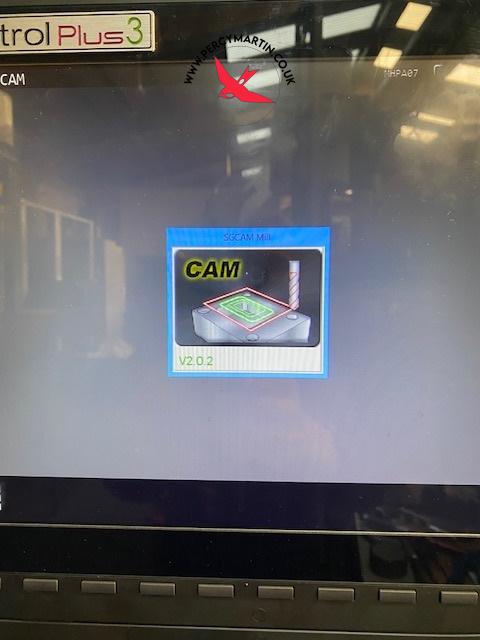

Control

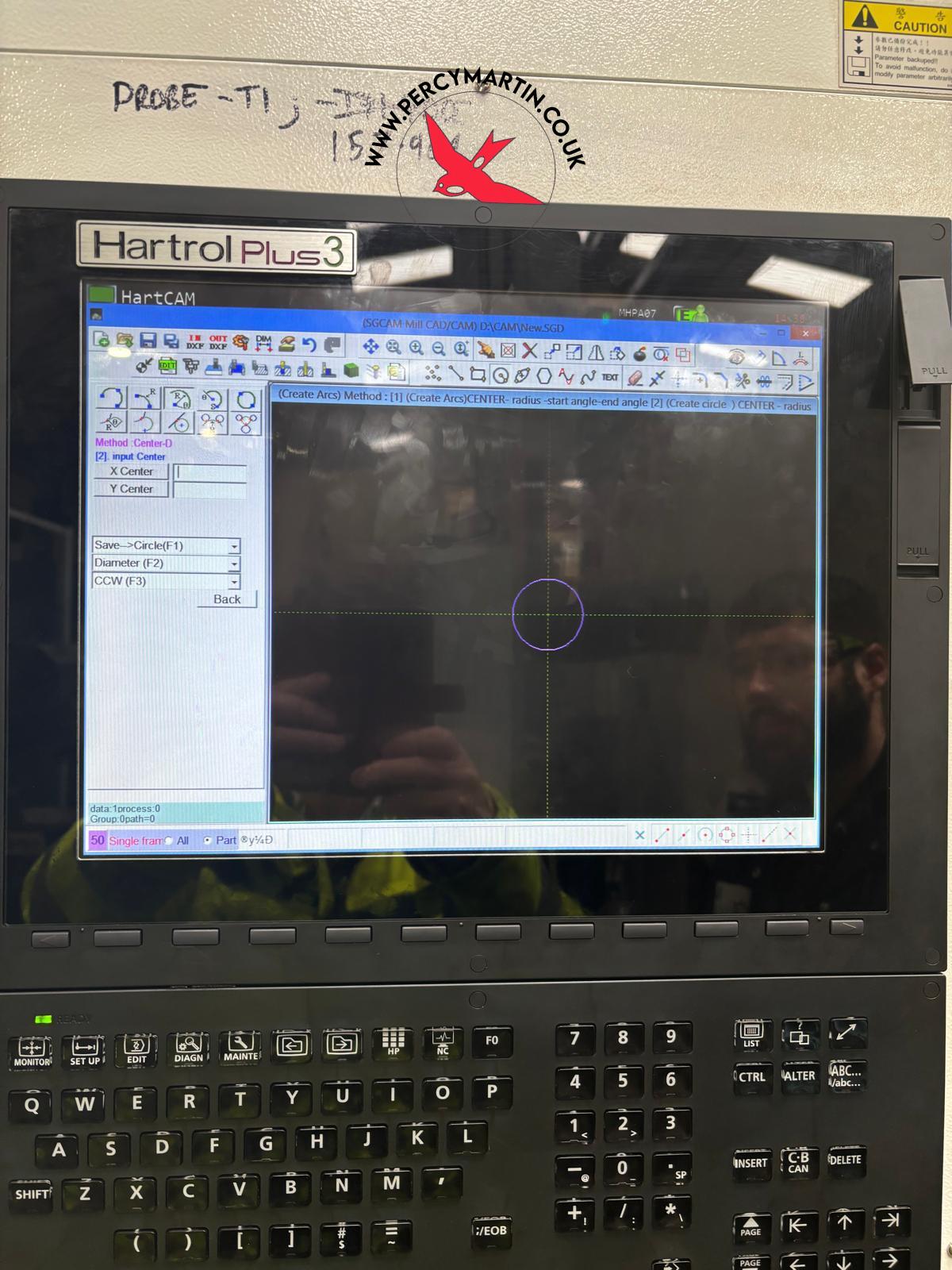

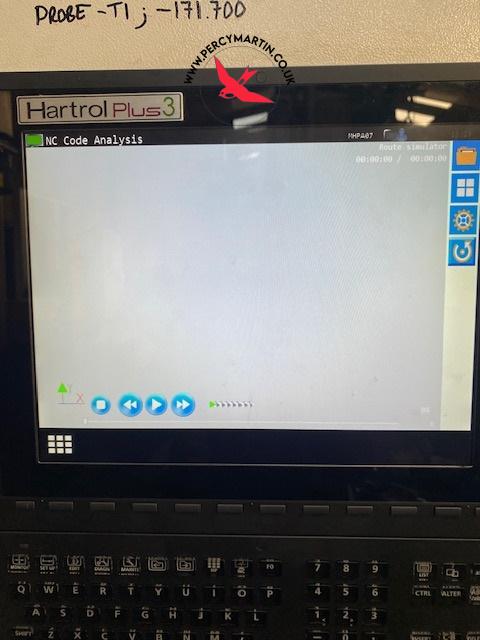

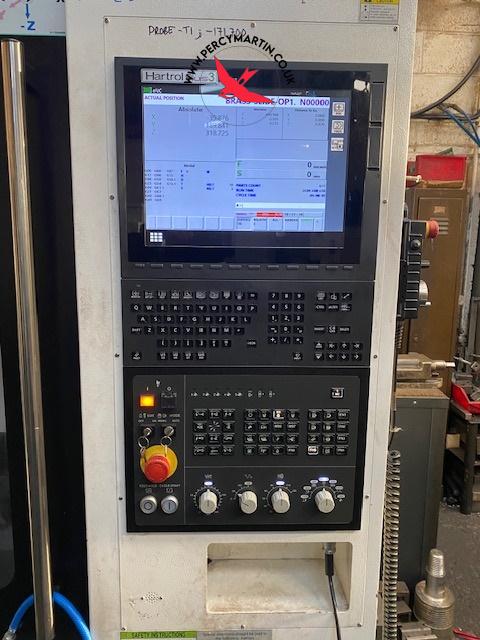

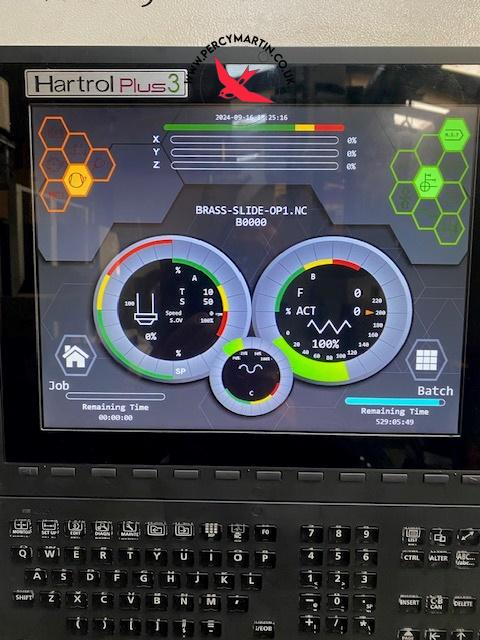

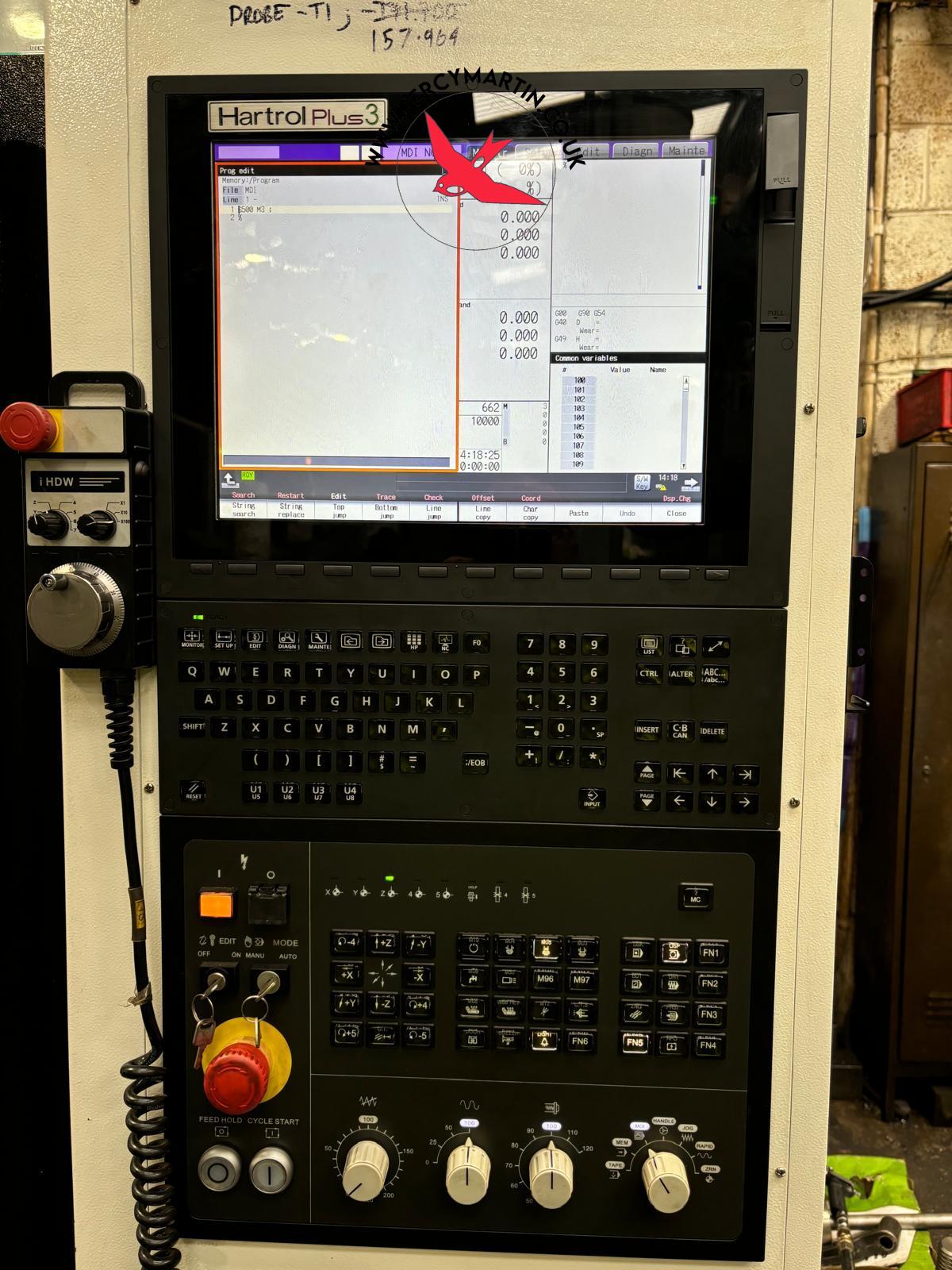

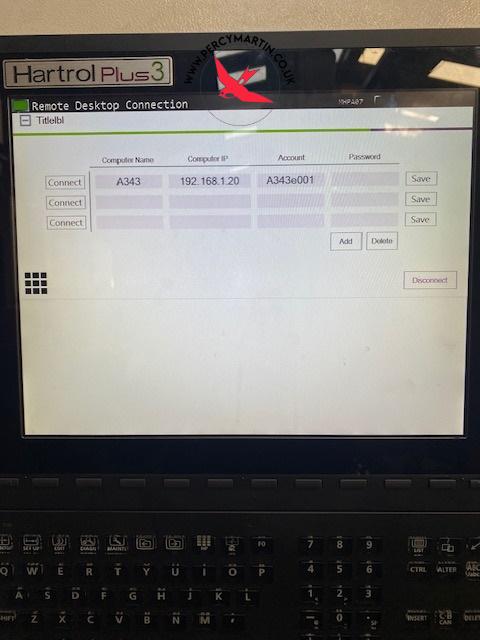

Hartrol Plus 3

Distance from Spindle Centre to Column

460mm

Machine Dimensions

2155 x 2155 x 2140mm

Machine Weight

3919kg

Maximum Tool Diameter

80mm

Maximum Tool Length

200mm

Maximum Tool Weight

7kg

Maximum workpiece weight

300kg

Min - Max Height under Spindle

100 ~ 550mm

Rapid Feedrates

XYZ: 30 x 30 x 24m/minute

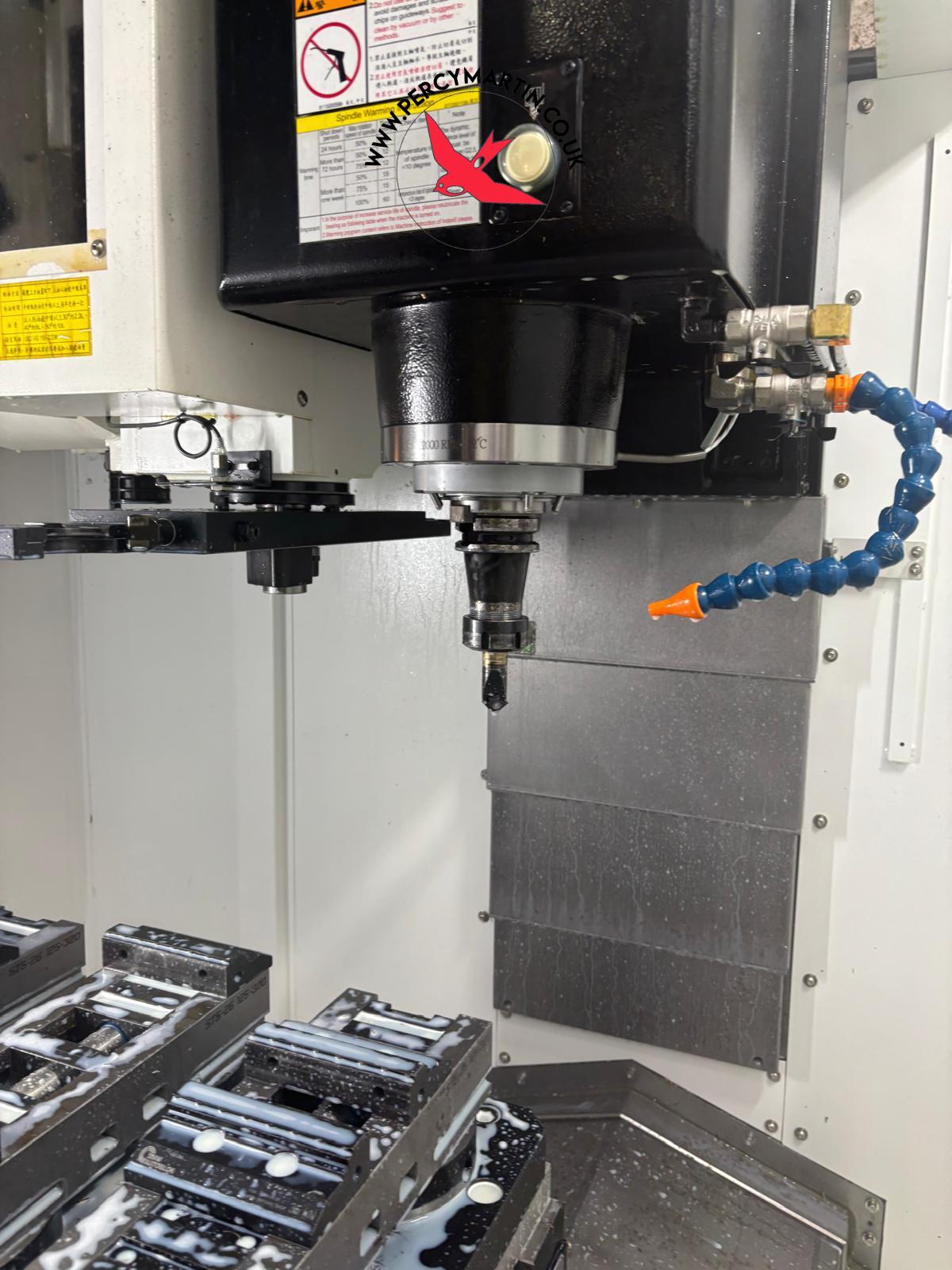

Spindle Motor Power

7.5/5.5kW

Spindle Speed

12000rpm

T- Slots

3 x 18mm

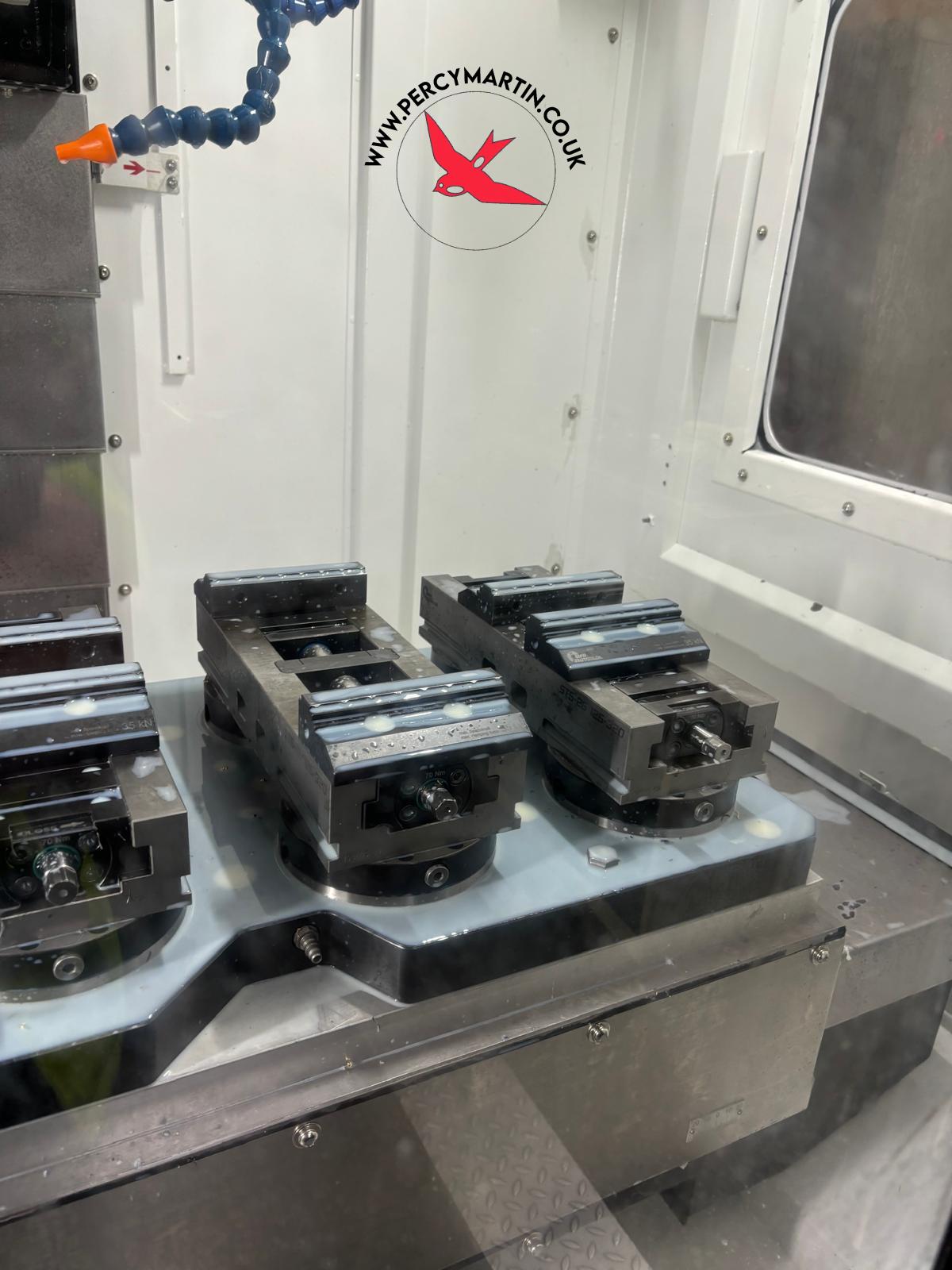

Table Size

620 x 420mm

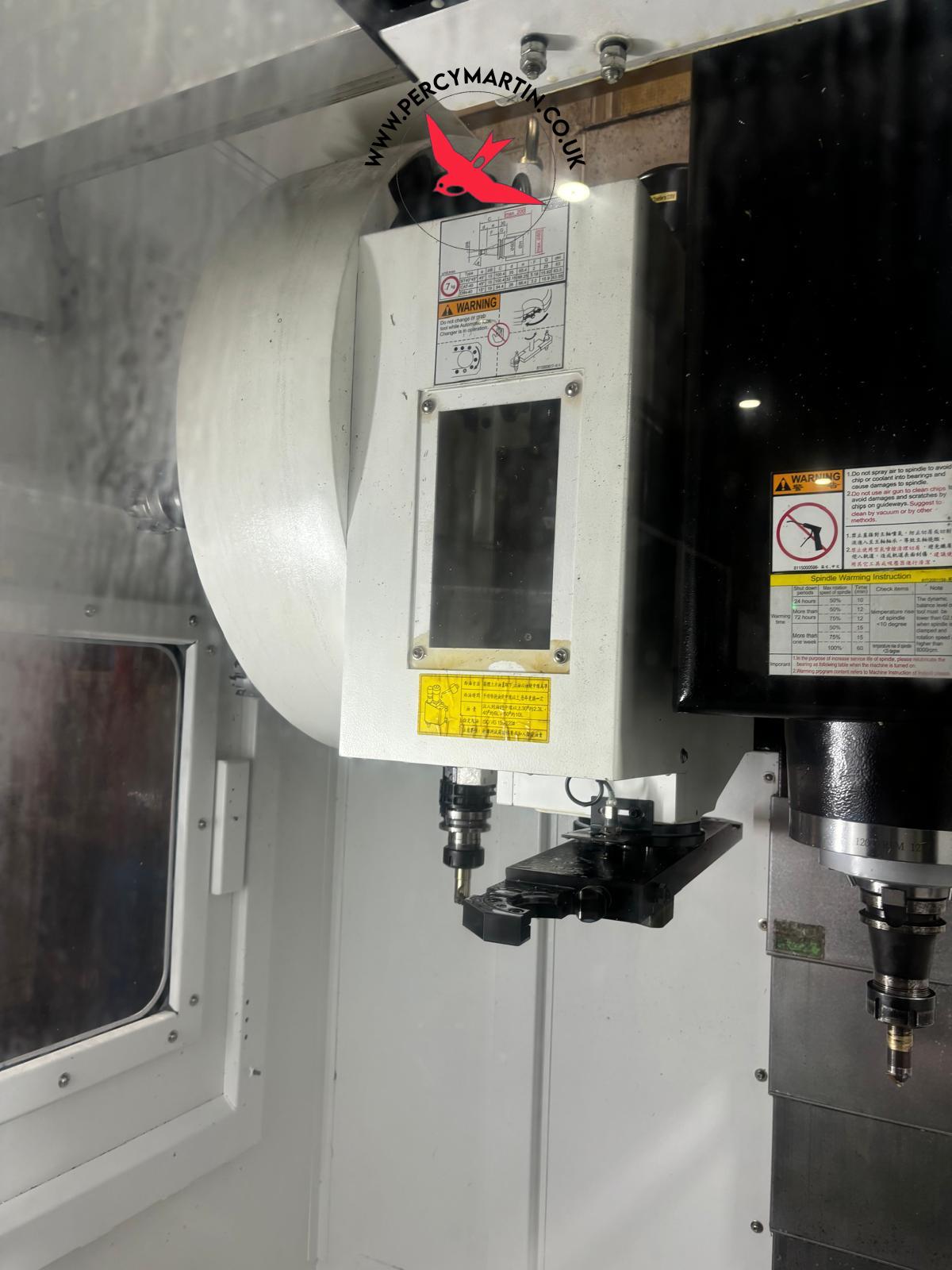

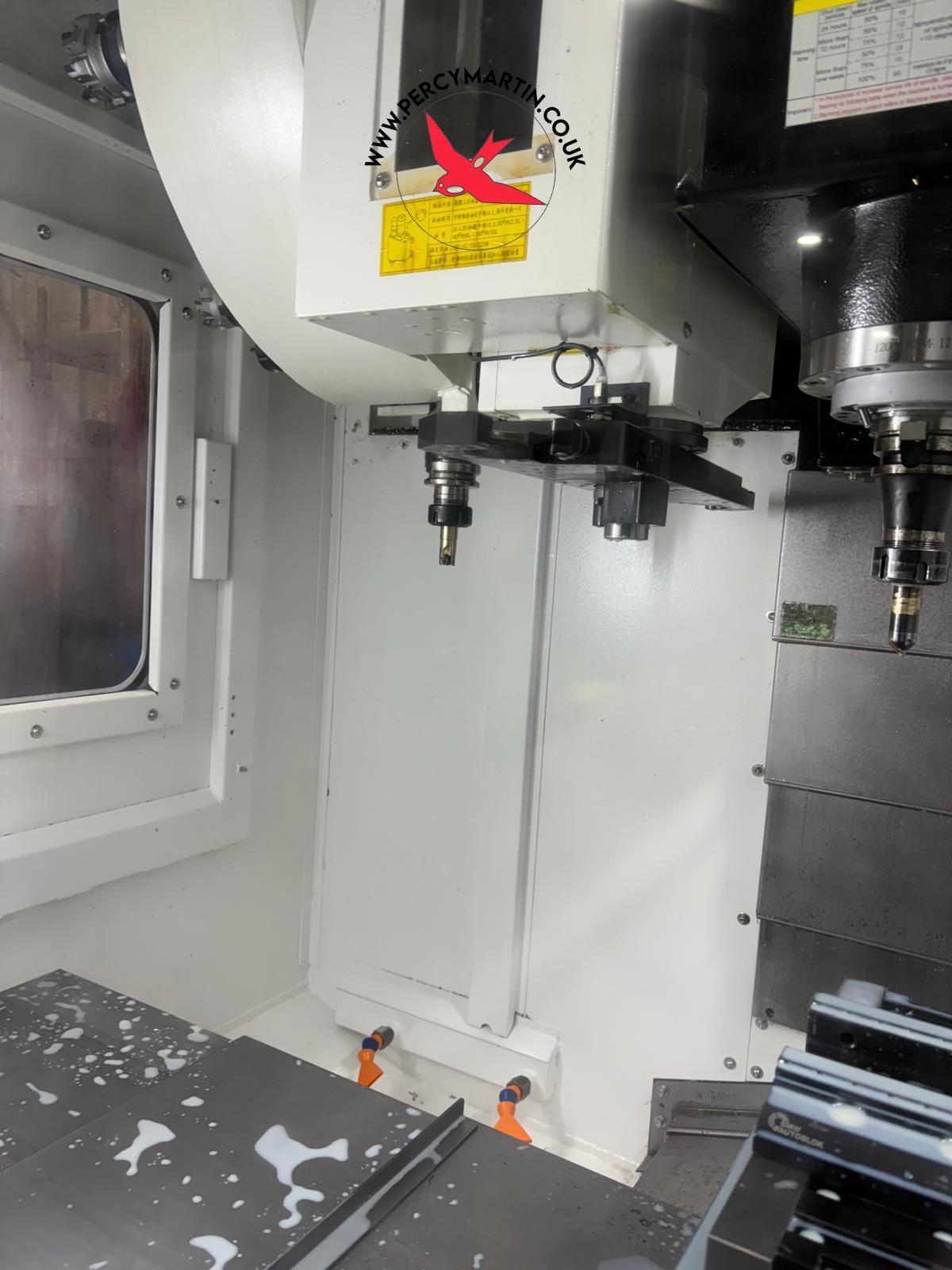

Tool Change Capacity

24 Station

Tool Size

BIG BBT40

Traverses XYZ

520 x 420 x 450mm
