Mazak Integrex E-500H-II 2008

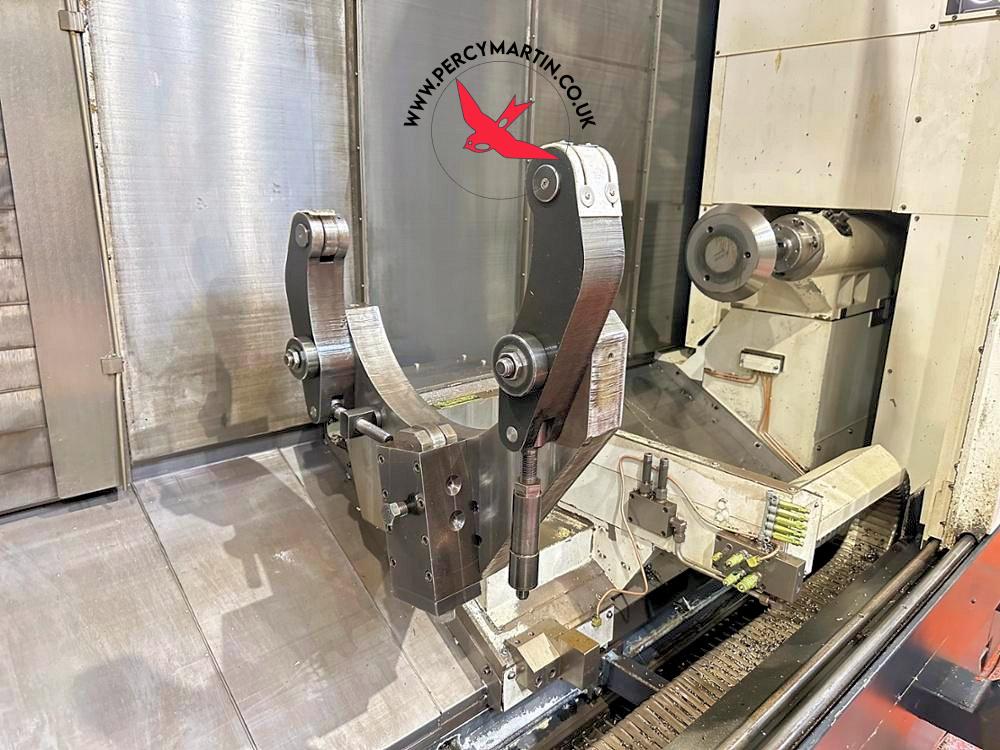

3 Jaw Chuck , B axis , C axis & Milling , Coolant , Fixed Steady , Interlocked guards , Low Volt Light , Remote Hand Wheel , Swarf Conveyor , Tailstock , Tooling , Y-axis
Key Features Gallery Specifications More in Stock Register Interest

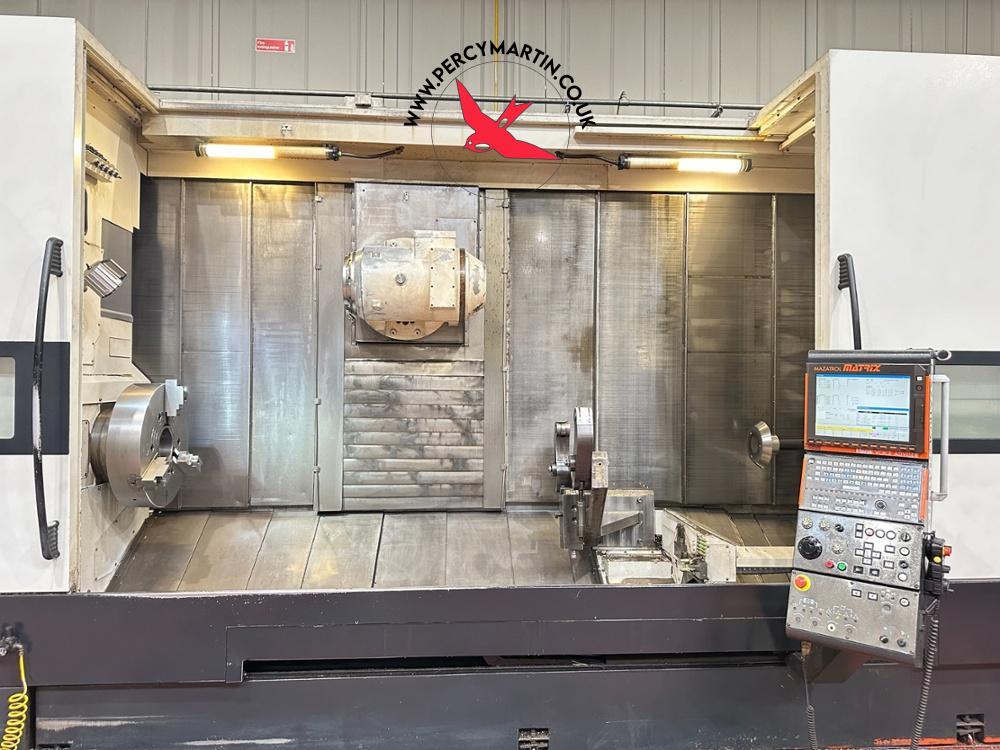

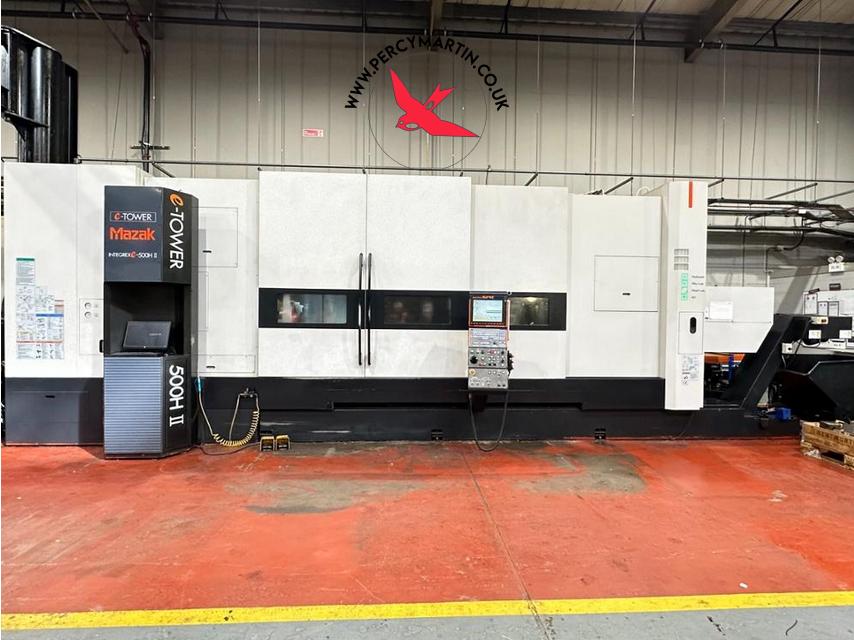

Mazak Integrex E-500H-II 2008

Key Features

Type:

All Products

Model:

Integrex E-500H-II

Make:

Mazak

Year:

2008

Serial No

204074

Price

£POA

Our Reference

PM9179c

Location

Leicester

Mazak Integrex E-500H-II 2008

Specifications

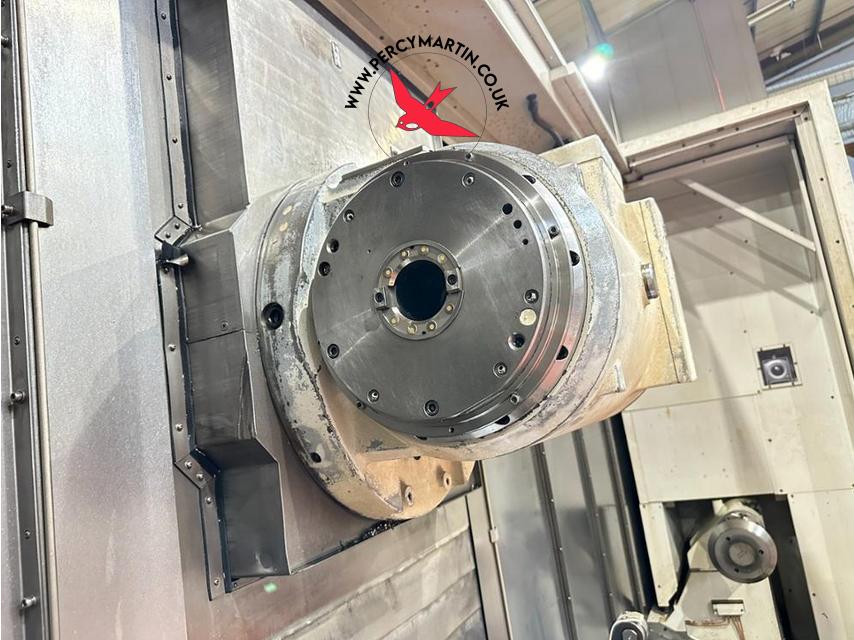

B Axis

-30 / +210 °

C axis

0.001 degree

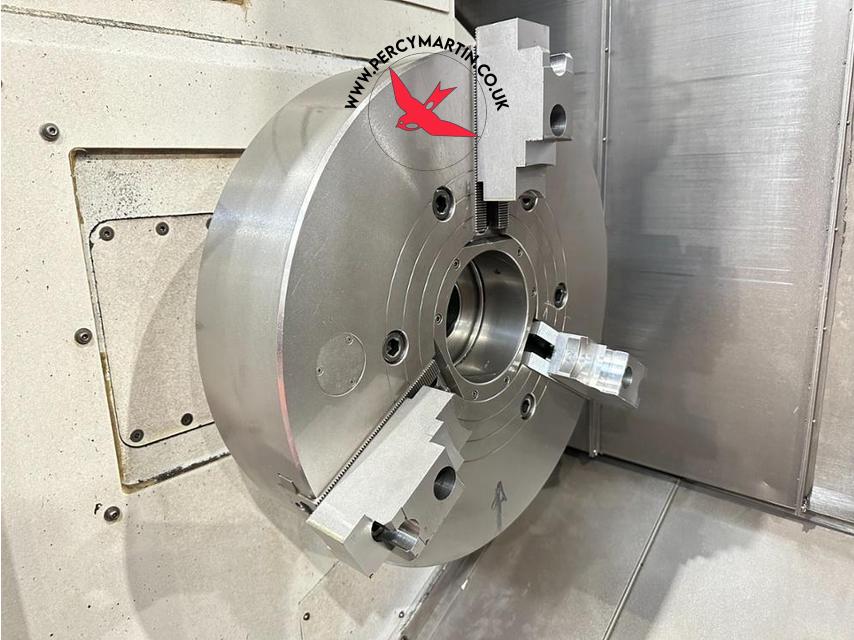

Chuck Size

610mm

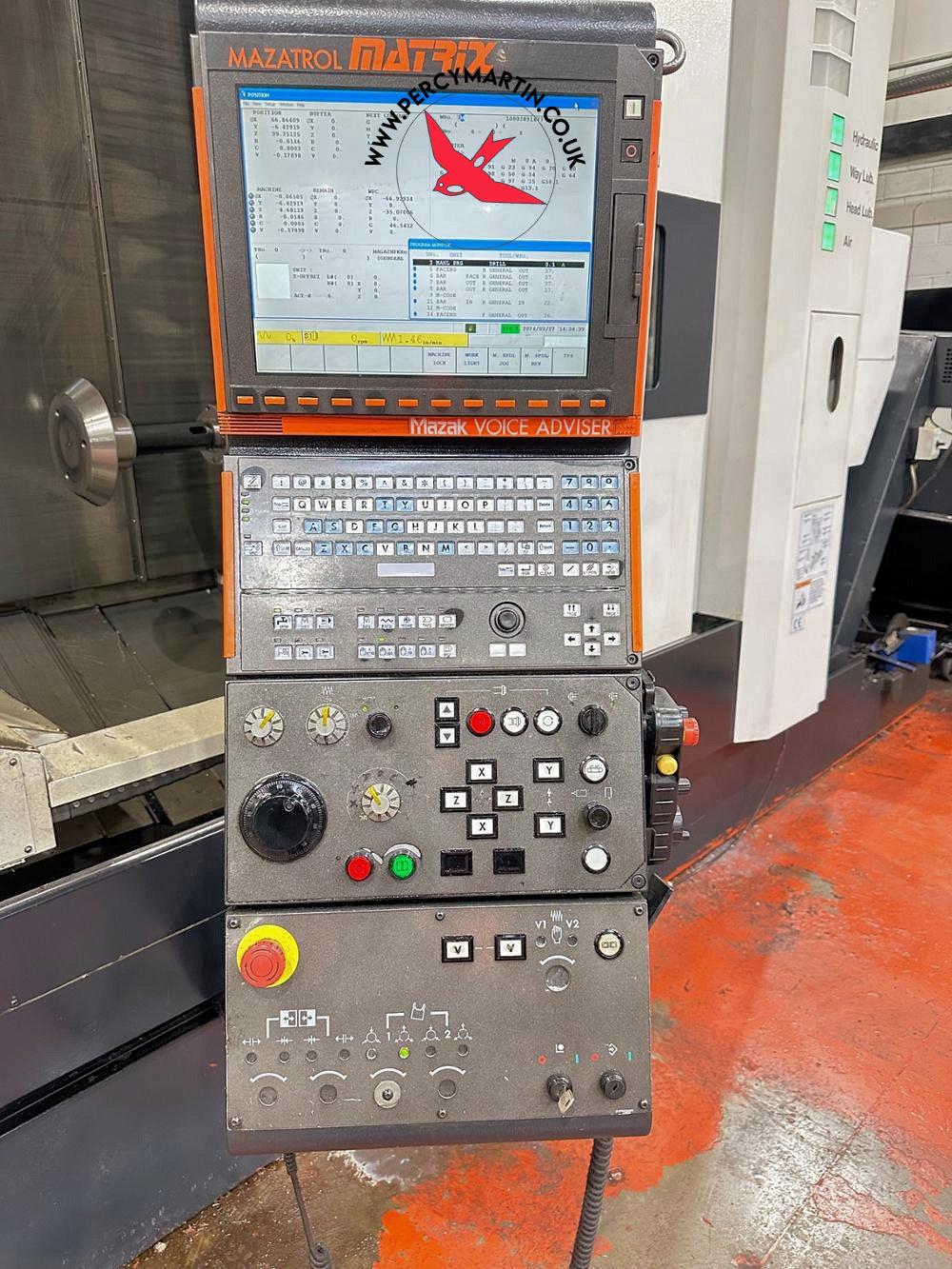

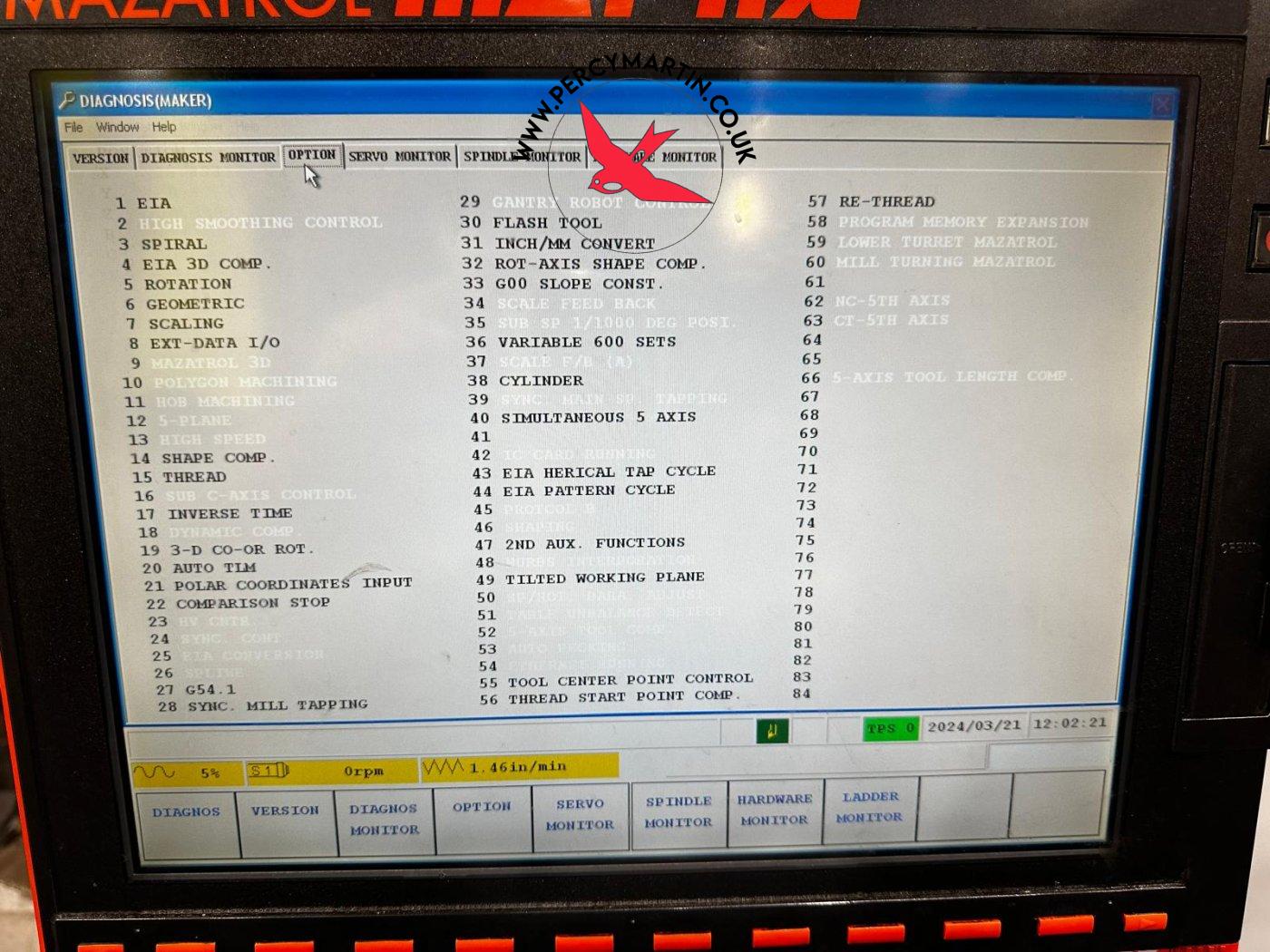

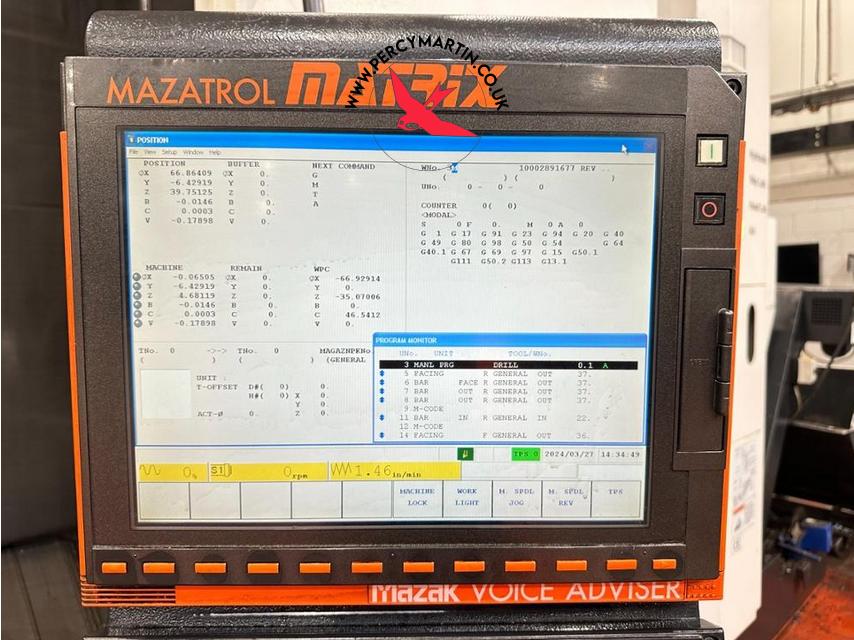

Control

MAZATROL MATRIX

Machine Dimensions

9500 x 3675 x 3160mm

Machine Weight

26000kg

Maximum Cutting Diameter

820mm

Maximum Cutting Length

3048mm

Milling Motor Power

37Kw

Milling RPM

10000rpm

Number of Axis Controlled

5 Simultaneous

Spindle Nose

A2-11

Spindle Speed

1600rpm

Swing

817mm

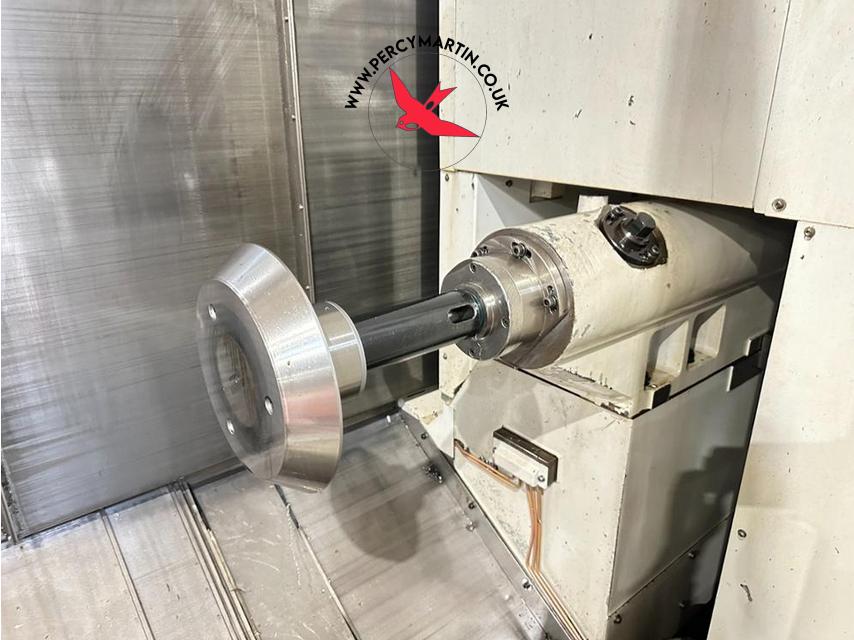

Tailstock Body Travel

3528mm

Tailstock Taper

MT #5

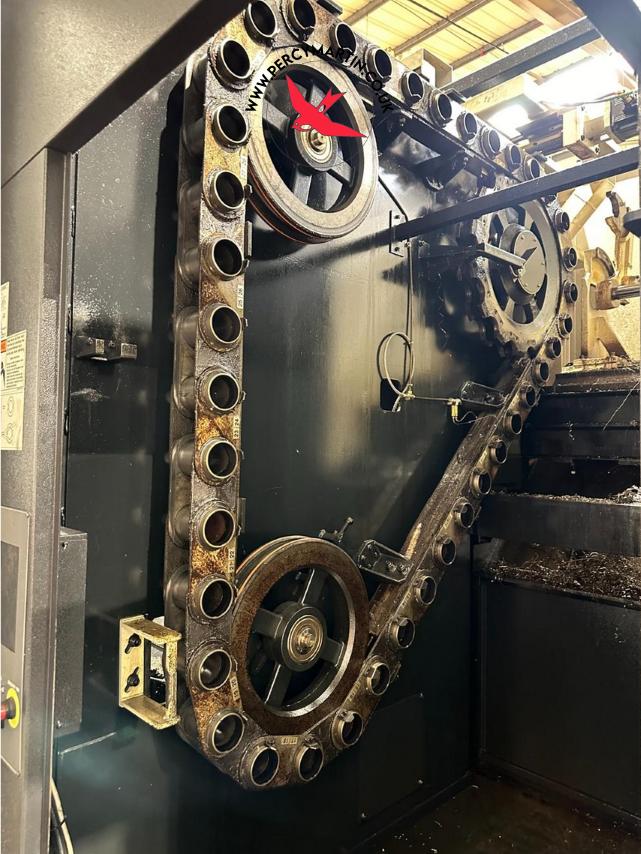

Tool Change Capacity

40 Station

Tooling Configuration

DIN50

X axis Travel

870mm

Y axis Travel

+/-250mm

Z axis Travel

3122mm
